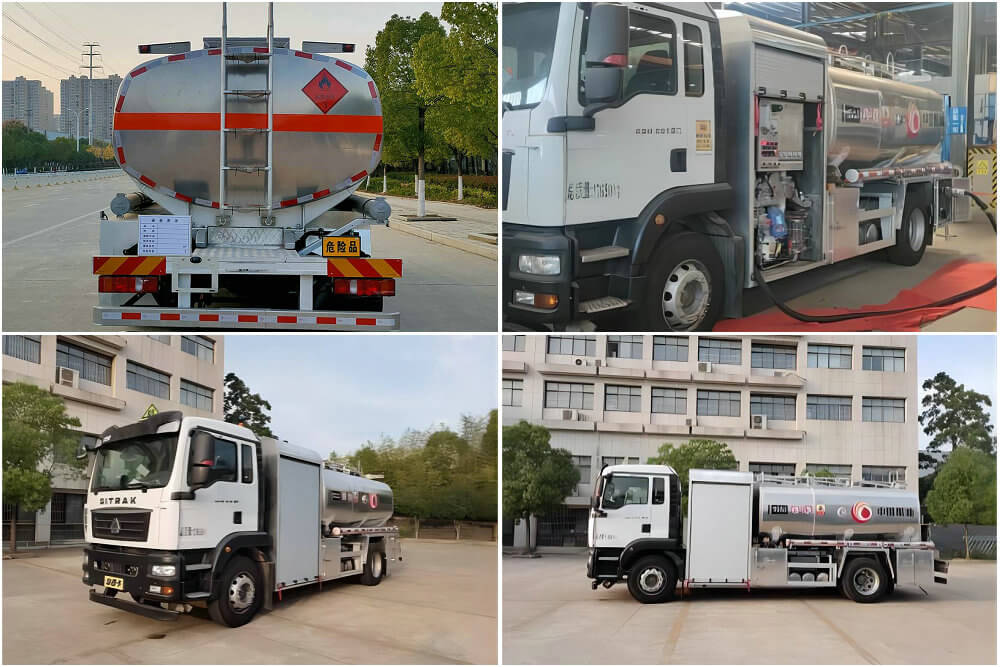

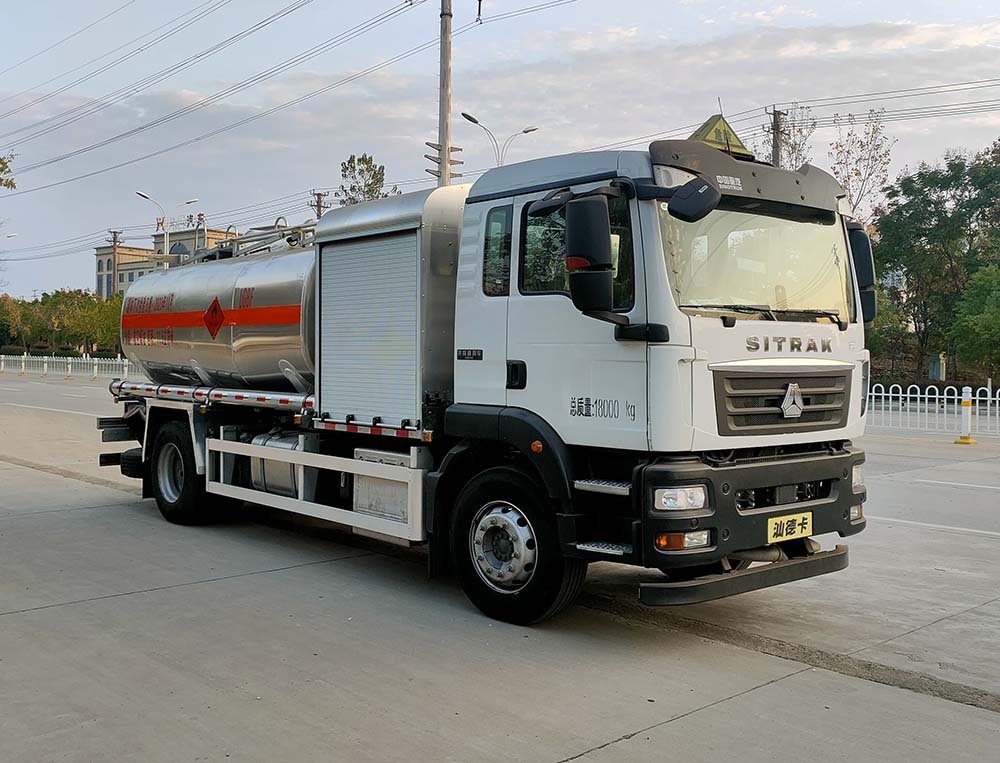

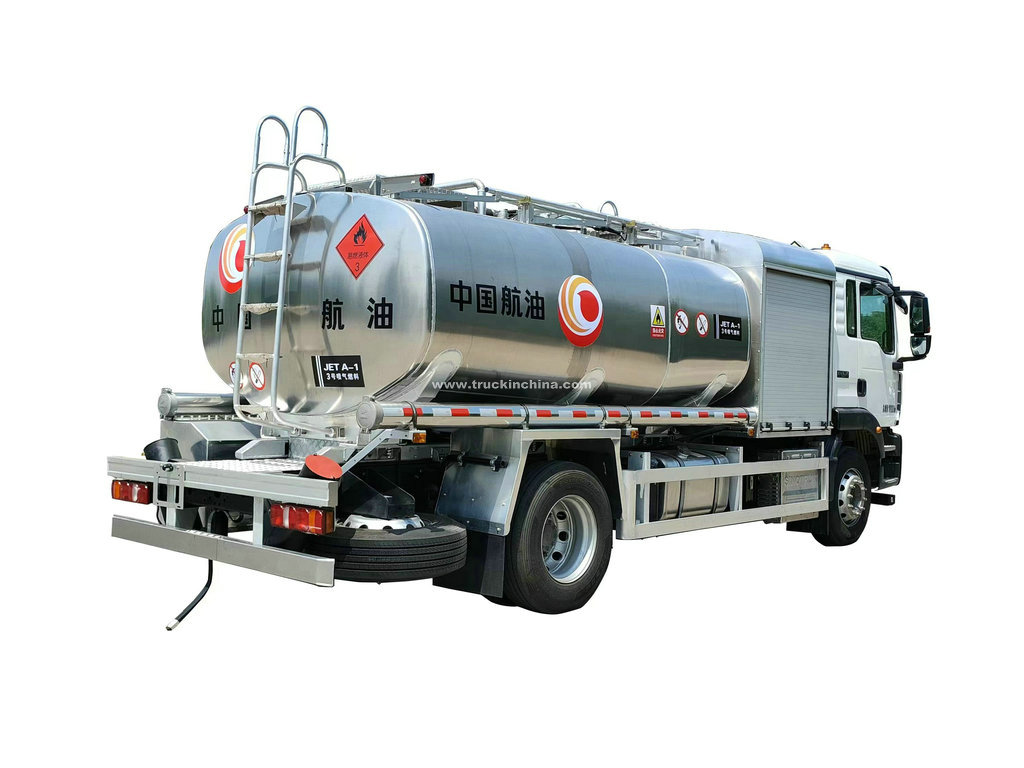

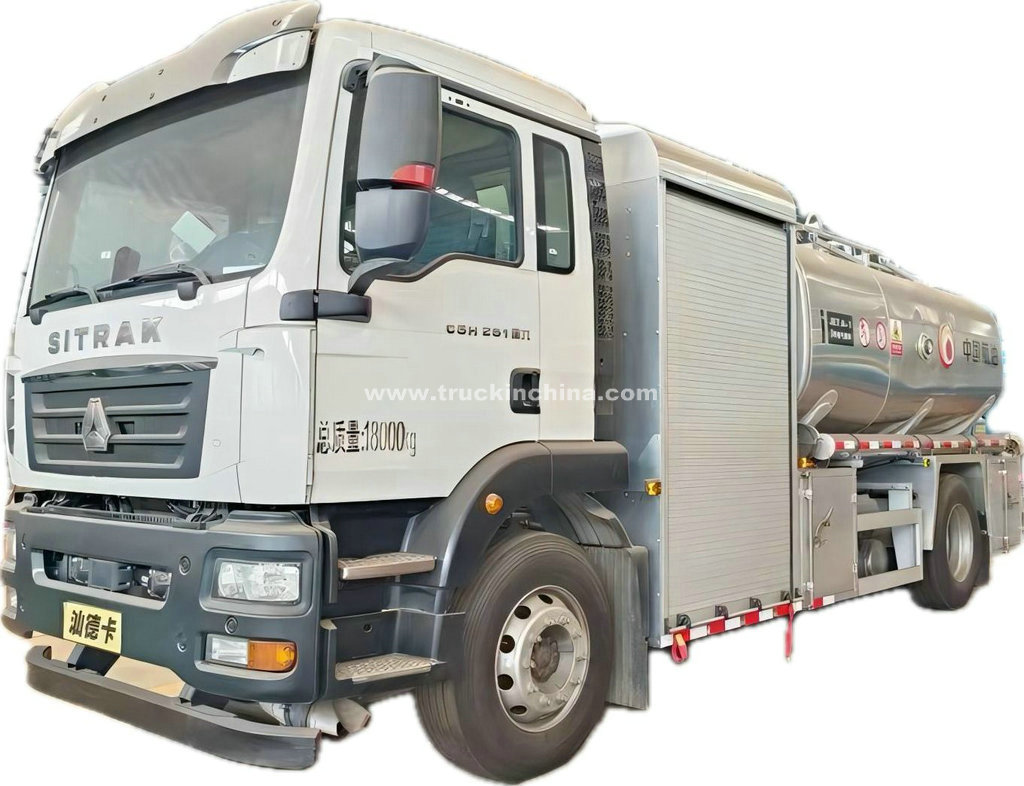

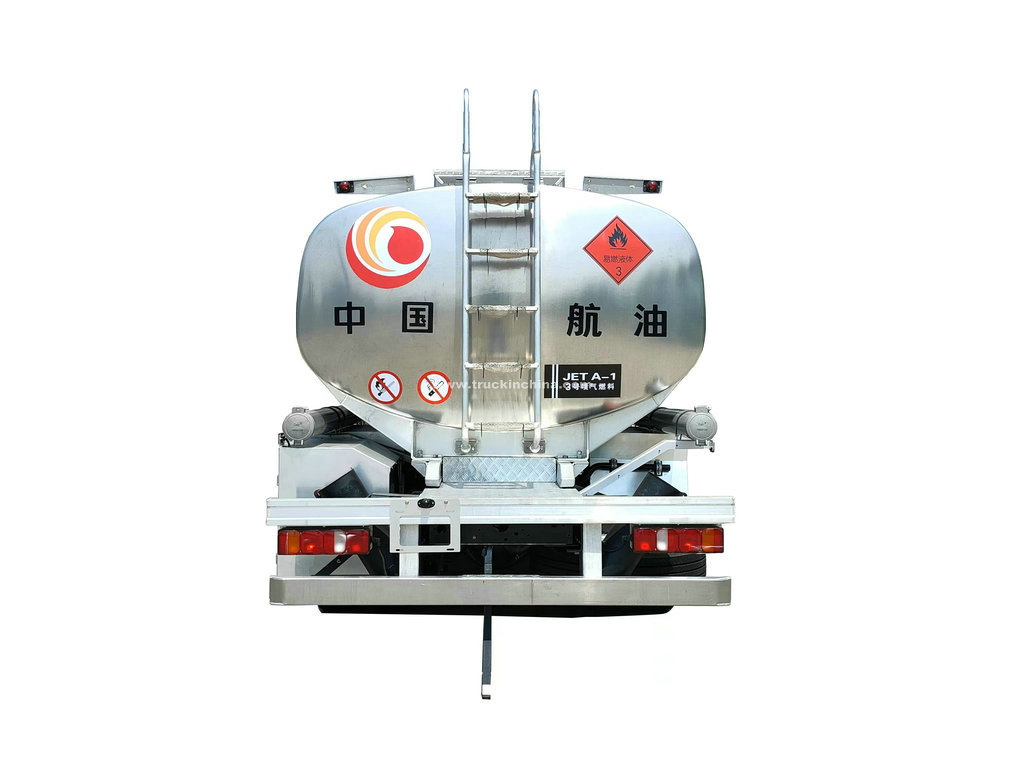

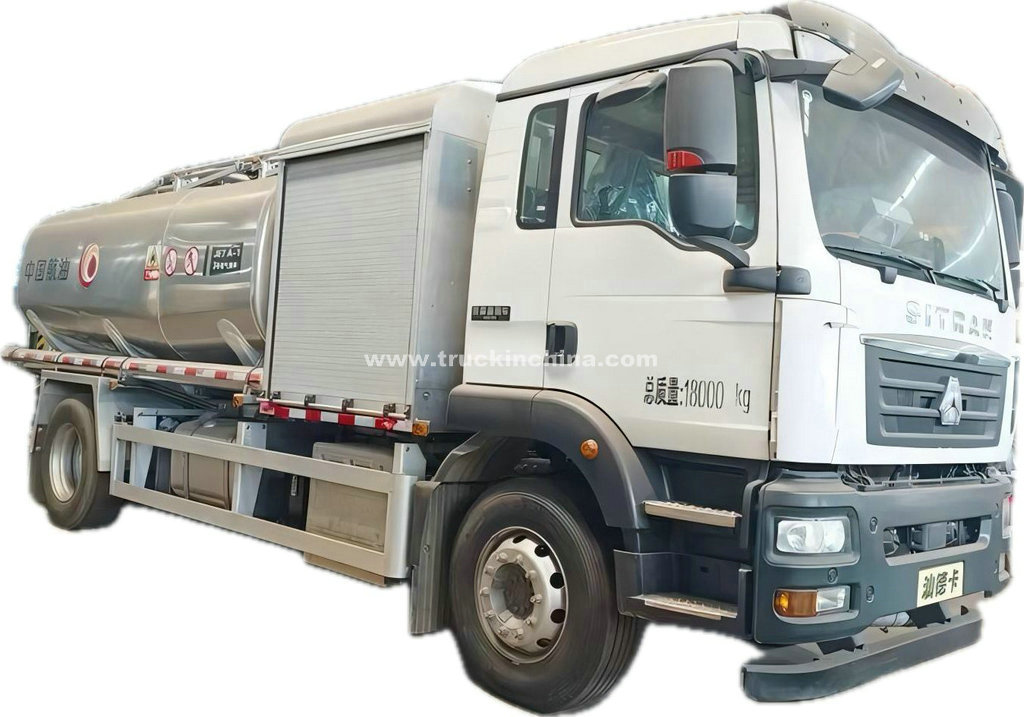

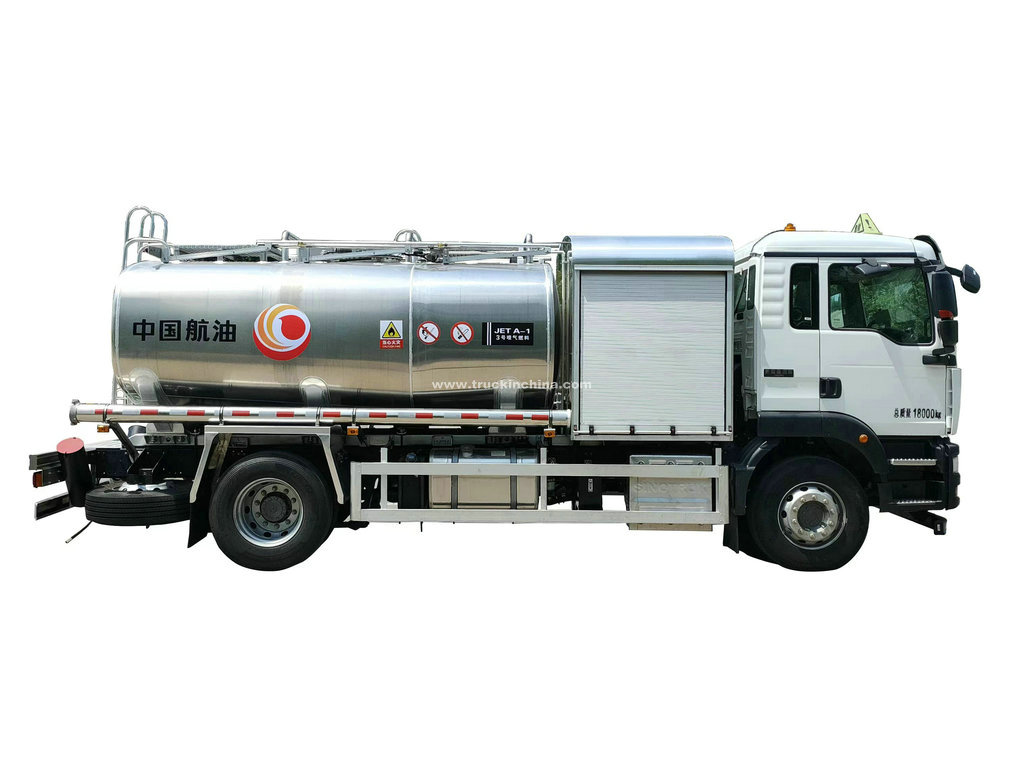

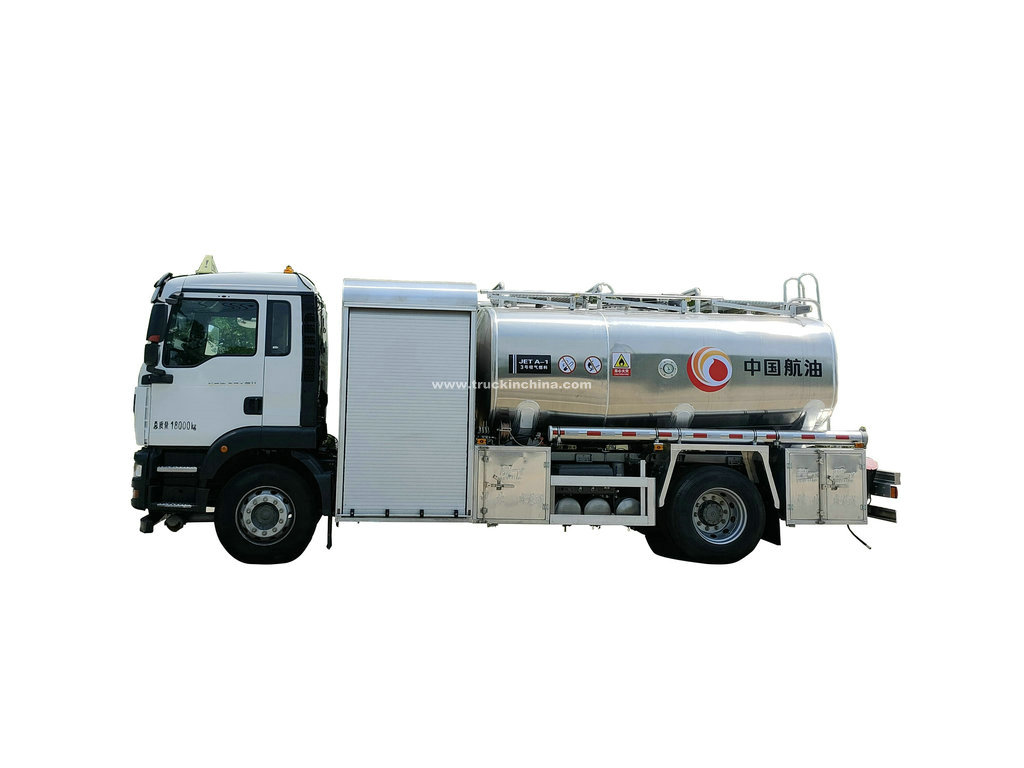

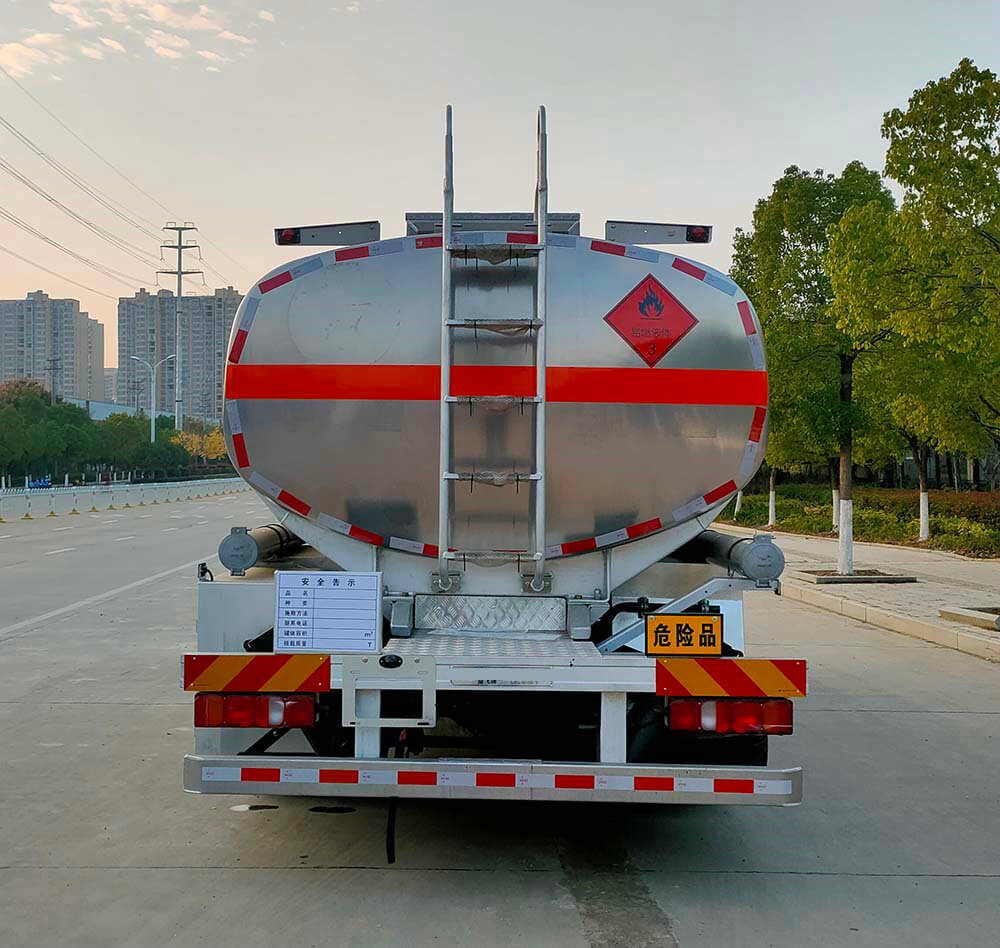

SITRAK Aviation Fuel JET A-1 Tanker Refuelling Aircraft Truck 10KL
JET A-1 tank capacity (L) 10525
Reel hose fueling maximum flow (L/min) 850
Flow meter accuracy (%) 0.2
Reel single pipe pumping rate (L/min) 280
Gravity refueling flow 300L/min
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
5180GJY6ZZF
-
8705906000
-
Shanghai, China
-
T/T
-
Roro
SITRAK Aviation Fuel JET A-1Tanker Refuelling Aircraft Truck 10KL
Item | Performance index | |
Chassis | Manufacturer | Sinotruk Group Jinan Commercial Vehicle Co., LTD |
Model | ZZ5186XXYK501GF1 | |
engine | Manufacturer | China Heavy Duty Automobile Group Co., LTD |
Model | MC07.25-60 | |
gearbox | Manufacturer | Shaanxi Fast motor transmission Group Company |
Model | C8J45TA | |
Rated tank capacity (L) | 10525 | |
Reel hose fueling maximum flow (L/min) | 850 | |
Maximum flow rate (L/min) | N | |
Flow meter accuracy (%) | 0.2 | |
Reel single pipe pumping rate (L/min) | 280 | |
Aviation kerosene filtration accuracy | EI 1581 | |
Overall dimensions (L × W × H) (mm) | 8180×2510×3280 | |
Maximum speed (km/h) | 70 | |
Braking distance (m) | 7.7 | |
Net weight (kg) | 9440 | |
Other properties | Gravity refueling flow 300L/min | |
Lifting range of refueling platform (mm) | Nil | |
Assembly | Model |
Chassis | ZZ5186XXYK501G F1 |
Engine | MC07.25-60 |
Transmission | C8J45TA |
Oil Pump | BX-80QZB-60/62N |
Flowmeter | BM08BAN- G1 |
Filter Separator | SHV1838MHAN |
Jet Oil Tank | 5180GJY6ZZF GT |
Steering Shaft | VPD050QB |
Driving Shaft | MCY11BGS |
Tyre | 295/80R22.5 18PR |
Main technical parameters
Overall dimensions: | 8180×2510×3280(mm) | Fuel Type: | Diesel oil |
GW | 18000(Kg) | ||
NW | 9040(Kg) | Rated load mass: | 8765,8830(Kg) |
Approach Angle/Departure Angle: | 16/13 (°) | Front/rear overhang: | 1450/2030(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 3600,3800,4200,4500,4700,5000,5200,5600,5800,7100(mm) |
Number of shafts: | 2 | Maximum speed: | 80(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR |
Fuel consumption: | 25.59(L/100Km) | Number of spring pieces: | 3/4,2/3+2,3/3+2,3/9+8,3/7+3,3/7+6,7/7+3,7/7+6,11/9+8,3/-,3/2+-,2/2+-,2/- |
Front wheel base: | 1900,1950,1998,2015,2035,2065,2075(mm) | Rear wheel base: | 1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
WP7.300 E61. WP6H270E61; WP6H245E61; WP4.6 NQ220E61; MC07.29-60; MC07.27-60; MC07.25-60; MC05H.25-60; MC05H.23-60; MC05H.20-60; MC07H.29-60; WP7.270 E61. WP7H270E62; WP7H245E62; WP7H220E62; MC07.25-61; MC07.27-61; MC07.29-61. | Weichai Power Co., LTD. China Heavy Duty Automobile Group Co., LTD.; | 7470; 6220; 6220; 4580; 6870; 6870; 6870; 4910; 4910; 4910; 7360; 7470; 6800; 6800; 6800; 6870; 6870; 6870 | 220; 199; 180; 162; 213; 202; 188; 180; 166; 147; 213; 199; 199; 180; 162; 190; 202; 213 |
Total capacity of the tank is 11.5 cubic meters, the effective volume of the tank is 10.9 cubic meters; Tank: 4000x1350 (mm) ;2400 x 1537, 2400 x 1600, 2400 x 1469. The side and rear protection are made of aluminum alloy, and the connection method is bolt connection. The section size of the rear protection device is (mm):140×60, and the height of the rear protection from the ground is 440mm. EBS system controller manufacturer/model is ZF Commercial Vehicle Systems (Qingdao) Co., LTD. /EBS3; wheelbase 4700(mm) , speed limiting 80km/h, exhaust pipe front, front wheel disc brake; The driving recorder with satellite positioning function is installed, the rear axle is equipped with air suspension, and the steering wheel is equipped with emergency protection device for tire burst. Engine fuel consumption (L/100km) are :MC07.25-60(25.59) | |||
