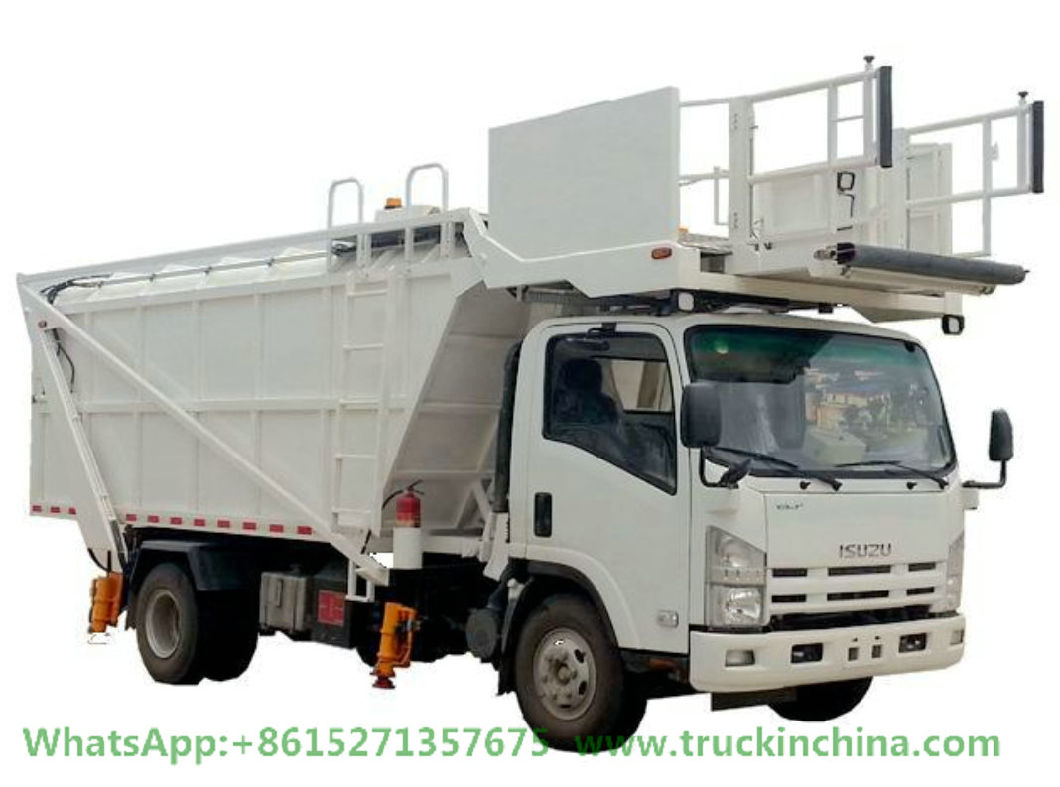

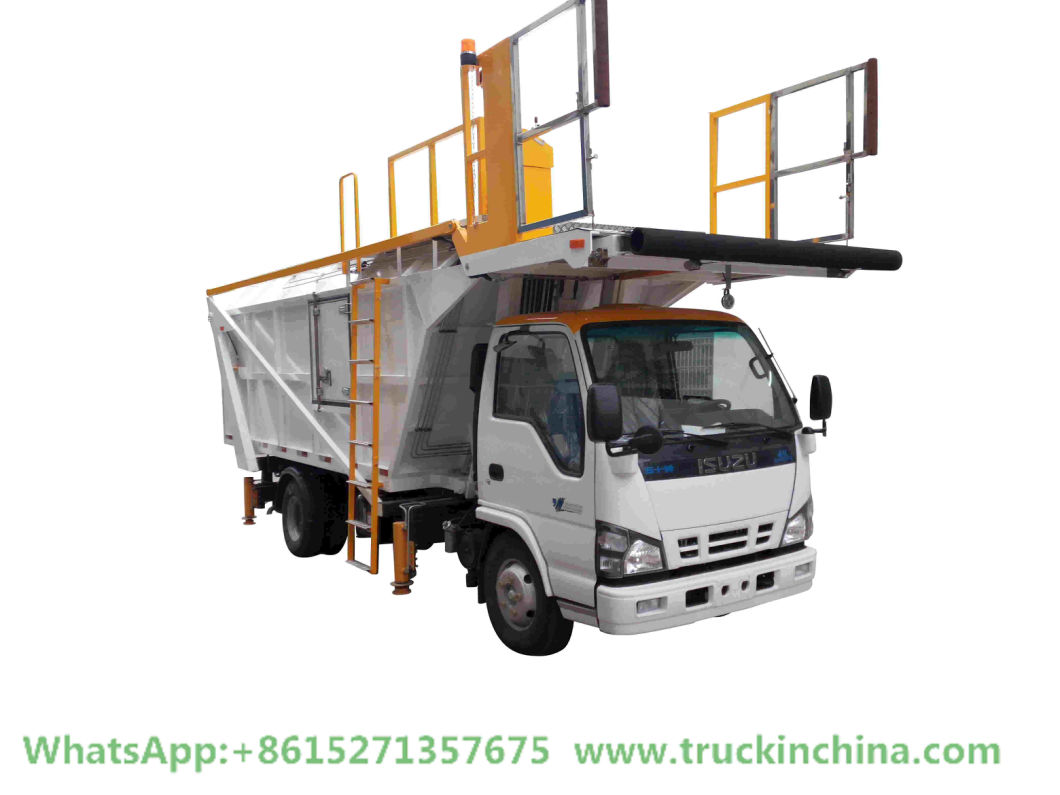

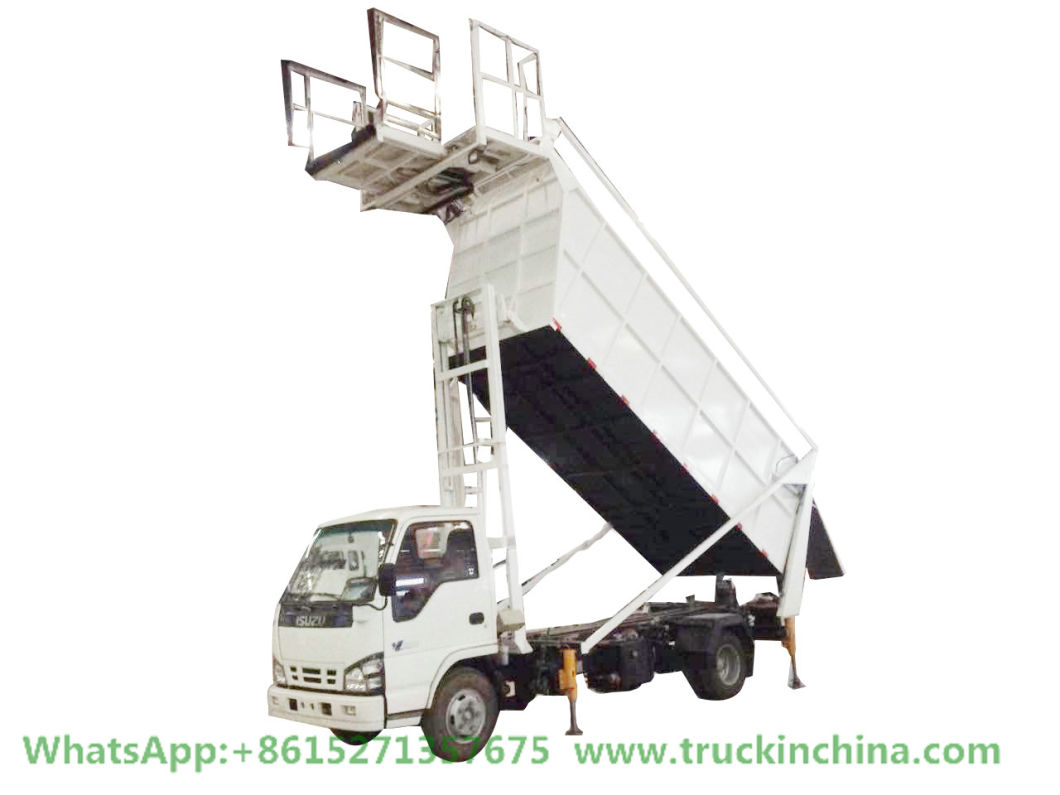

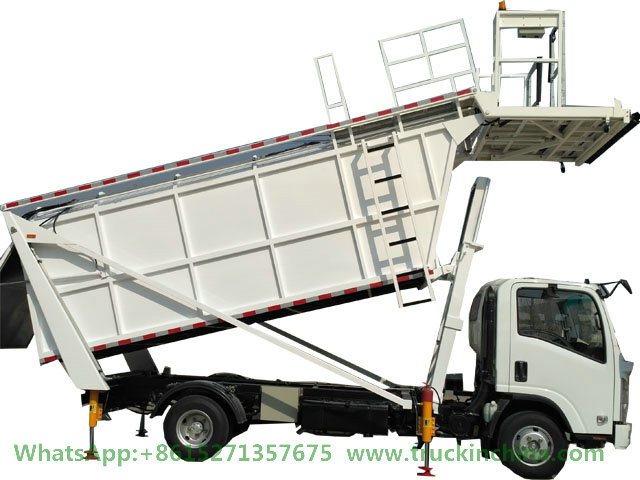

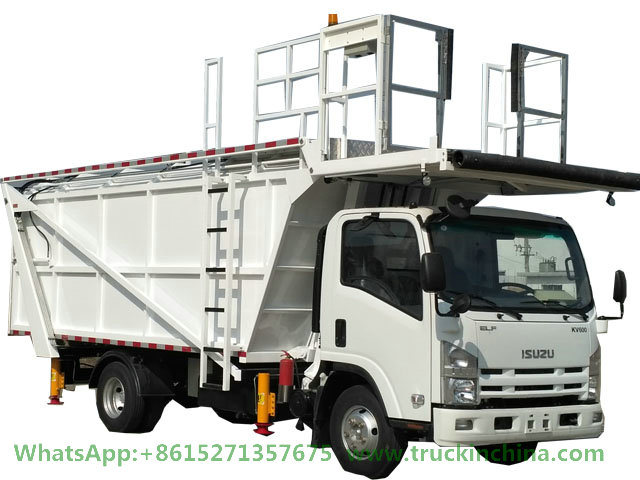

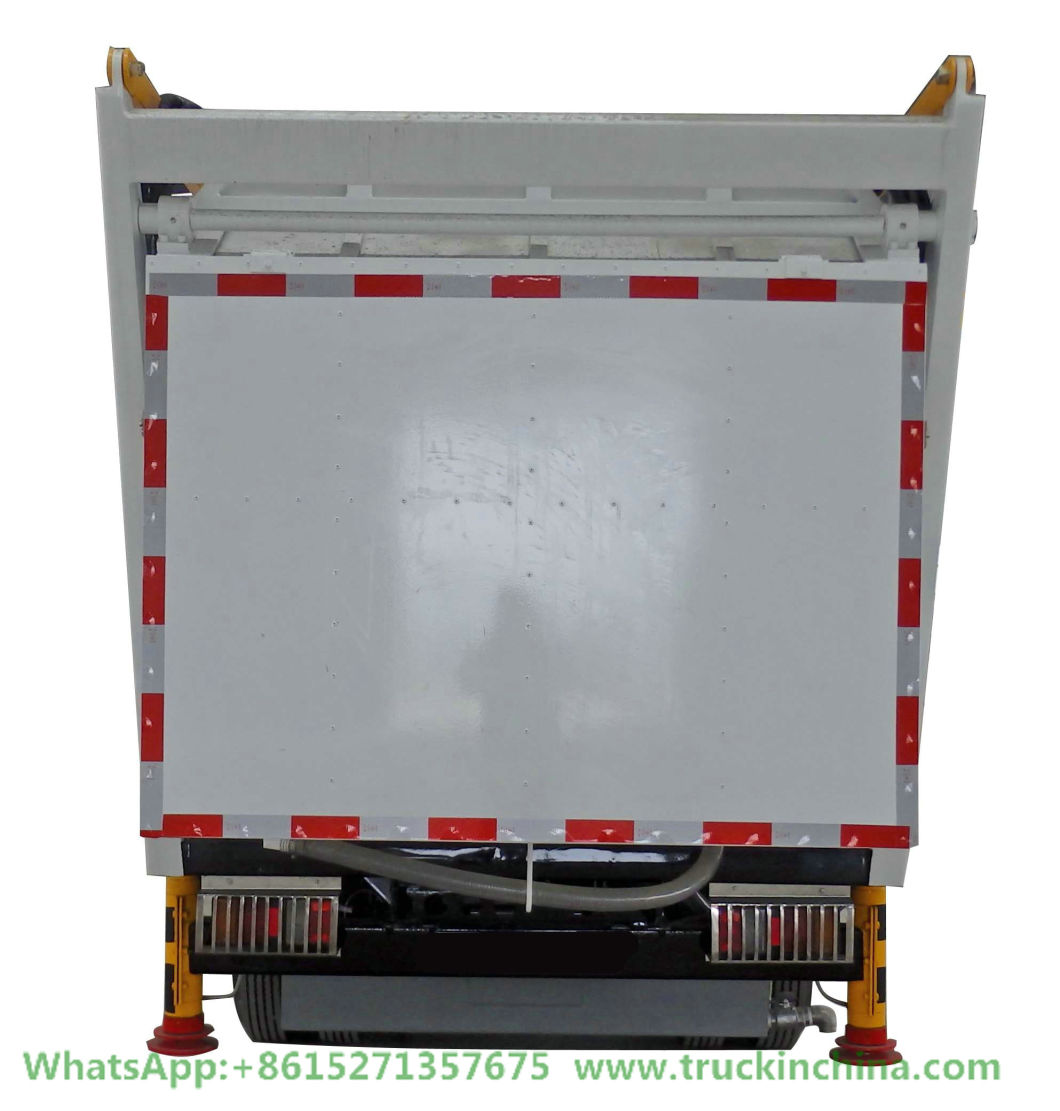

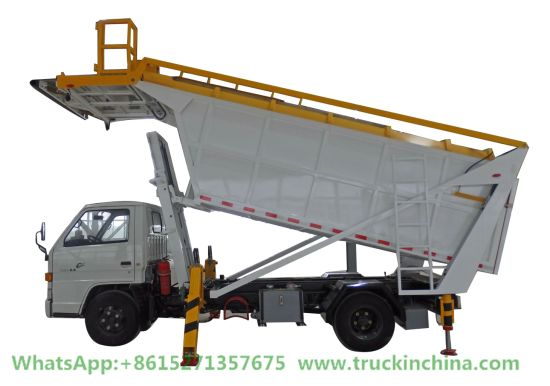

Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)

Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Availability:
Quantity:
  • Shanghai, China

  • T/T

  • Roro

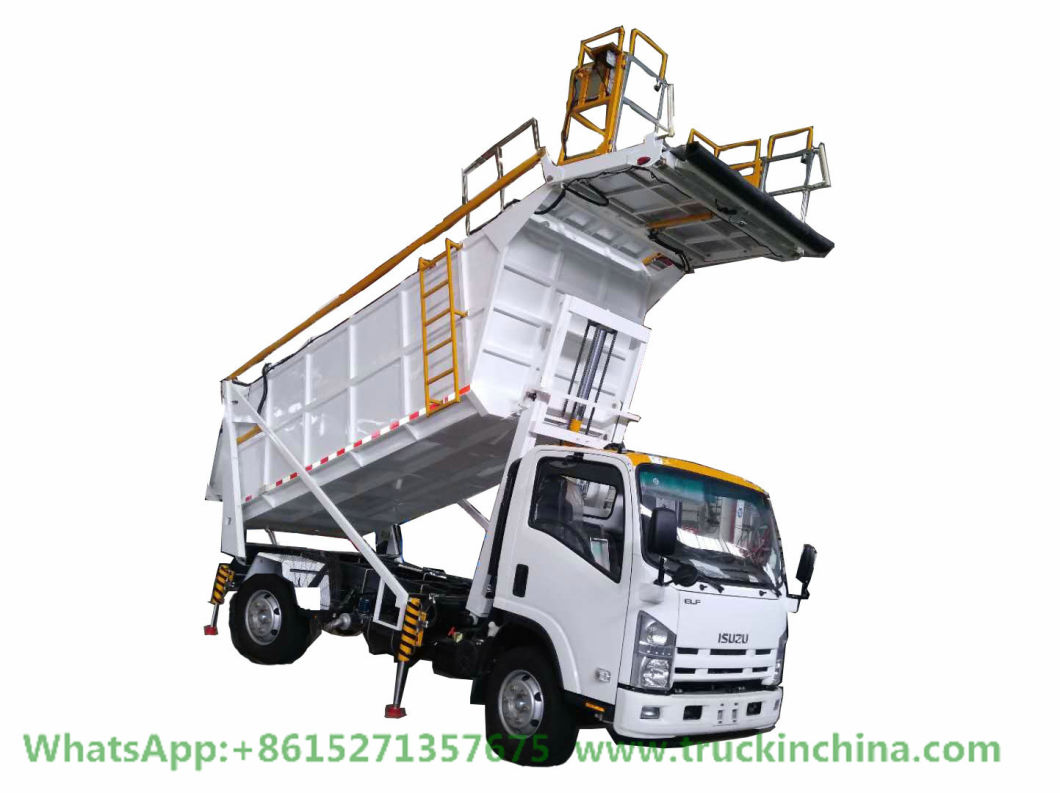

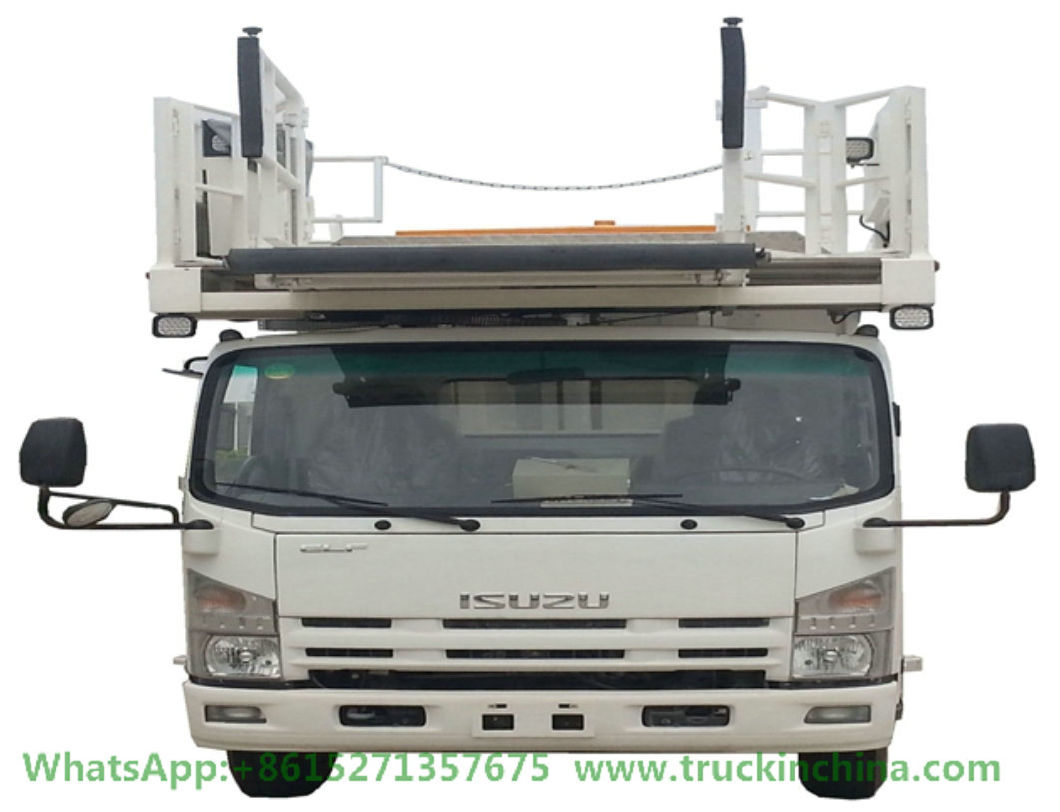

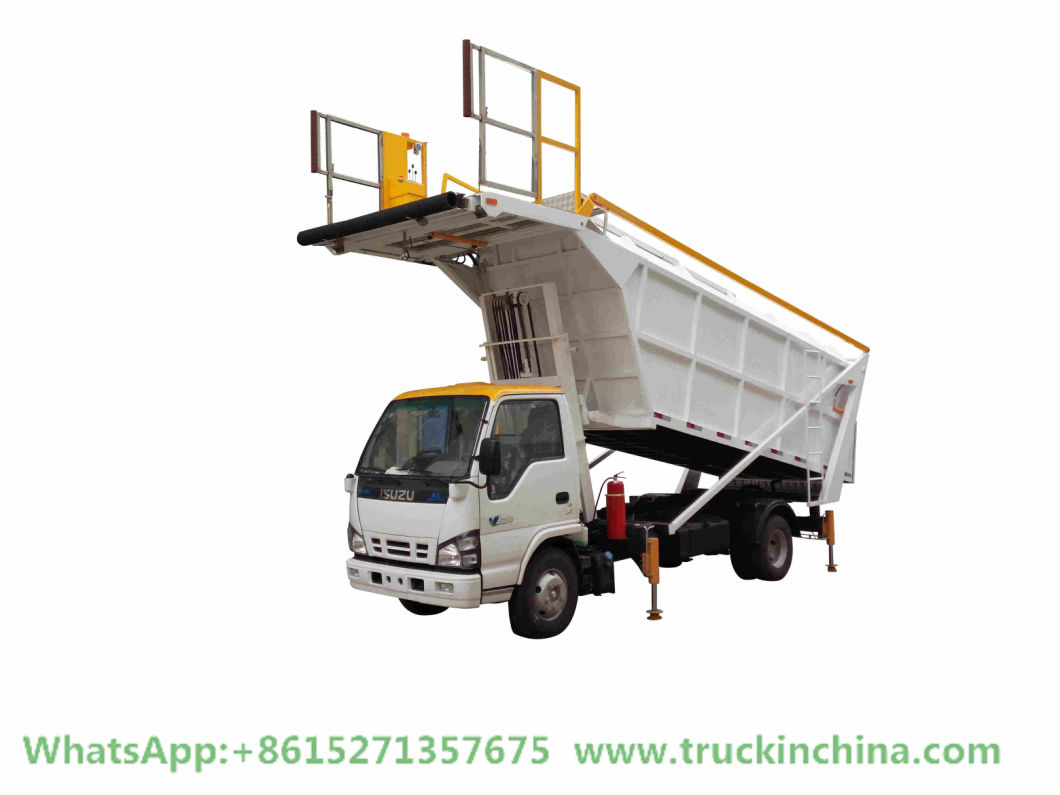

Airport Aircraft Garbage Collector  Waste Receiving Vehicle( ISUZU JMC )
garbage collector is build upon ISUZU/JMC commercial chassis. It is designed to collect garbage waste and disposal of civil aircraft. It is in full  compliance with CAAC and international standards, such as, IATA AHM 910, IATA AHM 913, IATA AHM 915, QC/T 52-2000, GB 7258-1997 etc.
Diesel Engine Aircraft Rubbish Receiving Vehicle Truck
Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Aircraft Elevating Rubbish Truck for Airport Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC) Airport Aircraft Garbage Collector Waste Receiving Vehicle (ISUZU JMC)
Aviation waste receiving vehicle
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Hydraulic motor manufacturer Wuxi xindali Motor Co., Ltd
Model: yp-132s-4
Hydraulic motor controller manufacturer Jiangsu jitaike Electric Co., Ltd
Model hb200-427.5b-a
Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Working height of platform (mm): 2400 ~ 5800
Boundary dimension (L × w × h) (mm): 7840 × 2340 × 3580
Platform expansion adjustment range (mm): 0 ~ 600
Rated load of car body (kg) 1500
Volume of garbage compartment (m ±) 16
Maximum tilt angle of car body (° 35)
Maximum speed (km / h) 80
Test temperature condition (ºC) - 35 ~ 55 (- 20 ºC turn on the battery heating system)
Driving range (km) 200
Curb weight (kg) 6150
Other performance--
JSTY5060LJCE
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Hydraulic motor manufacturer Wuxi xindali Motor Co., Ltd
Model: yp-132s-4
Hydraulic motor controller manufacturer Jiangsu jitaike Electric Co., Ltd
Model hb200-427.5b-a
Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Working height of platform (mm): 2400 ~ 5800
Boundary dimension (L × w × h) (mm): 7840 × 2340 × 3580
Platform expansion adjustment range (mm): 0 ~ 600
Rated load of car body (kg) 1500
Volume of garbage compartment (m ±) 16
Maximum tilt angle of car body (° 35)
Maximum speed (km / h) 80
Test temperature condition (ºC) - 35 ~ 55 (- 20 ºC turn on the battery heating system)
Driving range (km) 200
Curb weight (kg) 6150
LJ-15B
Main performance indexes:
Project performance index
Configuration II (November 2, 2019) - configuration I (April 16, 2018)
Chassis manufacturer Qingling Automobile Co., Ltd
Model ql1100a8kay ql11009kary
Bin volume (m ±) 15
Allowable loading garbage mass (kg): 1000 600
Working height of platform (mm): 2600-5700 2600-5700
Expansion range of front platform (mm) 700
Maximum turning angle of dustbin (° 36)
Boundary dimension (L × w × h) (mm): 7700 × 2260 × 3310 7800 × 2240 × 3350
Curb weight (kg) 6200 6200
Other performance ---
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tcg40
Engine emission: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, and exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model mld-6q mld-6q
  TD60ELJ
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Hydraulic motor manufacturer Suqian Taida Airport Equipment Co., Ltd
Model td-5yc-d83c
Hydraulic motor controller manufacturer Suqian Taida Airport Equipment Co., Ltd
Model td-8dr-d133c
Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Working height of platform (mm): 2500 ~ 5800
Boundary dimension (L × w × h) (mm): 7400 × 2400 × 3700
Platform expansion adjustment range (mm): 0 ~ 800
Rated load of car body (kg) 1600
Volume of garbage compartment (m ±) 18
Maximum tilt angle of car body (° 36)
Maximum speed (km / h) 80
Test temperature condition (ºC) - 30-60 (start heating system when sample vehicle reaches - 20 ºC)
Driving range (km) 210
Curb weight (kg) 5850
TD60LJC
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1072a5kay
Bin volume (m ±) 18
Allowable garbage mass (kg) 1600
Working height of platform (mm): 2550 ~ 5800
Expansion range of front platform (mm): 0 ~ 500
Maximum turning angle of dustbin (° 36)
Boundary dimension (L × w × h) (mm): 7400 × 2400 × 3700
Curb weight (kg) 5400
Other performance--
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs
Engine emissions: exhaust pollutants meet the emission limits of phase V of GB 17691-2005, and exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd
Model msb-5sm

  WXQ5060ZLJ
Main performance indexes:
Project performance index
Configuration II (October 15, 2019) - configuration I (May 23, 2017)
Chassis manufacturer Qingling Automobile Co., Ltd
Model ql1070a5kay ql1070a1kay
Bin volume (m ±) 15.5 15.5
Allowable garbage mass (kg) 1500 1500
Working height of platform (mm): 2400 ~ 5750 2400 ~ 5750
Expansion range of front platform (mm): 0-5200-520
Maximum turning angle of dustbin (° 35 34.5)
Boundary dimension (L × w × h) (mm): 7400 × 2250 × 3500 7400 × 2250 × 3500
Curb weight (kg) 5250 5250
Other performance ---
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4kh1-tcg40
Engine emissions exhaust pollutants meet the requirements of the fifth stage of GB 17691-2005 and exhaust smoke gb3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd
Model: msb-5sm msb-5sm
WXQ5090DLJ
Main performance indexes:
Project performance index
Configuration II (October 15, 2019) - configuration I (May 23, 2017)
Chassis manufacturer Qingling Automobile Co., Ltd
Model ql1070a5kay ql1070a1kay
Bin volume (m ±) 15.5 15.5
Allowable garbage mass (kg) 1500 1500
Working height of platform (mm): 2400 ~ 5750 2400 ~ 5750
Expansion range of front platform (mm): 0-5200-520
Maximum turning angle of dustbin (° 35 34.5)
Boundary dimension (L × w × h) (mm): 7400 × 2250 × 3500 7400 × 2250 × 3500
Curb weight (kg) 5250 5250
Other performance ---
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4kh1-tcg40
Engine emissions exhaust pollutants meet the requirements of the fifth stage of GB 17691-2005 and exhaust smoke gb3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd
Model: msb-5sm msb-5sm

  WXQ5050ZLJ
Main performance indexes:
Project performance index
Chassis manufacturer Jiangling Automobile Co., Ltd
Model: jx1061tg25 jx1050tg24
Bin volume (m ±) 12
Allowable loading garbage mass (kg): 900 900
Working height of platform (mm): 2250-5250 2250-5250
Expansion range of front platform (mm): 0-5200-520
Maximum turning angle of dustbin (° 35 34.5)
Boundary dimension (L × w × h) (mm): 6770 × 2100 × 3200 6700 × 2100 × 3400
Curb weight (kg): 4800 4860
Other performance ---
Engine manufacturer Jiangling Automobile Co., Ltd
Model: jx493zlq5 jx493zlq4
Engine emissions exhaust pollutants meet the requirements of the fifth stage of GB 17691-2005 and exhaust smoke gb3847-2005
Gearbox manufacturer: getrak (Jiangxi) transmission system Co., Ltd
Model jc528 jc528t8

  WXQ5090ZLJ
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay, ql1100a8kay, ql11009kary, ql1080zkarzy
Bin volume (m ±) 16 16 16 16 16
Allowable loading garbage mass (kg): 1500 1500 1500 1500
Working height of platform (mm): 2550 ~ 5800 2550 ~ 5800 2550 ~ 5800 2550 ~ 5800 2550 ~ 5800
Expansion range of front platform (mm): 0-800 0-520 0-520 0-520 0-520
Maximum turning angle of dustbin (°): 35 35 34.5 34.5
Boundary dimension (L × w × h) (mm): 7760 × 2300 × 3720 7760 × 2300 × 3720 7400 × 2400 × 3670 7400 × 2400 × 3670
Curb weight (kg): 6500 6500 6050 6300
Other properties ----
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tc51 4hk1-tc51 4hk1-tcg40 4hk1-tcn2
Engine emissions exhaust pollutants meet the requirements of the fifth stage of GB 17691-2005 and exhaust smoke gb3847-2005
Gearbox manufacturer Alison gearbox (Shanghai) Co., Ltd. Qingling Automobile Co., Ltd
Model: allison1000 mld-6q mld-6q myy6s

  WTJ5060LJC
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5kay, ql11009kary, ql1070a1kay, ql1080zkarzy, nkr77plpacjay
Bin volume (m ±) 15.8 15 15 15 15
Allowable loading garbage mass (kg): 1000 1000 1000 1000 1000
Working height of platform (mm): 2400-5800-2500-5700-2400-5800-2650-5810-2500-5700
Front platform expansion range (mm): 0-600-0-600-0-600-0-600-0-500
Maximum turning angle of dustbin (° 35 34 34 32 32
Boundary dimension (L × w × h) (mm): 7895 × 2260 × 3500 7490x2190x3730 7895x2260x3535 7380x2370x3890 7500x2340x3600
Curb weight (kg): 5300 6300 5300 5600 4900
Other properties -----
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4hk1-tcg40 4kh1-tcg40 4hk1-tcn2 4KH1-TC
Engine emissions: exhaust pollutants meet the limit requirements of GB 17691-2005 phase V, exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd
Model: msb-5sm mld-6q msb-5sm my-6s msb-5sm

  LJC-15
Main performance indexes:
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay, ql1070a1hay, ql1070a5kay, nkl77llpacjay
Bin volume (m ±) 16.5 15 15 15
Allowable loading garbage mass (kg): 1500 1000 1000 1000
Working height of platform (mm): 2500 ~ 5800 2600 ~ 5700 2450 ~ 5750 2600 ~ 5700
Expansion range of front platform (mm): 0 ~ 500 0 ~ 500 0 ~ 500 0 ~ 500 0 ~ 500
Maximum turning angle of dustbin (° 35 35 35 35
Boundary dimension (L × w × h) (mm): 7740 × 2450 × 3600 6870 × 2330 × 3800 7570 × 2240 × 3600 6870 × 2330 × 3800
Curb weight (kg) 6450 5200 5220 4850
Other performance: optional horizontal platform, moving range of horizontal platform (mm): 0 ~ 580 - ---
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4kh1-tcg40 4kh1cn5hs 4KH1-TC
Engine emission: exhaust pollutants meet the requirements of GB 17691-2005 phase V emission limit, and exhaust smoke meets the requirements of GB 3847-2005.
Gearbox manufacturer Qingling Automobile Co., Ltd
Model mld-6q msb-5sm msb-5sm msb-5sm

SZG-LJC15
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Bin volume (m ±) 16
Allowable garbage mass (kg) 1500
Working height of platform (mm): 2600 ~ 5800
Expansion range of front platform (mm): 0 ~ 500
Maximum turning angle of dustbin (° 36)
Boundary dimension (L × w × h) (mm): 7450x2200x3720
Curb weight (kg) 6500
Other properties -
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51
The engine emission shall meet the emission limit of gb17691-2005 in the fifth stage, and the exhaust smoke shall meet the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd
Model mld-6q

  TK-LJ1000
Main performance indexes:
Project performance index
Chassis manufacturer Qingling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: ql1100a8kay jx1061tg25 ql1109kary jx1061tg24 ql1070a5hay
Bin volume (m ±) 15 15 15 15 15 15
Allowable loading garbage mass (kg): 1000 1000 1000 1000 1000
Working height of platform (mm): 2600-5800 2500-5700 2600-5800 2500-5700 2600-5800
Expansion range of front platform (mm): 0 ~ 500 0 ~ 500 0 ~ 500 0 ~ 500 0 ~ 500
Maximum turning angle of dustbin (° 35 35 35 35 35
Boundary dimension (L × w × h) (mm): 7135 × 2350 × 3770 7180 × 2250 × 3670 7250 × 2300 × 3400 7130 × 2200 × 3420 7140 × 2200 × 3490
Curb weight (kg): 6500 5200 6500 5500 5500
Other performance - - - --
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Jiangling Automobile Co., Ltd
Model: 4hk1-tc51 jx493zlq5 4hk1-tcg40 jx493zlq4 4kh1cn5hs
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, and exhaust smoke meets the requirements of GB 3847-2005
Gearbox manufacturer Qingling Automobile Co., Ltd. getrasi (Jiangxi) transmission system Co., Ltd. Qingling Automobile Co., Ltd
Model: mld-6q jc528 mld-6q jc528t8 msb-5sm


Previous:
Next:

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Contract Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Contract Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300
Address Keystone Vessel :R 23, F4,New Factory (4), B1, Phase II, Dashu Industrial Village , Liufang Street ,Wuhan East Lake Hi-tech Development Zone, Wuhan City, Hubei Province,P.R.China  .......
 Hubei Dong Runze Special Vehicle Equipment Co., Ltd.  Keystone Vessel (Wuhan) Co., Ltd ;Keystone Vessel Manufacturing Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/  www.truckinchina.com ,www.tictrucks.com, https://ks-vessel.com
We use cookies to enable all functionalities for best performance during your visit and to improve our services by giving us some insight into how the website is being used. Continued use of our website without having changed your browser settings confirms your acceptance of these cookies. For details please see our privacy policy.
×
