5082GJYF6Z
-
HOWO
-
8705906000
-
Shanghai, China
-
T/T
-
Roro

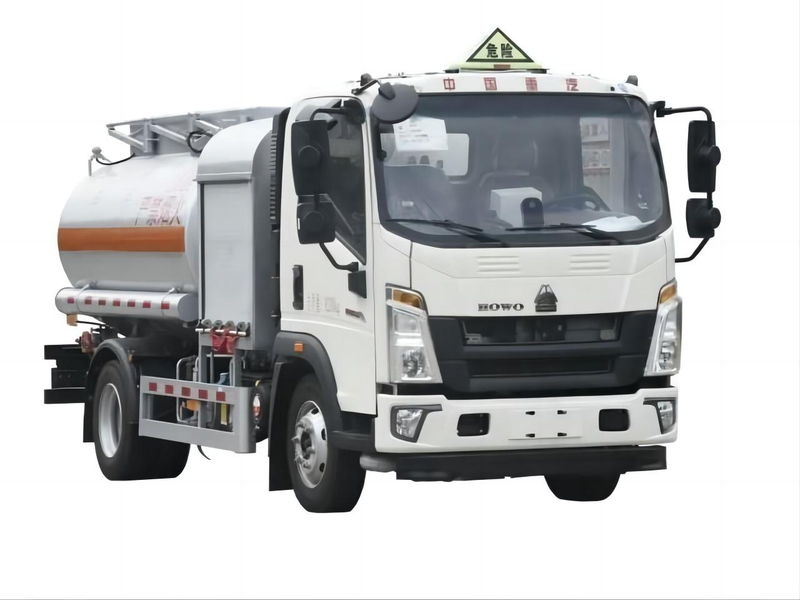

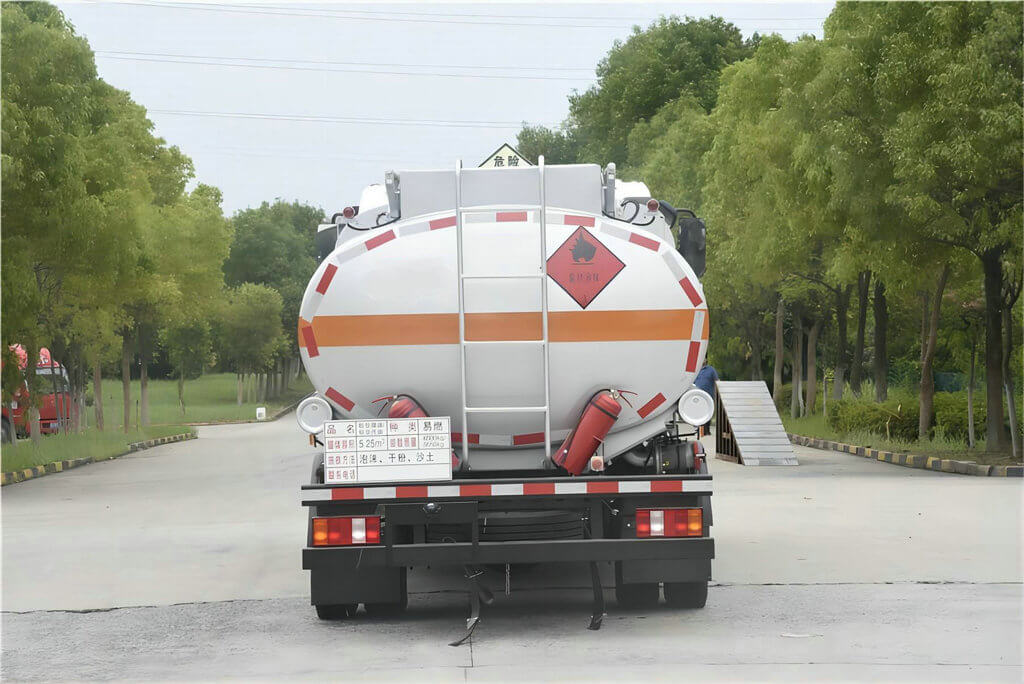

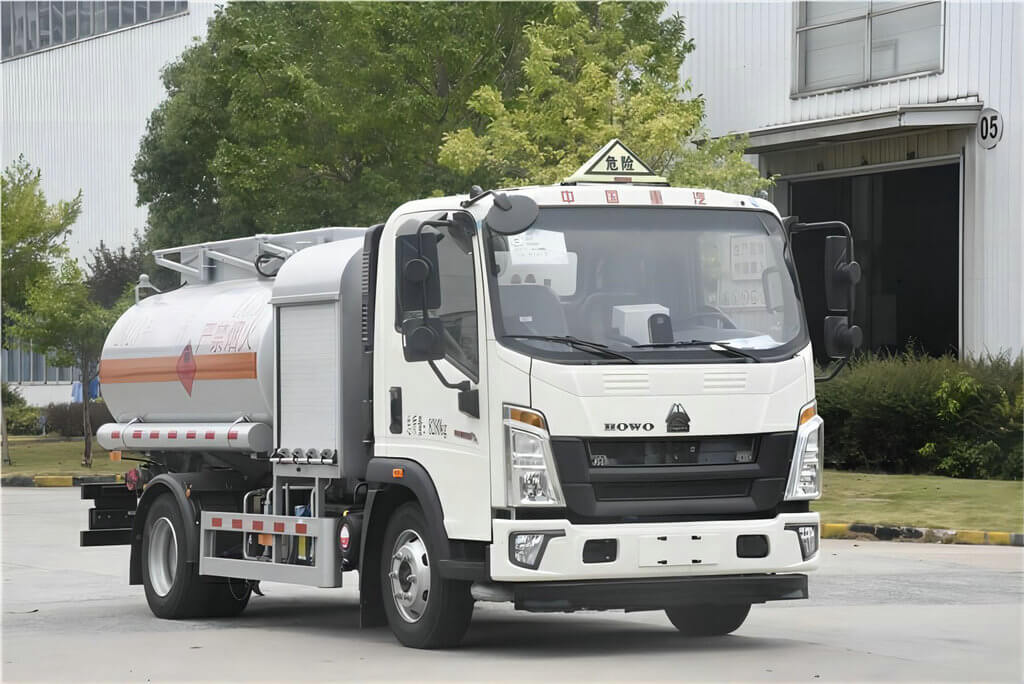

HOWO Aviation Refuelers 4KL
HOWO Chassis :ZZ1087G3315F183
Item | Performance index | |
Chassis | Manufacturer | SINOTRUCK |
Model | ZZ1087G3315F183 | |
Engine | Manufacturer | WEICHAI |
Model | WP2.3NQ130E61 | |
Gearbox | Manufacturer | WLY |
Model | WLY6G40-193-160 | |
Rated tank capacity (L) | 4900 | |
Reel hose fueling maximum flow (L/min) | 100 | |
Maximum flow rate (L/min) Double hose refueling | —— | |
Flow meter accuracy (%) | ±0.2 | |
Reel single pipe pumping rate (L/min) | —— | |
Aviation kerosene filtration accuracy | EI 1581 | |
Overall dimensions (L × W × H) (mm) | 6085×2030 ×2540 | |
Maximum speed (km/h) | 50 | |
Braking distance (m) | ≤10 | |
Net weight (kg) | 4085 | |
Other properties | —— | |
Lifting range of refueling platform (mm) | —— | |
No. | Name | Assembly |
1 | Chassis | ZZ1087G3315F183 |
2 | Engine | WP2.3NQ130E61 |
3 | Transmission | WLY6G40- 193- 160 |
4 | Oil Pump | 50- 15/60C |
5 | Flowmeter | LC-QAL25/A6 |
6 | Filter Separator | SLHV- 1414M |
7 | Hydraulic Pump | CBN-F50-BFHL |
8 | JET A-1 Oil Tank | 4900L |
9 | Steering Shaft | LFA1058 |
10 | Driving Shaft | LRA1058 |
11 | Tyre | 215/75R17.5 |
Overall dimensions: | 6085×2030×2540(mm) | Fuel Type: | Diesel oil |
GW | 8280(Kg) | ||
NW | 4085(Kg) | Rated load mass: | 4000(Kg) |
Approach Angle/Departure Angle: | 18/16 (°) | Front/rear overhang: | 4000(Kg) |
Axle Load: | 3000/5280 | Wheelbase: | 1180/1625(mm) |
Number of shafts: | 2 | Maximum speed: | 国六 |
Number of tires: | 6(PCS) | Tire Specifications: | 3280,3360(mm) |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 80(km/h) |
Front wheel base: | 1776,1796,1815(mm) | Rear wheel base: | 7.50R16LT,8.25R16LT,215/75R17.5,205/75R17.5,8.5R17.5 |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
NV30-C6B; D30TCIF1; WP2.3 NQ130E61; F NS6B156; D25TCIF1; WP3NQ160E61; WP2.5 NQ150E61; WP2.5 NQ160E61; F NS6B131; WP3NQ170E62; WP2.3 Q140E62; WP2.3 Q140E62A | Dongfeng Zhaochai Power Co., LTD.; Kunming Yunnei Power Co., LTD.; Weichai Power Co., LTD. Beijing Foton Cummins Engine Co., LTD.; | 3093; 2977; 2289; 2780; 2499; 2970; 2490; 2490; 2780; 2970; 2289; 2289 | 120; 125; 96; 115; 110; 118; 110; 118; 96; 125; 103; 103 |

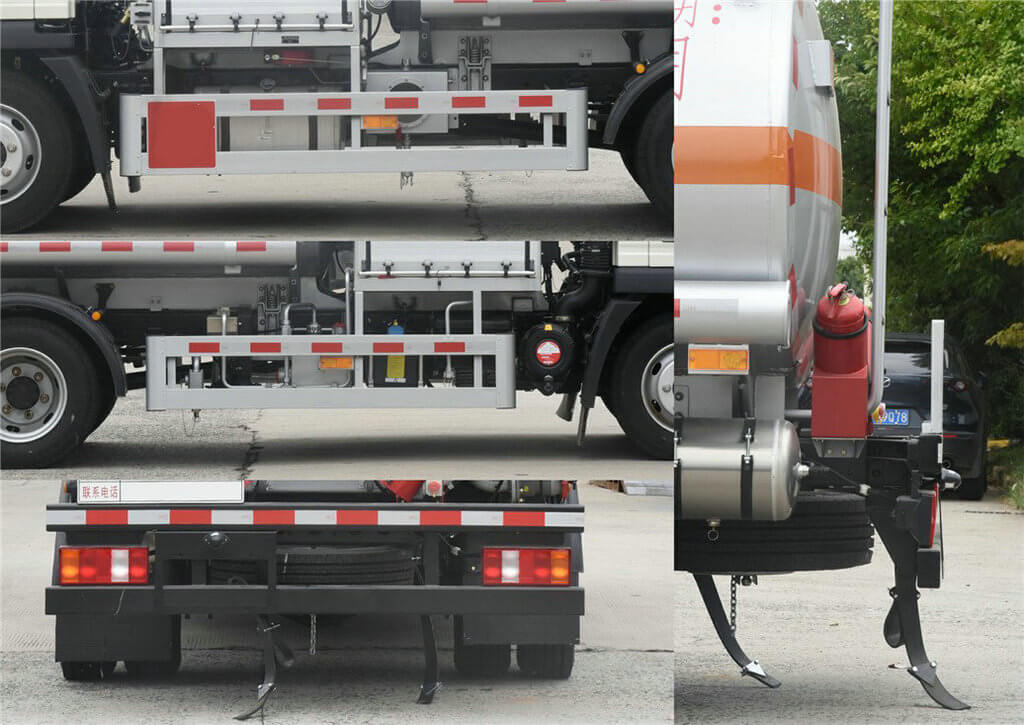

WP2.3NQ130E61 engine power 92kW; 3280mm wheelbase, 215/75R17.5 16PR tires; Side and rear protection: side protection material :6063-T5, rear defense material :Q355-B, side and rear protection connection mode: bolt connection, rear section size :100×60(mm), height from the ground :450(mm); Total capacity of the tank body 5.25 cubic meters, Effective volume of the tank 5 cubic meters, the overall dimensions of the tank body (mm)2002×1192×2540,2840 Special function and device: slide pump :SUB 50-15/60C, manufacturer: Zhejiang Deli Equipment Co., LTD. Flowmeter LC-QAL25/A6, Manufacturer: Hefei Jingda Instrument Co., LTD. Dangerous goods transport vehicle type :FL type, optional float free level gauge type. | |||
