5100GJYFB6
-
8705906000
-
Shanghai, China
-
T/T
-
Roro

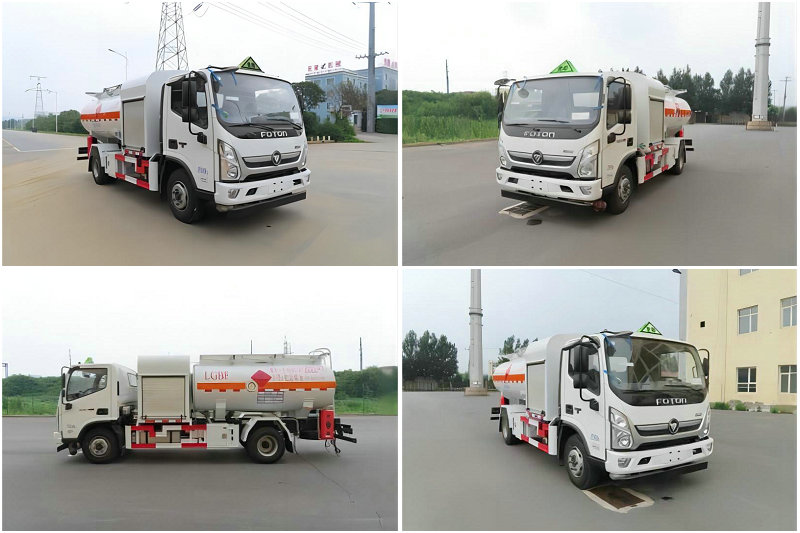

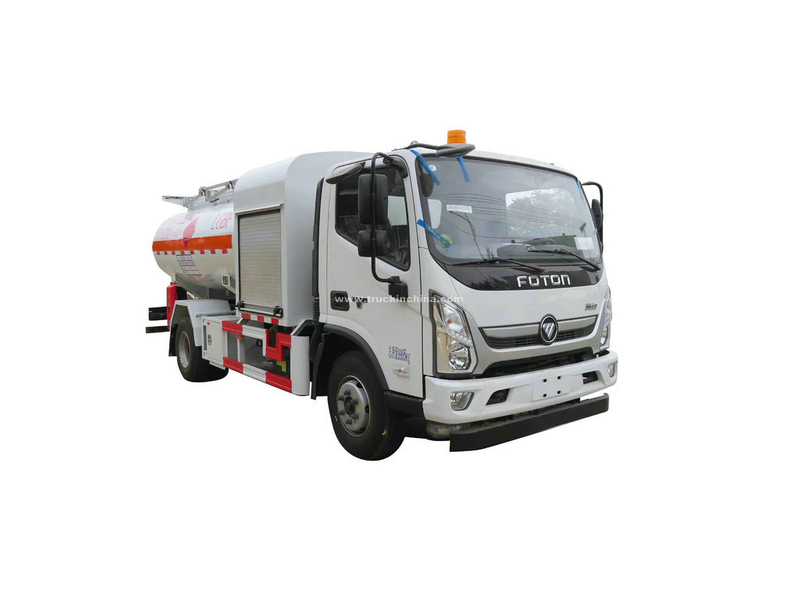

FOTON Aircraft Refuelling Tanker 6KL
Item | Performance index | |
Chassis | Manufacturer | FOTON |
Model | BJ1108VEJEA-AC2 | |
engine
| Manufacturer | FOTON Cummins |
Model | F3.8NS6B156 | |
gearbox | Manufacturer | WLY |
Model | 6TS55 | |
Rated tank capacity (L) | 6000 | |
Reel hose fueling maximum flow (L/min) | 300 | |
Maximum flow rate (L/min) | Nil | |
Flow meter accuracy (%) | 0.2 | |
Reel single pipe pumping rate (L/min) | Nil | |
Aviation kerosene filtration accuracy | EI 1581 | |
Overall dimensions (L × W × H) (mm) | 6970*2220*2760 | |
Maximum speed (km/h) | 70 | |
Braking distance (m) | 7.5 | |
Service weight (kg) | 4900 | |
Other properties | Nil | |
Lifting range of refueling platform (mm) | Nil | |
Main technical parameters
Overall dimensions: | 6970×2140×2760(mm) | Fuel Type: | Diesel oil | ||||
GW | 9995(Kg) | ||||||
NW | 4600(Kg) | Rated load | 5200(Kg) | ||||
Approach Angle/Departure Angle: | 16/12 (°) | Front/rear overhang: | 1130/2040,1120/2050(mm) | ||||
Axle Load: | 3600/6395 | Wheelbase: | 3800(mm) | ||||
Number of shafts: | 2 | Maximum speed: | 80(km/h) | ||||
Number of tires: | 6(PCS) | Tire Specifications: | 8.25R16LT 16PR,9.5R17.5 16PR | ||||
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4+3,3/8+6,9/4+3,9/8+6 | ||||
Front wheel base: | 1705,1730(mm) | Rear wheel base: | 1800,1615,1715(mm) | ||||
Steering form: | Steering wheel | Starting mode: | |||||
Vin Vehicle Identification Code: | LVBV4JBB××××××××× LVBV4PBB××××××××× | ||||||
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | ||||
F3.8 NS6B156 | Beijing Foton Cummins Engine Co., LTD | 3800 | 115 | ||||
Tank size: 3.43 x2 x1.28m Total capacity of the tank is 6.5 cubic meters, the effective volume is 6.5 cubic meters. Side and rear protection materials are carbon steel, bolted connection. The rear protection section is 120x60(H x W) mm and the lower plane height is 440 mm from the ground. The vehicle exhaust pipe front, equipped with front wheel disc brake, equipped with speed limiting device, the maximum speed of 80km/h.ABS system model :ABS-VI.E; Dangerous goods transport vehicle type FL. Maximum density of permitted medium 800 kg/m3. Special function and device: centrifugal pump Model :65QZY-20/40, manufacturer: Shandong Ruiheng Machinery Equipment Co., LTD. Flowmeter model :LL-LL50.2/A6.J, Manufacturer: Hefei Jingda Instrument Co., LTD. Optional tank top vent valve | |||||||
Assembly | Model |
Chassis | BJ1108VEJEA-AC2 |
Engine | F3.8NS6B156 |
Transmission | 6TS55 |
Oil Pump | 65QZY-20/40 |
Flowmeter | LL-LL50.2/A6.J |
Filter Separator | FW10-H-T- 1-727- 10 |
Jet Oil Tank | 5100GJYFB6 |
Steering Shaft | GZL |
Driving Shaft | CYHJ |
Tyre | 9.5R17.5 16PR |
