L2,L3,M3..H5.
-
8705906000
-
Shanghai, China
-
T/T
-
Roro

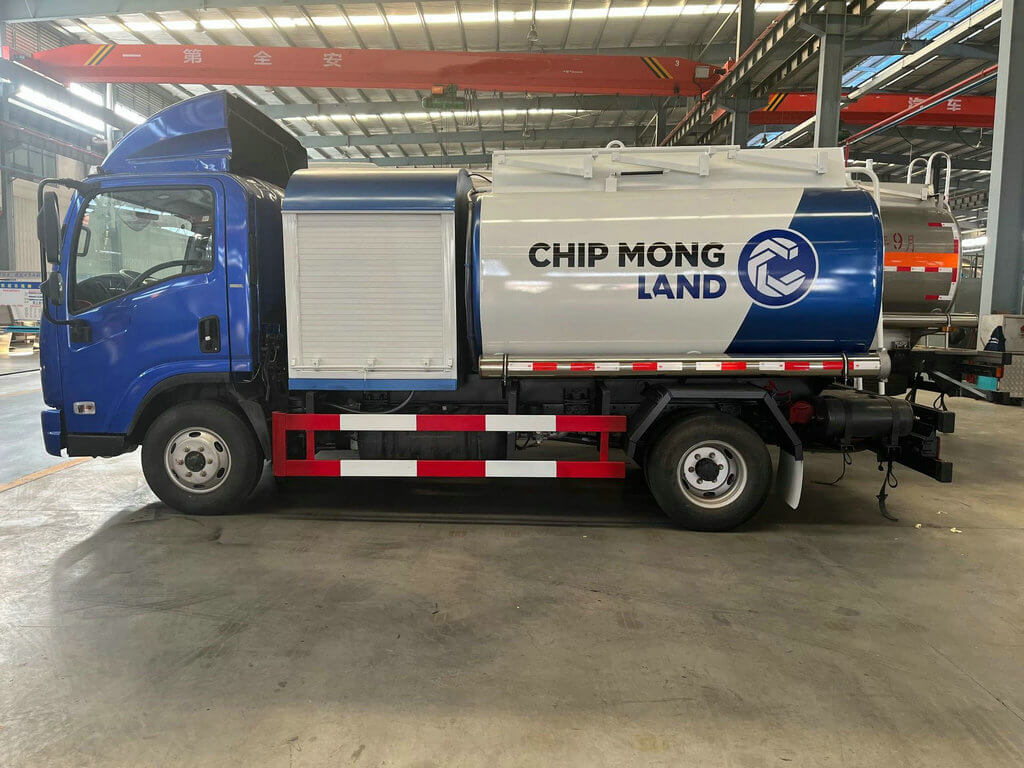

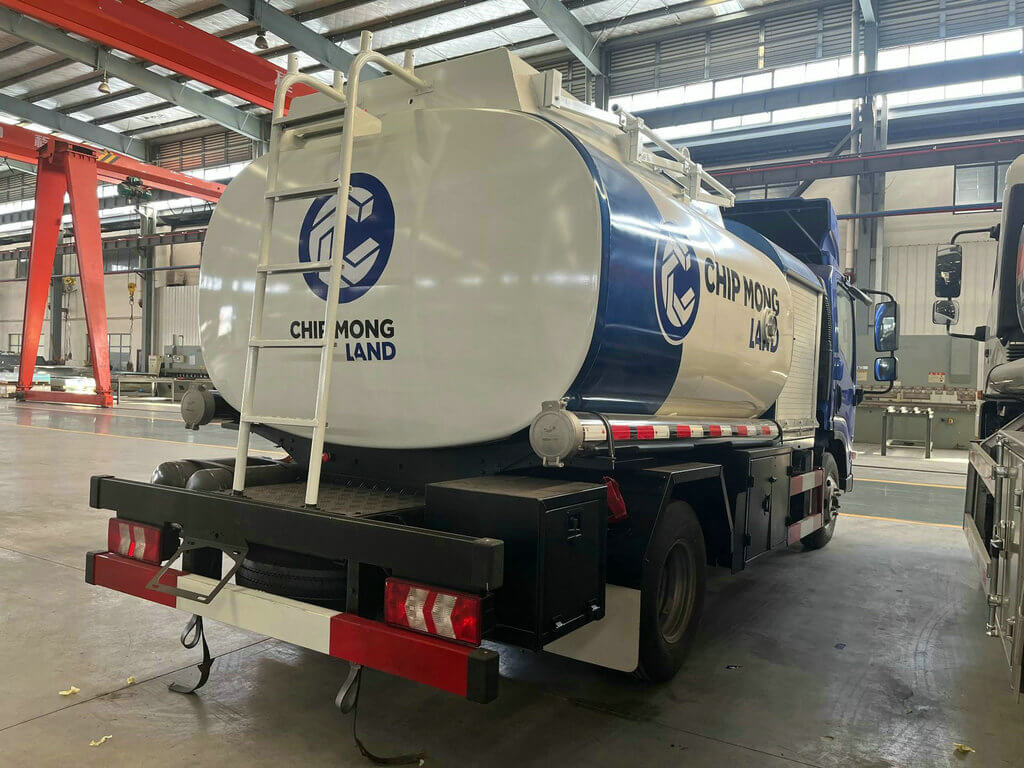

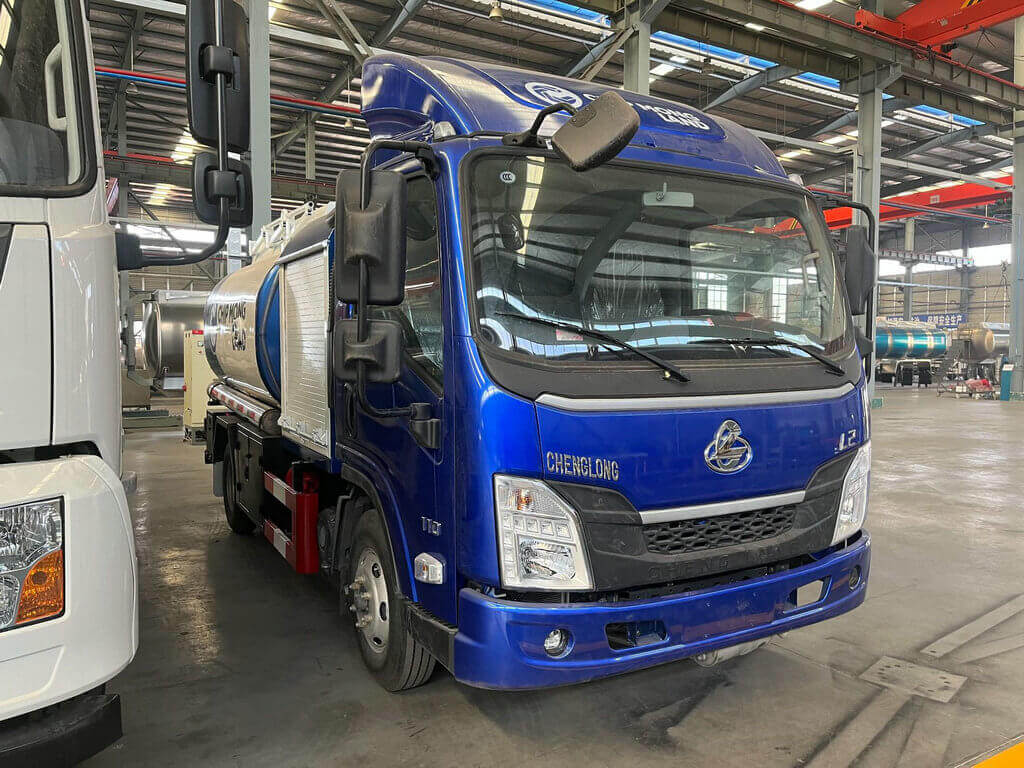

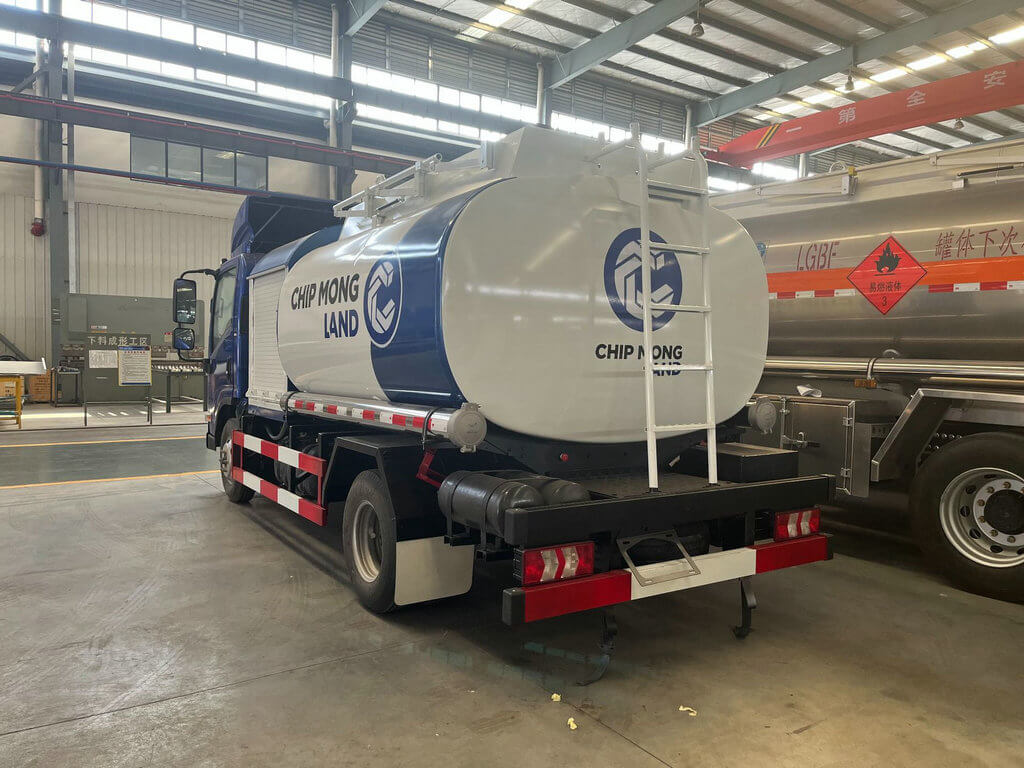

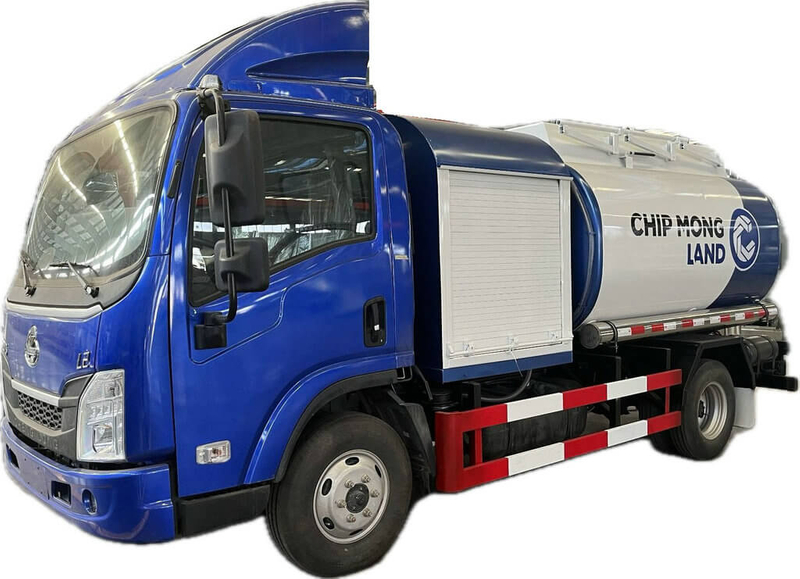

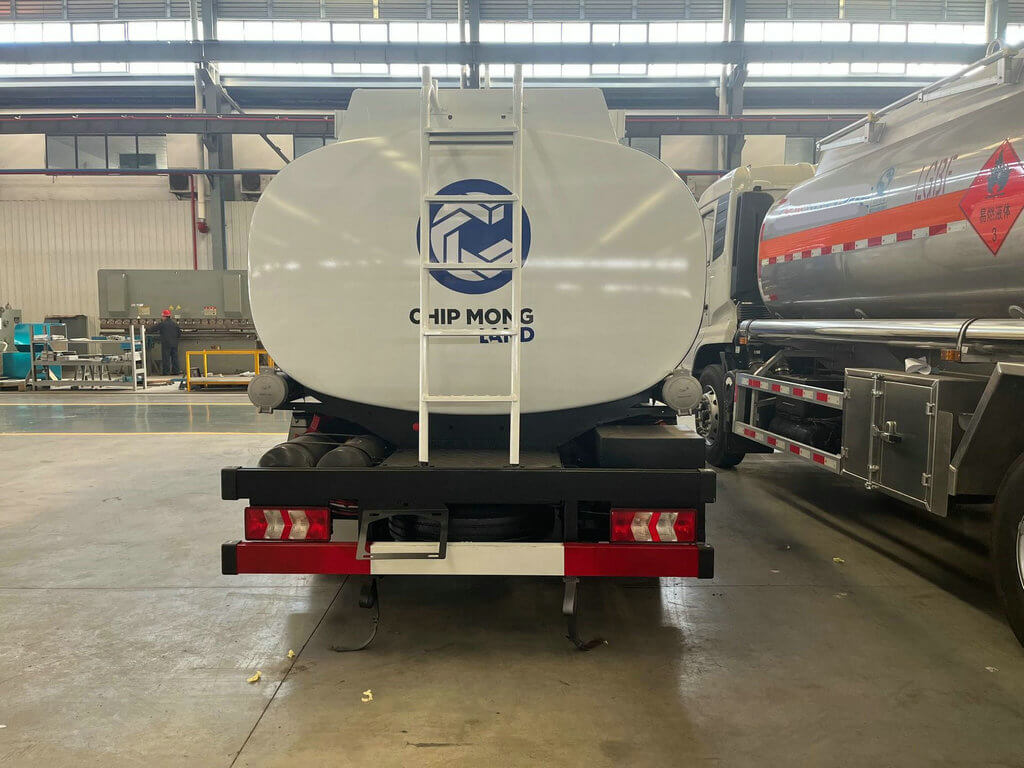

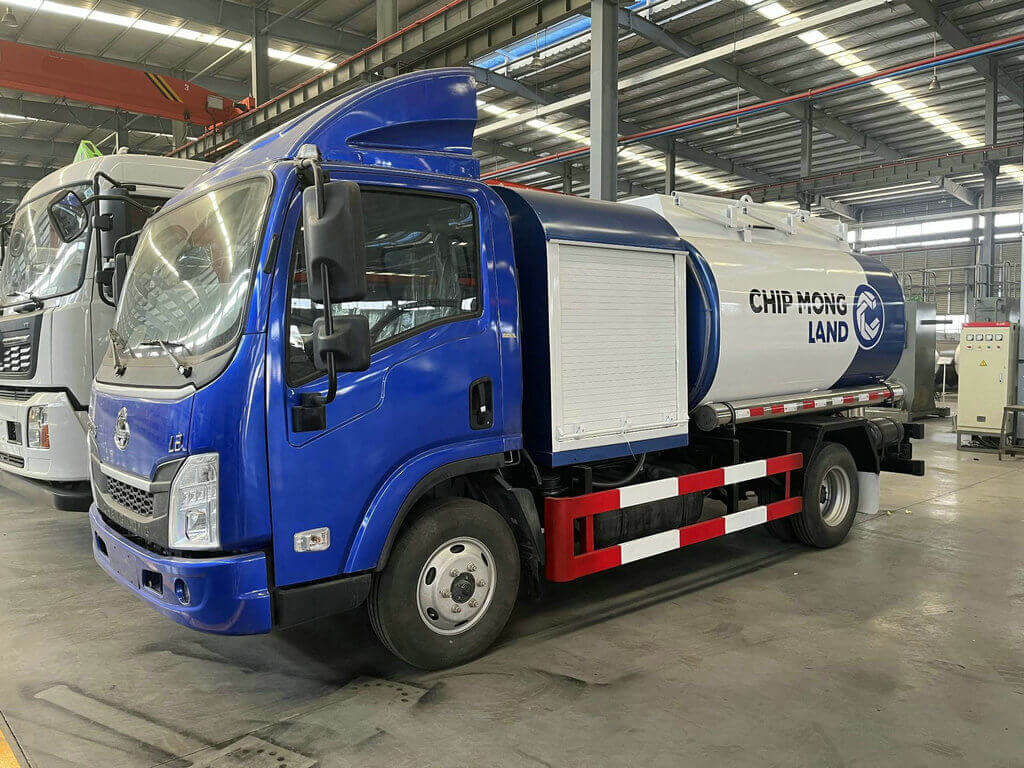

DFLZ Chenglong 5KL Aluminum Alloy Tank Aircraft Refueller
L2 cab
Vehicle models (Modelos de vehículos) | ZC1331R1 | ||
Brand (Marca) | Dongfeng liuzhou | ||
Pictures (Imágenes) | |||
Weight (Peso) | Rated payload (Capacidad de carga) | kg | 5000 |
Curb weight (Peso del coche) | kg | 3500 | |
Wheelbase (Distancia entre ejes) | mm | 3360 | |
Overall Dimensions (Dimensiones totales) | length (longitud) | mm | 6000 |
width (anchura) | mm | 1950 | |
height (altura) | mm | 2800 | |
Cargo box dimension (Dimensión de la caja de carga) | length (longitud) | mm | 4250 |
width (anchura) | mm | 1900 | |
height (altura) | mm | 1810 | |
Engine (Motor) | Brand (Marca) | YUCHAI | |
Engine Code (Código del motor) | YC4D120-21 | ||
Power (Poder) | 120hp | ||
Displacement (Desplazamiento) | 4.2L | ||
Torque (Esfuerzo de torsión) | 420N.m/ 1600-1900rpm | ||
Turbo | yes | ||
Emission standard (Norma de emisión) | Euro III 2/3 | ||
Driving type | 4x2 | ||
Brake system (Sistema de frenos) | air brake (Freno de aire) | ||
Gear box model (Modelo de caja de cambios) | Manual, 5 speed forward, 1 reverse (Manual, 6 marchas, 5 adelante, 1 atrás) | ||
Rear axle ratio (Relación del eje trasero) | 5.286 | ||
Passengers in cab (cantidad de pasajeros) | 3 | ||
Tires (Llantas) | tire size (tamaño de llanta) | 7.00R16-12PR | |
tire qty. (cantidad de neumáticos) | 6+1 | ||
Other equipments | A/C, automatic window, double layer glasse | ||
L3 cab
| Model | LZ1160M3AB |
| Model code | 1L3YS16A38C9BF1 |
| Max Payload | 10000kg |
| Chassis Dimensions | |
| Chassis Dimensions(L*W*H) | 6810mm*2265mm*2696mm |
| Wheel base | 3800 |
| Front/Rear wheel track | 1735mm/1800mm |
| Front/Rear overhang | 1270mm/1730mm |
| vehicle weights | |
| G.V.W | 16000kg |
| Curb weight | 4240kg |
| Frame profile Dimensions | |
| Frame width | 823mm |
| Section height | 231mm |
| Section thickness | 6mm |
| Engine | |
| Type | YC4S160-50 |
| Emission level | Euro 5 |
| Maximum power | 118Kw/2600rpm |
| Maximum torque | 550N.m/1300-1800rpm |
| Number of cylinders | 4 |
| Displacement | 3.767L |
| Cylinder bore×Stroke | 102mm×115mm |
| Clutch | |
| Plate's diameter | φ350mm |
| Operating system | Hydraulic control with air booster,pushing |
| Gear box | |
| Type | 8JS75TC |
| Number of gears | 8 forward gears& 2 reverse |
| Gear ratios | 7.34;5.24;3.76;2.82;1.95;1.39;1.00;0.79; r1=7.34;r2=1.95 |
| Axle | |
| Front Axle | Rigid stubaxle with double T-cross section,dram brake |
| 3t | |
| Rear Axl | Press welding shell, Single-stage reduction shaft, speed ratio:4.33. |
| 6t | |
| Suspension | |
| Front suspension | 8-Leaf spring with shock absorber |
| Rear suspension | 9+5-leaf spring |
| Battery | |
| Voltage | 24V |
| Battery capacity | 90Ah(2) |
| Fuel Tank | |
| Type | Plastic fuel tank |
| Capacity | 120L |
| Others | |
| Cab | L35 single-row cab, fixed cab suspension, torsion bar flip, multi-state switch, electric glass lifter, LCD liquid crystal instrument, MP3, air conditioner, laminated glass, central control lock. |
| Brake System | Full air brake system,split pneumatic circuit;parking spring brake acting on rear axles, exhaust brake. |
| Tyres | 8.25R16-14PR |
| Minimum turning circle | 7400mm |
| Minimum ground clearance | 200mm |
| Maximum driving speed | 118km/h |
| Maximum gradeability | ≥20% |
| Fuel consumption | 17.3L/100Km(10t) |
Refueller Tank Parameters | ||
Fuel Tank | Volume | 5000L-15000L, |
Medium | Jet A1 | |
Tank material | Aluminum AL5182 | |
Tank thickness | 5mm | |
Waveboard | Water pressure arc shape, 5mm, | |
Upper coaming plate | Aluminum AL6061 | |
Color & Logo | customized | |
Manhole | 1-off Aluminum manhole, Euro Standard, with Double breathing valves | |
Pump | aluminum gear pump, with reflux valve, mechanical sealing | |
Pipelines | aluminum alloy | |
Valves | aluminum alloy | |
Apperance | Paint | Natural color of aluminium alloy |
Packing mark for hazardous goods | Yes | |
Orange Reflective film | Yes | |
Reflecting marking | Yes | |
Safety notices | Yes | |
Reflector Plate | Rear bump & Upper rod | |
Special Functions | Multi-functions | Depot Refuelling: refueling into this tanker truck from external devices |
Self-refuelling: Self-refuelling into this tanker truck via the oil pump | ||
Oil Pump Unloading: Refueling into other vessels from this tanker truck via the oil pump | ||
Gravity Oil Unloading: Discharge oil from the tank via gravity flow | ||
High-flow level control: When refueling this tanker to the rated capacity, the automatic valve is closed and the loading pipeline is cut off | ||
Filtering refueling: Inject the oil in the tank into other oil-receiving equipments after filtration & measurement | ||
Special valves for avgas | 2-off 2.5'' valve at left and right side on rear, with aluminum protective boxes | |
Bottom Valve | 1-off bottom valves for emergency cutoff | |
Dispenser Unit | Filtration system, sampling system, dispenser hose, lighting system, control panel,etc; Aluminum rolling shutter doors at left and right side; dispenser hose with Φ38 hose in 15meter long and Φ38 oil gun | |
Drain outlet | Stainless steel wire tooth ball valve, at the tank bottom | |
Conducting electrostatic coil | Self-return coil, 15meter long | |
Emergency Cutoff Valve | 3-off for main refuelling valve, Precipitation outlet, tail refuelling port | |
M3/H5
Item | Unit | Description |
Model | Dongfeng Liuqi 15CBM oil tank Truck | |
Dimension | mm | 9600X2500X3200 |
tank body dimension | mm | 6500/7000×2300×1600 |
materail | aluminium alloy | |
Curb Weight | kg | 7870 |
Loading Weight | kg | 10000 |
G.V.W | kg | 18000 |
Wheel Base | mm | 4700 |
F/R track base | mm | 1400/2505 |
F/R Axle-load | Kg | 6500/11500 |
suspension | Steel Spring+Air suspension | |
Approach/Departure angle | . | 20/11 |
Traction system | Type | 4*2 |
Tire Specification/Number | Type | 275/80R22.5 18PR 6 Units+1 Spare Unit |
Max speed | Km/h | 80 |
Engine | Model | YCS06245-60A |
Emission/Kw | 6234cc, 180Kw / 2300 r | |
Horse Power | 245 Hp | |
Power | 1200 N.m - 1200~1500 r/min | |
Type | Diesel, 6cylinder, turbocharge, water cooling | |
Brand | China First Automobile Group Co., Ltd | |
Standard | Euro Ⅵ | |
Gearbox | Model | Manual |
Brand | fast gear 8JS95E-C | |
Fuel Tank | Liter | 350 |
Electronic | V | 24 |
Cab | Person | 2 |
Type | Reversible, Manual | |
Steer | Powering , LHD or RHD | |
Air Conditioner | Hot Wind / Cold Wind | |
Installing | Radio , Mp3 | |
Up Body | Customizing | |
