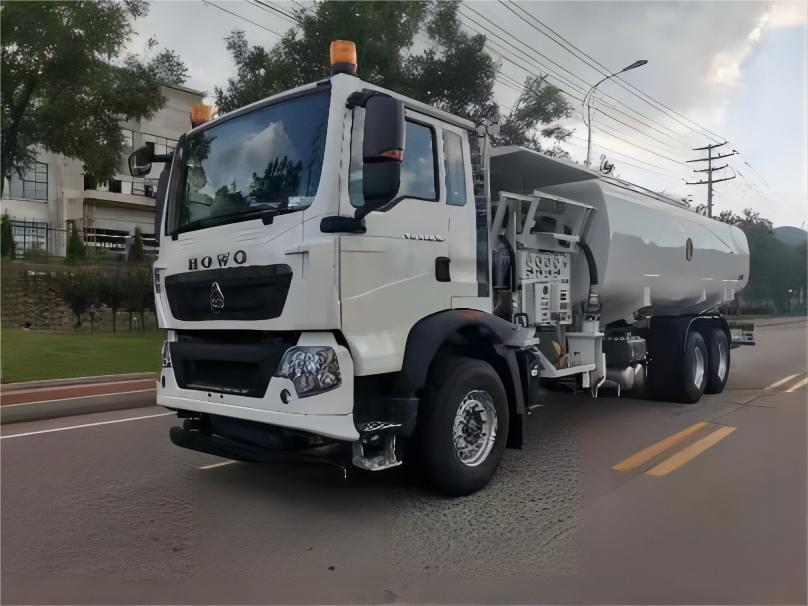

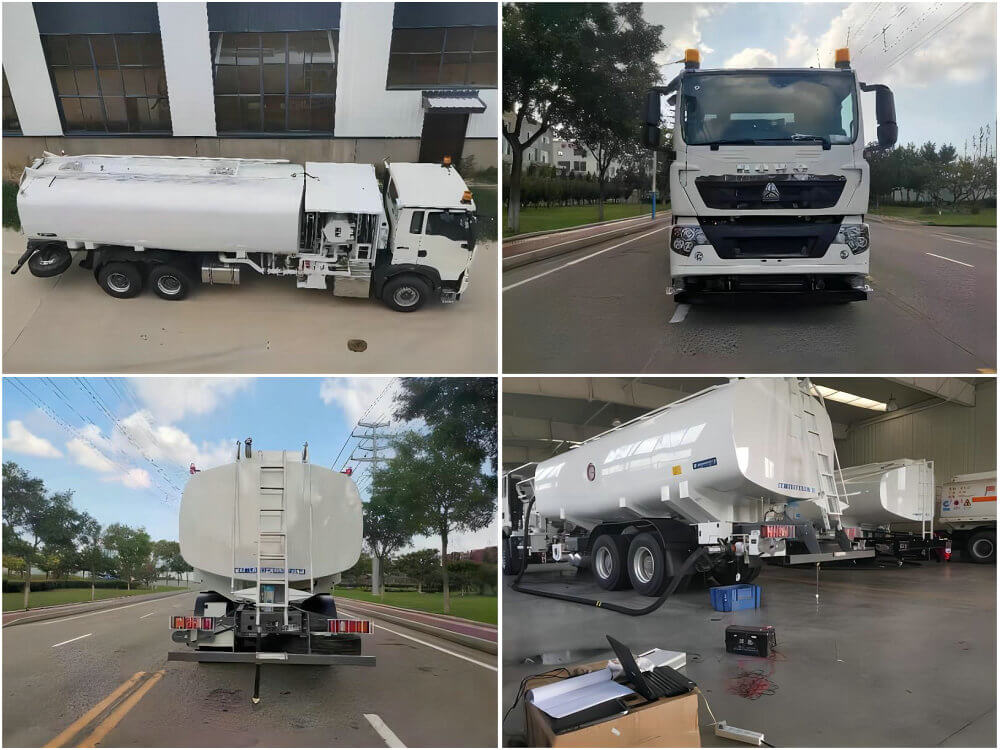

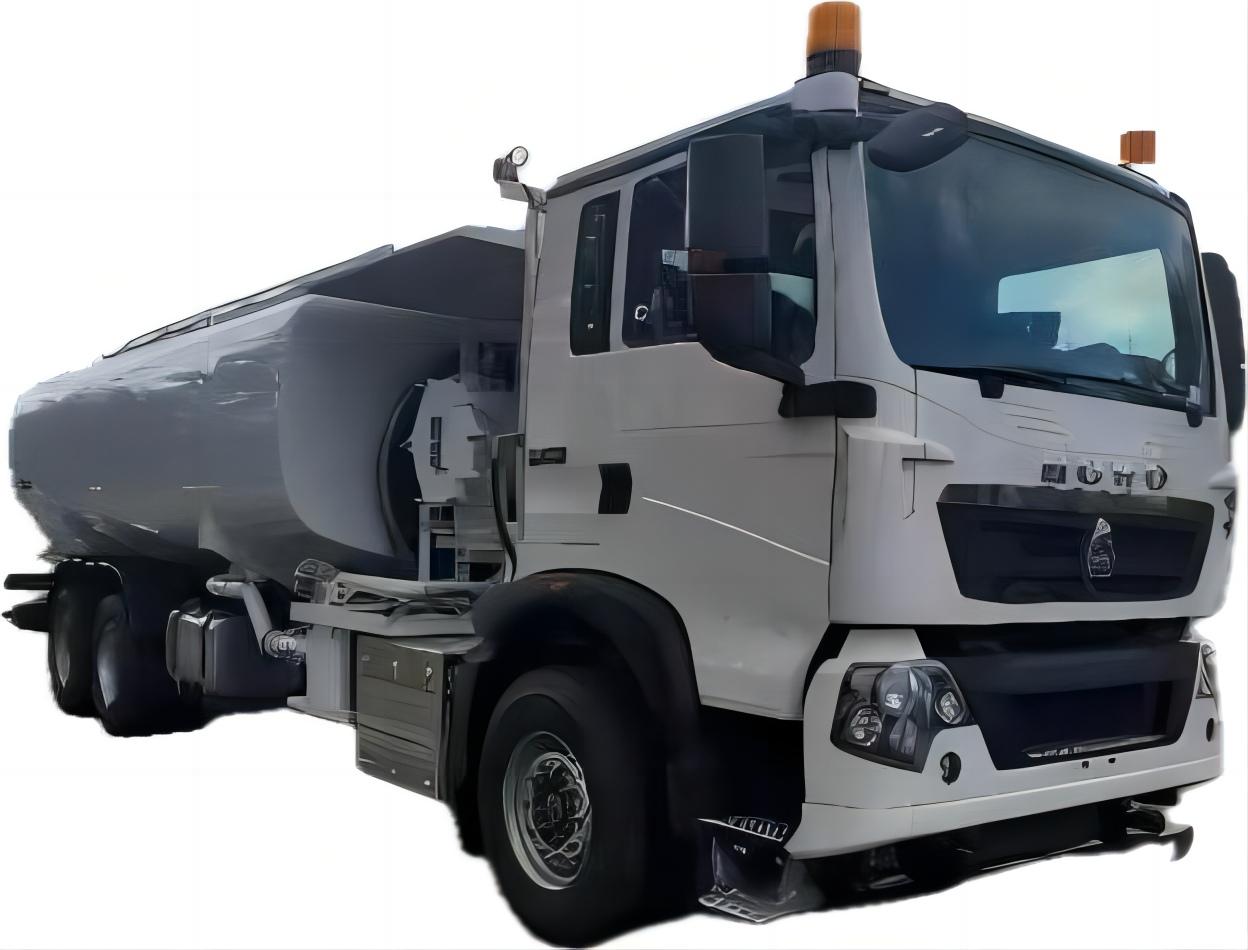

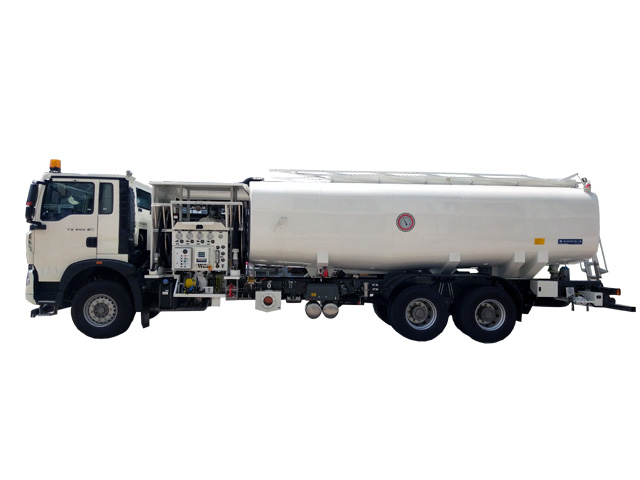

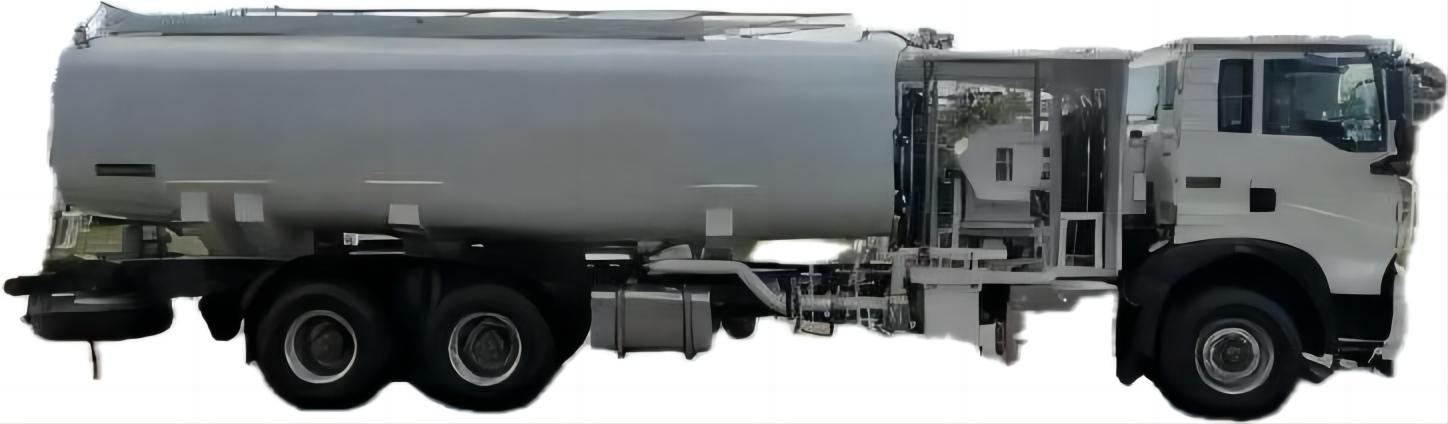

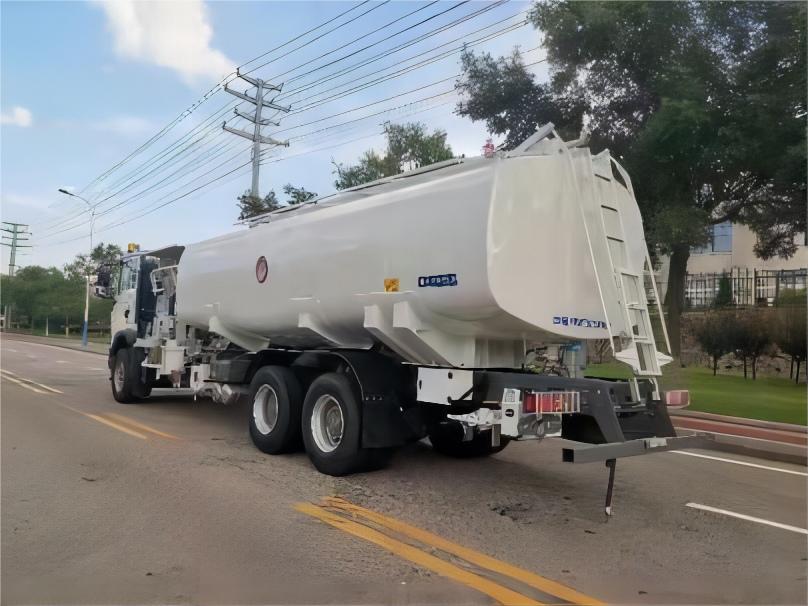

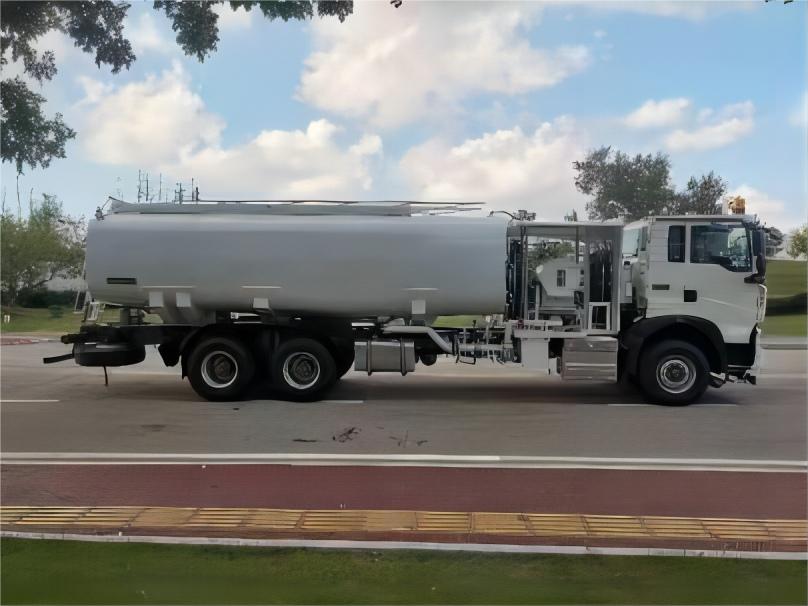

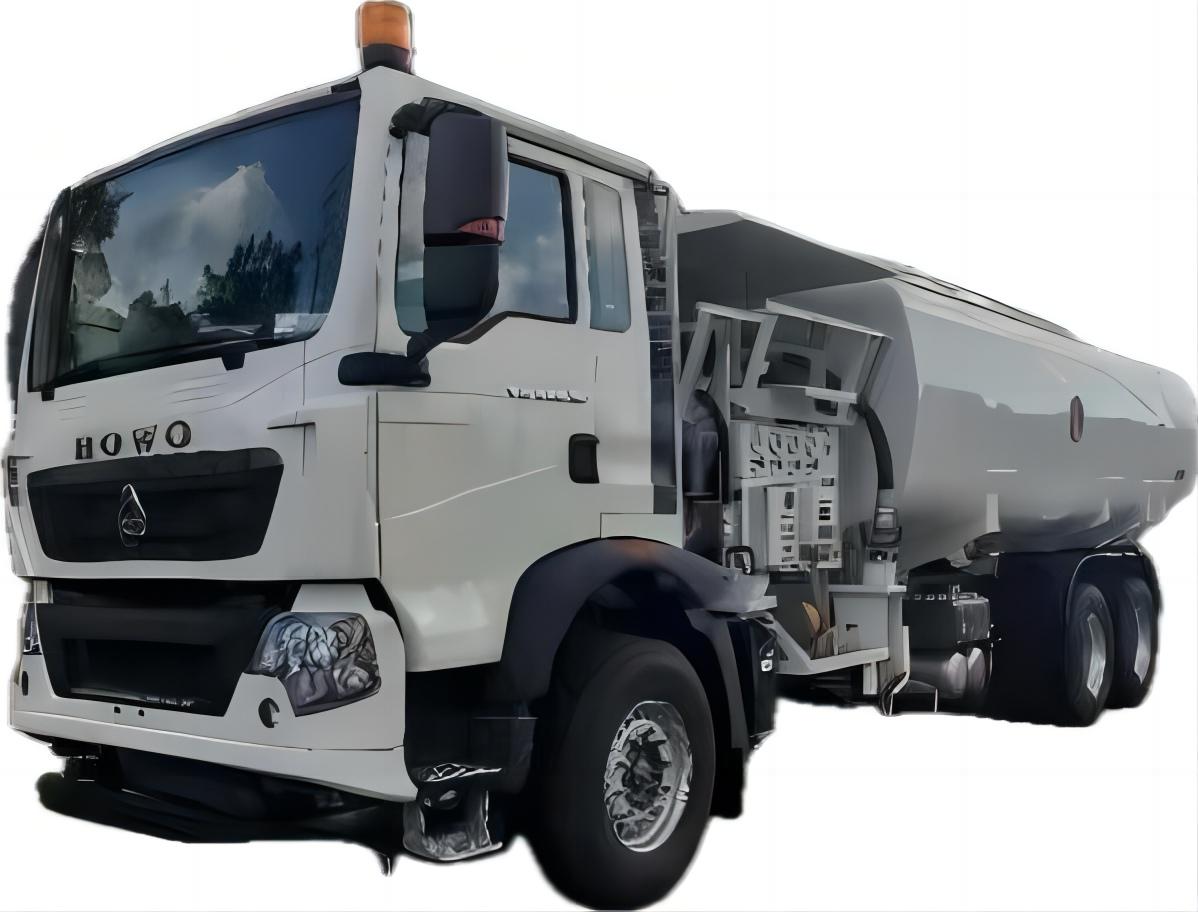

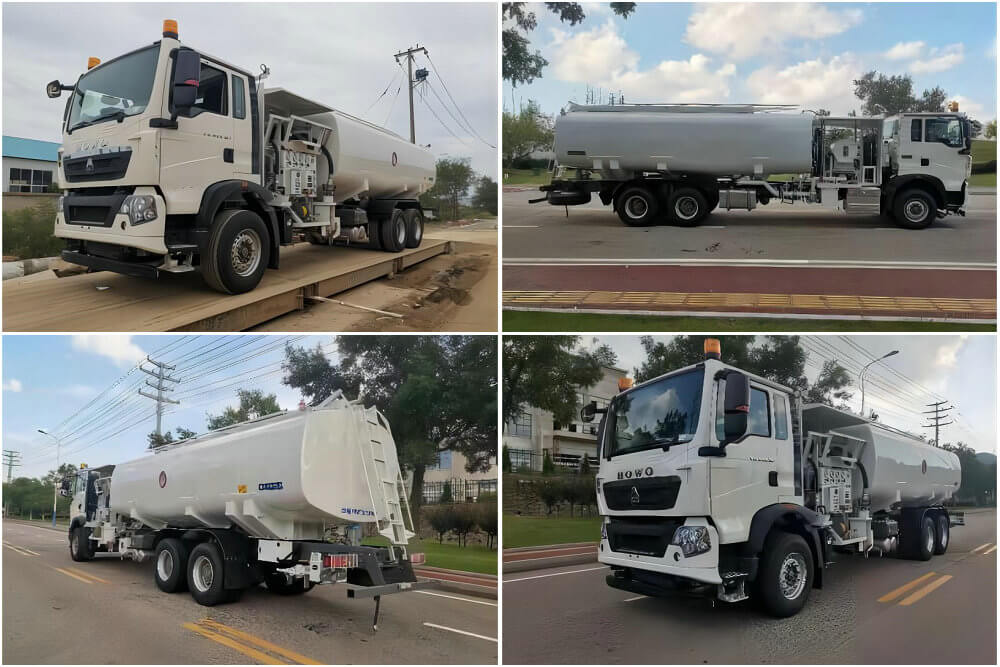

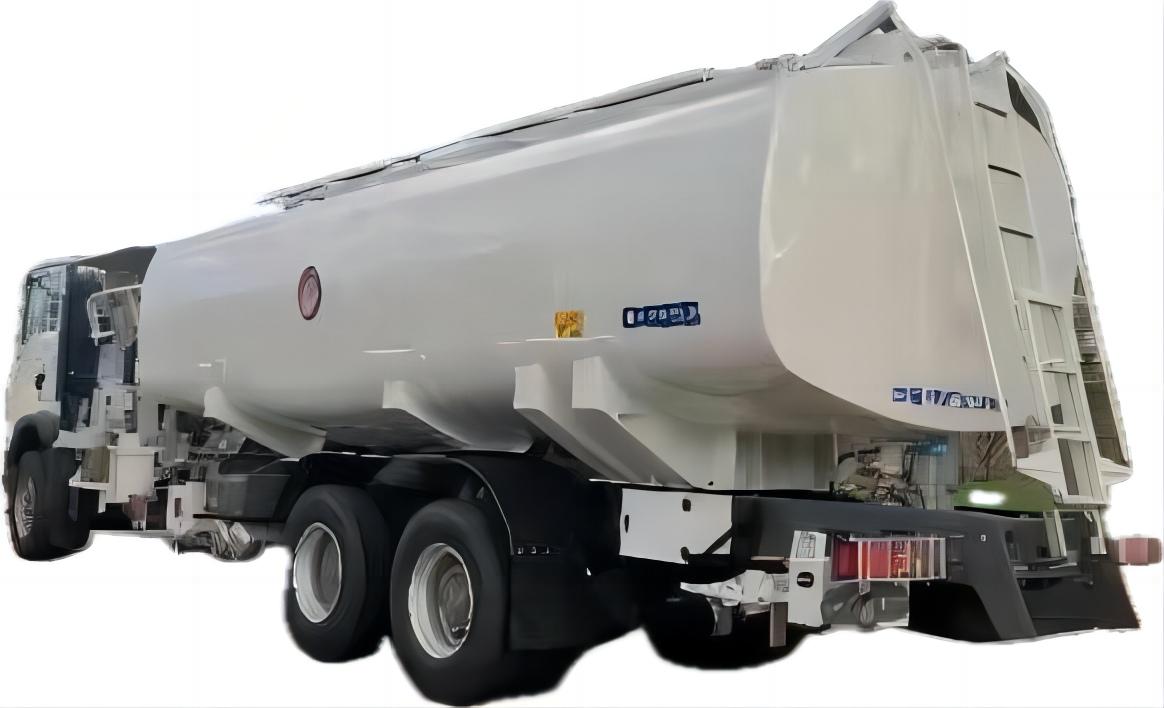

Sinotruck HOWO 25KL Aviation Jet Refuelers 1200L/Min
ZZ5357TXFV464MF1
JET A-1 oil Tank capacity 25000 (L)
Reel hose fueling maximum flow 1200(L/min)
Flow meter accuracy (%) ±0.2
Reel single pipe pumping rate ≥300(L/min)
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
ZZ5357TXFV464MF1,ZZ5347V4647E1
-
HOWO
-
8705906000
-
Shanghai, China
-
T/T
-
Roro
Sinotruck HOWO 25KL Aviation Jet Refuelers 1200L/Min
Capacity of JET A-1 Fuel tank 25000L
Pressure refueling hose inner diameter mm 63
Gravity fueling hose inner diameter mm 38
Gravity refueling flow 350L/min
Pressure fueling 20m Reel single tube flow1200L/min
Item | Performance index | ||
SINOTRUCK | SINOTRUCK | ||
Chassis | Manufacturer | SINOTRUCK | SINOTRUCK |
Model | ZZ5357TXFV464MF1 | ZZ5347V4647E1 | |
Engine | Manufacturer | SINOTRUCK | SINOTRUCK |
Model | MC11.40-60 | D10.34-50 | |
Gearbox | Manufacturer | SINOTRUCK | SINOTRUCK |
Model | HW09（HW19709XST） | HW15710 | |
Rated tank capacity (L) | 25000 | 25000 | |
Reel hose fueling maximum flow (L/min) | 1200 | 1200 | |
Maximum flow rate (L/min) | —— | —— | |
Flow meter accuracy (%) | ±0.2 | ±0.2 | |
Reel single pipe pumping rate (L/min) | ≥300 | ≥300 | |
Aviation kerosene filtration accuracy | EI 1581 | EI 1581 | |
Overall dimensions (L × W × H) (mm) | 11615×2540×3250 | 11615×2540×3295 | |
Maximum speed (km/h) | 50 | 34 | |
Braking distance (m) | ≤12.5 | ≤12.5 | |
Net weight (kg) | 14800 | 14600 | |
Other properties | —— | —— | |
Lifting range of refueling platform (mm) | —— | —— | |
NO | Assembly | Model | |
1 | Chassis | ZZ5357TXFV464MF1 | |
2 | Engine | MC11.40-60 | |
3 | Transmission | HW09(HW19709XST) | |
4 | Flowmeter | BM08BAN-G1 | |
5 | Filter Separator | SLHV-2233M | |
6 | Hydraulic Pump | XPi50-0523770 | |
7 | Hydraulic Motor | M50AD1POM200SVN | |
8 | Oil Tank | 25000L | |
9 | Steering Shaft | VPD95D | |
10 | Driving Shaft | MAT16ZG | |
11 | Tire | front axle | 385/65R22.5 |
| 12 | Tire | rear axle | 315/80R22.5 |
Sinotruck HOWO 25KL Aviation Jet Refuelers 1200L/Min
Capacity of JET A-1 Fuel tank 25000L
Pressure refueling hose inner diameter mm 63
Gravity fueling hose inner diameter mm 38
Gravity refueling flow 350L/min
Pressure fueling 20m Reel single tube flow1200L/min
Item | Performance index | ||
SINOTRUCK | SINOTRUCK | ||
Chassis | Manufacturer | SINOTRUCK | SINOTRUCK |
Model | ZZ5357TXFV464MF1 | ZZ5347V4647E1 | |
Engine | Manufacturer | SINOTRUCK | SINOTRUCK |
Model | MC11.40-60 | D10.34-50 | |
Gearbox | Manufacturer | SINOTRUCK | SINOTRUCK |
Model | HW09（HW19709XST） | HW15710 | |
Rated tank capacity (L) | 25000 | 25000 | |
Reel hose fueling maximum flow (L/min) | 1200 | 1200 | |
Maximum flow rate (L/min) | —— | —— | |
Flow meter accuracy (%) | ±0.2 | ±0.2 | |
Reel single pipe pumping rate (L/min) | ≥300 | ≥300 | |
Aviation kerosene filtration accuracy | EI 1581 | EI 1581 | |
Overall dimensions (L × W × H) (mm) | 11615×2540×3250 | 11615×2540×3295 | |
Maximum speed (km/h) | 50 | 34 | |
Braking distance (m) | ≤12.5 | ≤12.5 | |
Net weight (kg) | 14800 | 14600 | |
Other properties | —— | —— | |
Lifting range of refueling platform (mm) | —— | —— | |
NO | Assembly | Model | |
1 | Chassis | ZZ5357TXFV464MF1 | |
2 | Engine | MC11.40-60 | |
3 | Transmission | HW09(HW19709XST) | |
4 | Flowmeter | BM08BAN-G1 | |
5 | Filter Separator | SLHV-2233M | |
6 | Hydraulic Pump | XPi50-0523770 | |
7 | Hydraulic Motor | M50AD1POM200SVN | |
8 | Oil Tank | 25000L | |
9 | Steering Shaft | VPD95D | |
10 | Driving Shaft | MAT16ZG | |
11 | Tire | front axle | 385/65R22.5 |
| 12 | Tire | rear axle | 315/80R22.5 |
