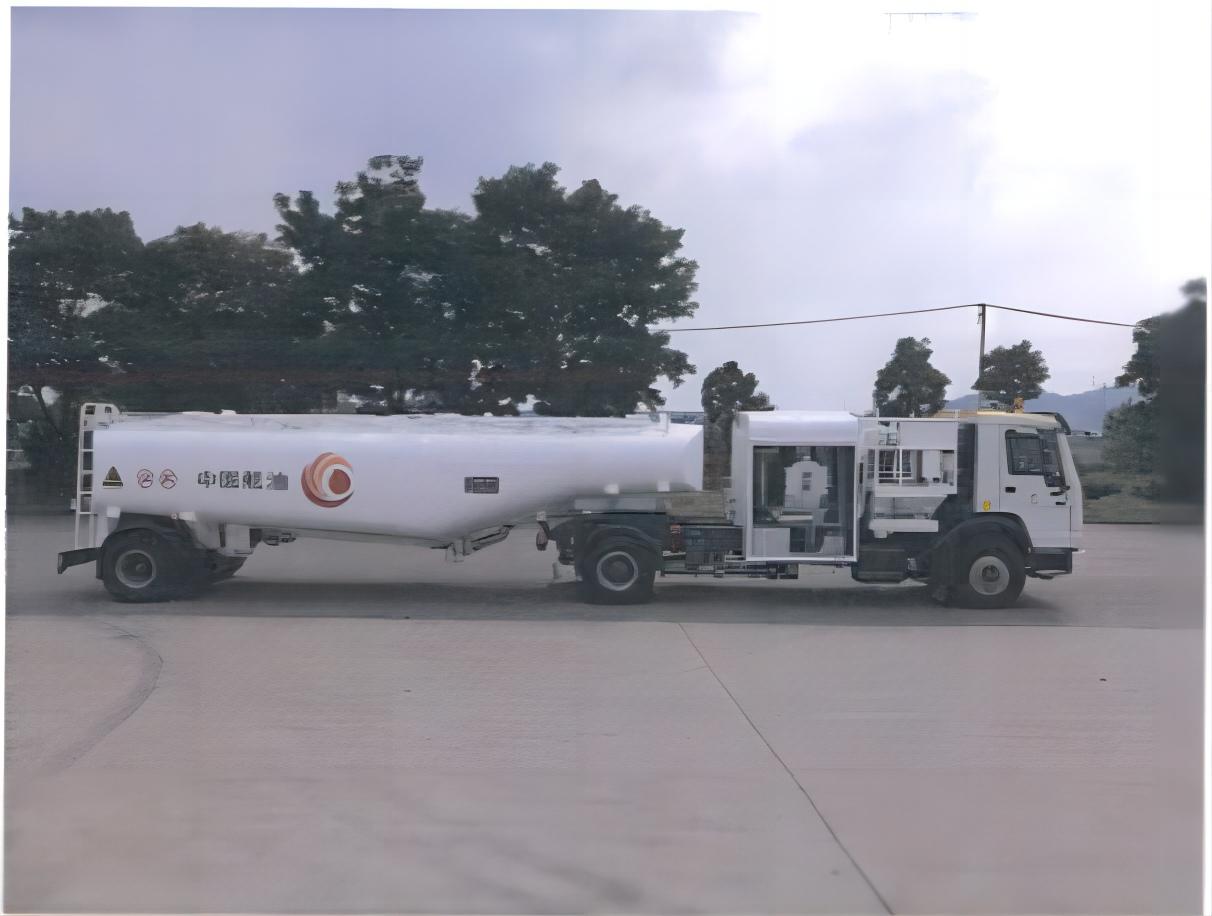

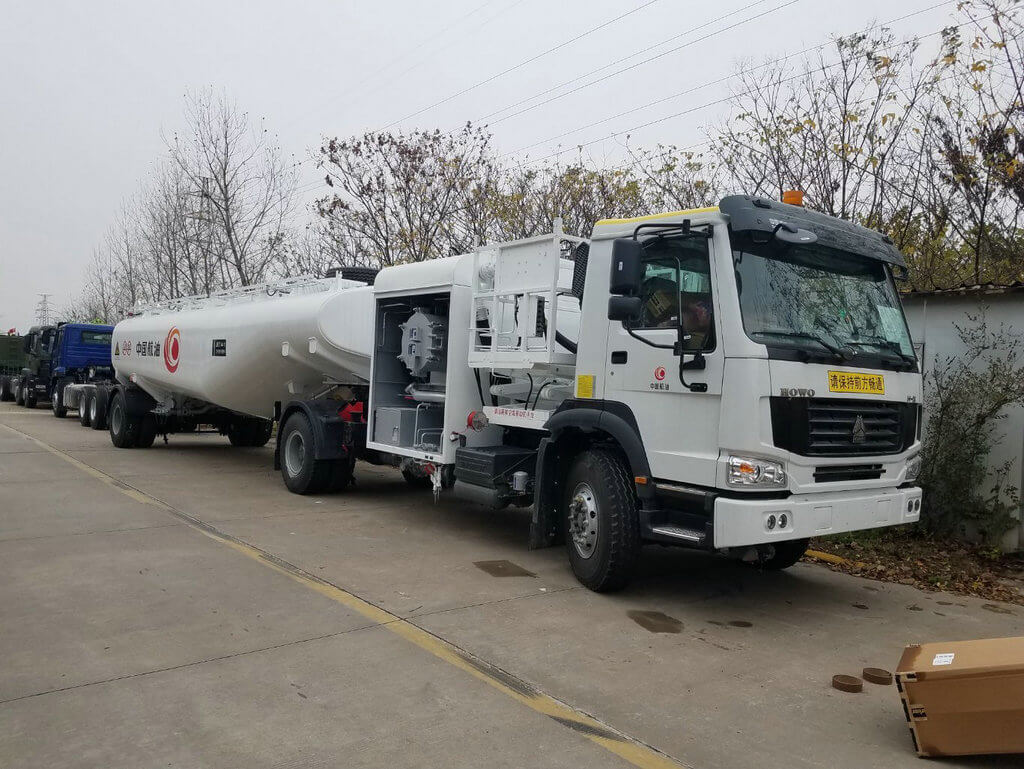

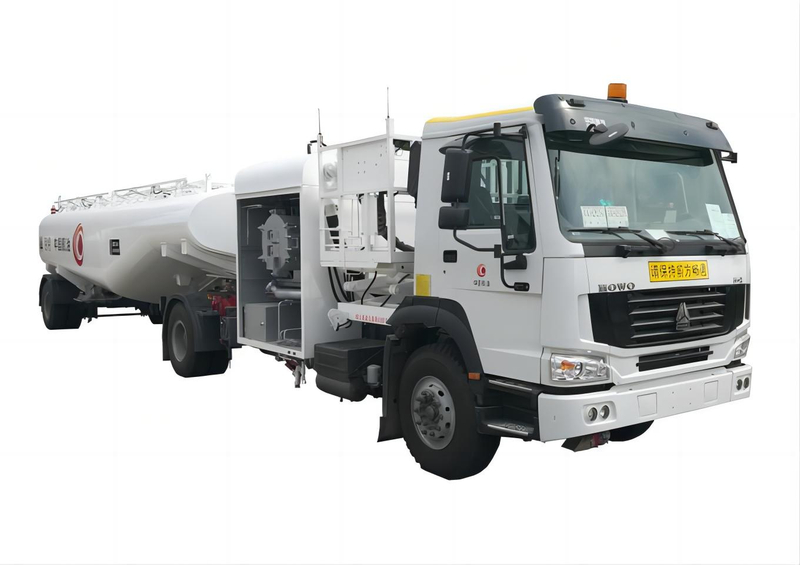

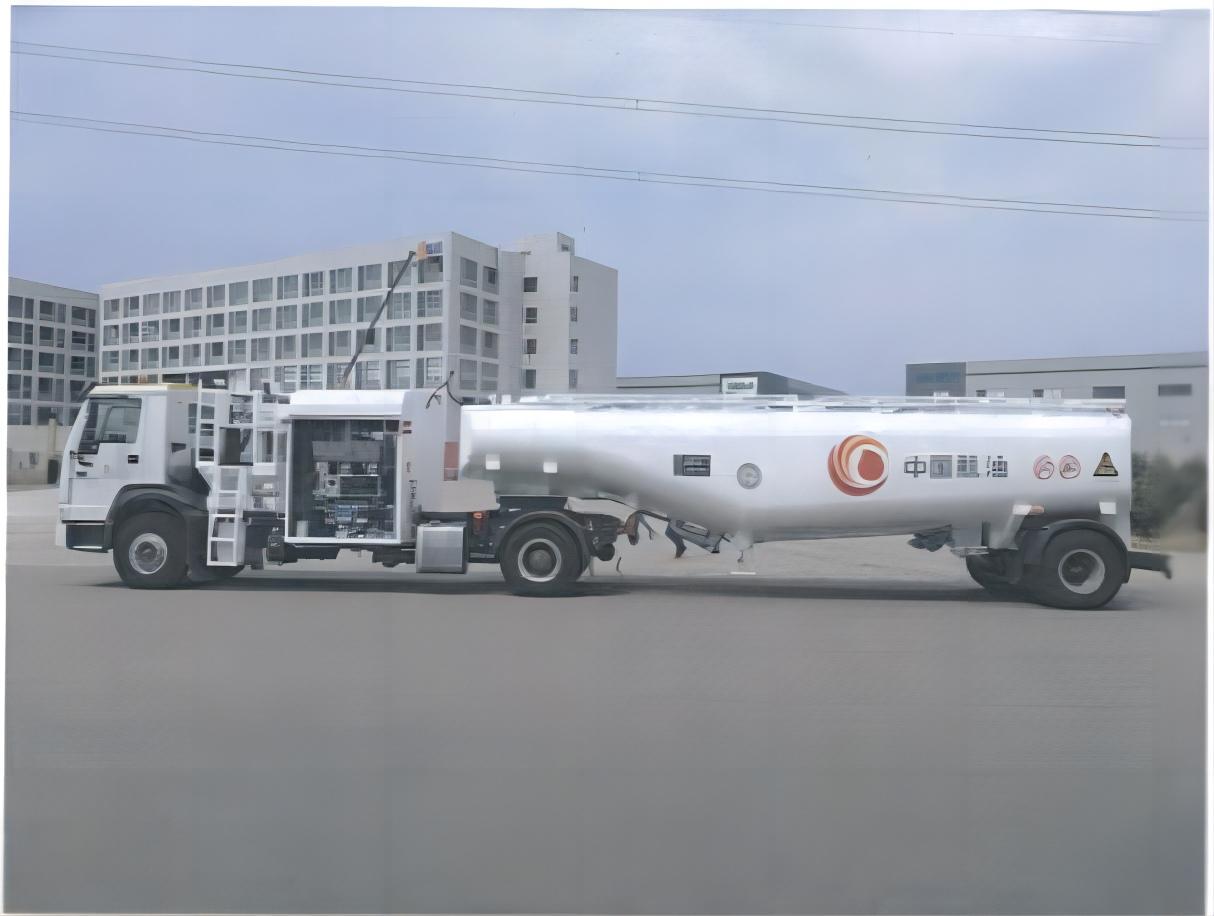

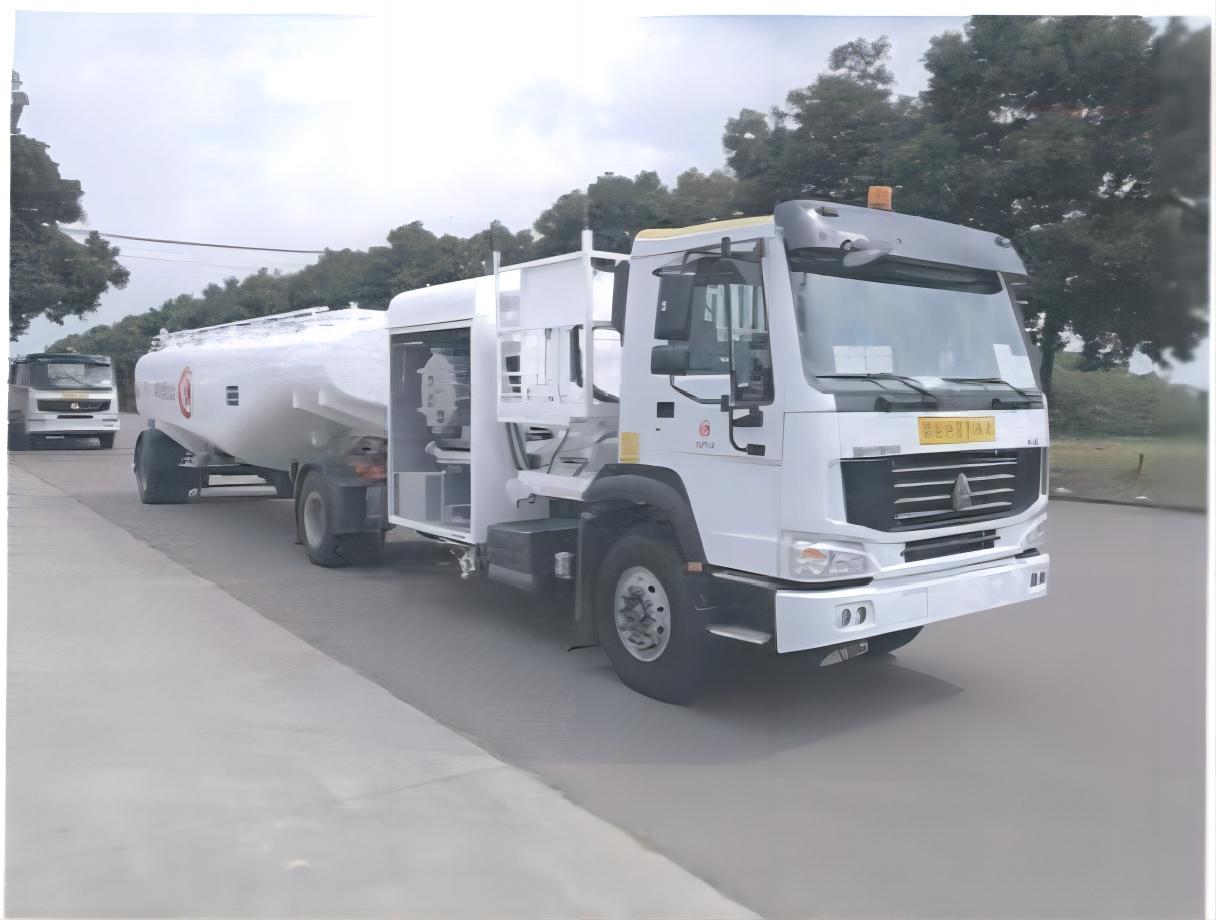

HOWO 35000L Aircraft Refueller Semi-Trailer
JET A-1 Aluminum Alloy Tank 35000 (L)
Maximum flow 1200 (L/min)
Double hose refueling 2400(L/min)
Flow meter accuracy (%) ±0.2
Reel single pipe pumping rate 300(L/min)
Lifting range of refueling platform 1800~3800(mm)
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
5450GJJ
-
HOWO
-
8705906000
-
Shanghai, China
-
T/T
-
Roro
HOWO 35000L Aircraft Refueller Semi-Trailer
Item | Performance index | |
Chassis | Manufacturer | SINOTRUCK |
Model | ZZ5207N4617E1 | |
Engine | Manufacturer | SINOTRUCK |
Model | WP10.31-50、MC07.34-60 | |
Gearbox | Manufacturer | FAST、SINOTRUCK |
Model | 9JS135TA 、HW19710 | |
Rated tank capacity (L) | 35000 | |
Reel hose fueling maximum flow (L/min) | 1200 | |
Maximum flow rate (L/min) Double hose refueling | 2400 | |
Flow meter accuracy (%) | ±0.2 | |
Reel single pipe pumping rate (L/min) | 300 | |
Aviation kerosene filtration accuracy | API/IP 1581 | |
Overall dimensions (L × W × H) (mm) | 15650×3050×3150 | |
Maximum speed (km/h) | 40 | |
Braking distance (m) | ≤12.5 | |
Net weight (kg) | 16400 | |
Other properties | —— | |
Lifting range of refueling platform (mm) | 1800~3800 | |
35000L Aircraft Refueller Semi-Trailer
This Aircraft refueller Semi-Trailer is mainly used for pressure refueling and pumping for the aircrafts equipped with pressure refueling connector in airport .
Main functions
Pressure refueling: pressure refuel all kinds of aircrafts or other containers from by its own reel hose or deck hose and pressure refueling connector after filtering and measuring.
Pumping oil: pumping oil from all kinds of aircrafts or other containers to its own oil tank by pressure refueling connector after filtering and measuring.
Circulate mix oil in the oil tank.
Loading oil: bottom refuel to its own oil tank by other equipments.
Entire vehicle technical specification
Dimension L*W*H, mm 15650×3050×3050
Minimum turning diameter, m 24
Curb weight of entire vehicle, kg 16370
Loading weight, Kg 28000
Lifting range of lift platform, m 1750～4250
Lifting time of lift platform 20～25
Rated volume of oil tank, L 35000
Tank material: Aluminum Alloy
Performance parameter of refueling system
1) Maximum flow rate of pressure refueling
lReel double-hose refueling, L/min： 2000
lPlatform double-hose refueling, L/min： 2400
2)Maximum flow rate of pumping in vacuum (single hose), L/min
lReel single hose refueling, L/min： 250
lPlatform single hose refueling, L/min： 420
3)Maximum flow rate of refueling, L/min: 1500 (single-hose)/2500 (double-hose)
4)Accuracy of Flow meter: ±0.2%
5)Performance index of filtration must conform to the requirements of API/IP 1581 5th.
6)When refueling, the pressure in the end of the pipeline is 0.35Mpa. When the pressure is over the setting data, it will cut off automatically.
7)2 pieces reel pressure refueling hoses and 2pics platform pressure refueling hoses
Characteristic
1)It is smart and has big volume.
2)The variable cross-section of oil tank is made of alu-mg alloy which is good for aggradations of moisture and impurity. And it can protect oil quality. It has fire arrestor and anti-overflow manhole cover of breathe valve.
3)It has lifting platform which adapt to machinery which has high refueling port.
4)It has multiple functions and many working functions.
5)It adopts advance technical and has pressure control function and high-low level control function and so on.
6)It adopts European Ⅲ displacement standard chassis to save energy and protect environment.
7)It adopts hydraulic and pneumatic control. It has high automation and is easy to operate.
8)It is safe to operate. And it has many functions such as pressure control, high-low level control, electric deadman control, working interlock, engine emergency power off function and so on.
