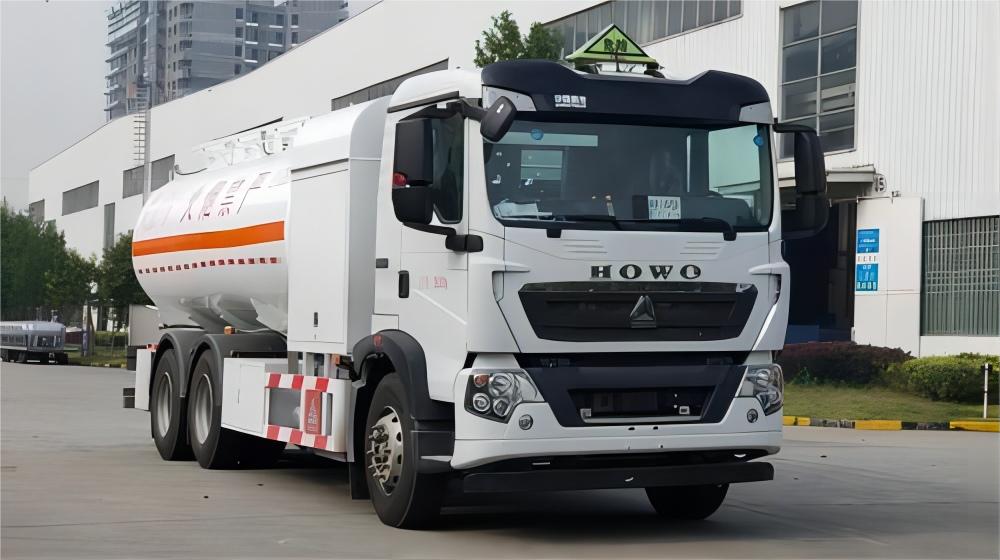

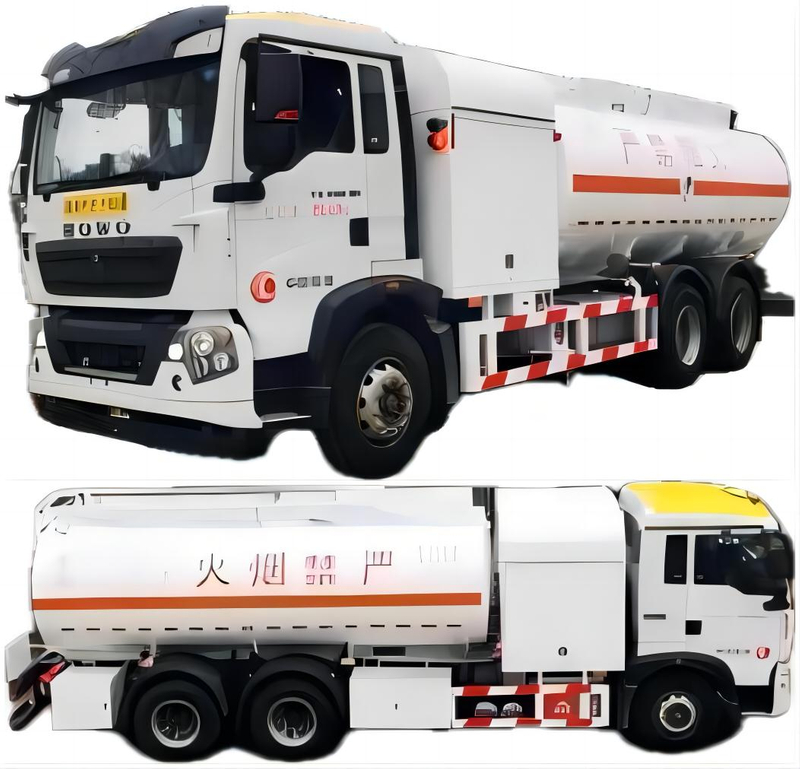

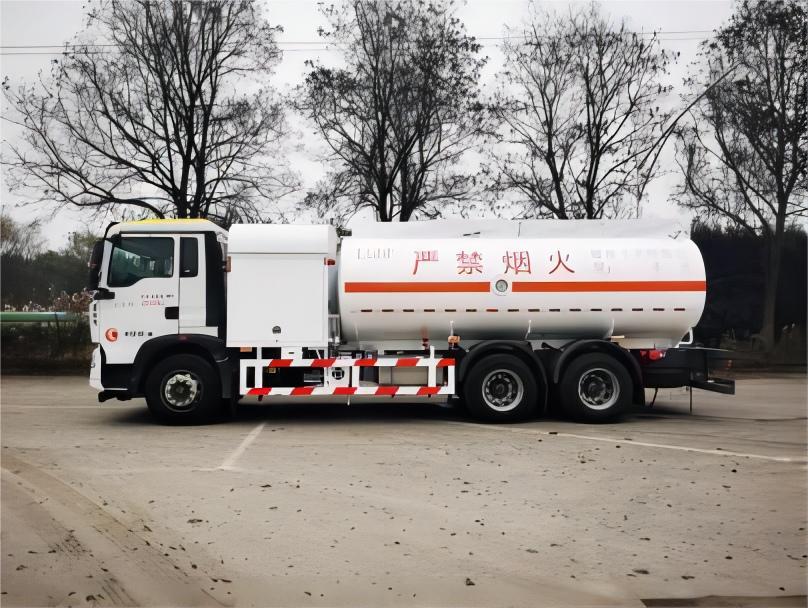

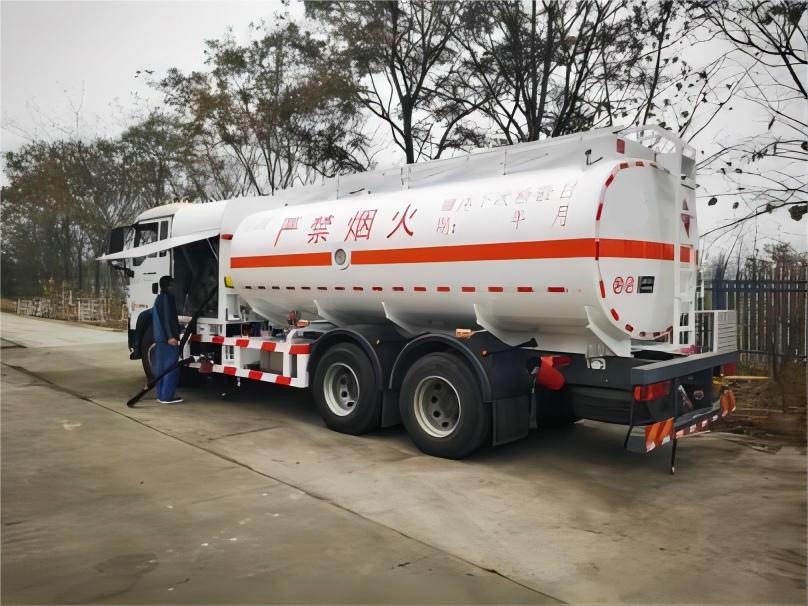

Sinotruck HOWO Aircraft Refueling Trucks (Tanker 17500L -19000L- 4000-5000USG Aircraft Refueler)
Sinotruck HOWO Aircraft Refueling Trucks (Tanker 17500L -19000L- 4000-5000USG Aircraft Refueler)
Jet / Avgas Fuel tank capacity 17500(L)
Reel hose fueling maximum flow 800(L/min)
Flow meter accuracy (%) ±0.2
Reel single pipe pumping rate 200(L/min)
Price for refer only. Final Price Offer Discount.
Jet / Avgas Fuel tank capacity 17500(L)
Reel hose fueling maximum flow 800(L/min)
Flow meter accuracy (%) ±0.2
Reel single pipe pumping rate 200(L/min)
Price for refer only. Final Price Offer Discount.
Price: $ 168800
Price: $ 168800
| Quantity: | |
|---|---|
|
| |
-
5260GJYF6Z
-
HOWO
-
8705906000
-
Shanghai, China
-
T/T
-
Roro
SINOTRUCK HOWO Aircraft Refueling Trucks (Tanker 17500L Aircraft Refueler )
Aircraft Refueling Trucks
Refueller Trucks, Refueller Trucks Suppliers
Euro 5 Type vehicle technical specification
Jet / Avgas Fuel tank capacity 17500(L)
Reel hose fueling maximum flow 800(L/min)
Flow meter accuracy (%) ±0.2
Item | Performance index | |
Chassis | Manufacturer | SINOTRUCK |
Model | ZZ1267N464GF1K | |
Engine | Manufacturer | SINOTRUCK & MAN |
Model | MC07.34-60 | |
Gearbox | Manufacturer | SINOTRUCK |
Model | HW19710 | |
Rated tank capacity (L) | 17500 | |
Reel hose fueling maximum flow (L/min) | 800 | |
Maximum flow rate (L/min) Double hose refueling | —— | |
Flow meter accuracy (%) | ±0.2 | |
Reel single pipe pumping rate (L/min) | 200 | |
Aviation kerosene filtration accuracy | API/IP 1581 | |
Overall dimensions (L × W × H) (mm) | 9400×2500×3200 | |
Maximum speed (km/h) | 50 | |
Braking distance (m) | ≤12.5 | |
Net weight (kg) | 11860 | |
Other properties | —— | |
Lifting range of refueling platform (mm) | —— | |
No | Name | Assembly |
1 | Chassis | ZZ1267N464GF1K |
2 | Engine | MC07.34-60 |
3 | Transmission | HW19710 |
4 | Oil Pump | 80QZB-60/62S-X-YJ |
5 | Flowmeter | LL-80CT-ZF11-W |
6 | Filter Separator | SLHV-2233M |
7 | Hydraulic Pump | CBW-F306-ALPR |
8 | Hydraulic Motor | OMP100 |
9 | Oil Tank | 17500L |
10 | Steering Shaft | VPD075QB |
11 | Driving Shaft | MCY11 |
12 | Tyre | 295/80R22.5 18PR |
Main technical parameters
Overall dimensions: | 9400×2500×3250(mm) | Fuel Type: | Diesel oil |
GW | 26000(Kg) | ||
NW: | 12220(Kg) | Rated load mass: | 13650(Kg) |
Approach Angle/Departure Angle: | 19/13 (°) | Front/rear overhang: | 1430/1995(mm) |
Axle Load: | 7000/19000(Two-axis group) | Wheelbase: | 3175+1400,3775+1400,4075+1400,4275+1400,4575+1400,4875+1400,5175+1400,5775+1400(mm) |
Number of shafts: | 3 | Maximum speed: | 80(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5,12R22.5,12.00R20 18PR,11.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/-/-,3/-/-,2/-/-,2/1+-/1+-,3/1+-/1+-,3/2+-/2+-,4/2+-/2+- |
Front wheel base: | 2015,2035(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07H.33-60; MC11.40-60; MC09.38-60; MC07.34-60; MC07.27-60; MC11.40-61; MC07H.29-60; MC07.33-60; MC09.35 B - 60; MC07.29-60; MC09.35-60; MC07.31-60; WP9H350E62; MC07H.35-60; WP8.350 E61. WP10H400E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 7360; 10518; 8765; 6870; 6870; 10518; 7360; 6870; 8765; 6870; 8765; 6870; 8800; 7360; 7800; 9500 | 240; 297; 279; 251; 202; 297; 213; 240; 260; 213; 260; 228; 257; 257; 257; 294 |
Tank effective volume :18 cubic meters, tank external dimension (mm)2480×1680×5200、5560( ABS system controller, manufactured by WABCO (Shanghai) Management Co., LTD. /4460046300; Optional EBS with chassis,EBS system controller manufacturer/model: WABCO (Shanghai) Management Co., LTD. /EBS3; The vehicle is equipped with speed limiting device, speed limiting 80km/h. The front axle is equipped with disc brake, and the steering wheel is equipped with emergency protection device for tire burst. Installation of ESD belt and travel recorder with satellite positioning function; Exhaust pipe front, facing left; chassis 4575+1400(mm) wheelbase 295/80R22.5 18PR tires The rear suspension air suspension; |
Euro 5 Type vehicle technical specification
| Entire vModel: | 5260GJYF5Z |
| Overall Dimension: L*W*H(mm) | 9400×2500×3250 |
| Gross Vehicle Weight: (kg) | 26000 |
| Payload: (kg) | 13650 |
| Curb Weight: (kg) | 12155 |
| Chassis Manufacturer: | ZZ1267M464GE1 , Euro V |
| Engine Power: (Kw) | 176 |
| Max. Speed: (Km/hr) | 80 |
| Tank Volume: (L) | 18000 |
| Tank Material: | Aluminum Alloy (5083) |
| Accuracy of Flow mete: | ±0.2% |
| Filter Separator Standard: | Comply with API 1581 5th |
| Wheelbase(mm) | 4575+1400 |
| Max. Underwing Flow Rate(L/min): | 1200(Single Hose);2000(Double Hose) |
| Max.De-fueling Flow Rate (L/min): | 300(Single Hose) |
| Max. Loading Flow Rate (L/min): | 1500 |
| Refueling Pressure Contol: | Online, at the end |
| Interlock Brake: | YES |
| DeadmanContol: | Pneumatic/Electic Control |
| Civil Aviation Production License: | YES |
| High/Low Level Control: | YES |
ZZ1267M464GE1 main performance indicators:
Project performance index
Chassis Manufacturer China National Heavy Duty Truck Group Jinan Truck Co., Ltd.
Model ZZ1267M464GE1
Engine Manufacturer China National Heavy Duty Truck Group Co., Ltd.
Model MC07.31-50
Gearbox Manufacturer China National Heavy Duty Truck Group Co., Ltd.
Model HW09X
Tank rated capacity (L) 17500
Reel hose maximum flow (L/min) Pressure reel 800 Gravity reel 300
Platform double hose refueling maximum flow (L/min) --
Flowmeter accuracy (%) ±0.2
Reel single pipe pumping flow (L/min) 200
Aviation kerosene filtration accuracy meets the requirements of API/IP 1581 fifth edition
Dimensions (length × width × height) (mm) 9400 × 2500 × 3200
Maximum speed (km/h) 50
Braking distance (m) ≤12.5
Curing quality (kg) 11900
Approach angle / departure angle: 19/13 (°)
Front suspension / rear suspension: 1430/1995 (mm)
Number of axes: 3
Wheelbase: 4275+1400, 4575+1400, 5775+1400 (mm)
Axle load: 7000/19000 (two-axis group)
Maximum speed: 80 (km/h)
Others effective volume of the vehicle is 18 cubic meters, and the outer dimensions of the tank (mm): 2480 (width) × 1680 (height) × 5560 (the total length of the tank includes the head); special equipment (centrifugal pump) Model: 80QZB-60/62S-X-YJ, manufacturer: Hangzhou Weilong Pump Co., Ltd.; the car is equipped with fueling device for mobile refueling; type of dangerous goods transport vehicle: FL type, medium: aviation kerosene, aviation Gasoline; aviation kerosene density 780kg/m3, aviation gasoline density 730kg/m3, category number: 3; side protection material: 6063-T5, rear protective material: Q345-B, connection: bolt connection, rear section size: 120 ×100(mm), height from ground: 450 (mm); only the wheelbase of the chassis 4575+1400; only the chassis MC07.31-50 engine, only the chassis 295/80R22.5 tires, front axle assembly disc Brake; exhaust pipe front and left; optional rear independent safety sign; ABS and tachograph with satellite positioning function, ABS model: 4460046300; manufacturer: WABCO car control system (China) ) Co., Ltd.; the car is equipped with a speed limit device, the speed limit is 80km / h, the speed limit device model: S073105F1112, manufacturer: BOSCH.
Project performance index
Chassis Manufacturer China National Heavy Duty Truck Group Jinan Truck Co., Ltd.
Model ZZ1267M464GE1
Engine Manufacturer China National Heavy Duty Truck Group Co., Ltd.
Model MC07.31-50
Gearbox Manufacturer China National Heavy Duty Truck Group Co., Ltd.
Model HW09X
Tank rated capacity (L) 17500
Reel hose maximum flow (L/min) Pressure reel 800 Gravity reel 300
Platform double hose refueling maximum flow (L/min) --
Flowmeter accuracy (%) ±0.2
Reel single pipe pumping flow (L/min) 200
Aviation kerosene filtration accuracy meets the requirements of API/IP 1581 fifth edition
Dimensions (length × width × height) (mm) 9400 × 2500 × 3200
Maximum speed (km/h) 50
Braking distance (m) ≤12.5
Curing quality (kg) 11900
Approach angle / departure angle: 19/13 (°)
Front suspension / rear suspension: 1430/1995 (mm)
Number of axes: 3
Wheelbase: 4275+1400, 4575+1400, 5775+1400 (mm)
Axle load: 7000/19000 (two-axis group)
Maximum speed: 80 (km/h)
Others effective volume of the vehicle is 18 cubic meters, and the outer dimensions of the tank (mm): 2480 (width) × 1680 (height) × 5560 (the total length of the tank includes the head); special equipment (centrifugal pump) Model: 80QZB-60/62S-X-YJ, manufacturer: Hangzhou Weilong Pump Co., Ltd.; the car is equipped with fueling device for mobile refueling; type of dangerous goods transport vehicle: FL type, medium: aviation kerosene, aviation Gasoline; aviation kerosene density 780kg/m3, aviation gasoline density 730kg/m3, category number: 3; side protection material: 6063-T5, rear protective material: Q345-B, connection: bolt connection, rear section size: 120 ×100(mm), height from ground: 450 (mm); only the wheelbase of the chassis 4575+1400; only the chassis MC07.31-50 engine, only the chassis 295/80R22.5 tires, front axle assembly disc Brake; exhaust pipe front and left; optional rear independent safety sign; ABS and tachograph with satellite positioning function, ABS model: 4460046300; manufacturer: WABCO car control system (China) ) Co., Ltd.; the car is equipped with a speed limit device, the speed limit is 80km / h, the speed limit device model: S073105F1112, manufacturer: BOSCH.
| Aircraft Tanker Aircraft Refueling Truck Aircraft Refueler TECHNICAL SCRUTINY REPORT (TSR) (SPECIFICATION) | ||||
| NO | PART NO | INDENTED ITEM SPECS (BY USER) (T.O. REFERENCE) | ||
| AIRCRAFT REFUELLER (5,000 USG ) Air transportable internally by C-130 E Model Along with spare wheel, wheel brace, jack with handle and one set of complete tool kit and fire extinguisher:- | ||||
| 1 | ||||
| 2 | ||||
| 3 | Engine | No of Cylinders | Diesel 6 cylinders water cooled & direct injection, OHV | |
| Mechanical drives between engine and pump. | ||||
| 4 | Max Torque | 135 to 145 Kg at 1200 to 1400 RPM | ||
| 5 | Max Output | 340 to 360 PS at 2100 to 2200 RPM | ||
| 6 | Piston displacement | 11,000 cc to 11,300 cc | ||
| 7 | Transmission | · 6 forward x I reverse speed · 6 x 4 Drive · Manual Transmission | ||
| 8 | Clutch | Hydraulic control with air assisted dry single plate. | ||
| 9 | Dimensions | Length | 10,000-11,000 mm | |
| Width | 2450-2550 mm | |||
| Height | 2550-2660 mm | |||
| Wheel Base | 5500-7000 mm | |||
| Grd Clearance | 270 to 300 mm | |||
| Weight empty | 12,800-14,000 Kg | |||
| Weight with load | 29,000-30,000 Kg | |||
| 10 | Colour | Jungle Camouflage | ||
| 11 | Steering | Right Hand Drive | ||
| Power Steering | ||||
| 12 | Suspension | Front | Front semi elliptical steel leaf spring, hydraulic double acting telescopic shock absorbers. | |
| Rear | Rear semi elliptical type steel leaf spring type. | |||
| 13 | Brakes | Parking | Hand operated hand brake for parking at rear 8 wheel | |
| Service | Air pressure over hydraulic dual circuit on front and rear wheel. Automatic actuated braking system when the refueling is in operation | |||
| Auxiliary brakes | Electro pneumatic control with better fly valve. | |||
| 14 | Electric System | 24 V system. | ||
| Batteries provided with housing and switch | ||||
| Batteries cover made of fuel resistant material | ||||
| Main battery shut off relay | ||||
| Other standard electrical fitting to be provided (fire proof certificate for electrical wiring is to be provide by the firm). | ||||
| 15 | Seating Capacity | 3 Persons in Front Cabin | ||
| 16 | Chassis | Frame to be ladder type reinforced single channel equipped with hook on the front & rear frame | ||
| 17 | Axle | Front | · Reverse Elliot "T" / "I" beam type · Load capacity 6,500 to 8,000 Kg on road | |
| Rear | · Two Axles · Single reduction banjo housing tandem type · Load capacity 22,500 to 24,000 Kg on road | |||
| 18 | Exhaust | Horizontally mounted below front bumper with spark arrester. | ||
| 19 | Pump drive system | T/M PTO Drive / Full power, Split Shaft PTO | ||
| Speed control gear box below chassis. | ||||
| Control Provided at Control Panel as well as Cabin | ||||
| 20 | Clamp Rings | Suitable Qty of Clamp rings for shipment, located at appropriate locations | ||
| 21 | Cab | All steel welded cab | ||
| Hydraulic tilt type | ||||
| crew seats adjustable with shock absorber & coil spring | ||||
| Windshield & windows with tinted glass3 | ||||
| Center and Window side mirrors. | ||||
| Good quality / durable up-holstry / cabin fittings | ||||
| Fog light | ||||
| 22 | Mudguards | Built-in mudguards. | ||
| 23 | Spark Arrester | Prevention from the spark. 1 unit to install in front of passenger side. | ||

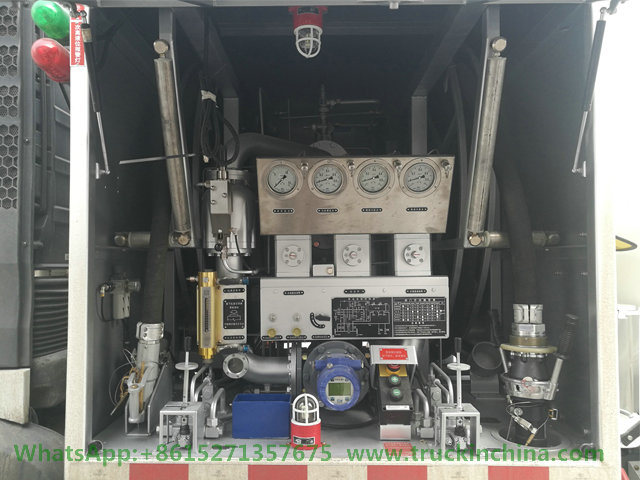

| 24 | Control Board | Control panel should be on the right side of vehicle behind Driver cabin. | ||
| Provisioning of Roll up type shutter doors | ||||
| Hand accelerator | ||||
| Warning lights for fuel charging system | ||||
| Pressure indicator for pump suction / delivery and refueling lines | ||||
| Pump RPM digital indicator | ||||
| Instruction plate (in English Language) | ||||
| Control air pressure gauge. | ||||
| Differential pressure gauges for filter / separator. | ||||
| Reference pressure gauge for By pass valve. | ||||
| Venturi pressure gauge (Fuelling pressure gauge). | ||||
| Vacuum pressure gauge for defueling process | ||||
| On-off switch for Dead Man System | ||||
| Manual Deadman override switch | ||||
| Main power switch | ||||
| Emergency engine stop switch on control panel | ||||
| Working Lamp switch | ||||
| Deadman Lamp | ||||
| Brake inter lock lamp | ||||
| Pump speed control on control panel | ||||
| Revolution counter on control panel | ||||
| System flow diagram | ||||
| 25 | Tank | Capacity | 5000 US Gallons | |
| Construction | · Made of Aluminum Alloy as per International Aviation Standards (AW5454) · Material of the tank must be corrosion / oxidation free and resistant, and must comply with International Safety and Aviation Standards. · OEM to furnish complete details about tank material specs, its corrosion resistant properties, and International Aviation Standard to which material complies, in his technical quotes. Moreover, certificate to this effect be provided · Tank to be leak resistant and able to sustain jerks and jumps on rough track. · Tanks shape must be designed such that refueller is C-130 Aircraft transportable · Single compartment, provided on the inside with stress-resistant shell heads and anti-slashing baffles dividing tank into communicating compartments, such that all are accessible for cleaning / inspection. · Tank wall thickness is to be minimum 5 mm. · Baffle plates must be flushed with tank surface to ensure full drainage of fuel while defuelling operation | |||
| Compartments | All compartments assembled by welding of continuous bead type to the chassis | |||
| Man Holes | · Qty Two (2) of 20" - 24" dia · Mounted to tank top side · Provided with covers, bolted to the man-hole collars · Fitted with fuel proof sealing · Provided with Vacuum pressure safety valve · Provided with one separate inlet for dip stick | |||
| Tank Bottom | · One stanch tape with hermetic seal cover fitted to the bottom of tank rear section and provided with automatic water drainage and one gate valve to drain the tank by hand. · The tank should be manufactured with a sloped channel forward to the water pump installed in the rear point of the tank bottom | |||
| Cat Walk | · Non-skid type (Metallic Structure) · Running along the whole upper side of tank with safeguard | |||
| Ladder | One fixed ladder on rear of refueller for climbing up and down the catwalk way | |||
| Fuel System and Pump Compartment Doors | · Large Size · Hinged type · Opening upwards / sideways · Provision of roll up type doors on both side of control panel | |||
| Hose Carriers | · Qty Two for 3" hoses · Fitted on each side of the tank | |||
| Tank to | · Inner piping with suction port | |||
| pumping station connection | located in the lower part but above level of drainage sump. · One emergency valve on piping outlet to cut-off the tank from pumping stations. · Anti vibrating joints to damp possible vibration between the tank and the pump. | |||
| Tank Vent Interlocking Device | · Provided Air Vent valve at the top side of the tank. · Provided to prevent dispensing unless the vent is open. | |||
| Tank Level Gauge | 8" -10" Dia Aluminum Alloy, float type at the driver side of the tank | |||
| · Self-priming centrifugal pump with self-lubricating Anti-friction bearing | ||||
| · With 6" and 4" delivery parts, capable to deliver the fuel by means of two reel hoses. | ||||
| Type | · Automatic Engine Speed Regulation for the pump | |||
| 26 | Pump / Fuel System | · In addition to Automatic Pressure Control Valve 3" Venture of Adjustable Type for constant and accurate refueling pressure | ||
| Max working pressure | 10.5 Bar | |||
| Max delivery | · 600 U S gallons (2271 Ltrs) per minute. Ensuring : | |||
| · Fuel delivery of minimum 60 to 70 US Gallons per minute from both 1½" delivery hose (Over Wing refueling) | ||||
| · Fuel delivery of minimum 160 to 170 US Gallons per minute from 2 ½" delivery hose (Under Wing / Pressure Refueling) | ||||
| Protection from Foreign Matter | Removable strainer provided for pump suction side | |||
| 27 | Valves | · One check valve on delivery side of the pump for automatic self-priming of the pump · One remote control safety valve · Suitable piping between the safety valve and the pump section · One pressure regulating valve, (on a scale of 20 to 70 psi) acting as an automatic control device to keep the fuel flow at the pre-selected pressure when refueling is taking place at a single under-wing coupling complete with by-pass pipe to get back exceeding fuel inside the tank | ||
| 28 | Over Fill Sensors | One overfills sensor (Deadman device) for top loading system to be provided | ||
| 29 | Ejecting Unit | One ejecting unit to empty flexible hoses after de- fuelling/fueling | ||
| 30 | Filters | · Two stage filter water separator elements {FWS vessel model No LVC-2644 Ex (or equivalent of latest brand)} make Valcon filters Inc, USA or equivalent that originally conforms to API / IP 1581, 5th edition (or latest issue), Cat M 100 type S (i.e for JP-8 +100 fuel). · Two sampling points (on filter inlet and outlet) to be provided (i.e. 1st stage and 2nd stage). | ||
| 31 | Gauges / Meters | · Two pressure gauges (differential gauges) for control of flow pressure on the lines going in and out of the micro filters. | ||
| · Two bulk meters, mechanical type with metric tolerance, capacity 500 US gallons per minute for pressure refueling and approx 150 gallon per minute for open refueling · Bulk meters to be provided with re-calibration device reading in gallons up to 5 digits with "o" reset and a totalizator up to 7 digits without "o" reset · Fuel Pump Pressure Gauge (Both in Bar and PSI scale) · Venture Pressure Gauge(Both in Bar and PSI scale) · Air Compressor Gauges(Both in Bar and PSI scale) · Hydraulic Gauge(Both in Bar and PSI scale) · Engine related gauges · PTO System Gauges / Indicators · Fuel Level Gauge of Fuel Tank · Micronic Filter Water Indicator · Flow Meter for refueling operation · Vacuum gauge(Both in Bar and PSI scale) · Moisture Detector Gauge in the Fuel Tank · Inlet Pressure Gauge(Both in Bar and PSI scale) · Hour Meter | ||||
| 32 | Fire Extinguisher System | · Automatic Fire Extinguishing system be provided with the following specs:- · 20 Kg CO2 gas cylinders · Adequate thermostats · One set of delivery nozzle · One emergency hand control · Mounted on the main parts of the pumping system. | ||
| · Two additional 6.8 kg CO2 gas cylinder hand operated fire extinguisher be provided and located at a suitable place outside the pumping cabinet. | ||||
| 33 | Hoses / Hose Reels and Rewinding System | Hose Reels | · Two Pneumatic / Hydraulic operated winding hose reels be provided on the side of the pumping station. 1-1/2" diameter and 2-1/2", each to fit for 75 / 100 hose. | |
| Pressure Refueling Hoses | · Two flexible (ELAFLEX/ equivalent) hoses of size 2 ½" and 75 long, aviation fuel-proof for pressure refueling | |||
| · One fitted on hose reel and other supplied as spare | ||||
| · The ends should have a 2 ½" coupling for connection to pressure refueling point · The other end of the flexible hose fitted on the reel is to be connected with the central shaft of the reel by means of a quick release coupling | ||||
| · Three flexible (ELAFLEX/equivalent) hoses size 1½"and 75 / 100 long, aviation fuel-proof for open refueling | ||||
| · Equipped at one end with pistol type delivery nozzle (Opw 295 USA) or equivalent and at other end connected with the central shaft of the reel | ||||
| · One hose to be fitted on the reel and other hoses along with pistol type delivery nozzles as spare | ||||
| · All hoses must conform to following specification: · Type-C with conductive cover confirming to British standard 3158, 1985 and German Military standard VG95.955. They should meet German safety regulation TRBF 131/2 · Manufacturing should be seamless tubing made of Nitrite Rubber (NBR) anti static, no fuel solubility. They should be reinforced with sufficient textile brands without metallic standard covered with chloroprene.(CR)electrically conductive | ||||
| Re-winding System / Operation | · Hydraulically / pneumatically operated system with associated safety equipment, which must be spark-proof and safe to operate under all conditions. A certificate of safety and undertaking that it meets the international aviation standards is to be provided by the suppliers. | |||
| Connections | · All connections will be loose flanges with gasket seals · Two 2 ½" connections by gates arranged on left side of pump unit and joined to pump suction piping to collect fuel from outside sources | |||
| 34 | Nuts & Bolts | · All nuts and bolts must be corrosion proof. | ||
| 35 | Static Bonding | · Two Automatic reels with 30 Meters of clear PVC insulated bonding wire and crocodile clamps to earth trailer refueller to the aircraft and ground respectively. · Standard plugs and clamps fitted on delivery nozzles · ½" meter of insulated bonding wire with crocodile clamp installed with each delivery nozzle to earth it to the aircraft. · Qty 02 Ground Rubber and Strips (01 Spare) | ||
| 36 | Refueller Performance | · Under wing pressure refueling of aircraft through 2 ½" hose by suction from the refueller tank, · Over wing free refueling of aircraft through 1½" hoses and nozzles for suction from the refueller tank. · De-fueling of fuel from aircraft through under wing coupling and delivery into the refueller tank. · De-fueling operating through the 1 ½" nozzle and delivery into the refueller tank. · Recycling operation · Refueller tank filling through suction port by pump pressure. · Refueller tank filling through the manhole by gravity fall. · Automatic pressure relief system to cater for changes in temperature during day and night. | ||
| 37 | Criteria for System Safety and Standardization | · Compliance to latest ISO and International Aviation Manufacturing / Safety Standards · Compliance with NFPA-407 (National Fire Protection Association-USA) · Following operations / systems are to be in accordance with following NATO standards : - | ||
| · Aircraft and Ground Support Equipment Electrical Connections for Static Grounding. · Technical criteria for closed circuit-refueling system. · Pressure refueling. · Minimum Quality Surveillance of petroleum products. · Technical guidance for the design and construction of Aviation and Ground fuel installation of PAF airfields. · Electrostatic safety: Connection procedures for aviation fuel handling and liquid fuel loading/unloading operation during ground transfer and Aircraft. · Supplier is to provide OEMs certificate confirming adherence to above standards. | ||||
| 38 | Miscellaneous Accessories | · Sun visor · Ash tray · Rear view mirror (provisioning of back view mirror with auto adjustment function) · Spare Wheel · Carrier for spare wheel · Jack with handle · Wheel brace · Seat belts (Self-locking) · Towing hooks at front and rear · Instruction plates fixed in suitable place in compartment for the operation of Engine, Pumping System and Automatic Fire Extinguisher System · Dip sticks for each tank compartment with comparison tables to check the Tank Level | ||
| · Two 3" flexible hoses (approx 4 meter long) with connections for suction from outer sources and filling of the tank · Tool kit housing · Two swivel lamps / marker / search lights mounted on rear top corners · Compartment lights · Reflectors · Clearance, stop and direction indicator lights · All fuses to be housed in fuse box · Qty: 2 units of 2", and 2 units of 3" winter suction hose with adopter for suction from outer sources. · One 1 ½" and one 2 ½" flexible hoses of std length along with connectors · 2 ½" Coupler for under wings and 1 ½ "Nozzle (OPW 295 USA / equivalent) for over-wing. · Automatic Flame Holder Ventilator · Natural Ventilators of the control cabin to avoid fuel vapors · Remote control Main Switch for the Veh Battery · Two sets of fire proof clothing including helmets. · Applicable safety caution markings at appropriate places (In English) · Rear view camera for reversing operation. | ||||
| 39 | Publications | · The supplier must provide following publications along-with each vehicles / equipment, as applicable and three additional copies free of cost :- (a) Operator manual. (b) Repair/maintenance manual | ||
| (c) Overhaul manual. (d) Spares catalogue. (e) Aluminum Tank Repair Scheme | ||||
| 40 | Tool Kit | · Standard tool kit comprising all the tools required for daily servicing and handling road side defects will be provided for each vehicle free of charge as follows:- Ø First aid kit (including the contents) Ø Hydraulic jack (minimum 20(twenty) tons) Ø Wheel nut spanner and its lever Ø 12 pcs open ended wrench and 12 ring wrench Ø Screwdrivers for slotted screws and cross headed Philips screws, made of chrome- vanadium steel, suitable for the screws used on the vehicle and pump. Ø 12" approximately 305 (three hundred and five) non adjustable wrench Ø Combination plier and diagonal cuffing nipper Portable lamp and a hand lamp. Ø Drawbar (mounted on a proper place on the vehicle) Reflector(2 pieces) Ø 2 pieces of Levers (I big and I small size) Ø Spare wheel, mounted on a proper place on the vehicle (including the rim and the tyre) Ø Chocks Qty 02 Ø Hammer of minimum2 (two) kg Ø An air hose of minimum 15m. and an air pressure gauge (including the connections and tyre inflation adapter) Ø Portable, chemical fire extinguisher of 12 kg, effective in fuel fires, mounted on a proper place outside the vehicle (easily removable) · Above mentioned items should be made in USA / Europe / Japan / Korea | ||
| 41 | Fuel Consumption | Fuel consumption be intimated in kilometers per liter. | ||
| 42 | Road Worthiness | Supplier will hand over vehicle to PAF in fully road worthy condition (at consignee end) without any extra charges. | ||
| 43 | Spares support | · Supplier is to provide certificate for availability of spares for next 20 years · List of Fast Moving Spares to be provided · One set of Fast Moving Spares be provided with each refueller at free of cost. · Supplier is to provide a list depicting major parts of the refueller along with their make and origin. | ||
| 44 | Training | Supplier should provide training to PAF personnel for 05 working days at No 303 ALD Faisal free of cost in following areas:- · Refueller operation, including operation of all Major Systems. · Scheduled servicing. · Major servicing and overhaul · Repair of Aluminum Tanks | ||
| 45 | Acceptance Criteria | Supplier to provide a certificate indicating international Aviation Standard, in accordance with which the Refueller fuel tank has been constructed including its material, strength and corrosion resistant properties. Quality Certificate by Turkish/ Korean/ USA/ EU Standards Institute for Aircraft Refueller of 5000 USG capacity Aluminum Tank is to be provide by the firm. | ||
| A Quality Control Dossier and original Mill Test certificates along with the Aircraft Refueller will be provided. | ||||
| PAF team comprising 04 personnel will conduct factory acceptance test (FAT) for minimum 05 working days of aircraft refueller at firm premises and carry out field test / trail. All expenditures of FAT team as regard boarding, lodging and return air tickets will be borne by supplier. On successful completion of field test / trials and removal of observations made during trials, bulk delivery will be provided to PAF accordingly. | ||||
| 100% physical inspection / functional check of complete refuellers will be carried out by Dte of QC / No 3 PQEC and No 303 ALD in the presence of rep of Dte of Grd Tpt (as per technical specifications) at consignee end | ||||
| - Column No 1, 2, 3 &4 to be filled by Splt Dte at the time of submission of Draft Indents to DCM. | ||||
| - Column No 5 to be filled in by supplier at the time of submission of technical offer. | ||||
| - Column No 6 to be filled in on receipt of the same Performa from DP (Air) for clearance of TSR by Splt Dte. | ||||
FAW 8KL Aviation Jet Fuel Refueller
HOWO 50KL Jet And Avgas Refueling Trucks Double Refueling 2400L/Min
HOWO 45KL Airport Refueller Double Hose Refueling 2400L/Min
Sinotruck HOWO 25KL Aviation Jet Refuelers 1200L/Min
SITRAK Aviation Fuel JET A-1 Tanker Refuelling Aircraft Truck 10KL
SINOTRUCK HOWO Aircraft Refueling Trucks (Tanker 17500L Aircraft Refueler )
Aircraft Refueling Trucks
Refueller Trucks, Refueller Trucks Suppliers
Euro 5 Type vehicle technical specification
Jet / Avgas Fuel tank capacity 17500(L)
Reel hose fueling maximum flow 800(L/min)
Flow meter accuracy (%) ±0.2
Item | Performance index | |
Chassis | Manufacturer | SINOTRUCK |
Model | ZZ1267N464GF1K | |
Engine | Manufacturer | SINOTRUCK & MAN |
Model | MC07.34-60 | |
Gearbox | Manufacturer | SINOTRUCK |
Model | HW19710 | |
Rated tank capacity (L) | 17500 | |
Reel hose fueling maximum flow (L/min) | 800 | |
Maximum flow rate (L/min) Double hose refueling | —— | |
Flow meter accuracy (%) | ±0.2 | |
Reel single pipe pumping rate (L/min) | 200 | |
Aviation kerosene filtration accuracy | API/IP 1581 | |
Overall dimensions (L × W × H) (mm) | 9400×2500×3200 | |
Maximum speed (km/h) | 50 | |
Braking distance (m) | ≤12.5 | |
Net weight (kg) | 11860 | |
Other properties | —— | |
Lifting range of refueling platform (mm) | —— | |
No | Name | Assembly |
1 | Chassis | ZZ1267N464GF1K |
2 | Engine | MC07.34-60 |
3 | Transmission | HW19710 |
4 | Oil Pump | 80QZB-60/62S-X-YJ |
5 | Flowmeter | LL-80CT-ZF11-W |
6 | Filter Separator | SLHV-2233M |
7 | Hydraulic Pump | CBW-F306-ALPR |
8 | Hydraulic Motor | OMP100 |
9 | Oil Tank | 17500L |
10 | Steering Shaft | VPD075QB |
11 | Driving Shaft | MCY11 |
12 | Tyre | 295/80R22.5 18PR |
Main technical parameters
Overall dimensions: | 9400×2500×3250(mm) | Fuel Type: | Diesel oil |
GW | 26000(Kg) | ||
NW: | 12220(Kg) | Rated load mass: | 13650(Kg) |
Approach Angle/Departure Angle: | 19/13 (°) | Front/rear overhang: | 1430/1995(mm) |
Axle Load: | 7000/19000(Two-axis group) | Wheelbase: | 3175+1400,3775+1400,4075+1400,4275+1400,4575+1400,4875+1400,5175+1400,5775+1400(mm) |
Number of shafts: | 3 | Maximum speed: | 80(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5,12R22.5,12.00R20 18PR,11.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/-/-,3/-/-,2/-/-,2/1+-/1+-,3/1+-/1+-,3/2+-/2+-,4/2+-/2+- |
Front wheel base: | 2015,2035(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07H.33-60; MC11.40-60; MC09.38-60; MC07.34-60; MC07.27-60; MC11.40-61; MC07H.29-60; MC07.33-60; MC09.35 B - 60; MC07.29-60; MC09.35-60; MC07.31-60; WP9H350E62; MC07H.35-60; WP8.350 E61. WP10H400E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 7360; 10518; 8765; 6870; 6870; 10518; 7360; 6870; 8765; 6870; 8765; 6870; 8800; 7360; 7800; 9500 | 240; 297; 279; 251; 202; 297; 213; 240; 260; 213; 260; 228; 257; 257; 257; 294 |
Tank effective volume :18 cubic meters, tank external dimension (mm)2480×1680×5200、5560( ABS system controller, manufactured by WABCO (Shanghai) Management Co., LTD. /4460046300; Optional EBS with chassis,EBS system controller manufacturer/model: WABCO (Shanghai) Management Co., LTD. /EBS3; The vehicle is equipped with speed limiting device, speed limiting 80km/h. The front axle is equipped with disc brake, and the steering wheel is equipped with emergency protection device for tire burst. Installation of ESD belt and travel recorder with satellite positioning function; Exhaust pipe front, facing left; chassis 4575+1400(mm) wheelbase 295/80R22.5 18PR tires The rear suspension air suspension; |
Euro 5 Type vehicle technical specification
| Entire vModel: | 5260GJYF5Z |
| Overall Dimension: L*W*H(mm) | 9400×2500×3250 |
| Gross Vehicle Weight: (kg) | 26000 |
| Payload: (kg) | 13650 |
| Curb Weight: (kg) | 12155 |
| Chassis Manufacturer: | ZZ1267M464GE1 , Euro V |
| Engine Power: (Kw) | 176 |
| Max. Speed: (Km/hr) | 80 |
| Tank Volume: (L) | 18000 |
| Tank Material: | Aluminum Alloy (5083) |
| Accuracy of Flow mete: | ±0.2% |
| Filter Separator Standard: | Comply with API 1581 5th |
| Wheelbase(mm) | 4575+1400 |
| Max. Underwing Flow Rate(L/min): | 1200(Single Hose);2000(Double Hose) |
| Max.De-fueling Flow Rate (L/min): | 300(Single Hose) |
| Max. Loading Flow Rate (L/min): | 1500 |
| Refueling Pressure Contol: | Online, at the end |
| Interlock Brake: | YES |
| DeadmanContol: | Pneumatic/Electic Control |
| Civil Aviation Production License: | YES |
| High/Low Level Control: | YES |
ZZ1267M464GE1 main performance indicators:
Project performance index
Chassis Manufacturer China National Heavy Duty Truck Group Jinan Truck Co., Ltd.
Model ZZ1267M464GE1
Engine Manufacturer China National Heavy Duty Truck Group Co., Ltd.
Model MC07.31-50
Gearbox Manufacturer China National Heavy Duty Truck Group Co., Ltd.
Model HW09X
Tank rated capacity (L) 17500
Reel hose maximum flow (L/min) Pressure reel 800 Gravity reel 300
Platform double hose refueling maximum flow (L/min) --
Flowmeter accuracy (%) ±0.2
Reel single pipe pumping flow (L/min) 200
Aviation kerosene filtration accuracy meets the requirements of API/IP 1581 fifth edition
Dimensions (length × width × height) (mm) 9400 × 2500 × 3200
Maximum speed (km/h) 50
Braking distance (m) ≤12.5
Curing quality (kg) 11900
Approach angle / departure angle: 19/13 (°)
Front suspension / rear suspension: 1430/1995 (mm)
Number of axes: 3
Wheelbase: 4275+1400, 4575+1400, 5775+1400 (mm)
Axle load: 7000/19000 (two-axis group)
Maximum speed: 80 (km/h)
Others effective volume of the vehicle is 18 cubic meters, and the outer dimensions of the tank (mm): 2480 (width) × 1680 (height) × 5560 (the total length of the tank includes the head); special equipment (centrifugal pump) Model: 80QZB-60/62S-X-YJ, manufacturer: Hangzhou Weilong Pump Co., Ltd.; the car is equipped with fueling device for mobile refueling; type of dangerous goods transport vehicle: FL type, medium: aviation kerosene, aviation Gasoline; aviation kerosene density 780kg/m3, aviation gasoline density 730kg/m3, category number: 3; side protection material: 6063-T5, rear protective material: Q345-B, connection: bolt connection, rear section size: 120 ×100(mm), height from ground: 450 (mm); only the wheelbase of the chassis 4575+1400; only the chassis MC07.31-50 engine, only the chassis 295/80R22.5 tires, front axle assembly disc Brake; exhaust pipe front and left; optional rear independent safety sign; ABS and tachograph with satellite positioning function, ABS model: 4460046300; manufacturer: WABCO car control system (China) ) Co., Ltd.; the car is equipped with a speed limit device, the speed limit is 80km / h, the speed limit device model: S073105F1112, manufacturer: BOSCH.
Project performance index
Chassis Manufacturer China National Heavy Duty Truck Group Jinan Truck Co., Ltd.
Model ZZ1267M464GE1
Engine Manufacturer China National Heavy Duty Truck Group Co., Ltd.
Model MC07.31-50
Gearbox Manufacturer China National Heavy Duty Truck Group Co., Ltd.
Model HW09X
Tank rated capacity (L) 17500
Reel hose maximum flow (L/min) Pressure reel 800 Gravity reel 300
Platform double hose refueling maximum flow (L/min) --
Flowmeter accuracy (%) ±0.2
Reel single pipe pumping flow (L/min) 200
Aviation kerosene filtration accuracy meets the requirements of API/IP 1581 fifth edition
Dimensions (length × width × height) (mm) 9400 × 2500 × 3200
Maximum speed (km/h) 50
Braking distance (m) ≤12.5
Curing quality (kg) 11900
Approach angle / departure angle: 19/13 (°)
Front suspension / rear suspension: 1430/1995 (mm)
Number of axes: 3
Wheelbase: 4275+1400, 4575+1400, 5775+1400 (mm)
Axle load: 7000/19000 (two-axis group)
Maximum speed: 80 (km/h)
Others effective volume of the vehicle is 18 cubic meters, and the outer dimensions of the tank (mm): 2480 (width) × 1680 (height) × 5560 (the total length of the tank includes the head); special equipment (centrifugal pump) Model: 80QZB-60/62S-X-YJ, manufacturer: Hangzhou Weilong Pump Co., Ltd.; the car is equipped with fueling device for mobile refueling; type of dangerous goods transport vehicle: FL type, medium: aviation kerosene, aviation Gasoline; aviation kerosene density 780kg/m3, aviation gasoline density 730kg/m3, category number: 3; side protection material: 6063-T5, rear protective material: Q345-B, connection: bolt connection, rear section size: 120 ×100(mm), height from ground: 450 (mm); only the wheelbase of the chassis 4575+1400; only the chassis MC07.31-50 engine, only the chassis 295/80R22.5 tires, front axle assembly disc Brake; exhaust pipe front and left; optional rear independent safety sign; ABS and tachograph with satellite positioning function, ABS model: 4460046300; manufacturer: WABCO car control system (China) ) Co., Ltd.; the car is equipped with a speed limit device, the speed limit is 80km / h, the speed limit device model: S073105F1112, manufacturer: BOSCH.
| Aircraft Tanker Aircraft Refueling Truck Aircraft Refueler TECHNICAL SCRUTINY REPORT (TSR) (SPECIFICATION) | ||||
| NO | PART NO | INDENTED ITEM SPECS (BY USER) (T.O. REFERENCE) | ||
| AIRCRAFT REFUELLER (5,000 USG ) Air transportable internally by C-130 E Model Along with spare wheel, wheel brace, jack with handle and one set of complete tool kit and fire extinguisher:- | ||||
| 1 | ||||
| 2 | ||||
| 3 | Engine | No of Cylinders | Diesel 6 cylinders water cooled & direct injection, OHV | |
| Mechanical drives between engine and pump. | ||||
| 4 | Max Torque | 135 to 145 Kg at 1200 to 1400 RPM | ||
| 5 | Max Output | 340 to 360 PS at 2100 to 2200 RPM | ||
| 6 | Piston displacement | 11,000 cc to 11,300 cc | ||
| 7 | Transmission | · 6 forward x I reverse speed · 6 x 4 Drive · Manual Transmission | ||
| 8 | Clutch | Hydraulic control with air assisted dry single plate. | ||
| 9 | Dimensions | Length | 10,000-11,000 mm | |
| Width | 2450-2550 mm | |||
| Height | 2550-2660 mm | |||
| Wheel Base | 5500-7000 mm | |||
| Grd Clearance | 270 to 300 mm | |||
| Weight empty | 12,800-14,000 Kg | |||
| Weight with load | 29,000-30,000 Kg | |||
| 10 | Colour | Jungle Camouflage | ||
| 11 | Steering | Right Hand Drive | ||
| Power Steering | ||||
| 12 | Suspension | Front | Front semi elliptical steel leaf spring, hydraulic double acting telescopic shock absorbers. | |
| Rear | Rear semi elliptical type steel leaf spring type. | |||
| 13 | Brakes | Parking | Hand operated hand brake for parking at rear 8 wheel | |
| Service | Air pressure over hydraulic dual circuit on front and rear wheel. Automatic actuated braking system when the refueling is in operation | |||
| Auxiliary brakes | Electro pneumatic control with better fly valve. | |||
| 14 | Electric System | 24 V system. | ||
| Batteries provided with housing and switch | ||||
| Batteries cover made of fuel resistant material | ||||
| Main battery shut off relay | ||||
| Other standard electrical fitting to be provided (fire proof certificate for electrical wiring is to be provide by the firm). | ||||
| 15 | Seating Capacity | 3 Persons in Front Cabin | ||
| 16 | Chassis | Frame to be ladder type reinforced single channel equipped with hook on the front & rear frame | ||
| 17 | Axle | Front | · Reverse Elliot "T" / "I" beam type · Load capacity 6,500 to 8,000 Kg on road | |
| Rear | · Two Axles · Single reduction banjo housing tandem type · Load capacity 22,500 to 24,000 Kg on road | |||
| 18 | Exhaust | Horizontally mounted below front bumper with spark arrester. | ||
| 19 | Pump drive system | T/M PTO Drive / Full power, Split Shaft PTO | ||
| Speed control gear box below chassis. | ||||
| Control Provided at Control Panel as well as Cabin | ||||
| 20 | Clamp Rings | Suitable Qty of Clamp rings for shipment, located at appropriate locations | ||
| 21 | Cab | All steel welded cab | ||
| Hydraulic tilt type | ||||
| crew seats adjustable with shock absorber & coil spring | ||||
| Windshield & windows with tinted glass3 | ||||
| Center and Window side mirrors. | ||||
| Good quality / durable up-holstry / cabin fittings | ||||
| Fog light | ||||
| 22 | Mudguards | Built-in mudguards. | ||
| 23 | Spark Arrester | Prevention from the spark. 1 unit to install in front of passenger side. | ||
| 24 | Control Board | Control panel should be on the right side of vehicle behind Driver cabin. | ||
| Provisioning of Roll up type shutter doors | ||||
| Hand accelerator | ||||
| Warning lights for fuel charging system | ||||
| Pressure indicator for pump suction / delivery and refueling lines | ||||
| Pump RPM digital indicator | ||||
| Instruction plate (in English Language) | ||||
| Control air pressure gauge. | ||||
| Differential pressure gauges for filter / separator. | ||||
| Reference pressure gauge for By pass valve. | ||||
| Venturi pressure gauge (Fuelling pressure gauge). | ||||
| Vacuum pressure gauge for defueling process | ||||
| On-off switch for Dead Man System | ||||
| Manual Deadman override switch | ||||
| Main power switch | ||||
| Emergency engine stop switch on control panel | ||||
| Working Lamp switch | ||||
| Deadman Lamp | ||||
| Brake inter lock lamp | ||||
| Pump speed control on control panel | ||||
| Revolution counter on control panel | ||||
| System flow diagram | ||||
| 25 | Tank | Capacity | 5000 US Gallons | |
| Construction | · Made of Aluminum Alloy as per International Aviation Standards (AW5454) · Material of the tank must be corrosion / oxidation free and resistant, and must comply with International Safety and Aviation Standards. · OEM to furnish complete details about tank material specs, its corrosion resistant properties, and International Aviation Standard to which material complies, in his technical quotes. Moreover, certificate to this effect be provided · Tank to be leak resistant and able to sustain jerks and jumps on rough track. · Tanks shape must be designed such that refueller is C-130 Aircraft transportable · Single compartment, provided on the inside with stress-resistant shell heads and anti-slashing baffles dividing tank into communicating compartments, such that all are accessible for cleaning / inspection. · Tank wall thickness is to be minimum 5 mm. · Baffle plates must be flushed with tank surface to ensure full drainage of fuel while defuelling operation | |||
| Compartments | All compartments assembled by welding of continuous bead type to the chassis | |||
| Man Holes | · Qty Two (2) of 20" - 24" dia · Mounted to tank top side · Provided with covers, bolted to the man-hole collars · Fitted with fuel proof sealing · Provided with Vacuum pressure safety valve · Provided with one separate inlet for dip stick | |||
| Tank Bottom | · One stanch tape with hermetic seal cover fitted to the bottom of tank rear section and provided with automatic water drainage and one gate valve to drain the tank by hand. · The tank should be manufactured with a sloped channel forward to the water pump installed in the rear point of the tank bottom | |||
| Cat Walk | · Non-skid type (Metallic Structure) · Running along the whole upper side of tank with safeguard | |||
| Ladder | One fixed ladder on rear of refueller for climbing up and down the catwalk way | |||
| Fuel System and Pump Compartment Doors | · Large Size · Hinged type · Opening upwards / sideways · Provision of roll up type doors on both side of control panel | |||
| Hose Carriers | · Qty Two for 3" hoses · Fitted on each side of the tank | |||
| Tank to | · Inner piping with suction port | |||
| pumping station connection | located in the lower part but above level of drainage sump. · One emergency valve on piping outlet to cut-off the tank from pumping stations. · Anti vibrating joints to damp possible vibration between the tank and the pump. | |||
| Tank Vent Interlocking Device | · Provided Air Vent valve at the top side of the tank. · Provided to prevent dispensing unless the vent is open. | |||
| Tank Level Gauge | 8" -10" Dia Aluminum Alloy, float type at the driver side of the tank | |||
| · Self-priming centrifugal pump with self-lubricating Anti-friction bearing | ||||
| · With 6" and 4" delivery parts, capable to deliver the fuel by means of two reel hoses. | ||||
| Type | · Automatic Engine Speed Regulation for the pump | |||
| 26 | Pump / Fuel System | · In addition to Automatic Pressure Control Valve 3" Venture of Adjustable Type for constant and accurate refueling pressure | ||
| Max working pressure | 10.5 Bar | |||
| Max delivery | · 600 U S gallons (2271 Ltrs) per minute. Ensuring : | |||
| · Fuel delivery of minimum 60 to 70 US Gallons per minute from both 1½" delivery hose (Over Wing refueling) | ||||
| · Fuel delivery of minimum 160 to 170 US Gallons per minute from 2 ½" delivery hose (Under Wing / Pressure Refueling) | ||||
| Protection from Foreign Matter | Removable strainer provided for pump suction side | |||
| 27 | Valves | · One check valve on delivery side of the pump for automatic self-priming of the pump · One remote control safety valve · Suitable piping between the safety valve and the pump section · One pressure regulating valve, (on a scale of 20 to 70 psi) acting as an automatic control device to keep the fuel flow at the pre-selected pressure when refueling is taking place at a single under-wing coupling complete with by-pass pipe to get back exceeding fuel inside the tank | ||
| 28 | Over Fill Sensors | One overfills sensor (Deadman device) for top loading system to be provided | ||
| 29 | Ejecting Unit | One ejecting unit to empty flexible hoses after de- fuelling/fueling | ||
| 30 | Filters | · Two stage filter water separator elements {FWS vessel model No LVC-2644 Ex (or equivalent of latest brand)} make Valcon filters Inc, USA or equivalent that originally conforms to API / IP 1581, 5th edition (or latest issue), Cat M 100 type S (i.e for JP-8 +100 fuel). · Two sampling points (on filter inlet and outlet) to be provided (i.e. 1st stage and 2nd stage). | ||
| 31 | Gauges / Meters | · Two pressure gauges (differential gauges) for control of flow pressure on the lines going in and out of the micro filters. | ||
| · Two bulk meters, mechanical type with metric tolerance, capacity 500 US gallons per minute for pressure refueling and approx 150 gallon per minute for open refueling · Bulk meters to be provided with re-calibration device reading in gallons up to 5 digits with "o" reset and a totalizator up to 7 digits without "o" reset · Fuel Pump Pressure Gauge (Both in Bar and PSI scale) · Venture Pressure Gauge(Both in Bar and PSI scale) · Air Compressor Gauges(Both in Bar and PSI scale) · Hydraulic Gauge(Both in Bar and PSI scale) · Engine related gauges · PTO System Gauges / Indicators · Fuel Level Gauge of Fuel Tank · Micronic Filter Water Indicator · Flow Meter for refueling operation · Vacuum gauge(Both in Bar and PSI scale) · Moisture Detector Gauge in the Fuel Tank · Inlet Pressure Gauge(Both in Bar and PSI scale) · Hour Meter | ||||
| 32 | Fire Extinguisher System | · Automatic Fire Extinguishing system be provided with the following specs:- · 20 Kg CO2 gas cylinders · Adequate thermostats · One set of delivery nozzle · One emergency hand control · Mounted on the main parts of the pumping system. | ||
| · Two additional 6.8 kg CO2 gas cylinder hand operated fire extinguisher be provided and located at a suitable place outside the pumping cabinet. | ||||
| 33 | Hoses / Hose Reels and Rewinding System | Hose Reels | · Two Pneumatic / Hydraulic operated winding hose reels be provided on the side of the pumping station. 1-1/2" diameter and 2-1/2", each to fit for 75 / 100 hose. | |
| Pressure Refueling Hoses | · Two flexible (ELAFLEX/ equivalent) hoses of size 2 ½" and 75 long, aviation fuel-proof for pressure refueling | |||
| · One fitted on hose reel and other supplied as spare | ||||
| · The ends should have a 2 ½" coupling for connection to pressure refueling point · The other end of the flexible hose fitted on the reel is to be connected with the central shaft of the reel by means of a quick release coupling | ||||
| · Three flexible (ELAFLEX/equivalent) hoses size 1½"and 75 / 100 long, aviation fuel-proof for open refueling | ||||
| · Equipped at one end with pistol type delivery nozzle (Opw 295 USA) or equivalent and at other end connected with the central shaft of the reel | ||||
| · One hose to be fitted on the reel and other hoses along with pistol type delivery nozzles as spare | ||||
| · All hoses must conform to following specification: · Type-C with conductive cover confirming to British standard 3158, 1985 and German Military standard VG95.955. They should meet German safety regulation TRBF 131/2 · Manufacturing should be seamless tubing made of Nitrite Rubber (NBR) anti static, no fuel solubility. They should be reinforced with sufficient textile brands without metallic standard covered with chloroprene.(CR)electrically conductive | ||||
| Re-winding System / Operation | · Hydraulically / pneumatically operated system with associated safety equipment, which must be spark-proof and safe to operate under all conditions. A certificate of safety and undertaking that it meets the international aviation standards is to be provided by the suppliers. | |||
| Connections | · All connections will be loose flanges with gasket seals · Two 2 ½" connections by gates arranged on left side of pump unit and joined to pump suction piping to collect fuel from outside sources | |||
| 34 | Nuts & Bolts | · All nuts and bolts must be corrosion proof. | ||
| 35 | Static Bonding | · Two Automatic reels with 30 Meters of clear PVC insulated bonding wire and crocodile clamps to earth trailer refueller to the aircraft and ground respectively. · Standard plugs and clamps fitted on delivery nozzles · ½" meter of insulated bonding wire with crocodile clamp installed with each delivery nozzle to earth it to the aircraft. · Qty 02 Ground Rubber and Strips (01 Spare) | ||
| 36 | Refueller Performance | · Under wing pressure refueling of aircraft through 2 ½" hose by suction from the refueller tank, · Over wing free refueling of aircraft through 1½" hoses and nozzles for suction from the refueller tank. · De-fueling of fuel from aircraft through under wing coupling and delivery into the refueller tank. · De-fueling operating through the 1 ½" nozzle and delivery into the refueller tank. · Recycling operation · Refueller tank filling through suction port by pump pressure. · Refueller tank filling through the manhole by gravity fall. · Automatic pressure relief system to cater for changes in temperature during day and night. | ||
| 37 | Criteria for System Safety and Standardization | · Compliance to latest ISO and International Aviation Manufacturing / Safety Standards · Compliance with NFPA-407 (National Fire Protection Association-USA) · Following operations / systems are to be in accordance with following NATO standards : - | ||
| · Aircraft and Ground Support Equipment Electrical Connections for Static Grounding. · Technical criteria for closed circuit-refueling system. · Pressure refueling. · Minimum Quality Surveillance of petroleum products. · Technical guidance for the design and construction of Aviation and Ground fuel installation of PAF airfields. · Electrostatic safety: Connection procedures for aviation fuel handling and liquid fuel loading/unloading operation during ground transfer and Aircraft. · Supplier is to provide OEMs certificate confirming adherence to above standards. | ||||
| 38 | Miscellaneous Accessories | · Sun visor · Ash tray · Rear view mirror (provisioning of back view mirror with auto adjustment function) · Spare Wheel · Carrier for spare wheel · Jack with handle · Wheel brace · Seat belts (Self-locking) · Towing hooks at front and rear · Instruction plates fixed in suitable place in compartment for the operation of Engine, Pumping System and Automatic Fire Extinguisher System · Dip sticks for each tank compartment with comparison tables to check the Tank Level | ||
| · Two 3" flexible hoses (approx 4 meter long) with connections for suction from outer sources and filling of the tank · Tool kit housing · Two swivel lamps / marker / search lights mounted on rear top corners · Compartment lights · Reflectors · Clearance, stop and direction indicator lights · All fuses to be housed in fuse box · Qty: 2 units of 2", and 2 units of 3" winter suction hose with adopter for suction from outer sources. · One 1 ½" and one 2 ½" flexible hoses of std length along with connectors · 2 ½" Coupler for under wings and 1 ½ "Nozzle (OPW 295 USA / equivalent) for over-wing. · Automatic Flame Holder Ventilator · Natural Ventilators of the control cabin to avoid fuel vapors · Remote control Main Switch for the Veh Battery · Two sets of fire proof clothing including helmets. · Applicable safety caution markings at appropriate places (In English) · Rear view camera for reversing operation. | ||||
| 39 | Publications | · The supplier must provide following publications along-with each vehicles / equipment, as applicable and three additional copies free of cost :- (a) Operator manual. (b) Repair/maintenance manual | ||
| (c) Overhaul manual. (d) Spares catalogue. (e) Aluminum Tank Repair Scheme | ||||
| 40 | Tool Kit | · Standard tool kit comprising all the tools required for daily servicing and handling road side defects will be provided for each vehicle free of charge as follows:- Ø First aid kit (including the contents) Ø Hydraulic jack (minimum 20(twenty) tons) Ø Wheel nut spanner and its lever Ø 12 pcs open ended wrench and 12 ring wrench Ø Screwdrivers for slotted screws and cross headed Philips screws, made of chrome- vanadium steel, suitable for the screws used on the vehicle and pump. Ø 12" approximately 305 (three hundred and five) non adjustable wrench Ø Combination plier and diagonal cuffing nipper Portable lamp and a hand lamp. Ø Drawbar (mounted on a proper place on the vehicle) Reflector(2 pieces) Ø 2 pieces of Levers (I big and I small size) Ø Spare wheel, mounted on a proper place on the vehicle (including the rim and the tyre) Ø Chocks Qty 02 Ø Hammer of minimum2 (two) kg Ø An air hose of minimum 15m. and an air pressure gauge (including the connections and tyre inflation adapter) Ø Portable, chemical fire extinguisher of 12 kg, effective in fuel fires, mounted on a proper place outside the vehicle (easily removable) · Above mentioned items should be made in USA / Europe / Japan / Korea | ||
| 41 | Fuel Consumption | Fuel consumption be intimated in kilometers per liter. | ||
| 42 | Road Worthiness | Supplier will hand over vehicle to PAF in fully road worthy condition (at consignee end) without any extra charges. | ||
| 43 | Spares support | · Supplier is to provide certificate for availability of spares for next 20 years · List of Fast Moving Spares to be provided · One set of Fast Moving Spares be provided with each refueller at free of cost. · Supplier is to provide a list depicting major parts of the refueller along with their make and origin. | ||
| 44 | Training | Supplier should provide training to PAF personnel for 05 working days at No 303 ALD Faisal free of cost in following areas:- · Refueller operation, including operation of all Major Systems. · Scheduled servicing. · Major servicing and overhaul · Repair of Aluminum Tanks | ||
| 45 | Acceptance Criteria | Supplier to provide a certificate indicating international Aviation Standard, in accordance with which the Refueller fuel tank has been constructed including its material, strength and corrosion resistant properties. Quality Certificate by Turkish/ Korean/ USA/ EU Standards Institute for Aircraft Refueller of 5000 USG capacity Aluminum Tank is to be provide by the firm. | ||
| A Quality Control Dossier and original Mill Test certificates along with the Aircraft Refueller will be provided. | ||||
| PAF team comprising 04 personnel will conduct factory acceptance test (FAT) for minimum 05 working days of aircraft refueller at firm premises and carry out field test / trail. All expenditures of FAT team as regard boarding, lodging and return air tickets will be borne by supplier. On successful completion of field test / trials and removal of observations made during trials, bulk delivery will be provided to PAF accordingly. | ||||
| 100% physical inspection / functional check of complete refuellers will be carried out by Dte of QC / No 3 PQEC and No 303 ALD in the presence of rep of Dte of Grd Tpt (as per technical specifications) at consignee end | ||||
| - Column No 1, 2, 3 &4 to be filled by Splt Dte at the time of submission of Draft Indents to DCM. | ||||
| - Column No 5 to be filled in by supplier at the time of submission of technical offer. | ||||
| - Column No 6 to be filled in on receipt of the same Performa from DP (Air) for clearance of TSR by Splt Dte. | ||||
FAW 8KL Aviation Jet Fuel Refueller
HOWO 50KL Jet And Avgas Refueling Trucks Double Refueling 2400L/Min
HOWO 45KL Airport Refueller Double Hose Refueling 2400L/Min
Sinotruck HOWO 25KL Aviation Jet Refuelers 1200L/Min
SITRAK Aviation Fuel JET A-1 Tanker Refuelling Aircraft Truck 10KL
