ISUZU GIGA X4 FTR
DONG RUN ZE
8705906000
Shanghai, China
T/T
Roro

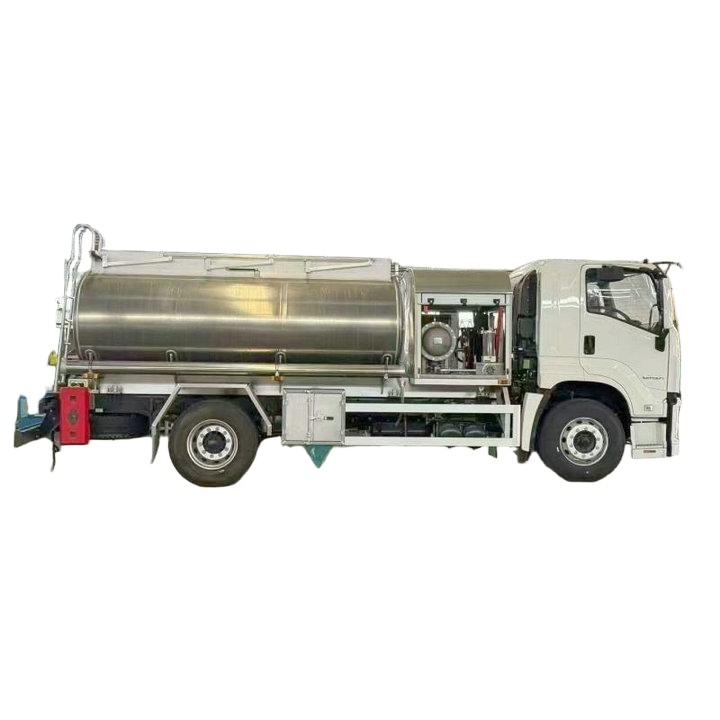

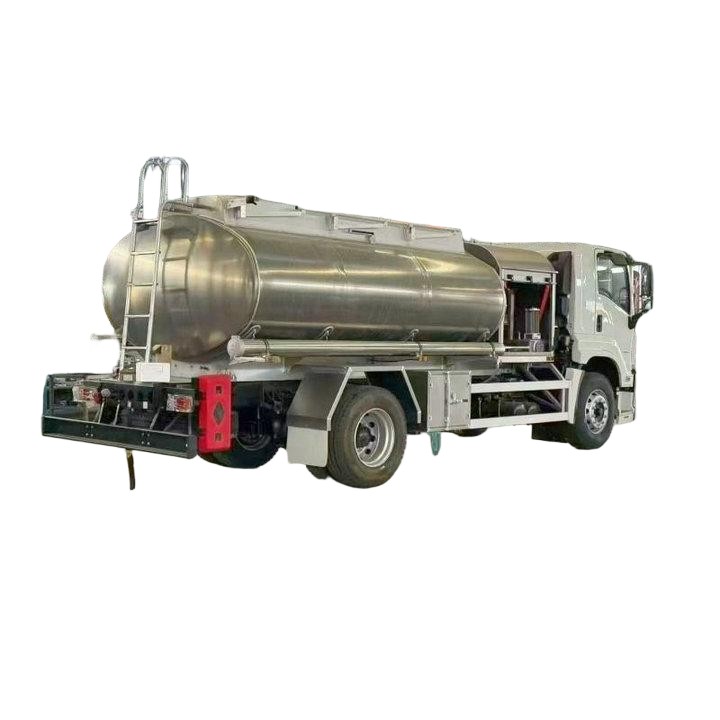

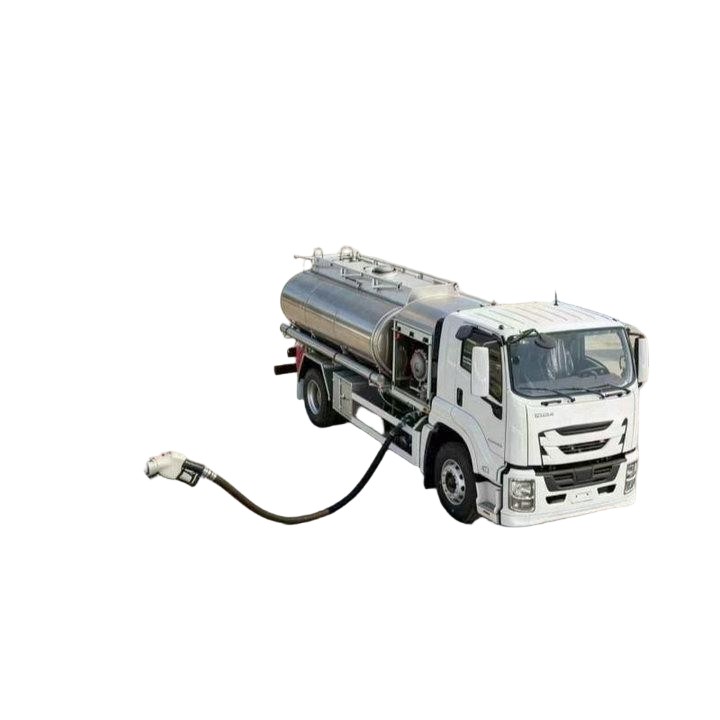

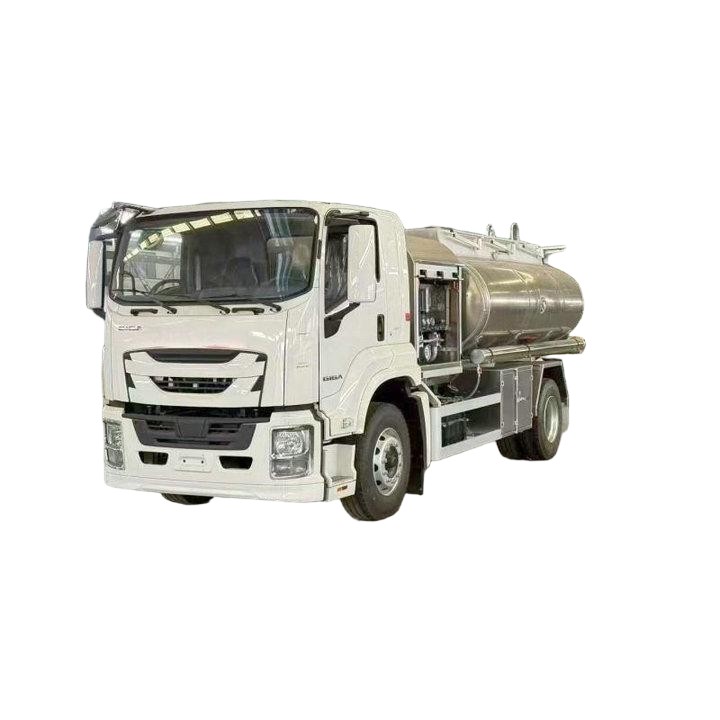

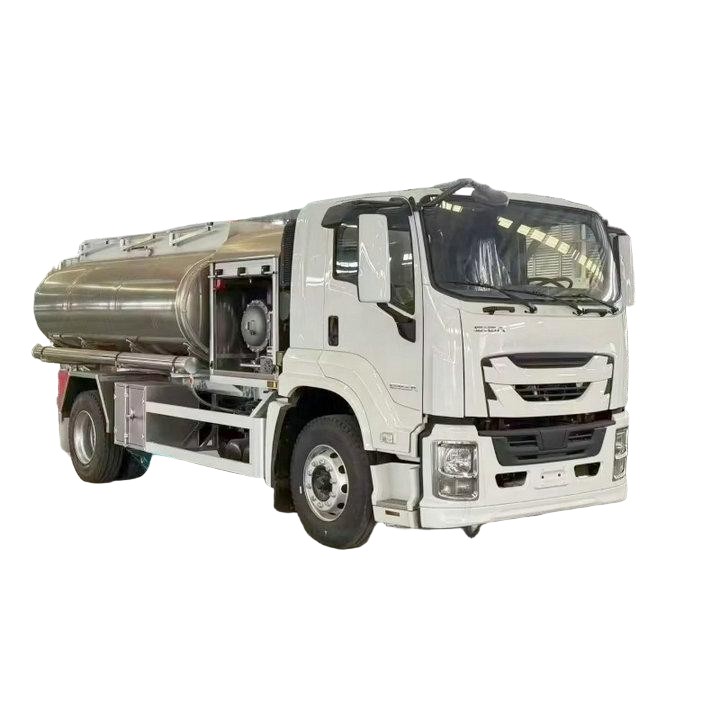

ISUZU GIGA 4x2 Aircraft Refueler Aluminum Alloy Aircraft Refuelling Truck 8KL-10KL

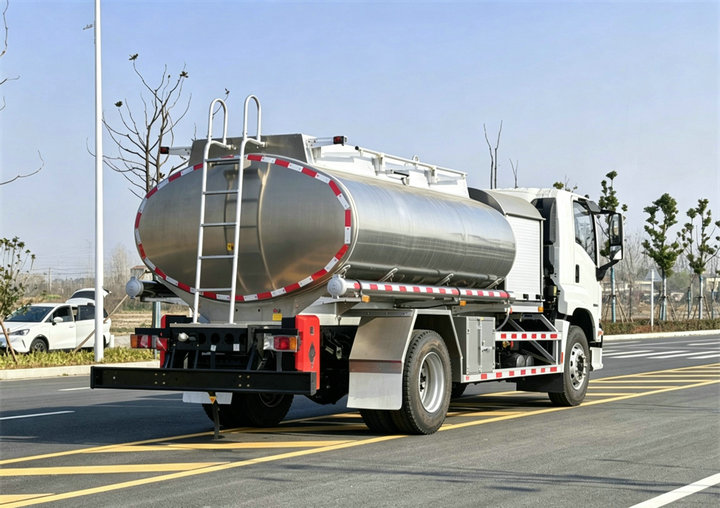

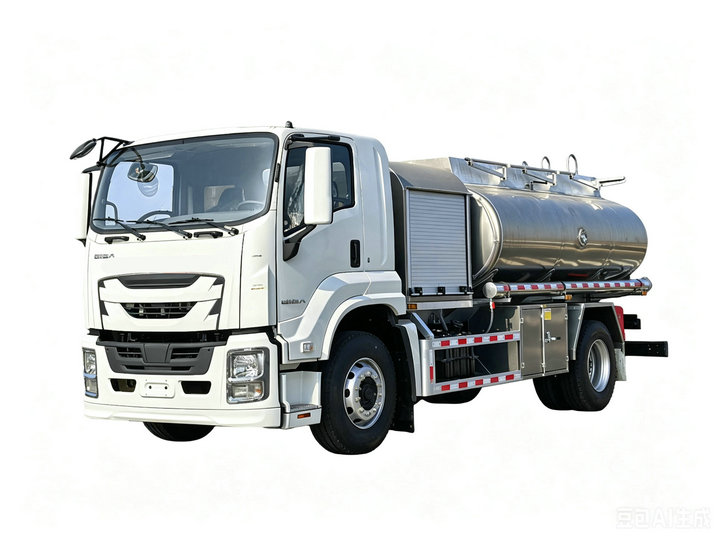

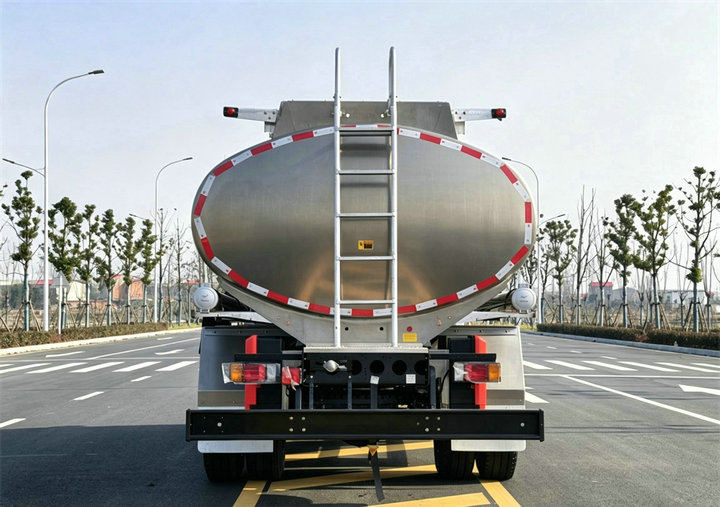

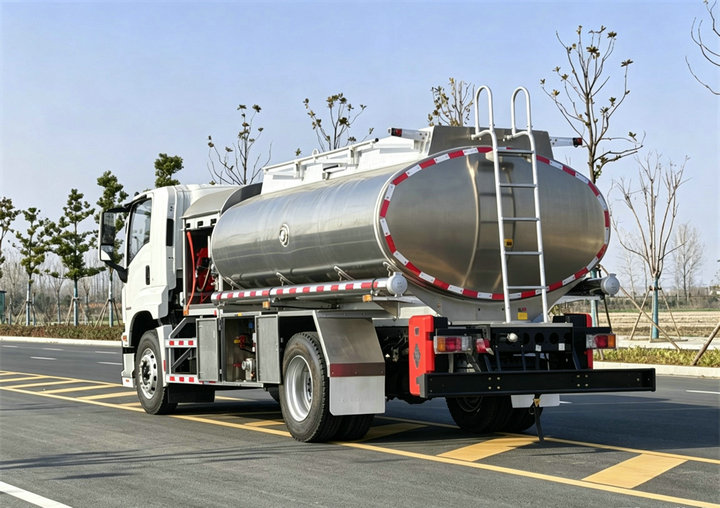

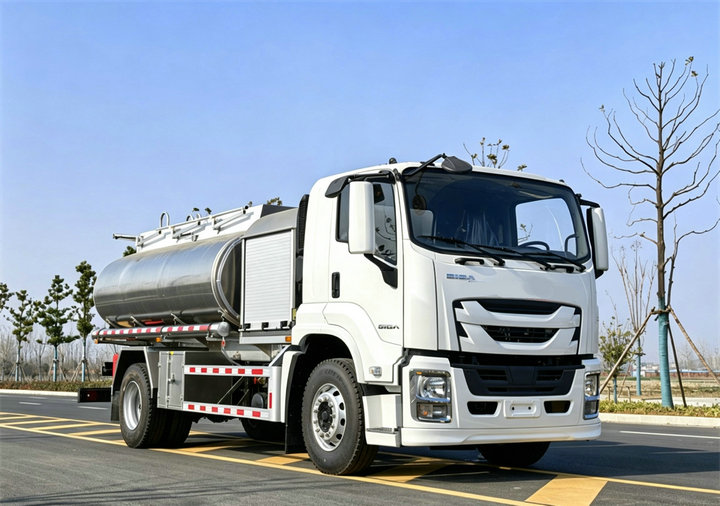

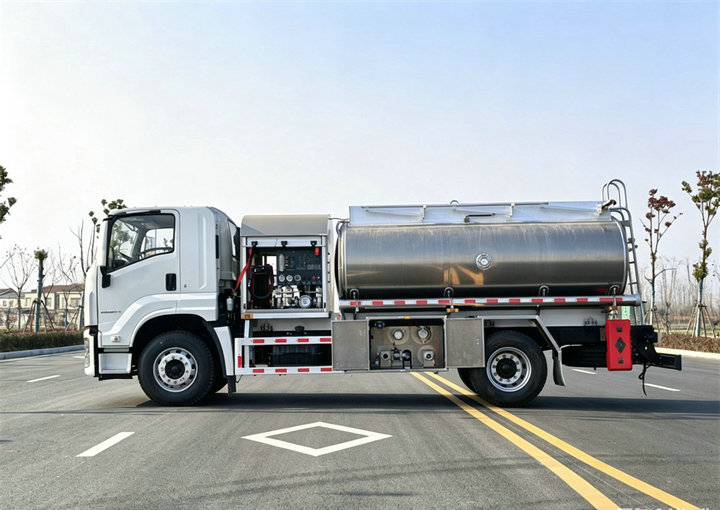

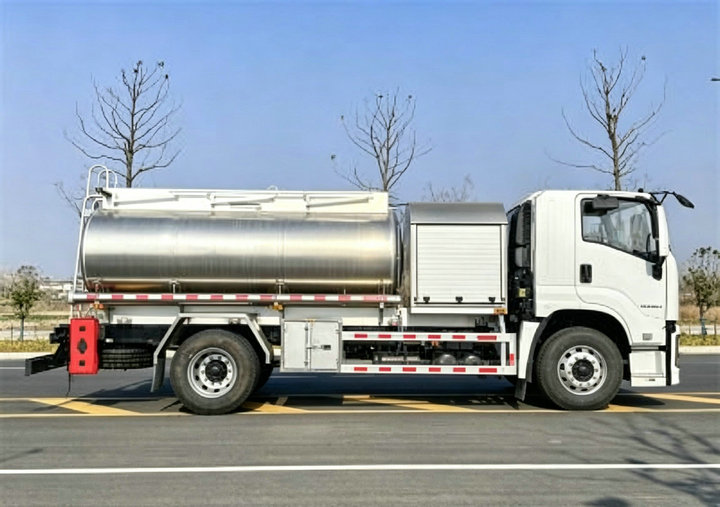

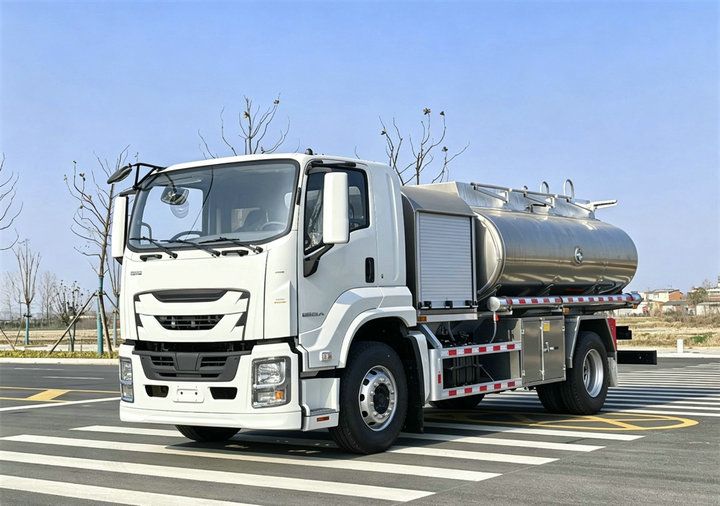

Isuzu FTR GIGA 10000L Aviation Refueler Dispenser Truck | Nigeria Airport Aircraft Fuel Truck
Isuzu FTR GIGA 10000L aircraft refueling truck | ||
Vehicle Description | ||
Cab | ISUZU FTR 4x2, With A/C, on bed | |

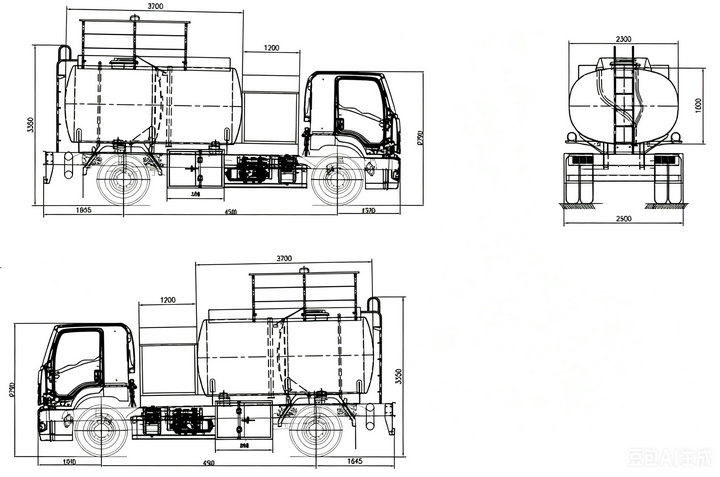

Overall dimensions | 8090x2500x3350mm | |
Curb weight | 7,980kg | |
Loading capacity | 10,000kg | |
Max speed | 105 Km/h | |
Engine | ||
Mode | Isuzu 4HK1-TCG60 | |
Type | Diesel, 4-cylinder in line with water cooling, turbo-charging | |
Max. power/rotated speed | 151(KW) /205HP@2600rpm | |
Max. torque | 647N.m@1600rpm | |
Displacement(ML) | 5193ml | |
Emission level | Euro 6 | |
Chassis Description | ||
Wheel base | 4500mm | |
Axle loading | 6500/11500kg | |
Gear box | Isuzu MLD 6-speed,manual | |
Tyres | 295/80R22.5 | |
Structure parameters | ||
Tank volume | Customize capacity 8000L /9000L 10000L 10000liter (one compartment) 10KL,10CBM | |
Tank body material | 5182 Aluminum alloy, Thickness: 5mm | |
Performance | Fueling pump Type | 80YHCB-60 Stainless steel centrifugal pump(mechanically sealed) |
Reel | Automatic reset reel, refueling hose diameter 25mm, length 15m. | |
Refueling flow | 60 m³/h | |
Working pressure | 0.25MPa | |
Flow meter | 0.2 grade accuracy, 50 waist wheel flow juice with a bore diameter. | |
Filter separator | GLQ-0090,flow 60m³/h, working pressure 0.6MPa, | |
Level gauge | Stainless steel floating level gauge | |
Closed-circuit sampler | BLQY-96-00,3.5L | |
Equipment | Recycling oil drum, manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers… | |





Powered by a reliable Isuzu industrial diesel engine complying with Euro 6 emission standards, the truck balances powerful performance, low fuel consumption, and environmental friendliness. Its large-capacity integrated tank minimizes refueling depot round trips, greatly improving airport refueling efficiency and serving as core operational equipment for Nigerian civilian airports.




Cab: ISUZU FTR 4×2 original cab with air conditioner, bed compartment, comfortable driving experience
Overall Dimensions: 8090*2500*3350mm
Curb Weight: 7,980kg
Rated Loading Capacity: 10,000kg (10CBM)
Max Driving Speed: 105km/h
Engine Model: Isuzu 4HK1-TCG60
Engine Type: Inline 4-cylinder, water-cooled, turbocharged diesel engine
Max Power: 151kW (205HP) @ 2600rpm
Max Torque: 647N.m @ 1600rpm
Displacement: 5193ml
Emission Standard: Euro 6
Chassis Brand & Model: Isuzu FTR Series GIGA
Wheelbase: 4500mm
Axle Loading: 6500/11500kg
Transmission: Isuzu MLD 6-speed manual gearbox
Tire Specification: 295/80R22.5
Tank Volume: 10000L (10 cubic meters, single compartment)
Tank Material: 5182 aviation-grade aluminum alloy, 5mm thick, lightweight, corrosion-resistant and anti-rust
Fuel Pump: 80YHCB-60 stainless steel mechanical sealing centrifugal pump, aviation fuel corrosion resistance
Refueling Flow Rate: 60m³/h, high-efficiency fast refueling
Working Pressure: 0.25MPa
Flow Meter: 0.2 high precision grade, 50 waist wheel flow meter, accurate metering

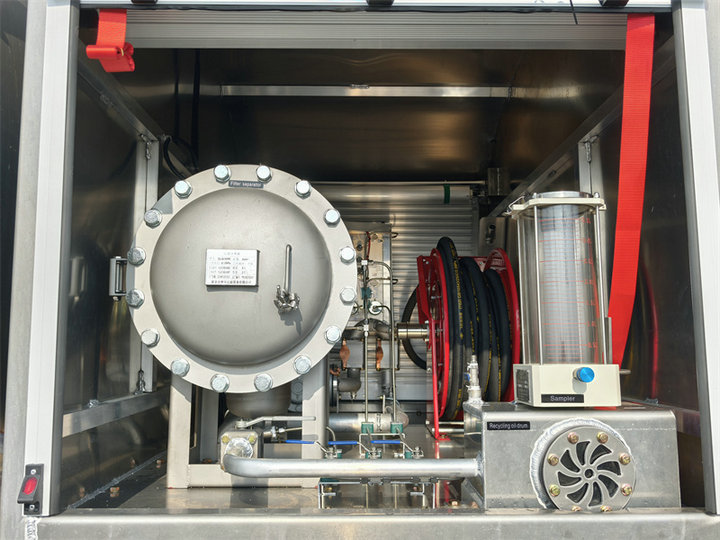

Filter Separator: GLQ-0090 model, 60m³/h flow, 0.6MPa working pressure, effectively removes fuel moisture and impurities

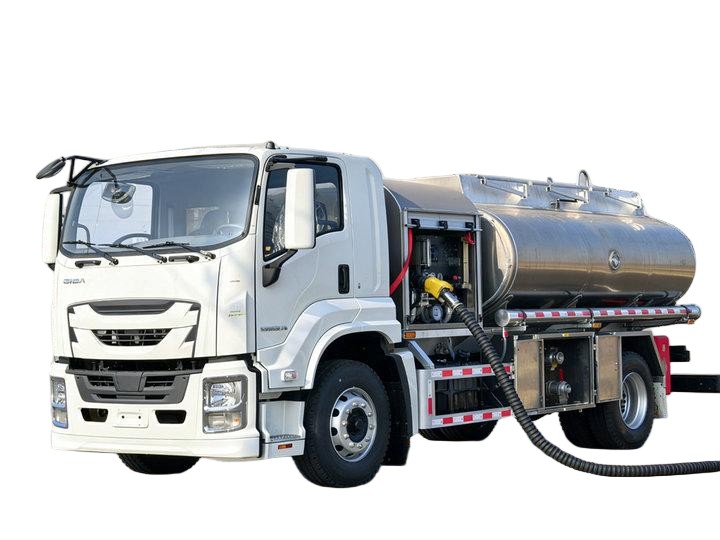

Hose Reel: Automatic reset reel, 25mm diameter × 15m long refueling hose, flexible remote operation

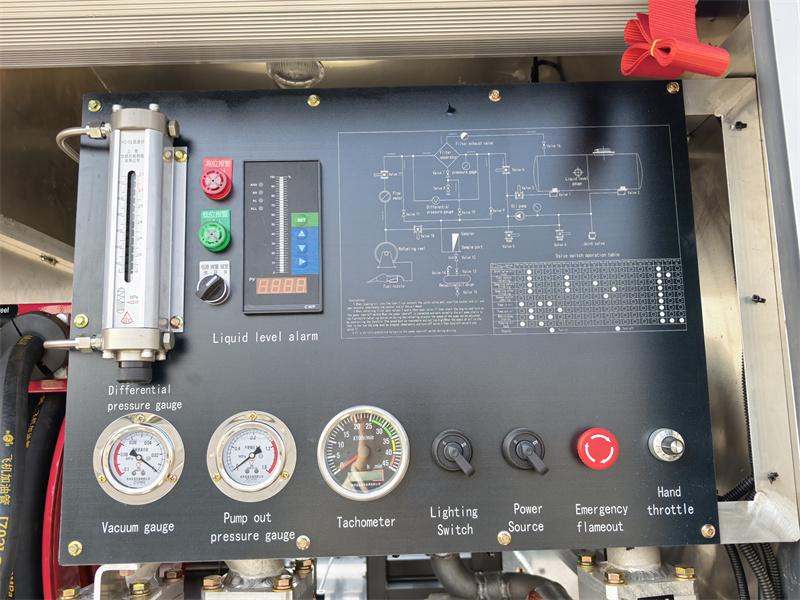

Liquid Level Gauge: Stainless steel floating level gauge, real-time fuel level monitoring
Sampling Device: BLQY-96-00 closed-circuit sampler (3.5L), convenient for fuel quality inspection

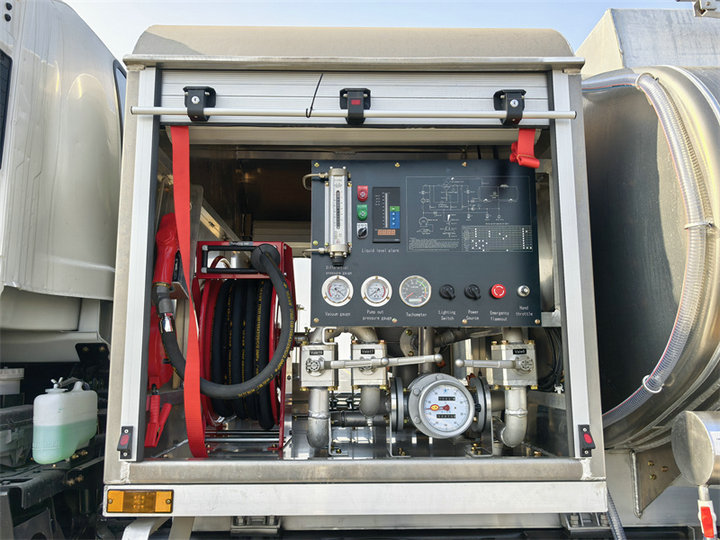

High-Efficiency Fuel Supply System: The matched stainless steel centrifugal pump supports 60m³/h ultra-fast refueling, perfectly adapting to the 10m³ large-capacity tank’s fast loading and unloading demands. The 15m long remote refueling hose realizes flexible underwing refueling for various aircraft.

High-Precision Filtration & Metering System: Professional filter separator thoroughly removes moisture, particles and impurities in aviation fuel to ensure fuel purity and flight safety. The 0.2-grade high-precision flow meter guarantees accurate fuel measurement, avoiding measurement errors.

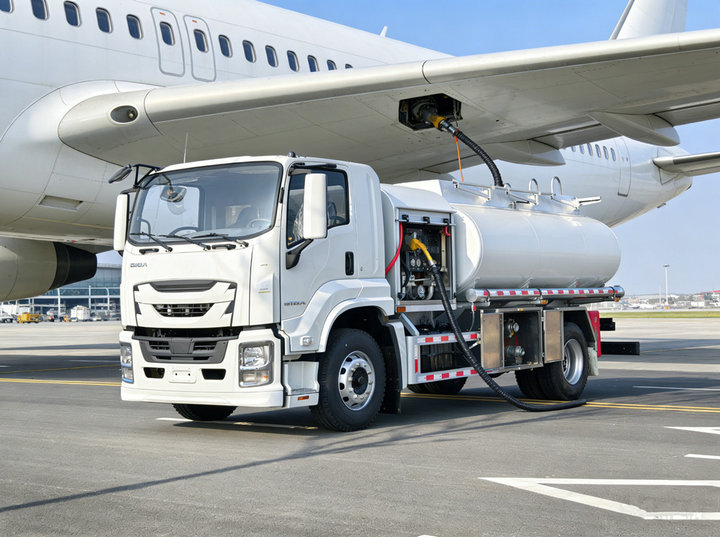

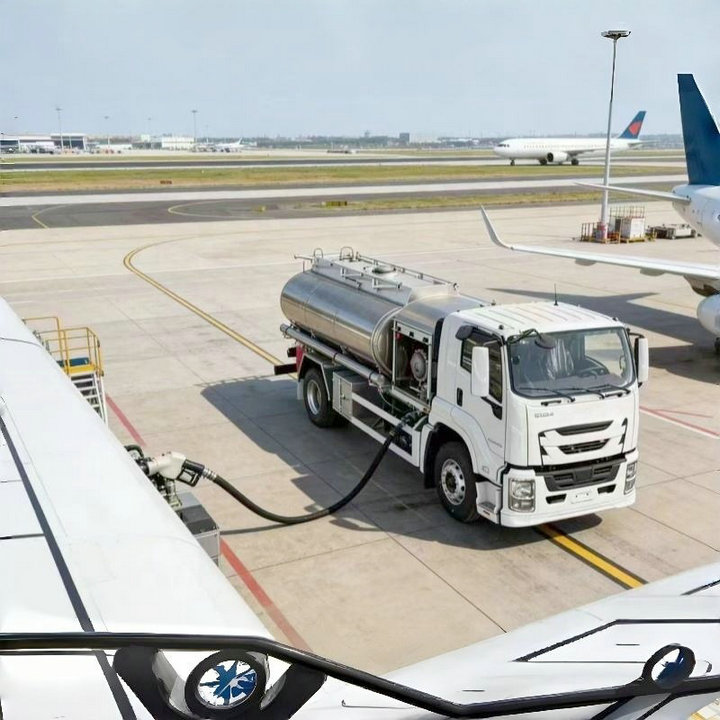

The 10 cubic meters large-capacity tank effectively reduces frequent fuel replenishment trips and greatly improves airport refueling operation efficiency. It is widely applicable to underwing refueling of regional airliners, business jets and various civil aircraft, providing stable, safe and efficient fuel supply guarantee for the daily operation of Nigerian aviation hubs, and helping the local aviation industry develop efficiently.
