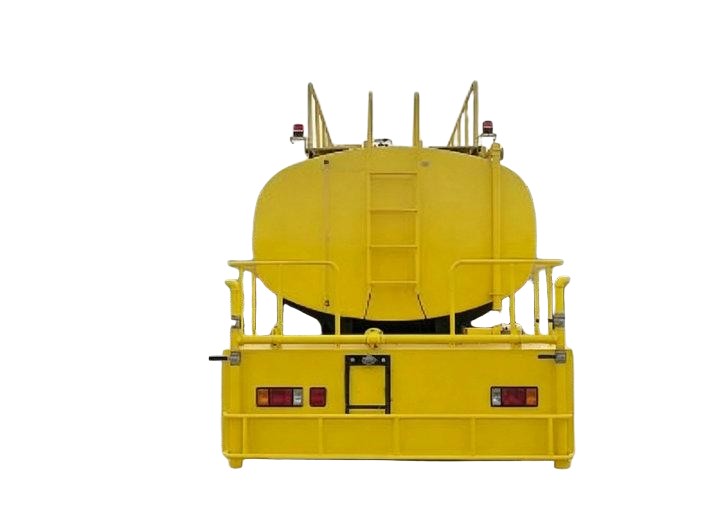

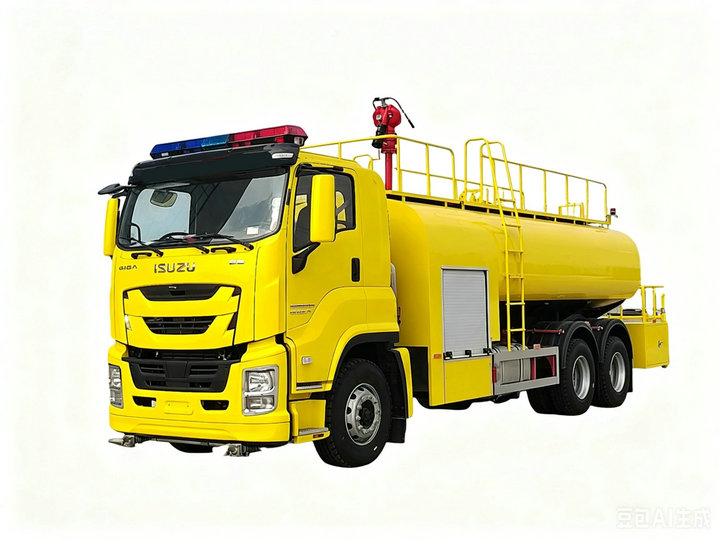

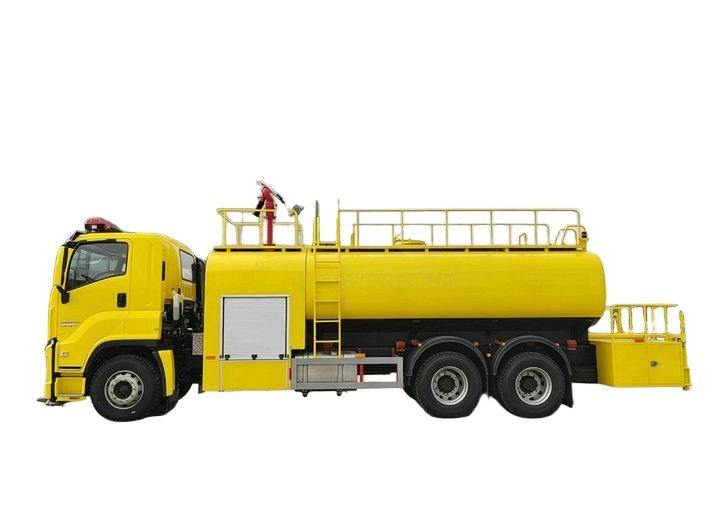

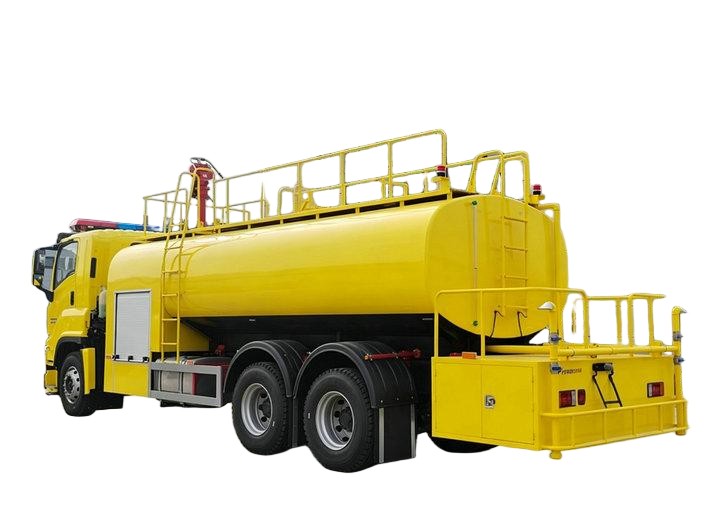

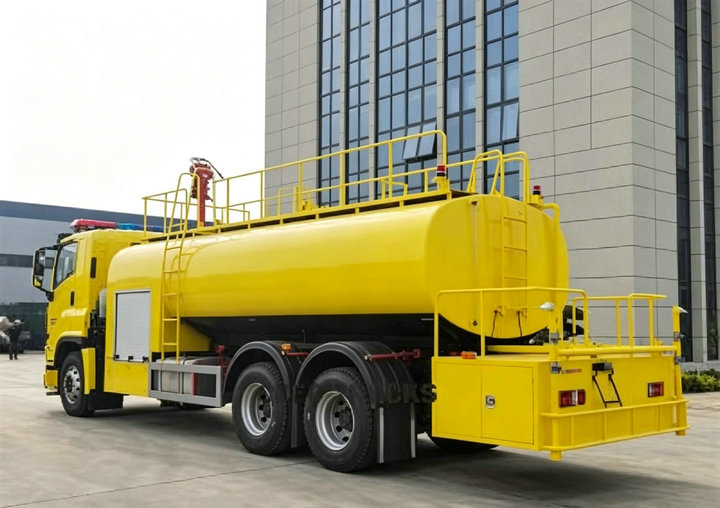

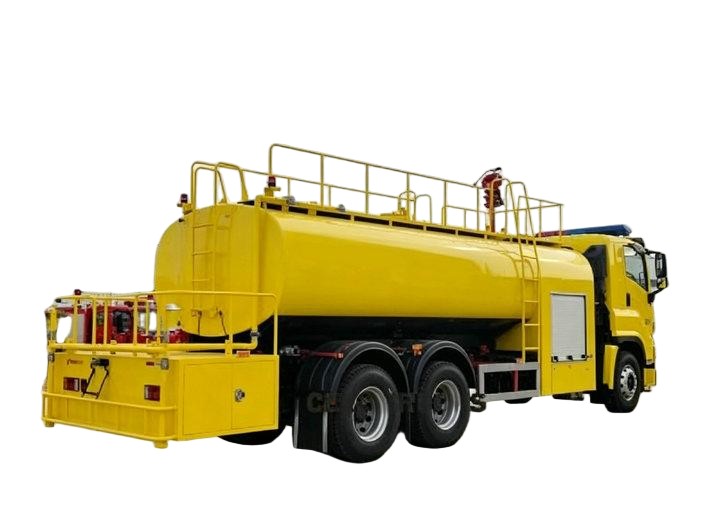

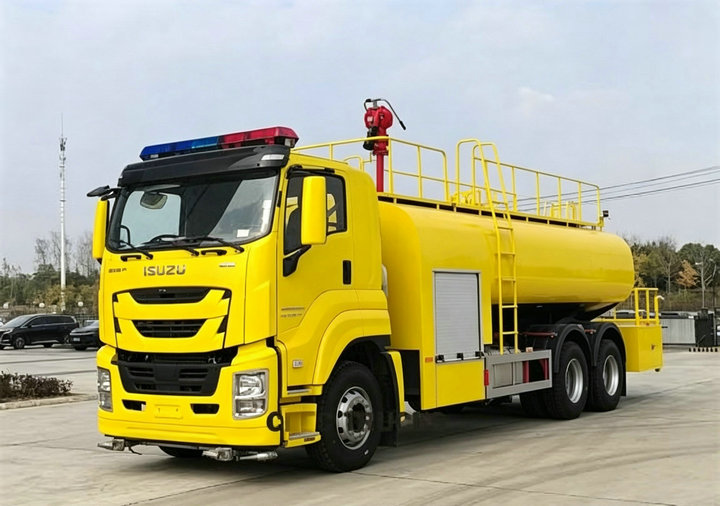

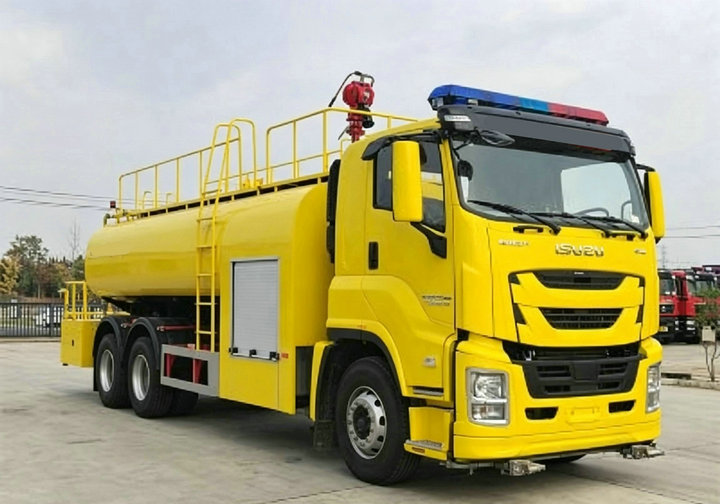

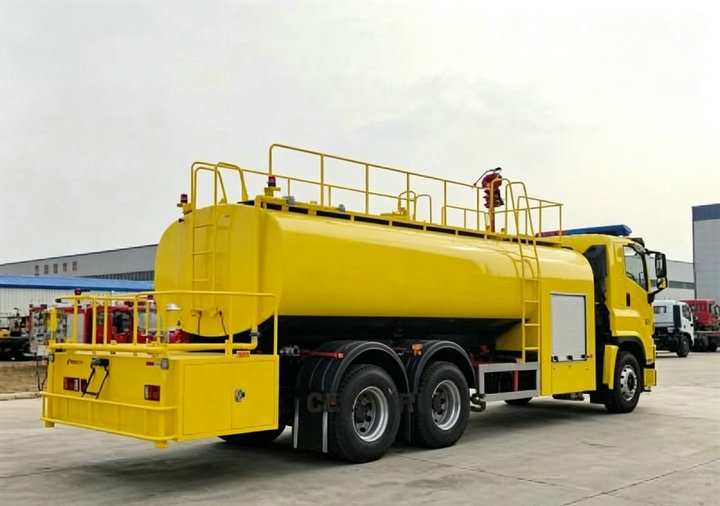

Isuzu 6x4 GIGA 14KL Water Tanker Water Sprinkler Fire Tender Truck

Isuzu 6x4 GIGA 14KL Water Tanker Water Sprinkler Fire Tender Truck
Remarks: Water tank capacity can be customized
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 75800
Discount Price: $ 73800
Availability:
Quantity:

  • ELF 700P

  • DONG RUN ZE

  • 8705909990

  • Shanghai, China

  • 1000

  • T/T, Western Union

  • Nil

  • 1

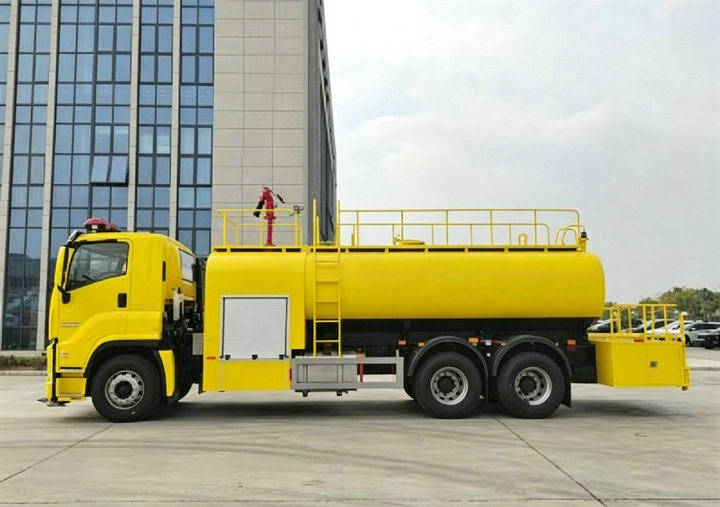

 Isuzu 6x4 GIGA 14KL Water Fire Tender Truck

Isuzu VC61 (GIGA) 6x4 14000L Water Fire Sprinkler Truck | 6UZ1 Engine Euro 6

Isuzu 6x4 GIGA 14KL Water Tanker Water Sprinkler Fire Tender Truck

General

Cab

Isuzu VC61 6x4 chassis,one and half row,allowable 3 passengers,A/C,USB...

Overall Dimensions(mm)

10700x2550x4080mm

Wheelbase

4600+1370mm

GVW/curb weight

25000/11000kg

Water tank capacity

14000L

Steering

Power steering

Chassis

Brand

Isuzu

Tire specifications

10+1 pcs,315/80R22.5

Transmission

FAST 12-speed,manual

Front Axle

7T

Rear Axle

18T

Max speed

95Km/h

Engine

Model

6UZ1-TCG61

Horsepower

380HP

Maximum output

279Kw

Maximum torque

1800N.m

Type

6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

9839ml

Emission standard

Euro 6

Brake System

Air brake

Color and LOGO

Yellow,customized

Electric system

24V

Tank

Material

Carbon steel

Capacity

14000L

Shape

Ellipse as standard

Water fire pump

Model

CB10/60

Max. working pressure

1.082MPa

Max. allowable inlet pressure

0.4MPa

Speed Ratio

1:1.542

Working conditions1

60L/s/1MPa

3m Suction head

Working conditions2

42L/s/1.3MPa

Working conditions3

30L/s/1MPa

7m Suction head

Fire monitor

Model

PS8/50W

Rated working pressure

0.8MPa

Rated flow

50L/s

Range

≥70m

Max.working pressure

1.0MPa

Pitch rotation

-35~+70°

Front and rear water sprinkler

Sprinkling width

≥20m

Range

≥50m

Standard configuration

carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder.

Product Overview

The Isuzu VC61 GIGA 6x4 Water Fire Sprinkler Truck is a heavy-duty, purpose-built firefighting and sanitation vehicle engineered for high-reliability emergency rescue and large-area water spraying operations. Built on the classic Isuzu GIGA heavy-duty chassis and powered by a genuine 6UZ1 Euro 6 diesel engine, this 14,000L water fire truck integrates powerful power performance, large water storage capacity, and precise water supply control, serving as an all-purpose solution for urban firefighting, forest fire prevention, accident rescue, and road watering & dust reduction.

Chassis & Power System

The entire vehicle is refitted based on the mature Isuzu VC61 6x4 heavy-duty chassis, featuring stable structure, strong bearing capacity and wide terrain adaptability. It is equipped with a high-performance 6UZ1-TCG61 inline 6-cylinder water-cooled turbocharged intercooled diesel engine, delivering a maximum power of 279kW (380HP) and a peak torque of 1800N.m. Matched with a FAST 12-speed manual transmission, the vehicle realizes smooth gear shifting, flexible power output and excellent off-road passing performance, fully adapting to complex road conditions such as urban roads, mountain roads and factory pavements.
Compliant with Euro 6 emission standards, the truck meets global environmental access requirements. The 6x4 drive layout, 7-ton front axle and 18-ton rear axle provide outstanding traction and load stability, with a maximum driving speed of 95km/h, ensuring rapid response to emergency missions.

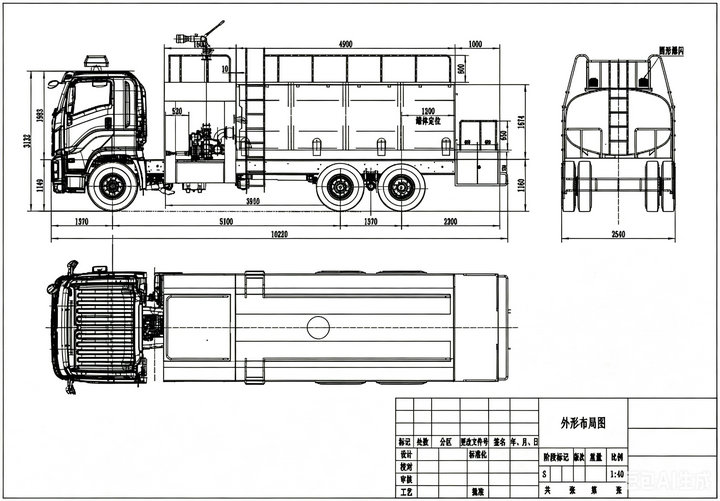

Overall Dimensions & Basic Parameters

Item
Specification
Cab
1.5-row cab, 3-passenger capacity, equipped with A/C & USB interface
Overall Dimensions (L×W×H)
10700×2550×4080mm
Wheelbase
4600+1370mm
GVW / Curb Weight
25000kg / 11000kg
Water Tank Capacity
14000L
Tire Specification
10+1 pcs, 315/80R22.5
Brake System
Air brake
Electric System
24V
Appearance
Yellow (customizable color & LOGO)

Water Tank & Spraying System

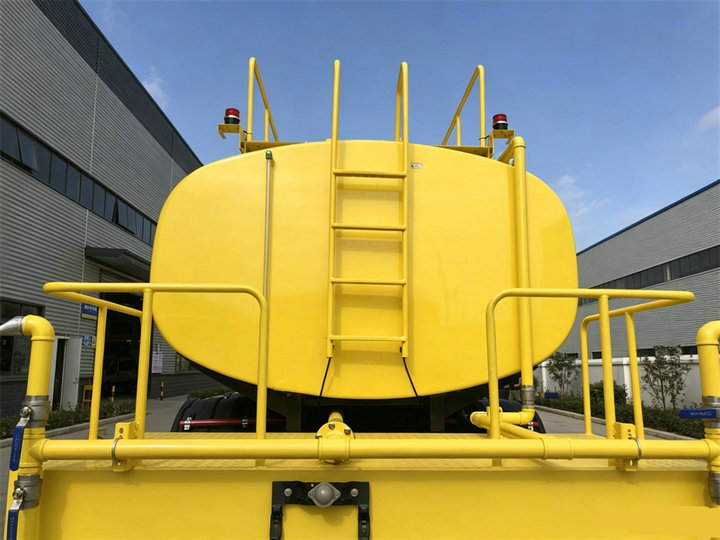

The core water storage unit adopts an elliptical high-strength carbon steel water tank with a total capacity of 14,000L, featuring corrosion resistance, impact resistance and long service life. Equipped with a manhole, filter gauze, multi-group water valves and water hoses, the tank supports fast water intake and stable water output for long-duration continuous operation.
The vehicle is fitted with front flushing and rear spraying devices, achieving a spraying width of ≥20m and a spraying range of ≥50m, which efficiently meets road dust reduction, greening watering and daily sanitation maintenance needs. The rear working platform is equipped with a climbing ladder for safe and convenient manual operation and equipment maintenance.

Core Firefighting Equipment

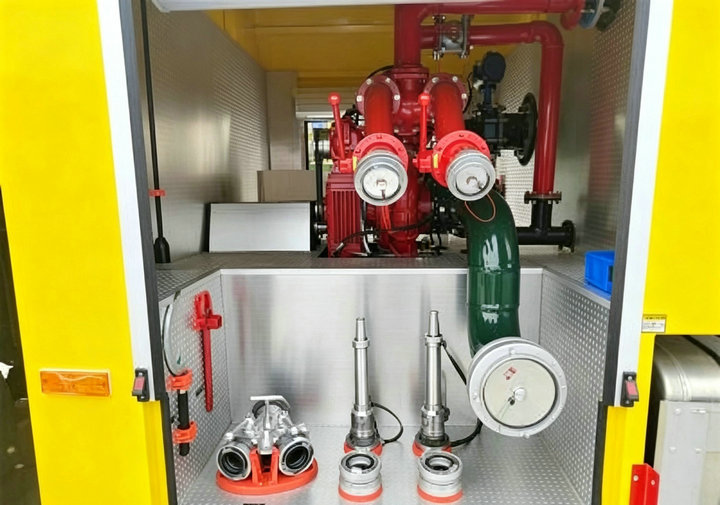

1. CB10/60 Fire Pump

The CB10/60 single-stage guide vane fire pump is the core power component of the firefighting system, featuring compact structure, stable high-pressure operation and strong continuous working capacity. Equipped with an electric double-piston water priming device, it greatly shortens water priming time and simplifies operation procedures. Built-in efficient cooling system effectively prevents overheating during long-time continuous work, ensuring stable performance in harsh emergency scenarios.
It supports three working modes to adapt to different firefighting scenarios: 60L/s large flow for rapid fire suppression, 42L/s medium flow for high-pressure fire attack, and 30L/s stable flow for sustained fire control, with a maximum working pressure of 1.082MPa and a maximum suction depth of 7m.

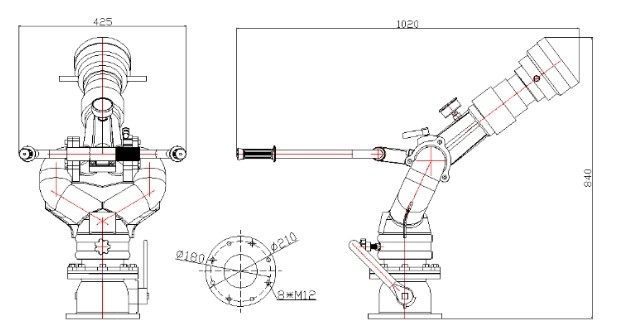

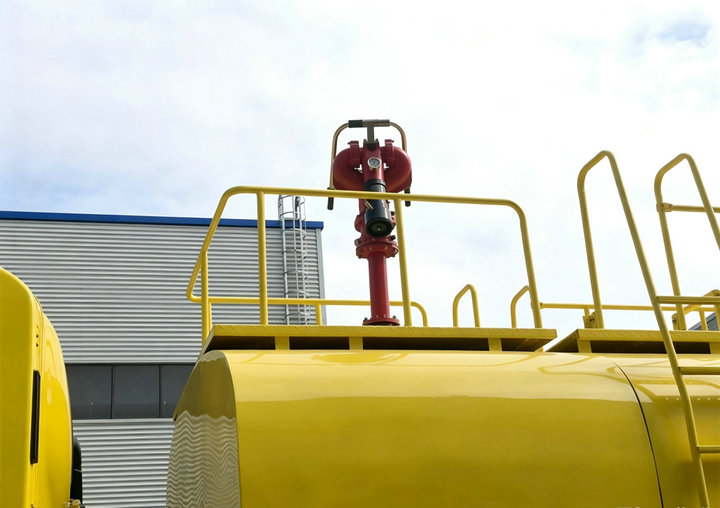

2. PS8/50W Fire Water Monitor

The PS8/50W high-efficiency fire water monitor adopts a streamlined aerodynamic design to reduce air resistance and improve spraying efficiency. With 360° full horizontal rotation and -35°~+70° vertical pitch adjustment, it realizes omni-directional dead-angle-free firefighting coverage. It supports multiple spraying modes including cylindrical straight jet, mist and drizzle, with a rated flow of 50L/s and a maximum spraying range of ≥70m, achieving long-distance and large-area fire suppression.
Made of high-strength wear-resistant and corrosion-resistant materials, the water monitor maintains precise control and stable water output under long-term high-pressure working conditions, featuring quick response and easy operation.

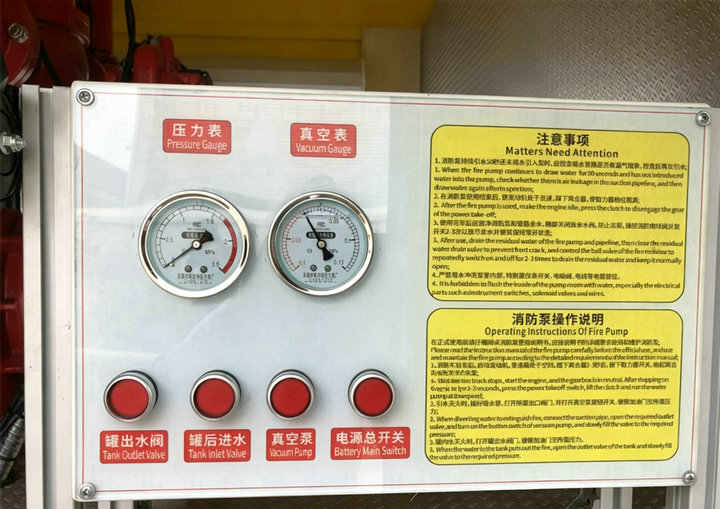

3. Intelligent Control Panel

The centralized control panel is integrated with pressure gauges, vacuum gauges, and physical buttons for main power switch, tank outlet valve, rear water inlet and vacuum pump. Equipped with detailed operation guidelines and safety precautions, it enables firefighters to quickly start, adjust and stop equipment, realizing efficient and intuitive emergency operation.

Product Advantages

  • Dual-function Design: Integrates professional firefighting and urban watering & dust reduction functions, multi-purpose for diverse scenarios and high cost performance.

  • Strong Power & Stability: Original Isuzu 6UZ1 engine + FAST transmission powertrain ensures reliable power, low fuel consumption and strong terrain adaptability.

  • Large Capacity & Long Endurance: 14000L super-large water tank supports long-time continuous operation without frequent water replenishment.

  • High-efficiency Firefighting Performance: Matched with professional CB10/60 pump and PS8/50W water monitor, realizing large flow, long range and precise fire suppression.

  • Durable & Low Maintenance: High-quality carbon steel tank and industrial-grade firefighting accessories resist corrosion and wear, reducing later maintenance costs.

  • Standard-compliant & Customizable: Euro 6 emission standard, customizable body color and LOGO to meet personalized customer needs.

Application Scenarios

This multifunctional fire sprinkler truck is widely applicable to various emergency rescue and daily sanitation scenarios:
  • Urban Firefighting: Rapid response to urban building fires, quickly controlling fire spread and protecting personnel and property safety.

  • Forest Fire Prevention: Long-range water spraying effectively suppresses mountain and forest fires, protecting forest ecological resources.

  • Industrial Fire Rescue: Suitable for fire emergency disposal in factories, warehouses and industrial parks.

  • Traffic Accident Rescue: Timely disposal of vehicle fires caused by road traffic accidents to reduce casualty risks.

  • Urban Sanitation Maintenance: Daily road watering, dust reduction and green belt irrigation.

  • Disaster Emergency Support: Provides water supply and auxiliary rescue for various natural disasters and emergency accidents.

Standard Configuration List

Isuzu VC61 6x4 chassis, 380HP 6UZ1 engine, FAST 12-speed gearbox, 14000L carbon steel water tank, CB10/60 fire pump, PS8/50W fire water monitor, front/side/rear spray nozzles, rear working platform & climbing ladder, full set of fire valves & water valves, filter gauze, water hose assembly, 24V electric system, air brake system.

Hot Tags

Isuzu VC61 water fire truck, Isuzu GIGA 6x4 road sprinkler fire truck, Isuzu 6UZ1 engine fire truck, 14000L Isuzu water fire sprinkler truck, Isuzu GIGA water tanker fire engine




Isuzu VC61 water fire tender truck (21)Isuzu VC61 water fire tender truck (16)

Isuzu VC61 water fire tender truck (7)Isuzu VC61 water fire tender truck (8)Isuzu VC61 water fire tender truck (11)Isuzu VC61 water fire tender truck (1)Isuzu VC61 water fire tender truck (4)Isuzu VC61 water fire tender truck (25)Isuzu VC61 water fire tender truck (9)Isuzu VC61 water fire tender truck (14)

Isuzu VC61 water fire tender truck (13)
