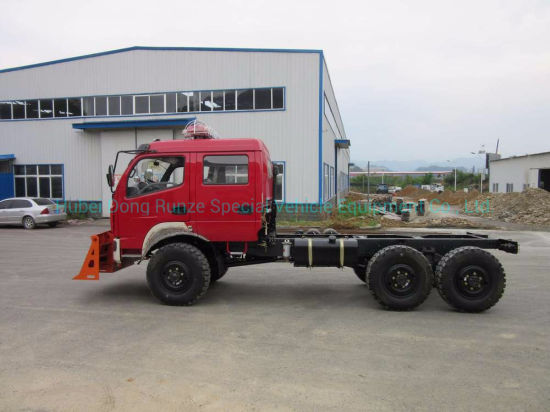

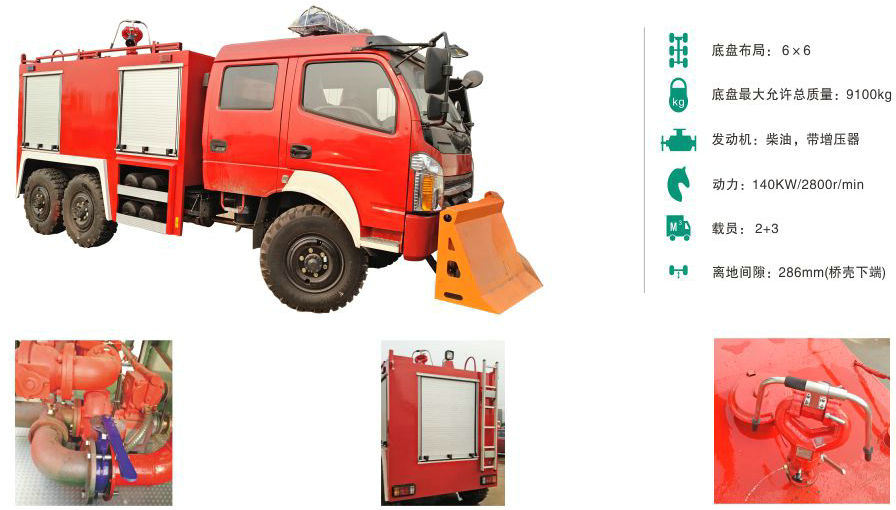

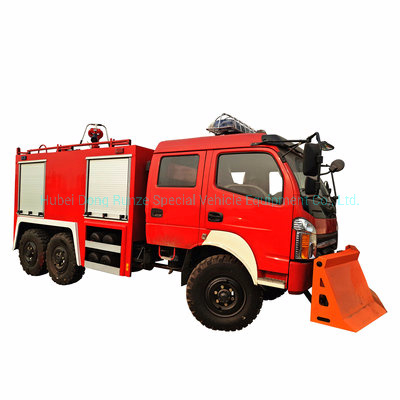

Dongfeng off Road 6X6 Awd Water Tanker Fire Truck 4000L (1000 Gallons) for Forest Fire Fighting
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T
Dongfeng Off Road 6x6 AWD Water Tanker Fire Truck 4000L ( 1000 Gallons) For Forest Fire Fighting
Cell /+8615271357675
The pictures are for your reference only.
HOWO Foam Fire Truck 4 X 4 Off Road All Wheel Drive with 6500Liters Water Foam Tank
Superstructure | Water Tank Capacity | 4,000 litres | |
Tank Material | Carbon steel | ||

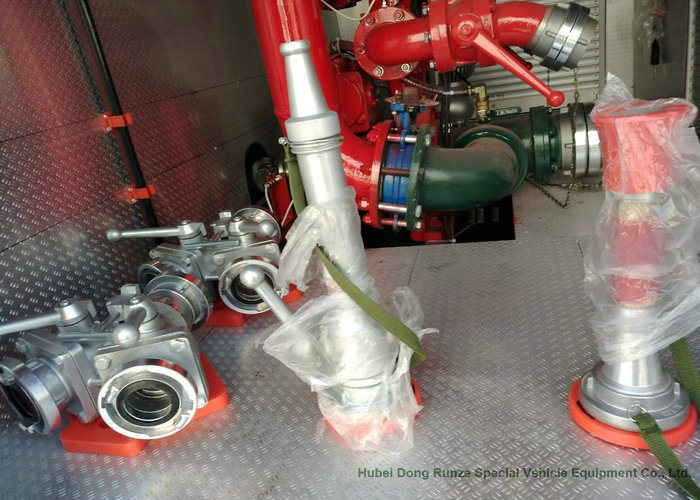

Fire Pump | Flow speed | 30 L/s | |
Pressure | 1.0 MPa | ||
Fire Cannon | Flow speed | 30 L/s | |
Shot | 55 m | ||
Suction Head | 6 m | ||
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | ||

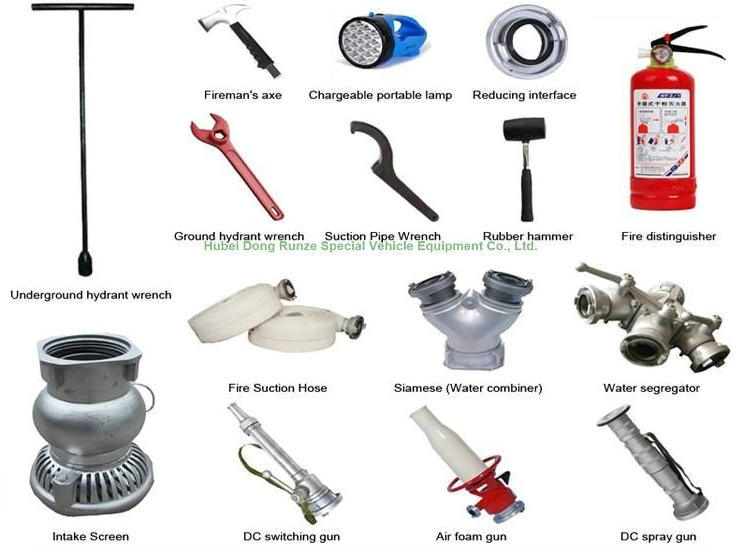

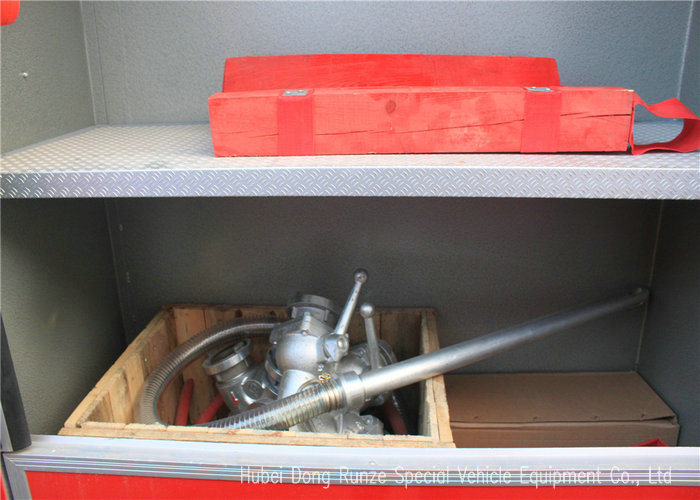

All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include shovel, pike poles, axes and cutting equipment, halligan bars.… | |||
Optional | Ladders, floodlights... | ||
Similar Keywords: foam truck tanker, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire service truck, fire fighting vehicle
Off Road 6x6 AWD Water Tanker Fire Truck 7000L All wheel Drive fire fighting truck
Dimension Parameters | |
Overall dimension (mm) | 6340*2050*2650 |
Wheelbase (mm) | 3350+1100 |
Front / Rear Suspension (mm) | 1280 / 1450 |
Wheel Tread (mm) | 1886 / 1846 / 1846 |
Approach / Departure angle (°) | 35 / 23 |
Allowable person capacity | 3+2 |
Weight Parameters | |
Curb Weight (kg) | 4200 |
Max. authorized total mass of chassis (kg) | 9100 |
Max. authorized load weight (kg) | Front Axle: 2700 Rear Axle: 3200+3200 |
Performance | |
Engine Rated Power (kw / r/min) | 140 / 2800 |
Engine Max Torque (N.m / r/min) | 640 / 1400-1600 |
Engine Displacement (L) | 5.9 |
Max Speed (km/h) | 85 |
Min Steady Speed (km/h) | 3.5 |
0-60km/h Acceleration Time (s) | ≤30 |
Max.Gradability (%) | 60 |
Slope Retaining Capacity (%) | 40 |
Min Ground Clearance (mm) | 286 |
Min Turningradius (m) | ≤8 |
Max Vertical Obstacle Height (mm) | ≤600 |
Max Crossing Width (mm) | ≤600 |
Max Fording Depth (mm) | ≤1000 |
100km fuel consumption under limited conditions (L) | <18 |
Braking Distance When Full Load Initial Speed 30km/h (m) | ≤8 |
Fuel Tank Capacity (L) | 220 |
Max Endurance Mileage (m) | 800 |
Driving Type | 6x6 |
Environmental Adaptabilityrequirements | |
Working Temperature:-41ºC~+55ºC; Storage Temperature:-55ºC~+70ºC; Altitude 5000m (Allowthe power to decrease accordingly); Relative Humidity:95%(30ºC). | |
Basic Technical Parameters | |
Engine | 190hp, in-line, 6 cylinders, turbocharged intercooler dieselengine, 140kw |
Transmission | Manual 5-speed Transmission |
Transfer Case | with high and low gear, electronic control pneumaticoperation |
Front Axle | 2.7 ton integral axle ,hub reduction |
Rear Axle | 3.5 ton integral axle, hub reduction |
Suspension | front suspension is leaf spring, with twobidirectional cylinder type shock absorber. |
Rear suspensionis leaf spring balance suspension, with Stabilizer bar. | |
Frame | stampingriveted frame structure, frame max outer width 860mm, Stringer max cross-sectionalsize is 280 x 75 x 8mm. |
Tire | 6 off road military tires 305/80, with one spare tire |
Electric System | 24V circuit system, 12V,100ah, two sets, Maintenance-free. |
Other | Hydraulic clutch assistance, hydraulic power steering, exhaust brake, four circuit pressure brake. |
Special Specification:
1. Front located 4 ton wrecker shovel, equipped with highpower lifter,
can easily adjust the height of the wrecker shovel, convenient for
switching between driving and operation state of wrecker.
2. double row cab,exclude driver, also can take 2+3 person.
3. the top of the cab is equipped with professional fire warning lights.
4. available to install a full power disconnected power takeoff between
the gearbox and engine.
5. water tank volume is 4 cubic meters.
6. high-power water pumps which can spout 40-50 meters of water column.
7. available to install 2 fire fans and 2 fire fighting high-pressure water cannons.
8. can be equipped with fire extinguishers, fire hammer,
fire shovel, fire hose, fire fighting racket and other professional
fire fighting equipments
