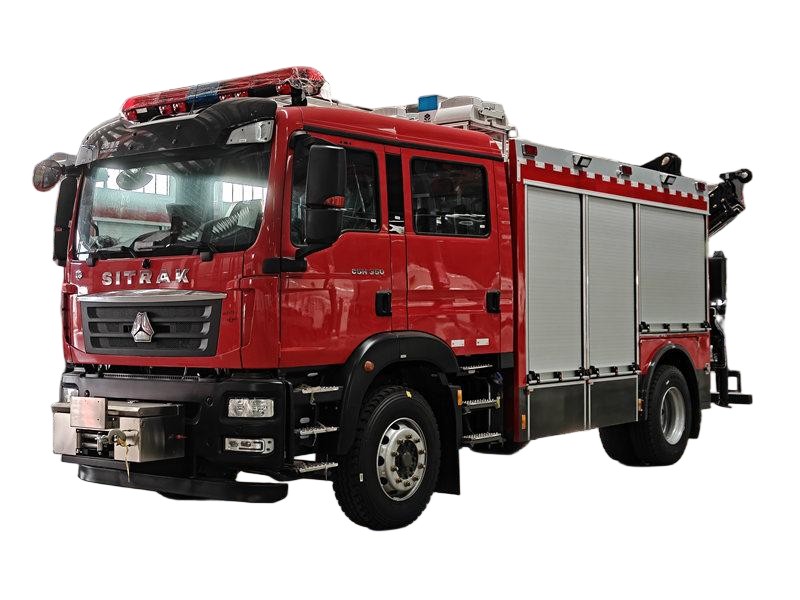

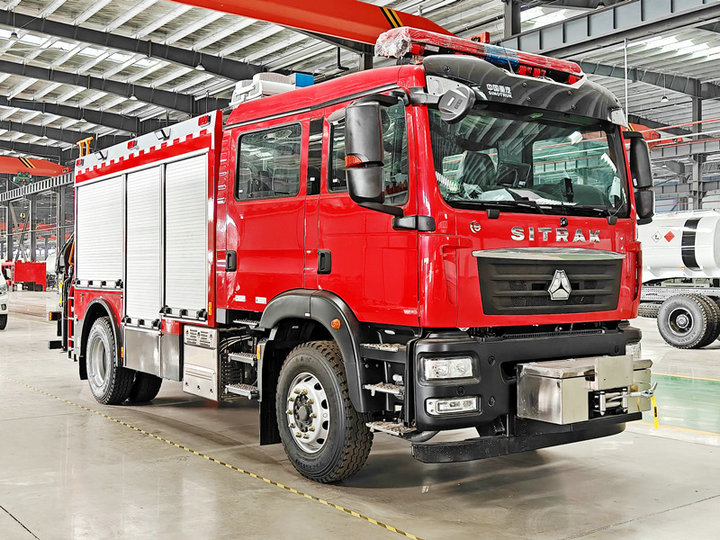

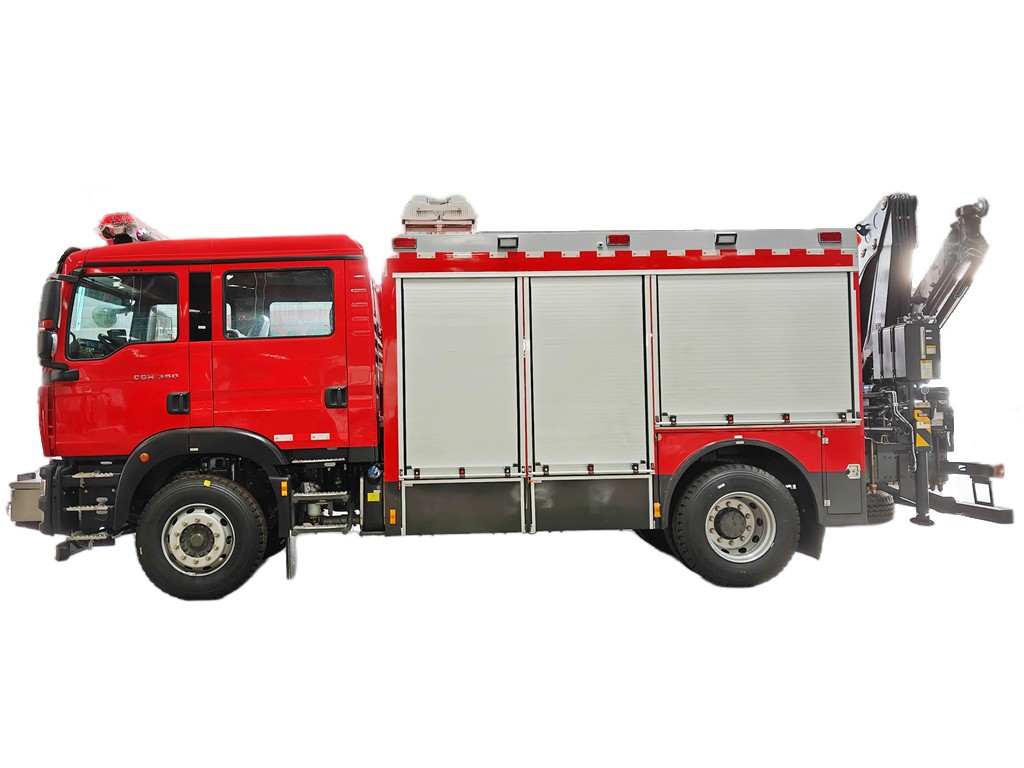

Howo Sitrak C5H Heavy Rescue Fire Truck with Crane Lighting and Power System

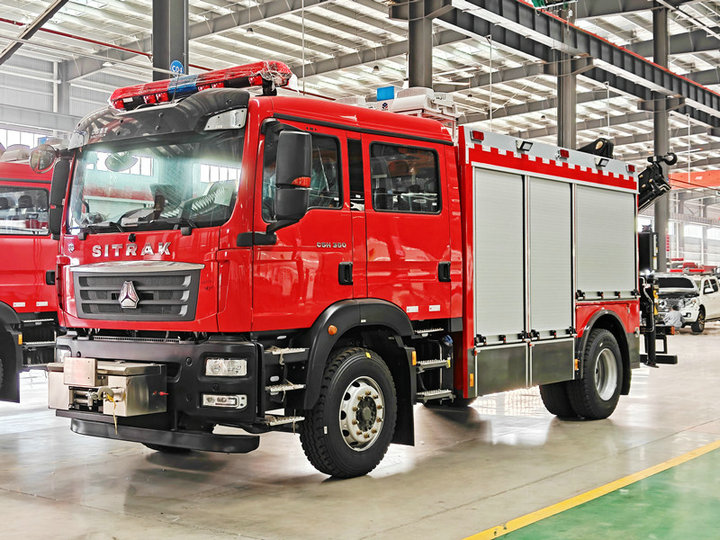

SINOTRUK SITRAK Rescue Fire Truck

Sinotruk HOWO 4x2 emergency rescue fire truck adopts type II truck chassis. The Sinotruk HOWO heavy rescue fire truck mounted with double row seat crew cabin, which can carry 2+4 passengers including the driver, rear 4 seats are SCBA type with storage for air apparatus. The

Main Technical Parameters of Rescue Fire Truck

Engine Options

Vehicle RemarksIntegrated side‑protection structure. Rear‑protection material: Q235A steel; cross‑section dimension(width×height):120×60 mm; connected by bolts; rear‑protection ground clearance:475 mm; front‑extension:430 mm. ABS controller manufacturer: WABCO (Shanghai) Management Co., Ltd., Model:4460046300. Main special‑purpose equipment: truck‑mounted crane, winch, lighting system.

● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service

HOWO emergency rescue fire fighting truck integrates customized special rescue equipment, details as below showing:

Traction System: The front of the HOWO fire rescue truck is equipped with an American Champion traction winch, model N16800XF with a maximum pulling force of 75kN, working angle up & down 8° and left & right 5°, as for steel rope which is 38m in length φ13mm diameter, which can cope with complex terrain such as muddy and sloping land. Details and advantages as below showing:

The HOWO emergency rescue firefighting truck front mounted towing winch N16800XF can be powered by 12V or 24V DC, the reduction mechanism adopts a first-stage small-tooth difference star gear reduction and a first-stage planetary gear reduction, and the reduction ratio is 430:1. The internal teeth of the reducer are manufactured using a special formula high-pressure forming powder metallurgy technology, and the important force transmission parts are made of special materials and processing technology, which makes it have higher strength and load-bearing capacity. There are breakthrough improvements in many aspects such as clutch, brake and appearance design. The rated tension is 16800lbs.

Champion N16800XF towing winch products are strictly prohibited from being used for lifting or manning. Not allow work continuously for more than one minute under full load to avoid motor burnout. When the motor is overheated, please let the motor cool down before continuing the operation; It is recommended to use a movable pulley when the load exceeds 60% of the rated tension;

1. It has a clutch to realize manual rope release;
2. It has a reliable brake device;
3. It is driven by a series motor;
4. The specially designed small-tooth difference speed reduction mechanism is suitable for heavy-duty operations;
5. It has a beautiful appearance and is easy to install.

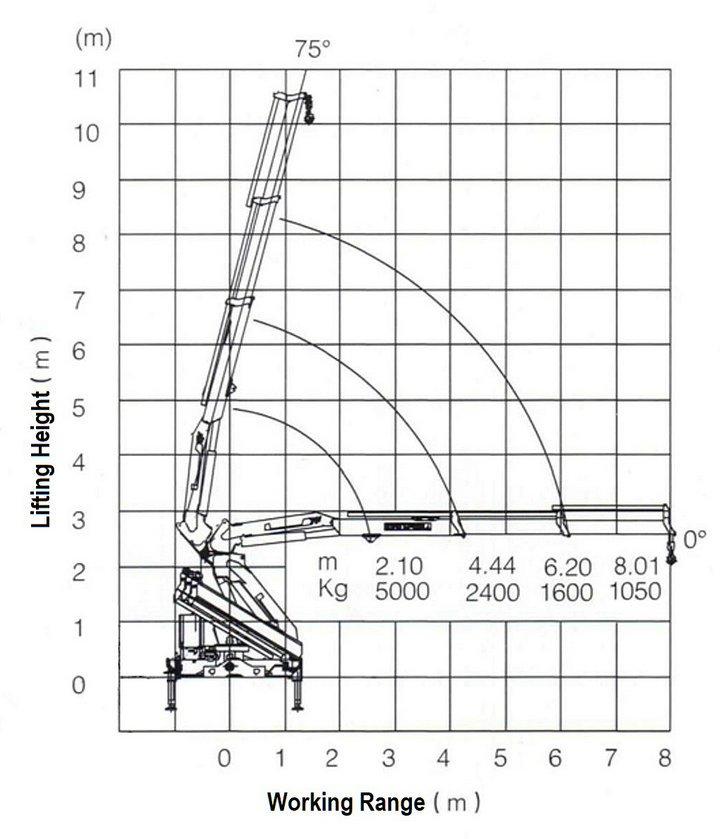

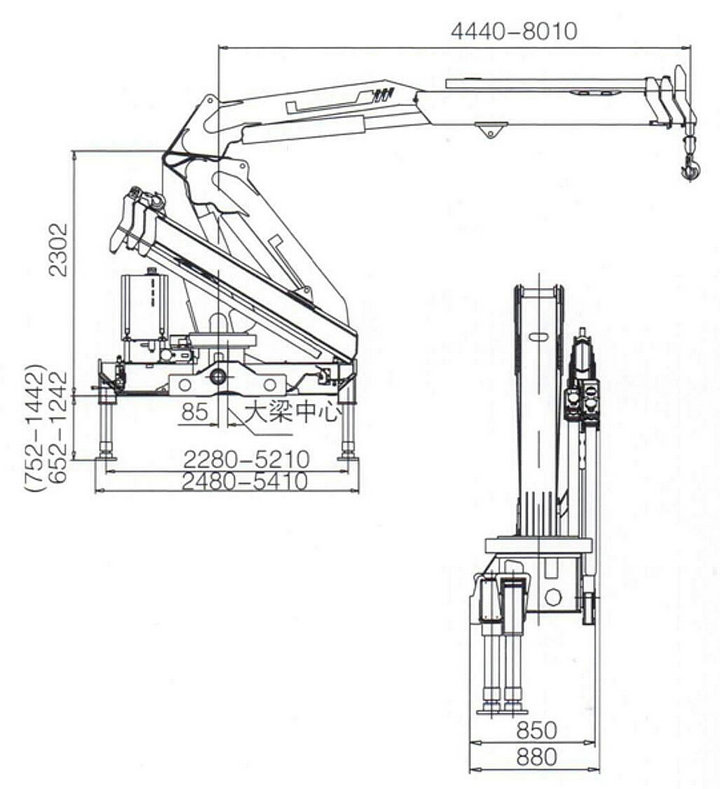

Lifting System: At rear of HOWO emergency fire rescue vehicle is equipped with XCMG brand hydraulic type folding boom SQZ105 with a maximum lifting capacity of 5 tons and supports full rotation operation, which is suitable for high-altitude rescue and material lifting. The new generation of light duty 5T knuckle type XCMG loader crane with model SQZ105 and the maximum lift moment of 105 kN·m , maximum working range of 8.3m and rotation angle of 420°, the operation safety is improved greatly because it is equipped with alarm system. Nested stabilizer extensions reduce the installation space, and lower the weight, optimized design of whole unit structure make it beautiful and compact. widely used in transportation, civil engineering, electric power, fieldwork, airport, dock etc., it can be used to long-distance transfer goods too. After installing additional devices, it can also be used for bridge maintenance, aerial wiring and inspection work.

1. Warning system: while loader crane working, the caution light on the leg keep shining to remind the people and vehicle around. Avoid accident and ensure safety.

2. Stabilizer extension: single cavity nesting structure not only ensure the leg span but also reduced the installation space and crane weight.

3. Leveling mechanism of extension cylinder: this mechanism can carry out level regulation for extension cylinder, avoid the phenomenon of cylinder is not parallel to boom which arising from machining error of boom or structure distortion after long-term work, improve product external appearance and stress on the cylinder.

4. Large angle rack cylinder rotation: rack cylinder rotation, easy to repair and maintain, more economical and practical, rotation angle can reach to 420 °.

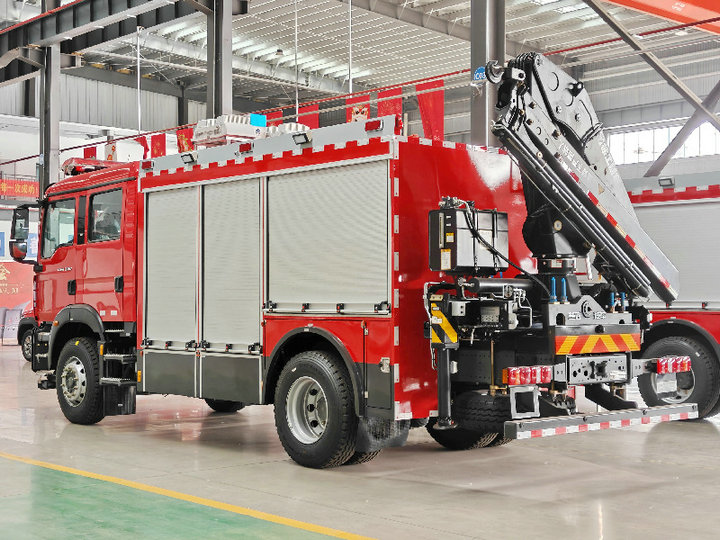

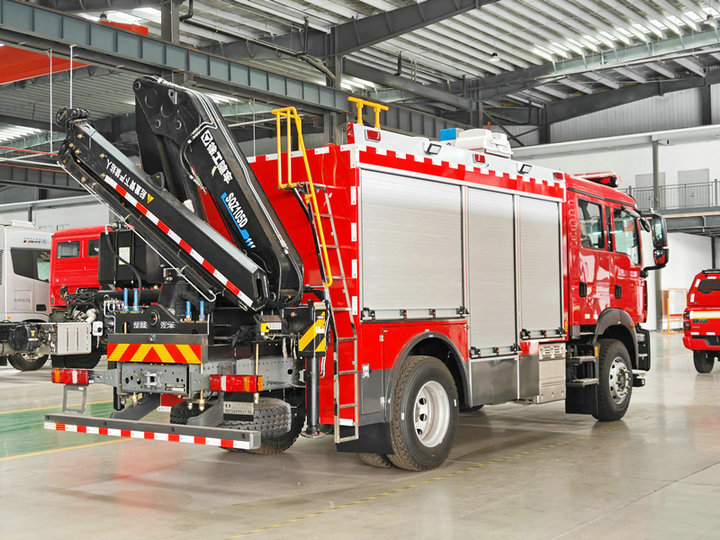

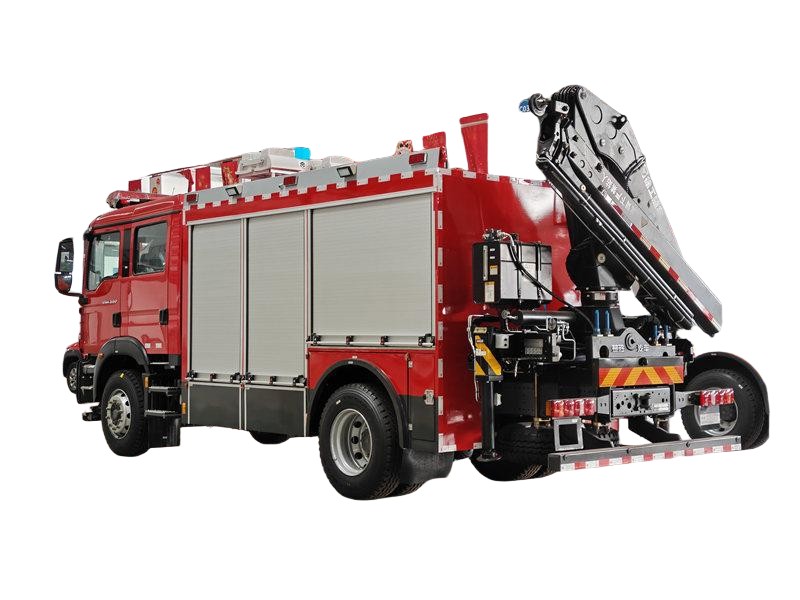

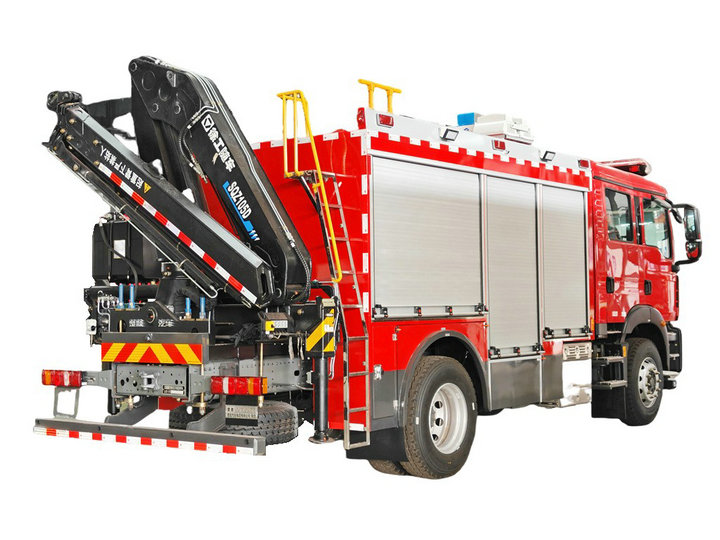

HOWO heavy duty emergency rescue fire truck with crane

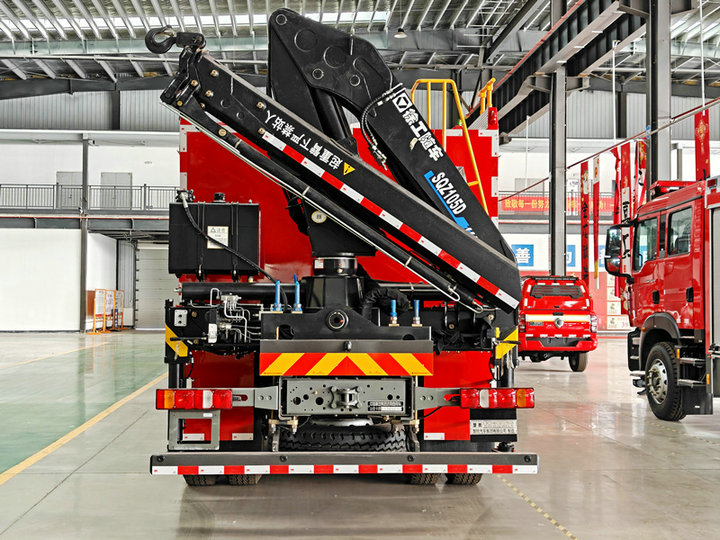

HOWO rescue fire truck boom crane hydraulic legs

HOWO fire rescue department truck control device

Lighting and Power System: Equipped with a lifting lighting set (power 4×1000W), the night operation range reaches 7.6 meters in height, and is equipped with a 10KW for 220V and 380V generator set HONDA SHT11500, which supports dual-mode power supply of city power and self-generation to ensure the continuous operation of rescue equipment.

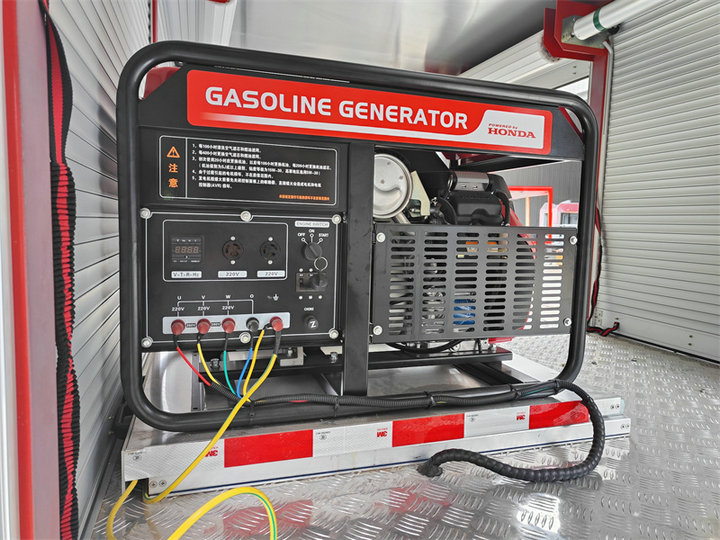

HOWO emergency rescue fire truck with HONDA generator

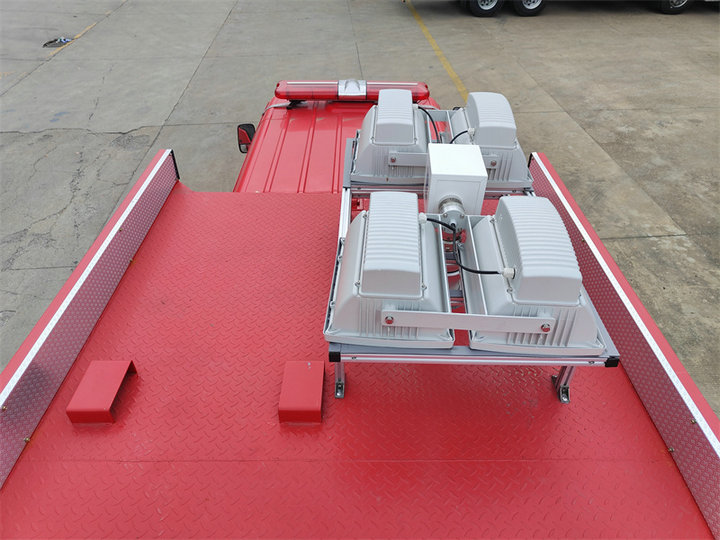

HOWO fire rescue truck with 7.6m lifting lighting system

HOWO multiple functional rescue fire truck is comfortable and convenient to drive. Which is equipped with the original American Champion electric winch N16800XF, which is mounted in the front of HOWO fire engine and can tow about 8 tons of goods. HOWO fire rescue vehicle uses the Japanese HONDA generator SHT11500 with a power of 10KW and working voltage 220V / 380V. The top of fire truck is also equipped with a lifting lighting system YZH4-5.0CF, which can lift up to 7.6 meters above the ground. The equipment compartment is full Aluminium alloy structure and never rust, and in the HOWO rescue firefighting vehicle can hold no less than 90 pieces of emergency rescue equipment. The HOWO rescue fire fighting truck has a novel appearance, scientific and reasonable layout, convenient operation, and complete instrument display; it is fully equipped with accessories and tools, and adopts rotating and pulling structures, compact layout, and convenient access, making it closer to the needs of actual firefighting. Therefore, this fire rescue truck is an ideal special firefighting vehicle for emergency firefighting forces and various professional firefighting and rescue teams.

♦ The vehicle adopts a modular and multi-functional integrated design, with a high-strength carbon steel frame chassis.

♦ It also possesses strong multi-mission expansion capabilities, capable of carrying hydraulic demolition tool sets, life detectors, and other rescue equipment.

♦ Reserved interfaces support drone-assisted reconnaissance, breaking the limitations of single lighting functions and achieving integrated "lighting + rescue".

♦ Adaptable to different types of emergency rescue scenarios, improving rescue efficiency.

Sinotruk HOWO 6 wheeler emergency firefighting truck is a multifunctional special vehicle designed and produced for complex rescue work all over the world. HOWO fire department rescue truck adopts the chassis of SINOTRUK and combines the manufacturing process of German MAN technology, which has multiple functions such as efficient emergency rescue, firefighting, high altitude lighting and rescue.
