HOWO 4 Tons Dry Powder Emergency Fire Fighting Truck
Tanker Capacity: 2000 kg dry powder + 2000 kg foam/water
Engine : 350 HP (257 kW) / MC07H.35-60
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5318XFZZ8
-
DRZ
-
8705309000

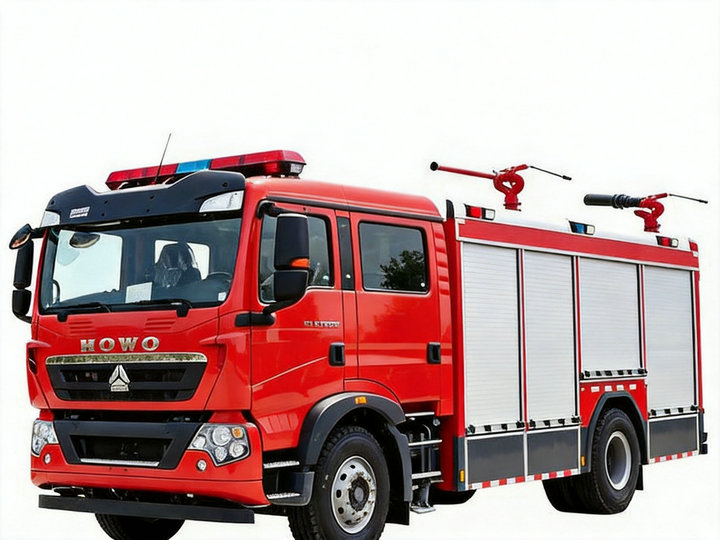

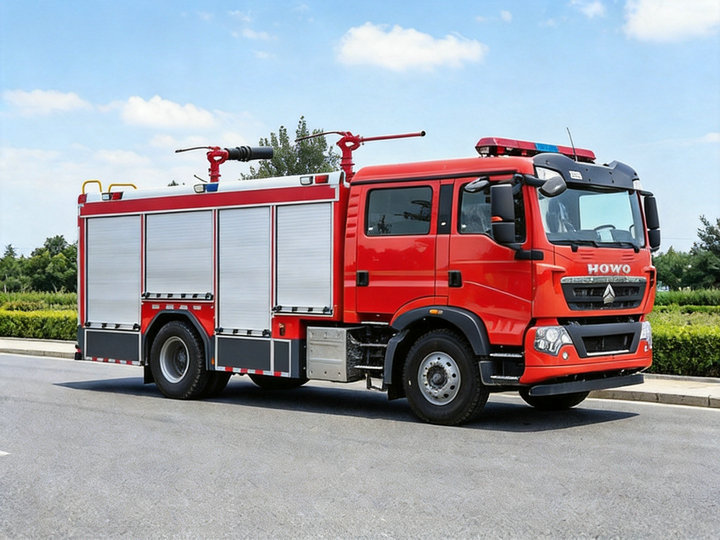

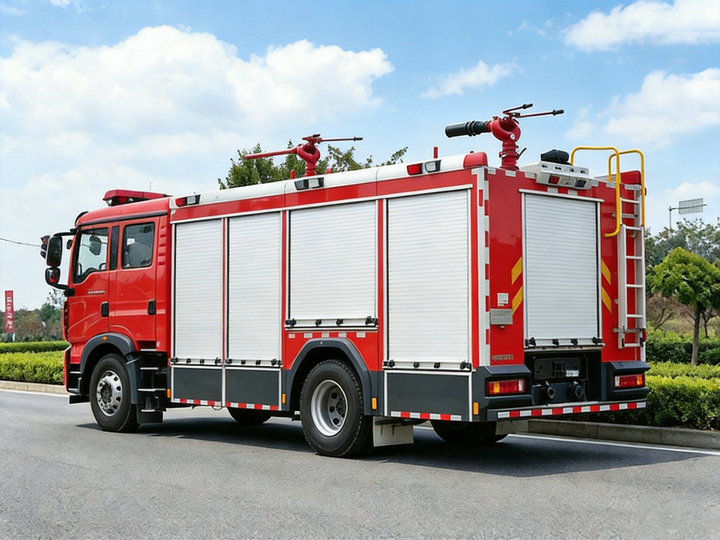

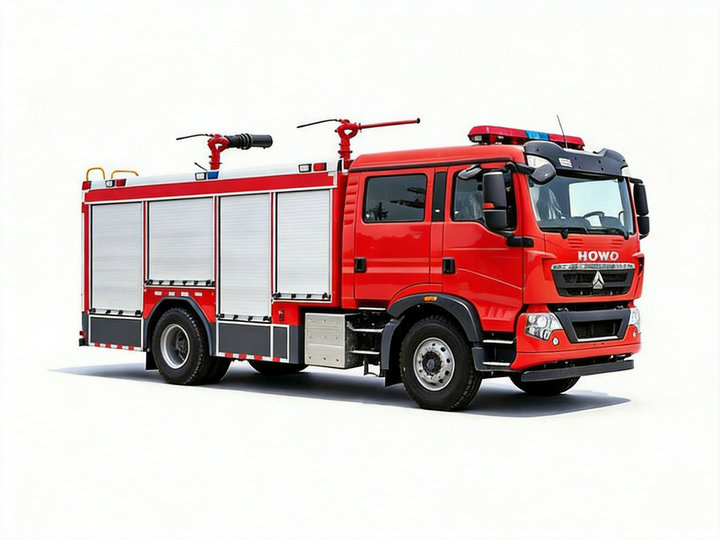

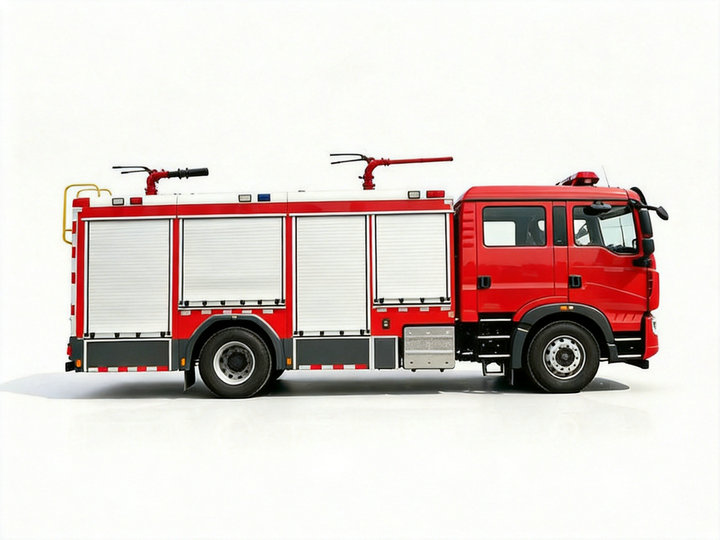

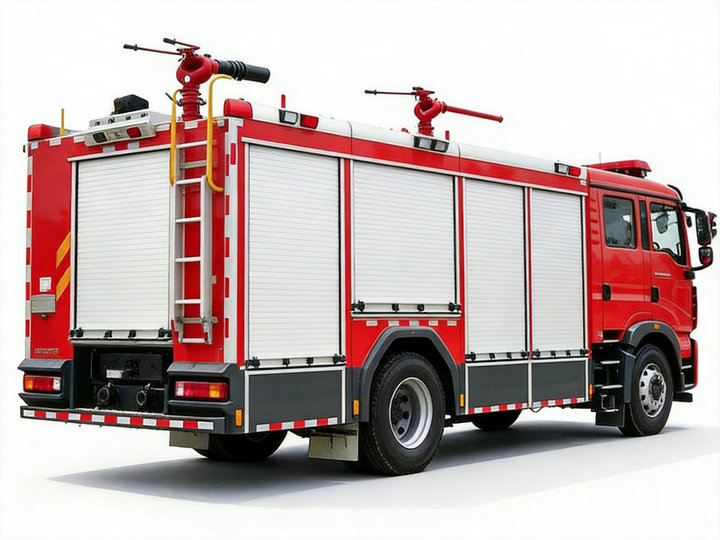

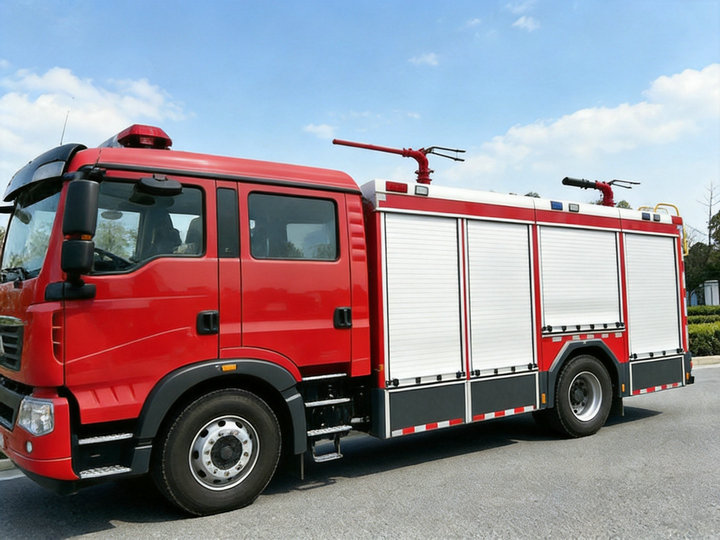

HOWO TX 4 Tons Dry Powder Emergency Fire Fighting Truck
HOWO TX 4 ton dry powder emergency fire truck is powered by a 350 HP MC07H.35-60 engine on a 4×2 chassis. It features 2000kg dry powder and 2000kg foam/water tanks, a CB10/60 fire pump (60 L/s), a PF5-15/30 dry powder cannon (30-35kg/s, range ≥35m), and a PL8/48 foam/water monitor (48 L/s, water ≥70m, foam ≥60m). This triple agent truck handles Class A, B, and C fires, making it a versatile choice for industrial fire protection, chemical plants, and oil depots.
HOWO TX 4 ton dry powder emergency fire truck is built on a 4×2 chassis with a 350HP MC07H.35-60 engine.
HOWO triple agent fire fighting truck features a 2000kg dry powder tank, a 2000kg foam/water tank, a CB10/60 pump (60 L/s), a PF5-15/30 dry powder cannon (30-35kg/s, range ≥35m), and a PL8/48 foam/water monitor (48 L/s, water ≥70m, foam ≥60m). Standard gear includes roll-up aluminum doors, LED lights, and fold-down steps—a solid choice for chemical plant fires, oil depot protection, and industrial emergency response.
Technical Parameters for HOWO Emergency Rescue Fire Truck HOWO TX 4 Tons Dry Powder Fire Fighting Truck | |
Equipment boxMaterial | Oxidized aluminum frame & cover; baffle & profile structure |
Roller Shutter | 3 per side, lockable, with linked LED strips |
Roof Guard | Integrated aluminum extrusion; exterior flashing lights, interior LED strips |
Fold-down Step | Aluminum extrusion, anti-slip, load ≥150kg, double locking |
Rear Ladder | Aluminum ladder on the right side for roof access |
Mast Lighting System | |
Generator | ≥15 kVA, 50Hz, 220V/380V, electric start, gasoline, V-twin |
Mast | Aluminum alloy, max height ≥8 m |
Lighting | 4×500W LED |
Rotation | Horizontal ≥420°, tilt ≥420° |
Control | Panel + wired (5m) + wireless (≥50m), one-key auto-reset |
Position | Front of the equipment box |
»Ⅰ. Main Features :
★ MC07H.35-60 engine, 350 HP for triple agent fire suppression and industrial emergency response
★ HOWO 4×2 chassis with 2000kg dry powder tank, 2000kg foam/water tank, and CB10/60 fire pump (60 L/s)
★ PF5-15/30 dry powder cannon (30-35kg/s, range ≥35m) for rapid knock-down of Class B and C fires
★ PL8/48 foam/water monitor (48 L/s, water ≥70m, foam ≥60m) for Class A and B fire fighting
★ Full firefighting equipment including hoses, nozzles, foam gun, and basic tool kit for Class A, B & C fire fighting
» Ⅱ.Product Parameter :
HOWO TX 4 Tons Dry Powder Emergency Fire Fighting Truck | |||
General | Work Capacity | 2000 kg dry powder + 2000 kg foam/water | |
Truck Chassis | SINOTRUK HOWO 4X2 | ||
Engine Power | 350 HP/ MC07H.35-60 | ||
Fire Pump | CB10/60 | ||
Dry Powder Monitor | PF5-15/30 | ||
Foam/Water Monitor | PL8/48 | ||
Maximum Speed | 95 km/h | ||
Overall Dimensions L*W*H | 8630*2540*3680 mm | ||
Gross Vehicle Weight | 18000 kg | ||
Engine | Engine Model | MC07H.35-60 | |
Fuel Type | Diesel | ||
Power | 350 HP（257KW） | ||
Emission Standard | Euro 6 | ||
Displacement | 7360 ml | ||
Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
Chassis | Drive Type | 4x2 | |
Wheelbase | 4700 mm | ||
Tire | 235/75R17.5 16PR | ||
Tire No. | 6 tires and 1 spare tire | ||
Fire Pump | Model | CB10/60 | |
Flux | 60L/s | ||
Pressure | 1MPa | ||
Max working pressure | 1.251MPa | ||
Max allowable inlet pressure | 0.4MPa | ||
Max suction height | 3m | ||
Rated speed | 3916±50r/min | ||
Speed ratio | 1:1.4 | ||
Water diversion time | ≤50s | ||
Dry Powder Monitor | Model | PF5-15/30 | |
Rated working pressure | 0.5MPa | ||
Max working pressure | 1.5MPa | ||
Dry powder cannon output | 3okg/s≤E≤35kg/s | ||
Range | Dry powder | ≥35m | |
Foam/Water Monitor | Model | PL8/48 | |
Flow | 48L/s | ||
Rated working pressure | 0.8MPa | ||
Max working pressure | 1.2MPa | ||
Range | Water | ≥70m | |
Foam | ≥60m | ||
Pitch rotation | - 35～+70° | ||
Horizontal rotation | 0～360° | ||
Standard configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||

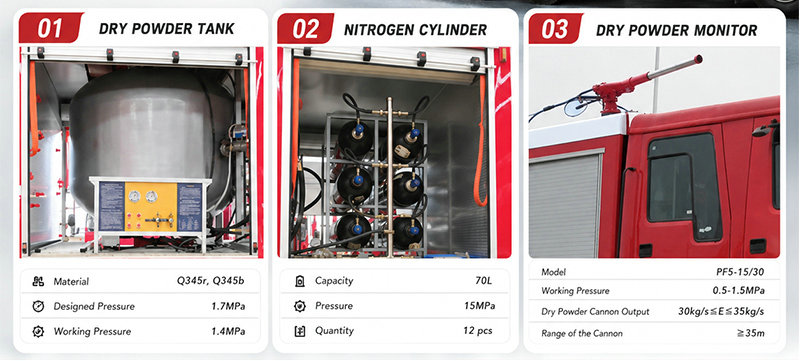

» Ⅲ.Dry Powder System :
★ 2000kg dry powder tank with PF5-15/30 dry powder cannon, 30-35kg/s discharge rate, range ≥35m for rapid fire knock-down
★ Working pressure 0.5MPa to 1.5MPa, suitable for Class B (flammable liquids) and Class C (gas) fires
★ Dry powder system operates independently from water/foam system, allowing instant switching between dry powder, foam, or water modes
★ Compact tank design with easy refill access, durable construction for long service life in demanding industrial fire fighting operations
Model ： | PF5-15/30 |
Rated working pressure： | 0.5MPa |
Max working pressure： | 1.5MPa |
Dry powder cannon output： | 3okg/s≤E≤35kg/s |
Range： | ≥35m |
» Ⅳ.Foam Monitor System :
The PL8/48 fire monitor is mounted on the superstructure. It delivers a flow rate of 48 L/s with a water range of ≥70 m and a foam range of ≥60 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations on Class A and Class B fires.
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
PL8/48 | 48L/s | Water≥70m Foam ≥60 m | 0.8MPa | -35°～+70° | 0～360° |
» Ⅴ.Fire Pump System :
Fire Pump:
A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump delivers steady water pressure for both the PL8/48 foam/water monitor and the dry powder system, ensuring effective fire suppression for Class A, B, and C fires.
Fire Pump Model | Flow | Pressure | Max Working Pressure | Max Allowable Inlet Pressure |
CB10/60 | 60L/s | 1.0MPa | 1.251 MPa | 0.4MPa |
Control panel:
Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, ladder controls, and compartment lighting. All controls are clearly marked for straightforward operation.
» Ⅵ.Fire Fighting Equipment :

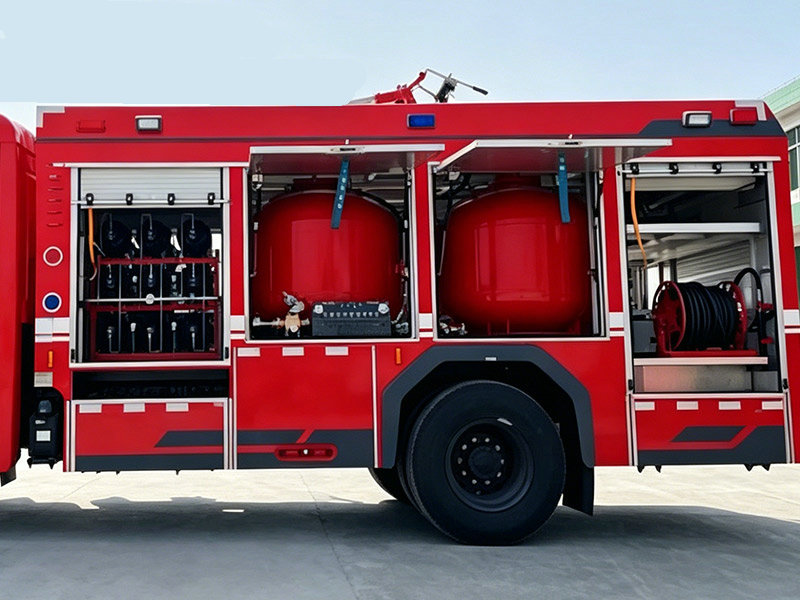

• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.
The HOWO TX 4 ton dry powder emergency fire truck comes with a rear-mounted CB10/60 fire pump, a PF5-15/30 dry powder cannon, and a PL8/48 foam/water monitor. The dry powder tank holds 2,000 kg, and the foam/water tank holds 2,000 kg, sitting on a sturdy HOWO 4×2 chassis powered by a 350 HP MC07H.35-60 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit.
Full specifications are listed below:
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |
20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
