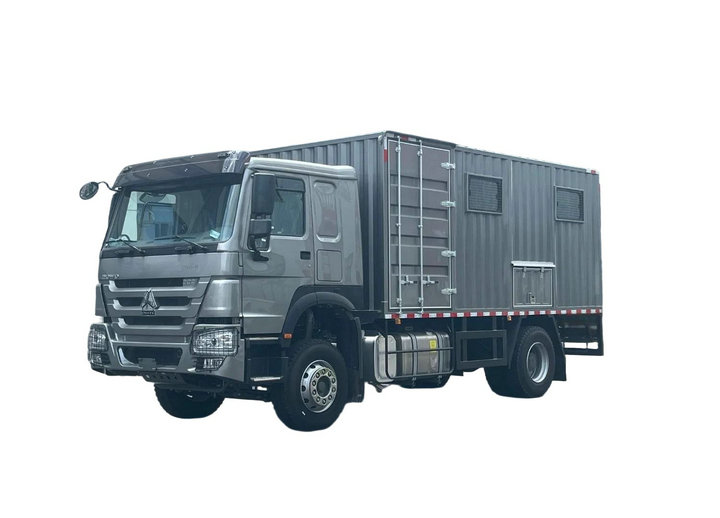

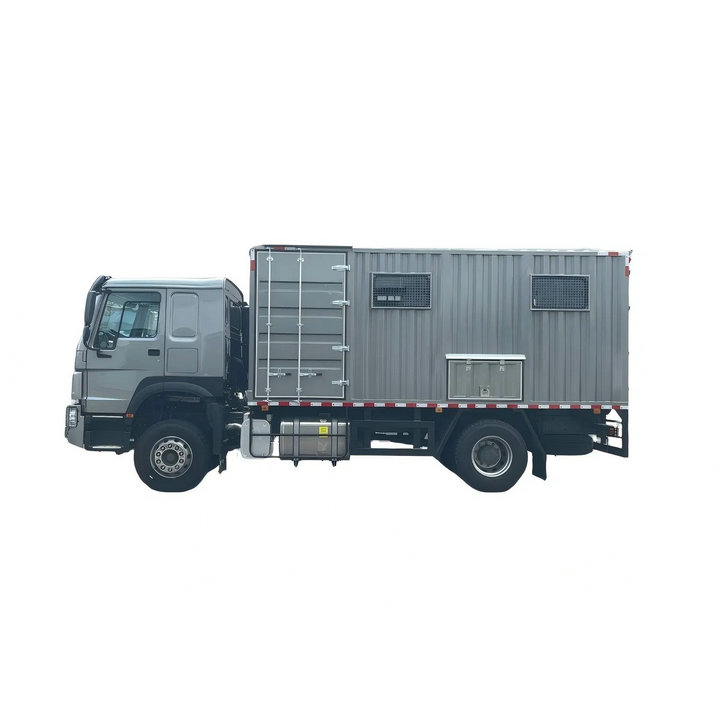

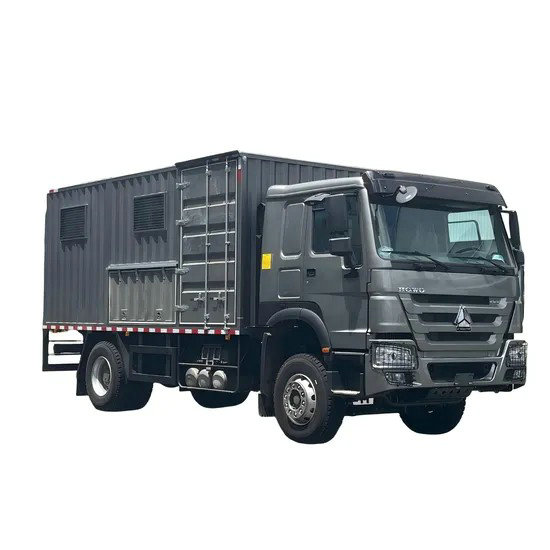

HOWO 4x2 Mobile Lube Workshop Maintenance Equipment Vehicle
with Separated Diesel Engine Compressor, Separated Hydraulic Oil, Engine Oil, Transmission Oil, Gear Oil, Grease Tank
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
-
8705909990
-
Shanghai, China
-
1000
-
T/T

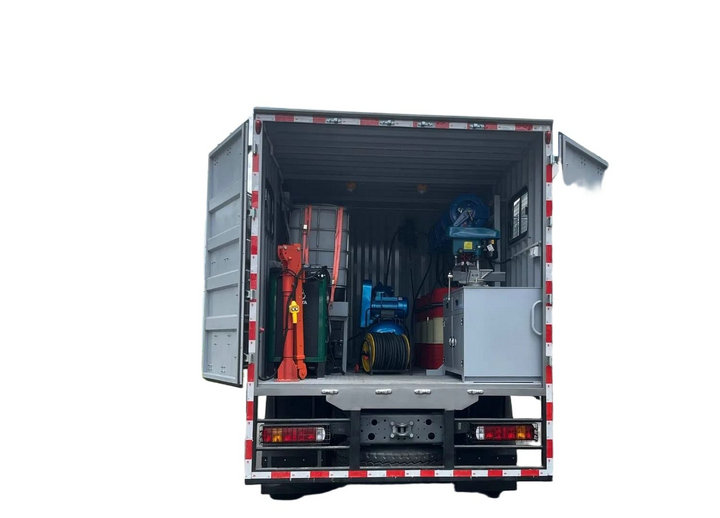

HOWO 4x2 Mobile Lube Workshop Maintenance Equipment Vehicle

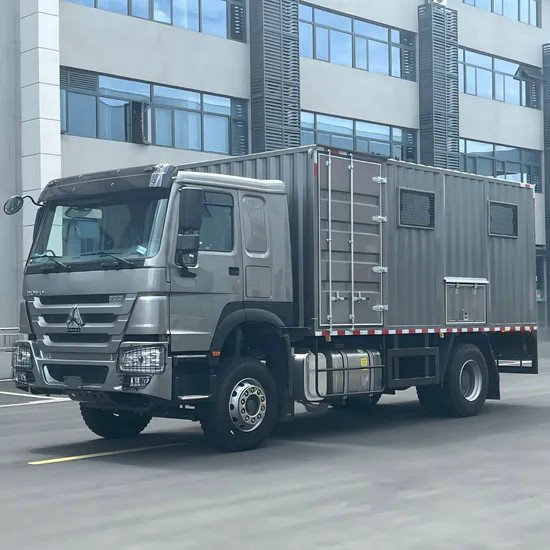

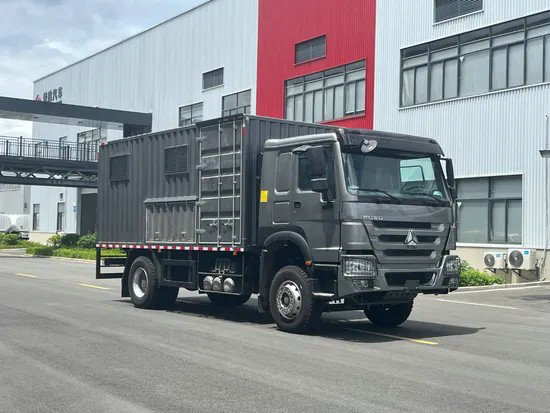

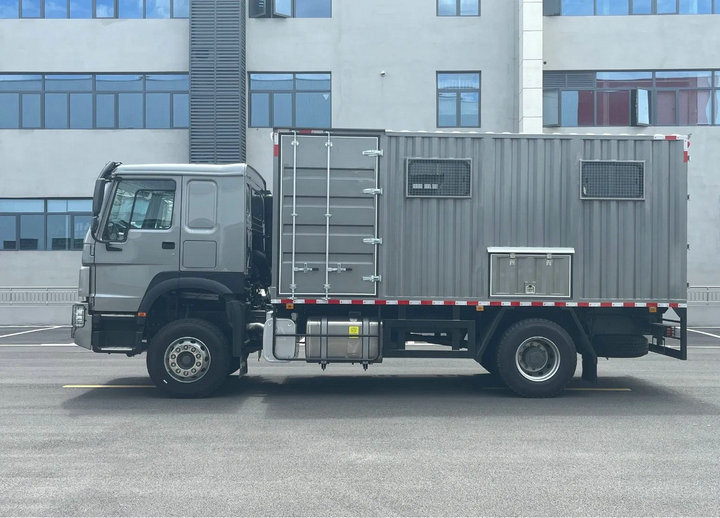

HOWO ZZ1187K511JF1 Mobile Maintenance Service Tool Vehicle — Complete On-Site Workshop on a Truck Chassis
Product Introduction
The HOWO ZZ1187K511JF1 maintenance service tool truck is a purpose-built mobile workshop engineered for field repair, equipment servicing, and on-site maintenance operations. Mounted on the reliable SINOTRUK HOWO chassis powered by a WP10.340E22 diesel engine (340 HP) with HW19710 gearbox, this service van truck integrates a 30KW Weichai silent generator set, a 1500kg electric crane, a 17.5kW air compressor (1.05m³/min @1.25MPa), and a complete suite of lubrication, welding, washing, and tool storage systems — all inside a reinforced 5500×2500mm tool compartment. As a factory-direct export tool vehicle, it is ideal for mining, construction, oilfield, agricultural, and municipal fleet maintenance applications worldwide.
Key Features & Marketing Selling Points
340HP High-Power Chassis – WP10.340E22 Weichai engine with HW19710 gearbox for dependable long-haul and off-road mobility.

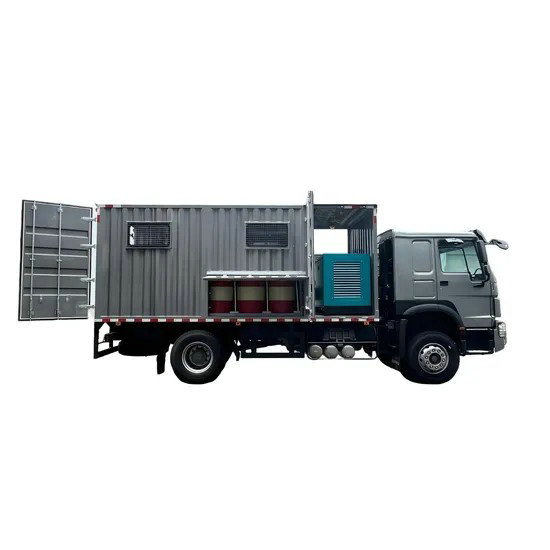

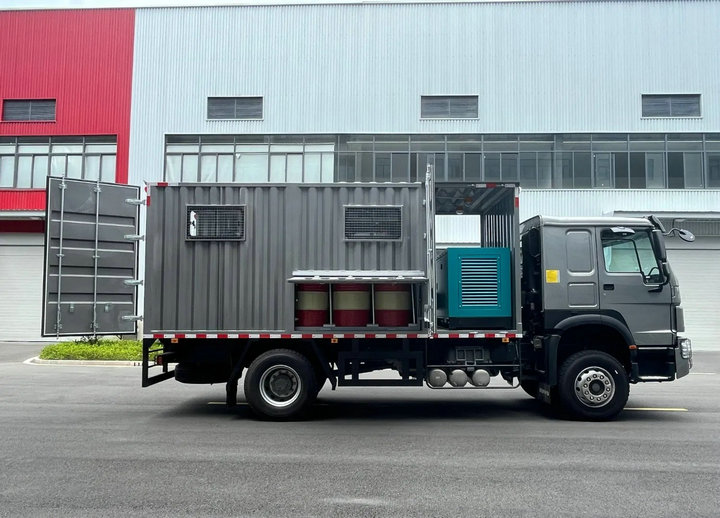

Dual-Purpose Compartment Layout – Front generator room and rear work room, separated by corrugated board, with 600mm working door.
30KW Silent Power Supply – Weichai-engine-driven, pure copper brushless generator, 220V/380V output.
1500kg Electric Crane – Manual-control, electric-motor lifting for heavy component handling.
Full Pneumatic System – 17.5kW air compressor with 1.05m³/min displacement and 1.25MPa supply; 10m self-retracting air drum.
Complete Lubrication Kit – 3:1 pneumatic lube pump (15L/min), 4× 200L fixed oil tanks, high-pressure 15m steel-wire hoses, flow-counting refueling guns.
Professional Welding Station – Three-phase 380V high-power IGBT pure-copper module DC welding machine.
Comprehensive Tool System – 4-layer tool cabinet, work platform with vise & drill, 5-layer mobile tool cart, rechargeable wrench & polisher.
All-Weather Comfort – LED lighting, sockets, full sealing strips, sliding windows, and high-strength fixed straps.
Chassis Technical Specifications
| Parameter | Specification |
|---|---|
| Chassis Model | ZZ1187K511JF1 |
| Product Type | Truck chassis |
| Brand / Manufacturer | HOWO / SINOTRUK |
| External Dimensions (mm) | 5900/6735/7135/5960/7005/6400/5950/5280 × 2105–2310 × 2265–3220 |
| Number of Tires | 6 |
| Front Wheelbase (mm) | 1956 / 2022 / 2058 / 1996 |
| Rear Wheelbase (mm) | 1800 / 1830 / 1860 |
| Tire Model | 10.00R20 18PR, 11R22.5 18PR, 11.00R20 18PR, 12R22.5 18PR, 295/80R22.5 18PR, etc. |
| Approach / Departure Angle | 20/18° … 18/25° |
| Fuel Type | Diesel |
| Engine Model | WP10.340E22 (340 HP) |

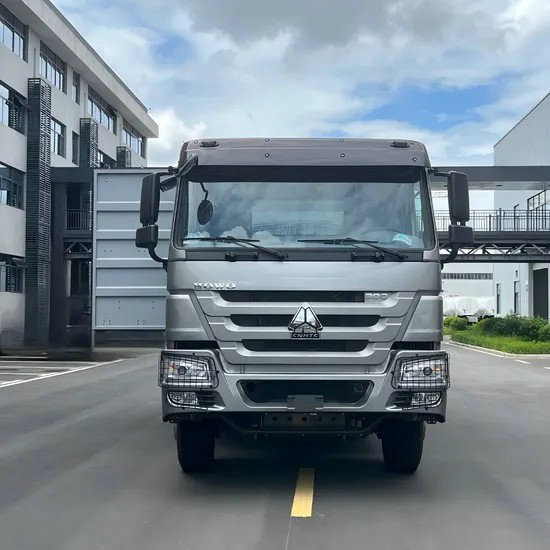

| Standard Config | HW76 new front cab, HW19710 gearbox, VGD75 front axle (drum), MCX16ZG single rear axle (drum), 8+5/300 double-layered frame, 400L fuel tank, 295/80R22.5, English instrument |

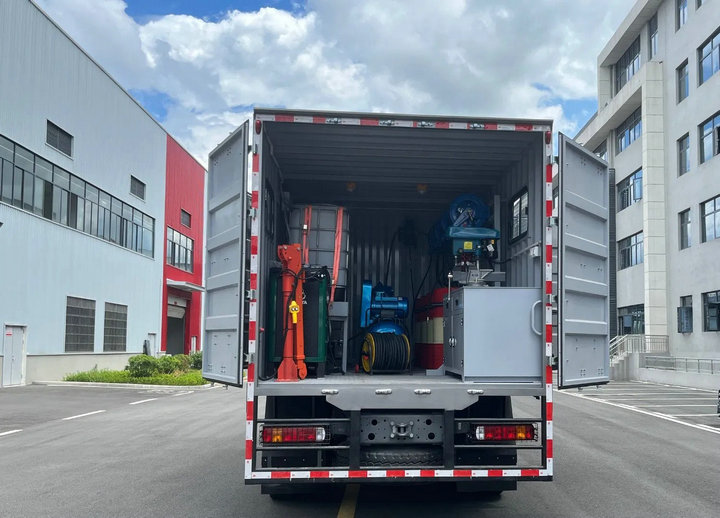

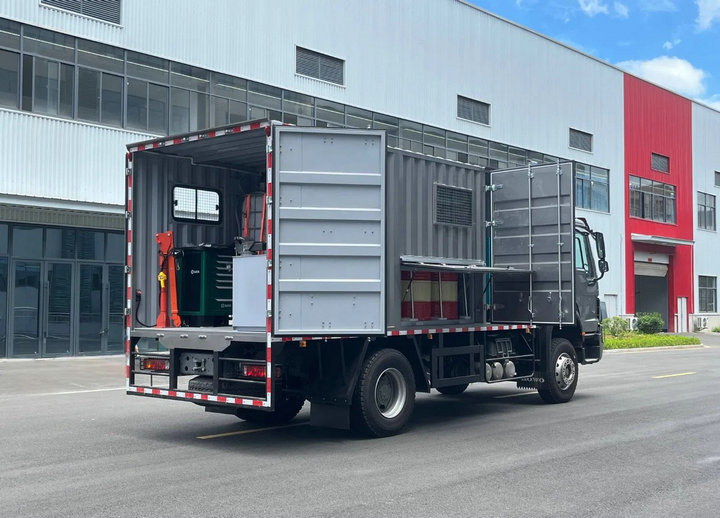

Van & Onboard Equipment Configuration
| Item | Description | Qty |
|---|---|---|

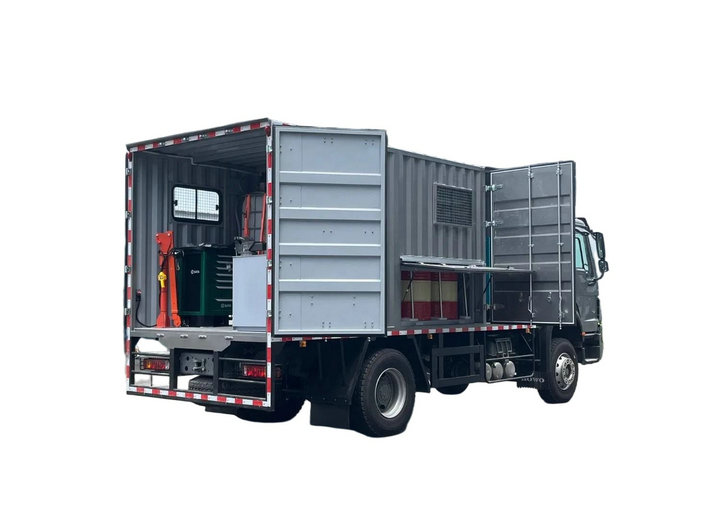

| Van Assembly (Custom) | 5500×2500mm, 3mm patterned bottom, 1.5mm corrugated structure, LED lights & sockets, generator + work compartments, sliding windows, rear double doors | 1 |
| Diesel Generator | 220V/380V, 30KW, Weichai engine, pure copper brushless silent type | 1 |
| Air Compressor | 17.5kW, 1.05m³/min @1.25MPa | 1 |
| Crane | Custom, electric-motor lifting, manual control, 1500kg | 1 |
| Tool Cabinet | Custom, 4-layer tool & accessory storage | 1 |
| Operating Platform | With vise, drill, hanging board & bending mechanism | 1 |
| Lubricant Filling Pump | Pneumatic, 3:1 ratio, G1/4 inlet, 15L/min | 4 |
| Lubricant Roller Hose | High-pressure steel-wire, 15m length | 4 |
| Lubricant Fixed Oil Tank | Custom, welded, 200L capacity each | 4 |
| Refueling Gun | Oil gauge gun with scroll tube, flow counting | 1 |
| DC Welding Machine | 380V high-power IGBT pure-copper module | 1 |
| Big Wind Cannon (Gale) | THDW-3SB30 pneumatic impact wrench | 1 |
| Small Wind Cannon | 1/2" head | 1 |
| Mobile Tool Cart | 5-layer drawer cart | 1 |
| High-Pressure Washer | Roll tube gun | 1 |
| Water Tank | 500L, metal frame | 1 |
| Power Management | Lighting & circuit switches | 1 |
| Wire Reel | 50m manual retraction | 1 |
| Air Drum | 10m self-retracting | 1 |
| Fixed Strap Lock | High-strength, wear-resistant | 4 |
| Tool Kit / Rechargeable Wrench / Polisher / Cobalt Flashlight | Full service kit | 1 set |
Production Process & Quality Assurance
Every HOWO maintenance service tool truck follows a strict, full-traceability production workflow to guarantee quality:
Chassis selection per order
Engineering drawings design
Pipeline (waterway) welding & installation
Sub-frame welding & installation
Box frame welding & installation
Box plate welding (outside to inside)
Internal functional assembly installation
External structure & functional assembly installation
Upper structure installation
Sanding & rust removal
Painting & coating
Wiring & oil circuit installation
Single-machine debugging
Linkage debugging
Load debugging
Acceptance & delivery
