Anti Riot Water Cannon Vehicle Customizing
12000 liters riot control water cannon vehicle

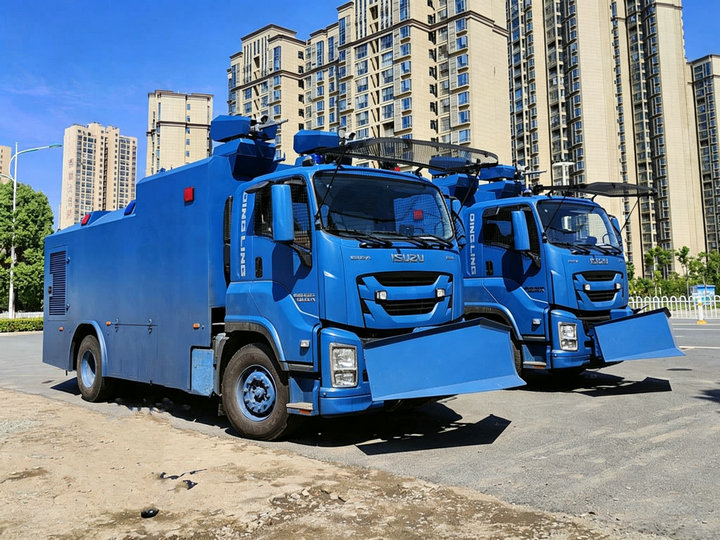

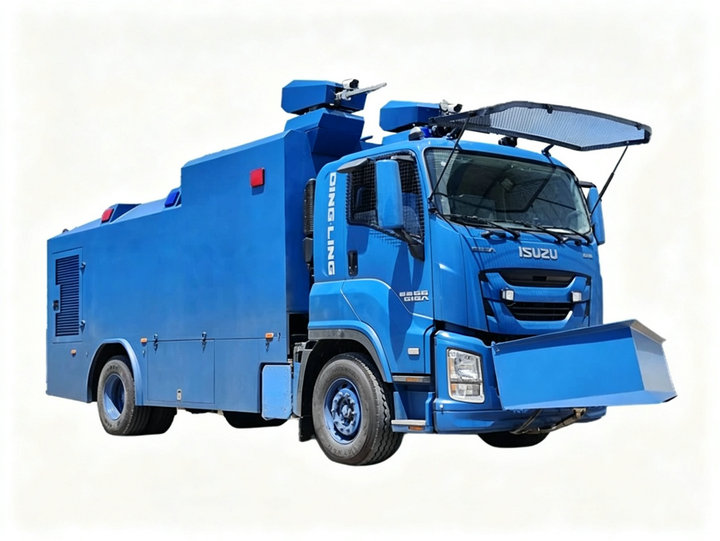

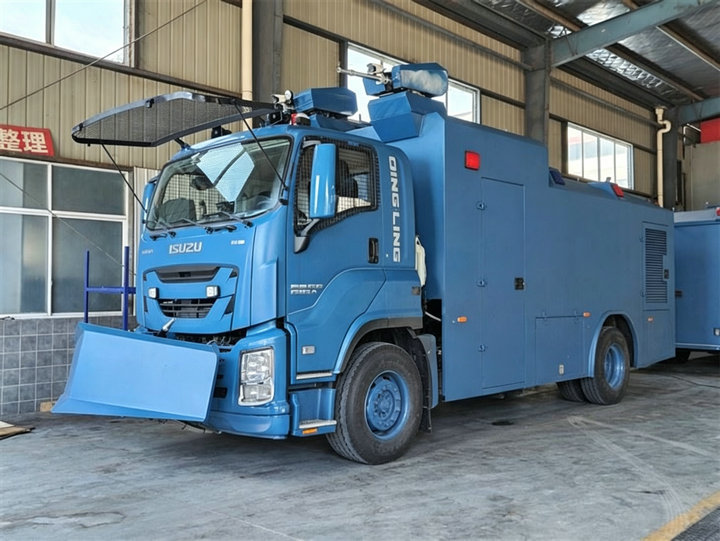

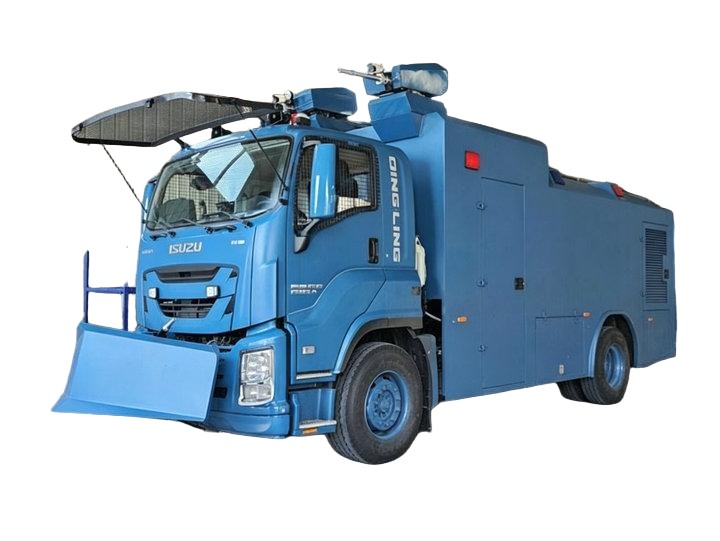

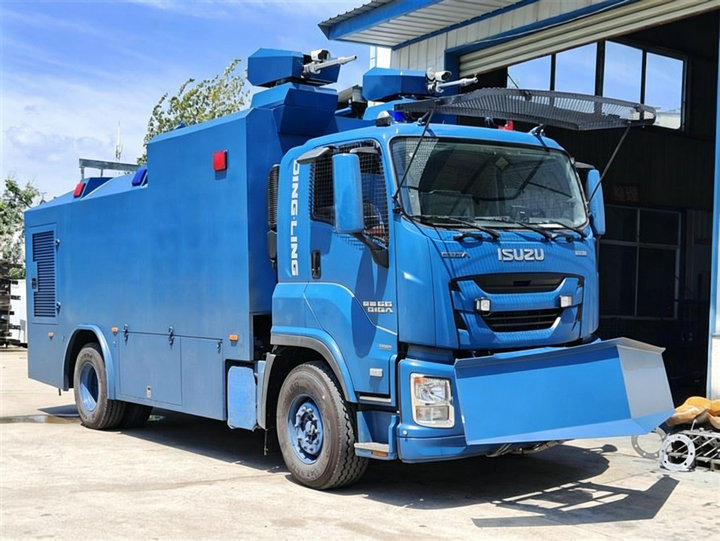

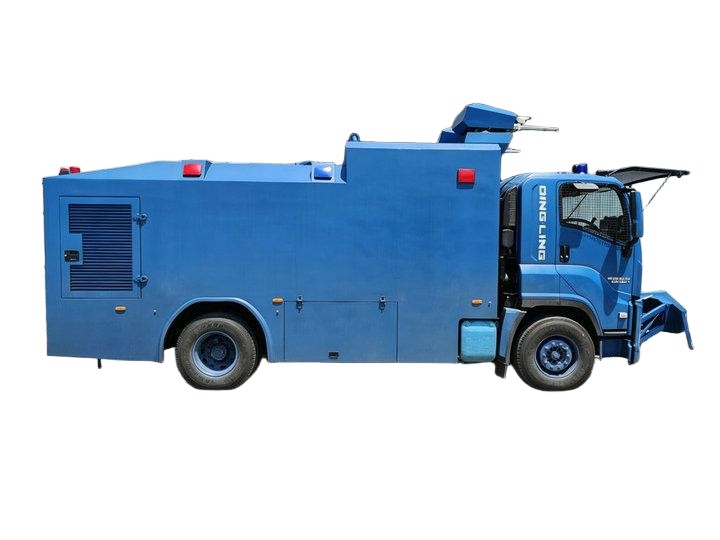

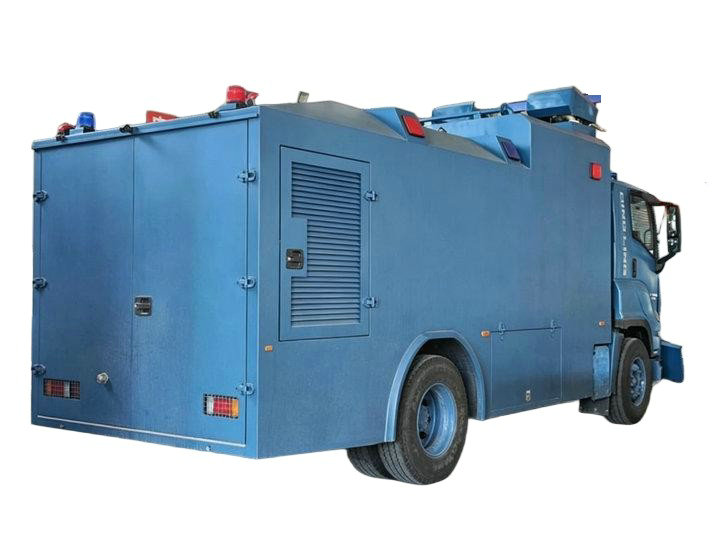

ISUZU GIGA Armored Water Cannon Truck
The ISUZU GIGA Armored Water Cannon Truck is a specialized vehicle designed specifically for handling sudden mass incidents. Based on the ISUZU GIGA chassis, it is equipped with a 12,000L water tank, two high-pressure riot control water cannons with a range of 65 meters, bulletproof steel plate protection system, and tear gas dispersion device. With a total weight of 25,000kg and powered by a 420HP diesel engine, it is suitable for maintaining order in urban streets, squares, and other locations. It is the preferred equipment for quelling mass incidents and ensuring public safety.
Model: DRZ5250GFBQL
Capacity: 12000 liters
Drive: 6×4
Engine power: 420 HP
Engine type: 6WG1-TCG60
Chassis | ||||
Overall Parameter | Vehicle Model | DRZ5250GFBQ | ||
Chassis Model | ISUZU GIGA | |||
Kerb Weight | kg | 13500 | ||
Gross Vehicle Weight | kg | 25000 | ||
Drive Type | 6×4 | |||
Tyre | 12R22.5, 10+1 units | |||
Max. Driving Speed | km/h | 80 | ||
Max. Grade Ability | % | 25 | ||
Min. Turning Diameter | m | 19.9 | ||
Overall Dimensions(L×W×H) | mm | 9760×2525×3960 | ||
Engine Parameter | Model | ISUZU 6WG1-TCG60 | ||
Type | Diesel, 6-cylinder In-line, water-cooled, turbocharged and intercooler | |||
Max. Power | kW/HP | 309KW/420HP | ||
Max. Torque | N.m | 2250 | ||
Displacement | L | 15.681 | ||
Rated speed | rpm | 1400 | ||
Emission Standard | EURO 6 | |||
Superstructure | ||||
Capacity of water tank | 12000 liters | |||
Anti-riot water cannon | Horizontal rotating angle | -135~5° | ||
Pitching angle | -10~45° | |||
Max. range m | 65 | |||
Gas tank | 100L | |||
Dye tank | 100L | |||
Foam tank | 100L | |||

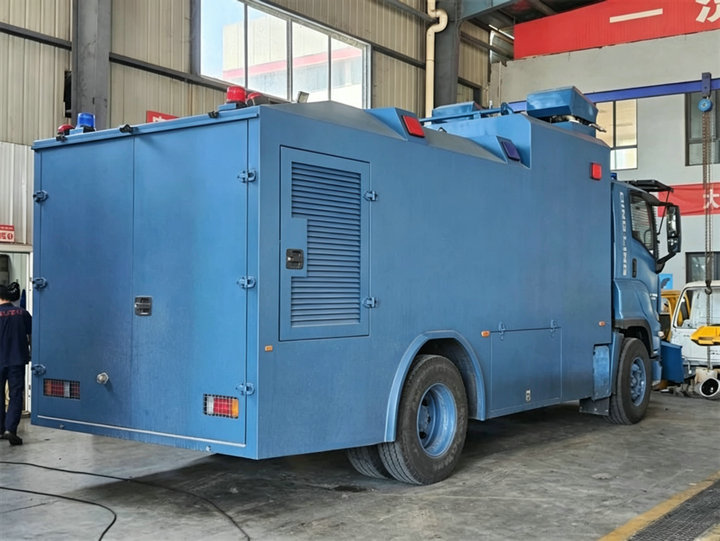

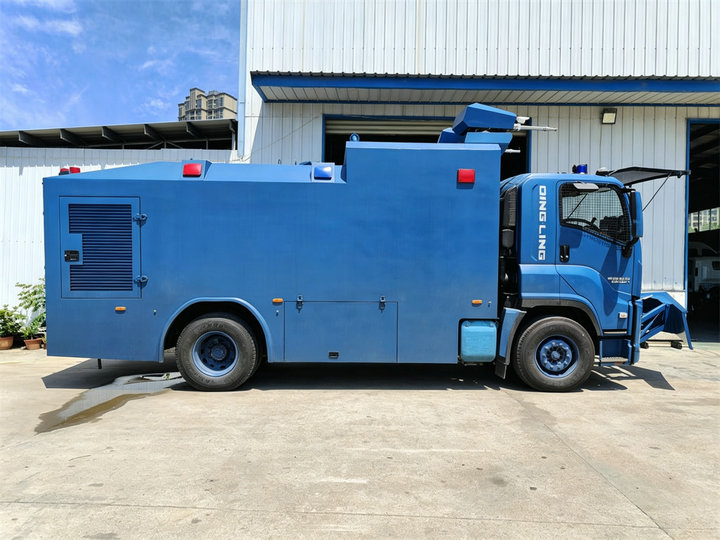

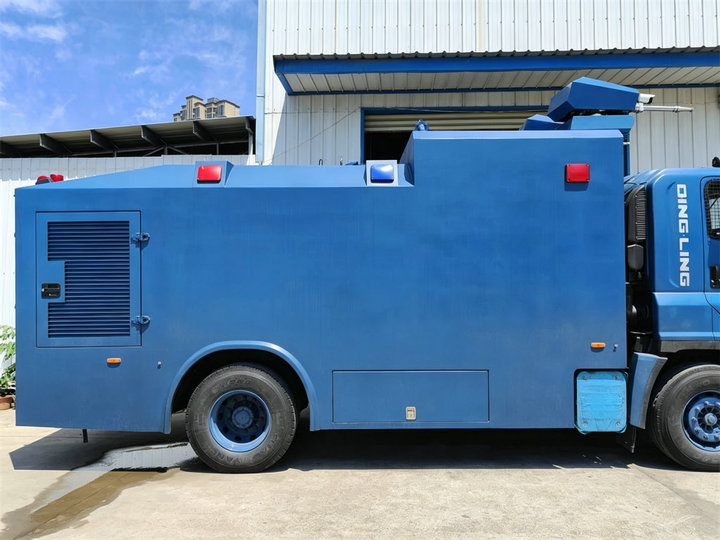

ISUZU GIGA Armored Water Cannon Truck
Anti-Riot Vehicle Product Datasheet
Product Overview
The ISUZU GIGA Armored Water Cannon Truck is a specialized vehicle designed specifically for handling sudden mass incidents. Based on the ISUZU GIGA chassis, it has undergone professional modification and upgrading, equipping it with advanced devices such as a large 12,000L water tank, high-pressure riot control water cannons, a self-protection system, a tear gas dispersion system, and a warning system. This vehicle not only possesses powerful riot control capabilities but also excellent self-protection performance, ensuring safety and reliability during missions.
Riot Control Capabilities
The most notable feature of this armored water cannon truck lies in its formidable riot control abilities. The vehicle is equipped with two high-pressure water cannons that not only have a long range and great power but also can flexibly adjust the spray direction and angle, ensuring precise targeting. In mass incidents, the powerful water columns or mist from the water cannons can effectively disperse crowds while avoiding permanent injury to individuals. Furthermore, the addition of the tear gas dispersion system provides an extra layer of defense for the vehicle, enabling rapid control of the situation within a short period and buying valuable time for law enforcement personnel.
Self-Protection & Safety
During missions, the safety of law enforcement personnel is equally crucial. The ISUZU armored water cannon truck takes this into full consideration, featuring a reinforced design with bulletproof glass and protective armor to effectively withstand external attacks. Additionally, the vehicle is equipped with an advanced warning system that emits strong warning signals and sounds, further enhancing its deterrent effect on perpetrators. These self-protection measures ensure the safety and security of law enforcement personnel while on duty.
Product Specifications
Chassis & Overall Parameters
Parameter | Specification |
Vehicle Model | 5250GFB |
Chassis Model | ISUZU GIGA |
Kerb Weight | 13,500 kg |
Gross Vehicle Weight | 25,000 kg |
Drive Type | 6×4 |
Tyre | 12R22.5, 10+1 units |
Max. Driving Speed | 80 km/h |
Max. Grade Ability | 25% |
Min. Turning Diameter | 19.9 m |
Overall Dimensions (L×W×H) | 9,760 × 2,525 × 3,960 mm |
Engine Parameters
Parameter | Specification |
Model | ISUZU 6WG1-TCG60 |
Type | Diesel, 6-cylinder In-line, water-cooled, turbocharged and intercooler |
Max. Power | 309 kW / 420 HP |
Max. Torque | 2,250 N·m |
Displacement | 15.681 L |
Rated Speed | 1,400 rpm |
Emission Standard | EURO 6 |
Superstructure
Parameter | Specification |
Capacity of Water Tank | 12,000 liters |
Anti-Riot Water Cannon — Horizontal Rotating Angle | -135° ~ 5° |
Anti-Riot Water Cannon — Pitching Angle | -10° ~ 45° |
Anti-Riot Water Cannon — Max. Range | 65 m |
Gas Tank | 100 L |
Dye Tank | 100 L |
Foam Tank | 100 L |
Product Features

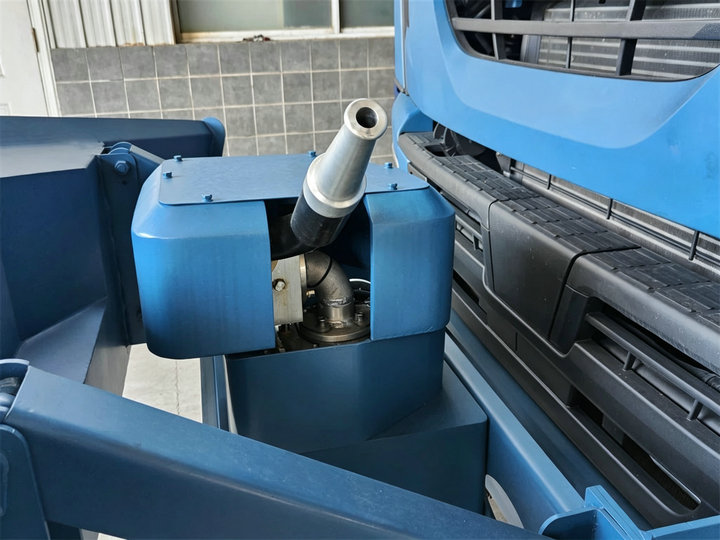

· Double cannons are installed on the top of the vehicle, full range, high flow, long-distance disperse rioters.
· Spray medium: water, pepper water, dye.

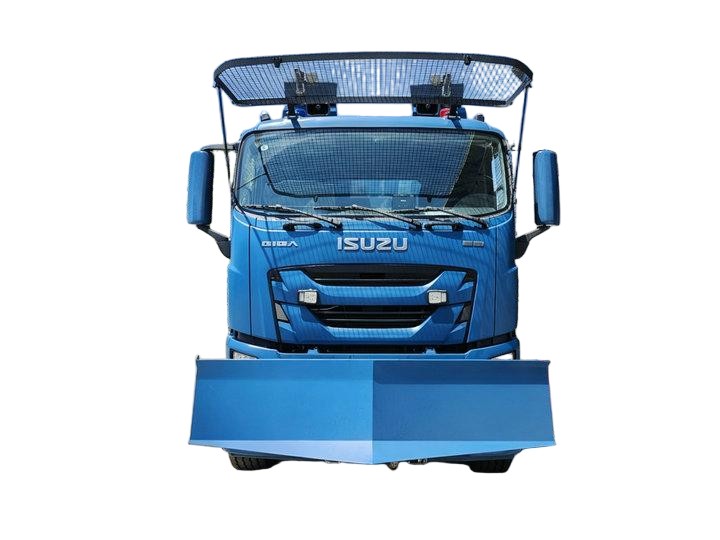

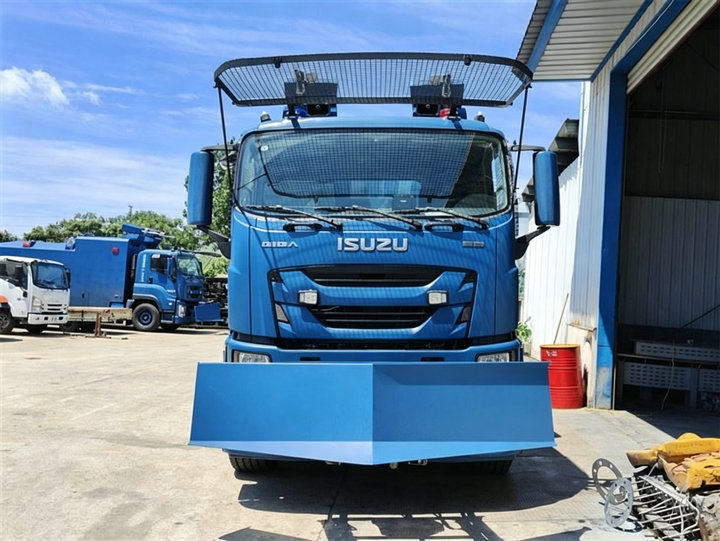

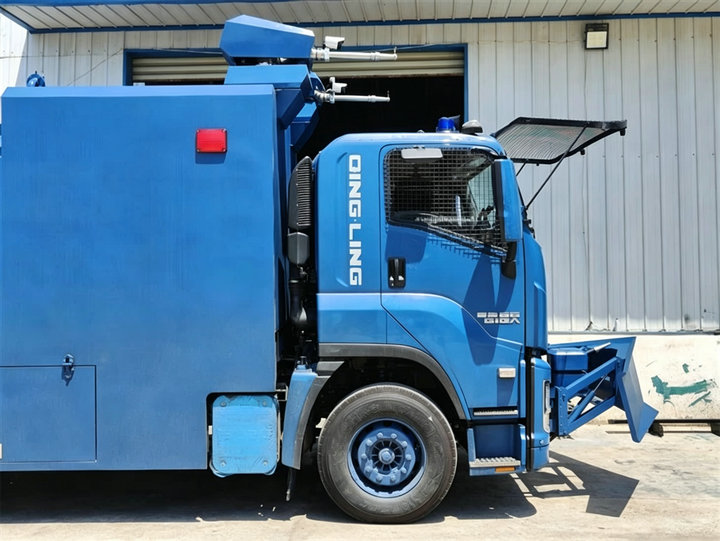

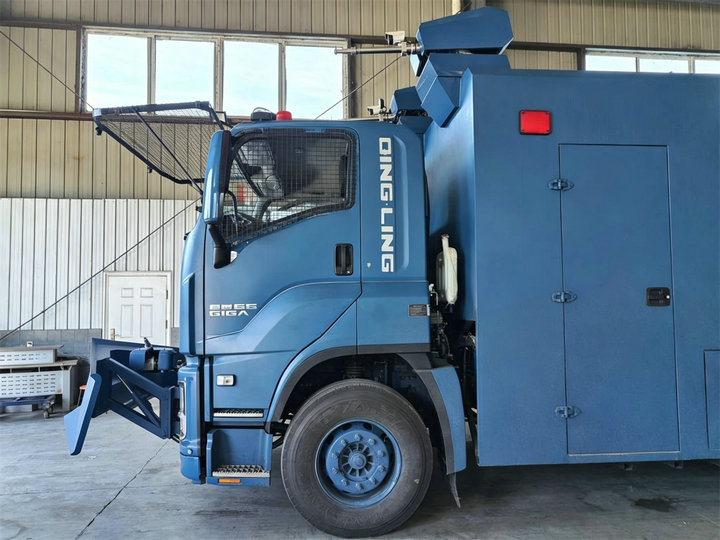

· Lamps and window glass are protected by stainless-steel nets; the windshield net can be adjusted with an angle from 0° to 70°, operated inside the cab.
· Equipped with rear tire cover.
· Standalone engine for driving the water pump.

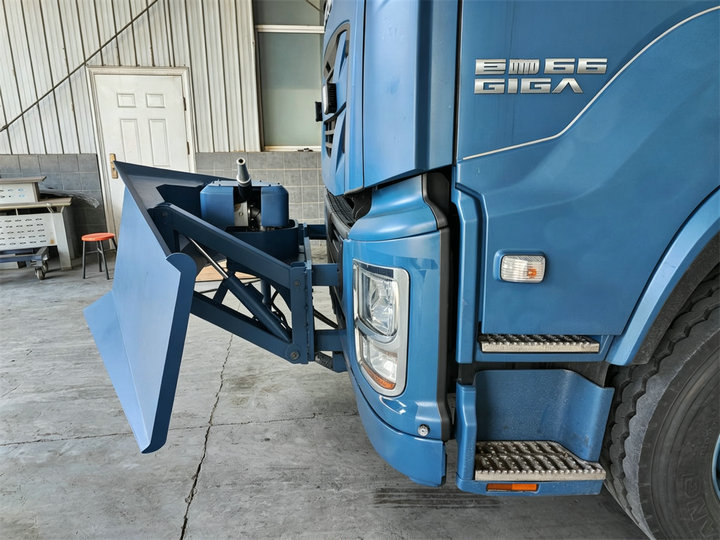

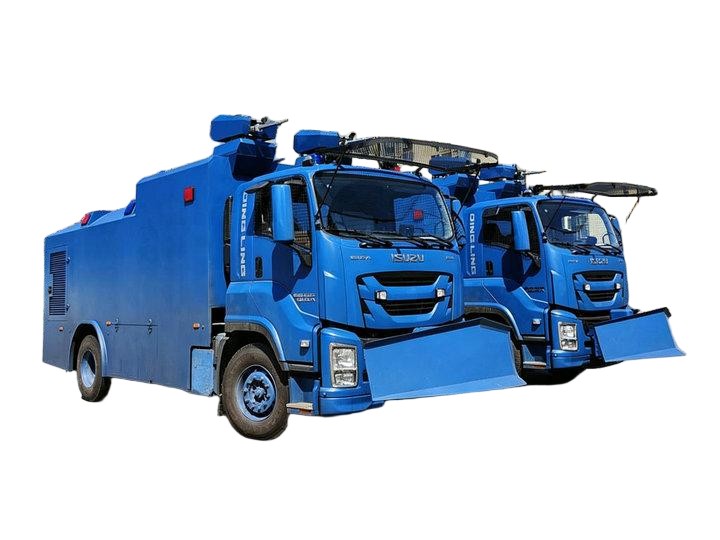

· Road blocking function: blocking height 2.77 m, blocking width 9 m.
