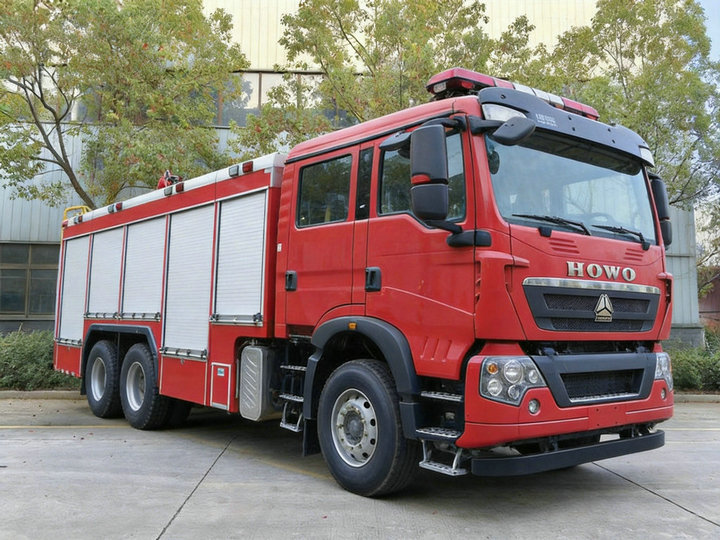

HOWO Fire Engine Rescue Truck 9000L Water + 3000L Foam
Tanker Capacity:9000L water + 3000L foam (12000L total)
Engine :MC11.46-61 460 HP
Fire Pump: CB10/60-RS
Pump Flow:60 L/s
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
| Quantity: | |
|---|---|
|
| |
-
DRZ5290XFZZ
-
DRZ
-
8705309000

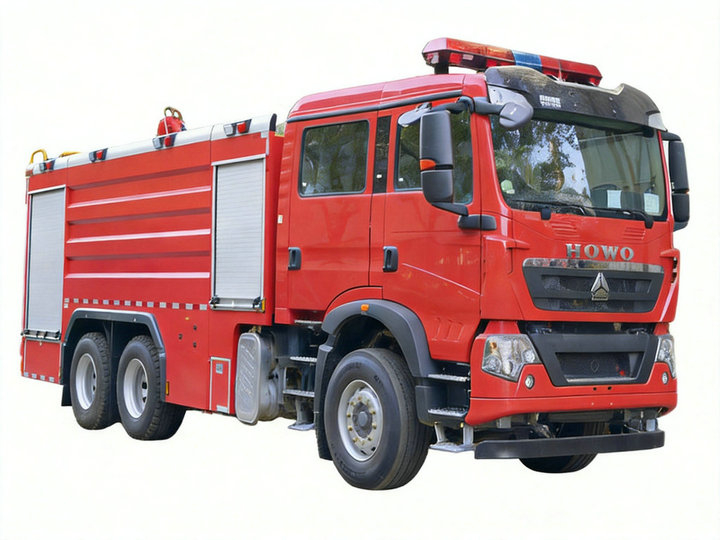

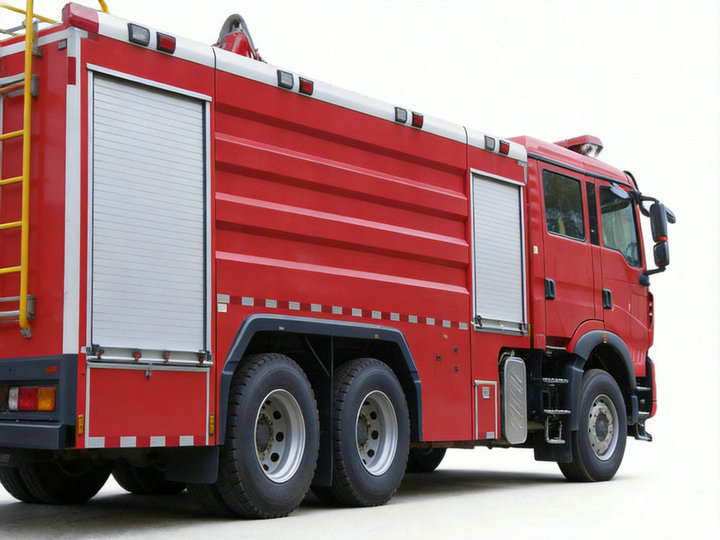

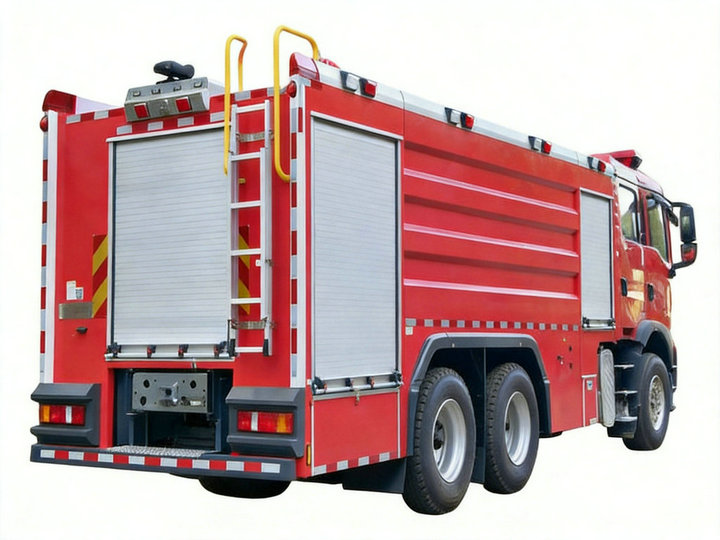

HOWO Fire Engine Rescue Truck 9000L Water + 3000L Foam
HOWO TX 460HP Fire Rescue Truck
Description: Explore the HOWO TX 460HP Model fire rescue truck. This 6x4 double row foam water fire truck features a 460HP engine, CB10/60-RS pump & PL8/48 monitor.
Product Overview

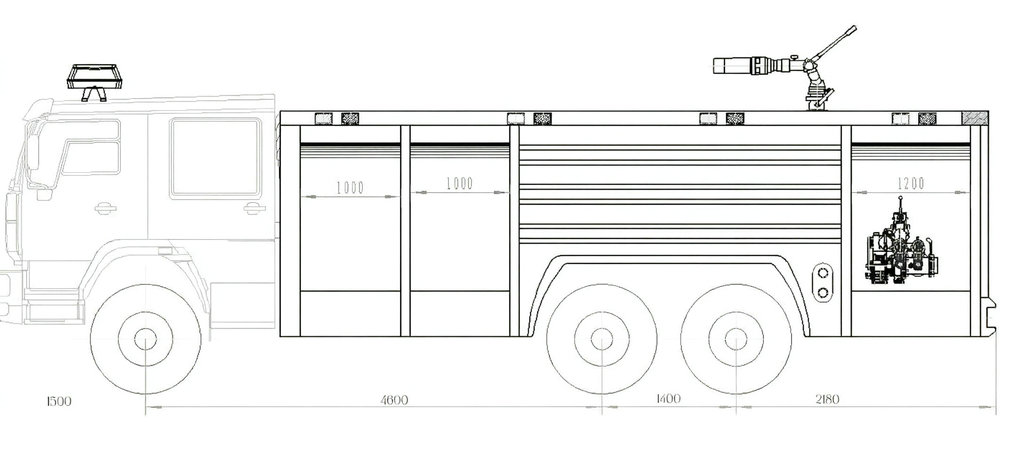

The HOWO TX 460HP Model fire rescue truck is a premier large-to-medium main battle vehicle designed for comprehensive urban and industrial safety. Built on a robust Sinotruk TX 6x4 chassis with a 4600+1400mm wheelbase, this HOWO TX 6x4 double row foam water fire truck is powered by the high-performance SINOTRUK MC11.46-61 engine and an HW19710 gearbox. The superstructure is engineered for maximum efficiency, featuring a front equipment compartment, a middle section with a 9-cubic-meter carbon steel water tank and a 3-cubic-meter foam tank, and a rear pump room. Equipped with a CB10/60-RS fire pump and a roof-mounted PL8/48 fire monitor, this foam water fire truck delivers exceptional independent operating capabilities and is highly effective against Class B oil fires. As a leading fire rescue truck China manufacturers offer, it represents the pinnacle of reliable HOWO TX 460HP Fire protection trucks.
Key Highlights
★ Powerful Drivetrain: Equipped with a 460HP SINOTRUK MC11 engine and HW19710 transmission for superior performance and reliability.
★ Optimized Tank Configuration: Features a 9,000L water tank and 3,000L foam tank with optional materials (Carbon steel, Stainless steel, or Aluminum alloy).
★ Advanced Firefighting Gear: Integrated with a high-flow CB10/60-RS fire pump and a 360° rotatable PL8/48 fire monitor for extensive coverage.
★ Versatile Customization: Available as a water, foam, or dry powder fire truck with various equipment options to suit specific operational needs.
★ User-Centric Design: Engineered for easy operation and maintenance, ensuring rapid deployment in critical emergency scenarios.
Main Technical Specifications
Category | Parameter | Specification |
General | Work Capacity | 9000L Water Tank, 3000L Foam Tank |
Truck Chassis | HOWO TX460 | |
Engine Power | SINOTRUK MC11.46-61, 460 HP / 338kW | |
Fire Pump | CB10/60-RS | |
Chassis | Drive Type | 6X4 |
Transmission | SINOTRUK HW19710, Manual, 10 F & 2 R | |
No. of Axle | 3 | |
Tire | 12.00R20, 12+1 Wheel | |
Fire Pump | Model | CB10/60-RS |
Pressure | 1MPa | |
Max Working Pressure | 1.082MPa | |
Max Allowable Inlet Pressure | 0.4MPa | |
Fire Monitor | Model | PL8/48 |
Flow | 48 L/s | |
Range | Water ≥70m, Foam ≥60m | |
Rated Pressure | 1.0MPa | |
Pitch Rotation | -35° ～ +70° | |
Horizontal Rotation | 0 ～ 360° |
Product Parameter :
HOWO TX 6x4 foam water fire truck | |||
General | Work capacity | 9000L water tank,3000L foam tank | |
Truck chassis | HOWO TX460 | ||
Engine Power | SINOTRUK MC11.46-61，460 HP/ 338kW | ||
Fire pump | CB10/60-RS | ||
Chassis | Drive Type | 6X4 | |
Transmission | SINOTRUK HW19710, manual, 10 F & 2 R | ||
No. of axle | 3 | ||
Tire | 12.00R20,12+1wheel | ||
Fire pump | Model | CB10/60-RS | |
Pressure | 1MPa | ||
Max working pressure | 1.082MPa | ||
Max allowable inlet pressure | 0.4MPa | ||
Flux | 60L/s | ||
Max suction height | 7m | ||
Rated speed | 3200±50r/min | ||
Speed Ratio | 1:1.44 | ||
Foam Water Proportioning Mixer | Model | PH64-RS | |
Mixing ratio | 6% | ||
Work pressure range | 0.6～1.4MPa | ||
Flow range | 16～64L/s | ||
Suitable foaming liquid categories | Category B | ||
Fire monitor | Model | PL8/48 | |
Flow | 48L/s | ||
Rated working pressure | 0.8MPa | ||
Range | Water | ≥70m | |
Foam | ≥60m | ||
Pitch rotation | - 45～+70° | ||
Horizontal rotation | 0～360° | ||
Electronic alarm | Electronic alarm | LY CJB-100-C24 / 1.2 m long | |
Hose reel | Hose reel | Electric, 50 meters | |
Standard configuration | All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… | ||
-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

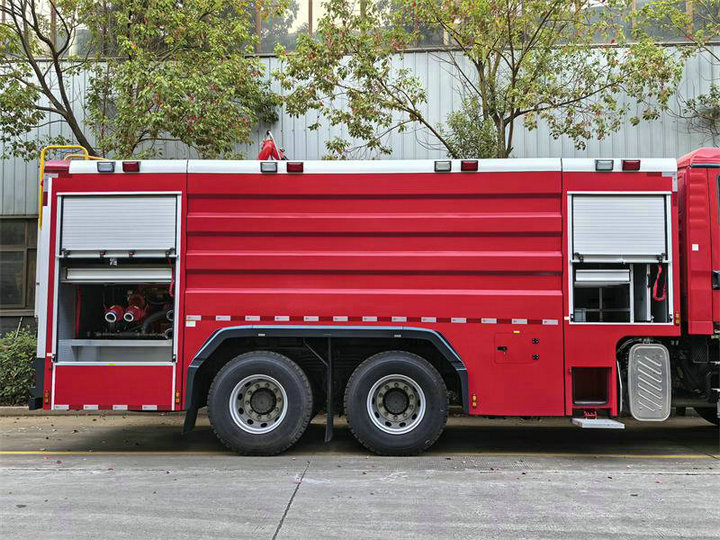

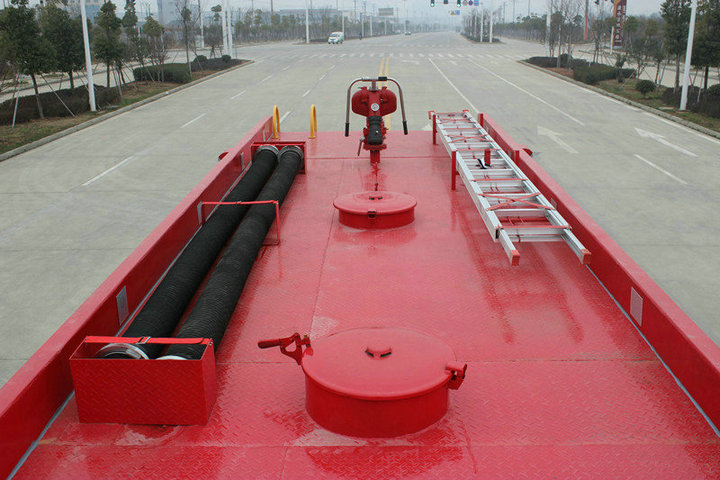

Tank System: The front part is the equipment room, where various firefighting equipment (such as fire hoses, fire extinguishers, fire axes, wrenches, hammers, picks, etc.) are stored for easy access. In the middle, there is a 9-cubic-meter carbon steel water tank and a 3-cubic-meter foam tank, both equipped with manholes on top.

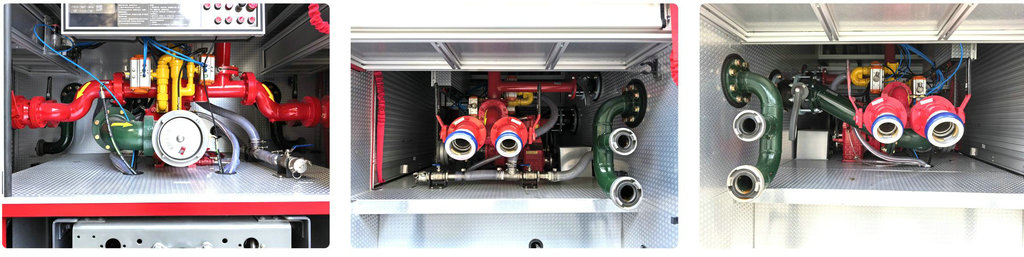

» Ⅲ. Fire Pump system :
Fire pump Model | Pressure | Max working pressure | Flux | Rated speed | Speed Ratio | Max pressure | Priming Time | Head |
CB10/60-RS | 1.0MPa | 1.082MPa | 60L/s | 3200±50r/min | 1:1.44 | ≥0.65MPa | ≤10s | 60m |

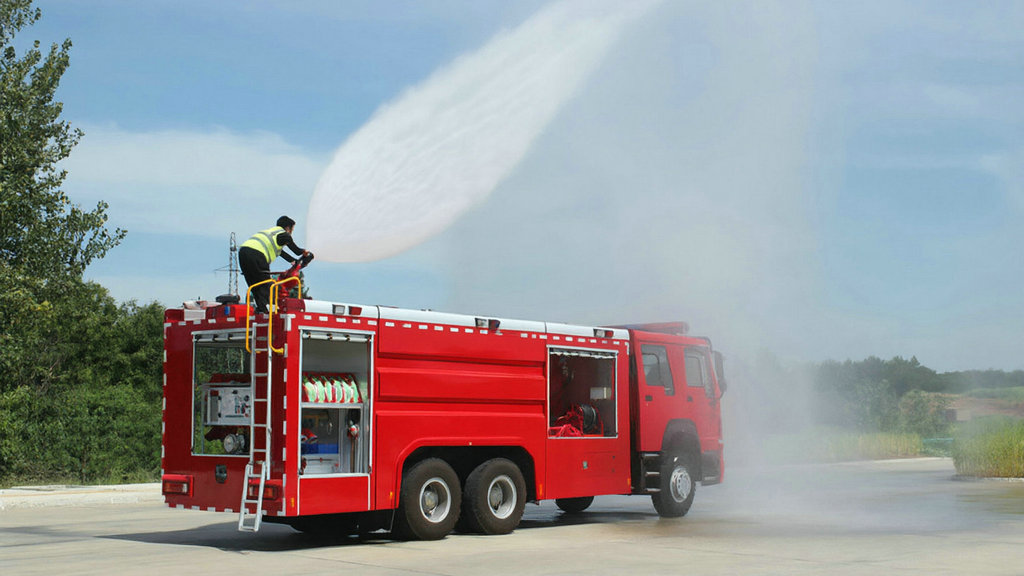

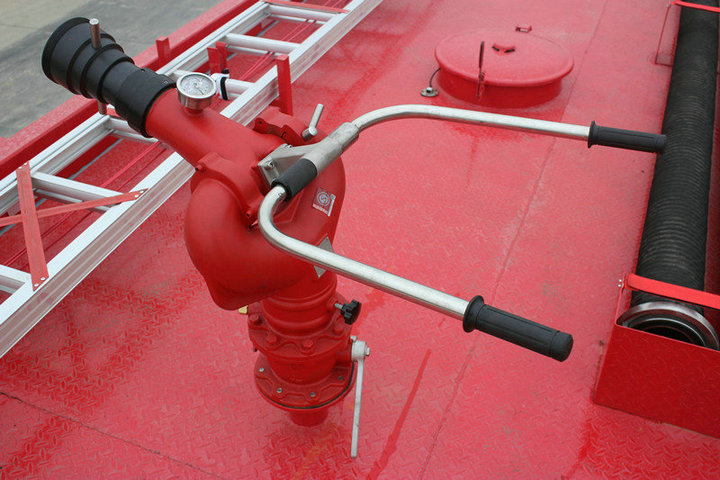

» Ⅲ. Fire Monitor system :
Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation | Weight |
PL8/48 | 48L/s | water ≥70m, foam ≥60m | 0.80MPa | -45°～+70° | 0～360° | 27kg |
» Ⅳ.Control panel:
Control panel: Includes piping diagrams, fire pump suction operation procedures, precautions, operating instructions, pressure gauges, vacuum gauges, tachometers, water level gauges, foam level gauges, 3% foam ratio and 6% foam ratio buttons, power take-off indicator lights, electronic throttle, emergency stop switch, foam drinking water button, lighting, vacuum pump, and main power switch.
HOWO water fire fighting truck for sale
The main application scope of a HOWO fire truck is to carry out fire suppression in various fire scenarios, implement emergency rescue and disaster relief tasks, and provide on-site support for public safety incidents: including building fires, industrial fires, traffic accident rescues, and disposal of hazardous material leaks.
HOWO Water Fire Engine | 4x2/4x4 | 6x4/6x6 | 8x4/8x8 |
Capacity | 2,000L~15,000L | 10,000L~22,000L | 16,000L~35,000L |
Fire pump | CB10/40 | CB10/60-CB10/80 | CB10/120 |
Pump flow | 40L/S | 60L/S | 120L/S |
Fire monitor | PS30W | PS50W | PS70W |
Monitor flow | 30L/S | 50L/S | 80L/S |
Monitor range | ≥ 60 meters | ≥ 70 meters | ≥ 85 meters |
HOWO Foam fire tender truck in promotion
The main application scope of a HOWO fire truck is to carry out fire suppression in various fire scenarios, implement emergency rescue and disaster relief tasks, and provide on-site support for public safety incidents: including building fires, industrial fires, traffic accident rescues, and disposal of hazardous material leaks.
HOWO Foam Fire Vehicle | 4x2/4x4 | 6x4/6x6 | 8x4 |
Capacity | 2,000L~5,000L Water 500L~2,000L Foam | 4,000L~10,000L Water 2,000L~5,000L Foam | 12,000L~20,000L Water 3,000L~8,000L Foam |
Fire pump | CB10/60 | CB10/80 | CB10/120 |
Pump flow | 60L/S | 60L/S | 120L/S |
Fire monitor | PL8/48 | PL8/64 | PL8/80 |
Monitor flow | 48L/S | 64L/S | 80L/S |
Monitor range | ≥ 70 meters Water ≥ 60 meters Foam | ≥ 75 meters Water ≥ 70 meters Foam | ≥ 85 meters Water ≥ 80 meters Foam |
Applications
The HOWO 460HP fire truck is engineered for diverse and demanding emergency environments. Its robust capabilities make it an essential asset for:
- Urban and Industrial Safety: Providing rapid response for city infrastructure and manufacturing facilities.
- Class B Fire Suppression: Specialized effectiveness in extinguishing oil and chemical fires.
- Fire Rescue Operations: Integrating rescue tools for comprehensive emergency management.
- Chemical Plant Emergency Response: Handling hazardous material incidents with specialized decontamination systems.
- Port and Dock Fire Protection: Ensuring safety in maritime and logistics hubs.
Full specifications are listed below:
NO | Item | Unit |
1 | Water Suction Pipe (Suction hose Ø 125 mm, length: 4 m) | 2 PC |
2 | Water strainer (Ø 125) | 1 PC |
3 | Water segregator (Ø 80-65-65 mm) | 1 PC |
4 | Water collector (Ø 125-65-65 mm) | 1 PC |
5 | Soft-wall fire hose (Water hose Ø 65 mm, length: 20 m) | 6 SET |
6 | Soft-wall fire hose (Water hose Ø 80 mm, length: 20 m) | 4 SET |
7 | Fast conversion joint (80X65 mm) | 2 PC |
8 | Hose protector | 4 PC |
9 | Hose Hoist | 4 PC |
10 | Ground Hydrant-wrench | 1 PC |
11 | Underground Hydrant-wrench | 1 PC |
12 | Suction Wrench | 2 PC |
13 | Dry Powder Extinguisher | 1 PC |
14 | Fire Fighting Barrel | 1 PC |
15 | Straight flow switch water gun (Ø 65 mm) | 1 PC |
16 | Multi-purpose switch water gun | 1 PC |
17 | Fire Fighting Axe | 1 PC |
18 | Fire Fighting Shovel/Spade | 1 PC |
19 | Fire Axe | 1 PC |

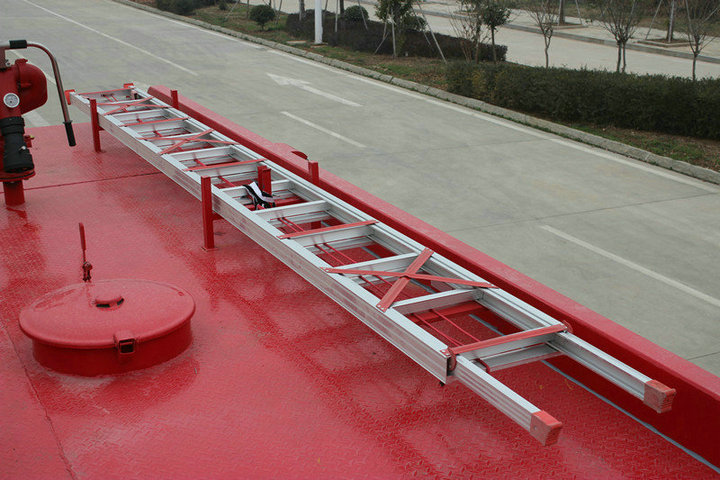

20 | 4M Aluminum Ladder (Optional 10M Aluminum Ladder) | 1 PC |
21 | Original Chassis Tools | 1 PC |
22 | Protective (safety) spectacles | 1 PC |
