Customize JAC / DFAC / ISUZU Underground Explosive Charging Vehicle

Customize JAC / DFAC / ISUZU BCJ-1000 Underground Explosive Charging Vehicle

Price for refer only. Final Price Offer Discount.
Price: $ 269000
Discount Price: $ 258000
Availability:
Quantity:

  • BCJ-1000

  • JAC / DFAC / ISUZU

  • 8705909990

  • China

  • 300

  • T/T

  • 1

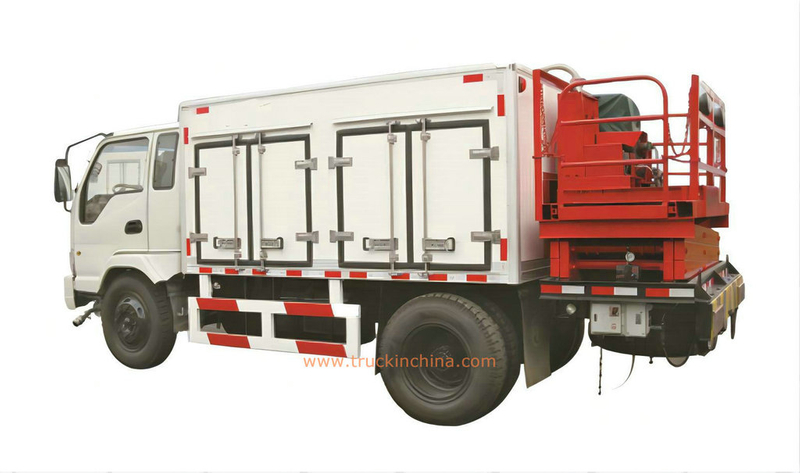

BCJ-1000 Underground ANFO Emulsion Explosive Charging Vehicle

Customizing emulsion explosive Truck

BCJ series underground field mixed emulsion explosive truck material box contains low sensitivity emulsion, sensitizer and catalyst respectively. After arriving at the underground blasting site, mixed emulsion explosive with low sensitivity is filled. The cable device, automatic pipe feeding device, mechanical telescopic arm, lifting platform and other devices as well as the over-temperature, over-pressure, cut-off alarm shutdown safety guarantee system can realize the smooth charging of the F-40-F-102 horizontal and upward gun holes in non-coal mines.

Main technical performance parameters

Overall Dimensions (mmxmmxmm)

6250 x 2200 x 3000

Lifting platform width and height

4000*5100 (can be Customized)

Explosive charge

1000kg

Charge efficiency

20 -70kg/min

Hose diameter (inner diameter * outer diameter)

φ22*φ34 or φ25*φ40mm

Loading hole diameter

φ40-φ100mm

Filling depth

40m

Loading hole direction

omnidirectional

Hose access speed

0-0.5m /s (adjustable)

 chassis: JAC  / DFAC / ISUZU

HFC3048KR1T 4x2 / 4x4

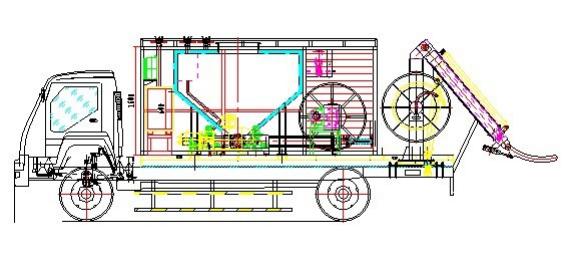

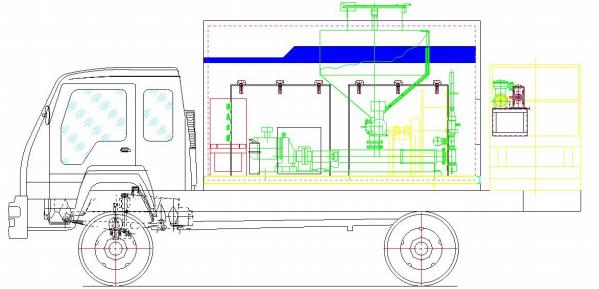

BCJ-2000 ANFO charging trucksBCJ-2000 ANFO emulsion explosive charging truck
