Customize Digital Site Mixing and Charging Emulsion Explosive Truck
BCZH-17 Bulk Heavy ANFO Explosive Delivery Truck
Charge efficiency 280-450kg/min
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCZH-17 , 5320THR6Z
-
HOWO
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1

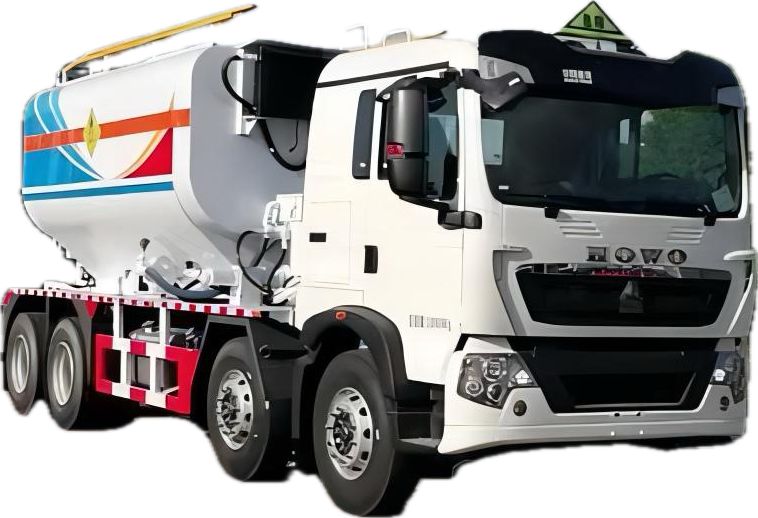

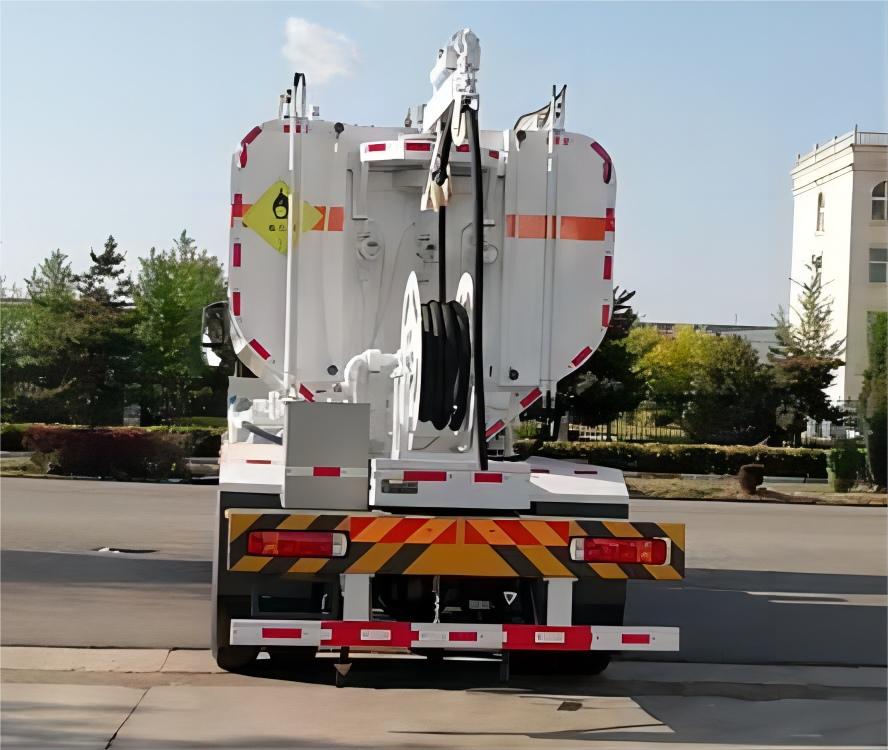

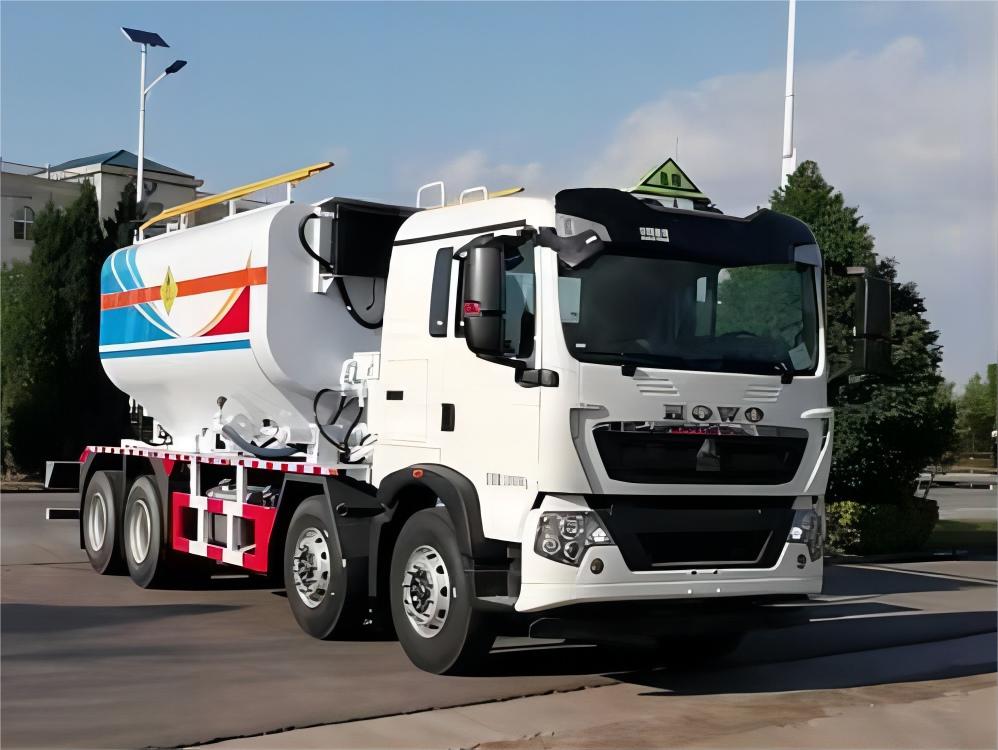

Customize Digital Site Mixing and Charging Emulsion Explosive Trucks
Emulsion ANFO Explosive Delivery Trucks
Main technical parameters HOWO Euro 6 Chassis : ZZ1327N466GF1K
Overall dimensions: | 10610×2510×3810(mm) | Fuel Type: | Diesel oil |
GW | 32000(Kg) | ||
NW | 14700(Kg) | Rated load mass: | 17170,17105(Kg) |
Approach Angle/Departure Angle: | 19/12,17/12(°) | Front/rear overhang: | 1430/2205,1500/2135(mm) |
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+3775+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 12R22.5,295/80R22.5 |
Fuel consumption: | 37.1, 37.44 (L / 100 km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/- |
Front wheel base: | 2035/2035(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07.34-60; MC07H.35-60 | China Heavy Duty Automobile Group Co., LTD.; | 6870; 7360 | 251; 257 |
The special device of the vehicle is PTO system, hydraulic system, latex matrix preparation system, oxidizer conveying system, air cleaning system, screw pump device, hose reel, mixer, trace element addition system, microcomputer automatic control system, etc., which is mainly suitable for dry hole filling explosives in open-pit mines. It is controlled by electrical system and depends on the pressure of screw pump Press into the hose reel, drug delivery hose into the borehole, can accurately fill the borehole with different ratios of explosives. Transport medium ammonium nitrate Emulsion latex. | |||
Customize Digital Site Mixing and Charging Emulsion Explosive Trucks
Emulsion ANFO Explosive Delivery Trucks
Main technical parameters HOWO Euro 6 Chassis : ZZ1327N466GF1K
Overall dimensions: | 10610×2510×3810(mm) | Fuel Type: | Diesel oil |
GW | 32000(Kg) | ||
NW | 14700(Kg) | Rated load mass: | 17170,17105(Kg) |
Approach Angle/Departure Angle: | 19/12,17/12(°) | Front/rear overhang: | 1430/2205,1500/2135(mm) |
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+3775+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 12R22.5,295/80R22.5 |
Fuel consumption: | 37.1, 37.44 (L / 100 km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/- |
Front wheel base: | 2035/2035(mm) | Rear wheel base: | 1850/1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07.34-60; MC07H.35-60 | China Heavy Duty Automobile Group Co., LTD.; | 6870; 7360 | 251; 257 |
The special device of the vehicle is PTO system, hydraulic system, latex matrix preparation system, oxidizer conveying system, air cleaning system, screw pump device, hose reel, mixer, trace element addition system, microcomputer automatic control system, etc., which is mainly suitable for dry hole filling explosives in open-pit mines. It is controlled by electrical system and depends on the pressure of screw pump Press into the hose reel, drug delivery hose into the borehole, can accurately fill the borehole with different ratios of explosives. Transport medium ammonium nitrate Emulsion latex. | |||
