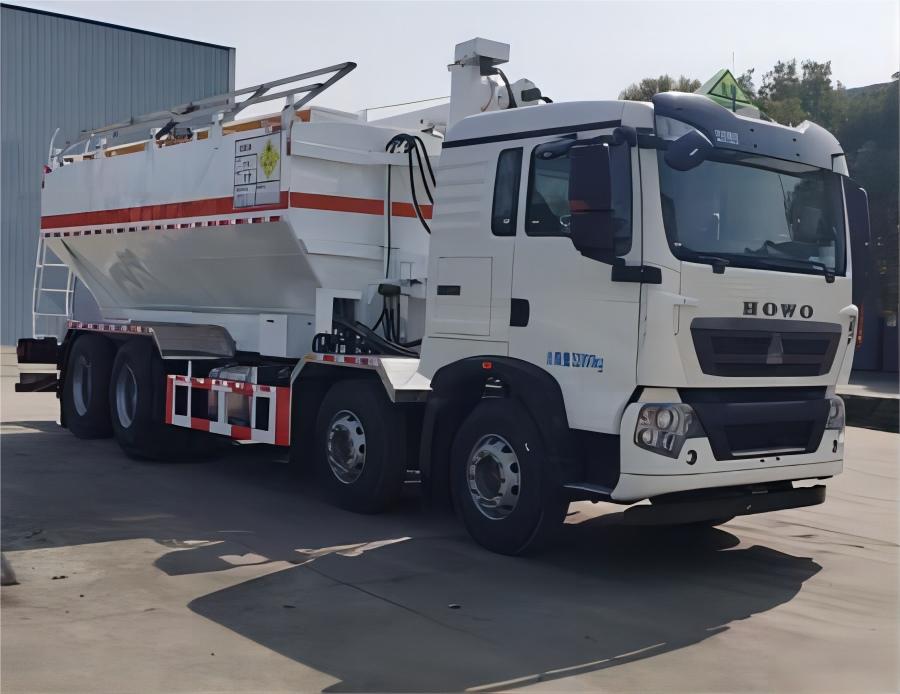

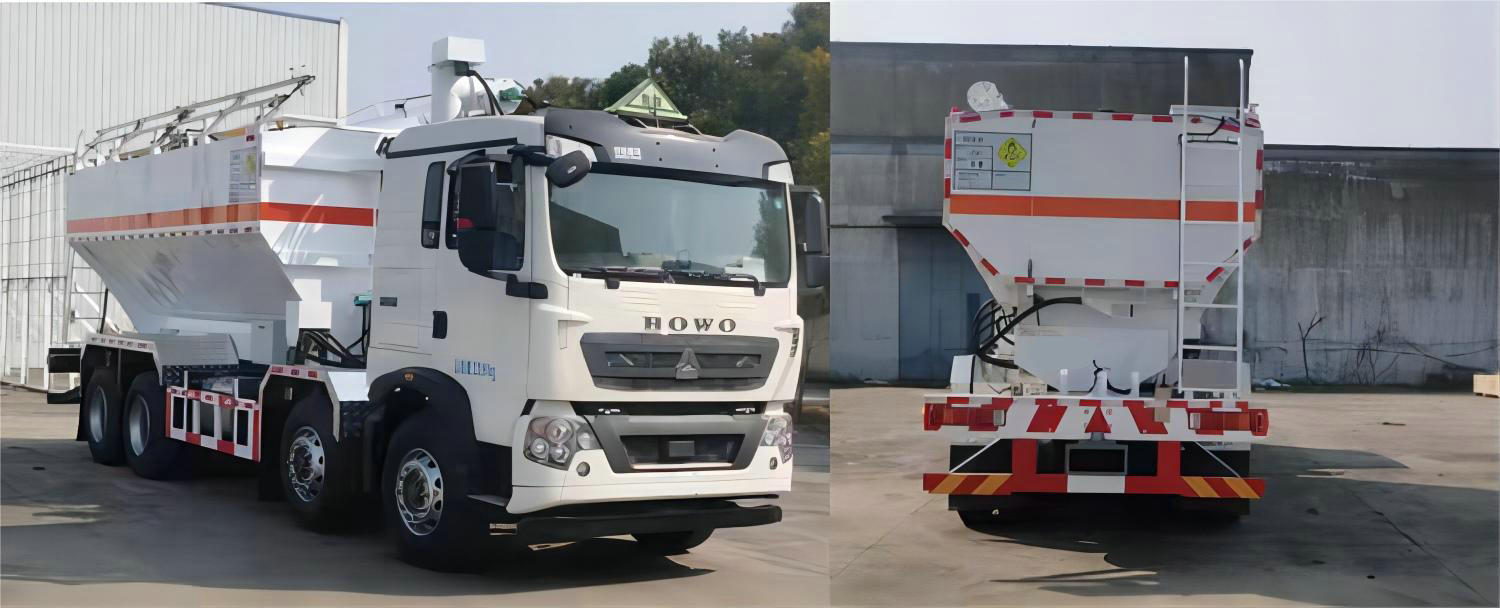

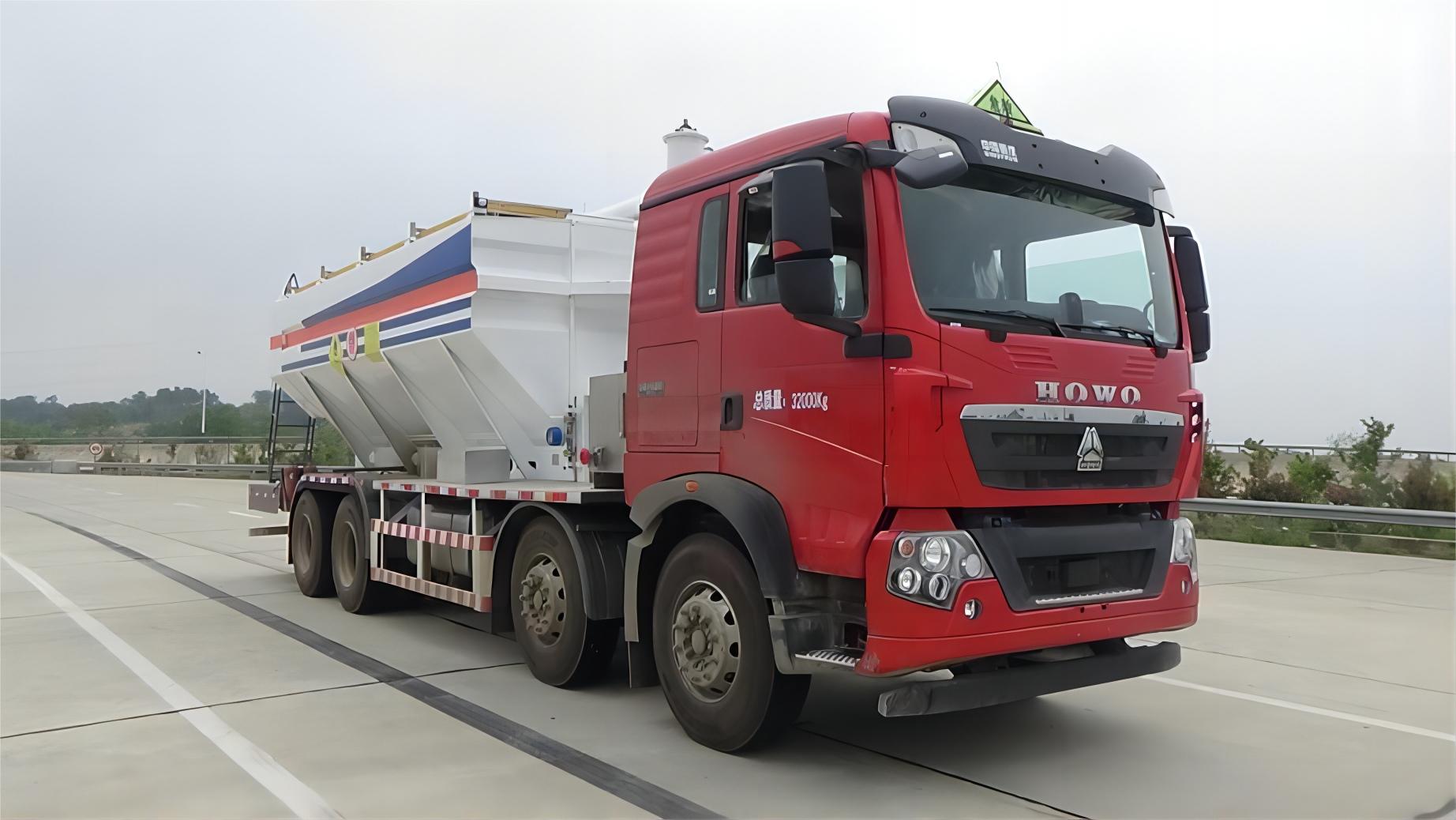

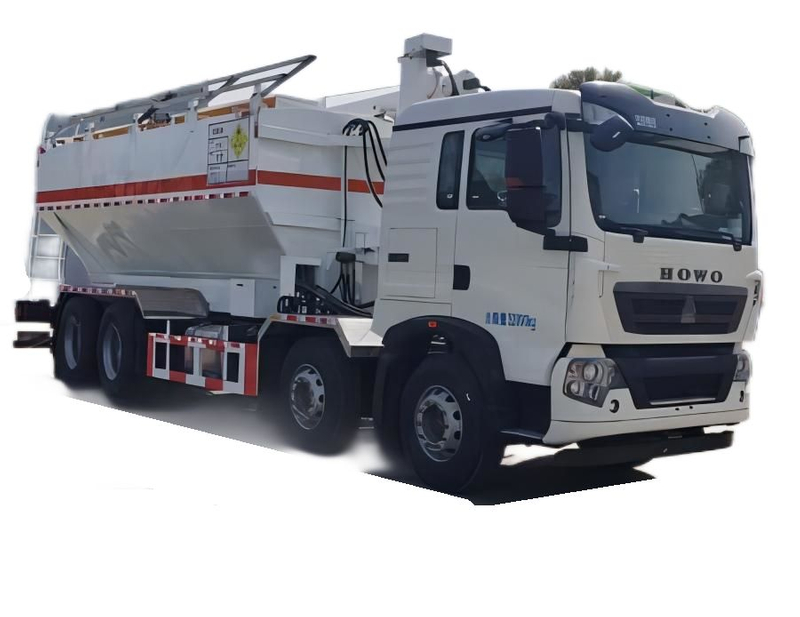

Customize 16-18Ton Blend ANFO Explosive Transportation Trucks
BCLH-15G intelligent on-site mixed loading overhead ammonium explosives truck is used to mix porous granular ammoniumexplosives on site.It is mainly used for loading explosives in dryholes in open-pit mines.It adopts box screw,main,top andvertical screw delivery system,The charging efficiency is high,itcan realize all-round charging,full computer operation control,with the function of stopping the material,and the work is safeand reliable.
●Hydraulic pumps : PVG-100-F1UV-RGFY-P-1NN/FNN Auguire USA
● Hydraulic motors : Box Screw 1068 Straight Screw 1065 Top Screw 1063 Eaton USA
● Diesel oil pump : DM25 and DM4 Eaton USA
● Hydraulic valve : BCLH-15 Japan Oil Research Institute China
● Pressure sensor and flow sensor: Main part of the electrical system (contactor, PLC, LCD screen, ...)
Pressure Sensor BCLH-15 Shanghai Hydraulic Sensor Factory China
Flow sensor TFA/R1/M5/d/k2/L-20 Shanxi Honghe China
PLC: Mitsubishi Japan
Contactor DM8 Mitsubishi Japan
LCD screen 12 inch Mitsubishi Japan
ANFO Explosive Loading Trucks
mixing and charging truck HOWO Euro 6 Chassis : ZZ1327N466GF1K
Main technical parameters
Overall dimensions: | 10460×2500×3980(mm) 10610×2500×3960(mm) | Fuel Type: | Diesel oil | |||||
GW | 32000(Kg) | |||||||
NW | 14770(Kg) 14140(Kg) 15700(Kg) | Rated load | 17100(Kg) 17730,17665(Kg) 16170(Kg) | |||||
Approach Angle/Departure Angle: | 19/13 (°) 19/11(°) | Front/rear overhang: | 1430/2055(mm) 1430/2465(mm) | |||||
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+3775+1400, 1800+4275+1400, 1800+4575+1400, 1950+3800+1400, 1950+4600+1400, 1800+3200+1400(mm) | |||||
Number of shafts: | 4 | Maximum speed: | 80(km/h) | |||||
Number of tires: | 12(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5 18PR, 12R22.5 18PR,12.00R20 18PR,11.00R20 18PR | |||||
Fuel consumption: | 38,38.5(L/100Km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/-,2/2/1+-/1+-, 3/3/1+-/1+-,3/3/2+-/2+-,4/4/2+-/2+- | |||||
Front wheel base: | 2015/2015,2035/2035,2060/2060(mm) | Rear wheel base: | 1850/1850,1870/1870(mm) | |||||
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |||||
MC11.43-61; MC11.44-60; MC07H.33-60; MC09.35 B - 60; MC09.35-60; MC07.31-60; MC07.34-60; WP10H400E62; MC07H.35-60; MC09.38-60; MC07.33-60; WP9H350E62; MC11.40-60; MC11.40-61; WP8.350 E61. MC11.46-61; MC11H.46-61; WP10.5 H430E62; WP12.430 E62; WP12.490 E62; WP12.460 E62; MC07H.31-61; M | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., Ltd. | 10518; 10518; 7360; 8765; 8765; 6870; 6870; 9500; 7360; 8765; 6870; 8800; 10518; 10518; 7800; 10518; 11050; 10520; 11596; 11596; 11596; 7360; 7360; 7800 | 319; 327; 240; 260; 260; 228; 251; 294; 257; 279; 240; 257; 297; 297; 257; 341; 341; 316; 316; 360; 338; 228; 254; 257 | |||||
The special device is PTO, dry material box, fuel system, screw conveying system, hydraulic system, computer digital control system, etc. It is mainly suitable for dry hole filling explosives in open pit mines. It is operated by three-stage screw conveying system such as side screw, and can accurately fill reasonable proportion of explosives in the borehole, and the medium is ammonium nitrate | ||||||||

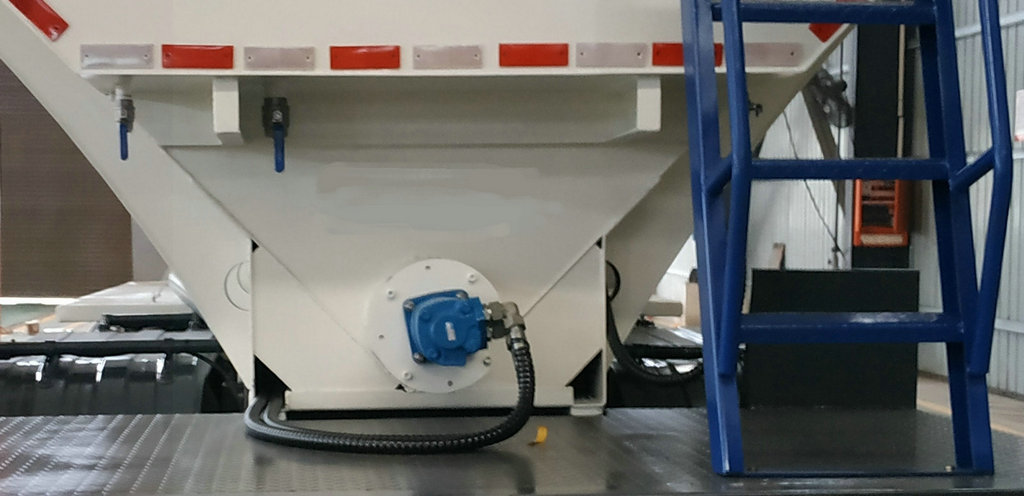

BCLH-15G Top discharge ANFO auger
Main parts :Silo, screw conveying system, screw mixing system, hydraulic system and electrical control system. The operation is controlled by the electrical system, and various raw materials are mixed in a certain proportion and filled into the borehole, and the mixture reacts with each other to form ANFO. Optional oil pump.
| Seq. | Name | Model | Specification | Manufacturer | Origin | Note |
| 1 | ANFO mixing&charging truck | BCLH-15G | ANFO mixing&charging truck | CHINA | CHINA | |
| 2 | Charging capacity | 15000kg | ||||
| 3 | Charging efficiency | 150-220kg/min | ||||
| 4 | Deviation | ±2% | ||||
| 5 | Chassis | 6*6 | Total mass 31000kg | SINOTRUCK | CHINA | |
| 6 | Engine | MC07.34-40 | Power 249kw | SINOTRUCK | GB IV | |
| 7 | Gearbox | HW13710C | SINOTRUCK | CHINA | ||
| 8 | Rear axle | 457 Double bridge | Ratio 6.833 | SINOTRUCK | CHINA | |
| 9 | Braking system | Travelling brake, auxiliary brake and parking brake | SINOTRUCK | CHINA | ||
| 10 | Hydraulic motor | PVHW-45 | Pressure compensation variable pump | VICKERS | USA | |
| 11 | Hydraulic motor | 104-1068 104-1065 104-1063 | Low speed, big torque | EATON | USA | |
| 12 | Integrated valve block | For motor steering, rotation speed control | YUKEN | CHINA | ||
| 13 | ANFO mixing&making system | BCLH-15.7.2 Straight spiral assy. | Efficiency 150-350kg/min | CHINA | CHINA | |
| 14 | ANFO mixing&making system | BCLH-15.7.3 Top spiral assy. | Efficiency 150-350kg/min | CHINA | CHINA | |
| 15 | Flow meter | DN25 | Double indication system, teleportation signal, material shortage alarm and stop function | CHINA/JAPAN | JAPAN | |
| 16 | Control panel | Main board: FXIN-40MR | Data processment | MITSUBISHI | JANPAN | |
| 17 | Control panel | Touch screen: F930GOT-BWD-C | PLC touch screen show | MITSUBISHI | JANPAN |
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
Truck equipment is mounted on Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).
