BCLH-8 , 5180THA
-
FOTON
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1

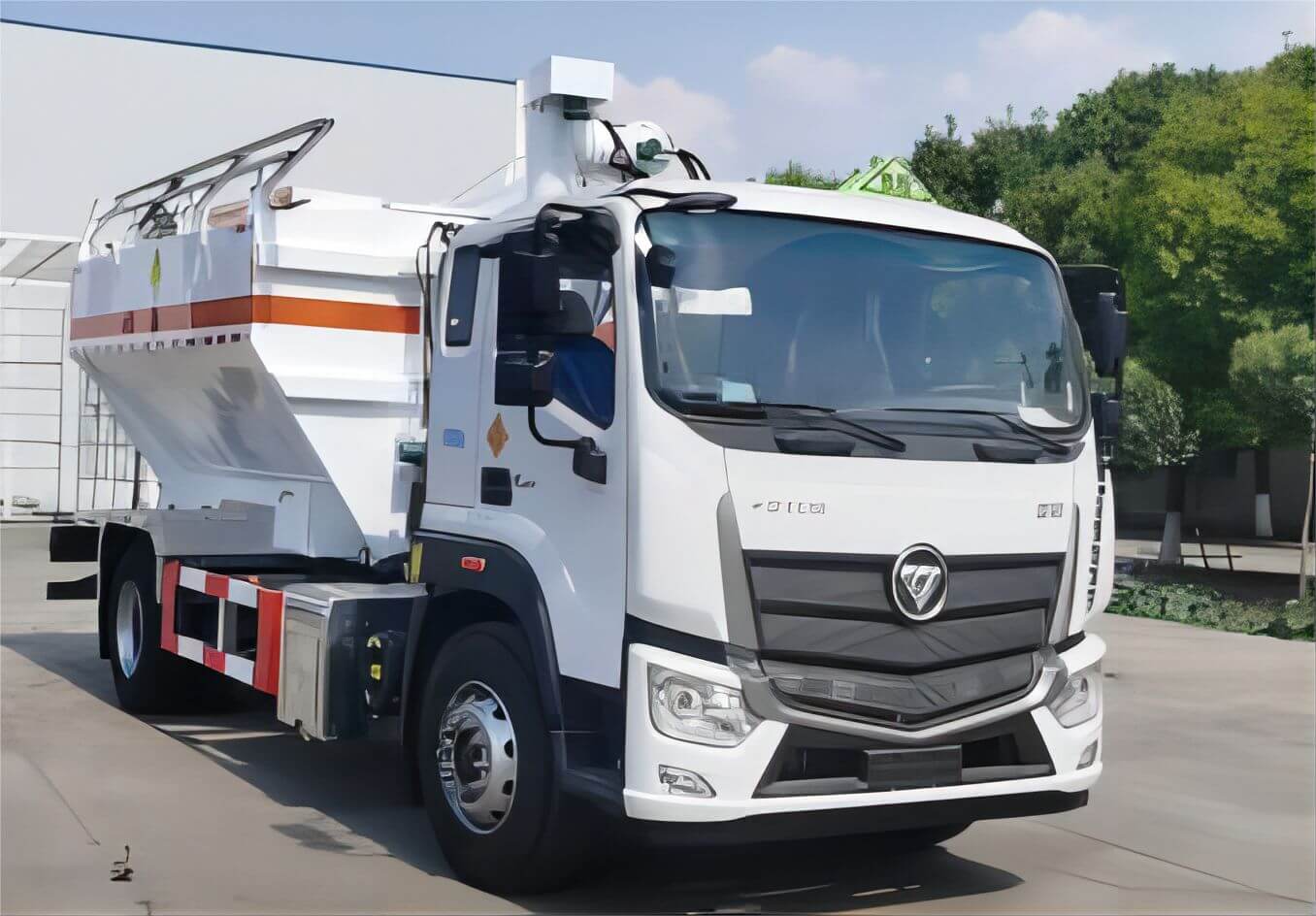

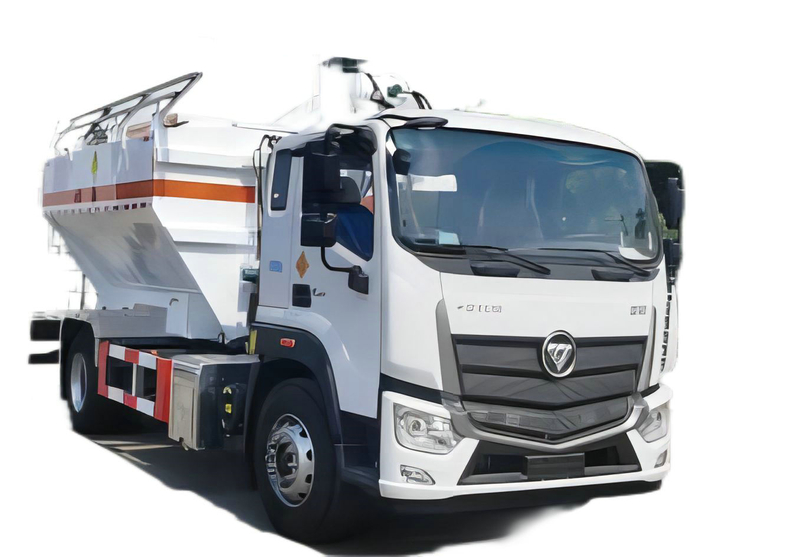

Customize Intelligent On-site ANFO Mixing Charging Ammonium Explosives Truck
BCLH-15G intelligent on-site mixed loading overhead ammonium explosives truck is used to mix porous granular ammoniumexplosives on site.It is mainly used for loading explosives in dryholes in open-pit mines.It adopts box screw,main,top andvertical screw delivery system,The charging efficiency is high,itcan realize all-round charging,full computer operation control,with the function of stopping the material,and the work is safeand reliable.
●Hydraulic pumps : PVG-100-F1UV-RGFY-P-1NN/FNN Auguire USA
● Hydraulic motors : Box Screw 1068 Straight Screw 1065 Top Screw 1063 Eaton USA
● Diesel oil pump : DM25 and DM4 Eaton USA
● Hydraulic valve : BCLH-8 Japan Oil Research Institute China
● Pressure sensor and flow sensor: Main part of the electrical system (contactor, PLC, LCD screen, ...)
Pressure Sensor BCLH-8 Shanghai Hydraulic Sensor Factory China
Flow sensor TFA/R1/M5/d/k2/L-20 Shanxi Honghe China
PLC: Mitsubishi Japan
Contactor DM8 Mitsubishi Japan
LCD screen 12 inch Mitsubishi Japan
ANFO Explosive Mixer Trucks
Porous granular ammonium nitrate 8000kg ,diesel 600kg
Porous granular ammonium nitrate 8000kg ,diesel 600kgmixing and charging truck FOTON Euro 6 Chassis : BJ1186VKPHK-1K
Main technical parameters
Overall dimensions: | 8310×2500×3695(mm) | Fuel Type: | Diesel oil | |
GW | 18000(Kg) | |||
NW | 9870(Kg) | Rated load | 8000,7935(Kg) | |
Approach Angle/Departure Angle: | 18/12 (°) | Front/rear overhang: | 1270/2340(mm) | |
Axle Load: | 6500/11500 | Wheelbase: | 4500,5500,5150,5750,4700(mm) | |
Number of shafts: | 2 | Maximum speed: | 80(km/h) | |
Number of tires: | 6(PCS) | Tire Specifications: | 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR | |
Fuel consumption: | 26.0(L/100Km) | Number of spring pieces: | 10/8+8,10/10+8,3/4+3,10/- | |
Front wheel base: | 2008,1960,1931,1982,1952(mm) | Rear wheel base: | 1860,1840(mm) | |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
D6.7 NS6B230 | Dongfeng Cummins Engine Co., LTD | 6700 | 169 | |
The main special device of the vehicle is PTO, dry material box, fuel system, screw conveying system, hydraulic system, computer digital control system, etc., which is mainly suitable for dry hole loading of explosives in open-pit mines. It is operated through three-stage screw conveying system such as side screw, and can accurately fill reasonable proportion of explosives in the drill hole. The medium is ammonium nitrate, ammonium nitrate item 5.1. The product is installed in line with the national standard tail sign plate; Install dangerous goods sign plate and dangerous goods sign light, dangerous goods vehicle type AT, sample vehicle installed disc brake, all steering wheel installed tire burst emergency protection device. Radial tires. Front exhaust system with speed limiting device, speed limiting 80km/h;
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-8;
Granulated explosives of ANFO type BCLH-8;
Mixed Heavy ANFO explosives BCZH-8.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 8~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
Refer News : 2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
