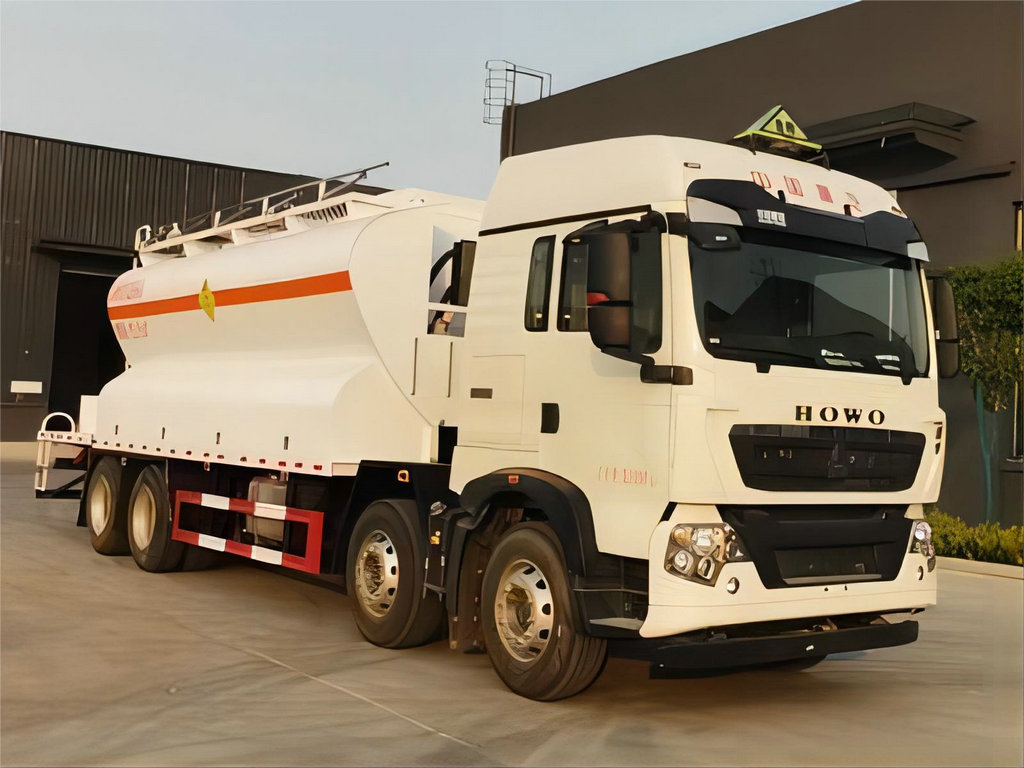

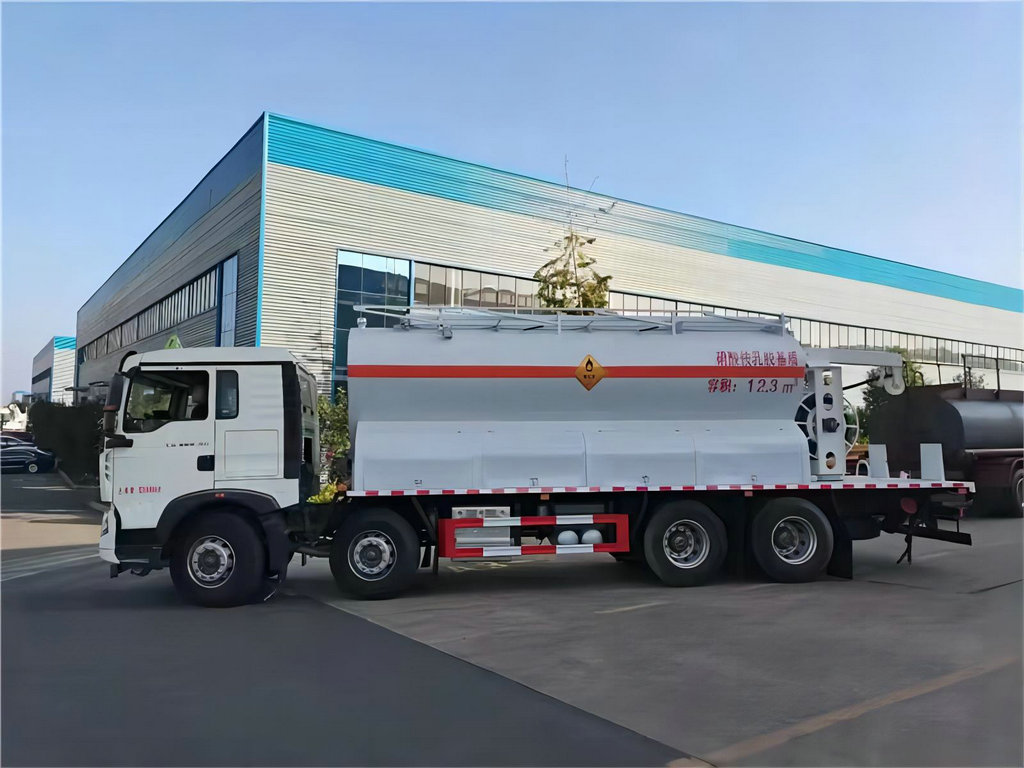

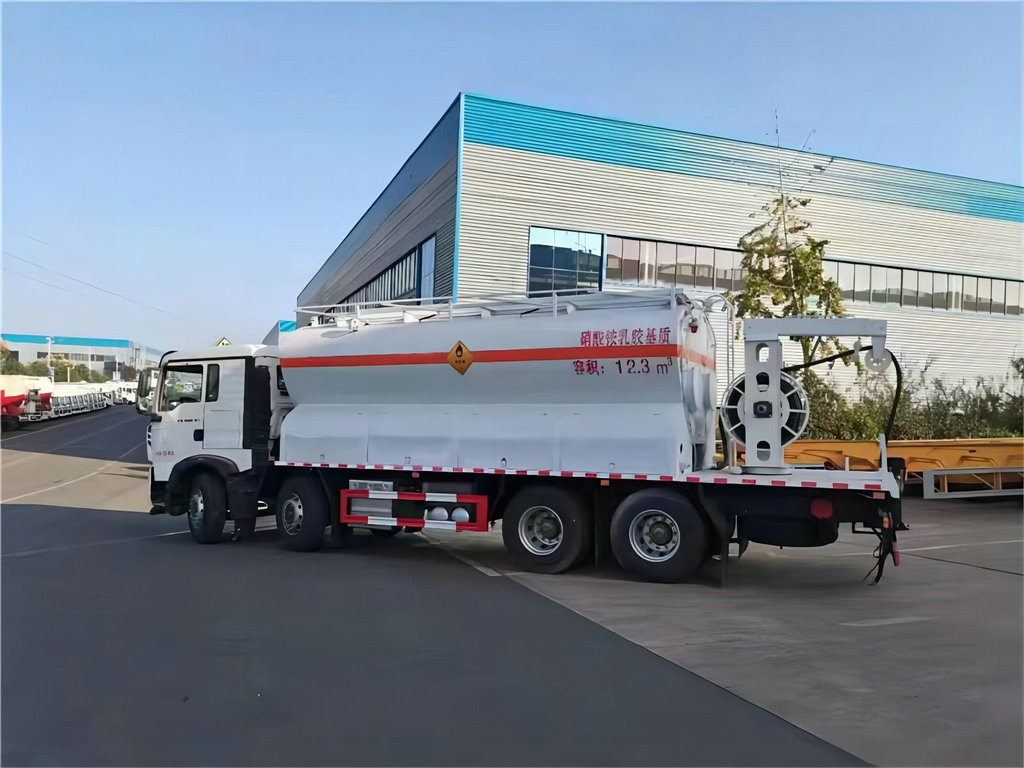

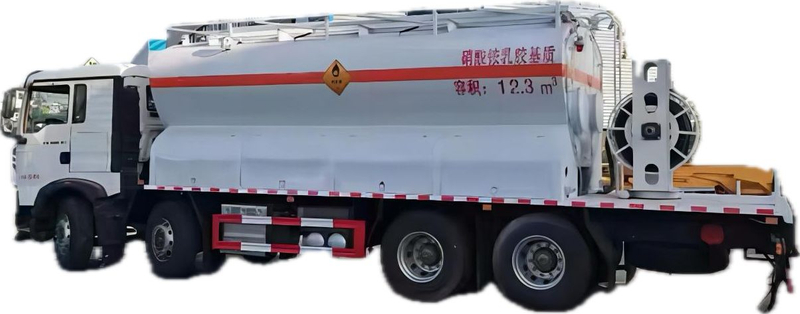

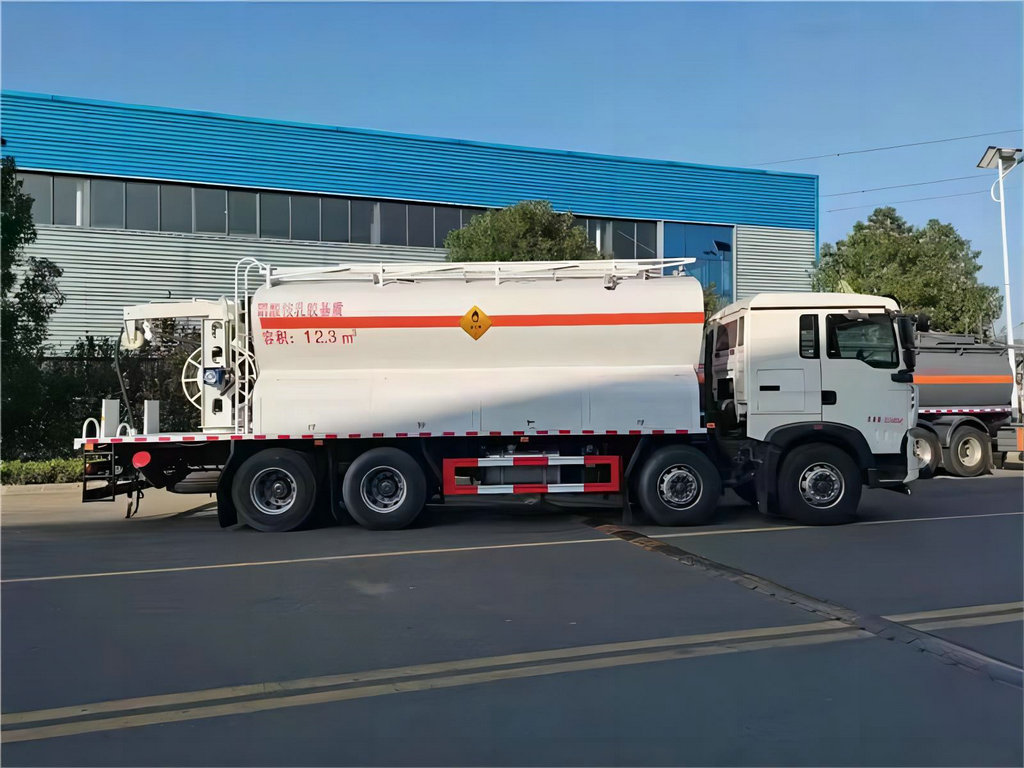

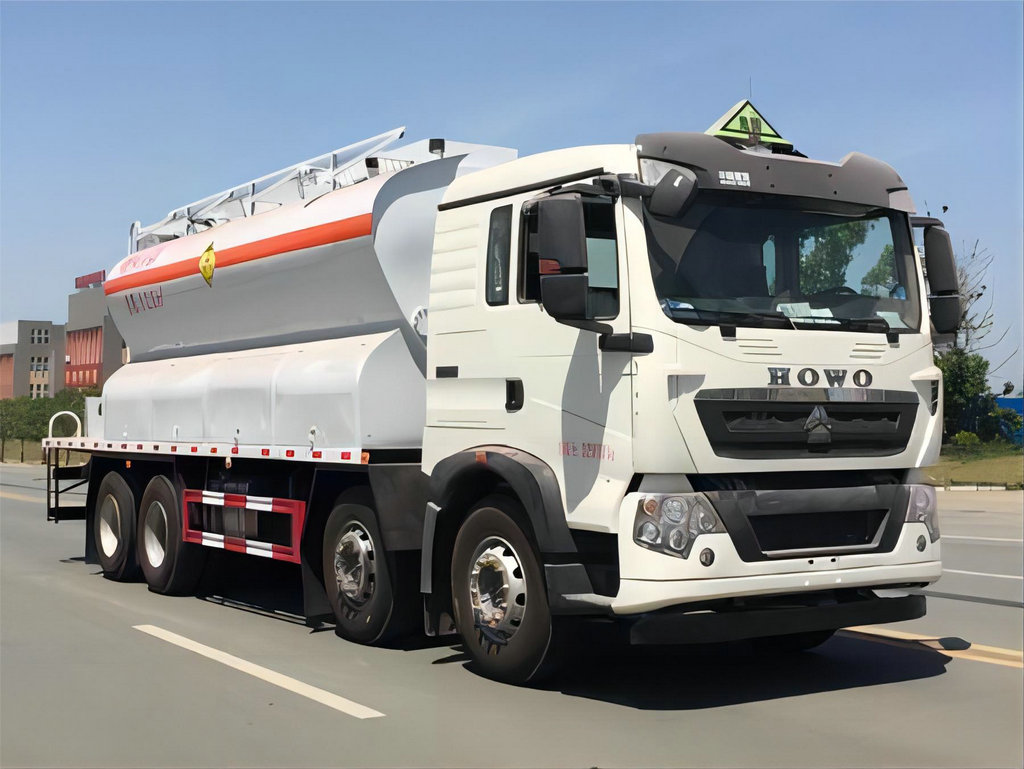

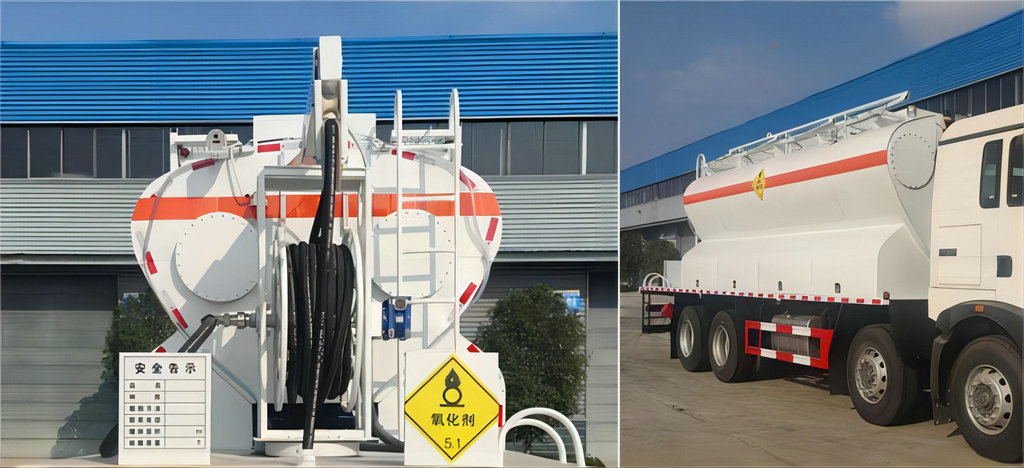

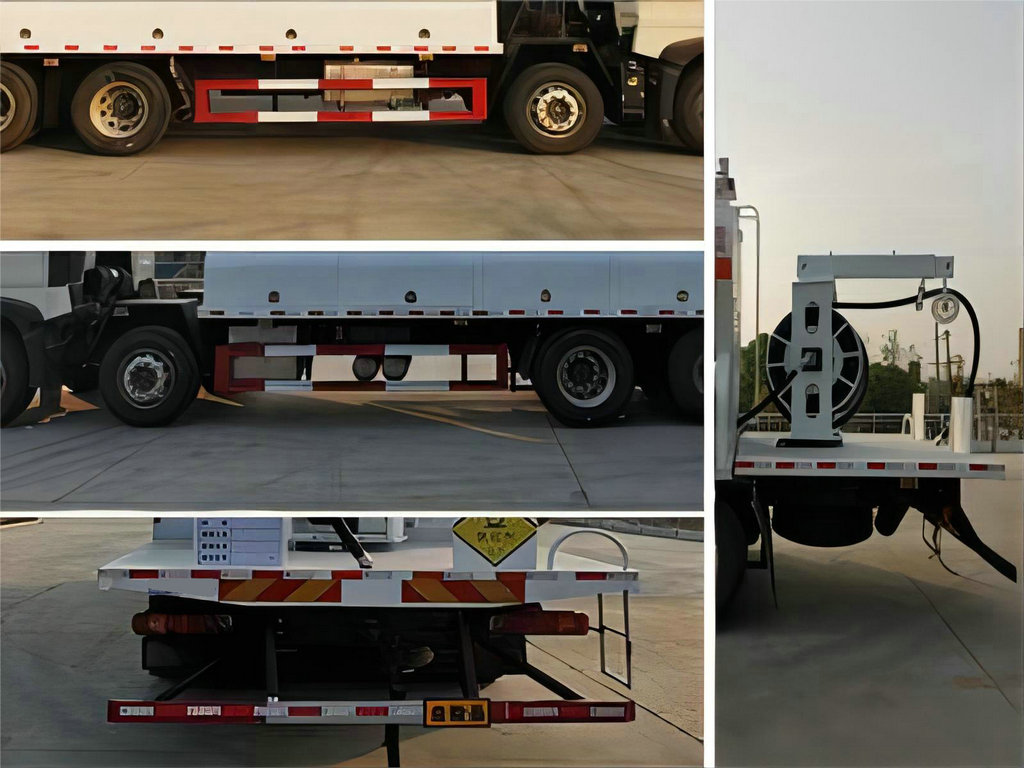

Customize 12m3 Mixing and Charging Emulsion Explosive Truck
BCRH-15 Emulsion explosive mixing truck
Max loading latex matrix 12m3, 16000kg
Sensitizer 0.12 m3 ,120kg
volume of catalyst tank 0.12 m3 ,120kg
water ring and cleaning water tank 1m3, 1000kg
Charge efficiency 250-280kg/min
Measurement error ≤ 2%
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
BCRH-15, 5320THRZ6
-
HOWO
-
8705909990
-
China
-
300
-
T/T
-
1
Customize 12m3 Mixing and Charging Emulsion Explosive Truck
Emulsion ANFO Explosive Transport Trucks
on-site mixed emulsion explosives truck Main technical parameters
HOWO Euro 6 Chassis : ZZ1327N466GF1K
Overall dimensions: | 12000,10920×2500×3660(mm) | Fuel Type: | Diesel oil |
GW | 32000(Kg) | ||
NW | 16505(Kg) | Rated load mass: | 15365,15300(Kg) |
Approach Angle/Departure Angle: | 19/10,19/11(°) | Front/rear overhang: | 1430/2795,1430/2515(mm) |
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+4575+1400,1800+3775+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 12R22.5 18PR,295/80R22.5 18PR |
Fuel consumption: | 36.9,37.44(L/100Km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/-,2/2/1+-/1+-,3/3/1+-/1+-,3/3/2+-/2+-,4/4/2+-/2+- |
Front wheel base: | 2015/2015,2035/2035(mm) | Rear wheel base: | 1850/1850,1870/1870(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
MC07.34-60; MC07.31-60; MC07H.35-60 | China Heavy Duty Automobile Group Co., LTD.; | 6870; 6870; 7360 | 251; 228; 257 | |
Transport medium: ammonium nitrate emulsion matrix, special device by PTO system, box, screw pumping system and electrical control system and other parts. Controlled by the electrical system, the semi-finished products and various raw materials are mixed in a certain proportion and loaded into the drill hole, and the mixture reacts with each other to form emulsion explosive. | ||||
Refer News : 2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
Customize 12m3 Mixing and Charging Emulsion Explosive Truck
Emulsion ANFO Explosive Transport Trucks
on-site mixed emulsion explosives truck Main technical parameters
HOWO Euro 6 Chassis : ZZ1327N466GF1K
Overall dimensions: | 12000,10920×2500×3660(mm) | Fuel Type: | Diesel oil |
GW | 32000(Kg) | ||
NW | 16505(Kg) | Rated load mass: | 15365,15300(Kg) |
Approach Angle/Departure Angle: | 19/10,19/11(°) | Front/rear overhang: | 1430/2795,1430/2515(mm) |
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+4575+1400,1800+3775+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 12R22.5 18PR,295/80R22.5 18PR |
Fuel consumption: | 36.9,37.44(L/100Km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/-,2/2/1+-/1+-,3/3/1+-/1+-,3/3/2+-/2+-,4/4/2+-/2+- |
Front wheel base: | 2015/2015,2035/2035(mm) | Rear wheel base: | 1850/1850,1870/1870(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
MC07.34-60; MC07.31-60; MC07H.35-60 | China Heavy Duty Automobile Group Co., LTD.; | 6870; 6870; 7360 | 251; 228; 257 | |
Transport medium: ammonium nitrate emulsion matrix, special device by PTO system, box, screw pumping system and electrical control system and other parts. Controlled by the electrical system, the semi-finished products and various raw materials are mixed in a certain proportion and loaded into the drill hole, and the mixture reacts with each other to form emulsion explosive. | ||||
