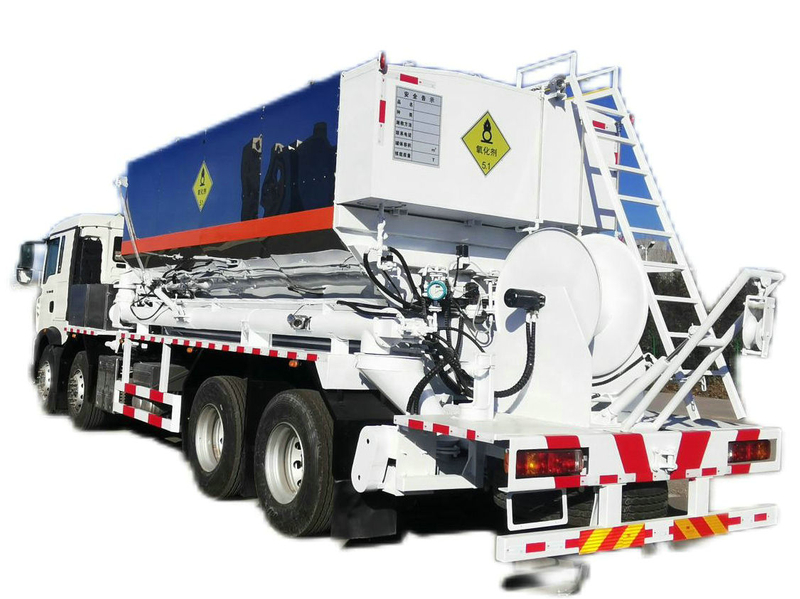

Customize HOWO Heavy ANFO Mixer Explosive Truck 17 Ton
BCZH-15 ,BCZH-17 Explosives Field Mixed ANFO Truck
emulsion explosive 15000kg, charging efficiency is 250-280kg/min (2 "pipe transportation)
oil-spread explosive 15000kg, charging efficiency is 300-450kg/min (spiral transportation)
Heavy oil explosive has a load of 15000kg , charge efficiency of 300-400kg/min (spiral transportation)
Heavy emulsion explosive has a load of 15000kg ,charge efficiency of 200-280kg/min (2 "pipe transportation)
1000kg fuel tank
Trace element box A 150kg ,box B 150kg
The effective volume of cleaning water tank 600kg / 0.6 m3
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
5320THZZ6, BCZH-15 , BCZH-17
-
HOWO
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1
Customize HOWO Heavy ANFO Mixer Explosive Truck 17 Ton
HEAVY ANFO Explosive Delivery Trucks
BCZH-15 intelligent on-site mixed loading heavy ammonium fried explosive truck integrates transportation, mixing and loading of raw materials. It can mix pure emulsion explosive, 0-100100-0 heavy ammonium fried explosive, 0-100100-0 heavy emulsion explosive and ammonium oil explosive on site. It is suitable for water bearing blast hole and dry hole charging in open pit mine.
This truck is a multi-functional truck with good silo matching performance It can mix 15t of heavy emulsion explosive, 15t of ammonium oil explosive and 15t of heavy ammonium fried explosive on site. With advanced computer operating system, itcan accurately load two different formulations of explosives inthe same blast hole. It has a safety guarantee system of over temperature, over pressure, material breaking alarm and shutdown, which is safe and reliable.
Main technical parameters HOWO Euro 6 Chassis : ZZ1327N466GF1K
Overall dimensions: | 10300,10400,11570×2500,2525×3820,3800(mm) | Fuel Type: | Diesel oil | |||
G.W | 32000(Kg) | |||||
NET | 14480(Kg) | Rated load mass: | 17390,17325(Kg) | |||
Approach Angle/Departure Angle: | 19/14, 12/10 °) | Front/rear overhang: | 1430/1995,1430/1895,1430/2365(mm) | |||
Axle Load: | 6500/7000/18500(Two axes) | Wheelbase: | 1800+3775+1400,1800+4275+1400, 1800+4575+1400,1950+3800+1400, 1950+4600+1400,1800+3200+1400(mm) | |||
Number of Axle | 4 | Maximum speed: | 80(km/h) | |||
Number of tires: | 12(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5,12R22.5, 12.00R20 18PR,11.00R20 | |||
Fuel consumption: | 38.13, 38.13, 38.0, 38.3, 38.1, 38.13, 37.44, 37.44, 36.39, 37.12, 37.12, 38.2, 38.2, 38.2, 38.0, 38.2 (L / 100 km) | Number of spring pieces: | 3/3/-/-,2/2/-/-,4/4/-/-,2/2/1+-/1+-,3/3/1+-/1+-, 3/3/2+-/2+-,4/4/2+-/2+- | |||
Front wheel base: | 2015/2015,2035/2035(mm) | Rear wheel base: | 1850/1850(mm) | |||
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |||
MC11.43-61; MC11.44-60; MC07H.33-60; MC09.35 B - 60; MC09.35-60; MC07.31-60; MC07.34-60; WP10H400E62; MC07H.35-60; MC09.38-60; MC07.33-60; WP9H350E62; MC11.40-60; MC11.40-61; WP8.350 E61. MC11.46-61; MC11H.46-61; WP10.5 H430E62; WP12.430 E62; WP12.490 E62; WP12.460 E62 | Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 10518; 10518; 7360; 8765; 8765; 6870; 6870; 9500; 7360; 8765; 6870; 8800; 10518; 10518; 7800; 10518; 11050; 10520; 11596; 11596; 11596 | 319; 327; 240; 260; 260; 228; 251; 294; 257; 279; 240; 257; 297; 297; 257; 341; 341; 316; 316; 360; 338 | |||
Mainly suitable for open pit mine dry hole, water hole loading explosives, special device by the box, bracket, screw conveying device, hydraulic system and other parts of the transport medium: ammonium nitrate emulsion matrix and ammonium nitrate, category item No. 5.1, dangerous goods transport vehicle type (AT type vehicle). The load of emulsion explosive is 15000kg, charging efficiency is 250-280kg/min (2 "pipe transportation) The load of oil-spread explosive is 15000kg, charging efficiency is 300-450kg/min (spiral transportation) Heavy oil explosive has a load of 15000kg , charge efficiency of 300-400kg/min (spiral transportation) Heavy emulsion explosive has a load of 15000kg ,charge efficiency of 200-280kg/min (2 "pipe transportation) The effective volume of 1000kg fuel tank is 1.14 m3 Trace element box A 150kg effective volume 0.15 m3 Trace element box B 150kg effective volume 1.15 m3 The effective volume of cleaning water tank 600kg 0.6 m3 Measurement error ≤ 2% Overall Dimensions Length/Width/Height (11790 x 2496 x 3035mm) | ||||||
Refer News : 2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
