Sinotruck HOWO on-Site Mixed Heavy Anfo Explosives Truck 15t (BeiBenTruck chassis optional)
| Quantity: | |
|---|---|
-
Shanghai, China
-
300
-
T/T
SINOTRUCK HOWO On-Site Mixed Heavy Anfo Explosives Truck 15T (BeiBenTruck chassis optional)
Site mixed explosives vehicle
HEAVY ANFO TRUCK HOWO 340HP 15T BCZH-15
MIXING CHARGE MACHINE
HEAVY ANFO TRUCK HOWO 340HP 15T BCLH-15
Dry charge machine simple ingredients
anfo-blasting-trucks
ANFO / Explosive Delivery Trucks
ANFO mix units
Bulk Explosives Loading Trucks

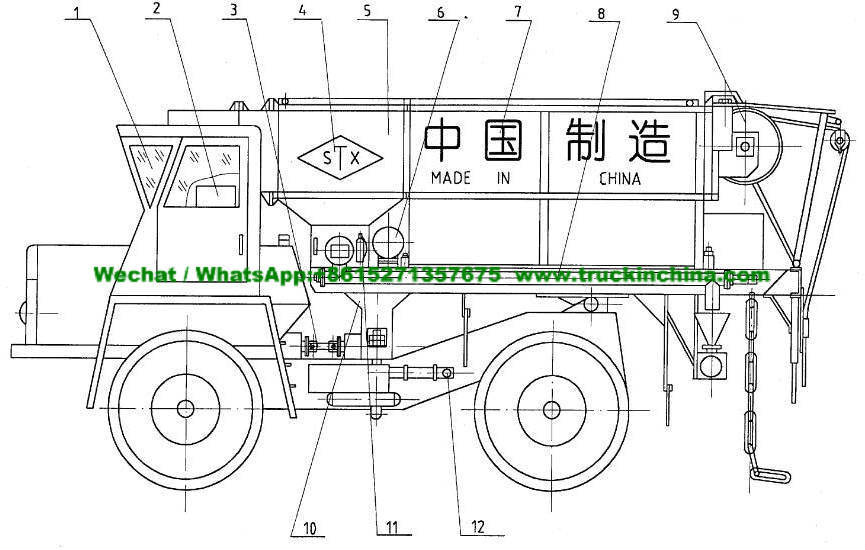

MIXING CHARGE MACHINE
Effective volume of emulsion matrix material box
(1) 5.4m3, 7T
(2) 4.8 m3 loading 6.5T
Effective volume of dry material box 7.9m3 loading 6.5T
Effective volume of fuel tank 1.2m3 loading 1T
Microelement box (1) effective volume 0.12m3 loading 0.12T
(2) Effective volume 0.12M loading 0.12T
Charge efficiency charge water hole 100-200kg / min charge dry hole 300-450kg / min
Measurement error ± 2%

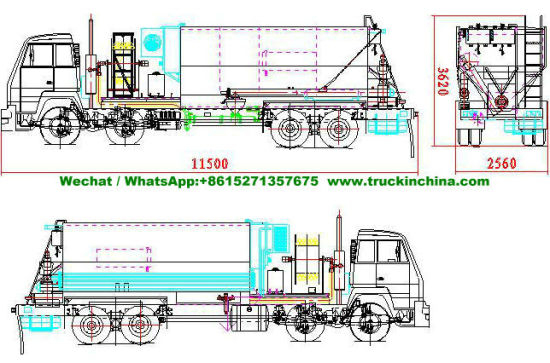

Overall dimension: length × width × height (11500mm × 2560mm × 3620mm)
Dry charge machine
Overall dimension of the whole vehicle: 9930 × 2500 × 3680
Driving mode: 8 × 4
Speed limiter: 79km / h
Rated drug loading: 15000kg
Charging efficiency: 450kg / min
Measurement error: ≤ 2%
Loading capacity of dry material box: the material box is divided into four silos, with an effective volume of 17.5m3, which can be filled with 15 tons of porous granular ammonium nitrate. When charging on site, two-way blast hole charging is realized.
1 × Bin: 3750kg ammonium nitrate
2 × Bin: 3750kg ammonium nitrate
3 × Bin: 3750kg ammonium nitrate
4 × Bin: 3750kg ammonium nitrate
Diesel tank load: 1000kg
↵

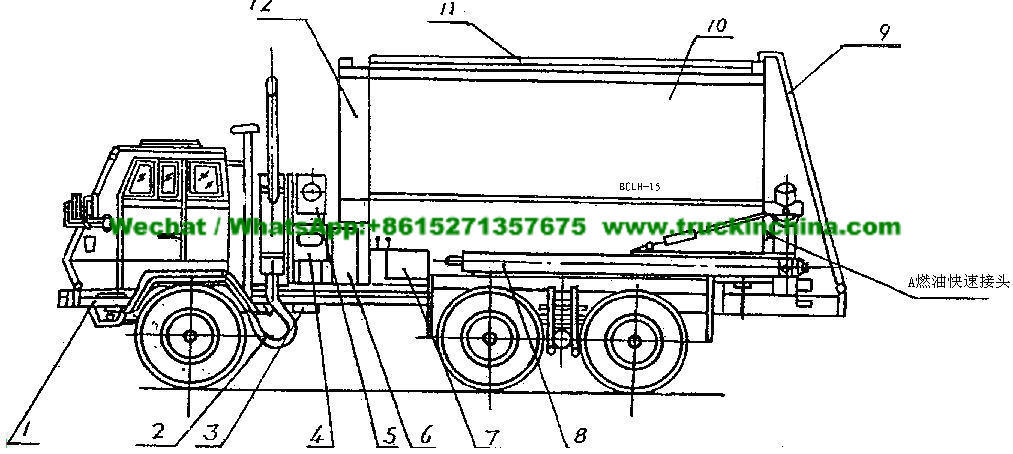

BCLH-15G Field mixed loading granular ammonium frying truck

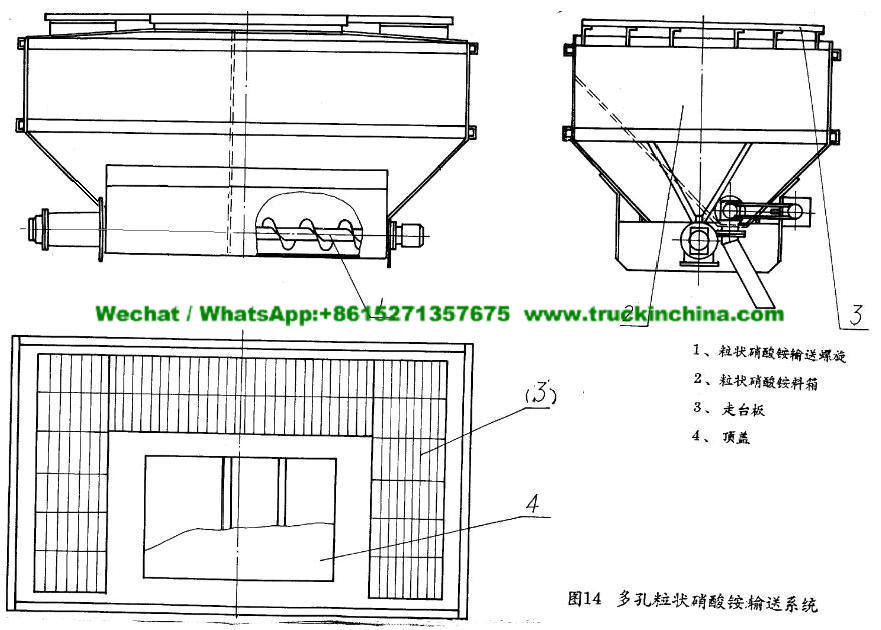

On site mixing of granular ammonium frying vehicle ( BCLH Series of products can be mixed with porous granular ANFO in the field. It is mainly used for dry hole loading explosives in open-pit mines. It adopts the diagonal spiral drug delivery system, with high efficiency and full computer operation control. 450kg/min It has the function of stopping material and shutting down, and is safe and reliable.

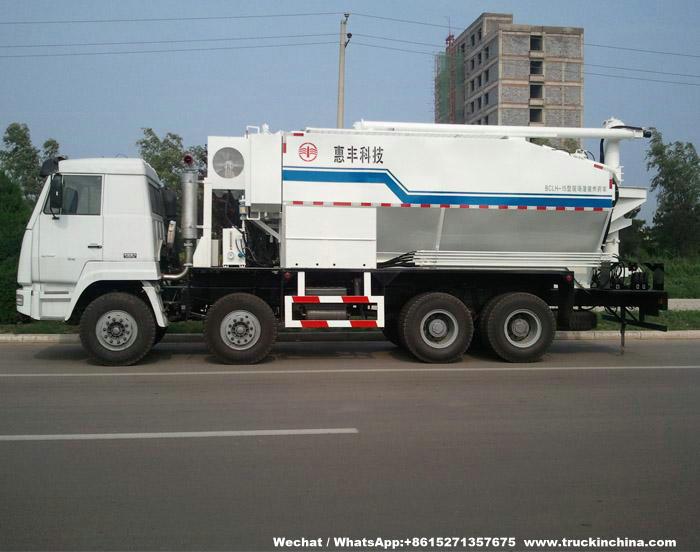

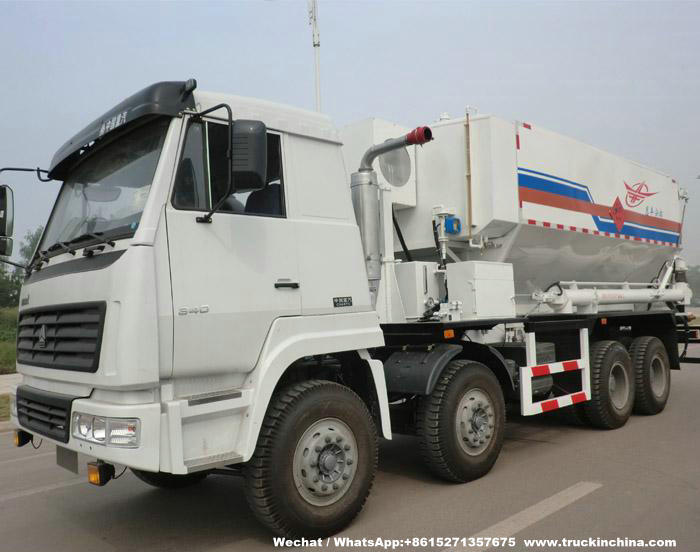

BCLH-15 The field mixed loading of granular ammonium has explosives.
| Main technical performance parameters | ||||
project Model | BCLH-15 | BCLH-12 | BCLH-8 | BCLH-4 |
| Loading capacity (ton) | 15 | 12 | 8 | 4 |
| Charge efficiency (kg/min) | 450 | 400 | ||
| Measurement error | 2% | 2% | 2% | 2% |
| Outline size: length * width * height (mm) | 10010×2500×3680 | 9105×2480×3470 | 7216×2450×3280 | 6728×2400×2670 |

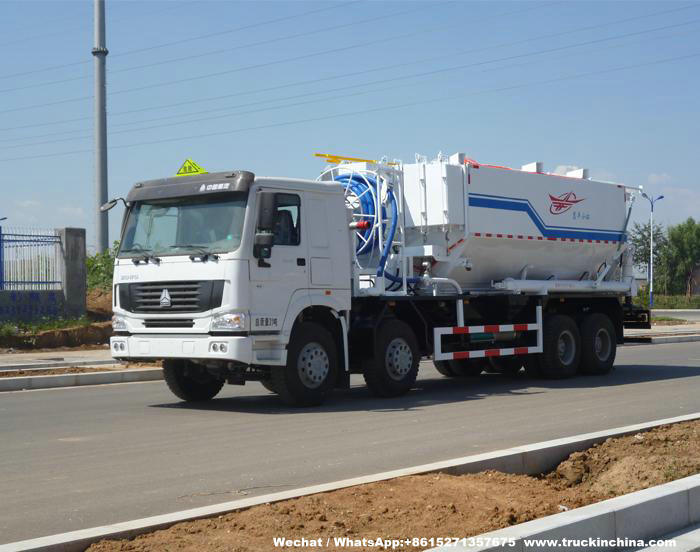

BCZH-15 on-site mixed HEAVY ANFO TRUCK
BCZH-15 Field mixed HEAVY ANFO TRUCK
BCZH-15 The on-site mixed heavy ammonium explosive truck integrates the transportation, mixing and loading of raw materials, and can mix pure emulsion explosives, various proportion of heavy ammonium explosive and ammonium nitrate explosives in the field. It is suitable for open hole mines with water hole and dry hole charge. This kind of vehicle is a multi-functional vehicle with good silo configuration performance. It can be mixed with emulsion explosives in the field. 15t Or ammonium nitrate explosive. 15t Or heavy ammonium explosive. 15t The advanced computer operation system can accurately load two different explosives in the same hole. It has a safety guarantee system with over temperature, over pressure, and material alarm and shutdown. The system is safe and reliable.
11470 × 2500 × 3900
BCAH-15 Model field mixed heavy ammonium explosive truck
ANFO MIX MODULES AND UNITS
Heavy ANFO Units
Nonexplosive-Until-Pumped Bulk Explosives ANFO units
BCZH-15 is mainly composed of automotive chassis, power system, hydraulic system, emulsion delivery system, fuel oil system, PPAN delivering system, gasser system, and blender, air cleaning system, MONO pump, electric control system and extinguisher.
Automotive chassis
Automotive chassis HOWO
Main technical parameter (vehicle modification):
| Rated capacity | 30t |
| Gross weight | 51.525t |
| Front axial load | 17.175t |
| Back axial load | 34.35t |
| Minimum ground clearance | 475mm |
| Minimum turning radius | 8.7m |
| Engine maximum power | 256Kw |
| Loading minimum running speed | 50Km/h |
| № | Name | Specification | Unit | Quantity | Standart | Note |
| 1 | Type /Mark/ | SINOTRUCK HOWO BCZH-15 | ||||
| 2 | Model | Mixing charge machine for emulsion explosive /HEAVY ANFO TRUCK/ | ||||
3 | Техникийн злэлт | Chassis | BRAND: SINOTRUCK HOWO | |||
| Engine capacity | kwt | 340 more | ||||
| Fuel type | Diesel Euro-II; Euro-III | |||||
| Drive wheel formulation | 8х4 | chassis | ||||
| Wheel formula | mm | 1950+3800+1400 | ||||
| Cabin | Without sleeping bed | |||||
| Engine | MAN MC 340HP | |||||
| Transmission | HW19710 transmission + HW70 flange type power take- off | |||||
| Front axle | MAN VPD060QB front axle (disk) | |||||
| Chimney system | Smoke evacuation (with fire lid) | |||||
| Tires | 12.00R20 /steel tires/ | |||||
| Fire extinguisher | one pieces for machine, two pieces for equipment | |||||
| Warnings | Hazardous freight warnings according to Mongolian law and regularity must be sticked /4 sides of the machine / | |||||
| Amber light | On the cabin-1 pieces Equipment -1 pieces | |||||
| Other directions | PTO option: /front and bottom protection/ Speed limiter device, speed limit 60 km/hour | |||||
| Brake system | ABS (4S / 4M) | |||||
| Fuel tank | Min-200 L / aluminum alloy fuel tank/ | |||||
| Others | / The vehicle meets the conditions of adapting to the working conditions of the plateau and cold regions./ | |||||
| Steering wheel | Left HT457 rear dual drive axle (drum) | |||||
| № | Name | Specification | Unit | Quantity | Standart | Note |
| Axle's loading capacity | kg | 6500кг / 7000кг / 17500к | ||||
| Loading | kg | Not less than 15000 | ||||
| Over all weight | kg | Not less than 32000 | ||||
| Dimension of the machine and equipment | mm | Max-Length /10360, Width 2500 , Height 3750 | ||||
| Mixing charger device of material | Stainless steel | |||||
| Amount of explosives | kg | 15000 | Min | |||
| Emulsion/ANFO ratio | % | 70/30 | ||||
| Borehole charging depth | m | 20-30 | ||||
| Borehole charging speed | kg/min | 150-260 | Min | |||
| Measurement error, | % | ± 2 | ||||
| Borehole charging diameter | mm | 70-320 | ||||
| Storage tank for produced emulsion /equipment/ | M3/kg/ | Min-8,4 /10500/ | ||||
| Porous ammonia container /equipment/ | M3/kg | Min-3,4 /4500/ | ||||
| Water tank volume, /equipment/ | м3 | Min-0,4 | For water curtain hose | |||
| Sensor tank volume /equipment / | м3 | Min-0,5 | ||||
| Volume of sodium nitrite storage tank /equipment/ | м3 | Min-0,2 | ||||
| Diesel fuel tank volume, /equipment/ | м3 | Min-1,0 | ||||
| Charger hose length | м | Min-25 | ||||
| Location of tank loading | Pour over the tank loading | |||||
| Water jacket creating system | ||||||
| NO. | Code | Title | Qty. |
| 1 | BCZH20.6-1 | Centre plate wood block | 1 |
| 2 | BCZH20.6-2 | Polystyrene plate | 1 |
| 3 | BCZH20.6-3 | Strengthen channel steel | 6 |
| 4 | BCZH20.6-4 | Lower horizontal channel steel | 2 |
| 5 | BCZH20.6.1 | Tank shell unit assembly | 1 |
| 6 | BCZH20.6-5 | Polystyrene filler block | 54 |
| 7 | BCZH20.6-6 | Middle horizontal channel steel | 2 |
| 8 | Polyurethane coating | 1 pail | |
| 9 | BCZH20.6-7 | Coupling flange | 4 |
| 10 | GB5782-86 | Bolt M18×160 | 4 |
| 11 | GB6170-86 | Nut M18 | 4 |
| 12 | GB97.1-85 | Washer 18 | 4 |
| 13 | GB93-87 | Washer 18 | 4 |
| 14 | BCZH20.6.2 | Walk bedplate assembly | 1 |
| 15 | BCZH20.6.3 | Vent cap | 1 |
| 16 | BCZH20.6-8 | Vent cap connection tube | 1 |
| 17 | BCZH20.6.4 | Manhole cover assembly | 1 |
| 18 | CKB/J01-87 | Quick tie-in: DC-ZG2 | 1 |
| 19 | BCZH20.6-9 | 2Tie-in | 1 |
| 20 | Quick tie-in: A-ZG2 | 1 | |
| 21 | BCZH20.6-10 | Upper horizontal channel steel | 2 |
| 22 | BCZH20.6-11 | U-shaped bolt M24 | 4 |
| 23 | GB6170-86 | Nut M24 | 8 |
| 24 | GB97.1-85 | Washer 24 | 8 |
| 25 | GB93-87 | Washer 24 | 8 |
| 26 | BCZH20.6-12 | Cushion block | 4 |
| 27 | DEMCO3X175PST | Butterfly valve 3 | 1 |
| 28 | BCZH20.6.5 | Emulsion tank assembly | 1 |
| 29 | BCZH20.6-13 | Lower backing channel steel | 6 |
| 30 | BCZH20.6-14 | Upper vertical channel steel | 2 |
| 31 | BCZH20.6-15 | Lower vertical channel steel | 2 |
| 32 | BCZH20.6-16 | Girder backing channel steel | 2 |
| 33 | BCZH20.6-17 | Bottom channel steel | 6 |
| 34 | BCZH20.6-18 | Wood stopper | 70 |
| 35 | BCZH20.6-19 | Lower erect channel steel | 14 |
| 36 | BCZH20.6-20 | Upper erect channel steel | 14 |
| 37 | BCZH20.6.6 | Tank inner lining assembly | 1 |
| 38 | BCZH20.6-21 | Pass wire pipe | 1 |
| 39 | Clearance lamp side light | 2 | |
| 40 | BCZH20.6-22 | Clearance lamp side light frame | 2 |
| 41 | BCZH20.6-23 | Middle vertical channel steel | 2 |
| 42 | BCZH20.6-24 | Sealing plateδ4 | 1 |
