DNJJ5250TYH6
-
DFAC/FAW/SHACMAN/HOWO/JAC /ISUZU/JMC
-
8705909990

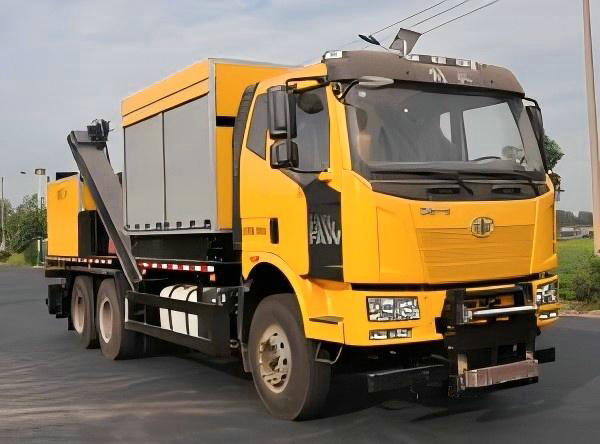

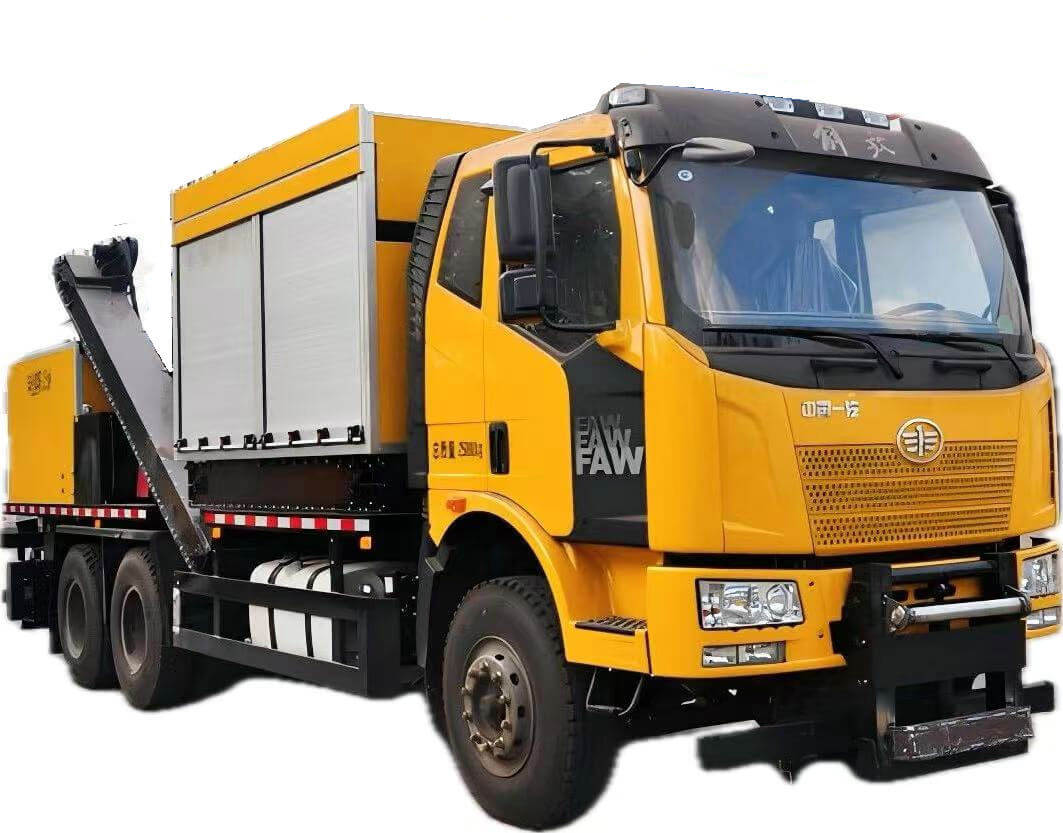

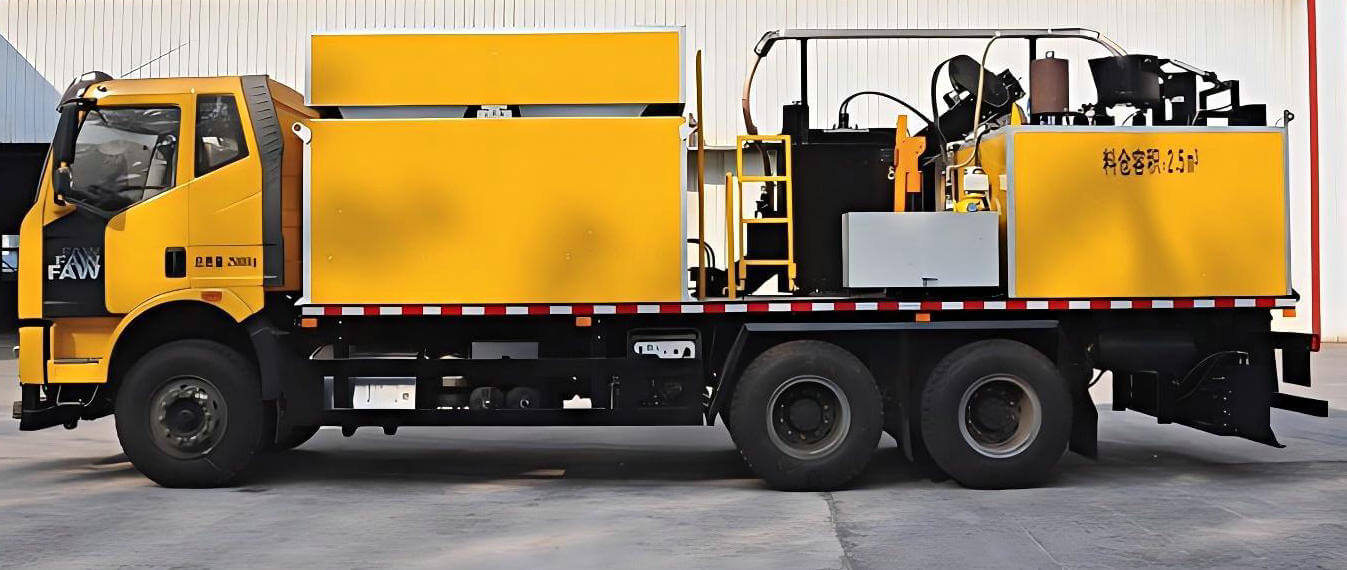

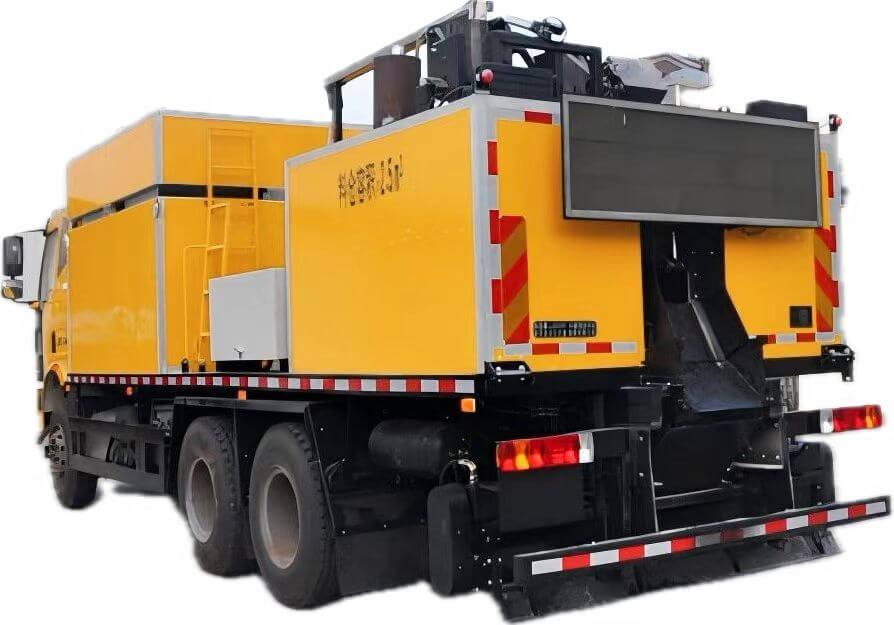

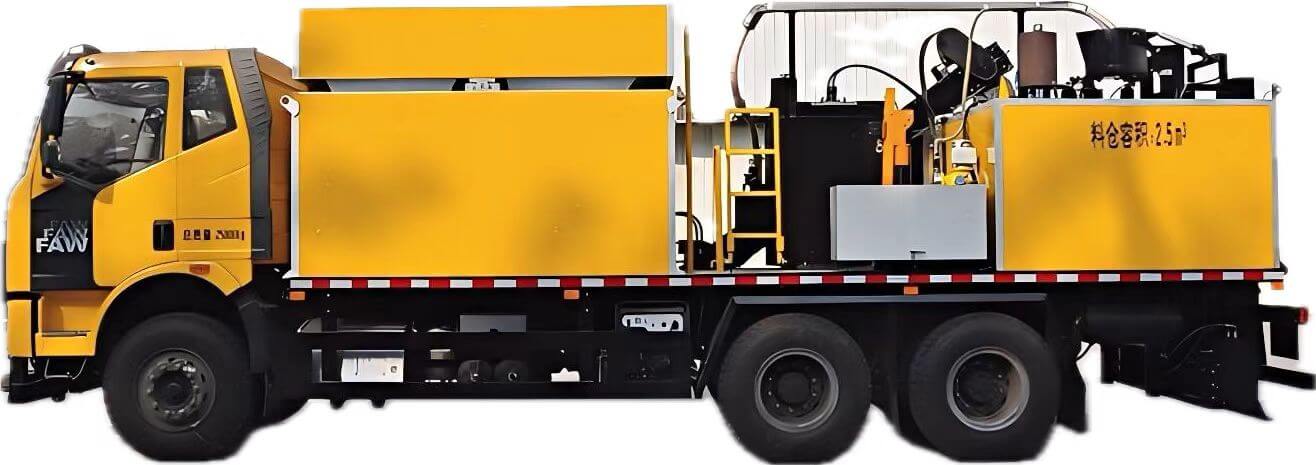

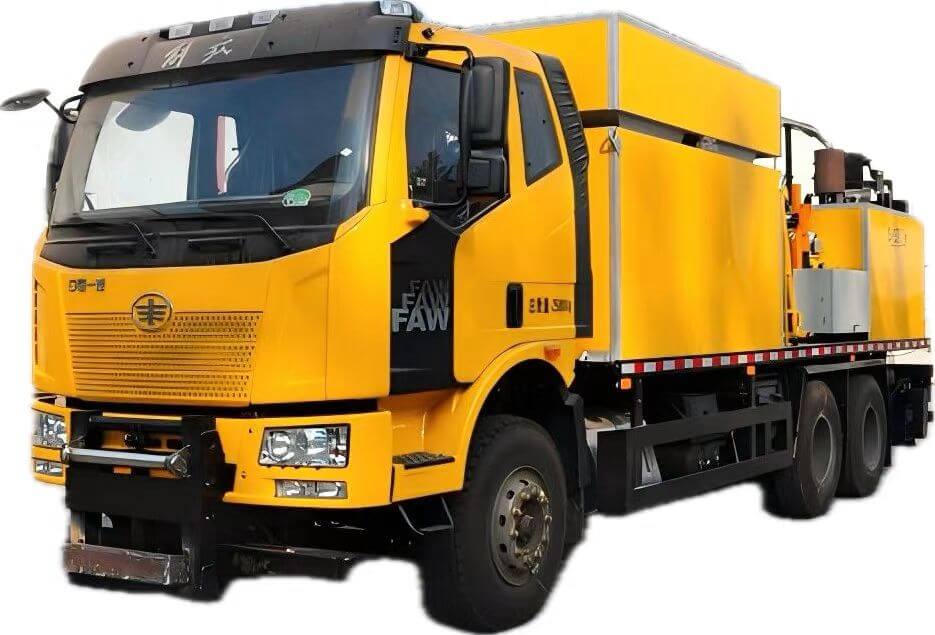

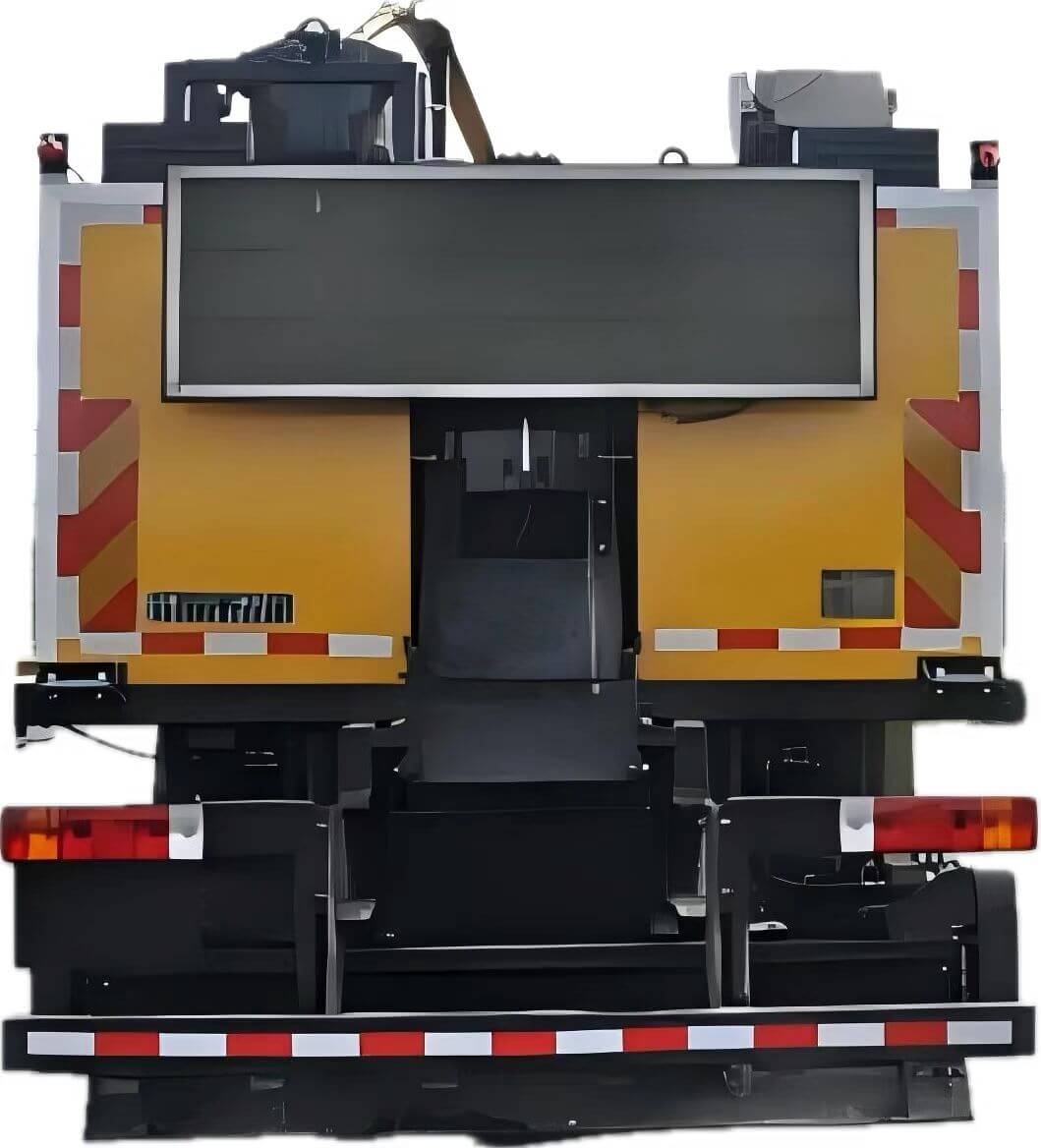

FAW Asphalt Cold Pavement Road Maintenance Vehicle
Truck Mounted Asphalt Recycler
The main device is on-site cold mixing paving device. The special vehicle has three kinds of asphalt mixture aggregate silo. The asphalt mixture aggregate gradation is guaranteed by weighing. The three kinds of aggregates in the silo are input into the forced mixer by lifting mechanism. Then, the measured hot asphalt and additives are sprayed into the forced mixer. After forced mixing, asphalt mixture with known gradation can be used for pavement repair and maintenance of various grades of asphalt highway
Product model | DNJJ5250TYH6 |
Chassis model | FAW CA1250P62K1L3T1E6Z |
Vehicle shape | 9350×2521×3440mm |
Engine power | 209kw |
Total mass | 25000kg |
Curb weight | 18500kg |
Maximum speed | 89（km/h） |
Storage tank | 5T |
Aggregate conveying | 60T/h |
Weighing ratio | Computer control |
Asphalt Pavement Maintenance
Asphalt Pavement Thermal Regeneration Repair Truck
Technical features:
The optional heating wall is controlled by partitions, which can be raised, lowered and translated, which makes it more flexible than other road repair equipment in work and has high efficiency in repairing transverse cracks of asphalt pavement.
Vertical forced mixer ensures uniform temperature of asphalt material and reduces segregation;
The main hydraulic components, liquefied gas control components and electrical automatic control components are selected from internationally renowned brand products.
Product introduction
It is a road maintenance vehicle with multi-function, energy-saving, environmental-protection and efficient road maintenance machine. It has two characteristics of mixing materials and quick repair of damaged pavement. It is widely used to repair various problems such as pits and cracks in asphalt pavement. It can also be used for quick repair of airport asphalt pavements throughout the day.
The waste asphalt can be regenerated by the drum recycler, and the new asphalt can also be mixed to reduce the cost of road repair. The damaged pavement is heated and softened by a hot air circulation heater when repaired, and the asphalt will not be subject to high temperature aging, which prolongs the service life of the repaired layer.
advantages of the Truck Mounted Asphalt Recycler
1. Cost savings:
The Truck Mounted Asphalt Recycler can recycle the waste road surface material and mix it with new asphalt, which greatly reduces the cost of participating in the new material.
2. Improve construction quality:
Truck Mounted Asphalt Recycler hot regeneration process can be correctly implemented to greatly shorten the repair time, strengthen the denseness of the repair, improve the durability of the repair.
3. environmental protection:
The use of Truck Mounted Asphalt Recycler can greatly reduce the waste of the original pavement materials, reduce the burden on the environment and the waste of social resources, and at the same time the use of oil atomisation combustion technology, so that the exhaust emissions can meet national standards.
4. Wide range of application:
Truck Mounted Asphalt Recycler is suitable for various types of roads and different road defects, and can flexibly adjust the stability and reliability.
Third, the use of Truck Mounted Asphalt Recycler scene
1. Urban roads:
Urban roads are used by car and pedestrian traffic with high frequency, and with the passage of time, cracks, potholes, peeling and severe wear and tear, etc. The Truck Mounted Asphalt Recycler is born for this purpose, and can easily cope with all kinds of problems on the road.
2.Municipal engineering:
Municipal projects will inevitably encounter various terrain, huge traffic, busy and other problems, this time the Truck Mounted Asphalt Recycler can optimise the city traffic conditions, shorten the repair time period.
3.Highway:
Highway is one of the roads with the largest traffic flow, for highways such as high speed Tongling section, high speed Guiyang section, high speed Yilan section, high speed Shanghai and Hangzhou section and other parts of the road surface need to be repaired due to different circumstances, Truck Mounted Asphalt Recycler can greatly improve the work efficiency and pavement maintenance rate.
4.Airport runway:
Airport runway is an important place for aviation safety, for runways such as airports large model airports, due to excessive runway manoeuvres lead to a decline in runway uniformity, so that the runway often need to be repaired, Truck Mounted Asphalt Recycler can effectively solve the runway problem, to ensure flight safety.
Thermal regeneration technology can maximise the retention of old asphalt pavement materials that have already been used, avoiding waste of resources and secondary pollution. When repairing the pavement, the already broken asphalt crushed material can be softened by heating, and then processed by mixing, regenerating and adding materials. This can maximise the use of waste materials without destroying the molecular structure of asphalt, and realise the recycling of resources.
Customize DFAC/FAW/SHACMAN/SINOTRUCK HOWO/JAC /ISUZU/JMC
