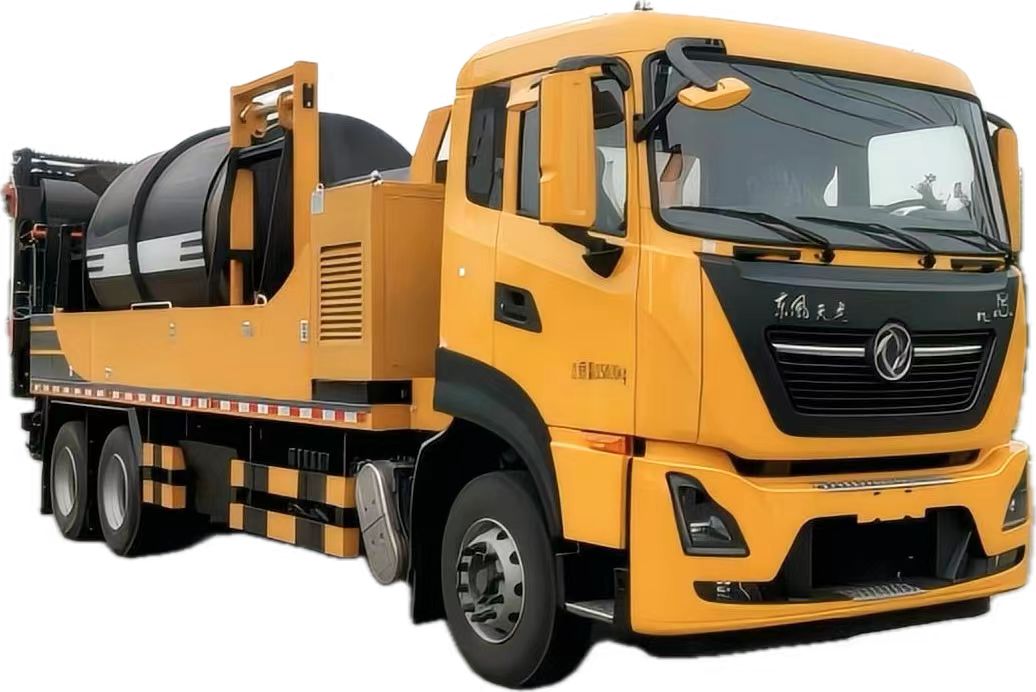

Customize Hot-in-Place Recycling Asphalt Pavement Thermal Regeneration Repair Vehicle
Truck Mounted Asphalt Recycler
Price for refer only. Final Price May Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
DAD5180TXBRQ
-
DFAC/FAW/SHACMAN/HOWO/JAC /ISUZU/JMC
-
8705909990
Customi Customize Hot-in-Place Recycling Asphalt Pavement Thermal Regeneration Repair Vehicle
Truck Mounted Asphalt Recycler
Asphalt Pavement Maintenance
Asphalt Pavement Thermal Regeneration Repair Truck
Product introduction
It is a road maintenance vehicle with multi-function, energy-saving, environmental-protection and efficient road maintenance machine. It has two characteristics of mixing materials and quick repair of damaged pavement. It is widely used to repair various problems such as pits and cracks in asphalt pavement. It can also be used for quick repair of airport asphalt pavements throughout the day.

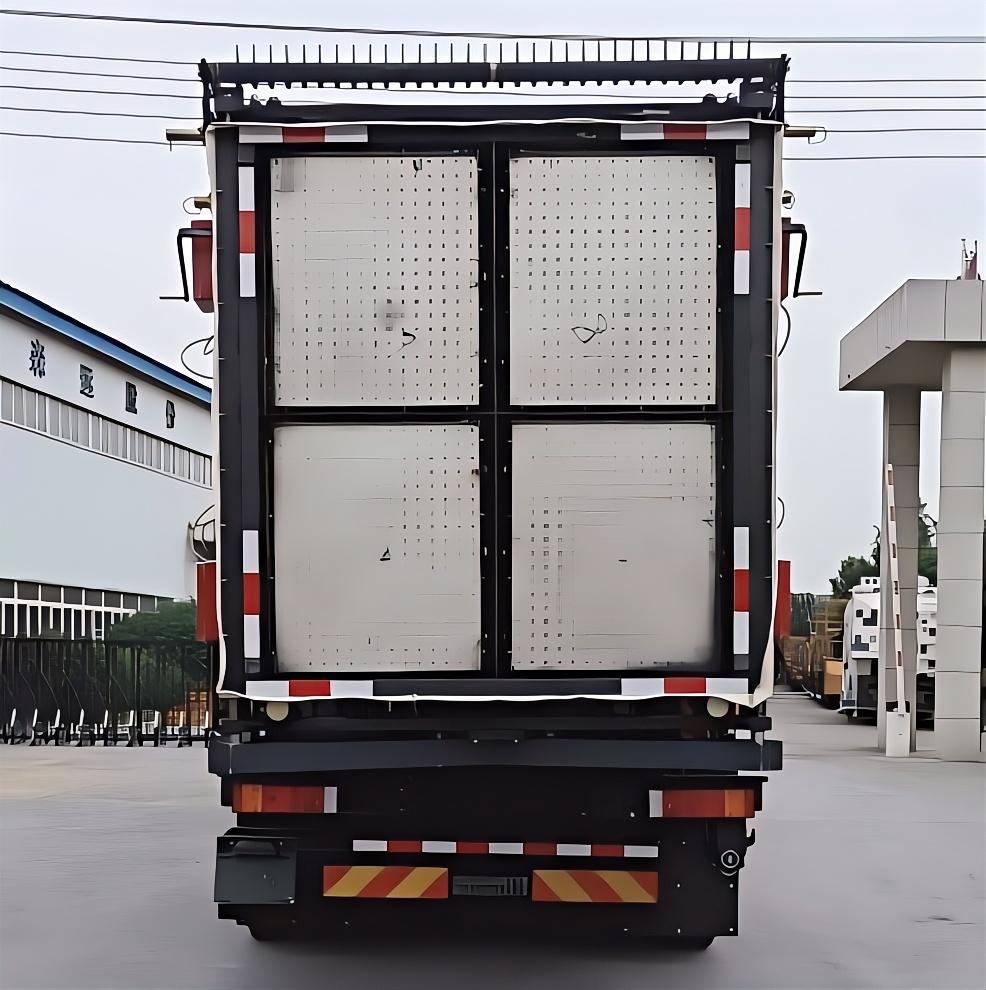

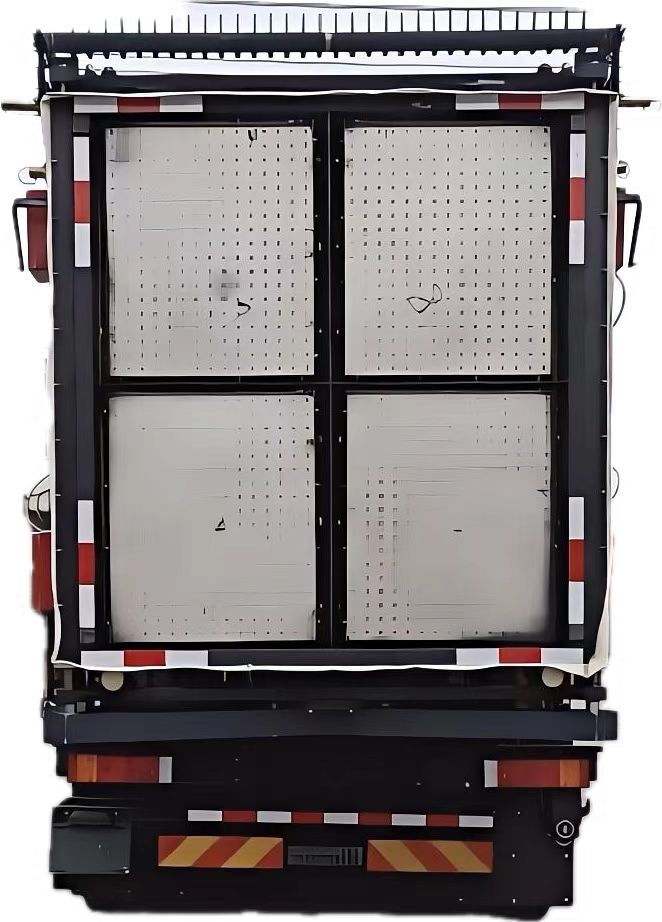

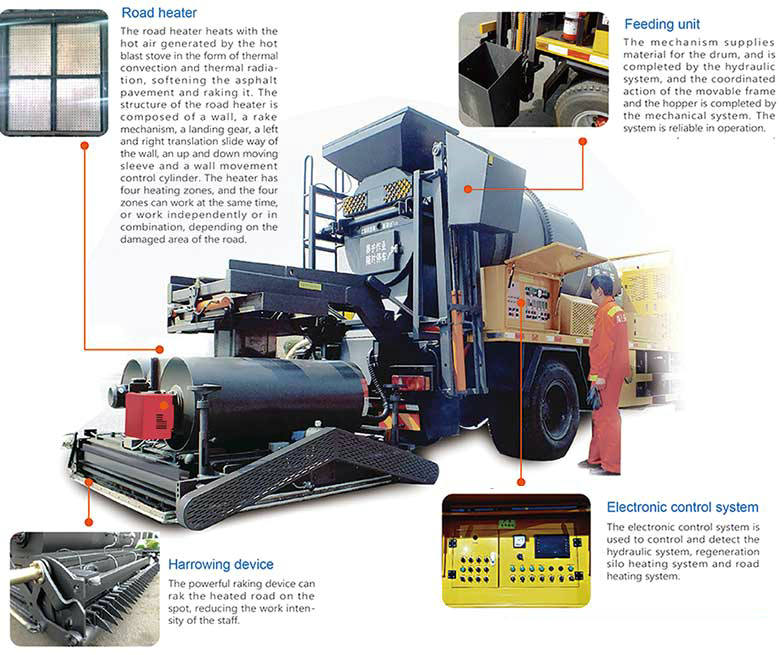

The waste asphalt can be regenerated by the drum recycler, and the new asphalt can also be mixed to reduce the cost of road repair. The damaged pavement is heated and softened by a hot air circulation heater when repaired, and the asphalt will not be subject to high temperature aging, which prolongs the service life of the repaired layer.

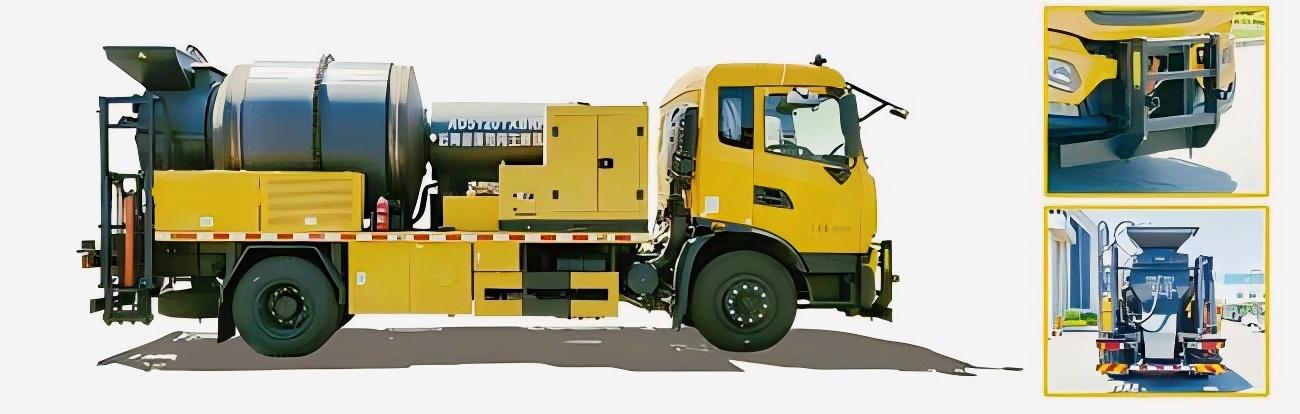

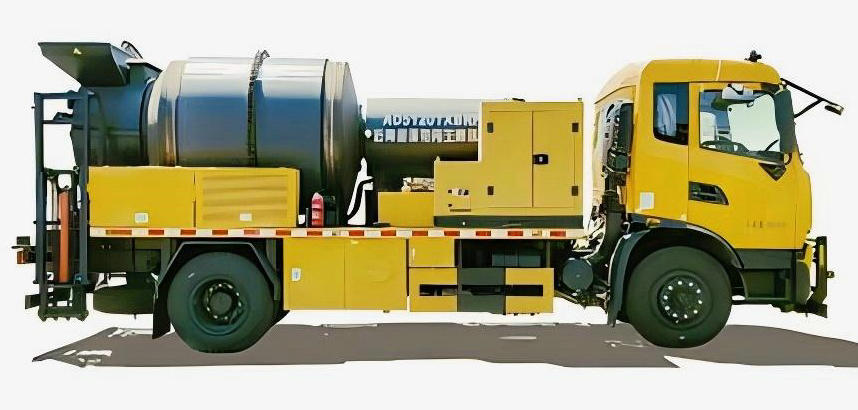

DAD5180TXBRQF/DAD5180TXBRF Hot-in-place Recycling (HIR) Patching Vehicle
Main technical parameters
Chassis | Recycled silo | Pavement heater | Feeding mechanism | Emulsified Bitumen System | Cyclone |
Model: DFH1180EX8 | Single recycle:2500kg | Panning left and right:1100mm | Single feeding time:15~20s | Volume: 100L | Air volume for dust removal: 23m3/min |
Power:154kw | Heating capacity:612000kcal | Heated Wall Zones:2 Zones | Single feeding capacity:130L | Heating device: electric | Dust box volume:7L |
Top speed:89km/h | Max. regeneration capacity:6000kg/h | Roller | Roller brackets mounted above the frame | ||

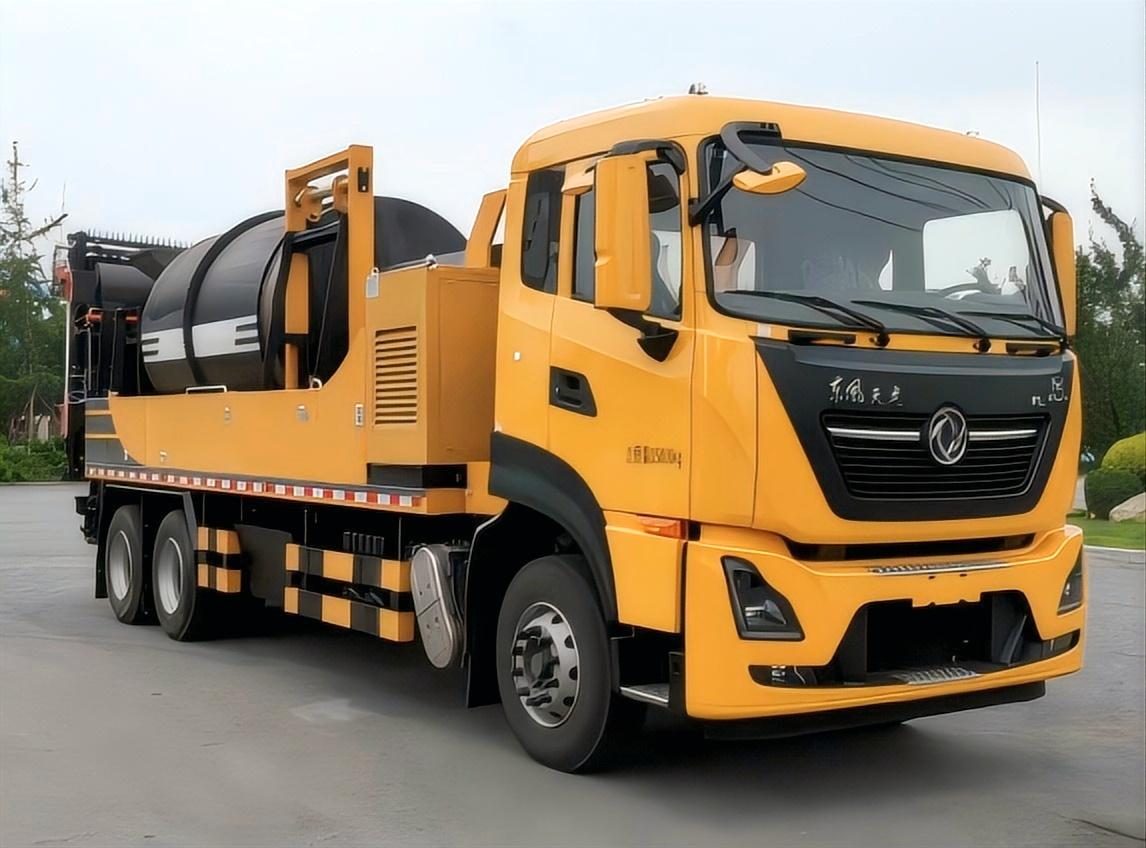

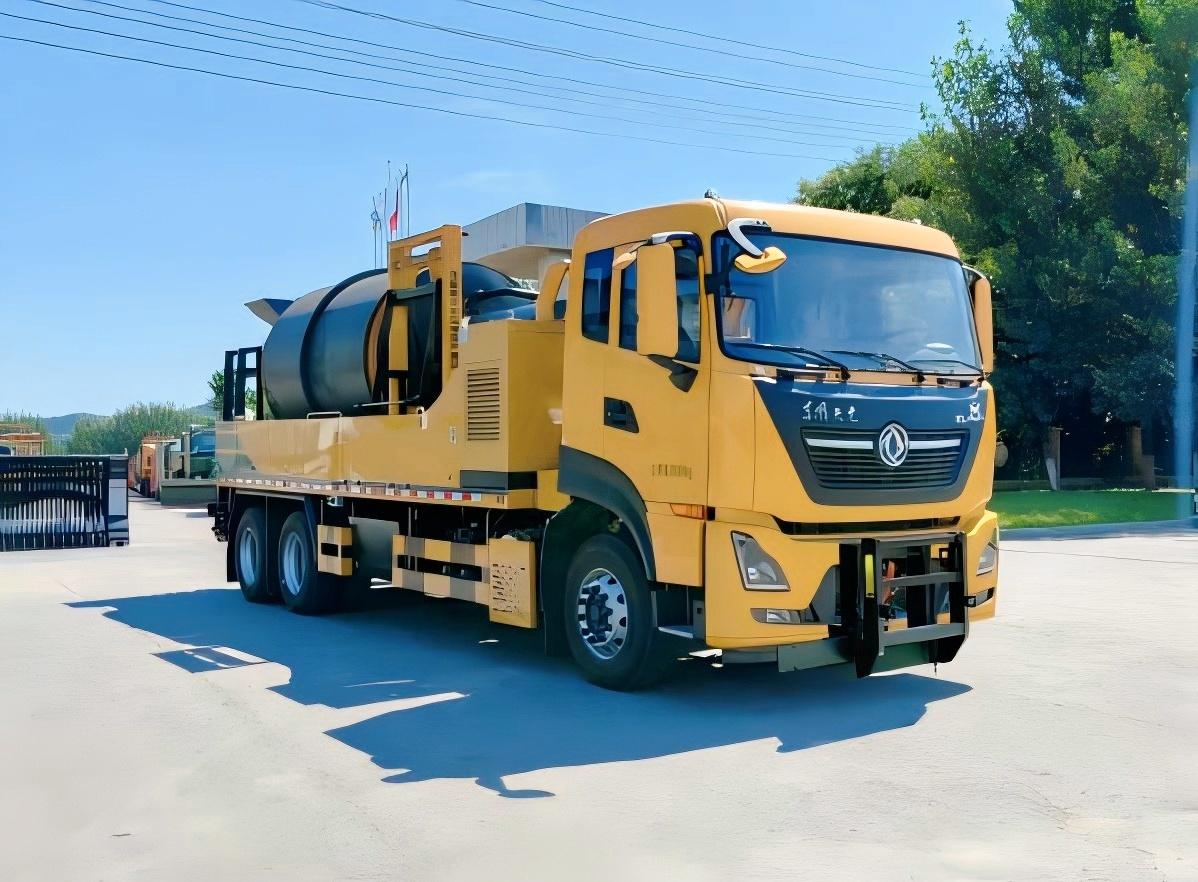

DAD5250TXBRQF/DAD5250TXBRF Hot-in-place Recycling (HIR) Patching Vehicle
Main technical parameters
Chassis | Recycled silo | Feeding mechanism | Emulsified Bitumen | Generator | Pavement heater |
Model: DFH1250D4 | Single recycle:4500kg | Single feeding time: 15~20s | Volume:100L | Power: 12kw | Heated Wall Zones:4 Zones |
Power:213kw | Heating: hot air circulation | Single feeding capacity: 130L | Heating device: electric | Voltage:380V/220V | Number of burners and circulating fans:4 |
Emission Standards: GBVI | Max. regeneration capacity:6000kg/h | Roller | Roller brackets mounted above the frame | ||
advantages of the Truck Mounted Asphalt Recycler
1. Cost savings:
The Truck Mounted Asphalt Recycler can recycle the waste road surface material and mix it with new asphalt, which greatly reduces the cost of participating in the new material.
2. Improve construction quality:
Truck Mounted Asphalt Recycler hot regeneration process can be correctly implemented to greatly shorten the repair time, strengthen the denseness of the repair, improve the durability of the repair.
3. environmental protection:
The use of Truck Mounted Asphalt Recycler can greatly reduce the waste of the original pavement materials, reduce the burden on the environment and the waste of social resources, and at the same time the use of oil atomisation combustion technology, so that the exhaust emissions can meet national standards.
4. Wide range of application:
Truck Mounted Asphalt Recycler is suitable for various types of roads and different road defects, and can flexibly adjust the stability and reliability.
Third, the use of Truck Mounted Asphalt Recycler scene
1. Urban roads:
Urban roads are used by car and pedestrian traffic with high frequency, and with the passage of time, cracks, potholes, peeling and severe wear and tear, etc. The Truck Mounted Asphalt Recycler is born for this purpose, and can easily cope with all kinds of problems on the road.
2.Municipal engineering:
Municipal projects will inevitably encounter various terrain, huge traffic, busy and other problems, this time the Truck Mounted Asphalt Recycler can optimise the city traffic conditions, shorten the repair time period.
3.Highway:
Highway is one of the roads with the largest traffic flow, for highways such as high speed Tongling section, high speed Guiyang section, high speed Yilan section, high speed Shanghai and Hangzhou section and other parts of the road surface need to be repaired due to different circumstances, Truck Mounted Asphalt Recycler can greatly improve the work efficiency and pavement maintenance rate.
4.Airport runway:
Airport runway is an important place for aviation safety, for runways such as airports large model airports, due to excessive runway manoeuvres lead to a decline in runway uniformity, so that the runway often need to be repaired, Truck Mounted Asphalt Recycler can effectively solve the runway problem, to ensure flight safety.
Thermal regeneration technology can maximise the retention of old asphalt pavement materials that have already been used, avoiding waste of resources and secondary pollution. When repairing the pavement, the already broken asphalt crushed material can be softened by heating, and then processed by mixing, regenerating and adding materials. This can maximise the use of waste materials without destroying the molecular structure of asphalt, and realise the recycling of resources.
Customize DFAC/FAW/SHACMAN/SINOTRUCK HOWO/JAC /ISUZU/JMC
