SITRAK YT32M Aerial Ladder Fire Fighting Truck

Share to:

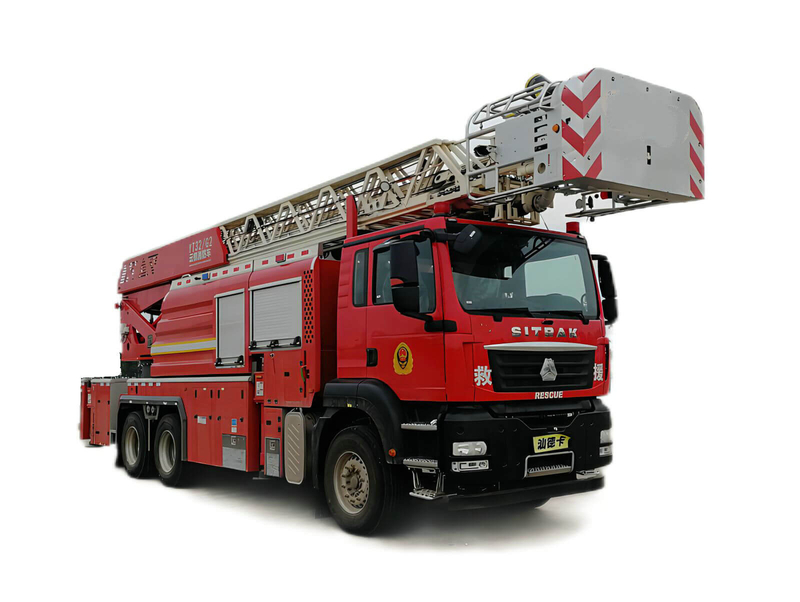

SITRAK YT32M Aerial Ladder Fire Fighting Truck

SITRAK YT 32M Aerial Ladder Fire Fighting Truck
32m ladder, fire cannon Pump Flow 50L/s
Water Tank 3500L, Foam Tank :2100L
Price for refer only. Final Price Offer Discount.

Price: $ 388000

Discount Price: $ 386000

Availability:

Quantity:

Model:
XZJ5324JXFYT32/G2
Brand:
DONG RUN ZE
Code:
8705301000

Product Description

SITRAK YT32M Aerial Ladder Fire Fighting Truck

32m ladder, fire cannon Pump Flow 50L/s

Water Tank 3500L, Foam Tank :2100L

Chassis Sinotruck : ZZ5357TXFV464MF1 , ZZ5356V524MF1 Aerial ladder fire trucks (117) Aerial ladder fire trucks (118) Aerial ladder fire trucks (120)

Overall dimensions:	11440×2540×4000(mm)	Fuel Type:	Diesel oil
Total mass:	32000(Kg)
Net	26250(Kg)	Rated load mass:	5600(Kg)
Approach Angle/Departure Angle:	18/9 (°)	Front/rear overhang:	1492/2843(mm)
Axle Load:	8250/11870/11880	Wheelbase:	4325+1350,4300+1400,4625+1350,4600+1400,4675+1350,4650+1400,4825+1350,4800+1400,5025+1350,5000+1400,5200+1400,5525+1350,5500+1400,5800+1400,6000+1400(mm)
Number of shafts:	3	Maximum speed:	90(km/h)
Number of tires:	10(PCS)	Tire Specifications:	385/65R22.5/315/80R22.5,385/65R22.5/12.00R20
Fuel consumption:	(L/100Km)	Number of spring pieces:	4/5,10/12
Front wheel base:	2110(mm)	Rear wheel base:	1850/1850(mm)

Engine type

Engine manufacturer

Volume (ml)

Power (kw)

WP10.5 H430E62; MC11.46-61; MC11.43-61; MC11.40-61; MC13H.60-61; MC13H.57-61; MC13.54-61; MC13.50-60; MC13.48-60; MC11.44-60; MC11.40-60; MC13.50-61; WP10.5 H460E62; MC13.46-61; MC13H.51-61; MC13H.54-61; MC11H.46-61

Weichai Power Co., LTD. China Heavy Duty Automobile Group Co., LTD.

10520; 10518; 10518; 10518; 13020; 13020; 12419; 12419; 12419; 10518; 10518; 12419; 10520; 12419; 13020; 13020; 11050

316; 341; 319; 297; 444; 422; 400; 371; 356; 327; 297; 371; 338; 341; 378; 400; 341

This model is a special operation vehicle for fire fighting. Total tank volume :5.600 cubic meters, water tank volume :3.500 cubic meters, water tank size :1210×2460×1230mm, foam tank volume :2.100 cubic meters, foam tank size :725×2460×1230mm. Integrated side and rear protection structure, rear protection height from the ground :455mm, front :1105mm.ABS manufacturer is WABCO Automotive Control System (China) Co., LTD.,

The main special equipment are ladder, fire pump, fire cannon.

wheelbase of 4600+1400mm

Optional strobe light color, vehicle logo.
