XZJ5326JXFYT53/G1 , ZLF5323JXFYT53
-
DONG RUN ZE
-
8705301000

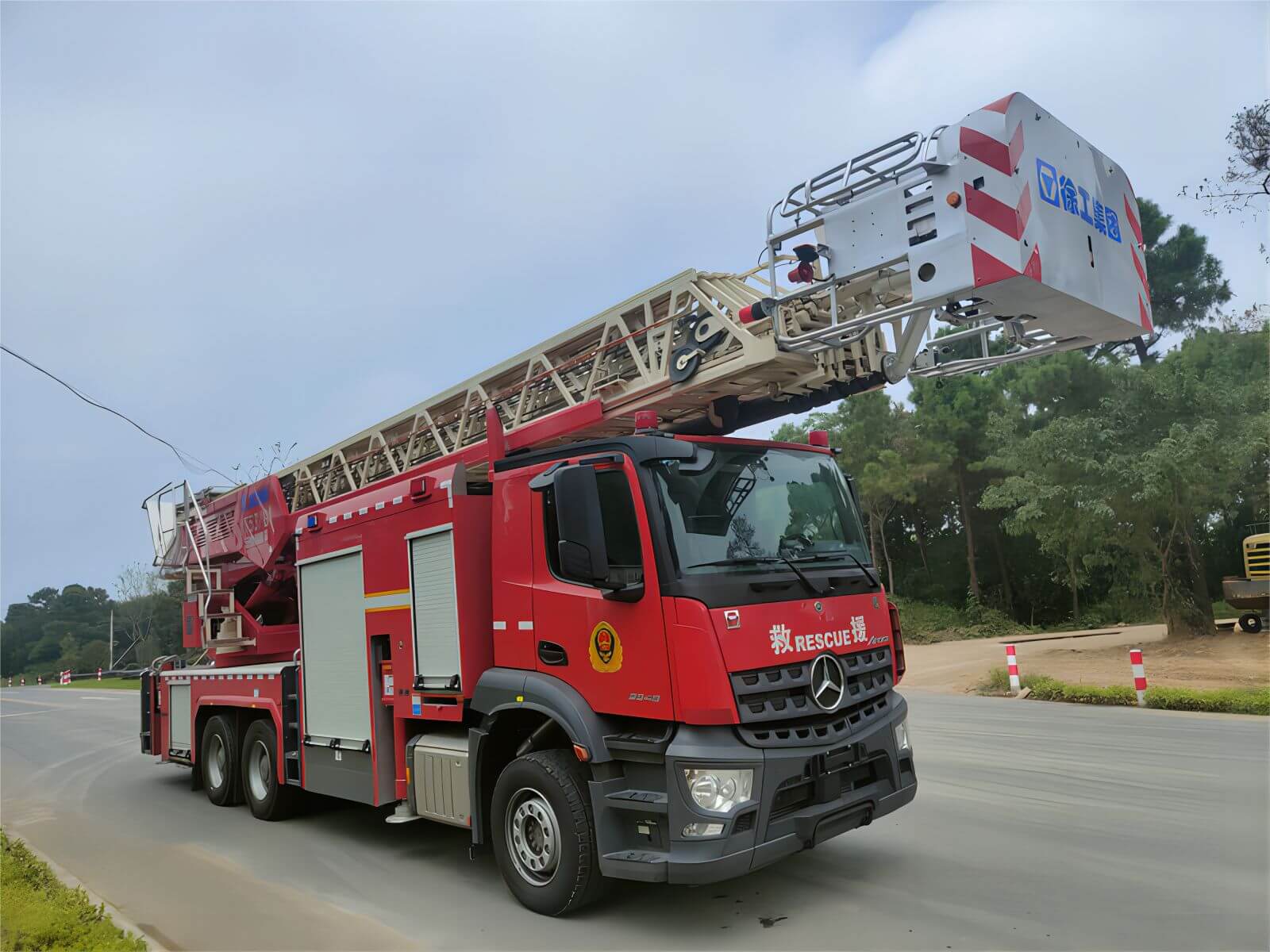

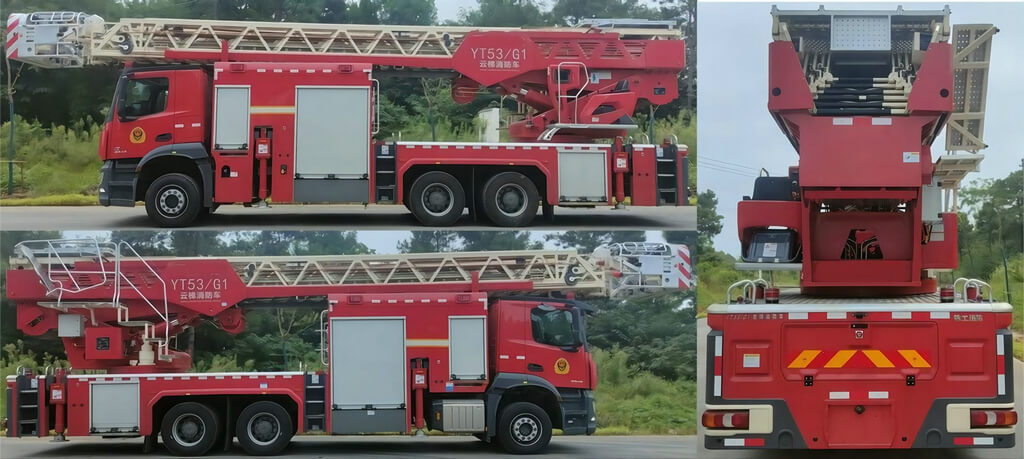

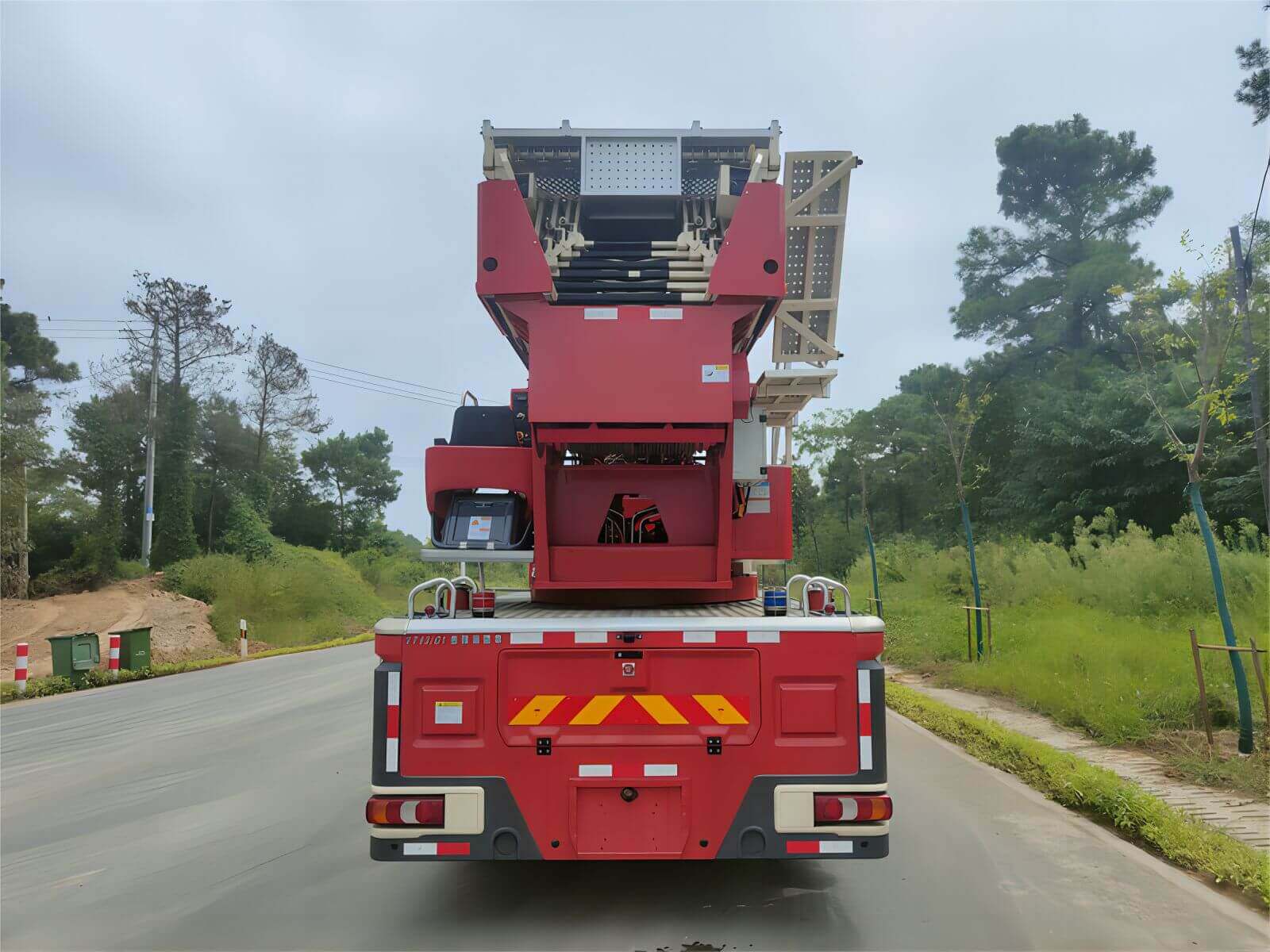

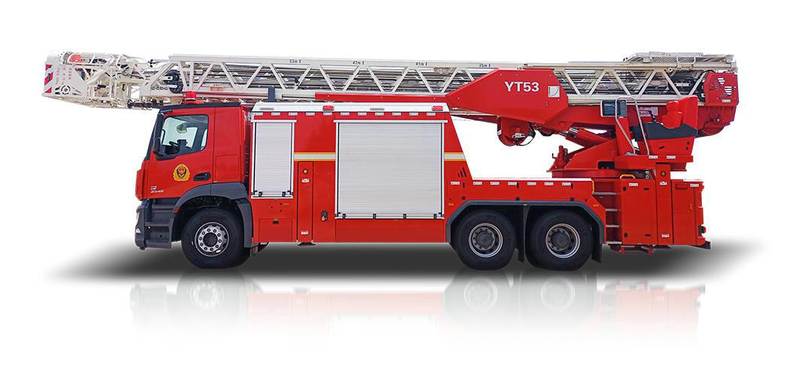

Arocs 6X4 YT53 M Aerial Ladder Fire Truck
53m ladder, fire cannon, Water Tank 1500L
Chassis BenzArocs 3346E
Overall dimensions: | 13070×2510×4000(mm) | Fuel Type: | Diesel oil |
Total mass: | 32480(Kg) | ||
Net | 30780(Kg) | Rated load mass: | 1550(Kg) |
Approach Angle/Departure Angle: | 15/7 (°) | Front/rear overhang: | 1500/3315(mm) |
Axle Load: | 7220/12480/12780 | Wheelbase: | 4800+1350(mm) |
Number of shafts: | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/55 r22. 5/315/70 r22. 5/315/70 r22. 5 385/65 r22. 5/315/80 r22. 5/315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/4 |
Front wheel base: | 2140(mm) | Rear wheel base: | 1804/1804(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM470LA.6-56 | Daimler Trucks AG | 10677 | 336 |
A: special operation vehicle for fire fighting. Tank volume :1.550 cubic meters, tank size :795×1700×1200mm. Integrated side and rear protection structure, rear protection height from the ground :388mm, front extension :1805mm, rear extension :300mm.ABS manufacturer is WABCO Automotive Control System (China) Co., LTD., model ABS-E 4S/4M. The main special equipment are ladder, fire pump and fire cannon. Maximum net engine power is 335kW. Strobe light color optional. B:Tank volume :2.15 cubic meters, tank size :1435×1420×1090mm. Integral side protection structure, rear protection device material :Q345B, section size :140×58mm, connection with the vehicle: bolt connection, rear protection height :380mm, front extension :1780mm, rear extension :980mm. EBS manufacturer is WABCO, model EBS4+. The main special devices are ladder, fire pump, fire cannon. | |||
Performance | Unit | Parameter |
Chassis model | - | Benz 3346 |
Maximum engine power | kW/rpm | 335 |
Number of passengers | People | 2 |
Maximum travel speed | kmh | 90 |
Maximum fire extinguishing radius | m | 90 |
Overall dimensionsL×W×H | mm | 12960x2530x3995 |
Total mass | kg | 31650 |
Rated load of sliding bucket | kg | 1 80 |
Round trip time of sliding bucket | s | 100 |
Ladder frame action time | s | ≤100 |
Tank volume | kg | 2000 |
Fire pump flow | L/min@MPa | 6000@ 1.03 |
Fire monitor flow | L/min | 4800 |
Fire cannon range | m | 75 |
Rated load of working bucket | kg | 300 |
