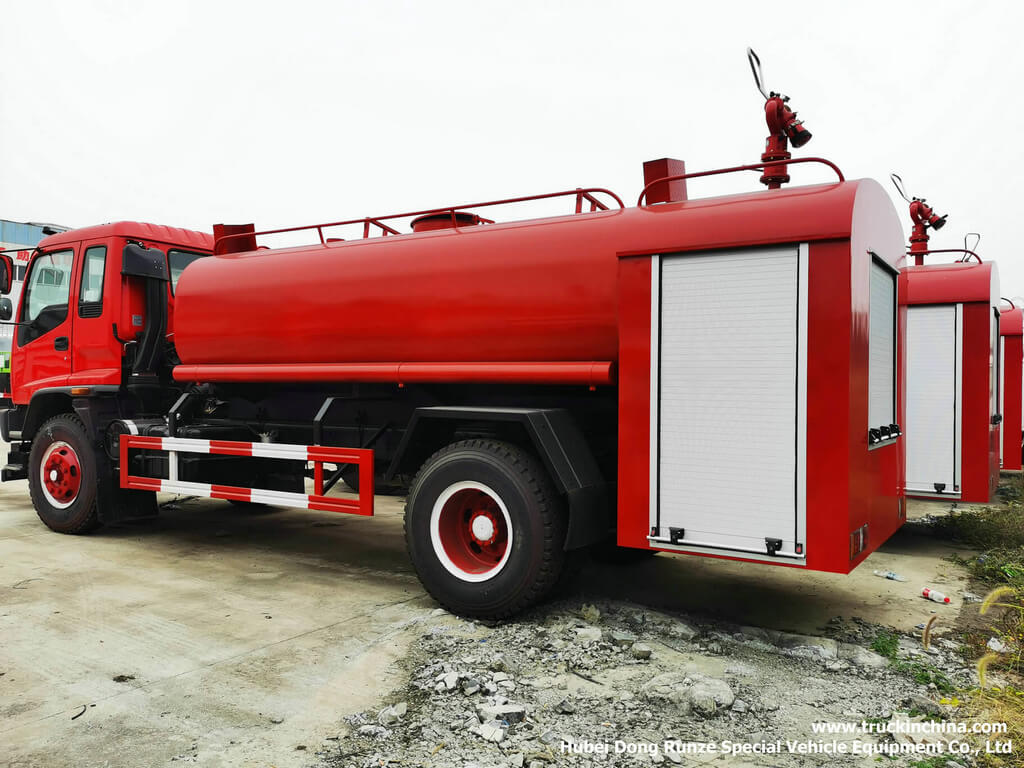

ISUZU Fire Truck / Fire Engine With Stainless Steel Water Tank PTO Sandwich Type For Fire Pump Sprinkler 50L/s Cannon PS10/50W-D

Vehicle parameters

Overall Dimension (L x W x H)

≤8015×2480×3470mm

Curb Weight:

9635Kg

GVW:

18000Kg

Fire Extinguishing Agent load：

6000Kg

Specific Power：

≥10.4

Wheelbase:

4500mm

Max Speed:

90Km/h

Drive Type:

4x2

Engine Model:

6HK1-TCL

Engine

Engine Power:

177(kw)

Delivery Capacity:

7790(ml)

Horsepower:

240PS

Transmission:

  MLD-6Q(Manual)

Transmission

Forward Gear:

6 Speed Gear

Backward Gear:

1 Speed Gear

                Chassis

Front/Rear Wheel Distance:

1960/1855mm

Front/Rear Suspension:

1335/1735 mm

Axle Loads:

6500/11500kg

Fuel Tank Capacity:

200L

Axle Number:

2

PTO:

XLX/700pXQ, sandwich type

Tires:

7(including 1 spare tire)

Tire Model:

11.00R20 16PR

Chassis Standard

Configuration:

1

Power Steering

2

Central Lock

3

AC

4

Retro-reflective Marking

5

Power Window

6

ABS

7

Radial Tire

8

Data Recorder

9

Free Maintenance Battery

Cab:

Cab Structure:

Double row seat, four door opening, six seats, equipped with forward turning double ejector rod turning system;

         Equipment:

1

100W control system with sound reinforcement and alarm functions

Air conditioner and high quality car audio system

Front instrument panel with fire control switch

57 " LCD screen reversing monitoring system

Fire communication/vehicle radio power pile head and fixed seat

The rear seat is provided with 4 air respirators and seat belts

Water Tank:

Capacity:

6000L-8000L

Material：

Carbon Steel or Stainless steel

    Tank Equipment:

External water filling hole:

Each side is equipped with a DN80 upside-down external water injection interface, which is equipped with an interface, a filter screen and a cover

Manhole：

Topped with a Φ 450 mm manhole covers which has the function of pressure relief that can fast lock and open.

                Others：

1 pcs water level sensor, 1 pcs overflow pipe line, 1 pcs sewage outlet controlled by DN40 stainless steel ball valve

         Power Take-off

Type：

Sandwich type one shaft power take-off

Combination Mode:

Electronically controlled pneumatic control

Cooling Mode:

Forced water cooling system

Lubrication Mode:

Forced water cooling system

Output rotation

Same as engine rotation

          Fire Pump:

Model:

CB10/30, CB10/40,CB10/60,or CB20/30

Material

Pump axle is stainless steel, Pump housing and impeller is aluminum alloy

Assemble Type:

Rear-mounted

Sealing form

Mechanical seal

Main performance:

Situation 1: When pressure is 1.0MPa, flow is 60L/s,

situation 2: when pressure is 2.0MPa, flow is 30L/s

      Priming Device:

Type:

Double piston pilot pump

Maximum Vacuum Degree:

≥85

Depth:

7m

Water diversion time

≤35s

Vacuum drop value in 1 minute:

≤2.6 kPa

         Pipe System

Material:

Aluminum alloy casting parts, seamless pipes after anti-corrosion treatment

Connect form:

Cassette

Pump suction:

DN150 rear water filing type, equipped with Tube tooth interface, an interface, a filter screen and a cover

Water tank to pump pipe:

DN150 controlled by Electrically controlled pneumatic butterfly valve

Outlet:

1 pcs DN80 and 1 pcs DN65 outlet on left and right sides, with outlet valve, joint and door cover.

Water tank filling pipe:

DN65 controlled by Electrically controlled pneumatic butterfly valve

Monitor injecting pipe:

DN100 controlled manual ball valve

Drain Residual Water Pipe:

Manual drain valve at the rear of the truck

Cooling water pipe:

PTO equipped with cooling pipe.

           Fire Monitor:

Model:

PS25-50 (adjustable)

Rated Flow:

50L/S

Work pressure:

1.0MPa

Shooting range:

≥65m

Horizontal rotation angle:

360°

Back leaning Angle：

-10～70°

Alarms, Signals and

Lighting Device:

1

LED red long row alarm light is installed on the top of the cab

2

2 pcs LED warning flashlights are respectively installed at the front, rear and upper sides of the carriage

3

A red circle alarm light and an external remote control cable retractor light are respectively installed at the rear of the roof

4

LED lighting equipped in pump room and storage compartment

5

External LED light strip equipped on the both sides of the reservoir

6

automatic charging device

7

According to the standard configuration of sign lights, front and rear clearance lamps and reflective signs on both sides of the rear of the truck

              Painting:

Tops and cab appearance:

R03 RED

Auxiliary girder, support, reinforcer

Black

Fire pump inlet pipe and water tank to pump pipe:

G05 Dark Green

Fire pump water pump:

R03 RED

         Tops frame:

Material:

Main frame is stainless steel, inner frame is aluminum type material, skin, clapboard, bottom plate is flat aluminum plate, roof and pedal standing surface is pattern aluminum plate.

Structure:

Main frame is frame weld, skin and clapboard is bonded by silica gel to frame. Inner frame is aluminum alloy profile construction

Doors:

Aluminum alloy rod type curtain door(7pcs)

Top and upper side of body

The top is made of non-slip material, and the top is made of aluminum alloy on both sides. The inner side can be embedded with LED lighting belt, and the outer side can be embedded with LED alarm flash light. The upper part of the rolling door on both sides is provided with a drop sink made of aluminum alloy profiles, which can be embedded with LED light strips. Aluminum alloy ladder and handrail for upper and lower car roof are installed on the right side of rear.
