ZLF5322JXFYT42
-
DONG RUN ZE
-
8705301000

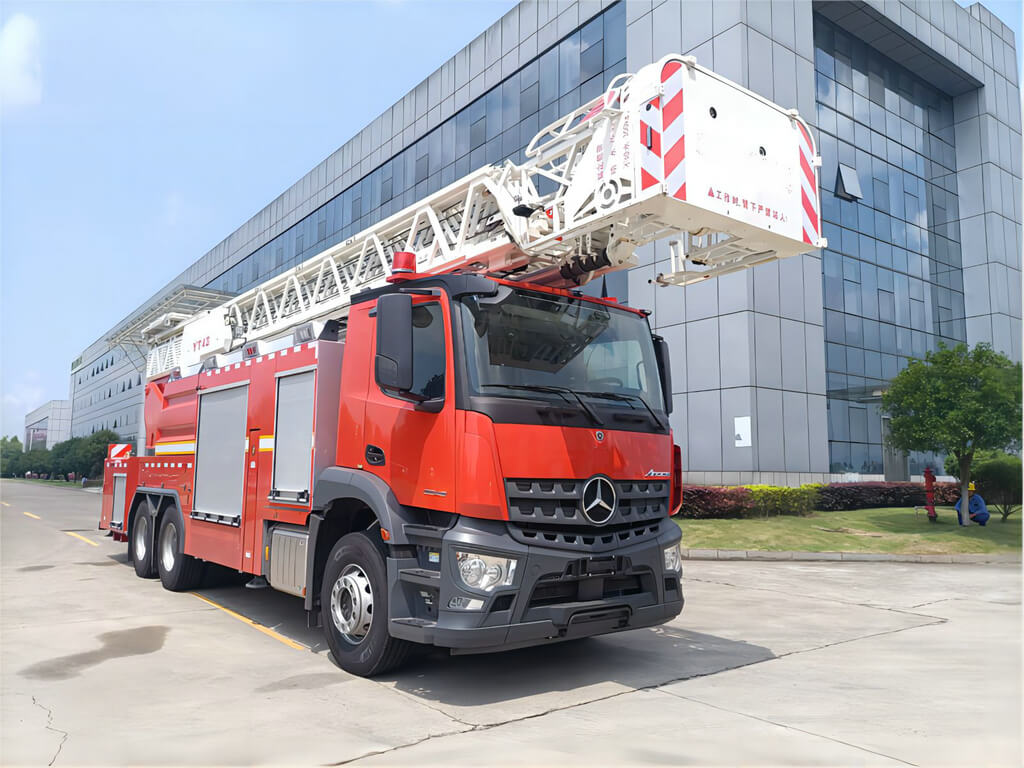

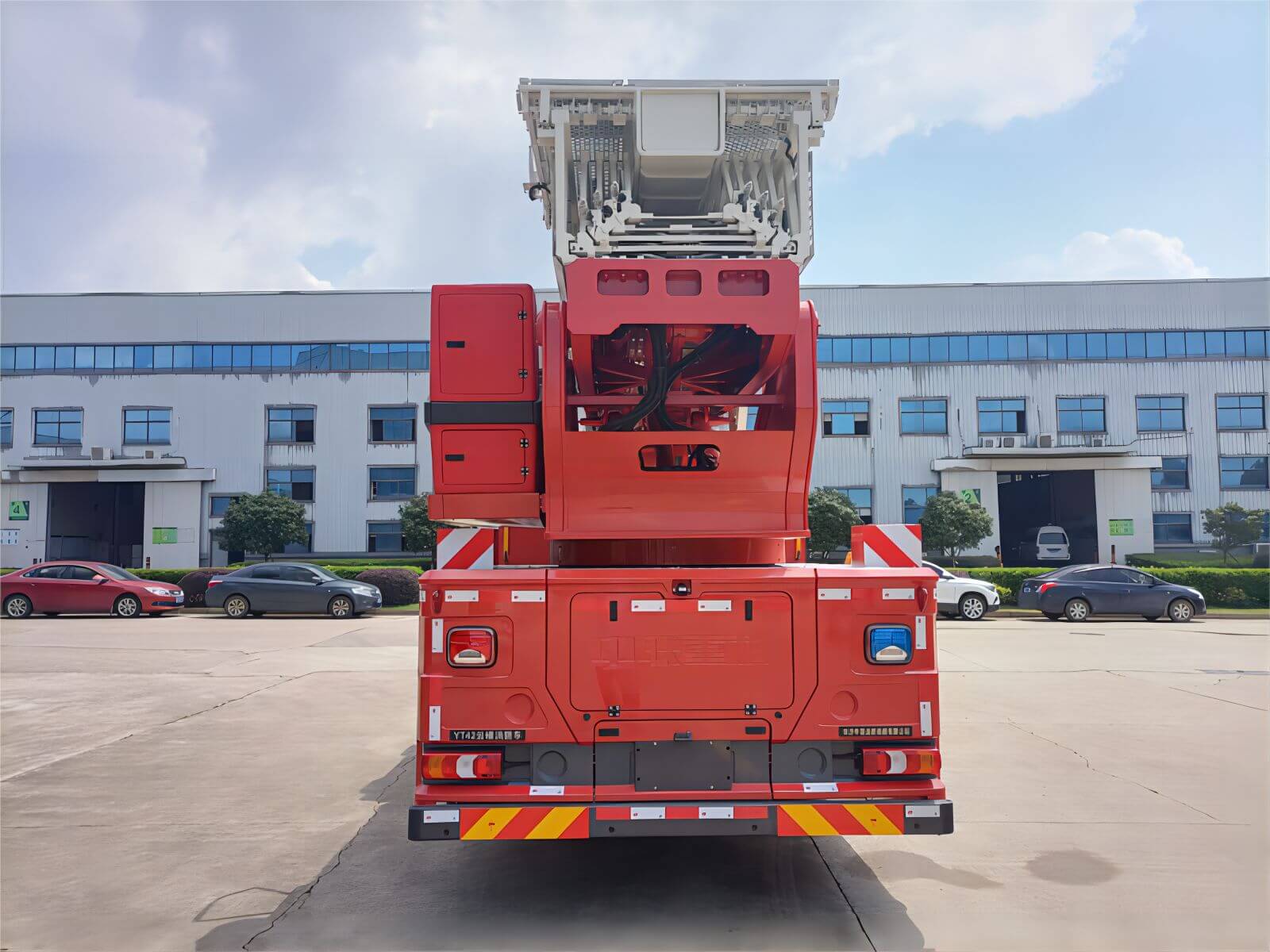

Arocs 6X4 YT53 M Aerial Ladder Fire Truck
42m ladder, fire cannon, Water Tank 3000L ,Foam Tank 1000L
Chassis BenzArocs 3346E
Overall dimensions: | 12000×2530×4000(mm) | Fuel Type: | Diesel oil |
Total mass: | 31550(Kg) | Load mass utilization factor: | |
Net | 27400(Kg) | Rated load mass: | 4000(Kg) |
Approach Angle/Departure Angle: | 17/10 (°) | Front/rear overhang: | 1520/2830(mm) |
Axle Load: | 6950/12300/12300 | Wheelbase: | 4800+1350(mm) |
Number of shafts: | 3 | Maximum speed: | 85(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | Three quarters of |
Front wheel base: | 2058(mm) | Rear wheel base: | 1804/1804(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM470LA.6-56 | Daimler Trucks AG | 10677 | 336 |

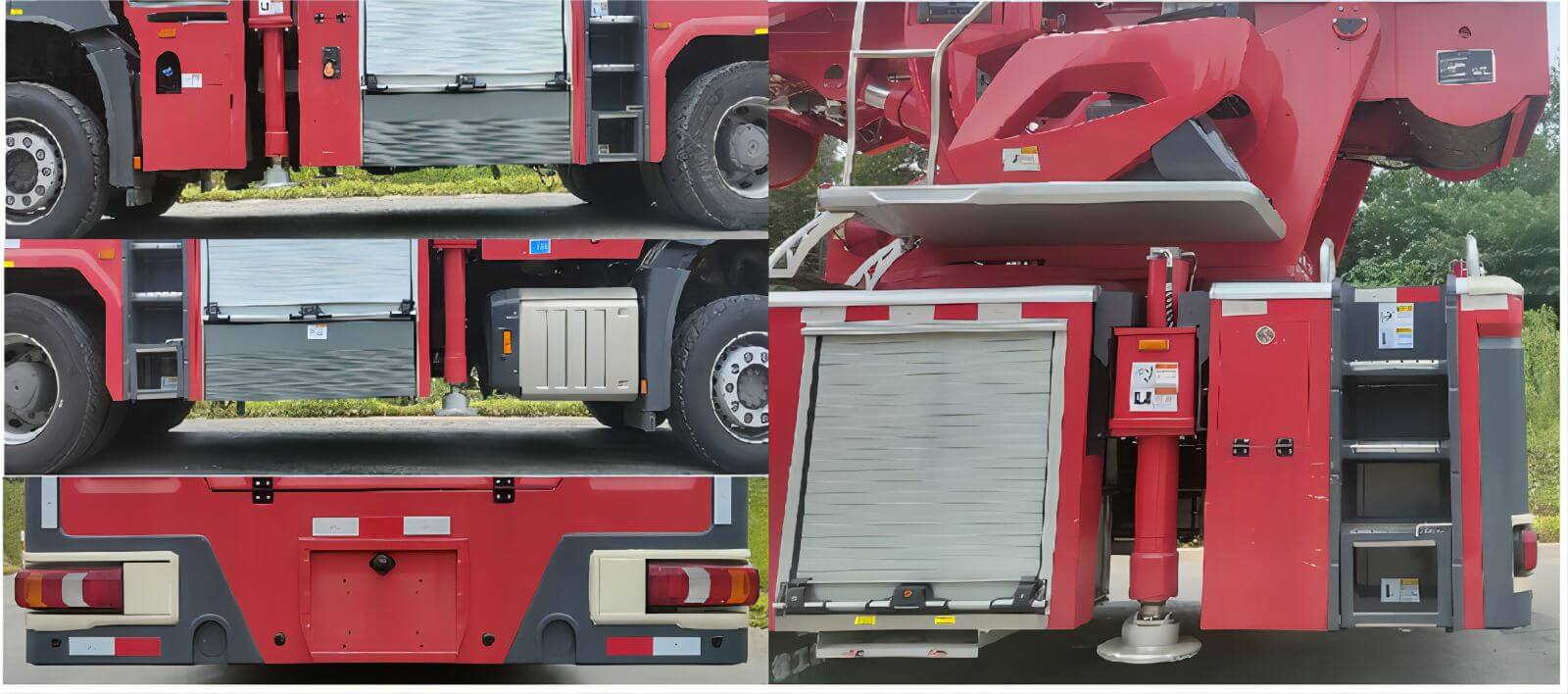

Total tank volume :4.000 cubic meters, tank volume :3.000 cubic meters, tank size :1155×2480×1080mm, foam tank volume :1.000 cubic meters, foam tank size :385×2480×1080mm. Integral side protection structure, rear protection device material :Q345B, section size :58×140mm, connection with the vehicle: bolt connection, rear protection height from the ground :475mm, forward :1300mm, rear :200mm. EBS manufacturer is WABCO, model EBS4+. The main special devices are ladder, fire pump, fire cannon. | |||

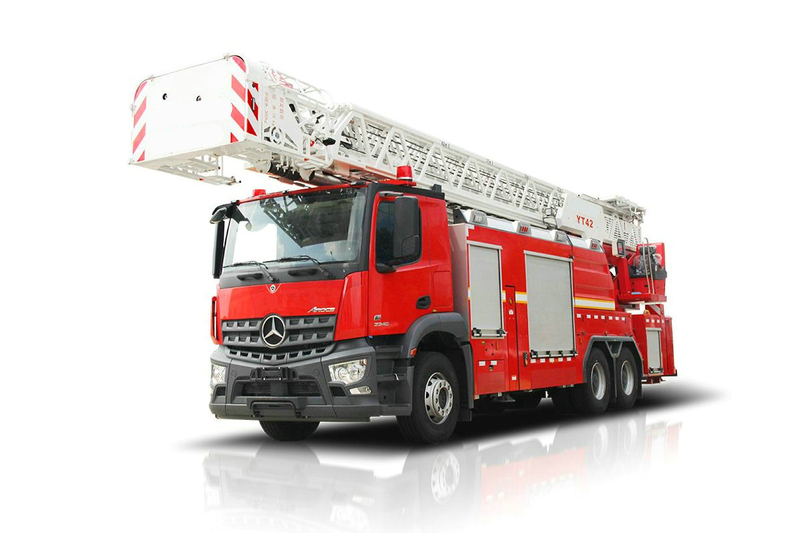

Fire-fighting Machinery 42m YT42 Ladder Fire Truck
Product parameters
| performance | Unit | parameter |
| Chassis model | - | Mercedes Benz 3346 |
| Maximum engine power | kW/rpm | 335 |
| Number of passengers | persons | 2 |
| Maximum travel speed | kmh | 90 |
| Maximum extinguishing radius | m | 90 |
| Overall dimensions L×W×H | mm | 12200x2500x3960 |
| Total mass | kg | 32000 |
| Bucket load rating | kg | 180 |
| Bucket round-trip time | s | 100 |
| Ladder frame action time | s | ≤100 |
| Tank volume | kg | 3000(k) + 900(foam) |
| Fire pump flow | L/min@MPa | 5400@1.03 |
| Fire cannon flow | L/min | 4800 |
| Fire cannon range | m | ≥70 |
| Work bucket load rating | kg | 300 |
