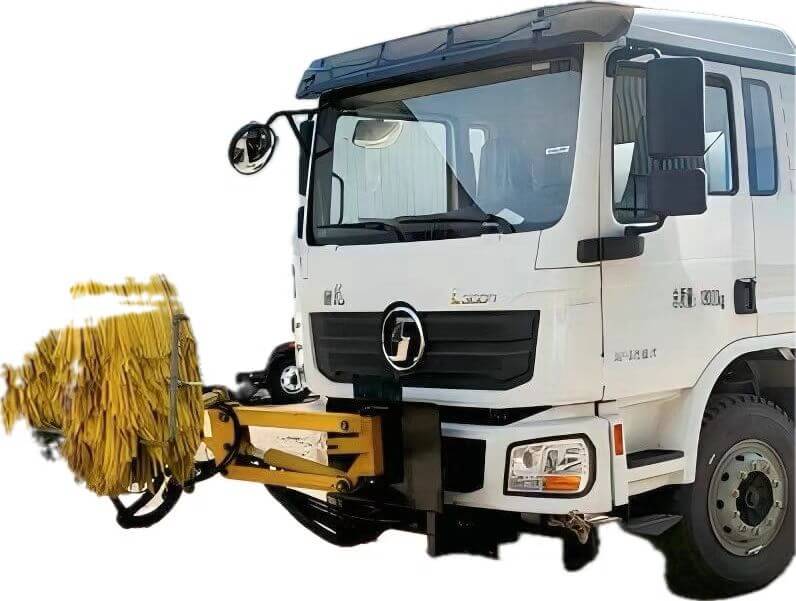

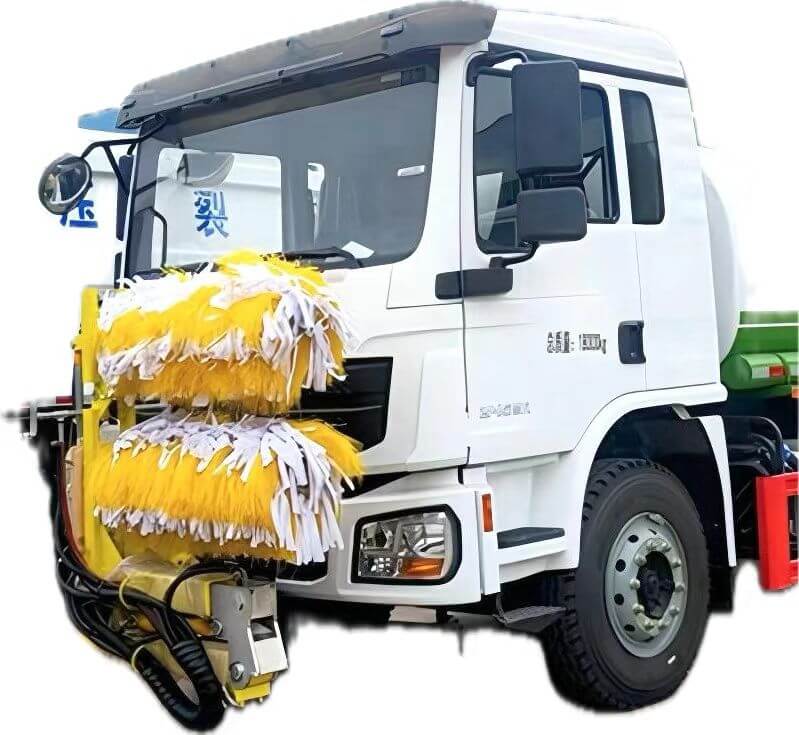

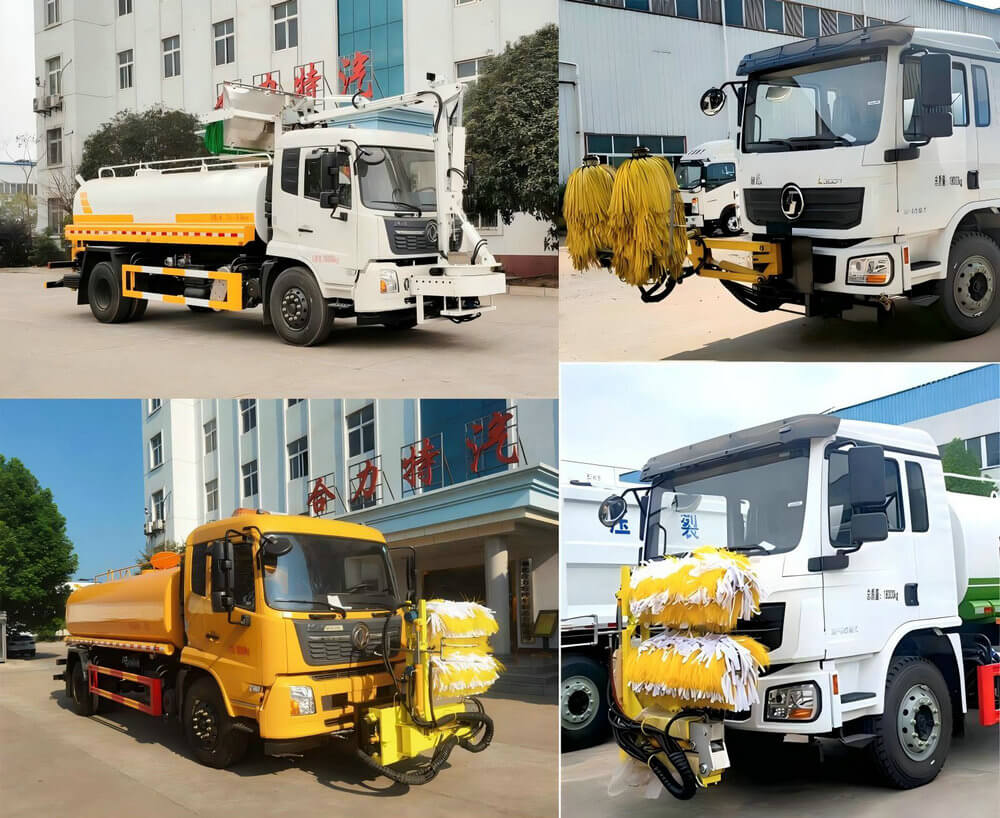

Customize Shacman Guardrail Cleaner Truck (10-12 M3 Water Tank)
Special Vehicle for urban Road guardrail cleaning,

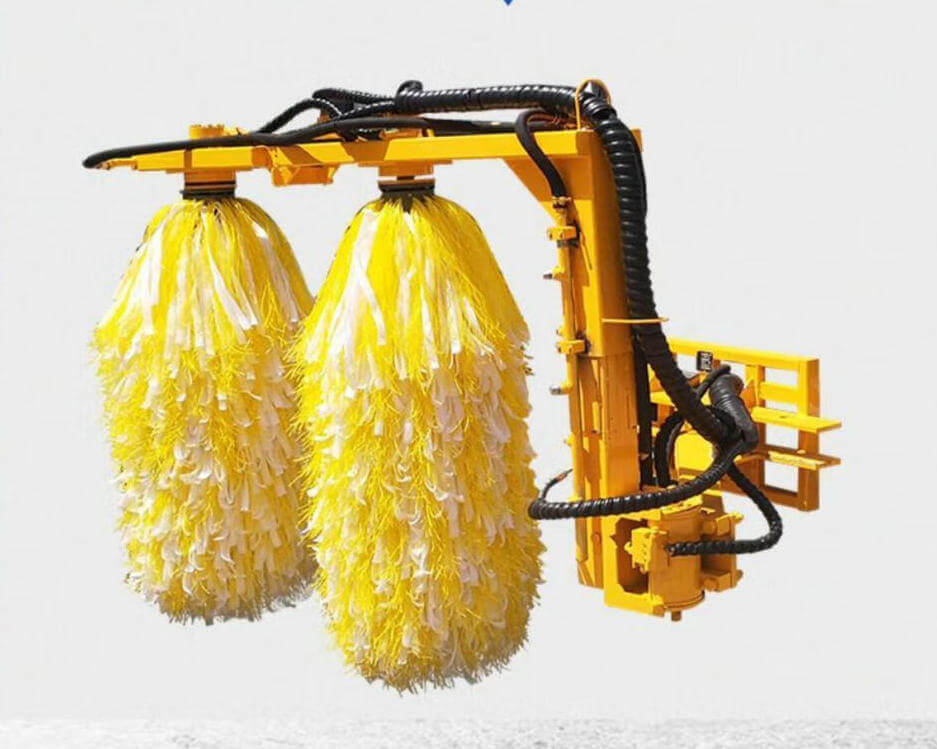

Special device :Guardrail Cleaner Merchine device;
Total tank capacity :10.5
Price for refer only. Final Price May Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
DHHX5181GQXS6
-
Dong Run ze
-
8705909990
Customize Shacman Guardrail Cleaner Truck (10-12 M3 Water Tank)
SHACMAN Chassis :SX1189LA1F1C
Special Vehicle for urban Road guardrail cleaning,
Special device :Guardrail Cleaner Merchine device;
Total tank capacity :10.5 cubic meters, effective tank volume :10 cubic meters.
Overall dimensions: | 8120×2520×3150(mm) | Fuel type | Diesel |
Gross Weight | 18000(Kg) | ||
Net weight | 7800(Kg) | Rated load | 10005,10070(Kg) |
Approach Angle/Departure Angle: | 18/11,18/12,18/13(°) | Front/rear overhang: | 1340/1860,1340/2060,1340/2560(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 4500,3800,4200,4700, 5100,5300,4000,5600,3900(mm) |
Axle Number | 2 | Maximum speed: | 89(km/h) |
Fuel consumption: | (L/100Km) | Suspension Spring : | 10/9+6,3/4+3,3/-,7/7+3,7/7+6 |
Number of tires: | 6 | Tire : | 10.00R20 18PR,11R22.5 18PR,295/80R22.5 18PR |
Front wheel track: | 1935,1960(mm) | Rear wheel track: | 1860(mm) |
Suspension system | Cantilever length | ≥2500mm |
Roller brush mechanism | Number of cleaning brushes | ≥2 Sets |
Cleaning brush height | ≥800mm | |
Roller brush working height | 150mm-2200mm adjustable | |
Roller brush spread diameter | ≥ 1600 mm | |
Scrubbing angle | Both left and right can be brushed | |
Cylinder lift | The roller brush flips up and down 180 degrees | |
Operating speed | ≥800r/min | |
Sprinkler system | Water spray flow rate | ≥40L/min |
Water spray pressure | ≥6MPa | |
Tank effective volume | ≥10m³ | |
Water cannon range | ≥35m | |
Sprinkler system quality | Cleanliness | ≥98% |
Sprinkler width of waterway system | ≥14m | |
Operation speed | ≥5-30km/h | |

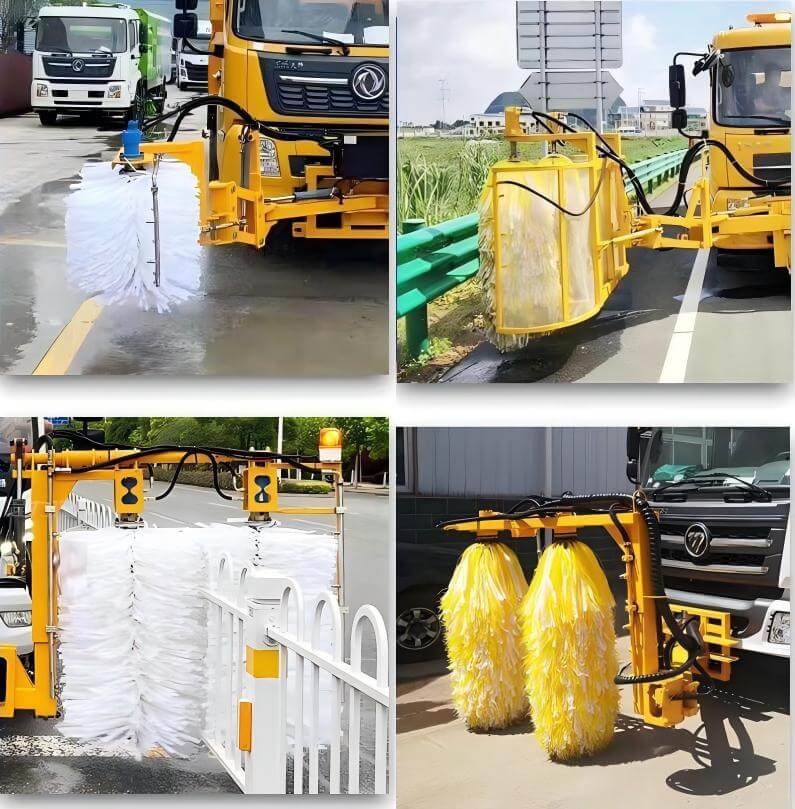

Cleaning facilities | Function description: It can wash corrugated guardrails, isolation guardrails, anti-collision walls, sound insulation screens, anti-glare nets, road washing, greening spraying, etc. | |
Tunnel Cleaning Vehicles
Engine | Displacement (ml) | Power (kw)/ horsepower (ps) |
B6.2NS6B230 | 6200 | 169/229 |
B6.2NS6B210 | 6200 | 154/209 |
YCS06270-60 | 6234 | 199/270 |
YCS06245-60 | 6234 | 180/244 |
WP6H270E61 | 6220 | 199/270 |
WP6H245E61 | 6220 | 180/244 |
YCK05240-60 | 5132 | 176/239 |
YCK05210-60 | 5132 | 157/213 |
YCK05190-60 | 5132 | 140/190 |
WP4.6NQ220E61 | 4580 | 162/220 |
B6.2NS6B260 | 6200 | 191/259 |
B6.2NS6B245 | 6200 | 180/244 |
YCS04200-68 | 4156 | 147/199 |
WP4.6NQ220E61A | 4580 | 162/220 |
WP7H270E68 | 6800 | 199/270 |
WP4.6NQ220E62 | 4580 | 162/220 |
YCS04200-61A | 4295 | 147/199 |
YCS04220-61A | 4295 | 162/220 |
