SHACMAN Tractor Insulated bitumen tanker trailer semitrailer 50cbm with two Burner heater

50,000 liters 3 axle bitumen insulation tank semi-trailer
Tank volume: 50,000 liters
Tanker material: Carbon steel-Q235A
Tank medium: Bitumen,liquid asphalt,coal tar oil,crude oil
No.of axle: 3 axle BPW or FUWA
Heating system: 2 BALTUR TBL45P ITALY burner heating
Insulation layer: Rock wool 80mm and outer stainless steel cold plate
Price: $ 29800
Discount Price: $ 28500
FOB:
Availability:
Quantity:

  • DRZ9405GLQ

  • Dong run ze

  • 8716319000

 bitumen tanker semitrailer  45cbm   with two  Burner heater  Insulated bitumen tanker trailer

50,000 liters 3 axle bitumen insulation tank semi-trailer

Tank volume:50,000 liters

Tanker material:Carbon steel-Q235A

Tank medium:Bitumen,liquid asphalt,coal tar oil,crude oil

No.of axle:3 axle BPW or FUWA

Heating system: 2 BALTUR TBL45P ITALY burner heating

Insulation layer:Rock wool 80mm and outer stainless steel cold plate

asphalt tanker semi trailer - 44500L-Liquid asphalt.jpgasphalt tanker semi trailer -45300L-Liquid asphalt_1asphalt tanker semi trailer -45600L-Liquid asphalt_1asphalt tanker semi trailer -45400L-Liquid asphalt_1.jpg

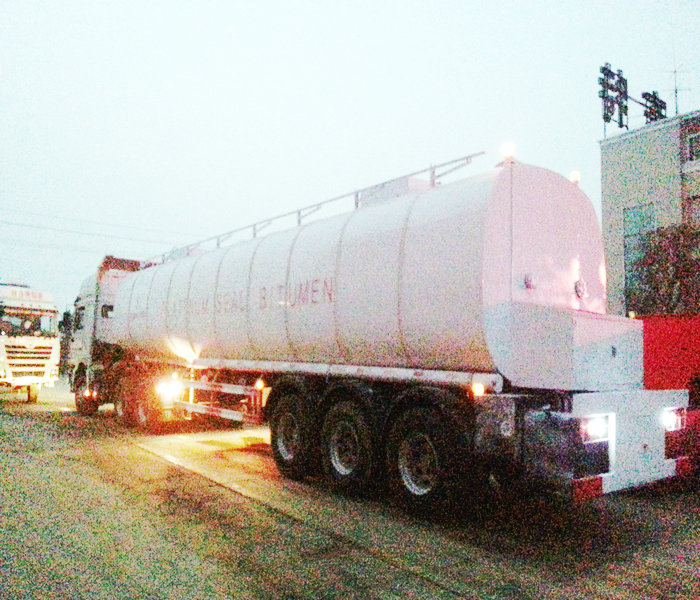

SHACMAN SX4257NV324C   tractor heard tractor heard & semi-trailer two burners hot asphalt tanker heated bitumen tank trailer  for PLATINUM SEAL BITUMEN &CORE CONSTRUCTION
SHACMAN SX4257NV324C ISME420 420HP
Cummins Engine tractor heard. 6X4 12R22.5TIRES turn table should be for BIG PIN
  Bitumen tank trailer

  Three15TFUWA axles, 12R22.5tire, fitted With  two diesel burner,
  one petrol generator,
  Tank Capacity:45000L,
  Insulated by 100mm rock wool, cladding carbon steel

50,000 liters 3 axle bitumen insulation tank photo150,000 liters 3 axle bitumen insulation tank photo250,000 liters 3 axle bitumen insulation tank 50,000 liters 3 axle bitumen insulation tank photo450,000 liters 3 axle bitumen insulation tank 50,000 liters 3 axle bitumen insulation tank 50,000 liters 3 axle bitumen insulation tanker

SHACMAN Tractor crude oil  bitumen tanker semitrailer 45cbm with two  Burner heater   Insulated bitumen tanker trailer

50,000 liters 3 axle bitumen insulation tank semi-trailer

Tank volume: 50,000 liters

Tanker material: Carbon steel-Q235A

Tank medium: Bitumen,liquid asphalt,coal tar oil,crude oil

No.of axle: 3 axle BPW or FUWA

Heating system: 2 BALTUR TBL45P ITALY burner heating

Insulation layer: Rock wool 80mm and outer stainless steel cold plate

Customization, Cost  Control Built How You Want it, at a Price You  Can Afford. for sale call:+86-152 -7135-7675










 heated bitumen tank trailer, heated bitumen transport, hot asphalt tanker, Insulation asphalt tanker, Liquid Asphalt tank, semi-trailer hot asphalt tanker, Shacman, SHACMAN Tractor, tractor heard,










         Asphalt tanker truck / trailer/ tank containers



         applied to transport liquid asphalt in a short or long distance. It's an ideal equipment to transport asphalt from asphalt storage depot to asphalt plant, and transport asphalt from oil refinery and wharf to asphalt storage depot. Besides the above functions, also suitable to transport crude oil and residual oil and viscous oil



         1. lower center of gravity, driving stably and safely.



         2. Rock wool insulation100mm, average temp. drop<1°C/h.



         3. equipped with diesel-oil Burner and a 4. Equipped 220V generator, supply continuous power for systems.



         5. Reliable monitoring system of heating.



         6. Stainless steel tank shell or cold plate

       7. Heating and control functions can be on semi-trailer, and be independently used on tractor.OEM ,OBM, ODM HEATED BITUMEN TANK ,HEATED ASPHALT TANK Trailer






         Tare Weight(kg)




         12500




         Pay Load(kg)




         45000




         Total Weight(kg)




         57000




         LxWxH (mm)




         12000x2495x3680




         Wheelbase(mm)




         6800+1310+1310




         Tanker




         Shape




         Cylinder,roundness,etc




         Total Volume(m3)




         50




         Valid Volume(m3)




         50




         Material




         Q235A/6mm




         End plate




         Q235A/8mm, by punching




         Isolated steel plate




         Q235A/6mm, 20 inch manhole




         Parts for Tank




         Manhole cover




         2 sets of 500mm/Q235 manhole fixed on top of Tank,



         with breather valve




         Unloading valve




         2 sets of DN80 fixed at bottom of Tank




         Pipeline at bottom of tank




         4〃seamless steel tube/Q235




         Anti-static electricity



         system




         pulling, wire carrier, sheet copper (6 sheet-standard layout)




         Other Parts




         Ladder




         2 unit at front and rear of Tank




         Guard on top of Tank




         Zinc galvanized guard- net




         Oil hose box




         single hole tube, 1 unit on each side




         Oil hose




         2 unit, 3〃x 6m size in black rubber




         Side guard




         cross bar-structure




         Rear bottom guard




         Fixed type




         Work tank deck




         Box type




         Fire extinguisher box




         2 unit at the back of each side




         Mud guard




         Steel structure in trapezoid form




         Lights and wire




         24V, 7 coils with lights for parking, reverse, instruction,head lamp and end lamp




         Chassis




         Main Beam




         Heavy duty and extra durability designed;Opting for high tensile steel



         Q345B,welded by automatic Submerged-Arc processes




         Axle




         3 units of FUWA(band) or BPW or L1



         Axle load capacity:13 ton/axle




         Landing Gear




         JOST Brand two Speed Manual Operation




         King Pin




         JOST brand,one unit of 2〃SAE standard Jost bolt-in king pin




         Suspension




         FUWA(band) mechanical tandem suspension with 16mm x 90mm



          8 leafs spring




         Pneumatic Braking System




         A system with emergency brake and parking brake;



         Dual line - air brake, piggyback spring on all axles;



         One units of WABCO RE 6 relay valve; four units of T30/30 chamber;



         one units of 40L air tank,two units of standard copper airconnector.




         Wheel rim




         12 units of 8.25R22.5 rim




         Tire




         12 units of 11R22.5 tubeless tyre




         Painting




         Sand blasting processing on rust cleaning



         One coat of anticorrosive



         Two coats of finish urethane paint



         Colour as customer choice




         Heating and insulation system



         of tanker




         Insulating layer



         1. Tank containing keep warm by insulation layer



         2. Insulation layer composed of: 80mm rock wool and 1.2mm



         stainless cold plate covered, it can prevent the heat losing.



         Heating system



         1.Use Burner heater 24 hours continuous heating at back of the tanker



         2 Italian BALTUR diesel oil burner



         Capacity: 14*104Kcal/h, brand-new



         3. One general-purpose diesel generator



         4.According to continuous diesel burning to keep warm



         for the crude oil (Diesel consumption:150kg/24hours)



         Note: It’s not necessary to adopt 24 hours continuous burning,



         you just only need begin to heat ahead of 2-3 hours while approach the



         destination site.It will save oil consumption and cost for you
