top discharge with air pump
top discharge with air pump

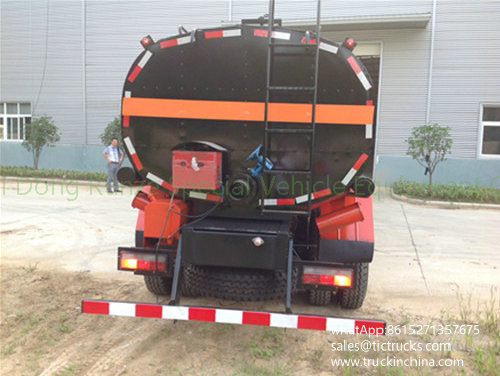

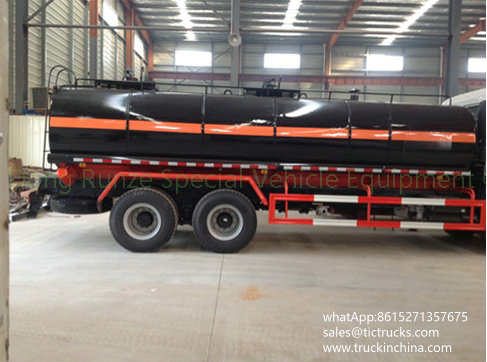

Heated Asphalt Tank Truck top discharge with pump
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale
call:+86-152 -7135-7675
FUNCTIONS
1. This series asphalt transportation tank semi trailer is tank-style designed, is suitable for the transportation of liquid products, and asphalt transportation with heat preservation systems, which can be manual or electrical.
2. The volume varies widely from 12 cube meters to 25 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa / BPW with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The tanker inside can be isolated compartments or single compartment by your needs.
6. The tanker shape can be round or other shape
7. The tanker body materials can be Q235B carbon steel
Chassis parameters
Chassis model HN1240P29E2M3J Chassis brand CAMC
Overall dimensions 10875x2452x2965mm Wheel base 5220+1350mm
Front/rear wheel track 2065/1860/1860m Front/rear suspension 1370/2935mm
Approach/departure angle 25/18° Maximum speed 90km/h
Chassis Manufacturer Anhui Hualing Automobile Co. Ltd
Cab Configuration A row and a half deluxe cab(with sleeping berth),air conditioner, electric glass, allowable 3 passengers
Color White,other color is optional
Engine Model WP10.270E32
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1100N•m
Bore x stroke 126x130mm
Manufacturer Weichai Power Co., Ltd
Tire Size 11.00R20 steel wire tire
Number 10+1 nos
Front axle 5.5T
Rear axle 13.0T,458 axle
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gearbox 9JS119, 9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Main Technical Paramters | |||||
Truck Brand | CAMC | ||||
Product Name | CAMC Bitumen Tanker | ||||
Total Weight(Kg) | 24000 | Tanker Capacity(m3) | 12 | ||
Rated Load Weight(Kg) | 11900 | Over all Dimension (mm) | 10100×2495×3560 | ||
Curb Weight(Kg) | 11905 | ||||
The number of the cab allowed passenger | 3 | ||||
approach / departure angle(°) | 25/20 | Front suspension / rear suspension(mm) | 1370/2160 | ||
Axle number | 3 | Wheel Base(mm) | 5220+1350 | ||
Axle Load(Kg) | 6500/17500(Double Rear Axle) | Max speed (Km/h) | 90 | ||
Others | Transporation goods : asphalt ; tanker capacity :12m3 , protective material:Q235, connection model: welding ,Rear guard section size (wide×height )50×120(mm),Rear guard section height :540mm. |
Truck Chassis Technical Paramters | ||||||
Truck Model | HN1240P29E2M3J | Truck name | Bitumen Tanker Truck | |||
Brand Name | HuaLing | Producer | Anhui HuaLing | |||
Dimension(mm) | 11000×3222×3930 | Tyre Number | 10 | |||
approach / departure angle | 25/15 | Tyre | 11.00-20 16PR,11.00R20 16PR | |||
Spring plate number | 9/12 | Front wheel base(mm) | 2065 | |||
Fuel Model | Diesel | Rear wheel base (mm) | 1860/1860 | |||
Emission | GB3847-2005,GB17691-2005 Chinese III | |||||
Engine Model | Engine Producer | Displacement (ml) | Power(Kw) | |||
WP10.270E32 | Weichai Engine Company | 9726 | 199 | |||
| Adopt CAMC chassis,HOWO engine for 270HP,flat-topped, one-bedroom cabin,11.00-20 tires ,with the direction of the booster, air conditioner | |||||
| Modified configuration: effective tank volume of 12 cubic 5mm steel production of high quality carbon steel, with rock wool insulation (using high performance asbestos foam insulation materials insulation layer, light weight, blocking radiation, the insulation effect), with hearter ,pump ,and for the right hand drive insulation technologies such as aging on asphalt during transport, not bad, not coking solidification. Asphalt truck is a high-quality asphalt transportation equipment. |
as a leading HEATED BITUMEN TANK manufacturer, HEATED BITUMEN TANK, HEATED ASPHALT TANK supplier, exporter in china, our asphalt tanker truck / trailer/ tank containers are widely Applied to transport liquid asphalt in a short or long distance. It's an ideal equipment to transport asphalt from asphalt storage depot to asphalt plant, and transport asphalt from oil refinery and wharf to asphalt storage depot. Besides the above functions, also suitable to transport crude oil and residual oil and viscous oil Please see the standard model as below, any special requirements
steel option | Q235/Q345/ 16 manganese steel/SS201/SS304 /SS316 alummin alloy tanker |
---|---|
acids tanker | steel lined plastic for water/alcohol/ethanol acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA alummin nitric acid |
oil/petrol,Fuel diesel/LPG/LNG | steel tank with oil pump/ gun fuel truck nozzle |
asphalt/bitumen/crude oil tanker/ AN ammonium methana Alcohol | burner / steam heating and insulation system ,pump option |
