FOB: | |
---|---|
Availability: | |
Quantity: | |
| |
DRZ5060GYY4X4
DRZE
8705909990

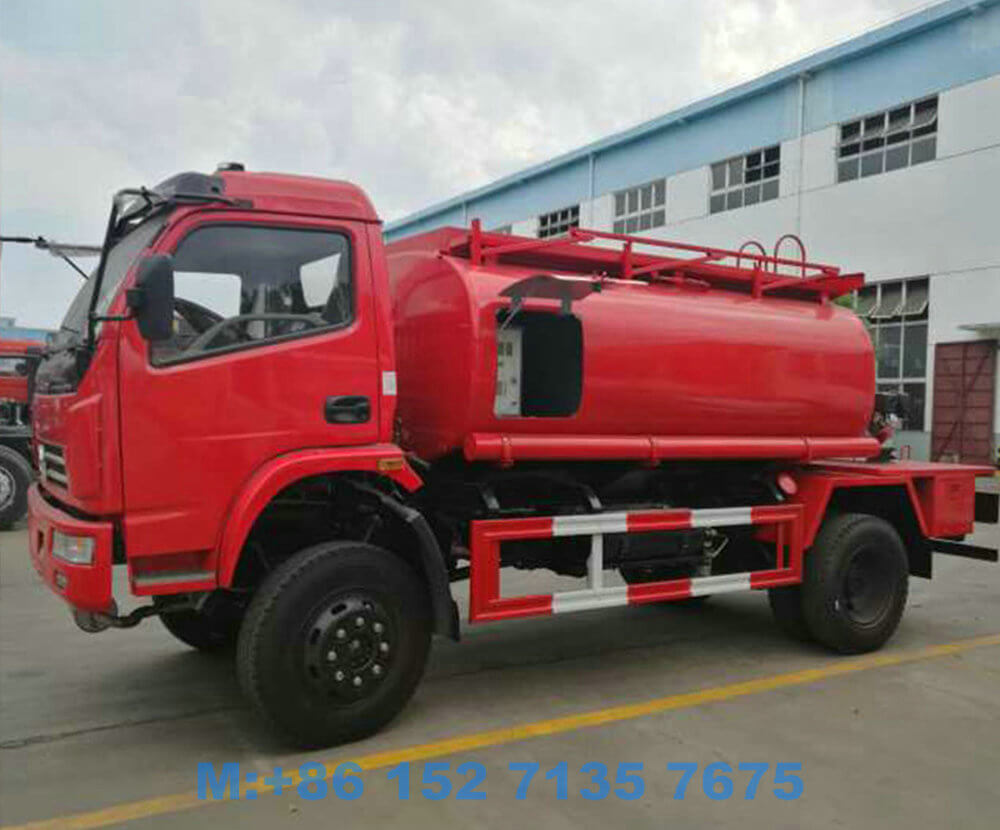

Dongfeng 4x4 Offroad Fuel Bowser
Dongfeng 4x4 5000 liters 5 ton refueling fuel truck
Dongfeng /wheelbase 3300 mm /4x4
Fuel - diesel engine CY4100Q/ 90HP
Cabin - single (7pcs)7.50-16 tires
Power steering, air brake Emission -EU3
Chassis model | EQ1060 | ||
Horse Power | ps | 90 | |
Overall dimensions | mm | 5990/6100×2200×2800 | |
Fact loading | kg | ||
GVW | Approx5494 | ||
Mass in working order | Approx3200 | ||
Wheel base | mm | 3300 | |
F/R track base | 1490/1425 | ||
Approach/departure angle | . | 19/15 | |
Exhaust/hp | ml/kw | 2695/66 | |
Max speed | km/h | 90 | |
Tire specification | 7.50-16 | ||
Traction system | 4x2 or 4x4 | transmission | 5-speed with over drive |
Number of axles | 2 | Electric system | 24v |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | Single cab 2 ; Double cab 2+3 |
4x2, 4x4, 6x4, 6x6, 8x4 Fuel Tanker Truck for your selection, LHD and RHD cabin are both available.
Dongfeng 4x4 Offroad Fuel Bowser
Dongfeng 4x4 5000 liters 5 ton refueling fuel truck
Dongfeng /wheelbase 3300 mm /4x4
Fuel - diesel engine CY4100Q/ 90HP
Cabin - single (7pcs)7.50-16 tires
Power steering, air brake Emission -EU3
Chassis model | EQ1060 | ||
Horse Power | ps | 90 | |
Overall dimensions | mm | 5990/6100×2200×2800 | |
Fact loading | kg | ||
GVW | Approx5494 | ||
Mass in working order | Approx3200 | ||
Wheel base | mm | 3300 | |
F/R track base | 1490/1425 | ||
Approach/departure angle | . | 19/15 | |
Exhaust/hp | ml/kw | 2695/66 | |
Max speed | km/h | 90 | |
Tire specification | 7.50-16 | ||
Traction system | 4x2 or 4x4 | transmission | 5-speed with over drive |
Number of axles | 2 | Electric system | 24v |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | Single cab 2 ; Double cab 2+3 |
4x2, 4x4, 6x4, 6x6, 8x4 Fuel Tanker Truck for your selection, LHD and RHD cabin are both available.
DRZ5060GYY4X4
Dongfeng 4x4 Offroad Fuel Bowser
Dongfeng 4x4 5000 -6000 liters 5 ton refueling fuel truck
Vehicle parameters | |||
Vehicle Model | DRZ5060GYY4X4 | Vehicle Brand | Dongrun Ze |
Overall dimensions | 5990×1980×2350mm | Curb weight | 3300kg |
Tank dimensions | 4100×1720×1150mm | Tank volume | 5000L 6000L |
Chassis parameters | |||||
Chassis model | EQ1060TJ20D3 | Chassis brand | DONGFENG | ||
Overall dimensions | 5820x1940x2080mm | Wheel base | 3300mm | ||
Front/rear wheel track | 1506/1466mm | Front/rear suspension | 1032/1488mm | ||
Approach/departure angle | 19/15° | Maximum speed | 80km/h | ||
Chassis Manufacturer | Dongfeng Automobile Co.,Ltd | ||||
Cab | Configuration | Single row cab,allowable 3 passengers | |||
Color | White,other color is optional | ||||
Engine | Model | CY4102-C3F | |||
Emission | Euro 3 | ||||
Type | in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||||
Rated power | 95hp,rated power speed 3200rpm | ||||
Displacement | 3856ml | ||||
Bore x stroke | 102x118mm | ||||
Manufacturer | Dongfeng Chaoyang Diesel Power Co. Ltd. | ||||
Tire | Size | 7.00-16 nylon tire | |||
Number | 6+1 nos | ||||
Fuel tank | 100L,steel | ||||
Front axle | 2.0T | ||||
Rear axle | 4.0T | ||||
Drive form | 4X2 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | 5 speed forward 1 reverse. | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | Air Conditioner,steel wire tire,power assisted steering | ||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
Fuel tank structure parameters | ||||
Tank dimensions | 4100×1720×1150mm | Tank volume | 4000L 5000L 6000L | |
Tank material | Carbon steel | Tank thickness | 5mm | |
Color and Logo | Optional | |||
Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose. | |||
Selective configuration | Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins. |
MOQ,payment terms,delivery terms,price | |
MOQ | One unit |
Payment terms | T/T 30% down payment, 70% balance after inspection before delivery |
l | |
Inspection | Buyer's agent or third party inspection agency,the cost is paid by the buyer |
Delivery term | 20 days from down payment |
Documentation | Maintenance manual |
User manual | |
Packing list | |
Commercial invoice | |
Certificate of origin is optional | |
Spare parts list for purchase is optional | |
Standard tools | With standard tools for chassis and fuel tank structure |
Packing | The main vehicle nude and covered with wax, attached parts and tools put into standard export box
|
DRZ5060GYY4X4
Dongfeng 4x4 Offroad Fuel Bowser
Dongfeng 4x4 5000 -6000 liters 5 ton refueling fuel truck
Vehicle parameters | |||
Vehicle Model | DRZ5060GYY4X4 | Vehicle Brand | Dongrun Ze |
Overall dimensions | 5990×1980×2350mm | Curb weight | 3300kg |
Tank dimensions | 4100×1720×1150mm | Tank volume | 5000L 6000L |
Chassis parameters | |||||
Chassis model | EQ1060TJ20D3 | Chassis brand | DONGFENG | ||
Overall dimensions | 5820x1940x2080mm | Wheel base | 3300mm | ||
Front/rear wheel track | 1506/1466mm | Front/rear suspension | 1032/1488mm | ||
Approach/departure angle | 19/15° | Maximum speed | 80km/h | ||
Chassis Manufacturer | Dongfeng Automobile Co.,Ltd | ||||
Cab | Configuration | Single row cab,allowable 3 passengers | |||
Color | White,other color is optional | ||||
Engine | Model | CY4102-C3F | |||
Emission | Euro 3 | ||||
Type | in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||||
Rated power | 95hp,rated power speed 3200rpm | ||||
Displacement | 3856ml | ||||
Bore x stroke | 102x118mm | ||||
Manufacturer | Dongfeng Chaoyang Diesel Power Co. Ltd. | ||||
Tire | Size | 7.00-16 nylon tire | |||
Number | 6+1 nos | ||||
Fuel tank | 100L,steel | ||||
Front axle | 2.0T | ||||
Rear axle | 4.0T | ||||
Drive form | 4X2 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | 5 speed forward 1 reverse. | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | Air Conditioner,steel wire tire,power assisted steering | ||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
Fuel tank structure parameters | ||||
Tank dimensions | 4100×1720×1150mm | Tank volume | 4000L 5000L 6000L | |
Tank material | Carbon steel | Tank thickness | 5mm | |
Color and Logo | Optional | |||
Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose. | |||
Selective configuration | Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins. |
MOQ,payment terms,delivery terms,price | |
MOQ | One unit |
Payment terms | T/T 30% down payment, 70% balance after inspection before delivery |
l | |
Inspection | Buyer's agent or third party inspection agency,the cost is paid by the buyer |
Delivery term | 20 days from down payment |
Documentation | Maintenance manual |
User manual | |
Packing list | |
Commercial invoice | |
Certificate of origin is optional | |
Spare parts list for purchase is optional | |
Standard tools | With standard tools for chassis and fuel tank structure |
Packing | The main vehicle nude and covered with wax, attached parts and tools put into standard export box
|
