Product Technical Specifications | ||||
Item | Descriptions | Spesifications and Types | ||
Vehicle | Brand | Dong runze | ||
Overall Dimensions L*W*H | 8826*2500*3225mm | |||
Weights | GVW. | 16000kgs | ||
Kurb Weight | 7950kgs | |||
Rated Payload | 7920kgs | |||
Chassis | Chassis Brand | North-benze | ||
Drive Type | 4×4 | |||
Steering | LHD | |||
Engine | Brand | Weichai engine | ||
Power | 270 HP ;300Hp;340HP | |||
Emmission Level | EURO3/ 4/5 | |||
Performance | Max. Speed | 90km/h | ||
Wheel base | 3800 mm | |||
Tyre Specifications | 14.00-20 | |||
No. of Tyre | 4 pcs (1 spare tyre included) | |||
Cab | Cab Capacity | 3 persons allowed | ||
Body/Superstructure | Tank | Capacity | 8-10 m³ | |
Material | 5mm or 6mm high quality carbon steel | |||
Loading System | Top filling from manhole or pump fuel into tank from oil inlet valve. | |||
Discharging System | Pump fuel out from tank or gravity discharge. | |||
Basic Equipments | Install fuel pump drive by truck engine through PTO; One manhole, two pcs of fuel hoses (3inches) with complete quick connectors, access ladder, tank top anti-slip steel mesh installed, anti-static device, one fire extinguisher, with two corners’ lights and reflective tape. | |||
Paint | Tank color is according to client’s requirements. | |||
Optional Equipments | Air Conditioner | |||
Bottom loading | ||||
Flow meter, rolling hose with nozzle, emergency valve, compartment number, epoxy coating inside tank and so on. |

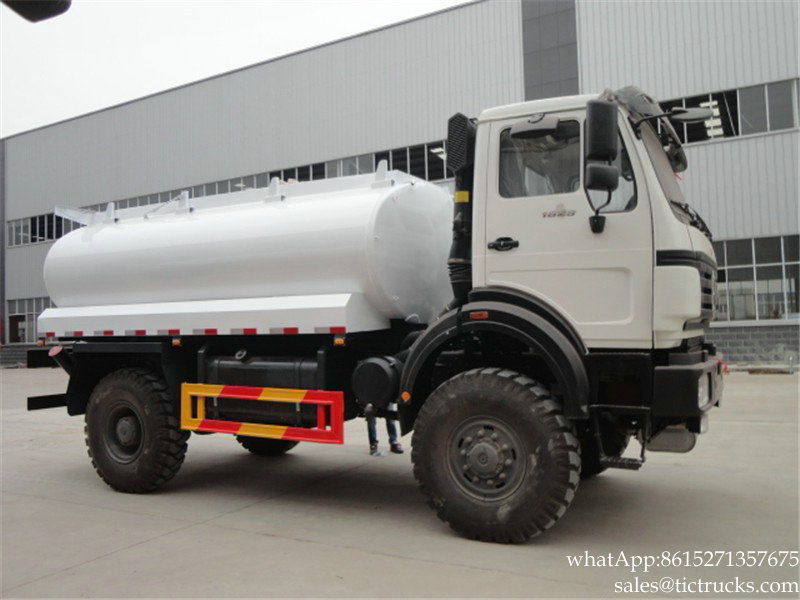

Beiben fuel tanker truck 4 wheeler 3000 gallon fuel tank truck
Product Technical Specifications | ||||
Item | Descriptions | Spesifications and Types | ||
Vehicle | Brand | Dong runze | ||
Overall Dimensions L*W*H | 8826*2500*3225mm | |||
Weights | GVW. | 16000kgs | ||
Kurb Weight | 7950kgs | |||
Rated Payload | 7920kgs | |||
Chassis | Chassis Brand | North-benze | ||
Drive Type | 4×4 | |||
Steering | LHD | |||
Engine | Brand | Weichai engine | ||
Power | 270 HP ;300Hp;340HP | |||
Emmission Level | EURO3/ 4/5 | |||
Performance | Max. Speed | 90km/h | ||
Wheel base | 3800 mm | |||
Tyre Specifications | 14.00-20 | |||
No. of Tyre | 4 pcs (1 spare tyre included) | |||
Cab | Cab Capacity | 3 persons allowed | ||
Body/Superstructure | Tank | Capacity | 8-10 m³ | |
Material | 5mm or 6mm high quality carbon steel | |||
Loading System | Top filling from manhole or pump fuel into tank from oil inlet valve. | |||
Discharging System | Pump fuel out from tank or gravity discharge. | |||
Basic Equipments | Install fuel pump drive by truck engine through PTO; One manhole, two pcs of fuel hoses (3inches) with complete quick connectors, access ladder, tank top anti-slip steel mesh installed, anti-static device, one fire extinguisher, with two corners’ lights and reflective tape. | |||
Paint | Tank color is according to client’s requirements. | |||
Optional Equipments | Air Conditioner | |||
Bottom loading | ||||
Flow meter, rolling hose with nozzle, emergency valve, compartment number, epoxy coating inside tank and so on. |
Beiben fuel tanker truck 4 wheeler 3000 gallon fuel tank truck
Engine | WeiChai Power / HINO Engine |
Output | 270 HP - 420 HP |
Volume | 5000L -12000L |
It used to transport fuel ,oil ,diesel ,petrol gasoline ,also could divided into many compartments to transport different types of medium
Engine | WeiChai Power / HINO Engine |
Output | 270 HP - 420 HP |
Volume | 5000L -12000L |
It used to transport fuel ,oil ,diesel ,petrol gasoline ,also could divided into many compartments to transport different types of medium
