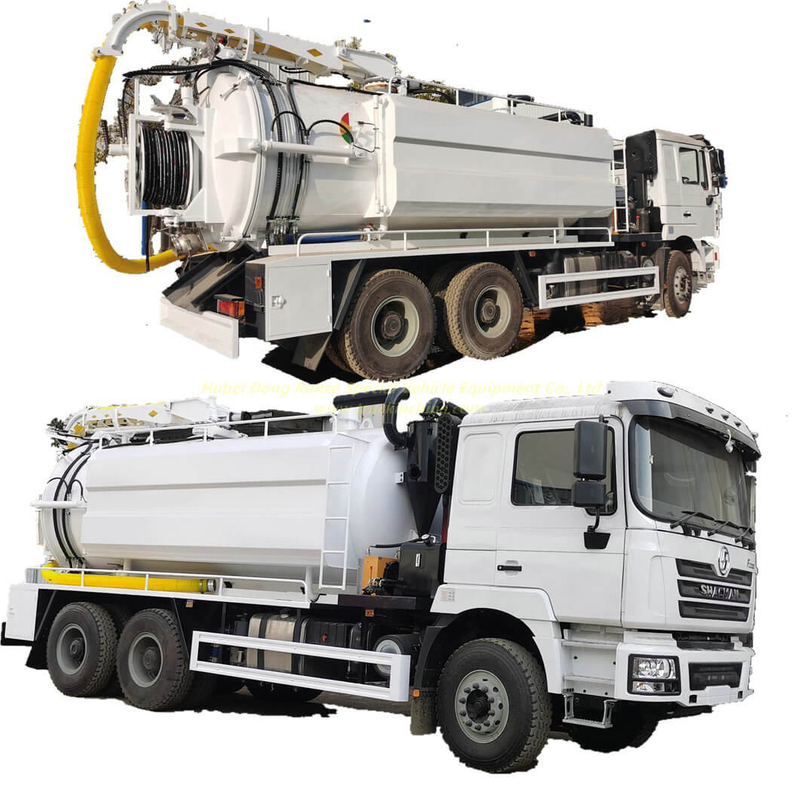

Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water )
PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system.
SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
DRZ5258GXWZ
-
Dong Run Ze
-
8705909990
Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water )
PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system.
SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
Chassis brand & Year | SHACMAN F3000 | ||||||
Wheel Drive | 6x4, RHD SX1258DR434R | ||||||

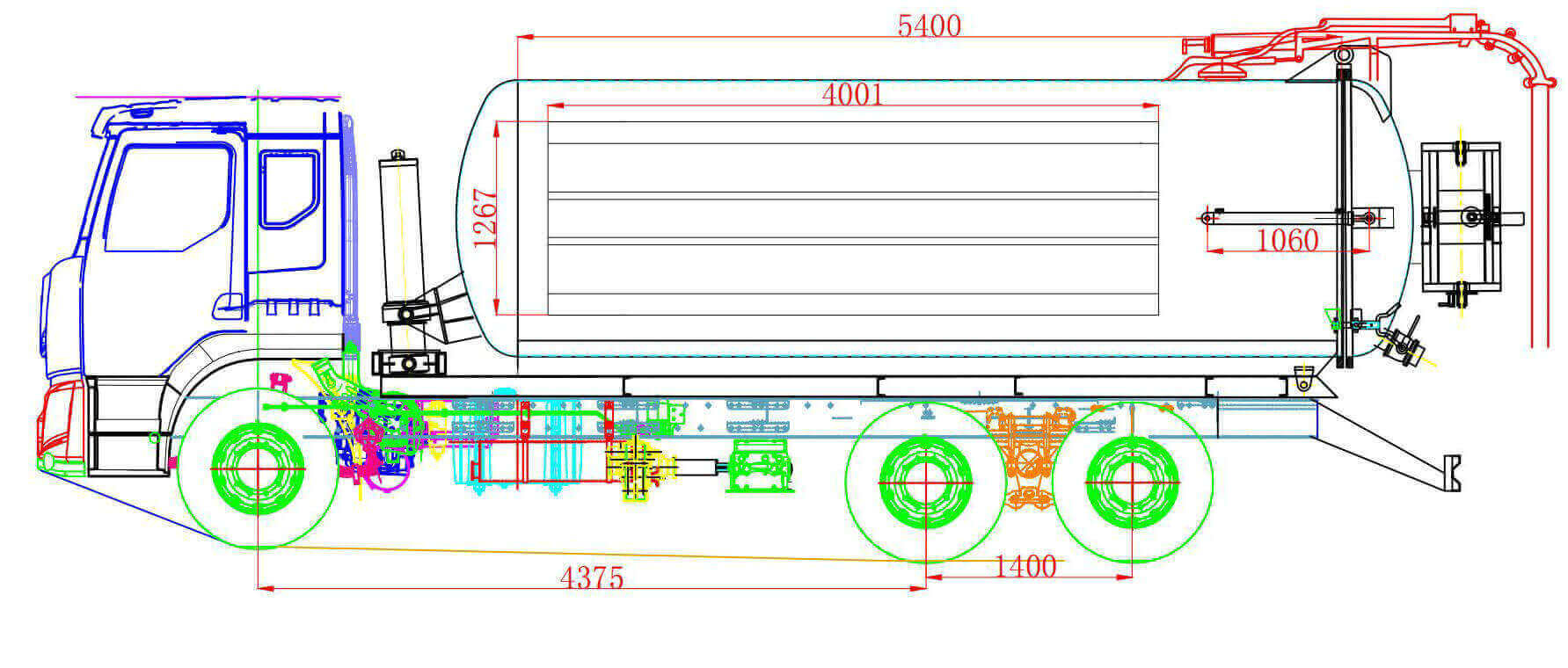

Overall Dimension | 10250*2500*3250mm | ||||||
Material of Sewage Tank | High quality carbon steel Q235, 8mm tank body and seal head | ||||||
Gross Weight | 25000kg | ||||||
Curb Weight | 17000kg | ||||||
Max loading Weight | 20 Tons | ||||||
Engine | WEICHAI 336HP Euro 4 /5 | ||||||
Wheelbase | 4350+1350mm | ||||||
1st | MAN 7.5T | ||||||
3rd and 4th axle | MAN 13T | ||||||
Tires: | 12+1, 12.00R20 | ||||||
Cabin | SHACMAN M3000 luxury cab, RHD | ||||||
Transmission | Manual,10JSD180, 10 front gears and 1 rear gear | ||||||
Brake | Full air brake | ||||||
Max Speed | 90km/h | ||||||
Fuel Tank | 300L | ||||||
Vacuum Jetting Tank | |||||||
General | Make & Model | DRZ | |||||
Dimension | |||||||
Superstructure |
Tank | Tank Capacity | 13500 Litres | ||||
Tank Material | Carbon - optional lined PE Stainless steel | ||||||
Tank Thickness | 8 mm | ||||||
Vacuum Pump | Water ring VAC pump with vice engine .Highly efficient, vacuum rate 93%, quick suction and discharge | ||||||
Suction Valve | 5//6in | ||||||
Discharge Valve | 5//6in /manual valve or /24” hydraulic opened valve | ||||||
The tank could be hydraulic lifted and rear door can be hydraulic opened for complete discharge of solid stuff. | |||||||
All standard accessories: anti-fill valve, sight glass, tool kit, English manual…….. | |||||||
Optional | Tanks Capacity | ||||||
Vacuum sewage tank | Capacity | 10-14CBM | |||||
Hose Diameter (mm) | 100-150mm( 4in-6in) | ||||||
Discharging Angle (°) | 45 | ||||||
Degree of Vacuum (kPa) | 93-96 | ||||||
Available Suction (m) | 7-30 | ||||||
Tank Filling Time (min) | ＜5 | ||||||
Water tank | Capacity | 2-4CBM | |||||
Washing Efficiency | 95% | ||||||
Water Pressure Jet Pump Flow (L/min) | 300-350 | ||||||
Type | Combined Jetting & Sewage Trucks |
Tank volume | Sludge & Water Tank Total:14,000L-18000L Tank A:Capacity: 10000-14000ltrs & solid Sludge /liquid human waste. Tank B: Capacity: 4000litrs & clean water for cleaning and flushing. |
Tank Material | Q235 |
Water Pump | 19MPa – 24MPa |
Jetting Pump Flow | 170lt/m – 330lt/m SY132-45 High Pressure Pump 22MPa 215L / min (Tongjie). |
Vacuum Pump | 30m³-42m³/min |
Jetting Hose and Reel | 60m-100m hose, hydraulic pressure. |
Vacuum pump drive systems | Dec. Transmission / Auxiliary Engine / PTO |
Pressure Regulator | Pneumatic – Mechanical |
Aluminium ally Water Ring Vacuum Pump (46.7 M3/Min )
Aluminium alloy light weight
Model | XW-2800 | Speed | 1400R/m |
Max Pressure | 33hpa | Power rate | 75KW |
Air flow | >46.7M3/min | Body Material | Aluminium ally |
