SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump
Email us for Discount Price
| Quantity: | |
|---|---|
|
| |
- XW-2800
- SZW
- 8708996000
SZW Aluminium Alloy Water Ring Compressor Vacuum Pump XW-2800
VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump
Email us for Discount Price
Aluminium ally Water Ring Vacuum Pump (46.7 M3/Min )
Aluminium alloy light weight
Model | XW-2800 | Speed | 1400R/m |
Max Pressure | 33hpa | Power rate | 75KW |
Air flow | >46.7M3/min | Body Material | Aluminium ally |

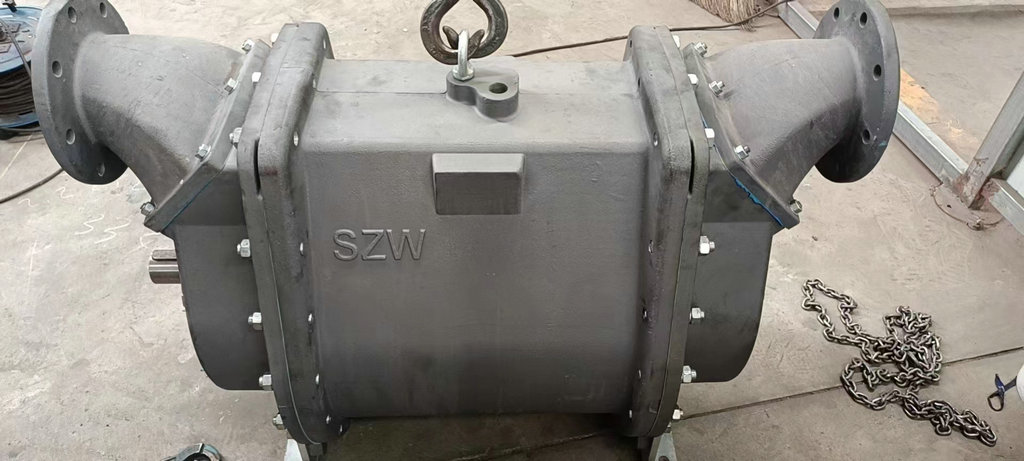

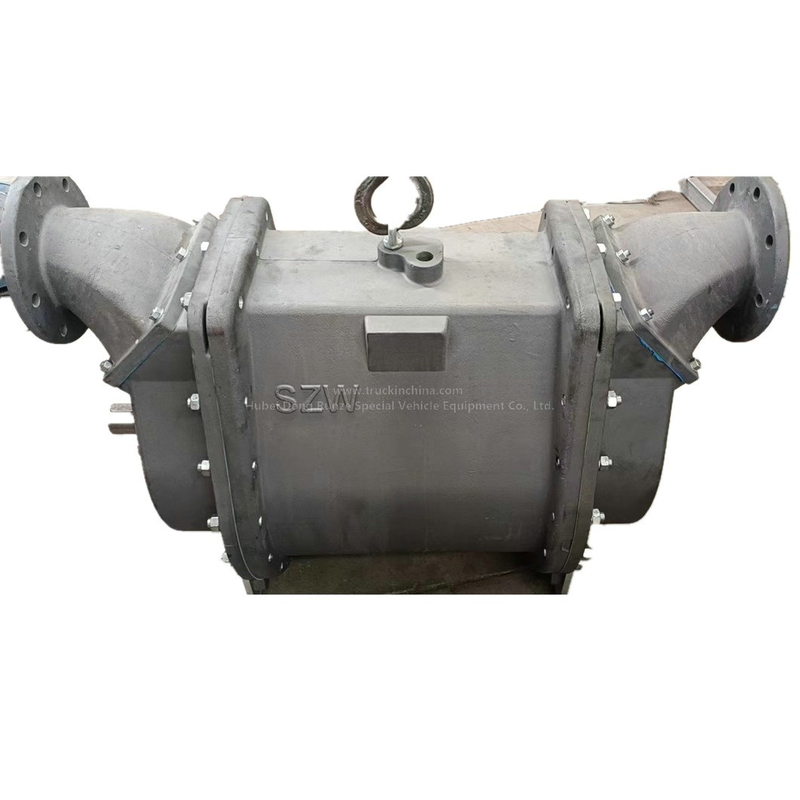

The liquid ring compressor vacuum pump
The SZW -XW-2800 VAC pump was developed especially for the high requirements on mounting in suction vehicles, municipal vacuum trucks and combination trucks (combined suction and water jetting). SZW -XW-2800 VAC pump with a volume flow of up to 2800 m³/h ,1648 cfm 46.7M3/min.
The advantages at a glance
· Swivel mounted pump between the mounting feet
· Suction and pressure flange can be connected electively on shaft side or opposite
·
Mechanical seal
· Low weight design by using aluminum
· Connection flanges can be swiveled
· Installation friendly design
Performance Data and Dimensions
XW-2800 VAC | ||
Max. volume flow | m³/h / cfm | 2800 / 1648 |
Max. operating pressure | bar / psig | 1.5 / 21.3 |
Max. operating vacuum* | mbar / HG" | 130 / 26 |
Speed range | rpm | 800 - 1600 |
Maximum Power consumption at 0.5 bar g / 7.25 psi g | kW / hp | 75 / 102 |
Weight | kg / lb | 175 / 385 |
* Depending from cooling water temperature Subject to change without notice
