North Benz Heavy Duty 16000liters Sewage Disposal Vacuum Tanker Truck 2629

Share to:

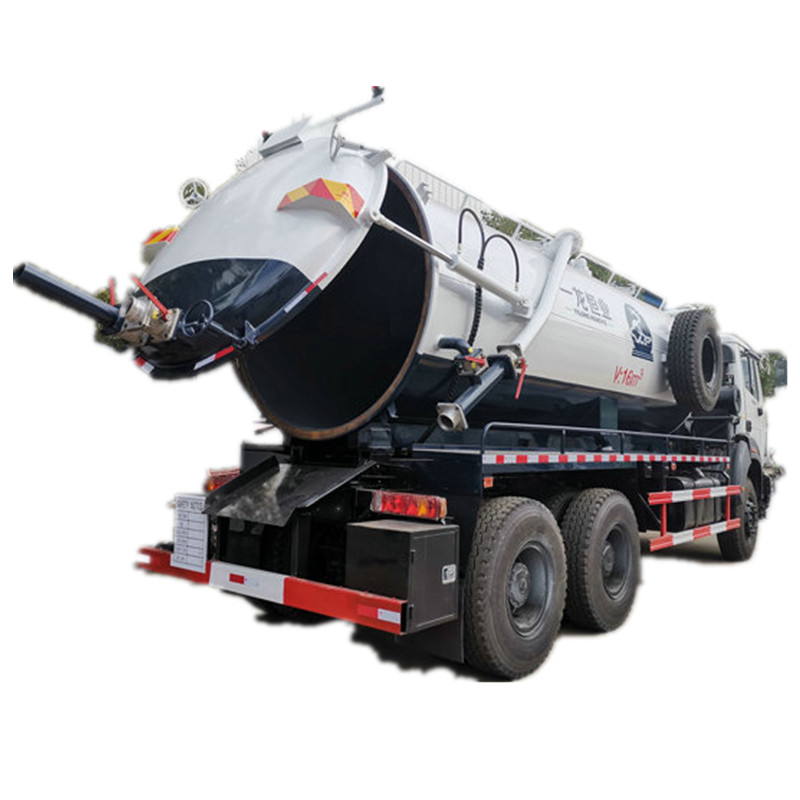

North Benz Heavy Duty 16000liters Sewage Disposal Vacuum Tanker Truck 2629

North Benz Heavy Duty 16000liters Sewage Disposal Vacuum Tanker Truck 2629
North Benz LHD 6X4 16000liters sewage suction truck
PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.

Price: $ 60000

Discount Price: $ 53300

Availability:

Quantity:


Buy at Aliexpress

Model: DRZ5160GXWZ
Brand: Dong Run Ze
Code: 8705909990

truck view

North Benz Heavy Duty 16000liters Sewage Disposal Vacuum Tanker Truck 2629

Parameters for North Benz 16000liters sewage truck

Vehicle Parameter
Model/name	North Benz LHD 6X4 16000liters sewage suction truck
Gross weight(Kg)	25000	Overall size(mm)	9500X 2500 x 3500
Payload(Kg)	13065	Tank size(mm)	××
Curb weight(Kg)	11805	Wheelbase(mm)	4450+1450
Cab seats	2	Max speed(Km/h)	85
Chassis parameter
Chassis model	ND1254B	Brand name	North Benz
Manufacturer	North Benz Heavy Truck Group Co.,Ltd
Drive type	6x4	Steering Wheel	Left hand drive
Tyre number	10+1(spare tire)	Tire specification	11.00R20(Radial tire)
Fuel Type	Diesel	Emission Standard	Euro II
Engine parameter
Engine model	Engine manufacturer		Displacement	Power
WP10.270	Weifang Diesel Engine Co., Ltd.		9726ml	199KW
Performance
Tanker volume(m³)	16	Tanker material	Carbon steel
Designed hydraulic system working pressure	16-19Mpa	Control	Manual

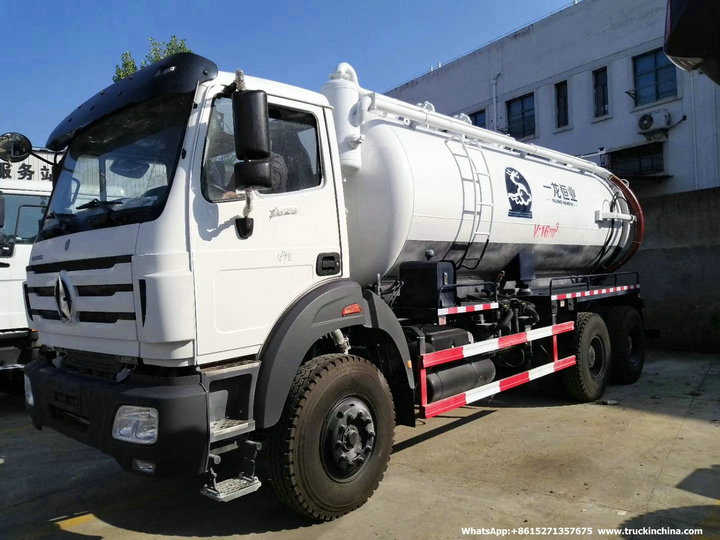

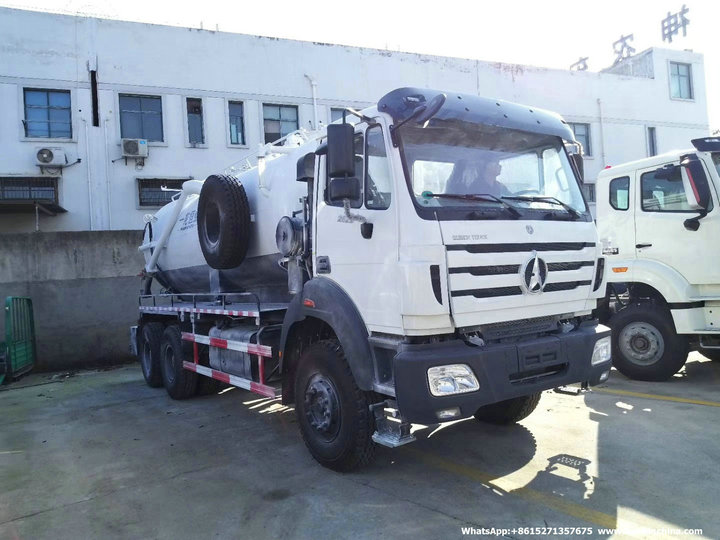

beiben truck vacuum tanker (4) beiben 2629 vacuum tanker truck (3)

Sewage truck Basic Equipment

Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,

water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.

Septic Tank vacuum Sewage Suction Trucks 15m3-20CBM

Chassis Specification
General	Chassis Brand	BEIBEN 2629
	Overall dimension	1000025003050mm
	GVW	26000kg
	Mass in working order	9900kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Heating or cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	BEIBEN
	Power	290HP 12.00R20
	Displacement	9760ml
	Emission Standard	Euro 3
Chassis	Drive Type	6*4 / 6x6 offroad (left hand driving or right hand Drive)
	Transmission	Manual
	Wheelbase	4500+1350,4450+1450, 5050+1450mm
	Tire	12.00R20
	Max Speed	90km/h
	Electric system	24v
Upper-Body Specification
Upper body	Body capacity	16cbm，18cbm,20cbm
	Material	Carbon Steel
	Suction Head Pipeline	7m
	Vacuum Pump Brand	Italy BP/Weilong/Domestic
	Vacuum Pump Advantage	High efficient, Vacuum rate 93%, Quick suction and discharge, suction lift 6 m

sewage suction truck advantages

1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed

hydraulically. With full opening design, discharge can be very quick&complete.

2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.

3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit emptier.

BEIBEN fecal suction truck, fecal suction truck, Septic tank truck, Septic Tanker, Sewage water suction truck, vacuum suction truck, waste water suction truck is used to collect, transport and discharge dirty water , sludge , septic , etc . such liquid stuff , It is suitable for cleaning the septic tank , cesspit , cesspool , gully , etc . It is widely used in environment and sanitation field .

Key words:cesspit emptier truck,exhauster truck,sewage exhauster truck,honey sucker,vacuum truck,vacuum sewer truck,vacuum sewage truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
