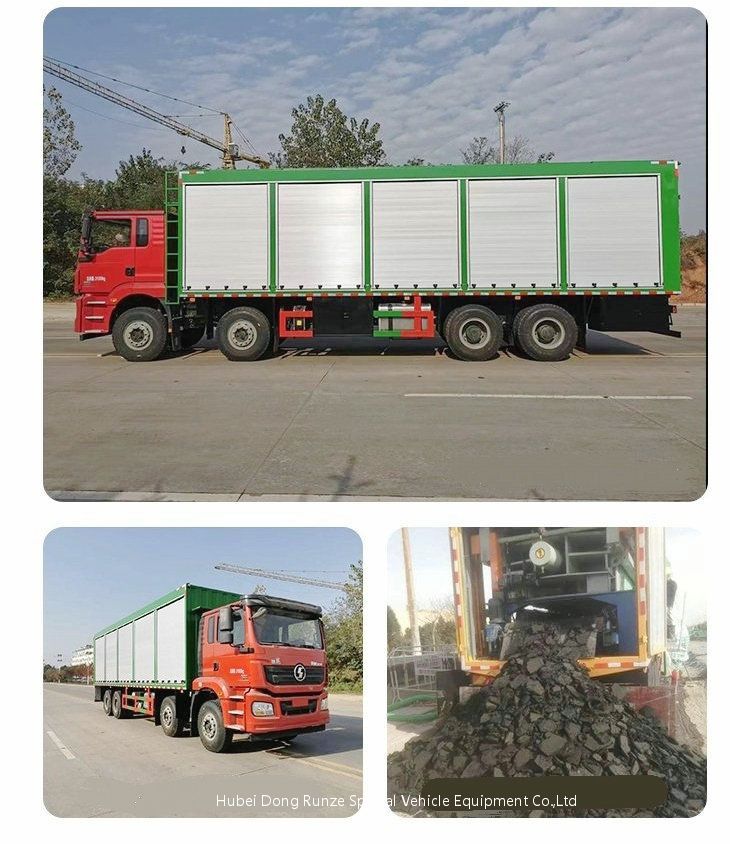

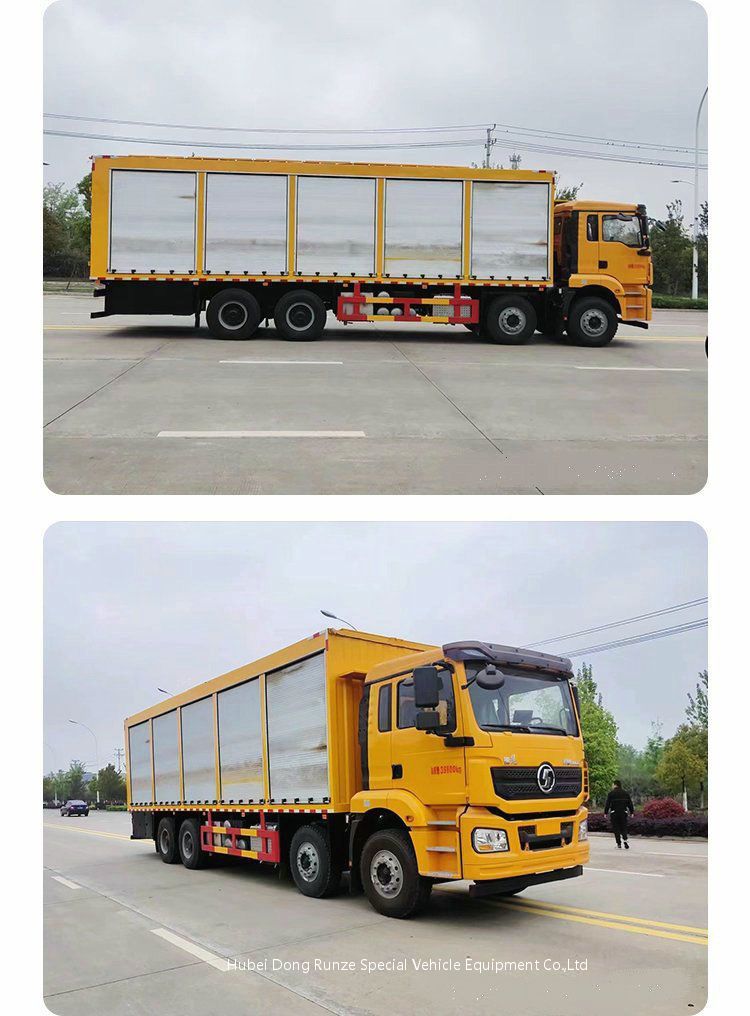

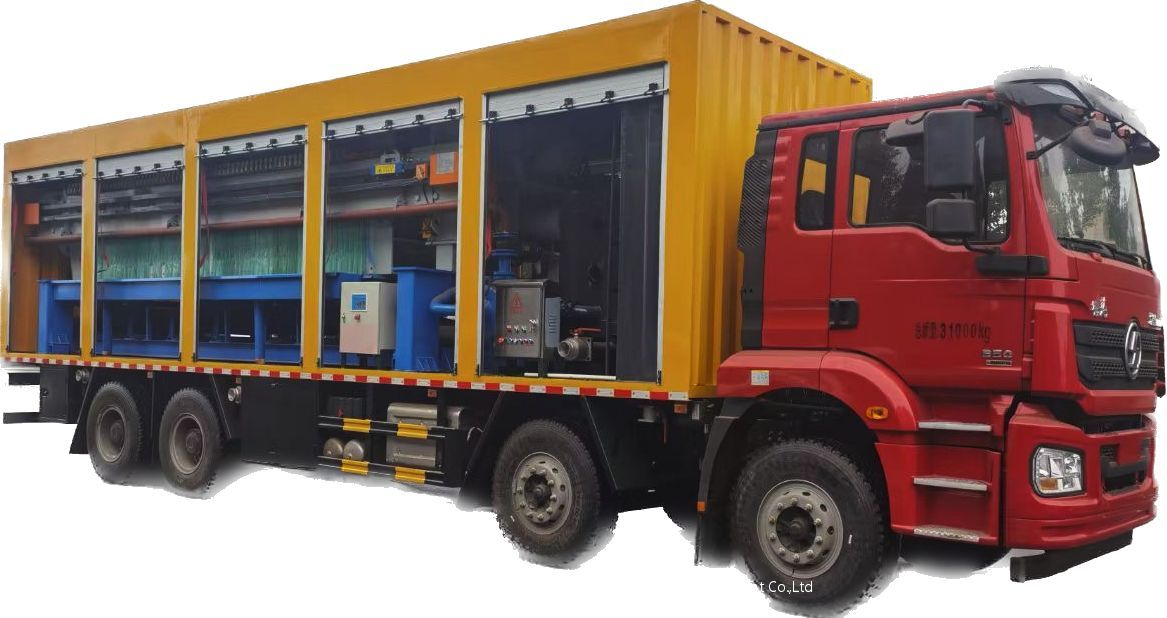

Customizing SHACMAN Mobile Dewatering Truck Mounted Filter Press System

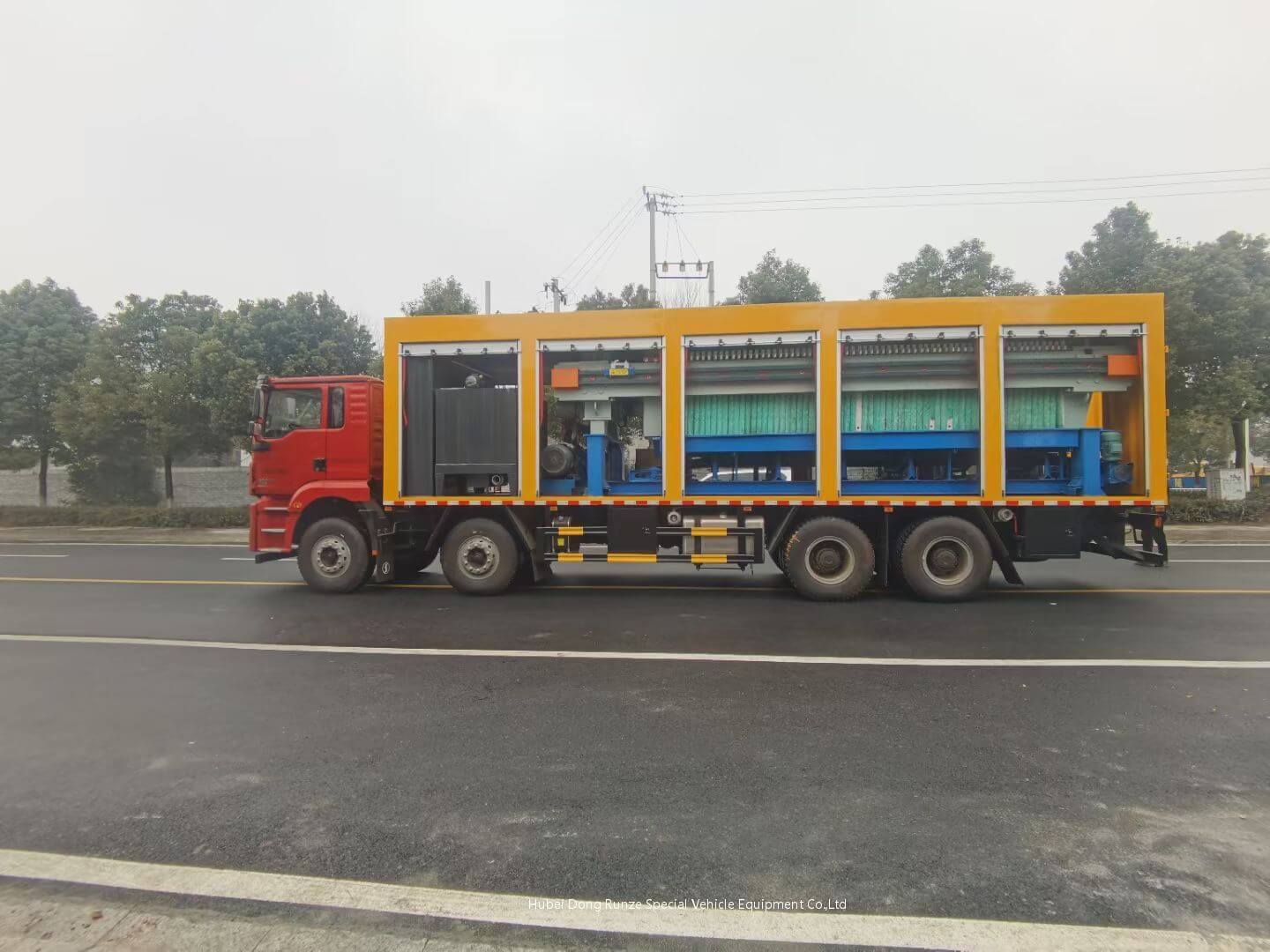

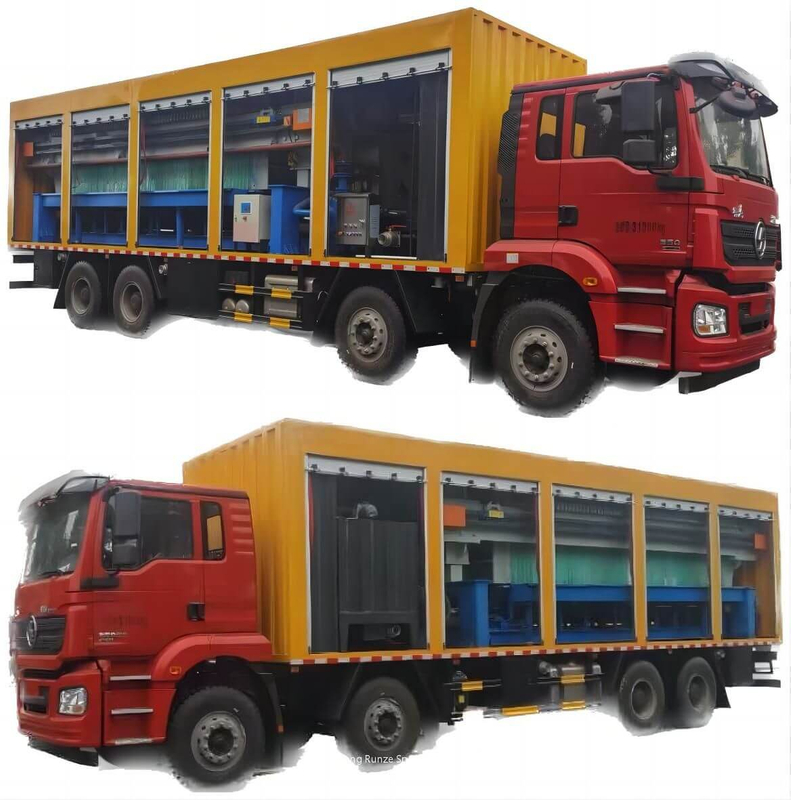

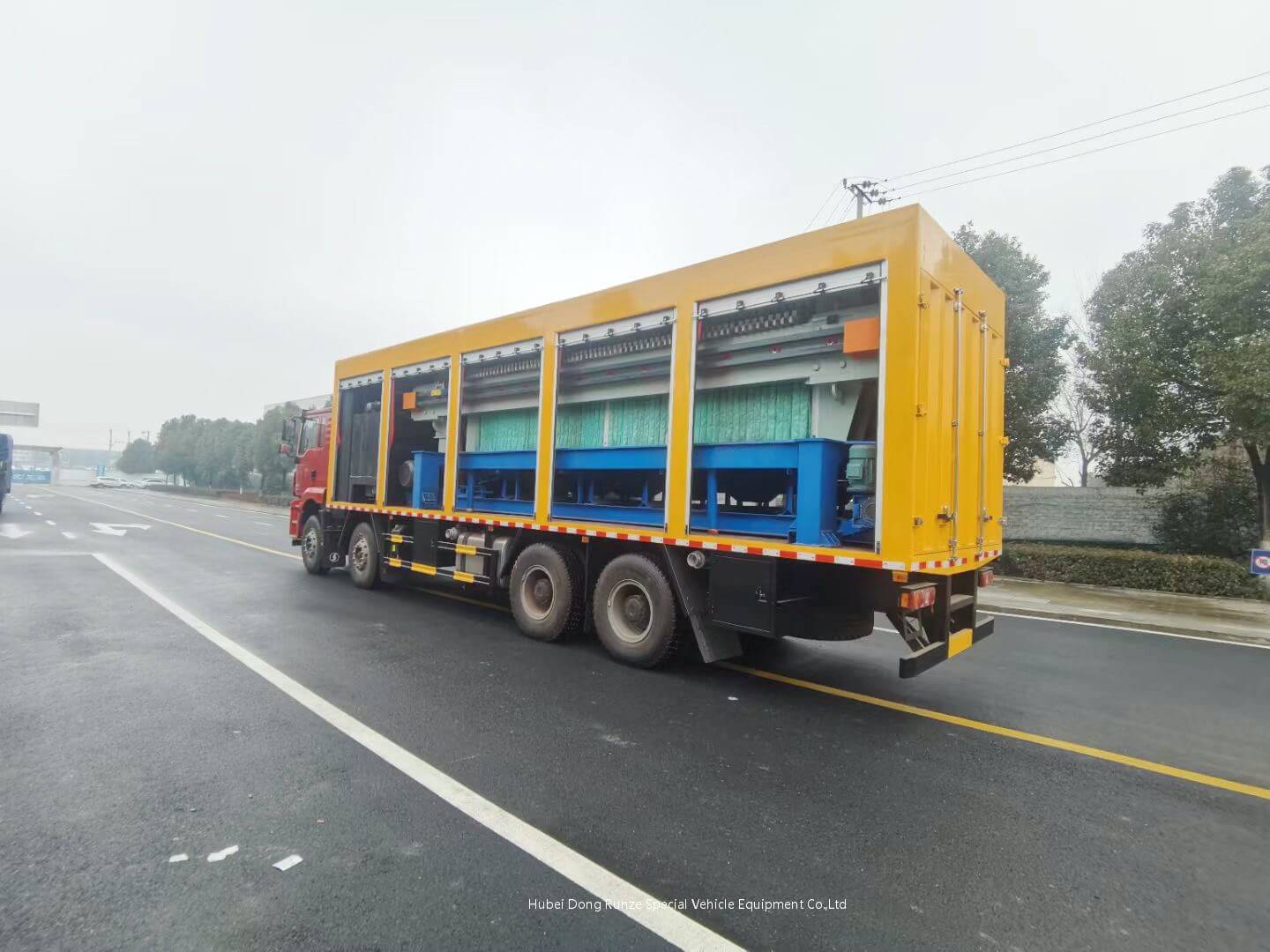

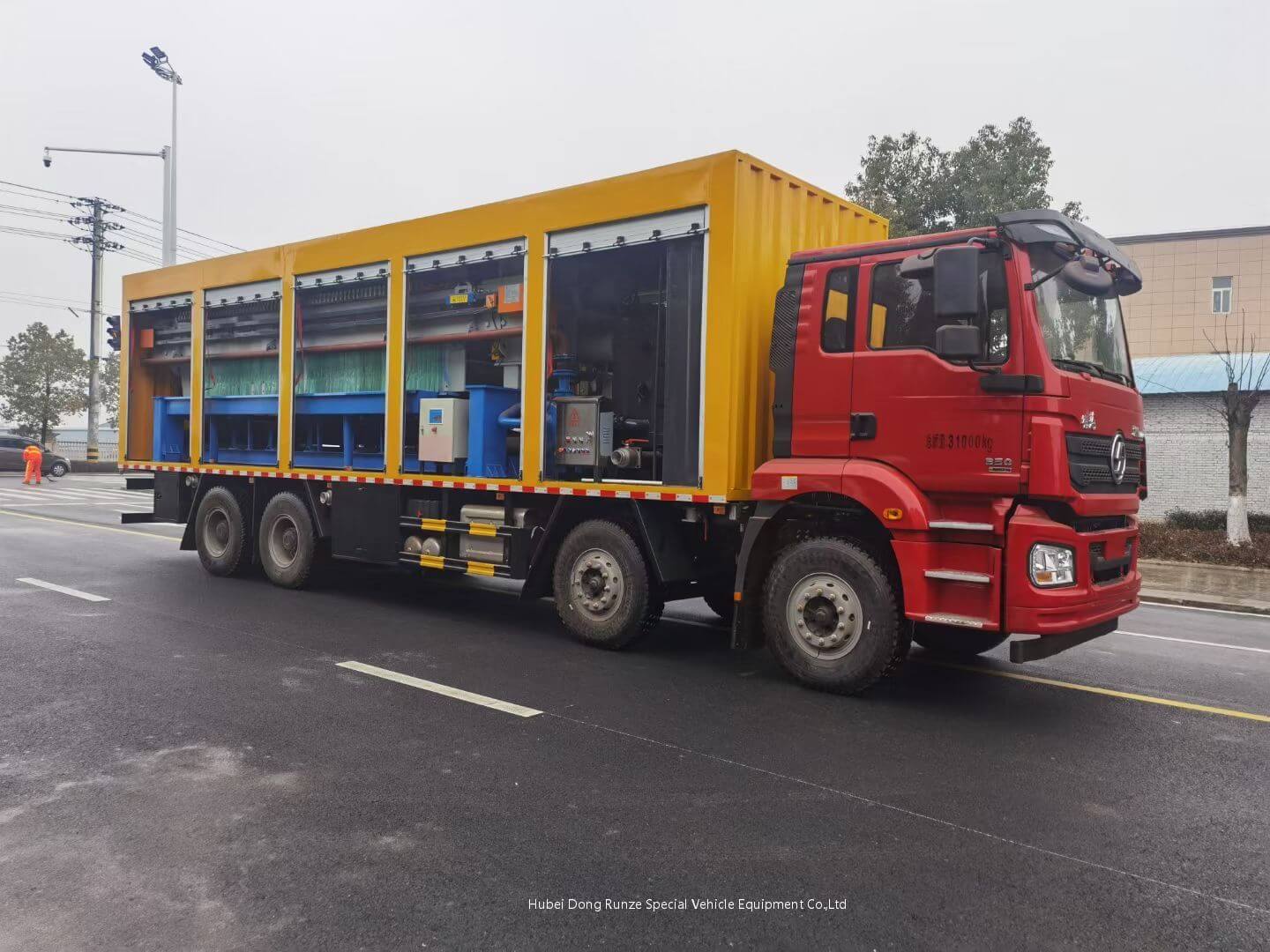

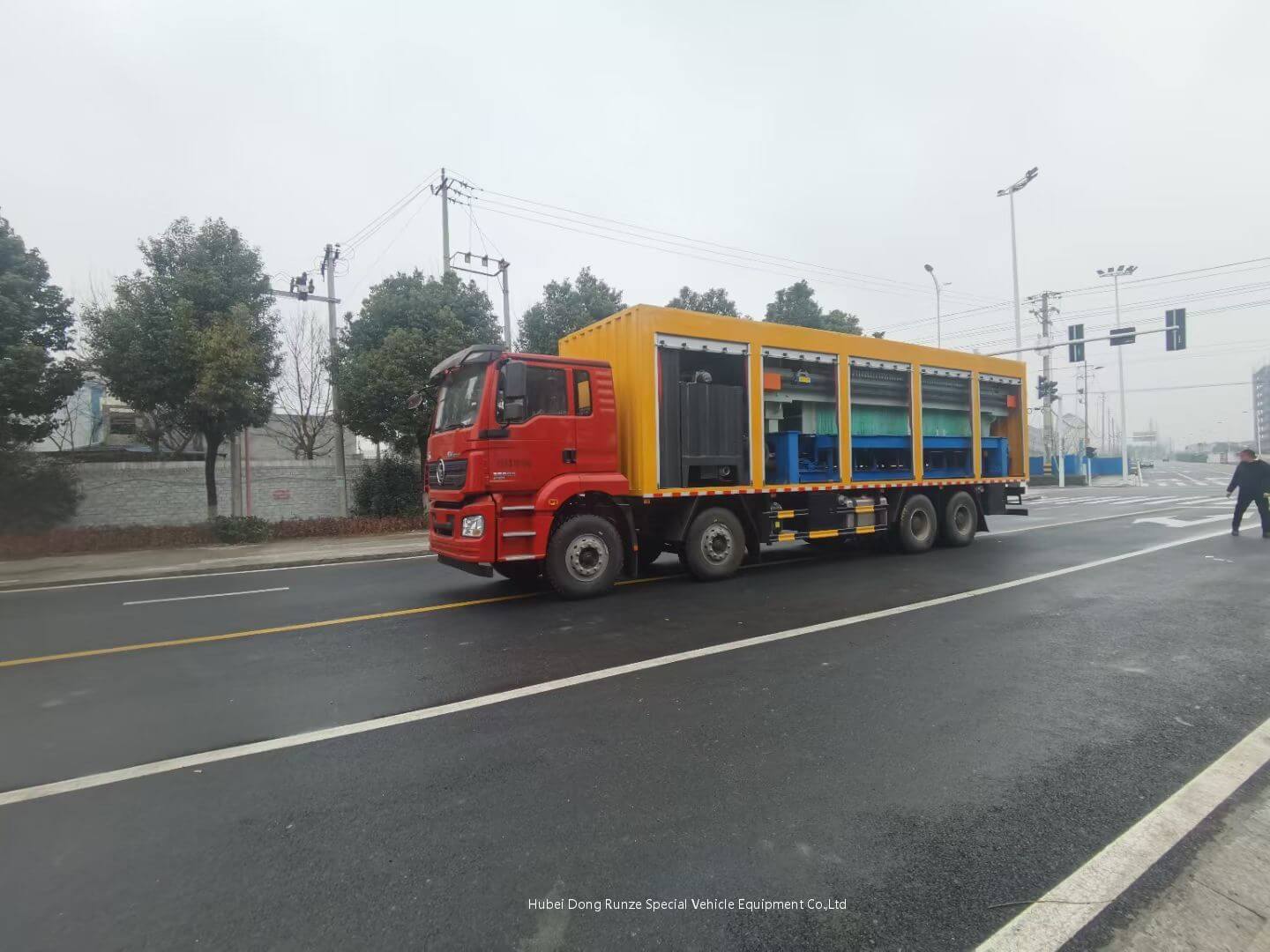

Shacman Truck Mounted Plate Frame Filter Press Machine for Waste Sludge Dewatering 263m2
Function
Mud treatment trucks can effectively treat sludge and mud generated in construction projects, sewer cleaning, and other projects
Good treatment, including sewage from septic tanks, can also be effectively treated.
Plate and frame pressure filtration system: 263 square meter plate and frame pressure filtration machine, main hydraulic station 7.5kw, pulling plate motor 1.5kw, conveyor belt nitrile rubber, power 4kw.
The movable buckle plate on the top of the carriage is convenient for the operation of the plate and frame filter press. The injection pump is 37kw, and the front 2 cubic stainless steel mixing box is double stirred. The 500 liter stainless steel flocculation tank can be connected to an external power supply in the distribution cabinet.
Sewage pumping operation system: 7.5kw or 11kw mud pump, 1.1kW water pump, 1.5kW dosing pump. The filtered water can be pumped to the mixing tank and clean water tank for recycling through the water pump. There are 4 sewage suction pipes, each of which is 6 meters long, and the mud cake can be compressed by about 5 cubic meters per hour, with a water content of about 60%.
1. More than 80% of the equipment on the mud treatment truck is made of stainless steel, and more than 98% of the pipes in contact with water are made of stainless steel, which has a longer service life and is more convenient to clean;
2. The mud treatment truck has good treatment effect, and the treated sewage can meet the national discharge standards. The mud cake can meet the sludge landfill standards, and can be well treated for various types of sludge;
3. When the mud treatment truck is working, it can be operated with an external three-phase power supply, or a diesel generator can be selected. If there is no external power supply, it can be operated by itself;
4. High level of job safety, with over 80% of processing work completed by machinery and minimal manual workload;
5. The entire vehicle can be customized according to customer needs, and can be equipped with different types and speeds of processing equipment.
6. All vehicle parts and accessories are purchased from well-known domestic brands. After multiple tests, they have shown good performance, stable operation, and durability.
