5040TPSEQE6-ZBH
-
Dongfeng
-
8705909990

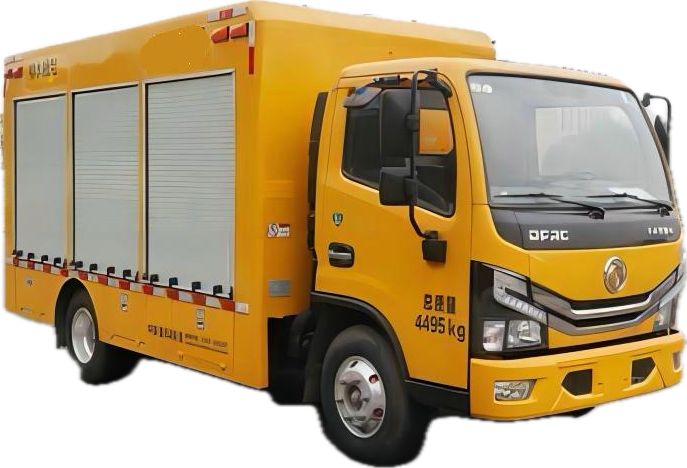

DFAC Flood Drainage Rescue Truck With 50kw Generator Pump 1000m³/h
Main technical parameters
Overall dimensions: | 5970×2050,2070×2810,2920(mm) | Fuel Type: | Diesel oil |
Gross Weight | 4495(Kg) | ||
Net weight | 4300,4365(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 27/14(°) | Front/rear overhang: | 1055/1607(mm) |
Axle Load: | 1600/2895 | Wheelbase: | 2700,2950,3308,3600(mm) |
Axle Number | 2 | Maximum speed: | 110(km/h) |
Tire Number | 6(PCS) | Tire Specifications: | 6.50R16,7.00R16,7.50R16LT 8PR,6.00R15LT 10PR, 6.50R16LT 10PR,7.00R16LT 8PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 6/6+5,3/3+3,2/3+2,5/7+3,5/4+3,6/4+3, 6/5+2,6/3+3,3/3,3/3+2,3/6+5,3/8+6 |
Front wheel track: | 1525,1519,1472,1545,1613(mm) | Rear wheel track: | 1498,1516,1586,1458,1650, 1800,1472,1670(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
D20TCIF1;Q23-115E60;Q28-130E60;CA4DB1-13E6;D20TCIF11;YCY24140-60; CA4DB1-11E6;CY4BK161;ZD30D16-6N;H20-120E60;CY4BK461; M9T-600;Q23-136E60;Q23-132E60;Q25-152E60;YN25PLUS160B;D20TCIF61;YCY24155-61A;ZD25D16-6D | Kunming Yunnei Power Co., LTD.; Anhui Quanchai Power Co., LTD.; Faw Group Co., LTD.; Guangxi Yuchai Machinery Co., LTD.; Dongfeng Zhaochai Power Co., LTD.; Dongfeng Light Engine Co., LTD.; | 1999;2300;2800;2207;1999;2360;2207;3856;2953; 2000;3707;2298;2300;2300;2493;2499;1999;2360;2499 | 93;85;96;95;93;103;81;105;120;90;95;105; 100;97;112;114;103;113;120 |
1. Used for urban flood control and drainage, building foundation pit pumping, underground space drainage, etc., can also be used for water supply operations;
2. The car has its own lighting system, which can be switched to large flow or high lift operation, integrated with the vehicle, with all-terrain all-weather operation capability;
3. Maximum speed (full load)≥90km/h;

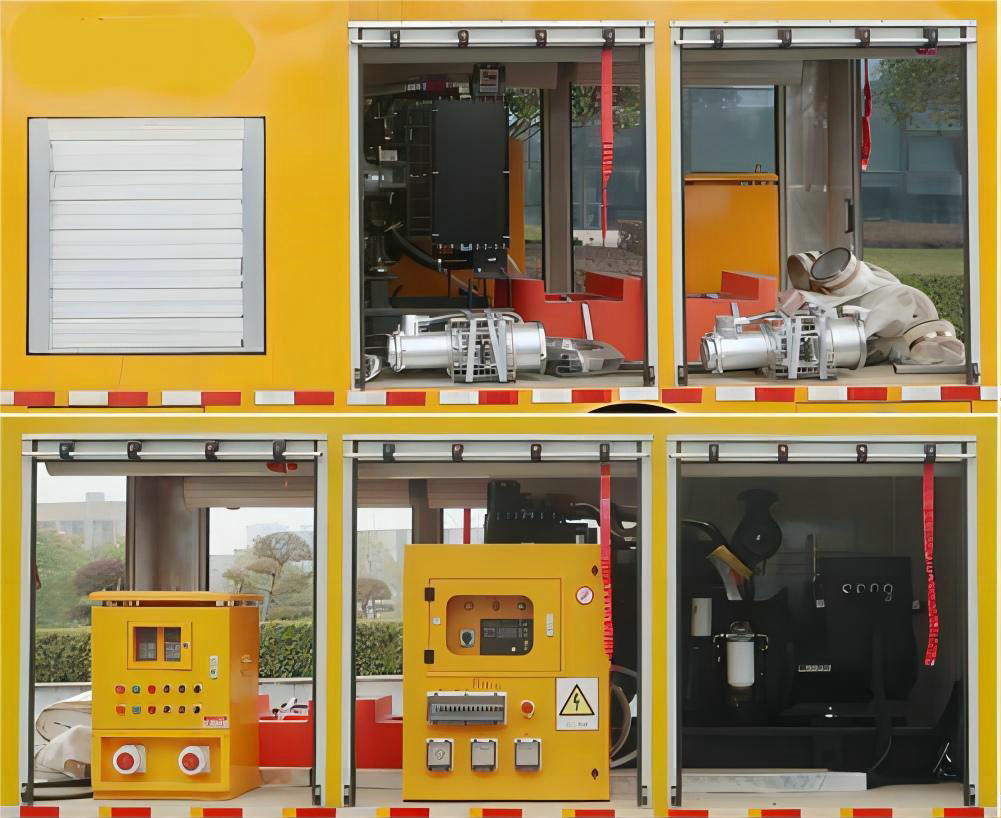

5. Equipped with diesel (gasoline) generator set, power ≥50kw;
6. The pump adopts permanent magnet synchronous motor, insulation grade: F, protection grade: IP68;
7. Flow ≥1000m³/h, lift ≥10m, continuous working time ≥12h, wireless control;
8. The pump body (including impeller, impeller chamber, etc.) is made of stainless steel or light high-strength alloy, and the surface of the core parts of the impeller and the guide body is treated with wear-resistant hard coating;
9. Equipped with control cabinet, cold rolled steel or stainless steel material (protection grade ≥IP44);
10. With frequency control;
11. Water pump outlet hose length ≥80m[each section (roll) length 20m], the hose material is flexible, wear-resistant and anti-piercing, collapsible ring, with adapter and stainless steel fast clamp;
12. Cable must be copper core national standard, the interface adopts waterproof quick connector (protection grade ≥IP67);
13. Provide replaceable pump parts, through the replacement of pump parts, to achieve the function of large flow and high head exchange;
14. Pump interchange head: ≥20m, the outlet diameter should be exchanged in response;
15. The vehicle is equipped with foldable lifting lights, lifting height ≥3.0m(distance from the ground), lamp power ≥2*250W, protection level ≥IP65.
