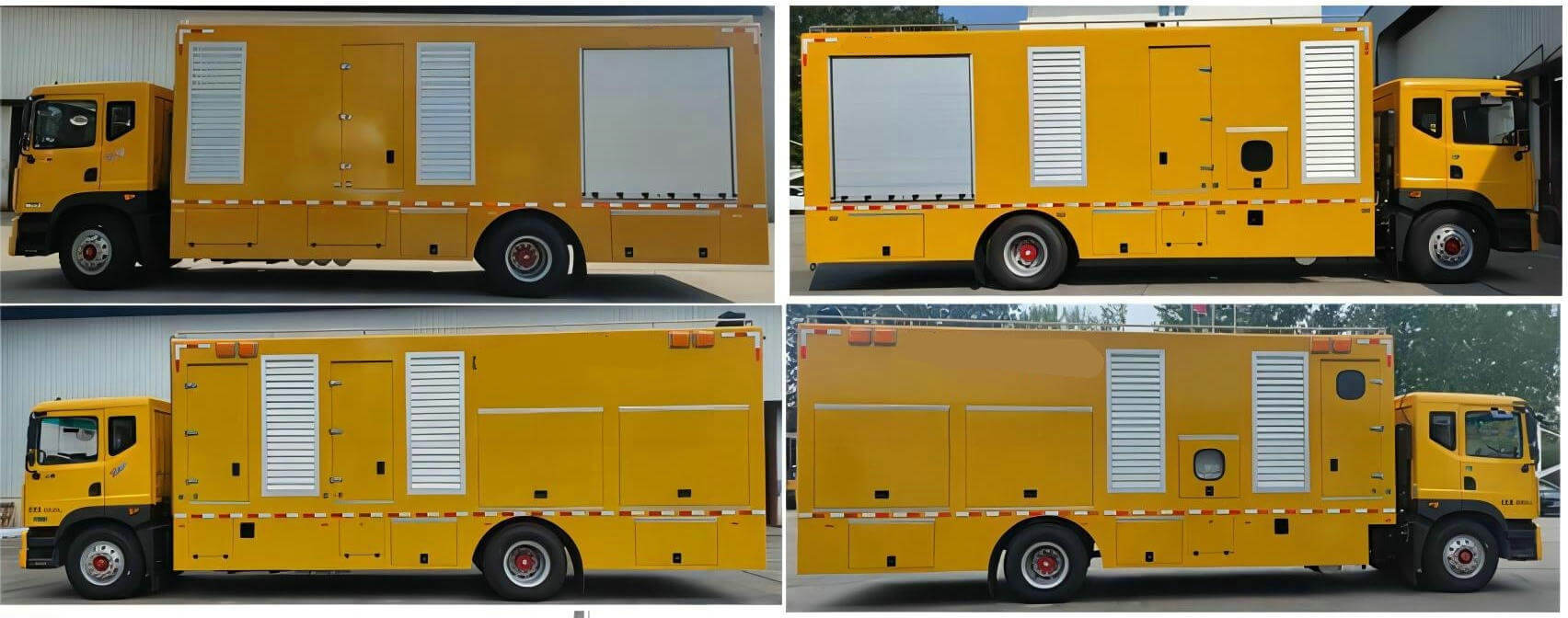

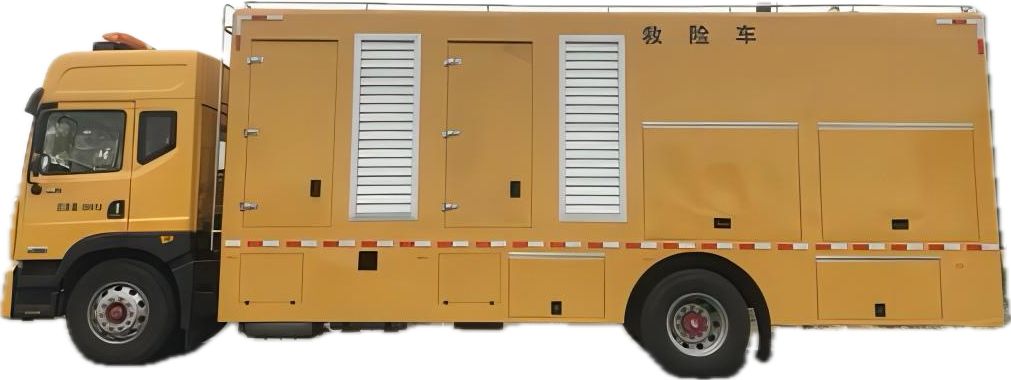

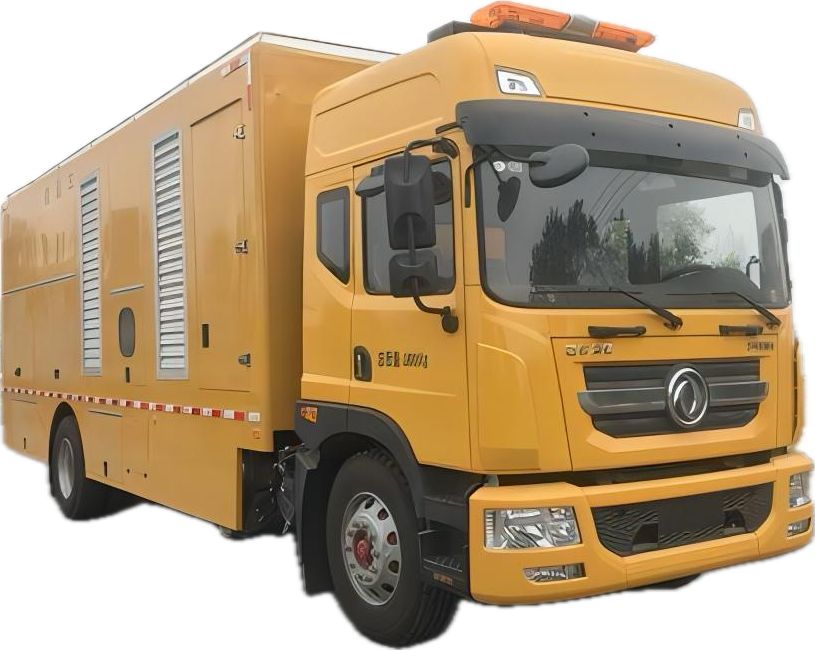

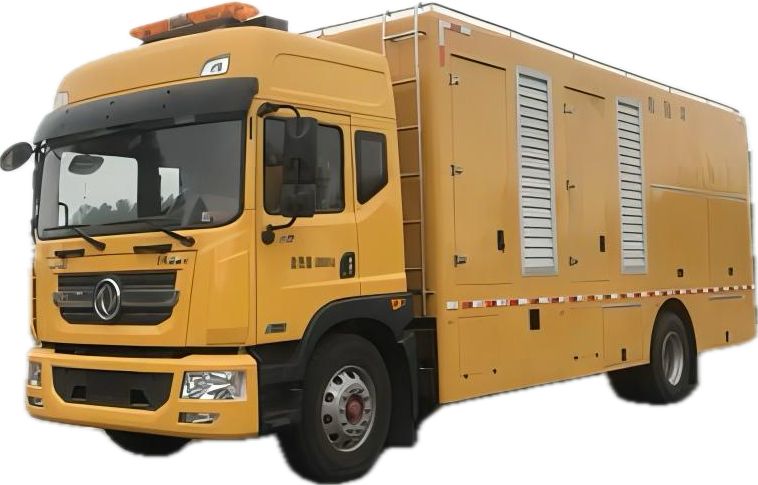

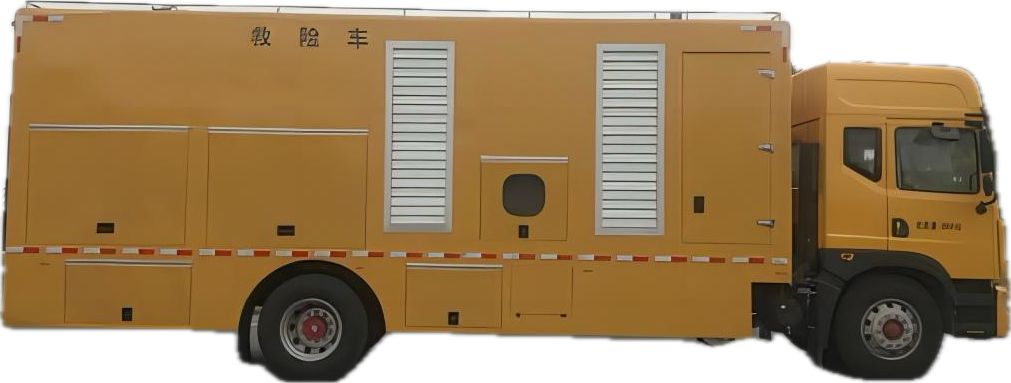

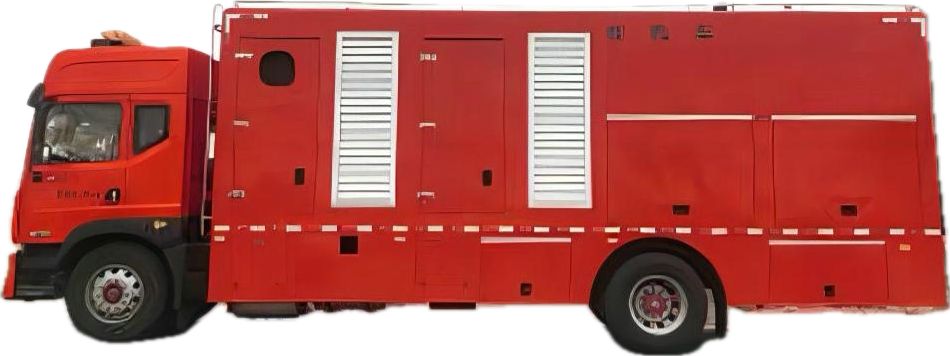

DFAC Large Flow Drainage Emergency Rescue Trucks with Generator 350kw Pump 3000m3/h
Generator output power 350kw
Hydraulic power system pressure ≥20mpa
Total drainage Pump ≥3000m3/h
Optional Rescue Crane
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
NJJ-5180TPS6
-
Dongfeng
-
8705909990
DFAC Large Flow Drainage Emergency Rescue Trucks with Generator 350kw Pump 3000m3/h
Technical requirements for power systems
1. Generator output power ≥350kw;
2. Hydraulic power system pressure ≥20mpa; System flow ≥120L/min, hydraulic tank volume ≥400L, remote control pump flow .
Drainage Pump system:
1. The total drainage capacity ≥3000m3/h
2. Install no less than 3 sets of hydraulic pump, a single hydraulic pump technical reference
The number
① Pump flow ≥500m3/h
② Maximum lift (m) ≥10
③ Weight ≤25kg
④ A single pump matching water belt ≥ 100m in length, the total length of the single pump oil pipe
Degree ≥30 m
3. Install no less than 3 sets of permanent magnet variable frequency submersible pump, permanent magnet variable frequency
Technical parameters of submersible electric pump
① Pump flow ≥500m3/h
② Pump head (m)≥40
③ Power (kw)≥80
④ Weight (kg)≤90
⑤ The insulation grade shall not be lower than F
⑥ Protection grade ≥IP68
4. Technical requirements of control system
1. It can effectively switch between large flow and high head
2. Protection level ≥IP55
5. Meet the requirements of on-site lighting
Install lifting lighting, lighting total power ≥300W, height (distance From the roof) ≥1.5m

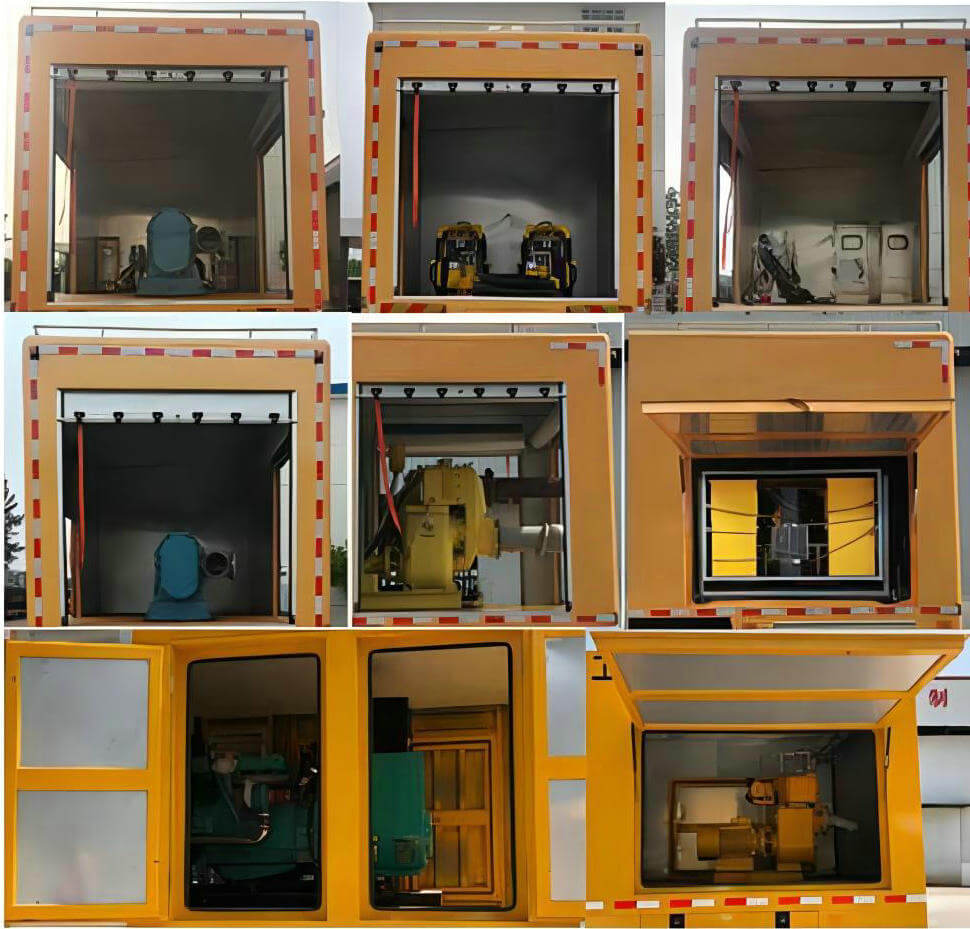

Special equipment of the vehicle: generator set or diesel engine, water pump, control system, etc., mainly used for emergency rescue needs, emergency power generation, emergency rescue pumping sewage;
Two sides of the optional different styles of opening the door, optional flash lights,LED display;
Optional non-hydraulic tailplate at the rear,
Optional double door,
Optional rolling shutter door, high pole light,LED display, arrow light;
Optional cam-rotor pump, portable water pump, slurry pump, lifting mechanism,

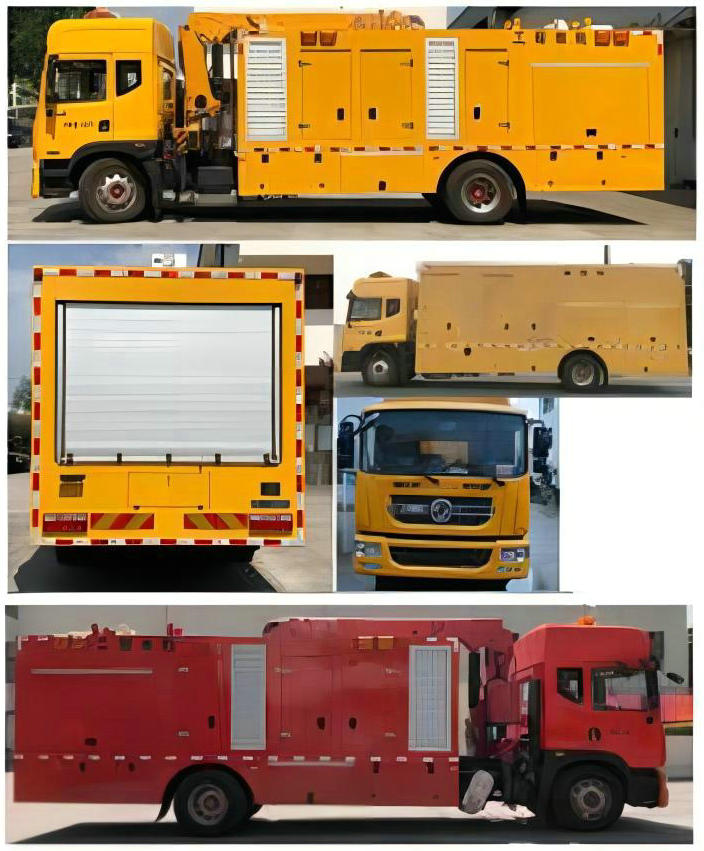

Optional with lifting Crane :SQ5SA2, Crane weight 1900kg, Crane lifting capacity 5000kg;
The model/manufacturer of the lifting tail plate is :CD-PP15/GA/ 450kg.
Overall dimensions: | 9900,9850,9620,9020,8520,8210,7350 ×2500,2550×3470,3650,3750,3850(mm) | Fuel Type: | Diesel oil |
Gross Weight | 18000(Kg) | ||
Net weight | 17805,17870(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 19/10(°) | Front/rear overhang: | 1260/3040,1260/2990,1260/3060, 1260/2760,1260/2560,1260/2450,1260/2140(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 3600,3950,4500, 4700,5000,5300,5600(mm) |
Axle Number | 2 | Maximum speed: | 105(km/h) |
Tire Number | 6(PCS) | Tire Specifications: | 295/80R22.5 18PR,10.00R2018PR, 275/80R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 8/10+7,8/- |
Front wheel track: | 1862,1933, 1949,1904(mm) | Rear wheel track: | 1806,1865(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
CY4SK761;YCS04200-68;D4.5NS6B220;B6.2NS6B210;B6.2NS6B230; D4.0NS6B195;D45TCIF1;B6.2NS6B260;D4.5NS6B240 | Dongfeng Zhaochai Power Co., LTD.; Guangxi Yuchai Machinery Co., LTD.; Dongfeng Cummins Engine Co., LTD.; Kunming Yunnei Power Co., LTD.; | 4087;4156;4500;6200;6200; 4000;4461;6200;4500 | 145;147;162;154;169; 143;162;191;176 |

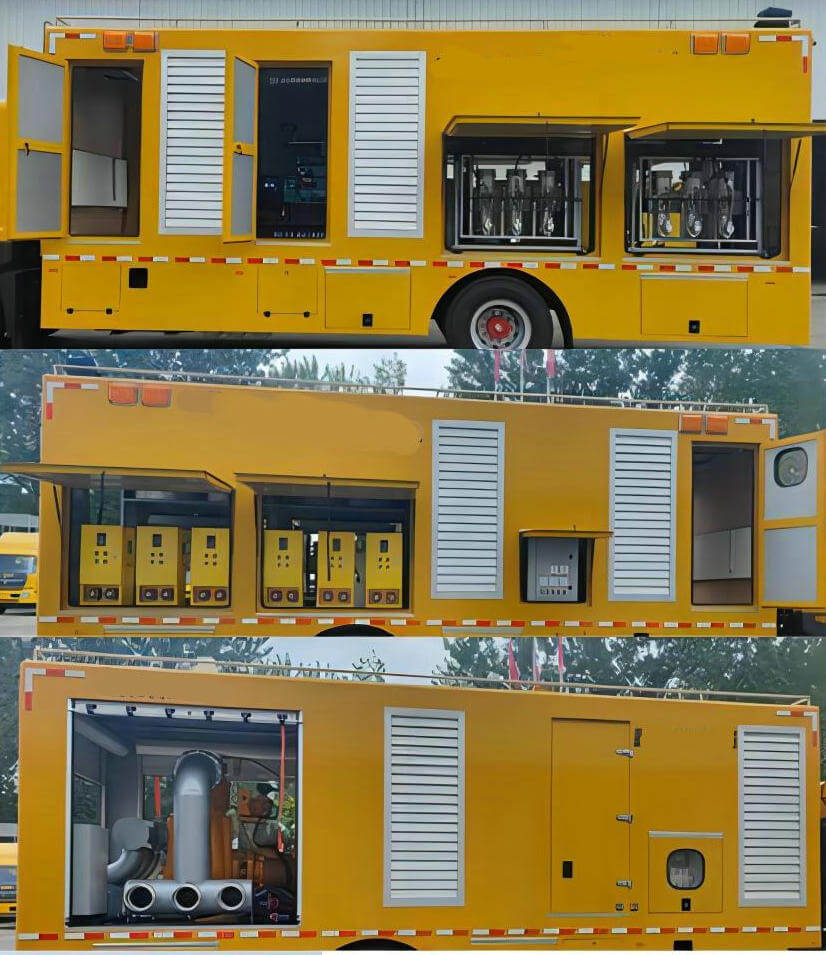

Environment-friendly low-noise sound-proof compartment is equipped, and large-flow portable submersible pump is equipped in the compartment to adapt to drainage conditions; It is also equipped with a diesel-powered generator set. The vehicle is suitable for flood drainage, drought resistance, mine rescue, forest fire fighting, highway bridge bottom culvert drainage, irrigation and other fields.
