FLG-5220TGP40Q
-
ISUZU
-
8705909990

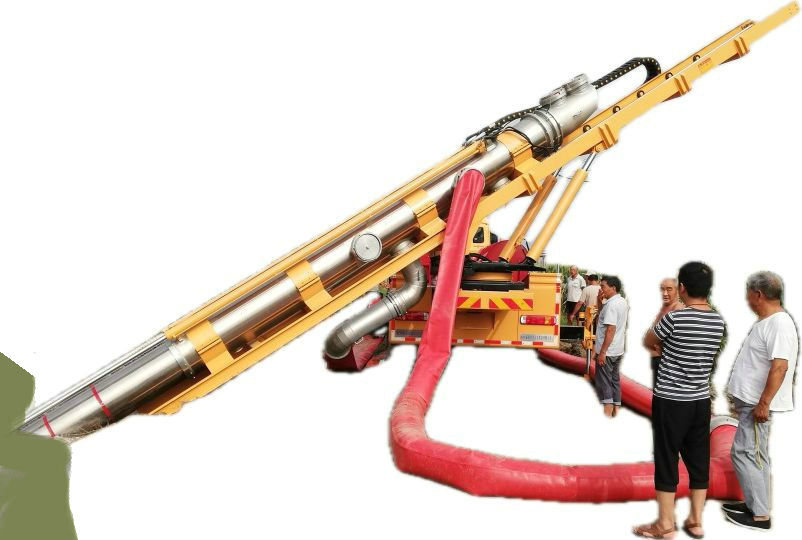

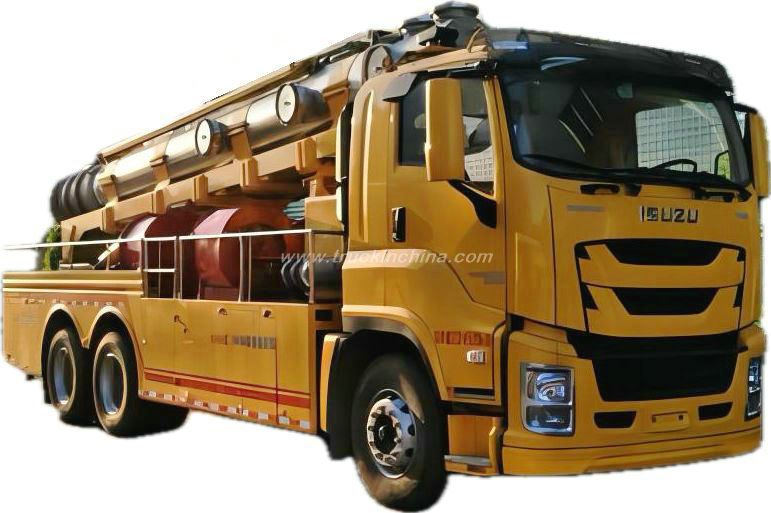

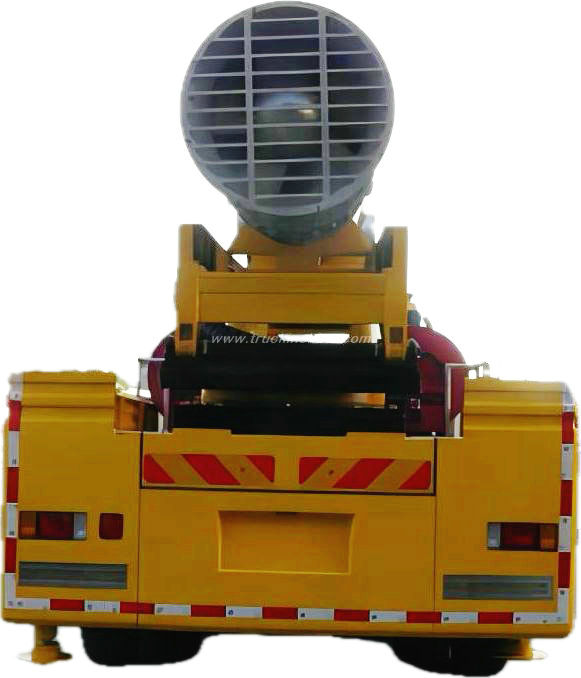

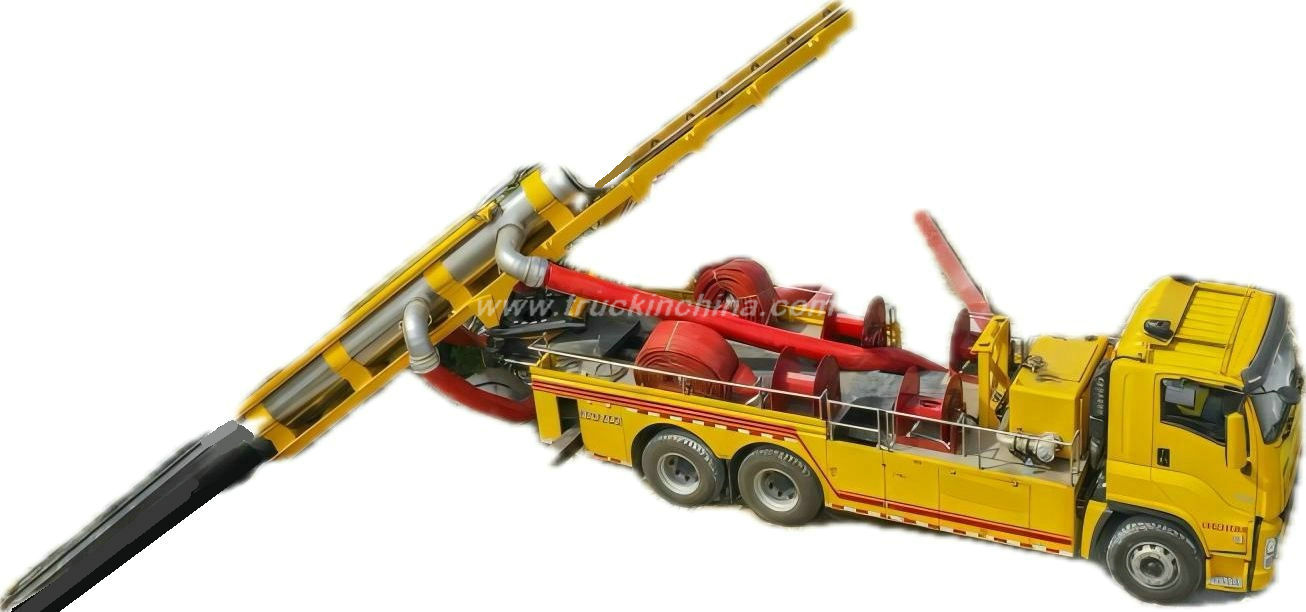

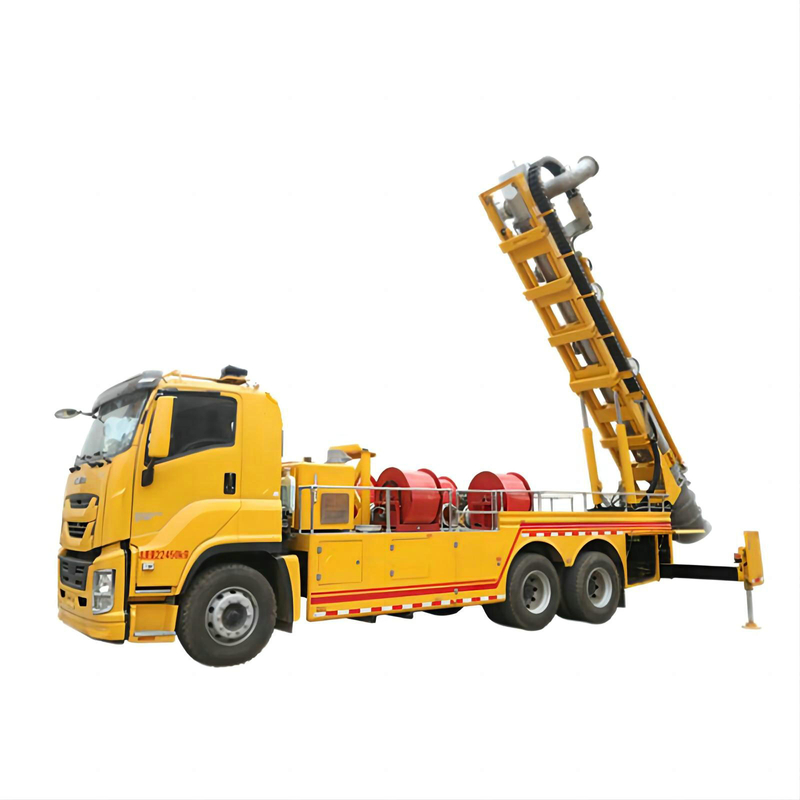

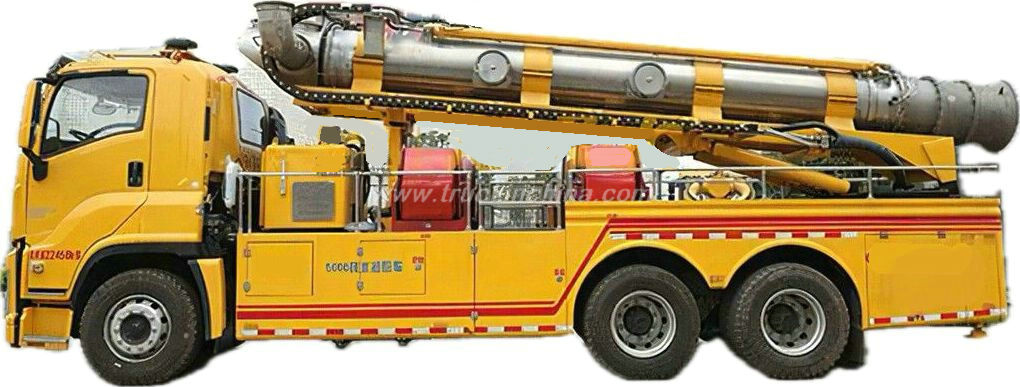

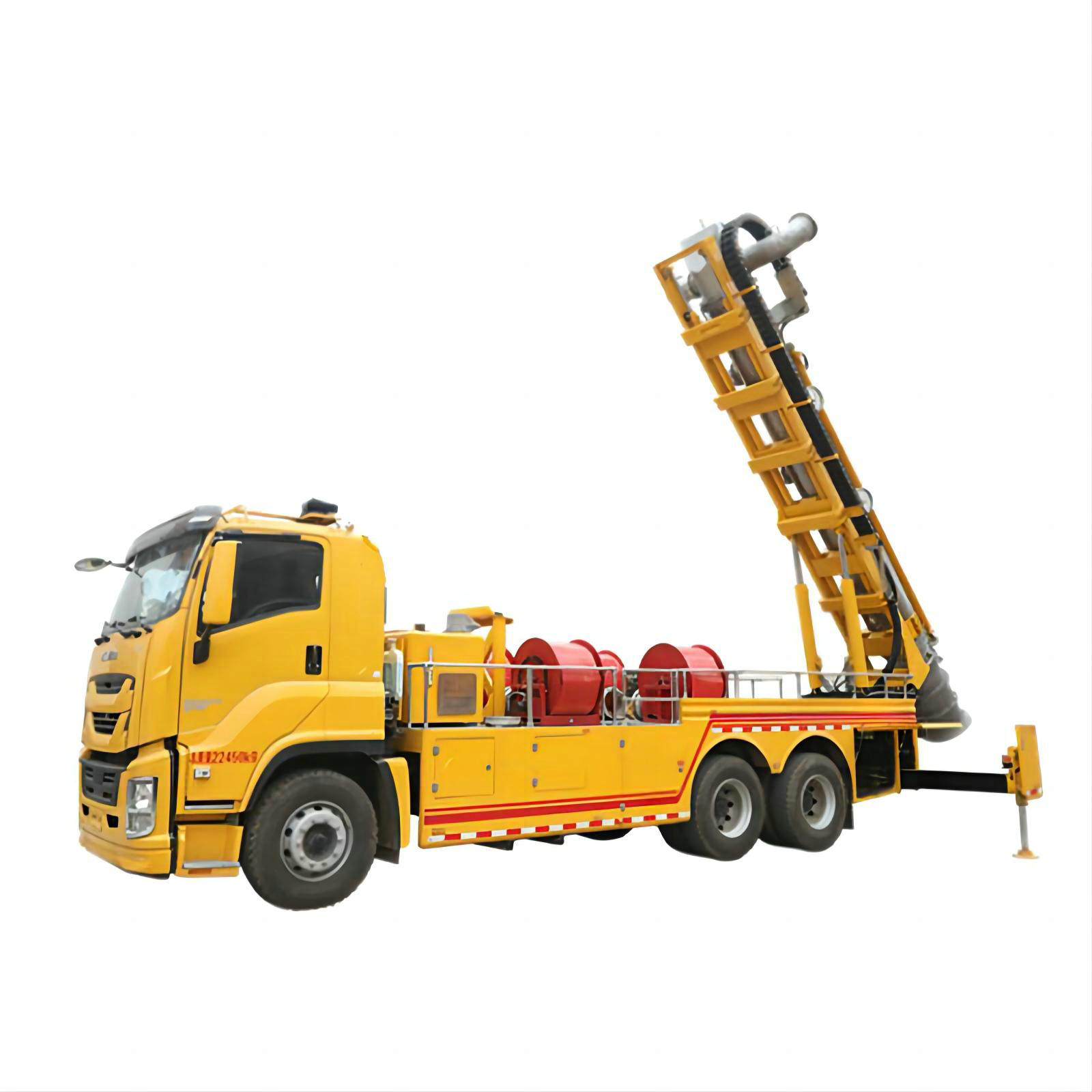

ISUZU Vertical Drainage Water Rescue Truck 5000m3/h
Special vehicle used for emergency Water supply or Flood drainage pumping
item | Pump Options | ||||
Flow rate m3/h | 1000 | 1500 | 1500 | 3000 | 5000 |
Lift Head (m) | 22 | 17 | 35 | 15 | 10 |
Purpose:
Drainage pump, drought, water supply
Application field:

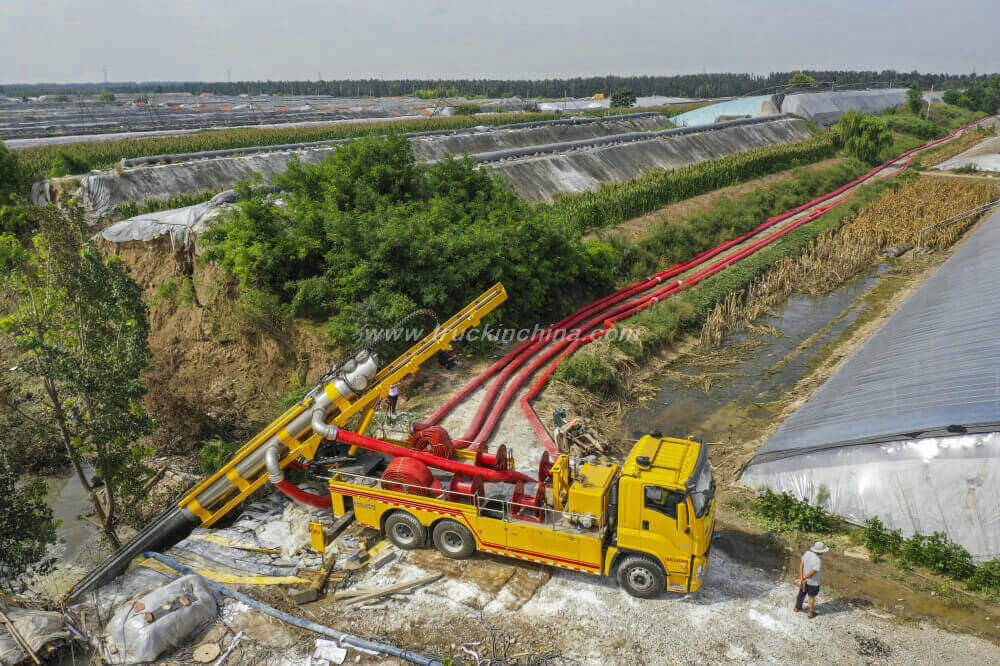

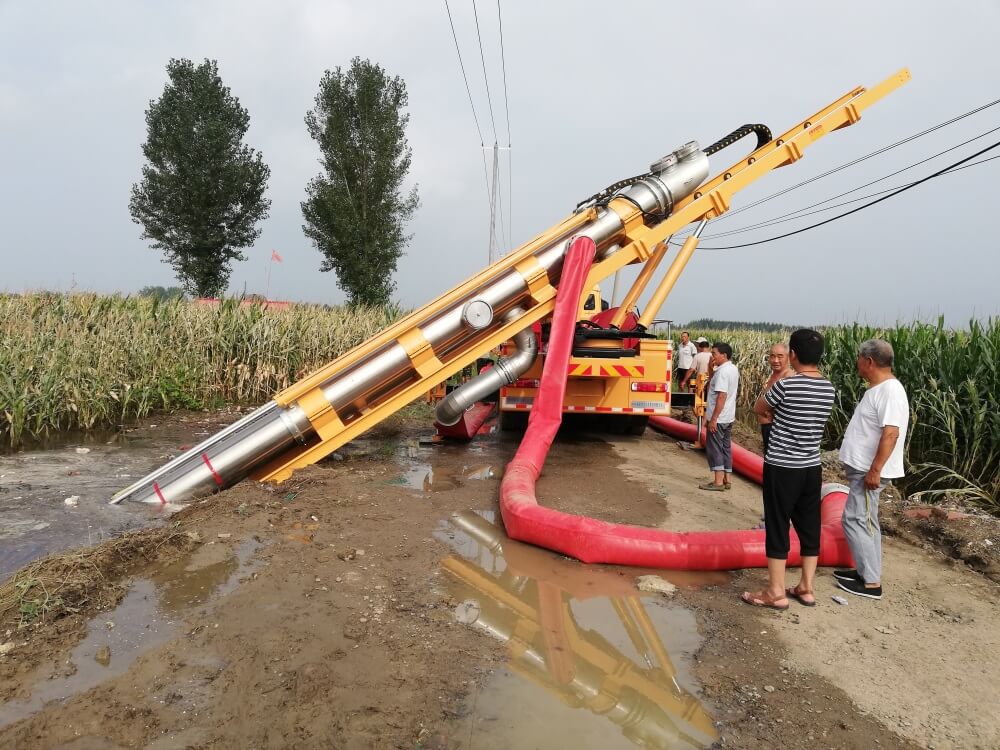

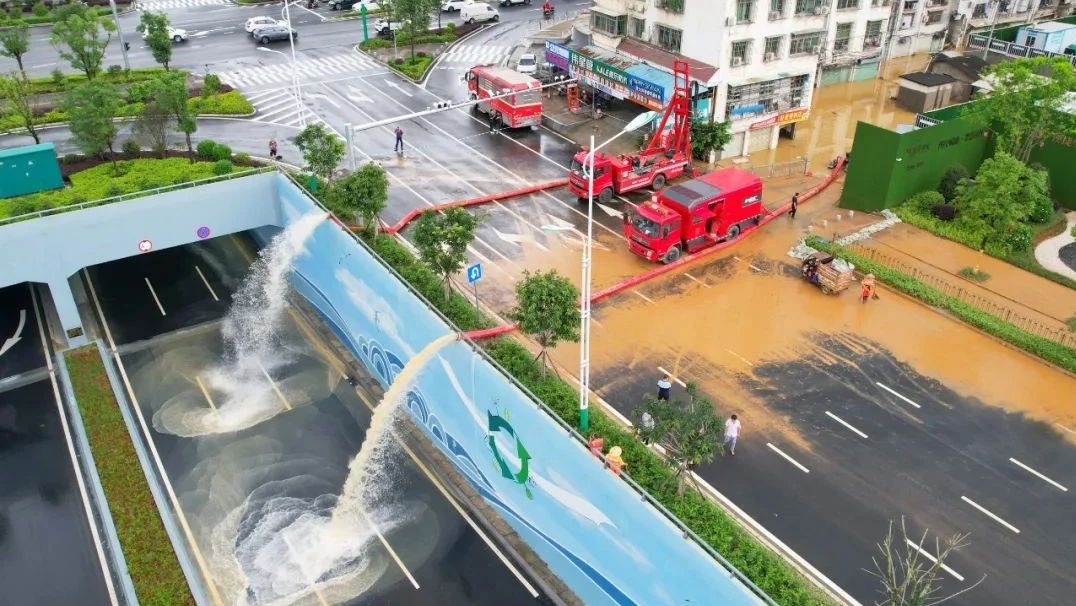

Municipal and highway emergency drainage; Surprise flood control and drainage, cofferdam pumping; Drought relief, agricultural irrigation; Aquaculture; Pumping and drainage in areas without fixed pumping stations and power supply. Especially suitable for well drainage operations, urban roads, overpasses, underpass Bridges, tunnel drainage, highway main line and access ramp and other places of water removal.
Full hydraulic, no electricity safety, easy to operate
Overall dimensions: | 10100×2550×3720(mm) | Fuel Type: | Diesel oil |
Gross Weight | 22450(Kg) | ||
Net weight | 22320(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 17/15(°) | Front/rear overhang: | 1370/2795(mm) |
Axle Load: | 5450/17000 | Wheelbase: | 4565+1370(mm) |
Axle Number | 3 | Maximum speed: | 100(km/h) |
Tire Number | 10(PCS) | Tire Specifications: | 315/80R22.5 18PR,12R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 7/10 |
Front wheel track: | 2065(mm) | Rear wheel track: | 1855/1855(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
6WG1-TCG51 | ISUZU | 15681 | 338 |
