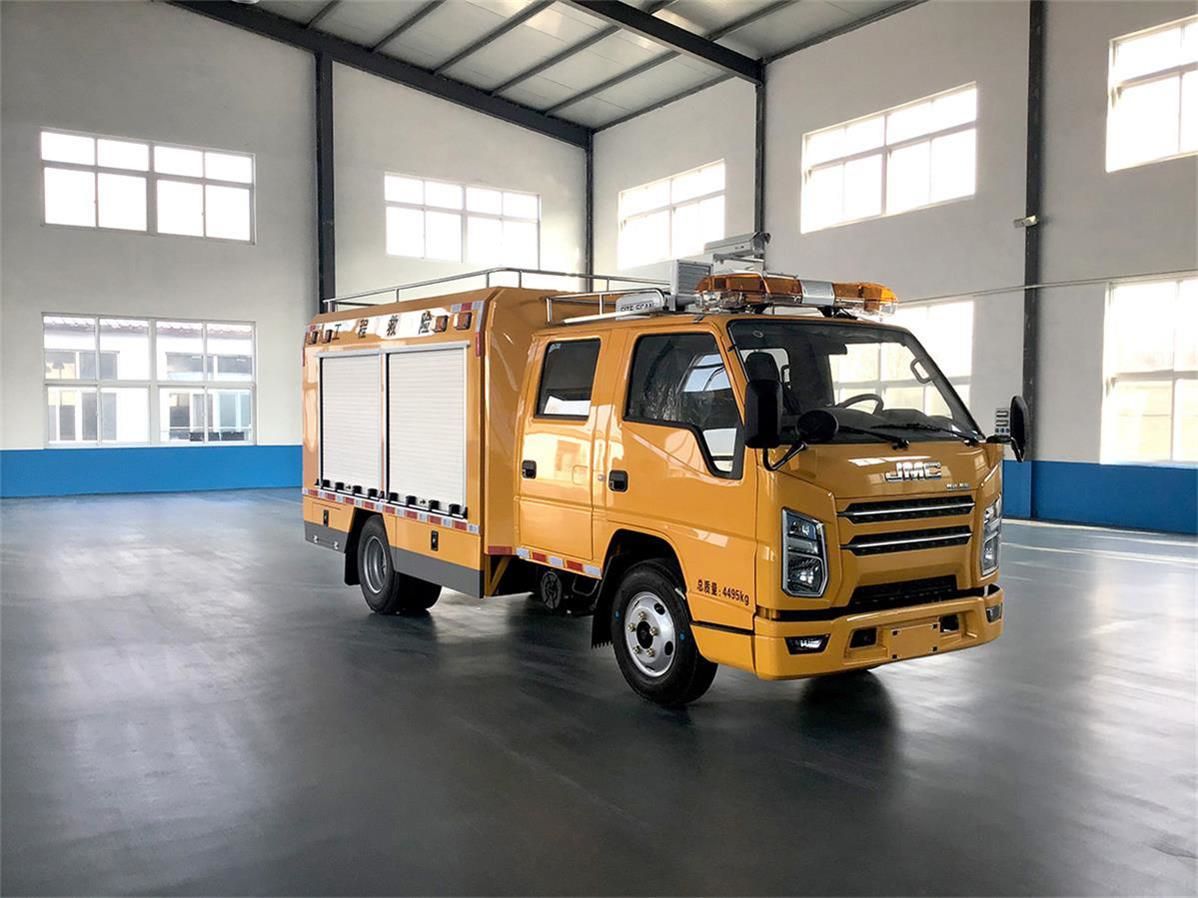

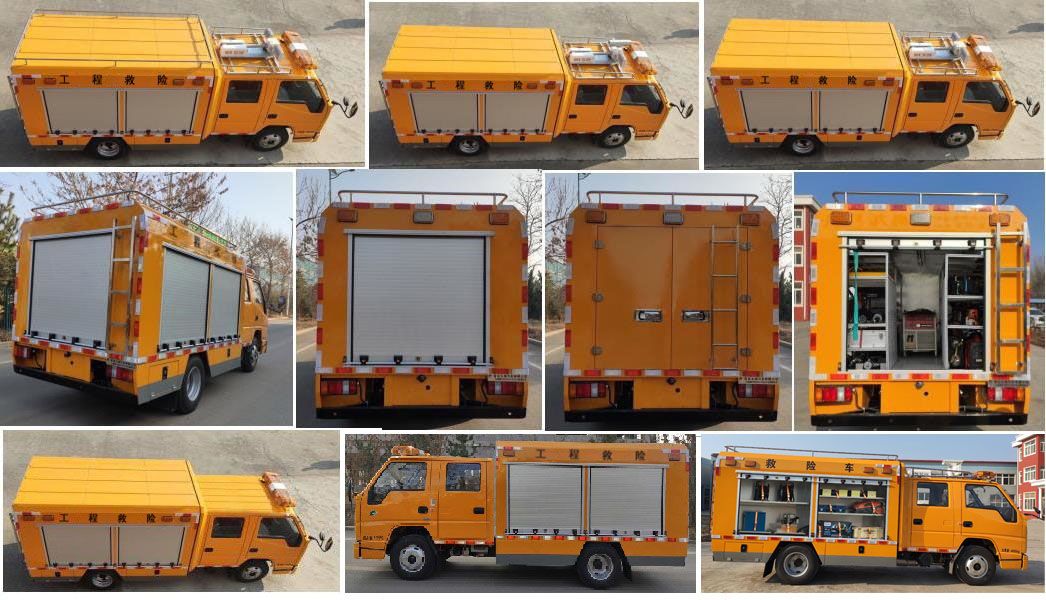

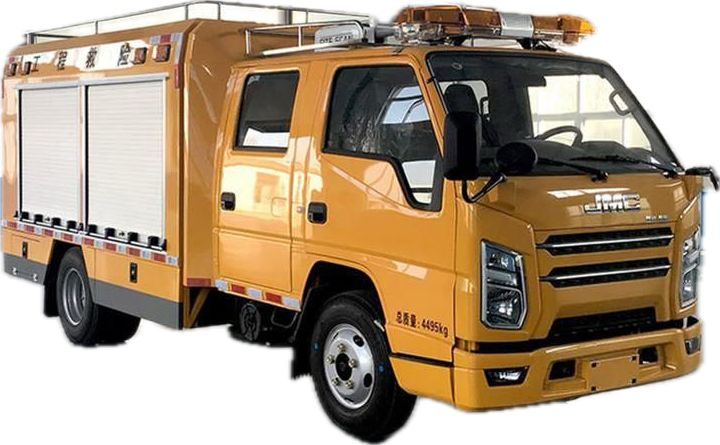

JMC Emergency Rescue Equipment Vehicle For Fighting Floods with Drainage Pump 500M3/h
Generator set 30KW
Drainage Pump 500M3/h
Lift lighting machine 4×500W
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
FZB5040XXHJLS6
-
JMC
-
8705909990
JMC Emergency Rescue Equipment Vehicle For Fighting Floods
Drainage Pump 500M3/h
Name | Project |
Emergency Rescue Vehicle | 1. Vehicle Technical Parameters 1, Size (Mm): Length: 5800-6000, Wth: 1900-2100, High: 2700-2920 2, Wheelbase (Mm): 3350-3450 3, Total Mass (Kg): 4500, Preparation Mass (Kg): 4150-4250 4, The Number Of Passengers (Person): 5 5, Maximum Speed (Km/h): 105 6, Engine: Fuel Type: Diesel Oil, Power (Kw) 85, Displacement (Ml):2900, Emission E6 8. Tire Specification: 7.00R16Lt 8Pr 9. Axis Load (Kg): 1580 / 2915 10. Install The Reversing Image And The Rear Reversing Camera. |
Overall dimensions: | 5900,5995×1950×2390,2510(mm) | Fuel type | Diesel | |
Gross Weight | 4495(Kg) | |||
Net weight | 4170(Kg) | Rated load | (Kg) | |
Approach Angle/Departure Angle: | 20/15(°) | Front/rear overhang: | 1075/1465,1075/1560(mm) | |
Axle Load: | 1725/2770 | Wheelbase: | 3360(mm) | |
Axle Number | 2 | Maximum speed: | 100(km/h) | |
Fuel consumption: | (L/100Km) | Suspension Spring : | 7/4+6,7/5+6,4/4+6,3/4+6,4/4+4,3/4+4, 5/4+6,5/4+4,4/5+6,3/5+6,4/5+4, 4/5+2,7/4+4,7/5+4,7/6 | |
Number of tires: | 6(PCS) | Tire : | 7.00R16LT 10PR | |
Front wheel track: | 1385,1370(mm) | Rear wheel track: | 1425,1440(mm) | |
Engine | Model horsepower (ps) | Displacement (ml) | Power (kw)/ horsepower (ps) |
JX4D30A6H | JMC | 2892 | 95/129 |
JX4D30B6H | JMC | 2892 | 85/115 |
JX493ZLQ6A | JMC | 2771 | 90/122 |
JX4D25A6H | JMC | 2478 | 105/142 |
JX493ZLQ6D | JMC | 2499 | 90/122 |
JX495ZLQ6C | JMC | 2478 | 105/142 |
JX493ZLQ6F | JMC | 2499 | 95/129 |
2. Generator Set
1. The Generator Set Is Selected From Domestic Brand, Power 30Kw, Rated Frequency 40 Hz, Rated Voltage: 230 / 400V.
2, Speed Regulation Mode: Electronic Speed Regulation, Start The Battery, Battery Total Gate.
3. The Base Fuel Tank Can Meet The Continuous Operation Of The Generator For More Than 8 Hours.
4, The Control System Can Be Realistic Water Temperature, Oil Pressure, Speed, Frequency, The Voltage, Current, Power And So On Can Be One-Key Intelligent.
3. Flood Control Pump
1. Equipped With a High-Speed Portable Diving Flood Control And Drainage Pump (Mobile), Comprehensive Flow 500m³ / h, Motor, Power 18.5kw, Head 8m, Pump Flow 500m³ / h, Pump Weight: 30 Kg, Installed In The Compartment, Convenient Operation.
2, The Pump Does Not Need To Irrigate, Driven By Permanent Magnet Motor, Aluminum Alloy Material, Light Weight, Excellent Performance, Good Heat Dissipation, Fast Water, Can Work For a Long Time. The Water Pump Is Started By Frequency Conversion Start. Effectively Protect The Engine And Motor, Reduce The Starting Current; Increase The Service Life Of The System.
(1) Control: The Pump Is Equipped With a Separate Control System, The Controller Adopts "Abb, Schneider, Siemens" Or Equivalent Brands, With a Variety Of Electrical Safety Specifications Certification.
(2) The Water Pump Is Equipped With a Steel Filter Net Cover;
(3) The Length Of The Pump Motor Lead Cable Is 20m, Using Special Diving Cable, And With Steel Cable Sheath;
(4) The Pump Is Equipped With a Floating Circle, The Floating Circle Must Meet The Buoyancy Requirements Of The Pump Working, The Floating Circle Internal Special Process Treatment, The Appearance Of Damage Will Not Sink, The Floating Garden And The Pump Are Connected With Steel Soft Sling, And The Traction Rope.
(5) The Outlet Of The Pump Is An Eight-Inch Water Belt, Light And Easy To Take, Standard 20 Meters Long. The Joint Adopts Paul Type Fast Joint, Easy To Use, Good Sealing Effect; Can Be Quickly Connected With The Pump.
4. Truck Body
1. The External Steel Is High-Quality Cold-Rolled Steel Plate, Lined With High-Quality Cold-Rolled Steel Plate, With Advanced Technology And Strong Strength. With Transportation, Rain Prevention, Anti-Corrosion, Fire Prevention, Rust Prevention, Sound Insulation Functions.
(1) Door And Ladder: The Box Body Is The Rolling Shutter Door For Convenient Work And Maintenance. The Side Of The Car, The Rear Side Can Be Set Hidden Steps To Facilitate Up And Down The Car.
(2) The Surface Of The Car Adopts The Car Painting Process, Which Can Meet The Requirements Of Users To Spray The Background Color, Text, Pattern, Etc.
(3) The Installation Structure Of The Unit Is Arranged Reasonably And Orderly: With Seismic Function, The Space Inside The Compartment Is Spacious And Convenient For Maintenance And Operation.
(4) The Generator Set Is Installed In The Power Generation Room, Fixed By Bolt Structure, Easy To Remove, And The Generator Set Can Be Taken Out For Overhaul;
(5) The Surface Of The Carriage Floor Should Be a Decorative Non-Skid Steel Plate;
(6) All Electrical Wiring In The Carriage Is Reasonable And Beautiful; Prevent Leakage Protection Measures.
(7) The Generator Set Is Equipped With a Noise Reduction System, Smoke Exhaust System, Smoke Exhaust System Is External, And Automatically Open When Starting.
(8) The Vehicle Box Body Needs To Use The Overall Coating Type, And The Overall Appearance Is Beautiful.
5. Other Configuration
1. The Distribution Box Can Be Equipped With One Output Voltage 380V Socket And 2220 V General Sockets.
2. Led Lights In The Compartment. When The Generator Set Is Started, The Generator Set Is Used To Power Supply, And When The Generator Set Is Stopped, The Vehicle Dc Bottle Is Used To Power Supply, Which Can Realize Convenient Switching.
3, The Front Installation Of a Long Row Of Engineering Alarm Lights, With a Loudspeaker.
4. Both Sides Of The Vehicle Are Equipped With a Total Of Two Red And White Flashing Lights, Which Play a Warning Role To Pedestrians And Passing Vehicles.
5. Provide Two Portable Dry Powder Fire Extinguishers And Put Them In The Easy To Take Place On The Car.
6, Flood Control Rope: Precision Weaving, Feel Comfortable And More Wear-Resistant, Safety Hook Waterproof And Anti-Rust Durable, Strong Wrapping Rope Head Is Safer
8, The Vehicle Circuit Modification Using Tinned Flame Retardant Environmental Protection Copper Wire, The Tender Of Tin Copper Wire Flame Retardant Compliance Data Must Be Provided
9, Remote Intelligent Security System
10, Grounding Device: Grounding Pile And Grounding Cable, Connect The
Grounding Pile Head Specially Set Up In The Trunk, Convenient Connection, In The Unit Work, Grounding Wire Connected To Protect The Safety Of Operation. Mechanical And Electrical Equipment Has Strict Leakage Protection Measures. In The Operation, The Whole Vehicle Grounding Wire, Using The Low-Voltage Grounding Wire, Equipped With a Detachable Grounding Pin, The Diameter Is Not Less Than 10mm.
11, Electric Winch: Electric Winch 450kg.
12. Air Compressor: The Silent Air Compressor Installed In The Vehicle For The Rapid Inflation Of The Lifeboat Shall Not Be Less Than 0.7Mp 0.3m³ / Min.
2 | Lift lighting integrated machine | Rated voltage: AC220V Light source power: 4,500W Continuous working hours, mains: fill up the oil for 13 hours at one time Rated output power of generator set / rated capacity of fuel tank: 2000W / 15L Maximum lift of the air rod: 4.5m Output voltage of the generator set: AC220V Size of Telescopic air rod:1350×500×800mm Outline dimension of lamp disc: 500×470×380mm Weight: 45kg Housing protection level: IP65 Lift performance: the height can rise 4.5 meters, the light covers radius 100-150 meters. Remote Control the on and off of each lamp wirelessly |
3 | A 30KW power generator | A 30KW power generator |
4 | Lifeboat propulsion frame / lifeboat bracket | The system is installed on the roof with remote control function, and three thrusters can be placed in the car, which can easily lift the lifeboat to the roof or land to the ground when needed. |
Other Optional equipped with engineering sign light, welding machine, cable tray, lifting lighting system, power station and other special equipment, equipped with mains interface, which can be used for emergency rescue and rescue of major accidents.
