XJY5120TPSQ2
-
HOWO
-
8705909990

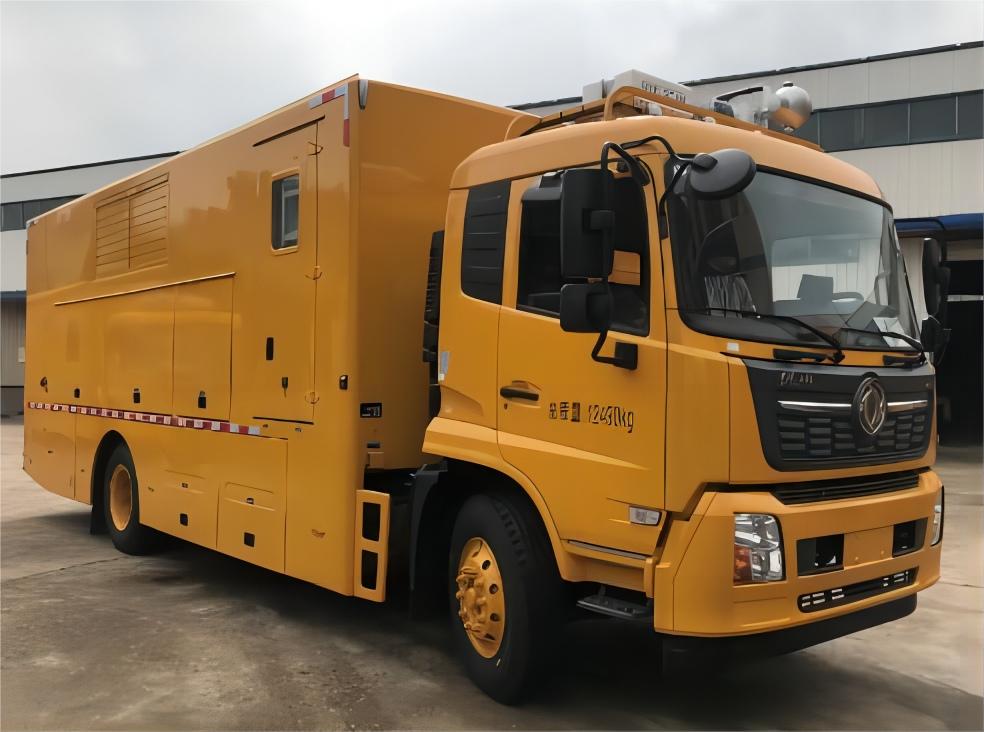

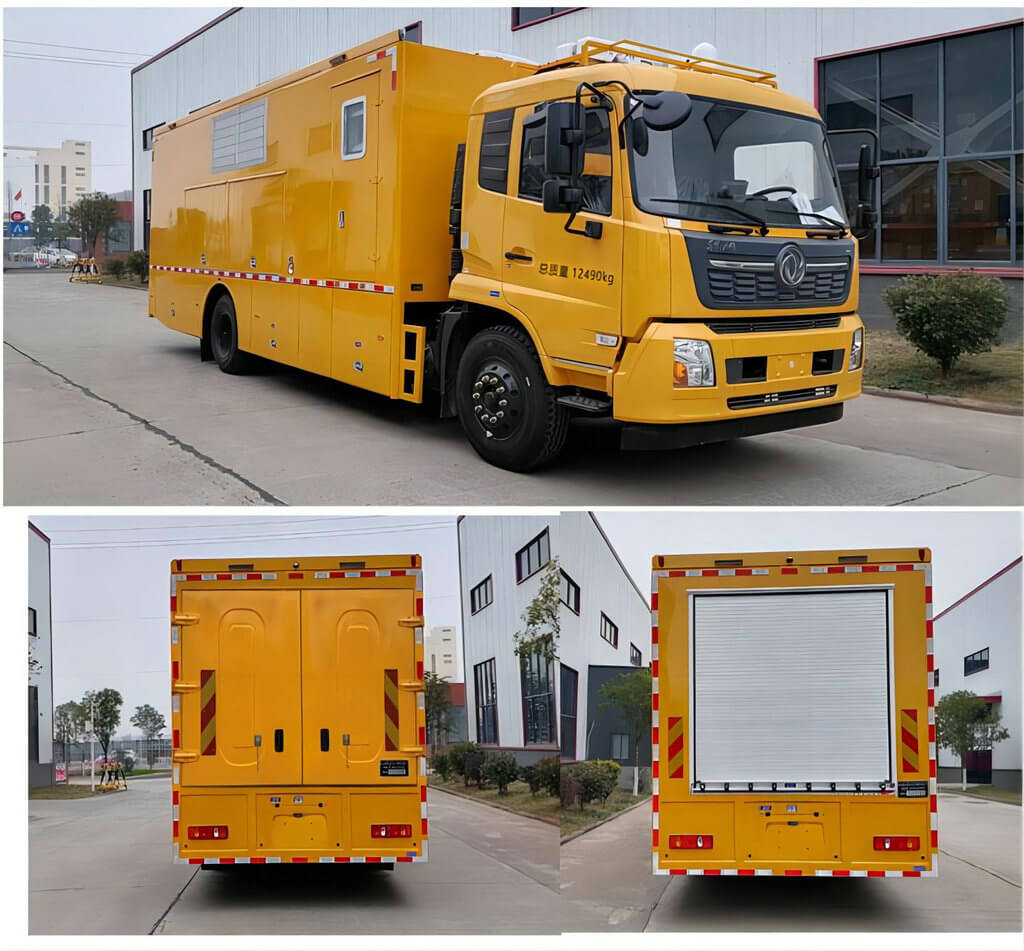

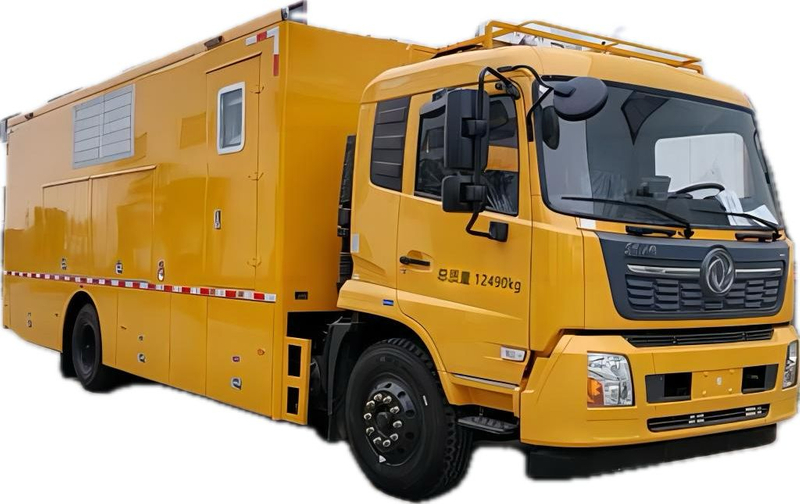

Dongfeng Flood Rescue Drainage Pump Trucks 4000M3/h
for emergency drainage operations, and the special device equipped with generator set, water pump and other supporting systems.
Overall dimensions: | 9480,8630,8030,9180,8330,7730×2550,2500×3500(mm) | Fuel Type: | Diesel oil |
Gross Weight | 12490(Kg) | ||
Net weight | 12295(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 17/9,17/13,17/17(°) | Front/rear overhang: | 1430/3050,1430/2200, 1430/1600(mm) |
Axle Load: | 4400/8090 | Wheelbase: | 3800,3950,4200,4500, 4700,5000,5100(mm) |
Axle Number | 2 | Maximum speed: | 89(km/h) |
Tire Number | 6(PCS) | Tire Specifications: | 9.00R20 16PR,255/70R22.5 16PR, 10R22.5 16PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 7/9+6,8/10+8,8/9+6 |
Front wheel track: | 1876,1896,1935,1950,1914,1815(mm) | Rear wheel track: | 1820,1860,1800,1840(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
DDi50E190-60; B6.2 NS6B210; D4.5 NS6B190; DDi50E220-60; DDi47E210-60; B6.2 NS6B230; D4.5 NS6B220 | Dongfeng Commercial Vehicle Co., LTD.; Dongfeng Cummins Engine Co., LTD | 5000; 6200; 4500; 5000; 4750; 6200; 4500 | 147; 154; 140; 162; 154; 169; 162 |
Special Modified Vehicles With Diesel Generator Power Supply
1. Provide Special Vehicle
2. The Vehicle Adopts Chassis.
3. The Chassis Height Can Meet The Requirements Of ≥0.5m Wading Depth.
4. The Vehicle Color Is Engineering Yellow.
5. Emission Standards: Euro 5- 6
6. Total Mass ≤12.5T.
7. Fuel: Diesel; Maximum Gradient Of Vehicle ≥20°.
8. Engine Power ≥140Kw; Fuel: Diesel; Maximum Speed ≥89 Km/h.
9. Permitted Passengers ≥3 Persons.
10. Drive Form: Rear Wheel Drive.
11. Steering: Steering Wheel Type Front Wheel Steering, Hydraulic Power Steering.
12. Air Conditioning: Yes
13. The Use Of Integrated Fully Closed Car Box, Car Box Has Sound Insulation Function. Louvers Are Installed On The Left And Right Sides Of The Carriage And At The Rear Of The Carriage. Louvers Need To Be Treated With Noise Reduction To Meet The Heat Dissipation And Noise Reduction Of The Unit Equipment.
14. After Noise Reduction, When The Generator Set Is Working Normally With Load, The Overall Noise Of The Vehicle On Both Sides Is Less Than 85db.
15. Hydraulic Leg; Supporting 4 Hydraulic Legs, Each Leg Support Force ≥6 Tons
16. Equipped With Rest Warehouse, Upper And Lower Sleeper, Independent Car Special Air Conditioning, Rest Warehouse In The Middle Of The Vehicle, An Area Of Not Less Than 2.5 Square Meters. The Lounge Room Is Equipped With Observation Windows, Indoor Lighting, Work Table And Water Dispenser.
17. Body Size (Length × Width × Height) : ≥9480mm×2500mm×3500mm
18. Equipped With Reversing Camera.
19. Power Generation System
19.1. The Vehicle Is Equipped With An Independent Diesel Generator Set, The Performance Of The Engine And Generator Meets The Technical Specifications, Meets The Electrical Design And Installation Requirements Of The Vehicle, Meets The Power Demand Of The Pump And The Vehicle Equipment. The Diesel Engine Is Made Of Cummins, Deutz Or Volvo, And The Generator Is Equipped With a Power Conversion Device Of Stanford, Marathon, Lleysenma, Meaudi And Other Brands. Equipped With Dual Power Switching System, Diesel Generator Set And Mains Can Be Switched Smoothly
19.2. Diesel Generator Set Main Output Rated Power: ≥200Kw.
19.3. Diesel Engine Emissions: Meet The National Three Requirements. (Customized According To Customer Purchasing Needs)
19.4 The Generator Set Inlet Air And Exhaust Air Heat Dissipation Design Is Reasonable, The Fuel Tank Volume Can Meet The Needs Of The Generator Set For More Than 8 Hours.
19.5 Generator Set Control System: Intelligent Control System, High-Quality Brand-Name Electrical Components, Can Detect And Display The Unit Operating Voltage, Current, Frequency And Diesel Engine Oil Pressure, Water Temperature, Etc.
20. Lighting System
20.1. External Lighting System: Emergency Lighting Fixtures That Can Be Lifted And Lowered Are Installed At The Top Of The Cab Of The Vehicle.
20.2. Luminous Flux: ≥40000lm, Luminaires Working Current: ≤15A.
20.3. The Searchlight Can Be Rotated Up And Down, The Horizontal Rotation Angle Is 360°, The Vertical Rotation Angle Is Greater Than 300°, And It Can Be Operated By Remote Control And Wire Control, Which Is Suitable For Night Working Environment.
The Vehicle Drainage Emergency Unit Uses Portable Submersible Pumps
1, The Drainage Emergency Unit Has 8 Portable Submersible Pumps .
2, Drainage Control System With Stepless Speed Regulation Function, Submersible Pump Working Displacement Can Be Adjusted, The Control System Adopts Modular Design, Easy Loading And Unloading, Drainage Part Using Submersible Pump Structure.
3, The Total Displacement Is Not Less Than 4000m³/h.
4, When The Displacement Of a Single Pump Is Not Less Than 500m³/h, The Head Is ≥10 Meters;
5, Power ≥22Kw, Rated Speed ≤3500Rpm;
6, In Order To Improve The Drainage Capacity, Suitable For Different Working Conditions And After-Sales Maintenance, a Single Pump Can Achieve Rapid Replacement Of Hydraulic Parts Maintenance On Site.
7, Hydraulic Components (Impeller, Impeller Chamber, Whole Fluid) Are All Made Of Wear-Resistant And Corrosion-Resistant Stainless Steel. Provide The Portable Submersible Pump Material And Material Hardness Test Report Issued By The Provincial And Above Third-Party Testing Institutions, And Provide Physical Videos Or Pictures.
7.1 Pump Shell (Whole Fluid, Impeller Chamber) : Lightweight High-Strength Alloy Steel Material, Or Above Quality Materials;
7.2 Impeller: It Is Necessary To Use 2Cr13 Or Stainless Steel Wear-Resistant Material, Integrated Molding, And The Surface Is Treated With Wear-Resistant Hard Coating To Reach Vickers Hardness (Hv) More Than 1000 Degrees.
8, The Pump Body Is Made Of High-Strength Lightweight Alloy Or Stainless Steel Material, Dry Composite Motor, Single Pump Diving Depth ≥10m, Single Pump Equipped With Diving Cable, Total Length ≥50 Meters, With Cable Sheath, Ip67 Waterproof Joint Between The Cables.
9, The Total Length Of a Single Pump With Drainage Hose ≥40m (Drainage Hose Needs To Have a Hose Adapter And Stainless Steel Fast Clamp).
10, The Diameter Of The Pump Body Does Not Exceed 300mm, The Length Does Not Exceed 600mm, The Pump Body Is Equipped With a Handle, Convenient For Single Handling; Portable Submersible Pump With Stainless Steel Wire Filter, With Butterfly Nut Quick Installation, Easy Installation And Cleaning, Single Pump With High Strength Floating Ring, One Body Forming. To Meet The Buoyancy Requirements Of The Pump, The Bayonet Ring Is Connected With a Flexible Fixed Sling.
11. Control Cabinet Protection Level Is Above Ip45, And Handles Are Installed On Both Sides.
12, Vehicle Flood Prevention Equipment With Protection And Seismic Functions, Movable Installation, Can Be Fixed On The Carrier.
13, The Pump Control System Is Integrated In The Control Cabinet, The Weight Of The Control Cabinet Is Less Than 50Kg, Which Can Work Normally Within 0-500 Meters From The Generator Set. It Can Realize Long-Distance Drainage Work From The Car, And The Cabinet Can Be Moved And Disassembled.
14, Each Pump Is Equipped With a Separate Control System, The Use Of High-Quality Inverter Full Control , With a Variety Of Electrical Safety Specifications Certification, In Line With Ul And Quality Certification System Iso9001 And Iso4001 Standards.
15, The Control System Accurately Displays The Pump Operating Voltage, Current, Speed And Fault; The Control System Can Realize Soft Start And Soft Stop Of The Drainage Pump, Adjustable Speed In Operation, And Has Leakage Protection Device.
16, The Control Cabinet And Water Pump Can Use Diesel Generator Or Mains Drive Two Modes.
17, The Vehicle Is Equipped With Hydraulic Pump Device; The Hydraulic Pump Platform Provides Power Through The Hydraulic Station, And The Oil Cylinder Moves The Pump Handling Mechanism Out Of The Car, So That The Personnel Can Take Out The Pump More Conveniently And Quickly; Even If The Mechanism Accidentally Loses Power, The Position Of The Skirt Is Convenient Enough To Load And Unload The Pump, Not More Than 500mm From The Ground.
