Custom DFAC Vertical Drainage Water Pumper Rescue Truck

Share to:

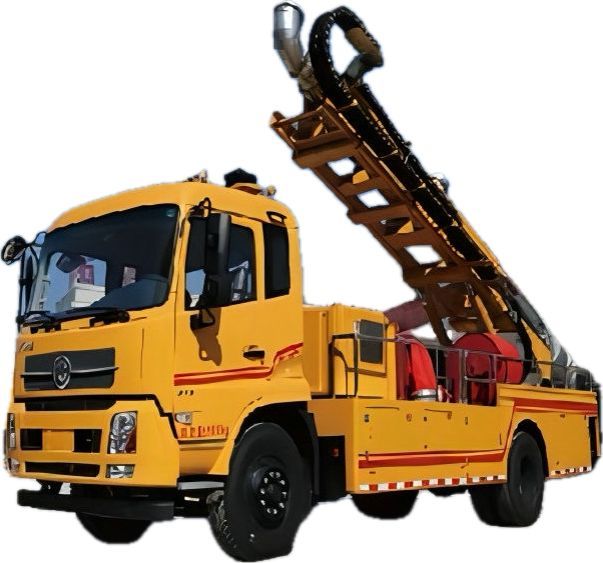

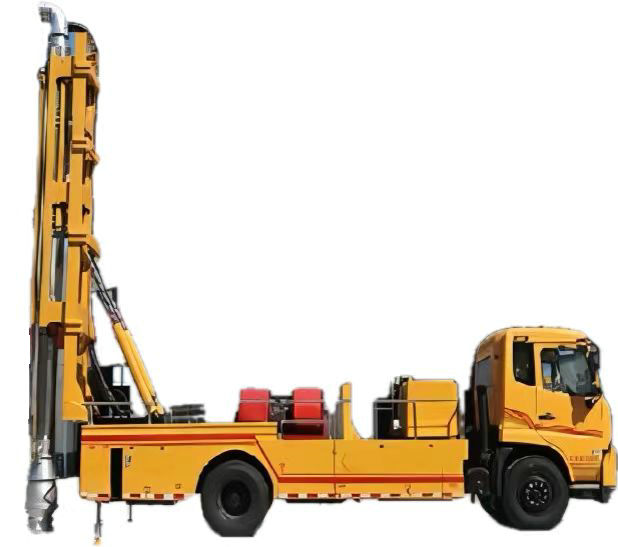

Custom DFAC Vertical Drainage Water Pumper Rescue Truck

Custom DFAC Vertical Drainage Water Pumper Rescue Truck
Pump Flow 1500m3/h
High Water Rescue Flood Truck
Price for refer only. Final Price Offer Discount.

Price: $ 248800

Discount Price: $ 240000

Availability:

Quantity:

Model:
FLG-5160TGP29E,FLG-5160TGP05E
Brand:
Dongfeng
Code:
8705909990

Product Description

Custom DFAC Vertical Drainage Water Pumper Rescue Truck

Special vehicle used for emergency Water supply or Flood drainage pumping

item	Pump Options
Flow rate m3/h	1000	1500	1500	3000	5000
Lift Head (m)	22	17	35	15	10

Purpose:

Drainage pump, drought, water supply

Application field:

Municipal and highway emergency drainage; Surprise flood control and drainage, cofferdam pumping; Drought relief, agricultural irrigation; Aquaculture; Pumping and drainage in areas without fixed pumping stations and power supply. Especially suitable for well drainage operations, urban roads, overpasses, underpass Bridges, tunnel drainage, highway main line and access ramp and other places of water removal.

Full hydraulic, no electricity safety, easy to operate

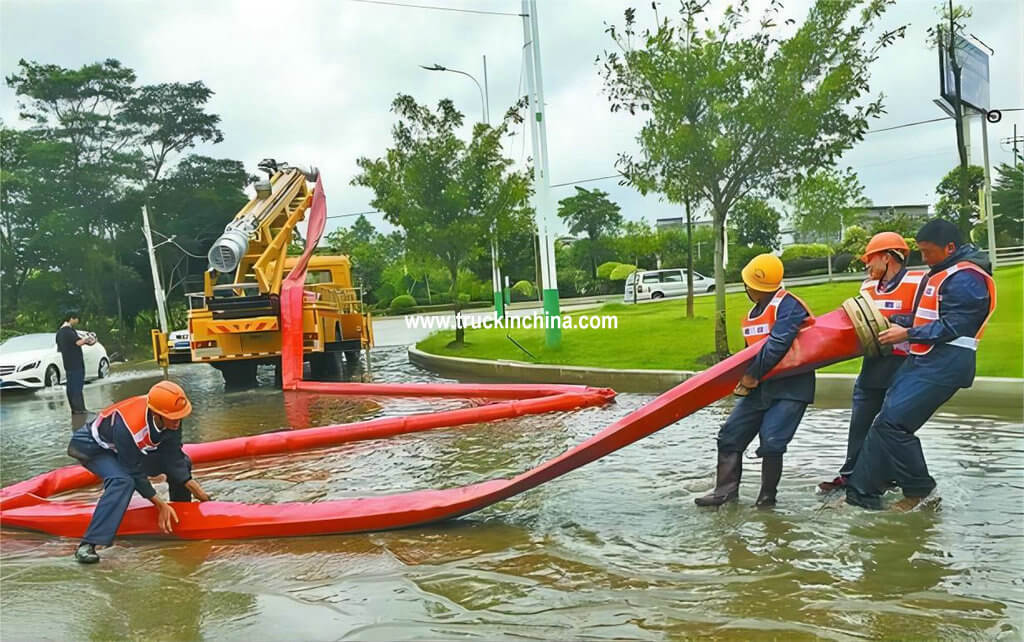

Mobile Emergency Rescue Drainage Truck

Chassis:	DFL1160BX6	Fuel type:	diesel fuel
Engine:	ISDe245 40; ISDe270 40	Wheelbase (mm):	5000, 4700, 4600
Displacement (cc):	6700; 6700	Dimensions (mm):	8550 × 2500 × 3250
Power (kW):	180; 198	Gross weight (kg):	16000

Chassis:	DFL1160BX1V	Fuel type:	diesel fuel
Engine:	ISD210 50; ISD270	Wheelbase (mm):	3800, 4200, 4500, 4700,...
Displacement (cc):	6700; 6700; 4500; 4752;...	Dimensions (mm):	8600 × 2500 × 3420
Power (kW):	155; 144; 132; 132; 132;...	Gross weight (kg):	15800

#	Engine model	Engine displacement			Engine power		Engine manufacturer
1	ISD210 50	6 700 cc	6.7 L	409 cu in	155 kW	211 hp	Dongfeng Cummins Engine Co., Ltd.
2	ISD190 50	6 700 cc	6.7 L	409 cu in	144 kW	196 hp	Dongfeng Cummins Engine Co., Ltd.
3	ISD180 50	4 500 cc	4.5 L	275 cu in	132 kW	179 hp	Dongfeng Cummins Engine Co., Ltd.
4	EQH180-52	4 752 cc	4.8 L	290 cu in	132 kW	179 hp	Dongfeng Commercial Vehicle Co., Ltd.
5	EQH180-53	4 752 cc	4.8 L	290 cu in	132 kW	179 hp	Dongfeng Commercial Vehicle Co., Ltd.
6	ISB180 50	5 900 cc	5.9 L	360 cu in	132 kW	179 hp	Dongfeng Cummins Engine Co., Ltd.
7	ISD270 50	6 700 cc	6.7 L	409 cu in	198 kW	269 hp	Dongfeng Cummins Engine Co., Ltd.

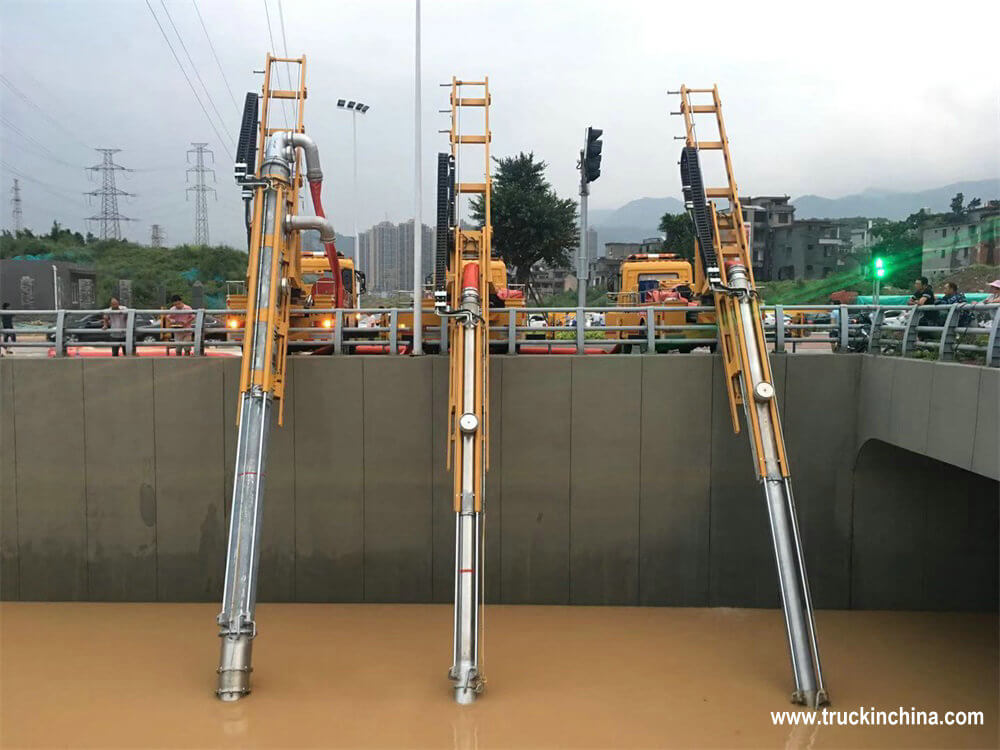

Drainage rescue truck 3000m3 (8)

Performance
Fuel	diesel fuel
Environmental standard	GB3847-2005, GB17691-2005 National V / Euro 5
Maximum speed	98 km/h	61 mph
ABS	have

Weights and Ground pressure
Curb weight	15605 kg	15.6 t	34,403 lbs
Gross vehicle weight rating	15800 kg	15.8 t	34,800 lbs
Axle load distribution	5800 kg / 10000 kg 5.8 t / 10 t 12,800 lbs / 22,000 lbs

Dimensions
Overall length	8600 mm	28′3″
Overall width	2500 mm	8′3″
Overall height	3420 mm	11′3″

Undercarriage and Suspension
Number of axles	2
Wheelbase	3800 mm, 4200 mm, 4500 mm, 4700 mm, 5000 mm	12′6″, 13′10″, 14′10″, 15′6″, 16′5″
Front track	1880 mm, 1900 mm	6′3″, 6′3″
Rear track	1800 mm, 1860 mm, 1820 mm	5′11″, 6′2″, 6′0″
Front overhang	1430 mm	4′9″
Rear overhang	2470 mm	8′2″
Angle of approach	20°
Angle of departure	8°
Leaf springs	7 / 9+6, 8 / 10+8

Tyres and Wheels
Number of tyres	6
Tyres dimension	9.00-20, 9.00R20, 10.00-20, 10.00R20, 10R22.5, 275/80R22.5, 275/70R22.5

Miscellaneous
Seating capacity	3
Steering control	steering wheel
