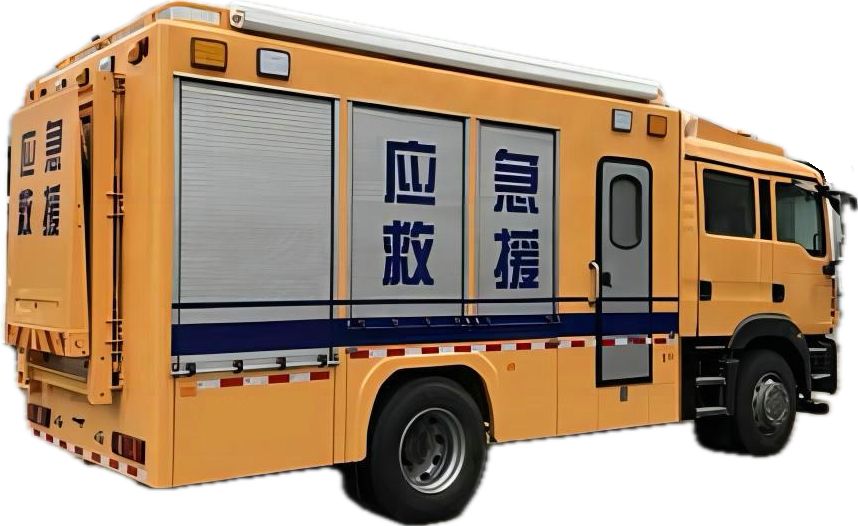

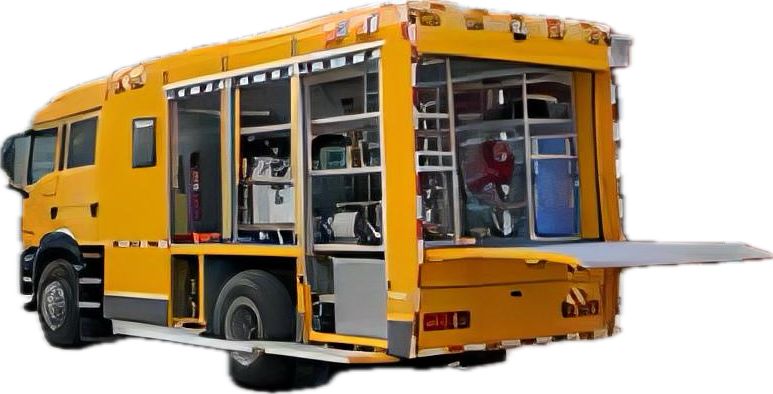

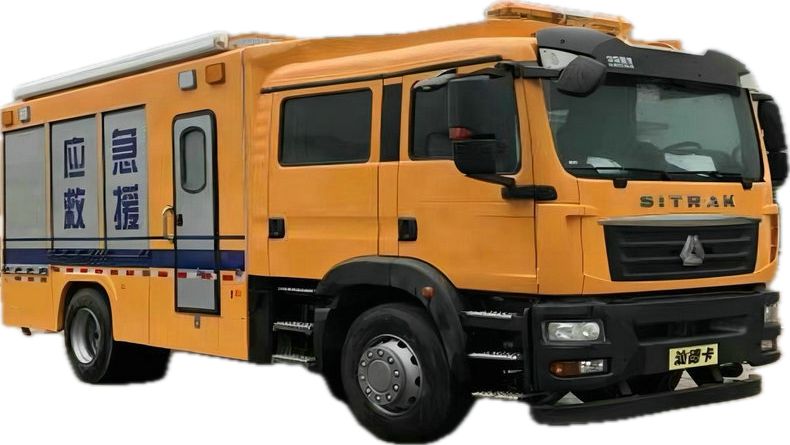

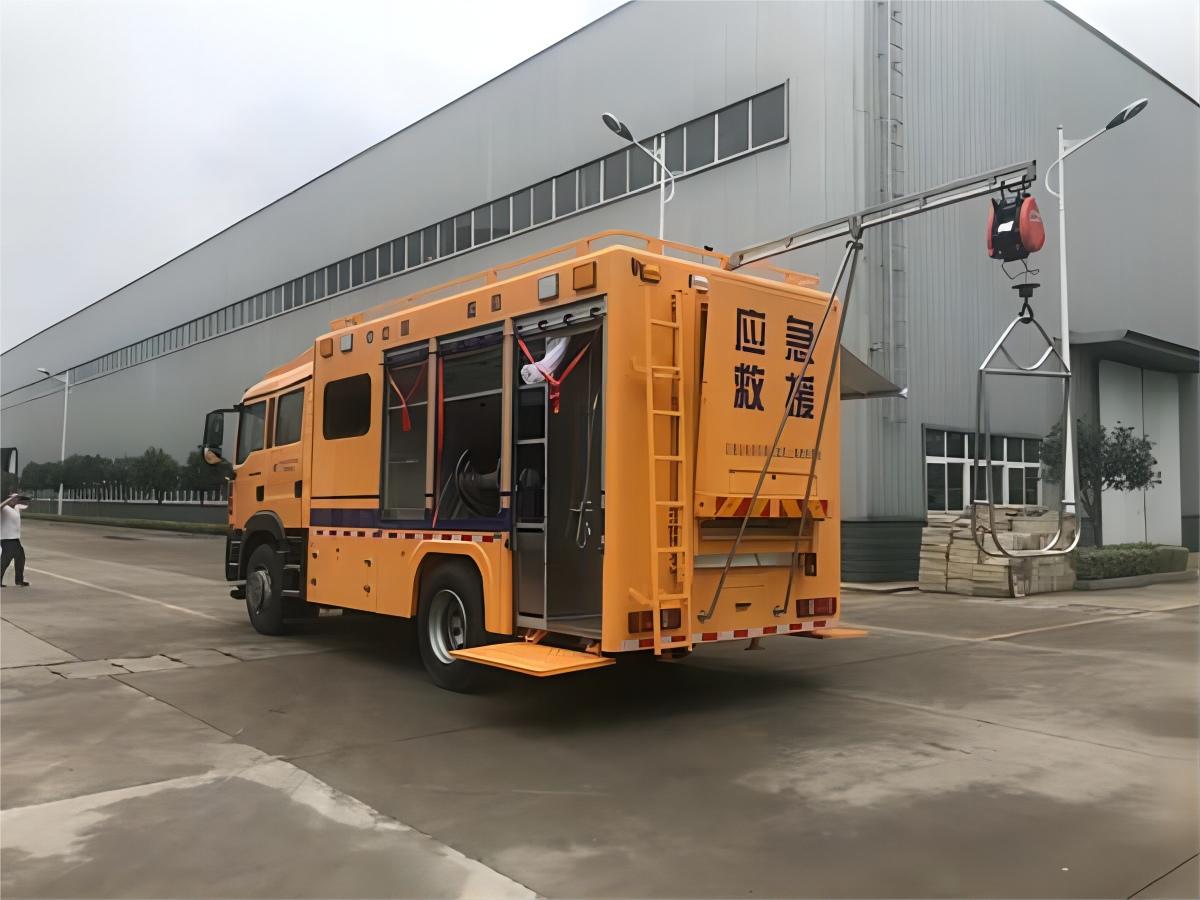

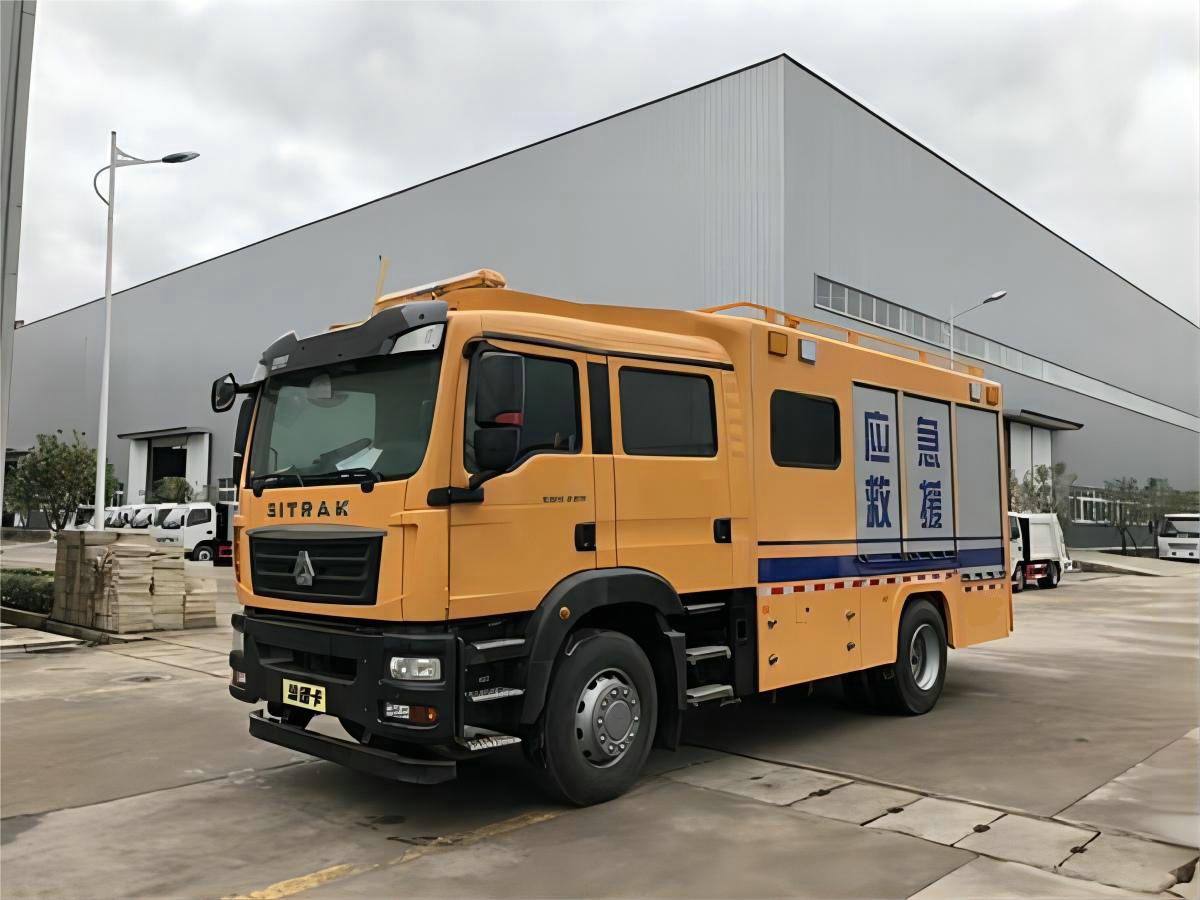

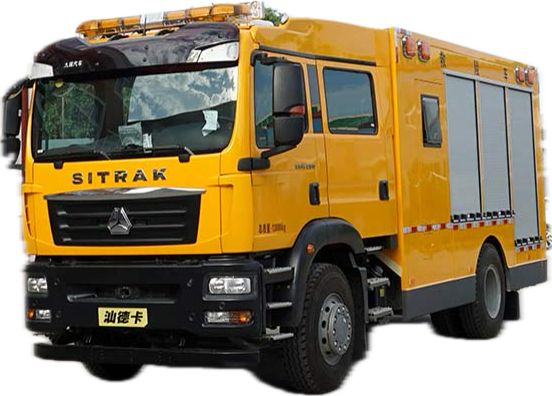

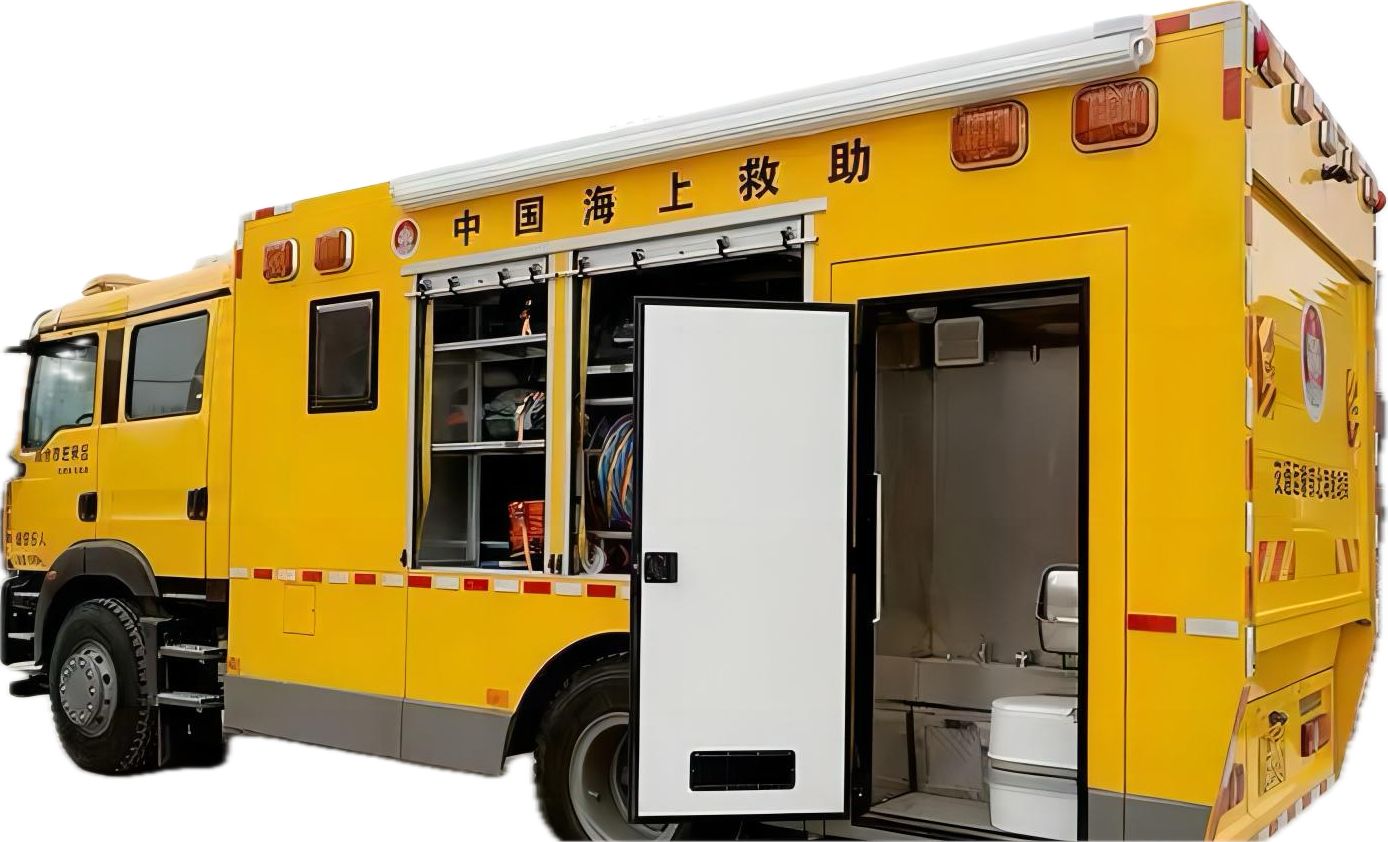

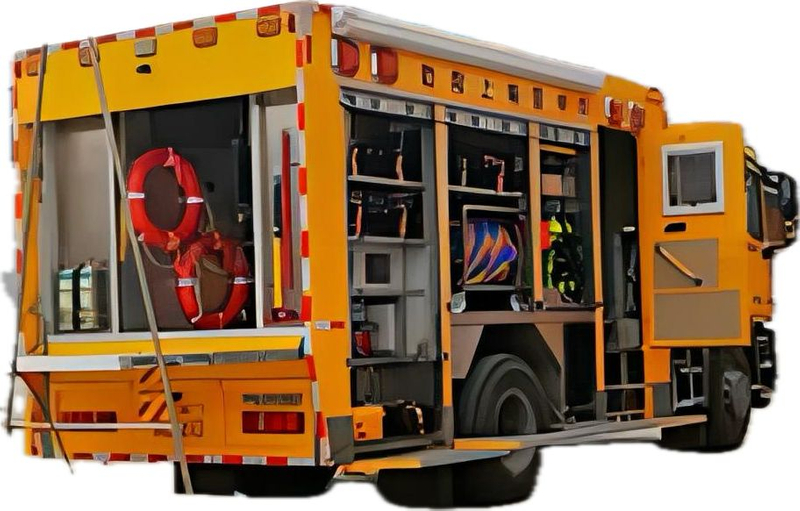

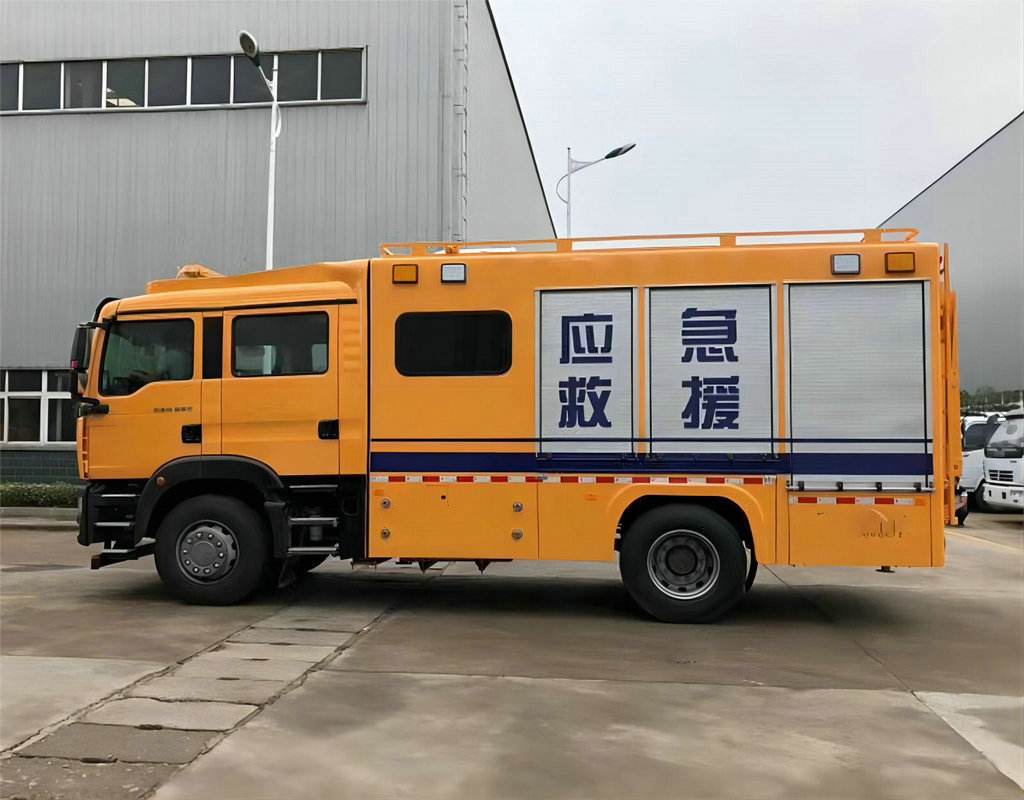

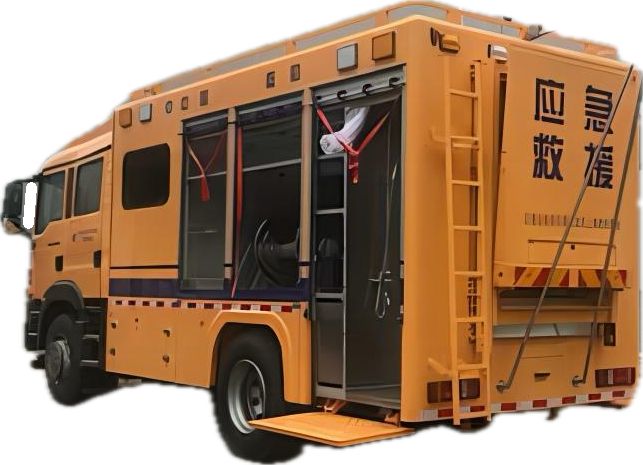

Customize SITRAK Salvage Dive Rescue Truck
Mobile Truck integrated with diving system,Underwater Recovery Units
Dive Response Vehicles, also known as Emergency Response Vehicles or Underwater Recovery Units, are utilized by Law Enforcement agencies to respond to special operations. Dive Response Trucks with decontamination stations, electric winch, portable lighting, generator, salvage/overhaul equipment.
Custom Dive Unit,Water Rescue Unit , Dive / Water Rescue ,Dive Team Truck Vehicle ,Water Rope Medium Rescue Vehicle , Dive Rescue Unit, Dive Rescue Vehicle,First Responder Rescue Vehicle, Fire Rescue Vehicle
1. Information acquisition and image transmission system: high-definition camera all-in-one machine, hard disk video recorder, 4G wireless individual image transmission system, wireless WIFI, display.
2. Vehicle emergency lighting system: hand and electric lifting lever.
3. Electrical integrated control system: backup battery pack, electrical control cabinet, regulated power supply.
4. Power generation system: ultra-silent generator set with a power of 10-20kw; 50 meters cable, external electrical conversion device.
5. Hydraulic power system: Stanley hydraulic power station, sewage pump, crushing, explosion-proof exhaust fan, diamond chain saw, etc.
6. Office and communication system: explosion-proof walkie-talkie, notebook computer, printing, scanning and copying all-in-one machine.
7. Living system: drawable diving suit shower system (can also be used as a bathroom), car water dispenser, refrigerator, explosion-proof portable lighting, electric sunshade
Curtain, vehicle overhead air conditioning system.
8. Safety and detection system: electrical grounding system, lightning protection system, fire extinguisher, safety helmet, medical first aid kit, gas leakage detection equipment, etc.
9. Vehicle rescue equipment and tools: Various professional rescue equipment and tools can be equipped according to different purposes and requirements of customers.
10. It can be customized according to customer requirements.
Multi-functional Water Rescue salvage vehicle
Chassis type | ZZ5206N471GF5 | actuate | 4 * 2 |
Engine power /kw | 228 | Displacement /ml | 6870 |
Total mass /kg | 13000 | Rated passenger capacity | 2 + 4 |
Wheelbase /mm | 4700 | Maximum speed /km/h | 110 |
Number of axes | 2 | Number of tires | 6 |
Fuel type | Diesel oil | Number of leaf spring pieces | 3/4,2/3+2,3/3+2 |
Overall dimensions /mm | 8520 * 2500 * 3290,3490,3620 |
No. | Functional system | Name of the modified project | Model number and technical requirements | quantity | ||||
1 | chassis system | batholith | Famous brand. | 1 | ||||
Double row seat, four door special vehicle chassis, chassis adopts international advanced technology, wheelbase 4200mm, engine power 206 kW, displacement 6870ml, national five emissions, two drive. | ||||||||
2 | Chassis corrosion treatment | Chassis Paiting | 1 | |||||
3 | Chassis hydraulic support system | 4 hydraulic legs, a single leg support force <5T. DC24V, electro-hydraulic drive. | 1 | |||||
4 | Body modification | Cab and cab body modification | Car body and cab streamlined design, modification. After modification, the overall size is 7700 * 2500 * 3300, which can ride 6 people. | 1 | ||||
5 | The body modification | 1) The front of the compartment is the diver control room, and the rear is the equipment cabin. The left and right sides of the equipment cabin are equipped with three groups of fire aluminum alloy rolling shutter doors (with key dark lock) according to the size of the equipment, and the rear is the opposite door structure. Large equipment is placed in the middle of the box, and the equipment can be placed conveniently and quickly with a special device. 2) The floor and interior decoration of the equipment cabin are all laid with small decorative aluminum plate. 3) The equipment skeleton adopts special aluminum profiles of famous brands. 4) Bus skirt circumference structure design, after turning down can be stepped, which can carry small equipment. 5) A single door on the left and right sides of the diver control room (with special glass window for observation); the interior of RV; the floor is waterproof, anti-skid and wear-resistant floor leather; install the folding seat with backrest; the operation equipment cabinet is in the front middle of the control room, the standard 19-inch cabinet; 6) the box materials are all industrial stainless steel 304 thickness not less than 1.5mm, the skeleton is stainless steel rectangular steel pipe, and the internal and outer sealing plates; 7) 40mm sound insulation, heat insulation and fire prevention between the internal and external sealing plates; | 1 | |||||
6 | Rear stainless steel ladder | Stainless steel production, safe and reliable, with anti-skid device. | 1 | |||||
7 | Vehicle-and equipment system for shoc-mounted system | Fixed firm and reliable, shock-proof good. | 1 | |||||
8 | Install a stainless steel crash bumper in the front | Stainless steel round pipe welding molding, strong anti-collision ability. | 1 | |||||
9 | On-mounted heavy equipment handling device | Hydraulic lifting platform for the cart | It can carry 500 KG, lifting height 1000 mm, platform 1000 * 500, hydraulic lifting. | 1 | ||||
10 | Special handling device for heavy equipment | Hydraulic tailplate or electric lift, can carry 500kg. | 1 | |||||
11 | Power supply and distribution system | Integrated electrical appliance control system (cabinet) | Safe and reliable, easy to use. | 1 | ||||
12 | UPS3000VA, DC48V input, online Eq | Famous brand. | 1 | |||||
Video and audio input analog video input 4 channels, HD-SDI interface | ||||||||
Audio input: 4 channels, RCA interface (level: 2.0 Vp-p, impedance: 1 kΩ) | ||||||||
Video and audio output HDMI output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
VGA output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
DS-9104 HFH-ST 1, BNC interface (level: 1.0 Vp-p, impedance: 75 Ω) Resolution: PAL 704 * 576; NTSC 704 * 480 | ||||||||
Video and audio input analog video input 4 channels, HD-SDI interface | ||||||||
Audio input: 4 channels, RCA interface (level: 2.0 Vp-p, impedance: 1 kΩ) | ||||||||
Video and audio output HDMI output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
VGA output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
CVBS main output 1, BNC interface (level: 1.0 Vp-p, impedance: 75 Ω) resolution: PAL 704 * 576; NTSC 704 * 480 | ||||||||
Audio output 2-circuit, RCA interface (linear level, impedance: 1 kΩ) | ||||||||
Video and audio encoding parameters video compression standard H.264 | ||||||||
The video encoding resolution was 1080p / 720p / 4 CIF / CIF | ||||||||
Video frame rate 1080p: 1 / 16- -30 frames / s, 720p: 1 / 16- -60 frames / s | ||||||||
Video bit rate: 32 Kbps-8192 Kbps, customizable, and a maximum of 16Mbps | ||||||||
Code stream type composite stream / video stream | ||||||||
Audio compression standard OggVorbis | ||||||||
Audio bit rate of 16 kbps | ||||||||
Dual-code stream support | ||||||||
Synchronous playback, support for 4 ways | ||||||||
Hard drive type 8 SATA ports, 1 eSATA port | ||||||||
Maximum capacity Each interface supports a maximum capacity of 4TB | ||||||||
1 external interface voice intercom input, RCA interface (level: 2.0 Vp-p, impedance: 1k Ω) | ||||||||
2 network interfaces, RJ45 10M / 100M / 1000M adaptive Ethernet port | ||||||||
1 serial interface, a standard RS-485 serial interface; | ||||||||
1, standard RS-232 serial interface; | ||||||||
1, keyboard 485 serial ports | ||||||||
2 USB interfaces, USB 2.0 | ||||||||
Alarm input is 4-way | ||||||||
Alarm output: 2-circuit | ||||||||
Other power sources: AC220V, 47- -63 HZ | ||||||||
Power consumption (excluding hard disk) 35W | ||||||||
Operating temperature-10℃ - - + 55℃ | ||||||||
13 | Backup battery pack: DC12V100AH | Battery Voltage (V) 12 | 1 | |||||
capacity 100AH | ||||||||
Appearance size length 407 ± 2 width 173 ± 2 height 210 | ||||||||
Total height (with pole column) 236 ± 2 | ||||||||
Weight (Kg) of 33 | ||||||||
14 | 5 KVA precision purification of AC voltage stabilization power supply | It is composed of contact autoregulator, servo motor, automatic control circuit, etc. When the power grid voltage is unstable or the load changes, the automatic sampling control circuit sends a signal to drive the servo motor, adjust the position of the carbon brush of the autoregulator, and adjust the output voltage to the rated value and reach a stable state. Input voltage single-phase 150V-250V | 1 | |||||
Ambient temperature-10℃ - + 40℃ | ||||||||
Output voltage single-phase 220V and 110V | ||||||||
Relative humidity was <95% | ||||||||
Stability accuracy of 220V ± 2% versus 110V ± 6% | ||||||||
Temperature rise is less than 60℃ | ||||||||
Frequency of 50Hz / 60Hz | ||||||||
Waveform distortion with no additional waveform distortion | ||||||||
Adjustment time <1 second (when input voltage change 10%) | ||||||||
Load power factor of 0.8 | ||||||||
Efficiency of> 90% | ||||||||
Electrical resistance strength was 1500V / min | ||||||||
Over-voltage protection is 246V ± 4V | ||||||||
Insulation resistance of> 2M Ω | ||||||||
15 | The 220V / 380V / 12V power supply multi-function conversion system | Safe and reliable, easy to use. | 1 | |||||
16 | 10KW, output 220V and 380V | Famous brand. | 1 | |||||
Silent generator set | ||||||||
Rated power (Hz) of 50 | ||||||||
Rated output power (kVA) of 10 | ||||||||
Maximum output power (kVA) 11 | ||||||||
Rated voltage (V) 400 / 230 | ||||||||
Rated current (A) 14.5 | ||||||||
Rated rotation speed (r/min) of 3,000 | ||||||||
Phase number three phases | ||||||||
Power Factor (Cos Φ) 0.8 (lag) | ||||||||
insulation grade B | ||||||||
Series 2 | ||||||||
Self-excitation constant pressure (with AVR) | ||||||||
Panel form of KI intelligent display | ||||||||
Output voltage (V) 400 / 230 | ||||||||
Output socket Two single-phase sockets | ||||||||
Output terminal posts have a | ||||||||
Overall dimensions (LWH) mm 1350650760 | ||||||||
Net weight (kg) 310 | ||||||||
Run with net weight 345 | ||||||||
Noise grade dB (A) 72 | ||||||||
Structure form is silent type | ||||||||
Engine model number, KM2V80G | ||||||||
Engine form V-type twin cylinder, four-stroke, water cooling, vortex chamber | ||||||||
Number-cylinder diameter stroke (mm) 2-80X79 | ||||||||
Total displacement (ml) 794 | ||||||||
Rated power of [KW / (r/min)] 12.5/3000 | ||||||||
Compression ratio of 23:1 | ||||||||
Rated rotation speed (r/min) of 3,000 | ||||||||
Cooling mode: water cooling | ||||||||
Lubrication mode pressure splash composite type | ||||||||
Start-up mode is 12V, with electric start | ||||||||
Fuel type Diesel fuel: 0 # (summer) -10 # (winter) -35 # (cold) | ||||||||
Lubricating oil type CD grade above or SAE10W-30,15W-40 | ||||||||
Cooling water capacity (L) 3.5 | ||||||||
Oil capacity (L) 2.27 | ||||||||
Starting motor capacity (V-kW) 12V 1.4kW | ||||||||
Charging generator capacity (V-A) 12V 20A | ||||||||
Battery capacity (v-Ah) is 12V 36Ah | ||||||||
Fuel consumption rate (g / kw.h) ≤340 | ||||||||
Fuel tank capacity (L) 26 | ||||||||
Duration running time (hr) 6 | ||||||||
17 | Audio and video acquisition and transmission system | Hard disk video recorder (match with HD camera) | Famous brand | 1 | ||||
Video and audio input analog video input 4 channels, HD-SDI interface | ||||||||
Audio input: 4 channels, RCA interface (level: 2.0 Vp-p, impedance: 1 kΩ) | ||||||||
Video and audio output HDMI output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
VGA output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
DS-9104 HFH-ST 1, BNC interface (level: 1.0 Vp-p, impedance: 75 Ω) Resolution: PAL 704 * 576; NTSC 704 * 480 | ||||||||
Video and audio input analog video input 4 channels, HD-SDI interface | ||||||||
Audio input: 4 channels, RCA interface (level: 2.0 Vp-p, impedance: 1 kΩ) | ||||||||
Video and audio output HDMI output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
VGA output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
CVBS main output 1, BNC interface (level: 1.0 Vp-p, impedance: 75 Ω) resolution: PAL 704 * 576; NTSC 704 * 480 | ||||||||
Audio output 2-circuit, RCA interface (linear level, impedance: 1 kΩ) | ||||||||
Video and audio encoding parameters video compression standard H.264 | ||||||||
The video encoding resolution was 1080p / 720p / 4 CIF / CIF | ||||||||
Video frame rate 1080p: 1 / 16- -30 frames / s, 720p: 1 / 16- -60 frames / s | ||||||||
Video bit rate: 32 Kbps-8192 Kbps, customizable, and a maximum of 16Mbps | ||||||||
Code stream type composite stream / video stream | ||||||||
Audio compression standard OggVorbis | ||||||||
Audio bit rate of 16 kbps | ||||||||
Dual-code stream support | ||||||||
Synchronous playback, support for 4 ways | ||||||||
Hard drive type 8 SATA ports, 1 eSATA port | ||||||||
Maximum capacity Each interface supports a maximum capacity of 4TB | ||||||||
1 external interface voice intercom input, RCA interface (level: 2.0 Vp-p, impedance: 1k Ω) | ||||||||
2 network interfaces, RJ45 10M / 100M / 1000M adaptive Ethernet port | ||||||||
1 serial interface, a standard RS-485 serial interface; | ||||||||
1, standard RS-232 serial interface; | ||||||||
1, keyboard 485 serial ports | ||||||||
2 USB interfaces, USB 2.0 | ||||||||
Alarm input is 4-way | ||||||||
Alarm output: 2-circuit | ||||||||
Other power sources: AC220V, 47- -63 HZ | ||||||||
Power consumption (excluding hard disk) 35W | ||||||||
Operating temperature-10℃ - - + 55℃ | ||||||||
18 | Multi-screen splitter | Famous brand | 1 | |||||
Video standard PAL: 50 games / sec NTSC: 60 games / sec | ||||||||
Resolution PAL: 720X576 NTSC: 720X480 | ||||||||
Video input is 1.2 Vp-p 75 BNC | ||||||||
Video recording input is 1.0 Vp-p75 input | ||||||||
Video recording output is 1.0 Vp-p 75 output | ||||||||
Alarm mode video loss alarm, external trigger mode, mobile detection alarm | ||||||||
Video output mode full screen, electronic amplification, eight segmentation, four segmentation, drawing in drawing, automatic switch | ||||||||
Operating voltage is DC12V / 1A | ||||||||
Ambient temperature-30°C-60°C | ||||||||
19 | A 19-inch LCD display | Famous brand | 1 | |||||
essential parameter | ||||||||
Product type LED display | ||||||||
The screen size is 19 inches | ||||||||
Optimum resolution of 1280x1024 | ||||||||
Screen ratio 5:4 (general screen) | ||||||||
Panel type TN | ||||||||
Backlit type LED backlight | ||||||||
Dynamic contrast ratio of 1 million: 1 | ||||||||
Gray-scale response time of 5ms | ||||||||
Display parameter point distance is 0.294mm | ||||||||
Brightness was 250 cd / ㎡ | ||||||||
Visual area of 376.32×301.06mm | ||||||||
Visual angle of 170 / 160° | ||||||||
Display the color of the 16.7M | ||||||||
Panel control, control mode, press the button | ||||||||
Language Menu English, German, French, Italian, Spanish, Russian, Portuguese, Turkish, Simplified Chinese | ||||||||
Interface video interface D-Sub (VGA), DVI-D | ||||||||
Appearance design, the body color is black | ||||||||
Product size 40733677mm (excluding base) | ||||||||
407419170mm (including the base) | ||||||||
500429140mm (packaging) | ||||||||
Product weight: 3.25kg (net weight) | ||||||||
4.6kg (gross weight) | ||||||||
Base function tilt: -1-20° | ||||||||
Wall-mounted support (100,100mm) | ||||||||
Other power supply performance is 100-240V AC, 50-60Hz | ||||||||
Maximum power supply: 19W | ||||||||
Standby: 0.1W | ||||||||
Safety regulation certification Windows certification | ||||||||
Other performance" | ||||||||
Linghui energy saving, smart perspective, smart mode, timing shutdown, repeated button time, wide compatibility | ||||||||
20 | HD camera integrated machine | International well-known brand | 1 | |||||
Add SD HD control version 1 set. | ||||||||
Image Sensor 1 / 2.8 CMOS | ||||||||
3.27 million images | ||||||||
Lens 20x (F=1.6 ~ 3.5, F=4.7 ~ 94.0) | ||||||||
Focus length of 0.8 sec (from infinity) | ||||||||
Digital Zoom at 12x | ||||||||
Horizontal perspective was 2.9 ° to 55.4 ° | ||||||||
Minimum distance 10mm (WIDE) 1000mm (TELE) | ||||||||
Synchronization signal for internal synchronization | ||||||||
Minimum illumination 0.5 lx (high sensitivity on) 1.7 lx (high sensitivity off) | ||||||||
The illuminance range is 100 lx to 100000 lx | ||||||||
The SNR is 50dB | ||||||||
Background Light compensates for the ON / OFF | ||||||||
Electronic shutter speed 1 / 1~ 1 / 10000s (22 steps) | ||||||||
White balance AUTO / ATW / indoor / outdoor / one-click White balance / manual white balance | ||||||||
Gain automatic / manual is available | ||||||||
Wide dynamic ON / OFF / AUTO | ||||||||
Noise reduction OFF, 1 to 5 (6 steps) | ||||||||
Preset 6 | ||||||||
Serial port VISCA protocol (CMOS 5V) | ||||||||
The HD video output analog component Y, Pb, Pr | ||||||||
Storage temperature-20℃ ~60℃ | ||||||||
Operating temperature: -5℃ ~ 60℃ | ||||||||
Power supply is DC 6~12V 3.2W / 3.8W | ||||||||
Weight is about 260g | ||||||||
Dimension: 50.0*60.0*87.9mm | ||||||||
All the functions of the camera can be operated remotely from a distance | ||||||||
21 | All-weather Yuntai aluminum alloy cover | All-weather cradle cover power supply AC24V ± 10%, 50 / 60Hz | 1 | |||||
Power heating 25W, fan 3W, windshield wiper: | ||||||||
Automatic temperature control range heating on: 8℃± 5℃ / off: 20℃± 5℃ (fan running at the same time) | ||||||||
Fan on: 37℃± 5℃ / off: 20℃± 5℃ | ||||||||
Material main body: aluminum alloy window: transparent glass, optional optical glass | ||||||||
Weight of 1.9 Kg | ||||||||
Window area: 67 (W) 57 (H) | ||||||||
Operating temperature: -35℃ ~ + 65℃ | ||||||||
Protection level: IP66 | ||||||||
Maximum dimension of the camera is 174 (L) 90 (W) 72.5 (H) | ||||||||
Optional accessory heater, fan, sunshade, optical glass, windshield wiper | ||||||||
22 | OS | Multi-function printing / scanning / copy / fax all-in-one machine | Famous brand | 1 | ||||
Product features print / scan / copy / fax | ||||||||
Maximum processing sheet format A4 | ||||||||
Processing media paper (inkjet printing paper, photo paper, ordinary paper), envelopes, labels, cards, transparent media, HP (HP), high quality media | ||||||||
Interface type: 1 USB (2.0) port | ||||||||
Product memory is 16MB | ||||||||
Print performance | ||||||||
Printing method, color inkjet | ||||||||
Print resolution: color: 4800 * 1200 dpi; black and white: 600 * 600 dpi | ||||||||
Print speed black and white, draft mode, A4:9 page / minute; black and white, best mode, A4:2.5 page / minute; color, draft mode, A4:22 page / minute; color, standard mode, A4:6.5 page / minute; color, best mode, A4:2.5 page / minute; color photo, draft mode: 26 seconds; color photo, standard quality on photo paper, 10x15: only 51 seconds; color photo, best mode: only 61 seconds | ||||||||
Printing media paper (inkjet printing paper, photo paper, ordinary paper), envelopes, labels, cards, transparent media, HP (HP), high quality media | ||||||||
Processing format A4, A5, B5 (JIS), C6, DL | ||||||||
100 page carton, 20 page automatic document feeder (ADF) | ||||||||
Output paper is 20 pages out of the carton | ||||||||
Print language HP PCL 3 GUI, PJL (Printer Job Language), PML (Printer Management Language) | ||||||||
Print other performance printing capability: 3,000 pages / month | ||||||||
Scan performance | ||||||||
Optical resolution of 1200 dpi | ||||||||
Output resolution Hardware scan resolution: 1200 * 2400 dpi; | ||||||||
Copy performance | ||||||||
Copy speed black, draft quality, A4:28 copies / min; color, draft quality, A4:22 copies / min; black, standard quality, A4:7.6 copies / min; color, standard quality, A4:0.8 copies / min; color, best quality, A4:0.8 copies / min | ||||||||
Copy resolution Color: optimal resolution of partial HP (HP) paper with 1200 * 1200 dpi at 4200 * 1200 * 1200 dpi; black and white text: 600 dpi with optimal resolution of 600 * 1200 dpi | ||||||||
1-90 copies | ||||||||
Copy scaling from 25% to 400% | ||||||||
Fax performance | ||||||||
Modem at 33.6 Kbps | ||||||||
Transmission speed of 3 seconds / page | ||||||||
Fax memory is up to 100 pages | ||||||||
Fax other performance color fax; automatic redial; fax delayed sending | ||||||||
Other performance | ||||||||
The system platform Microsoft Windows 2000, XP Home, XP Professional, XP Professional x64, Windows Vista, x64; Mac OS X v10.3.9,v10.4.x, v10.5. Some features may not be applicable with Microsoft Windows 2000 SP4, XP Starter Edition, and XP x64. | ||||||||
Working Noise 7.0 B (A) (Active / Draft Print) | ||||||||
Power supply performance, input voltage 100 to 240 V AC (+ / -10%), 50 to 60 Hz (+ / -3 Hz) | ||||||||
Environmental standard working humidity: 15% to 85% relative humidity; non-working humidity: 15% to 85% relative humidity; recommended operating temperature: 15 to 32° C | ||||||||
The overall dimension is 434 * 402 * 217mm | ||||||||
Product weight is 5.9kg | ||||||||
Other parameters are manually printed and double-sided | ||||||||
Other features pass the Energy Star certification | ||||||||
Warranty with a 1-year limited warranty | ||||||||
23 | notebook PC | Famous brand | 1 | |||||
CPU: I7, hard disk: 500G, SSD with 16G, legitimate WINDOW software | ||||||||
24 | communication system | The desktop is very high frequency | International well-known brand | 1 | ||||
VHF center frequency: 156 MHz; | ||||||||
Standard Marine call channel; | ||||||||
12 / 24V optional DC power supply; | ||||||||
Output power of 25W; | ||||||||
With DSC function, can input GPS positioning signal and output audio signal. | ||||||||
25 | High-gain, VHF (VHF) antenna | International well-known brand | 1 | |||||
26 | Explosion-proof high-frequency handheld machine | International well-known brand | 5 | |||||
Waterproof grade 7, simple operation; | ||||||||
Standard Marine call channel; | ||||||||
Output power (high / medium / low): 5 / 3 / 1W; | ||||||||
The battery capacity is 1700 mAh, rechargeable; | ||||||||
in light weight. | ||||||||
27 | Vehicle lighting system | Inside and exterior lighting system DC 24 V/AC220V | LED lamp | 1 | ||||
28 | Folding lifting lighting, camera system | When the vehicle driving folding lying on the top of the car, the use can automatically operate and convenient, fast, do a good job of waterproof, sealing treatment. Manual and electric use. Lift height of 1.8 meters, 2 * 250W dysprosium lamp, with multi-functional rotating cradle head, camera support, can rotate 360 degrees, up and down pitch. | 1 | |||||
29 | security system | Earthing device | Ground steel and grounding wire | 1 | ||||
30 | GPS + reversing monitoring system integrated machine: GPS navigation, 1 camera | Original car chassis special all-in-one machine | 1 | |||||
31 | Multi-functional medical box | order number | product name | specifications | unit | quantity | 1 | |
1 | Medical rubber paste | 1.25cm*4.5m | roll | 1 | ||||
2 | elastic bandage | 6cm*4m | roll | 2 | ||||
3 | elastic bandage | 8cm*4m | roll | 2 | ||||
4 | Disinfection gauze sheet | 2"*2".2pcs\pack | pack | 5 | ||||
5 | Disinfection gauze sheet | 3"*3".2pcs\pack | pack | 5 | ||||
6 | adhesive bandage | 19*76mm | pc | 25 | ||||
7 | Joint wound stick | 45*50mm | pc | 10 | ||||
8 | Finger wound stick | 76*38mm | pc | 10 | ||||
9 | De-fouling wipes | 12*19mm | pc | 4 | ||||
10 | Disinfection wipes | 12*19mm | pc | 4 | ||||
11 | Alcohol tablets | 6*3cm | pc | 10 | ||||
12 | brooch | #2 | pc | 10 | ||||
13 | gloves | Lsize | pc | 4 | ||||
14 | Stainless steel bandage scissors | 15cm | pc | 1 | ||||
15 | tweezers | 11cm | pc | 1 | ||||
16 | Non-fat medical cotton ball | 10balls\pack | pack | 4 | ||||
17 | Self-adhesive paste | 10*10cm | pc | 4 | ||||
18 | Self-adhesive paste | 6*7cm | pc | 6 | ||||
19 | triangular bandage | 96*96*136cm | pc | 2 | ||||
20 | Band-aid | 10*12cm | roll | 1 | ||||
21 | Band-aid | 8*10cm | roll | 2 | ||||
22 | ice bag | 100g\pack | pack | 2 | ||||
23 | Wrinkle elastic bandage | 7.5cm*4.5m | roll | 1 | ||||
32 | Vehicle fire extinguisher | Car-mounted 2 KG fire extinguisher and stainless steel fixing bracket | 1 | |||||
33 | lightning protection and lightning protection system | Lightning protection and lightning protection | 1 | |||||
34 | Warning system of alarm lamp | Long row sign light LED: yellow LED, 100W, 14 flash | Length 1.2M, main light source LED, halogen tungsten flash 4 square LED, LED light 8 long LED, lane 2, working voltage DC24V, alarm light power 60W, controller DKQ-A03, lamp controller or matching alarm, color specification yellow transparent, net weight 17 ㎏, matching alarm power 100W | 1 | ||||
35 | Surrounding LED flash alarm lights: yellow LED flash, left and right box 4, the 5 back | Rated working voltage is DC24V | 13 | |||||
Light power is 35W | ||||||||
Operating current is 3.0A | ||||||||
Operating temperature: -40℃ ~ + 75℃ | ||||||||
36 | Flash module | 16 Road | 1 | |||||
37 | Car special equipment | Lladder for divers | Stainless steel 304 welded into, the outer surface is smooth, no burr, up and down the ladder spacing is uniform, allowed to connect in sections.(The bidder shall provide the original patent certification documents at the time of bid opening). | 1 | ||||
38 | Car diving shower wash system | Equipped with 100L stainless steel water tank; diving suit and diver flushing on the rear of the vehicle; hidden electric wash basin, etc. | 1 | |||||
39 | automobile air-condition | Famous brand. | 1 | |||||
automobile air-condition | ||||||||
Heating and cooling (heating in winter, cooling in summer), the temperature regulation ability to meet the requirements of rest and control room volume, the temperature regulation range of 15~35 degrees | ||||||||
Power supply form: single-phase AC: 220V / 50Hz | ||||||||
Refrigeration power is> 2700W and the refrigeration power consumption is <900W | ||||||||
Heating power> 3000W, heating power consumption <1100W | ||||||||
The external size is <650x400x290mm | ||||||||
Small volume, easy to install, three gear wind speed, unlimited remote control, a variety of air outlet mode. | ||||||||
40 | The rear is mounted with a hidden vehicle electric winch | Motor: string motor | 1 | |||||
Voltage: 24V DC | ||||||||
Tension force:> 2,500 KN | ||||||||
Type: electric | ||||||||
Overall dimensions: <440 * 160 * 218mm | ||||||||
Length:> 7.2mm * 24m | ||||||||
41 | Portable spare fuel tank | 60 Lil | 1 | |||||
42 | Shower | Manual awning, length of 4 meters, extended width of 2 meters, left and right 1 set | 2 | |||||
43 | Appearance spraying | Spray and paste the marks | Appearance painting and identification, spray stainless steel special paint, engineering yellow | 1 |
Diving equipment | |||||
No | device name | Specifications and technical requirements | quantity | ||
1 | Head-mounted underwater video recording | International famous brand. | 1 | ||
Fixed focal length color camera, rated depth 300 m, imaging device 1 / 3 CCD sensor, resolution 480 TVL, video output 12 vpp, power supply 12VDC, lens 3.6mm, perspective level 70. Lighting, rated depth of 600 meters, power supply of 24VDC, power of 25W. Conductor 22awg RG-59 coaxial, standard length 150M. The console is light in weight, about 550x240x575mm in size, power supply 110 V 60 hz, light 0-100% control, 12-inch LCD monitor, front panel connection, DVD burning. | |||||
2 | Pipe-supply type diving equipment | gas cylinder | Carbon fiber, 55 liters, and pressure resistance> 20 Mpa. | 4 | |
Gas distribution components | Including pressure reducer, inlet and outlet air joint, pressure gauge and take-pipe. | 4 | |||
umbilical cord | International famous brand. | 2 | |||
Length of 120 meters, three lines (supply pipe, communication cable reinforcement rope and sounding pipe), floating type. | |||||
The weight in the air is about 450kg / km, the weight in the water is-40 Kkg / km, the minimum bending radius is about 185mm, there are D-shaped rings at both ends of the umbilical cord, and a buckle at the other end of the water. Block with screws at the two ends of the umbilical cord. The umbilical cord consists of a 1 / 4 "sounding tube, a 3 / 8" supply pipe, and 4 core telephone lines twisted into a twist. The two ends of the umbilical cord can be directly connected to the helmet, air distribution panel and diving telephone. The maximum tension of the 4-core telephone line is not less than 500 Kg, which can be used as a safety rope. | |||||
Electric umbilical cord winch | Stainless steel material, two-way infinite variable speed motor drive and manual rotation, can accommodate 120 meters of umbilical cord, the cable car end is installed with two stainless steel fast joints, used to connect the high pressure gas cylinder, and can continuously supply gas with the rotation of the cable car. Install the communication and sounding extension joints at the other end. Four wheels are installed at the bottom of the cable car for easy movement. | 2 | |||
control panel | International famous brand. | 1 | |||
Length about 21 inches, width about 18 inches, height about 11.5 inches, weight about 24.5Kg, maximum depth about 40 meters, high pressure gas supply 240bar, low pressure gas supply 15.5bar, umbilical pressure range 8-15.5bar, 12V rechargeable battery running for 20 hours, 40 SCFM provides 10.3bar transmission pressure at the supply pressure of 172bar. Safety valve is set to 20bar.4-line communication can also be used in double lines. High pressure and medium pressure gas supply source can be provided separately for each diver. Low-pressure gas source is equipped with an alarm function. The intake valve is equipped with check valve. | |||||
divers lead weight | Shanghai Diving equipment factory, large, 2 Kg / block, a total of 10 pieces. | 2 | |||
divers knife | Shanghai Diving equipment Factory. | 2 | |||
Mounting kit | Canvas, used for installing small and common tools. | 2 | |||
Emergency cylinder | International famous brand. | 2 | |||
Steel, 7 L, withstand> 200MPa with back. | |||||
Emergency gas cylinder pressure reducer | International famous brand. | 2 | |||
Including the primary pressure reducer and the high pressure pipe. | |||||
Provide 232bar yaok or 300bar DIN type thread interface, suitable for different regions. | |||||
casque | International famous brand. | 2 | |||
Weight of about 14 lbs, it is made of glass fiber, polyester resin, polyester gel coating and carbon fiber frame, equipped with watertight joints directly connected to the diving umbilical cord, throttle valve, and mic headphones. Polyurethane control knob, anti-scratch polycarbonate panel, can choose SuperFlow® 350 traditional regulator or 455 breathing regulator. Add hot water at temperatures below 1℃. The diameter of the umbilical cord interface is 9.5mm, and the total length is not greater than 183 m. | |||||
dry diving suit | International famous brand. | Large and medium 1 each | |||
Depth of 355 m, polymer-enhanced knee and tibial pad, heavy plastic steel YKK zipper. | |||||
Dry wetsuit flippers | International famous brand. | Large and medium 1 each | |||
100% natural rubber for comfort and durability. | |||||
armour for a horse | International famous brand. | 2 | |||
diving telephone | International famous brand. | 2 | |||
Water depth: air diving depth, ambient temperature: -25℃ - - + 45℃ Battery mass: 3.18kg, power supply 12VDC, rechargeable battery and charger, 300 HZ-12 KHZ, can be connected to the underwater TV audio input port. | |||||
3 | Self-portable diving equipment | air bottle | Aluminum bottle, 12 liters, pressure resistant to 200 Mpa. | 2 | |
apparatus respiratorius | International famous brand. | 2 | |||
Including primary pressure reducer, high pressure pipe, secondary decompression | |||||
Device, standby pressure reducer. Compact appearance, large breathing volume, easy to maintain. | |||||
Four table | International famous brand. | 2 | |||
0-400bar bottle pressure meter, 35-degree viewing Angle oil-filled compass, oil-filled wave Ben tube design depth gauge. | |||||
Face mirror | International famous brand. | 2 | |||
Ultra clear glass, double skirt edge increase comfort water tightness, silicone skirt edge increase hardness, no glare, easy to carry. | |||||
actor's headgear | 2 | ||||
Floating tank top | Large and medium 1 each | ||||
Beach shoes | 6 | ||||
web-footed | Large and medium 1 each | ||||
absorbent clothing | Large and medium 1 each | ||||
Small pressure lead | 1 Kg / block, for a total of 10 blocks | 2 | |||
4 | Diving signal rope | 120 meters of reinforced cable, with a cable car. | 2 | ||
5 | Combination maintenance tools | Including various sizes of opening, active winding and inner hexagon wrench, screwdriver, hacksaw bow, hand hammer, wire pliers, wire scissors, pipe pliers, etc. | 1 | ||
6 | Common tools for rescue and rescue operations | Including Taiping axe, crowbar, 12-pound sledgehammer, etc | 1 | ||
7 | Divers have portable underwater lighting flashlights | Shenzhen Ocean King, rechargeable, power> 10W, LED light | 2 | ||
8 | tent | Six people, canvas | 1 | ||
9 | pneumatic boat | 3-4 person, inflatable, folding, with a paddle | 1 | ||
10 | folding seat | Stainless steel frame, backrest and sitting face for real leather | 2 | ||
11 | Portable life jackets | gas filled type | 6 | ||
12 | buoy | 2 | |||
13 | Diver lift system | Used for lifting and delegating to the divers. Including two-way variable variable speed motor, winch, 50 meters wire rope, pulley, stainless steel rod, diver ride frame and other accessories, tension> 2000 Kg. Usually removed and put into the car, when installed in the back of the car. | 1 |
Keystone Vessel Industrial Gas Cylinders| ISO Tank| Pressure Vessel| UN Portable Tanks- Dong Runze Special Vehicle
Keystone Vessel Manufacturing Co., Ltd
Customize SITRAK Salvage Dive Rescue Truck
Mobile Truck integrated with diving system,Underwater Recovery Units
Dive Response Vehicles, also known as Emergency Response Vehicles or Underwater Recovery Units, are utilized by Law Enforcement agencies to respond to special operations. Dive Response Trucks with decontamination stations, electric winch, portable lighting, generator, salvage/overhaul equipment.
Custom Dive Unit,Water Rescue Unit , Dive / Water Rescue ,Dive Team Truck Vehicle ,Water Rope Medium Rescue Vehicle , Dive Rescue Unit, Dive Rescue Vehicle,First Responder Rescue Vehicle, Fire Rescue Vehicle
1. Information acquisition and image transmission system: high-definition camera all-in-one machine, hard disk video recorder, 4G wireless individual image transmission system, wireless WIFI, display.
2. Vehicle emergency lighting system: hand and electric lifting lever.
3. Electrical integrated control system: backup battery pack, electrical control cabinet, regulated power supply.
4. Power generation system: ultra-silent generator set with a power of 10-20kw; 50 meters cable, external electrical conversion device.
5. Hydraulic power system: Stanley hydraulic power station, sewage pump, crushing, explosion-proof exhaust fan, diamond chain saw, etc.
6. Office and communication system: explosion-proof walkie-talkie, notebook computer, printing, scanning and copying all-in-one machine.
7. Living system: drawable diving suit shower system (can also be used as a bathroom), car water dispenser, refrigerator, explosion-proof portable lighting, electric sunshade
Curtain, vehicle overhead air conditioning system.
8. Safety and detection system: electrical grounding system, lightning protection system, fire extinguisher, safety helmet, medical first aid kit, gas leakage detection equipment, etc.
9. Vehicle rescue equipment and tools: Various professional rescue equipment and tools can be equipped according to different purposes and requirements of customers.
10. It can be customized according to customer requirements.
Multi-functional Water Rescue salvage vehicle
Chassis type | ZZ5206N471GF5 | actuate | 4 * 2 |
Engine power /kw | 228 | Displacement /ml | 6870 |
Total mass /kg | 13000 | Rated passenger capacity | 2 + 4 |
Wheelbase /mm | 4700 | Maximum speed /km/h | 110 |
Number of axes | 2 | Number of tires | 6 |
Fuel type | Diesel oil | Number of leaf spring pieces | 3/4,2/3+2,3/3+2 |
Overall dimensions /mm | 8520 * 2500 * 3290,3490,3620 |
No. | Functional system | Name of the modified project | Model number and technical requirements | quantity | ||||
1 | chassis system | batholith | Famous brand. | 1 | ||||
Double row seat, four door special vehicle chassis, chassis adopts international advanced technology, wheelbase 4200mm, engine power 206 kW, displacement 6870ml, national five emissions, two drive. | ||||||||
2 | Chassis corrosion treatment | Chassis Paiting | 1 | |||||
3 | Chassis hydraulic support system | 4 hydraulic legs, a single leg support force <5T. DC24V, electro-hydraulic drive. | 1 | |||||
4 | Body modification | Cab and cab body modification | Car body and cab streamlined design, modification. After modification, the overall size is 7700 * 2500 * 3300, which can ride 6 people. | 1 | ||||
5 | The body modification | 1) The front of the compartment is the diver control room, and the rear is the equipment cabin. The left and right sides of the equipment cabin are equipped with three groups of fire aluminum alloy rolling shutter doors (with key dark lock) according to the size of the equipment, and the rear is the opposite door structure. Large equipment is placed in the middle of the box, and the equipment can be placed conveniently and quickly with a special device. 2) The floor and interior decoration of the equipment cabin are all laid with small decorative aluminum plate. 3) The equipment skeleton adopts special aluminum profiles of famous brands. 4) Bus skirt circumference structure design, after turning down can be stepped, which can carry small equipment. 5) A single door on the left and right sides of the diver control room (with special glass window for observation); the interior of RV; the floor is waterproof, anti-skid and wear-resistant floor leather; install the folding seat with backrest; the operation equipment cabinet is in the front middle of the control room, the standard 19-inch cabinet; 6) the box materials are all industrial stainless steel 304 thickness not less than 1.5mm, the skeleton is stainless steel rectangular steel pipe, and the internal and outer sealing plates; 7) 40mm sound insulation, heat insulation and fire prevention between the internal and external sealing plates; | 1 | |||||
6 | Rear stainless steel ladder | Stainless steel production, safe and reliable, with anti-skid device. | 1 | |||||
7 | Vehicle-and equipment system for shoc-mounted system | Fixed firm and reliable, shock-proof good. | 1 | |||||
8 | Install a stainless steel crash bumper in the front | Stainless steel round pipe welding molding, strong anti-collision ability. | 1 | |||||
9 | On-mounted heavy equipment handling device | Hydraulic lifting platform for the cart | It can carry 500 KG, lifting height 1000 mm, platform 1000 * 500, hydraulic lifting. | 1 | ||||
10 | Special handling device for heavy equipment | Hydraulic tailplate or electric lift, can carry 500kg. | 1 | |||||
11 | Power supply and distribution system | Integrated electrical appliance control system (cabinet) | Safe and reliable, easy to use. | 1 | ||||
12 | UPS3000VA, DC48V input, online Eq | Famous brand. | 1 | |||||
Video and audio input analog video input 4 channels, HD-SDI interface | ||||||||
Audio input: 4 channels, RCA interface (level: 2.0 Vp-p, impedance: 1 kΩ) | ||||||||
Video and audio output HDMI output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
VGA output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
DS-9104 HFH-ST 1, BNC interface (level: 1.0 Vp-p, impedance: 75 Ω) Resolution: PAL 704 * 576; NTSC 704 * 480 | ||||||||
Video and audio input analog video input 4 channels, HD-SDI interface | ||||||||
Audio input: 4 channels, RCA interface (level: 2.0 Vp-p, impedance: 1 kΩ) | ||||||||
Video and audio output HDMI output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
VGA output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
CVBS main output 1, BNC interface (level: 1.0 Vp-p, impedance: 75 Ω) resolution: PAL 704 * 576; NTSC 704 * 480 | ||||||||
Audio output 2-circuit, RCA interface (linear level, impedance: 1 kΩ) | ||||||||
Video and audio encoding parameters video compression standard H.264 | ||||||||
The video encoding resolution was 1080p / 720p / 4 CIF / CIF | ||||||||
Video frame rate 1080p: 1 / 16- -30 frames / s, 720p: 1 / 16- -60 frames / s | ||||||||
Video bit rate: 32 Kbps-8192 Kbps, customizable, and a maximum of 16Mbps | ||||||||
Code stream type composite stream / video stream | ||||||||
Audio compression standard OggVorbis | ||||||||
Audio bit rate of 16 kbps | ||||||||
Dual-code stream support | ||||||||
Synchronous playback, support for 4 ways | ||||||||
Hard drive type 8 SATA ports, 1 eSATA port | ||||||||
Maximum capacity Each interface supports a maximum capacity of 4TB | ||||||||
1 external interface voice intercom input, RCA interface (level: 2.0 Vp-p, impedance: 1k Ω) | ||||||||
2 network interfaces, RJ45 10M / 100M / 1000M adaptive Ethernet port | ||||||||
1 serial interface, a standard RS-485 serial interface; | ||||||||
1, standard RS-232 serial interface; | ||||||||
1, keyboard 485 serial ports | ||||||||
2 USB interfaces, USB 2.0 | ||||||||
Alarm input is 4-way | ||||||||
Alarm output: 2-circuit | ||||||||
Other power sources: AC220V, 47- -63 HZ | ||||||||
Power consumption (excluding hard disk) 35W | ||||||||
Operating temperature-10℃ - - + 55℃ | ||||||||
13 | Backup battery pack: DC12V100AH | Battery Voltage (V) 12 | 1 | |||||
capacity 100AH | ||||||||
Appearance size length 407 ± 2 width 173 ± 2 height 210 | ||||||||
Total height (with pole column) 236 ± 2 | ||||||||
Weight (Kg) of 33 | ||||||||
14 | 5 KVA precision purification of AC voltage stabilization power supply | It is composed of contact autoregulator, servo motor, automatic control circuit, etc. When the power grid voltage is unstable or the load changes, the automatic sampling control circuit sends a signal to drive the servo motor, adjust the position of the carbon brush of the autoregulator, and adjust the output voltage to the rated value and reach a stable state. Input voltage single-phase 150V-250V | 1 | |||||
Ambient temperature-10℃ - + 40℃ | ||||||||
Output voltage single-phase 220V and 110V | ||||||||
Relative humidity was <95% | ||||||||
Stability accuracy of 220V ± 2% versus 110V ± 6% | ||||||||
Temperature rise is less than 60℃ | ||||||||
Frequency of 50Hz / 60Hz | ||||||||
Waveform distortion with no additional waveform distortion | ||||||||
Adjustment time <1 second (when input voltage change 10%) | ||||||||
Load power factor of 0.8 | ||||||||
Efficiency of> 90% | ||||||||
Electrical resistance strength was 1500V / min | ||||||||
Over-voltage protection is 246V ± 4V | ||||||||
Insulation resistance of> 2M Ω | ||||||||
15 | The 220V / 380V / 12V power supply multi-function conversion system | Safe and reliable, easy to use. | 1 | |||||
16 | 10KW, output 220V and 380V | Famous brand. | 1 | |||||
Silent generator set | ||||||||
Rated power (Hz) of 50 | ||||||||
Rated output power (kVA) of 10 | ||||||||
Maximum output power (kVA) 11 | ||||||||
Rated voltage (V) 400 / 230 | ||||||||
Rated current (A) 14.5 | ||||||||
Rated rotation speed (r/min) of 3,000 | ||||||||
Phase number three phases | ||||||||
Power Factor (Cos Φ) 0.8 (lag) | ||||||||
insulation grade B | ||||||||
Series 2 | ||||||||
Self-excitation constant pressure (with AVR) | ||||||||
Panel form of KI intelligent display | ||||||||
Output voltage (V) 400 / 230 | ||||||||
Output socket Two single-phase sockets | ||||||||
Output terminal posts have a | ||||||||
Overall dimensions (LWH) mm 1350650760 | ||||||||
Net weight (kg) 310 | ||||||||
Run with net weight 345 | ||||||||
Noise grade dB (A) 72 | ||||||||
Structure form is silent type | ||||||||
Engine model number, KM2V80G | ||||||||
Engine form V-type twin cylinder, four-stroke, water cooling, vortex chamber | ||||||||
Number-cylinder diameter stroke (mm) 2-80X79 | ||||||||
Total displacement (ml) 794 | ||||||||
Rated power of [KW / (r/min)] 12.5/3000 | ||||||||
Compression ratio of 23:1 | ||||||||
Rated rotation speed (r/min) of 3,000 | ||||||||
Cooling mode: water cooling | ||||||||
Lubrication mode pressure splash composite type | ||||||||
Start-up mode is 12V, with electric start | ||||||||
Fuel type Diesel fuel: 0 # (summer) -10 # (winter) -35 # (cold) | ||||||||
Lubricating oil type CD grade above or SAE10W-30,15W-40 | ||||||||
Cooling water capacity (L) 3.5 | ||||||||
Oil capacity (L) 2.27 | ||||||||
Starting motor capacity (V-kW) 12V 1.4kW | ||||||||
Charging generator capacity (V-A) 12V 20A | ||||||||
Battery capacity (v-Ah) is 12V 36Ah | ||||||||
Fuel consumption rate (g / kw.h) ≤340 | ||||||||
Fuel tank capacity (L) 26 | ||||||||
Duration running time (hr) 6 | ||||||||
17 | Audio and video acquisition and transmission system | Hard disk video recorder (match with HD camera) | Famous brand | 1 | ||||
Video and audio input analog video input 4 channels, HD-SDI interface | ||||||||
Audio input: 4 channels, RCA interface (level: 2.0 Vp-p, impedance: 1 kΩ) | ||||||||
Video and audio output HDMI output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
VGA output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
DS-9104 HFH-ST 1, BNC interface (level: 1.0 Vp-p, impedance: 75 Ω) Resolution: PAL 704 * 576; NTSC 704 * 480 | ||||||||
Video and audio input analog video input 4 channels, HD-SDI interface | ||||||||
Audio input: 4 channels, RCA interface (level: 2.0 Vp-p, impedance: 1 kΩ) | ||||||||
Video and audio output HDMI output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
VGA output 1 channel, resolution: 1920x1080p / 60Hz | ||||||||
CVBS main output 1, BNC interface (level: 1.0 Vp-p, impedance: 75 Ω) resolution: PAL 704 * 576; NTSC 704 * 480 | ||||||||
Audio output 2-circuit, RCA interface (linear level, impedance: 1 kΩ) | ||||||||
Video and audio encoding parameters video compression standard H.264 | ||||||||
The video encoding resolution was 1080p / 720p / 4 CIF / CIF | ||||||||
Video frame rate 1080p: 1 / 16- -30 frames / s, 720p: 1 / 16- -60 frames / s | ||||||||
Video bit rate: 32 Kbps-8192 Kbps, customizable, and a maximum of 16Mbps | ||||||||
Code stream type composite stream / video stream | ||||||||
Audio compression standard OggVorbis | ||||||||
Audio bit rate of 16 kbps | ||||||||
Dual-code stream support | ||||||||
Synchronous playback, support for 4 ways | ||||||||
Hard drive type 8 SATA ports, 1 eSATA port | ||||||||
Maximum capacity Each interface supports a maximum capacity of 4TB | ||||||||
1 external interface voice intercom input, RCA interface (level: 2.0 Vp-p, impedance: 1k Ω) | ||||||||
2 network interfaces, RJ45 10M / 100M / 1000M adaptive Ethernet port | ||||||||
1 serial interface, a standard RS-485 serial interface; | ||||||||
1, standard RS-232 serial interface; | ||||||||
1, keyboard 485 serial ports | ||||||||
2 USB interfaces, USB 2.0 | ||||||||
Alarm input is 4-way | ||||||||
Alarm output: 2-circuit | ||||||||
Other power sources: AC220V, 47- -63 HZ | ||||||||
Power consumption (excluding hard disk) 35W | ||||||||
Operating temperature-10℃ - - + 55℃ | ||||||||
18 | Multi-screen splitter | Famous brand | 1 | |||||
Video standard PAL: 50 games / sec NTSC: 60 games / sec | ||||||||
Resolution PAL: 720X576 NTSC: 720X480 | ||||||||
Video input is 1.2 Vp-p 75 BNC | ||||||||
Video recording input is 1.0 Vp-p75 input | ||||||||
Video recording output is 1.0 Vp-p 75 output | ||||||||
Alarm mode video loss alarm, external trigger mode, mobile detection alarm | ||||||||
Video output mode full screen, electronic amplification, eight segmentation, four segmentation, drawing in drawing, automatic switch | ||||||||
Operating voltage is DC12V / 1A | ||||||||
Ambient temperature-30°C-60°C | ||||||||
19 | A 19-inch LCD display | Famous brand | 1 | |||||
essential parameter | ||||||||
Product type LED display | ||||||||
The screen size is 19 inches | ||||||||
Optimum resolution of 1280x1024 | ||||||||
Screen ratio 5:4 (general screen) | ||||||||
Panel type TN | ||||||||
Backlit type LED backlight | ||||||||
Dynamic contrast ratio of 1 million: 1 | ||||||||
Gray-scale response time of 5ms | ||||||||
Display parameter point distance is 0.294mm | ||||||||
Brightness was 250 cd / ㎡ | ||||||||
Visual area of 376.32×301.06mm | ||||||||
Visual angle of 170 / 160° | ||||||||
Display the color of the 16.7M | ||||||||
Panel control, control mode, press the button | ||||||||
Language Menu English, German, French, Italian, Spanish, Russian, Portuguese, Turkish, Simplified Chinese | ||||||||
Interface video interface D-Sub (VGA), DVI-D | ||||||||
Appearance design, the body color is black | ||||||||
Product size 40733677mm (excluding base) | ||||||||
407419170mm (including the base) | ||||||||
500429140mm (packaging) | ||||||||
Product weight: 3.25kg (net weight) | ||||||||
4.6kg (gross weight) | ||||||||
Base function tilt: -1-20° | ||||||||
Wall-mounted support (100,100mm) | ||||||||
Other power supply performance is 100-240V AC, 50-60Hz | ||||||||
Maximum power supply: 19W | ||||||||
Standby: 0.1W | ||||||||
Safety regulation certification Windows certification | ||||||||
Other performance" | ||||||||
Linghui energy saving, smart perspective, smart mode, timing shutdown, repeated button time, wide compatibility | ||||||||
20 | HD camera integrated machine | International well-known brand | 1 | |||||
Add SD HD control version 1 set. | ||||||||
Image Sensor 1 / 2.8 CMOS | ||||||||
3.27 million images | ||||||||
Lens 20x (F=1.6 ~ 3.5, F=4.7 ~ 94.0) | ||||||||
Focus length of 0.8 sec (from infinity) | ||||||||
Digital Zoom at 12x | ||||||||
Horizontal perspective was 2.9 ° to 55.4 ° | ||||||||
Minimum distance 10mm (WIDE) 1000mm (TELE) | ||||||||
Synchronization signal for internal synchronization | ||||||||
Minimum illumination 0.5 lx (high sensitivity on) 1.7 lx (high sensitivity off) | ||||||||
The illuminance range is 100 lx to 100000 lx | ||||||||
The SNR is 50dB | ||||||||
Background Light compensates for the ON / OFF | ||||||||
Electronic shutter speed 1 / 1~ 1 / 10000s (22 steps) | ||||||||
White balance AUTO / ATW / indoor / outdoor / one-click White balance / manual white balance | ||||||||
Gain automatic / manual is available | ||||||||
Wide dynamic ON / OFF / AUTO | ||||||||
Noise reduction OFF, 1 to 5 (6 steps) | ||||||||
Preset 6 | ||||||||
Serial port VISCA protocol (CMOS 5V) | ||||||||
The HD video output analog component Y, Pb, Pr | ||||||||
Storage temperature-20℃ ~60℃ | ||||||||
Operating temperature: -5℃ ~ 60℃ | ||||||||
Power supply is DC 6~12V 3.2W / 3.8W | ||||||||
Weight is about 260g | ||||||||
Dimension: 50.0*60.0*87.9mm | ||||||||
All the functions of the camera can be operated remotely from a distance | ||||||||
21 | All-weather Yuntai aluminum alloy cover | All-weather cradle cover power supply AC24V ± 10%, 50 / 60Hz | 1 | |||||
Power heating 25W, fan 3W, windshield wiper: | ||||||||
Automatic temperature control range heating on: 8℃± 5℃ / off: 20℃± 5℃ (fan running at the same time) | ||||||||
Fan on: 37℃± 5℃ / off: 20℃± 5℃ | ||||||||
Material main body: aluminum alloy window: transparent glass, optional optical glass | ||||||||
Weight of 1.9 Kg | ||||||||
Window area: 67 (W) 57 (H) | ||||||||
Operating temperature: -35℃ ~ + 65℃ | ||||||||
Protection level: IP66 | ||||||||
Maximum dimension of the camera is 174 (L) 90 (W) 72.5 (H) | ||||||||
Optional accessory heater, fan, sunshade, optical glass, windshield wiper | ||||||||
22 | OS | Multi-function printing / scanning / copy / fax all-in-one machine | Famous brand | 1 | ||||
Product features print / scan / copy / fax | ||||||||
Maximum processing sheet format A4 | ||||||||
Processing media paper (inkjet printing paper, photo paper, ordinary paper), envelopes, labels, cards, transparent media, HP (HP), high quality media | ||||||||
Interface type: 1 USB (2.0) port | ||||||||
Product memory is 16MB | ||||||||
Print performance | ||||||||
Printing method, color inkjet | ||||||||
Print resolution: color: 4800 * 1200 dpi; black and white: 600 * 600 dpi | ||||||||
Print speed black and white, draft mode, A4:9 page / minute; black and white, best mode, A4:2.5 page / minute; color, draft mode, A4:22 page / minute; color, standard mode, A4:6.5 page / minute; color, best mode, A4:2.5 page / minute; color photo, draft mode: 26 seconds; color photo, standard quality on photo paper, 10x15: only 51 seconds; color photo, best mode: only 61 seconds | ||||||||
Printing media paper (inkjet printing paper, photo paper, ordinary paper), envelopes, labels, cards, transparent media, HP (HP), high quality media | ||||||||
Processing format A4, A5, B5 (JIS), C6, DL | ||||||||
100 page carton, 20 page automatic document feeder (ADF) | ||||||||
Output paper is 20 pages out of the carton | ||||||||
Print language HP PCL 3 GUI, PJL (Printer Job Language), PML (Printer Management Language) | ||||||||
Print other performance printing capability: 3,000 pages / month | ||||||||
Scan performance | ||||||||
Optical resolution of 1200 dpi | ||||||||
Output resolution Hardware scan resolution: 1200 * 2400 dpi; | ||||||||
Copy performance | ||||||||
Copy speed black, draft quality, A4:28 copies / min; color, draft quality, A4:22 copies / min; black, standard quality, A4:7.6 copies / min; color, standard quality, A4:0.8 copies / min; color, best quality, A4:0.8 copies / min | ||||||||
Copy resolution Color: optimal resolution of partial HP (HP) paper with 1200 * 1200 dpi at 4200 * 1200 * 1200 dpi; black and white text: 600 dpi with optimal resolution of 600 * 1200 dpi | ||||||||
1-90 copies | ||||||||
Copy scaling from 25% to 400% | ||||||||
Fax performance | ||||||||
Modem at 33.6 Kbps | ||||||||
Transmission speed of 3 seconds / page | ||||||||
Fax memory is up to 100 pages | ||||||||
Fax other performance color fax; automatic redial; fax delayed sending | ||||||||
Other performance | ||||||||
The system platform Microsoft Windows 2000, XP Home, XP Professional, XP Professional x64, Windows Vista, x64; Mac OS X v10.3.9,v10.4.x, v10.5. Some features may not be applicable with Microsoft Windows 2000 SP4, XP Starter Edition, and XP x64. | ||||||||
Working Noise 7.0 B (A) (Active / Draft Print) | ||||||||
Power supply performance, input voltage 100 to 240 V AC (+ / -10%), 50 to 60 Hz (+ / -3 Hz) | ||||||||
Environmental standard working humidity: 15% to 85% relative humidity; non-working humidity: 15% to 85% relative humidity; recommended operating temperature: 15 to 32° C | ||||||||
The overall dimension is 434 * 402 * 217mm | ||||||||
Product weight is 5.9kg | ||||||||
Other parameters are manually printed and double-sided | ||||||||
Other features pass the Energy Star certification | ||||||||
Warranty with a 1-year limited warranty | ||||||||
23 | notebook PC | Famous brand | 1 | |||||
CPU: I7, hard disk: 500G, SSD with 16G, legitimate WINDOW software | ||||||||
24 | communication system | The desktop is very high frequency | International well-known brand | 1 | ||||
VHF center frequency: 156 MHz; | ||||||||
Standard Marine call channel; | ||||||||
12 / 24V optional DC power supply; | ||||||||
Output power of 25W; | ||||||||
With DSC function, can input GPS positioning signal and output audio signal. | ||||||||
25 | High-gain, VHF (VHF) antenna | International well-known brand | 1 | |||||
26 | Explosion-proof high-frequency handheld machine | International well-known brand | 5 | |||||
Waterproof grade 7, simple operation; | ||||||||
Standard Marine call channel; | ||||||||
Output power (high / medium / low): 5 / 3 / 1W; | ||||||||
The battery capacity is 1700 mAh, rechargeable; | ||||||||
in light weight. | ||||||||
27 | Vehicle lighting system | Inside and exterior lighting system DC 24 V/AC220V | LED lamp | 1 | ||||
28 | Folding lifting lighting, camera system | When the vehicle driving folding lying on the top of the car, the use can automatically operate and convenient, fast, do a good job of waterproof, sealing treatment. Manual and electric use. Lift height of 1.8 meters, 2 * 250W dysprosium lamp, with multi-functional rotating cradle head, camera support, can rotate 360 degrees, up and down pitch. | 1 | |||||
29 | security system | Earthing device | Ground steel and grounding wire | 1 | ||||
30 | GPS + reversing monitoring system integrated machine: GPS navigation, 1 camera | Original car chassis special all-in-one machine | 1 | |||||
31 | Multi-functional medical box | order number | product name | specifications | unit | quantity | 1 | |
1 | Medical rubber paste | 1.25cm*4.5m | roll | 1 | ||||
2 | elastic bandage | 6cm*4m | roll | 2 | ||||
3 | elastic bandage | 8cm*4m | roll | 2 | ||||
4 | Disinfection gauze sheet | 2"*2".2pcs\pack | pack | 5 | ||||
5 | Disinfection gauze sheet | 3"*3".2pcs\pack | pack | 5 | ||||
6 | adhesive bandage | 19*76mm | pc | 25 | ||||
7 | Joint wound stick | 45*50mm | pc | 10 | ||||
8 | Finger wound stick | 76*38mm | pc | 10 | ||||
9 | De-fouling wipes | 12*19mm | pc | 4 | ||||
10 | Disinfection wipes | 12*19mm | pc | 4 | ||||
11 | Alcohol tablets | 6*3cm | pc | 10 | ||||
12 | brooch | #2 | pc | 10 | ||||
13 | gloves | Lsize | pc | 4 | ||||
14 | Stainless steel bandage scissors | 15cm | pc | 1 | ||||
15 | tweezers | 11cm | pc | 1 | ||||
16 | Non-fat medical cotton ball | 10balls\pack | pack | 4 | ||||
17 | Self-adhesive paste | 10*10cm | pc | 4 | ||||
18 | Self-adhesive paste | 6*7cm | pc | 6 | ||||
19 | triangular bandage | 96*96*136cm | pc | 2 | ||||
20 | Band-aid | 10*12cm | roll | 1 | ||||
21 | Band-aid | 8*10cm | roll | 2 | ||||
22 | ice bag | 100g\pack | pack | 2 | ||||
23 | Wrinkle elastic bandage | 7.5cm*4.5m | roll | 1 | ||||
32 | Vehicle fire extinguisher | Car-mounted 2 KG fire extinguisher and stainless steel fixing bracket | 1 | |||||
33 | lightning protection and lightning protection system | Lightning protection and lightning protection | 1 | |||||
34 | Warning system of alarm lamp | Long row sign light LED: yellow LED, 100W, 14 flash | Length 1.2M, main light source LED, halogen tungsten flash 4 square LED, LED light 8 long LED, lane 2, working voltage DC24V, alarm light power 60W, controller DKQ-A03, lamp controller or matching alarm, color specification yellow transparent, net weight 17 ㎏, matching alarm power 100W | 1 | ||||
35 | Surrounding LED flash alarm lights: yellow LED flash, left and right box 4, the 5 back | Rated working voltage is DC24V | 13 | |||||
Light power is 35W | ||||||||
Operating current is 3.0A | ||||||||
Operating temperature: -40℃ ~ + 75℃ | ||||||||
36 | Flash module | 16 Road | 1 | |||||
37 | Car special equipment | Lladder for divers | Stainless steel 304 welded into, the outer surface is smooth, no burr, up and down the ladder spacing is uniform, allowed to connect in sections.(The bidder shall provide the original patent certification documents at the time of bid opening). | 1 | ||||
38 | Car diving shower wash system | Equipped with 100L stainless steel water tank; diving suit and diver flushing on the rear of the vehicle; hidden electric wash basin, etc. | 1 | |||||
39 | automobile air-condition | Famous brand. | 1 | |||||
automobile air-condition | ||||||||
Heating and cooling (heating in winter, cooling in summer), the temperature regulation ability to meet the requirements of rest and control room volume, the temperature regulation range of 15~35 degrees | ||||||||
Power supply form: single-phase AC: 220V / 50Hz | ||||||||
Refrigeration power is> 2700W and the refrigeration power consumption is <900W | ||||||||
Heating power> 3000W, heating power consumption <1100W | ||||||||
The external size is <650x400x290mm | ||||||||
Small volume, easy to install, three gear wind speed, unlimited remote control, a variety of air outlet mode. | ||||||||
40 | The rear is mounted with a hidden vehicle electric winch | Motor: string motor | 1 | |||||
Voltage: 24V DC | ||||||||
Tension force:> 2,500 KN | ||||||||
Type: electric | ||||||||
Overall dimensions: <440 * 160 * 218mm | ||||||||
Length:> 7.2mm * 24m | ||||||||
41 | Portable spare fuel tank | 60 Lil | 1 | |||||
42 | Shower | Manual awning, length of 4 meters, extended width of 2 meters, left and right 1 set | 2 | |||||
43 | Appearance spraying | Spray and paste the marks | Appearance painting and identification, spray stainless steel special paint, engineering yellow | 1 |
Diving equipment | |||||
No | device name | Specifications and technical requirements | quantity | ||
1 | Head-mounted underwater video recording | International famous brand. | 1 | ||
Fixed focal length color camera, rated depth 300 m, imaging device 1 / 3 CCD sensor, resolution 480 TVL, video output 12 vpp, power supply 12VDC, lens 3.6mm, perspective level 70. Lighting, rated depth of 600 meters, power supply of 24VDC, power of 25W. Conductor 22awg RG-59 coaxial, standard length 150M. The console is light in weight, about 550x240x575mm in size, power supply 110 V 60 hz, light 0-100% control, 12-inch LCD monitor, front panel connection, DVD burning. | |||||
2 | Pipe-supply type diving equipment | gas cylinder | Carbon fiber, 55 liters, and pressure resistance> 20 Mpa. | 4 | |
Gas distribution components | Including pressure reducer, inlet and outlet air joint, pressure gauge and take-pipe. | 4 | |||
umbilical cord | International famous brand. | 2 | |||
Length of 120 meters, three lines (supply pipe, communication cable reinforcement rope and sounding pipe), floating type. | |||||
The weight in the air is about 450kg / km, the weight in the water is-40 Kkg / km, the minimum bending radius is about 185mm, there are D-shaped rings at both ends of the umbilical cord, and a buckle at the other end of the water. Block with screws at the two ends of the umbilical cord. The umbilical cord consists of a 1 / 4 "sounding tube, a 3 / 8" supply pipe, and 4 core telephone lines twisted into a twist. The two ends of the umbilical cord can be directly connected to the helmet, air distribution panel and diving telephone. The maximum tension of the 4-core telephone line is not less than 500 Kg, which can be used as a safety rope. | |||||
Electric umbilical cord winch | Stainless steel material, two-way infinite variable speed motor drive and manual rotation, can accommodate 120 meters of umbilical cord, the cable car end is installed with two stainless steel fast joints, used to connect the high pressure gas cylinder, and can continuously supply gas with the rotation of the cable car. Install the communication and sounding extension joints at the other end. Four wheels are installed at the bottom of the cable car for easy movement. | 2 | |||
control panel | International famous brand. | 1 | |||
Length about 21 inches, width about 18 inches, height about 11.5 inches, weight about 24.5Kg, maximum depth about 40 meters, high pressure gas supply 240bar, low pressure gas supply 15.5bar, umbilical pressure range 8-15.5bar, 12V rechargeable battery running for 20 hours, 40 SCFM provides 10.3bar transmission pressure at the supply pressure of 172bar. Safety valve is set to 20bar.4-line communication can also be used in double lines. High pressure and medium pressure gas supply source can be provided separately for each diver. Low-pressure gas source is equipped with an alarm function. The intake valve is equipped with check valve. | |||||
divers lead weight | Shanghai Diving equipment factory, large, 2 Kg / block, a total of 10 pieces. | 2 | |||
divers knife | Shanghai Diving equipment Factory. | 2 | |||
Mounting kit | Canvas, used for installing small and common tools. | 2 | |||
Emergency cylinder | International famous brand. | 2 | |||
Steel, 7 L, withstand> 200MPa with back. | |||||
Emergency gas cylinder pressure reducer | International famous brand. | 2 | |||
Including the primary pressure reducer and the high pressure pipe. | |||||
Provide 232bar yaok or 300bar DIN type thread interface, suitable for different regions. | |||||
casque | International famous brand. | 2 | |||
Weight of about 14 lbs, it is made of glass fiber, polyester resin, polyester gel coating and carbon fiber frame, equipped with watertight joints directly connected to the diving umbilical cord, throttle valve, and mic headphones. Polyurethane control knob, anti-scratch polycarbonate panel, can choose SuperFlow® 350 traditional regulator or 455 breathing regulator. Add hot water at temperatures below 1℃. The diameter of the umbilical cord interface is 9.5mm, and the total length is not greater than 183 m. | |||||
dry diving suit | International famous brand. | Large and medium 1 each | |||
Depth of 355 m, polymer-enhanced knee and tibial pad, heavy plastic steel YKK zipper. | |||||
Dry wetsuit flippers | International famous brand. | Large and medium 1 each | |||
100% natural rubber for comfort and durability. | |||||
armour for a horse | International famous brand. | 2 | |||
diving telephone | International famous brand. | 2 | |||
Water depth: air diving depth, ambient temperature: -25℃ - - + 45℃ Battery mass: 3.18kg, power supply 12VDC, rechargeable battery and charger, 300 HZ-12 KHZ, can be connected to the underwater TV audio input port. | |||||
3 | Self-portable diving equipment | air bottle | Aluminum bottle, 12 liters, pressure resistant to 200 Mpa. | 2 | |
apparatus respiratorius | International famous brand. | 2 | |||
Including primary pressure reducer, high pressure pipe, secondary decompression | |||||
Device, standby pressure reducer. Compact appearance, large breathing volume, easy to maintain. | |||||
Four table | International famous brand. | 2 | |||
0-400bar bottle pressure meter, 35-degree viewing Angle oil-filled compass, oil-filled wave Ben tube design depth gauge. | |||||
Face mirror | International famous brand. | 2 | |||
Ultra clear glass, double skirt edge increase comfort water tightness, silicone skirt edge increase hardness, no glare, easy to carry. | |||||
actor's headgear | 2 | ||||
Floating tank top | Large and medium 1 each | ||||
Beach shoes | 6 | ||||
web-footed | Large and medium 1 each | ||||
absorbent clothing | Large and medium 1 each | ||||
Small pressure lead | 1 Kg / block, for a total of 10 blocks | 2 | |||
4 | Diving signal rope | 120 meters of reinforced cable, with a cable car. | 2 | ||
5 | Combination maintenance tools | Including various sizes of opening, active winding and inner hexagon wrench, screwdriver, hacksaw bow, hand hammer, wire pliers, wire scissors, pipe pliers, etc. | 1 | ||
6 | Common tools for rescue and rescue operations | Including Taiping axe, crowbar, 12-pound sledgehammer, etc | 1 | ||
7 | Divers have portable underwater lighting flashlights | Shenzhen Ocean King, rechargeable, power> 10W, LED light | 2 | ||
8 | tent | Six people, canvas | 1 | ||
9 | pneumatic boat | 3-4 person, inflatable, folding, with a paddle | 1 | ||
10 | folding seat | Stainless steel frame, backrest and sitting face for real leather | 2 | ||
11 | Portable life jackets | gas filled type | 6 | ||
12 | buoy | 2 | |||
13 | Diver lift system | Used for lifting and delegating to the divers. Including two-way variable variable speed motor, winch, 50 meters wire rope, pulley, stainless steel rod, diver ride frame and other accessories, tension> 2000 Kg. Usually removed and put into the car, when installed in the back of the car. | 1 |
Keystone Vessel Industrial Gas Cylinders| ISO Tank| Pressure Vessel| UN Portable Tanks- Dong Runze Special Vehicle
Keystone Vessel Manufacturing Co., Ltd
10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS
6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
