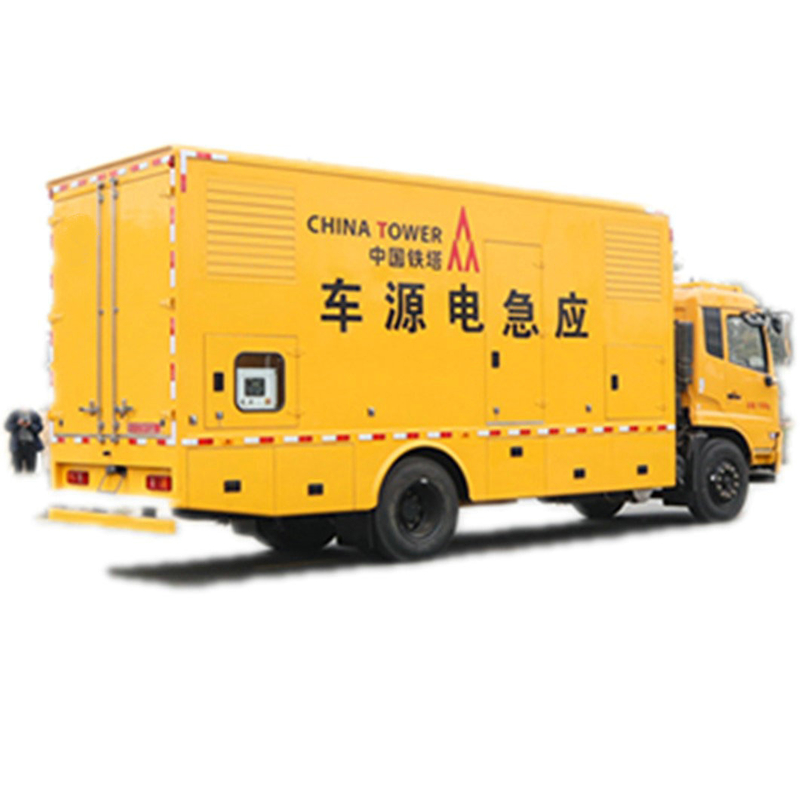

DFAC Kingrun Truck Mounted Smart Generator 200-500KW

DFAC Kingrun Truck Mounted Smart Generator 200-500KW
Price for refer only. Final Price Offer Discount.
Price: $ 135000
Availability:
Quantity:

  • DR5180
  • Dong Run Ze
  • 8705905900
  • 1

DFAC Kingrun Truck Mounted Smart Generator 200-500KW

20KWa-1000KWa 4x2,4x4, 6x4,6x6,8x4 Mobile Generator Truck for your selection, LHD and RHD cabin are both available.

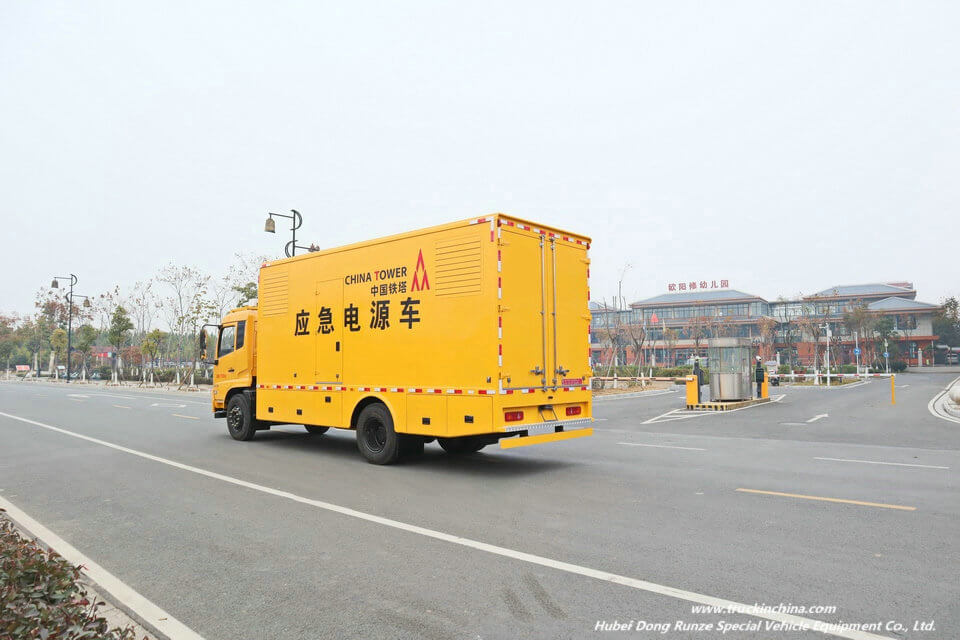

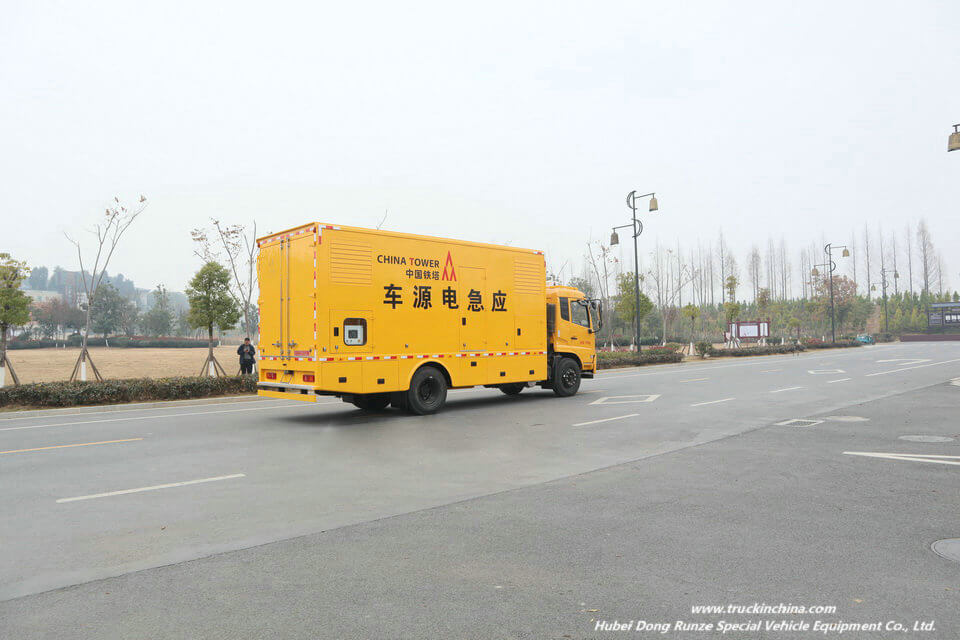

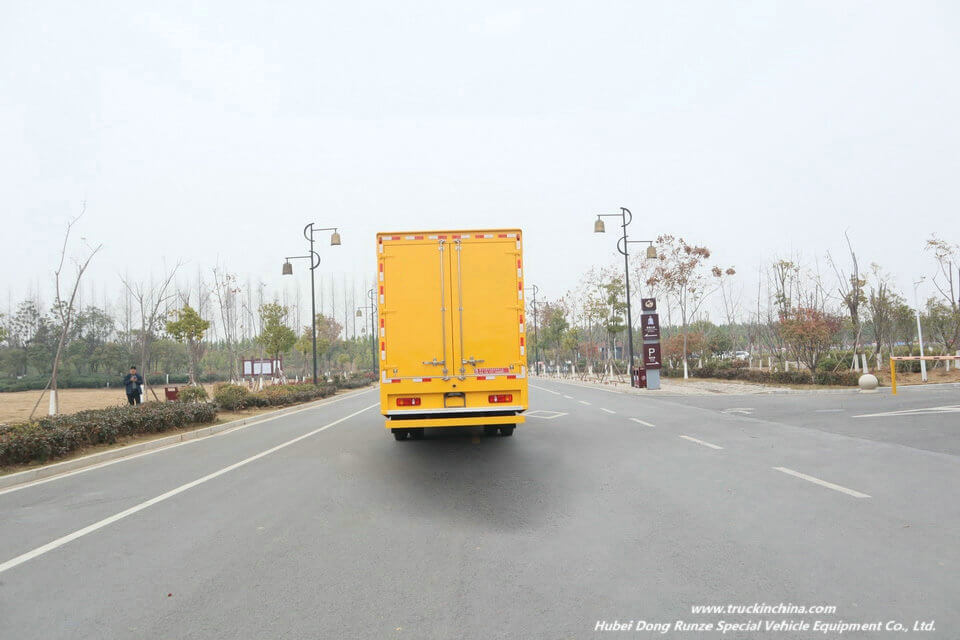

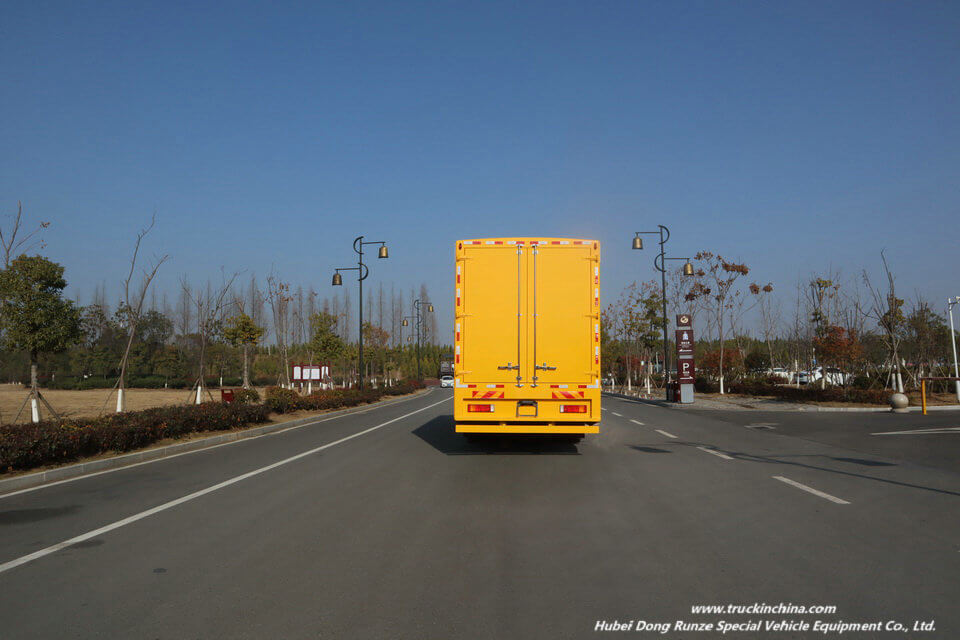

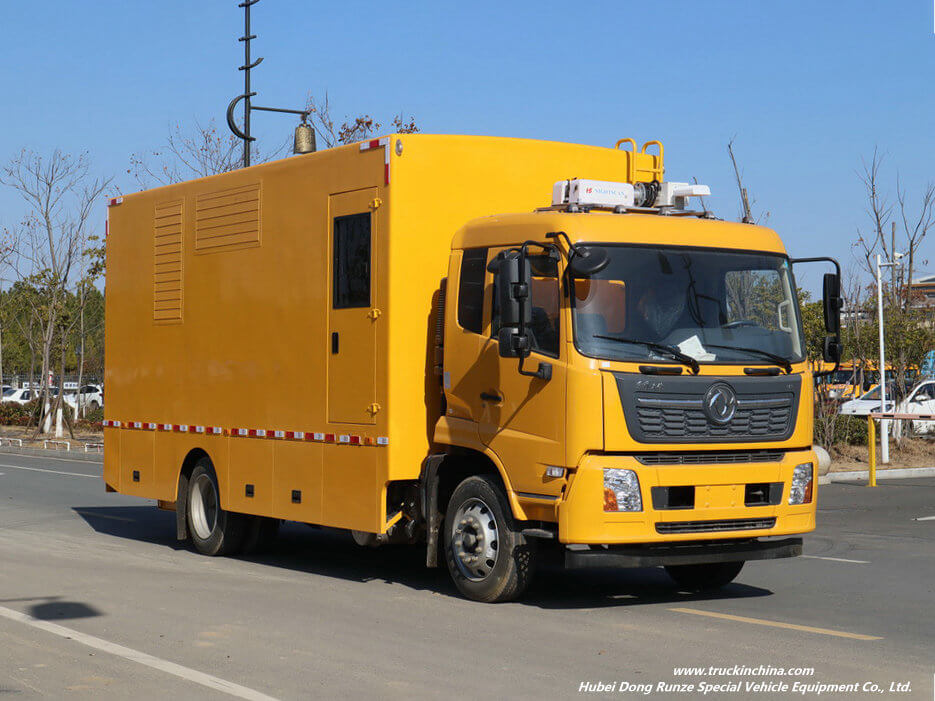

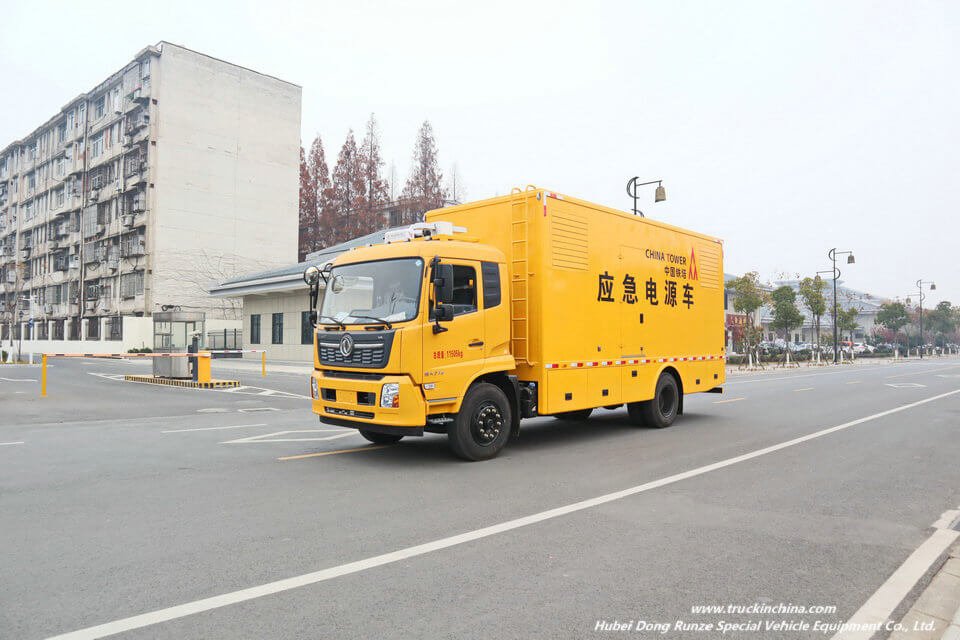

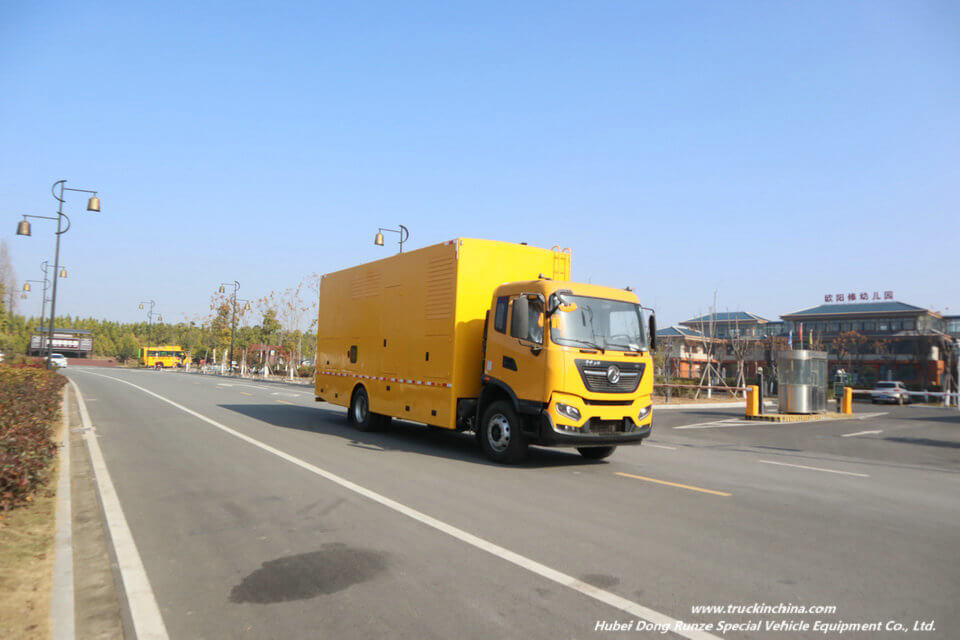

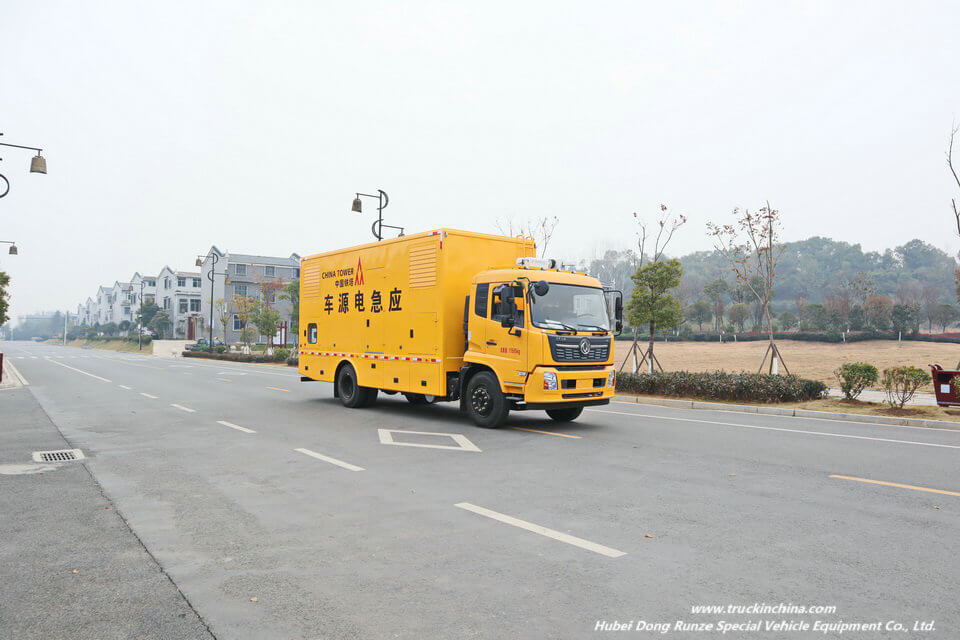

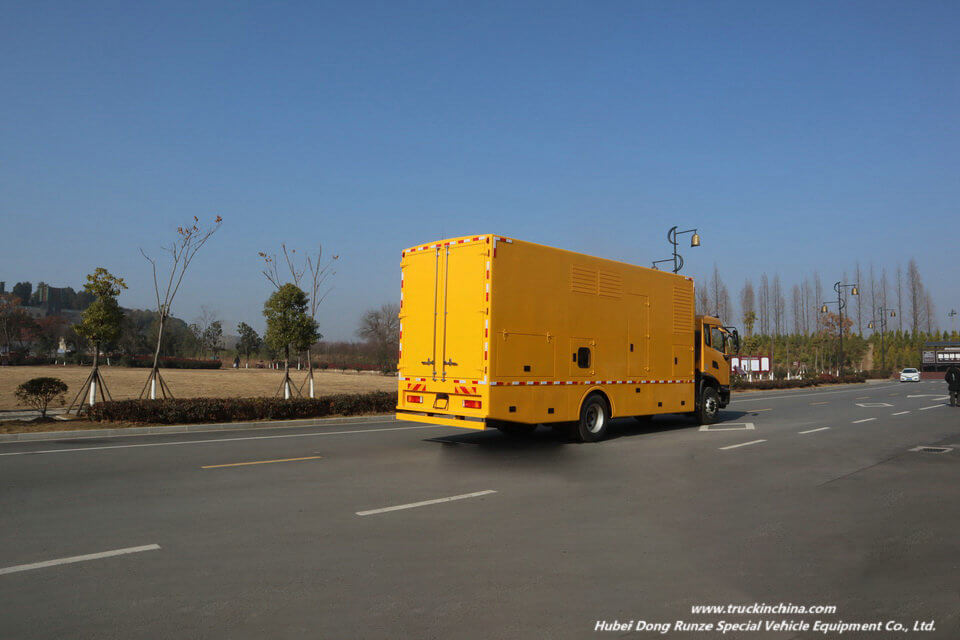

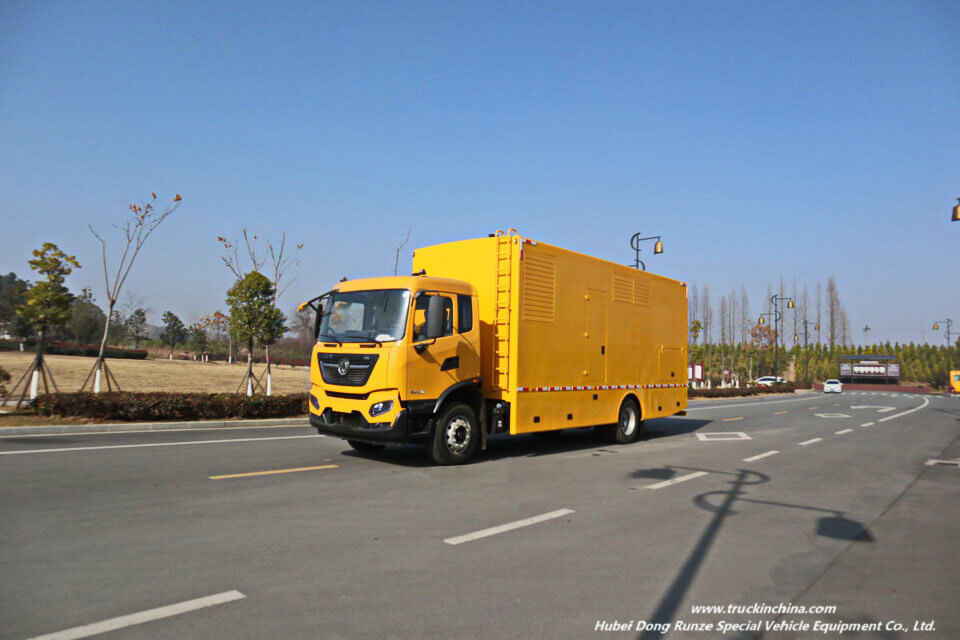

    Kingrun Power Supply Vehicle (6)Kingrun Power Supply Vehicle (3)Kingrun Power Supply Vehicle (4)Kingrun Power Supply Vehicle (2)Kingrun Power Supply Vehicle (2)Kingrun Power Supply Vehicle (4)Kingrun Power Supply Vehicle (7)Kingrun Power Supply Vehicle (3)Kingrun Power Supply Vehicle (5)Kingrun Power Supply Vehicle (1)

  Product Features:

  Chassis mounted type, flexible to move
  The lowest fuel consumption and the biggest power output
  High quality diesel MTU generator set
  Best after-sales guarantee
  10-year service life



Chassis Model: DFH1250D4
Approaching/Departuring Angle: 20/10(°)
Front/Rear Overhang: 1480/2850,1500/2830(mm)
Axle Load: 7000/18000(For a group of two rear axles)
Number of Axles: 3
Front Wheel Track: 2010,2040,2070(mm)
Rear Wheel Track: 1860/1860,1880/1880(mm)
Number of Leaf Spring: 3/10,3/4,9/10
Number of Tires: 10

     Customizing Electric 200KW-800KW Emergency Power Supply Vehicle

Mobile Emergency Power Supply Truck 1000kw Power Supply Vehicle  Multi-Function Mobile Generator Truck

Mobile Generators


Parameters

Vehicle parameters

Chassis

Dongfeng Tianjin power supply truck

Truck Mounted Smart Generator


Overall dimension

L×W×H(mm)

9000x2550x3900


Total mass

(Kg)

180000


Rated load mass

(Kg)



curb weight

(Kg)

17870

Chassis parameters

wheelbase

(mm)

5000


Chassis brand and model

DFAC、DFH1180EX8


Engine brand and model

Cummin、B6.2NS6B210


Power / horsepower


(Kw)/(Hp)

154/210


Emission Standard

Euro 6


Fuel type

Diesel oil


Tire specifications

10.00R20

Gen-set output: Prime power 625KVA/ 500KW
General Data: 400V 3P, 50Hz, 1500rpm, PF0.8; altitude <=1000M, ambient
temperature 5~40ºC, humidity 60%
Engine: CUMMINS / KTAA19-G6A
Alternator: STAMFORD / HCI 534FS, 50HZ/PMG + MX341
Control panel: Auto Start ; Control module: Deepsea / DSE8610
Circuit Breaker: ABB / Air Breaker
Fuel Tank: 6 Hours Running
Accessories: Battery, Battery charger( DC 24V/10A), Industrial muffler,
Bellows, Radiator, Steel base frame,
Attachment Documents: Operation Manual for gensets; Inspection report of
engine, alternator and genset.

Generators are a flexible power source, which makes them a valuable addition to job sites and disaster response teams. More and more commercial fleets are adding truck-mounted generators to their vehicles. This allows even more flexibility and convenience when it comes to power generation. Whether your trucks are used in construction, emergency response, disaster relief or transportation, there are many reasons to consider an integrated portable generator system.

Truck-Mounted Generator

The ability to have clean, reliable power wherever your vehicle is allows you to power machinery, lighting and electronics at any job site. Transporting a generator already mounted to your truck gives you the ability to deliver power in emergencies, even to remote locations. Other reasons to invest in a truck generator system include operating food trucks and mobile clinics, as well as camping.


The benefits of a truck-mounted generator include the ability to move from location to location, and drive to refueling locations. When the generator is not in use, your truck is still useful. Maintenance can be easier than with a standalone generator as well, both because the generator is mobile and because it can be serviced by your truck’s mechanic in many cases.

TRUCK MOUNTED GENERATORS


Jmc Light Trucks Mounted Generator 30kw 50kw 80kw Electric Power Supply VehicleJmc Light Trucks Mounted Generator 30kw 50kw 80kw Electric Power Supply Vehicle

The power supply vehicle is mainly composed of a chassis vehicle, a diesel engine group, a control system, a silent car body, a hydraulic support system, a cable retractable system, air intake and exhaust, a noise reduction system, and an exhaust system.

According to the user's requirements for the capacity and performance of the diesel generator set, choose a chassis car with beautiful appearance and excellent performance, and install the diesel generator set with high reliability, stability and excellent usability in the standard compartment to transform it into a high sound absorption effect and suitable for diesel The silent compartment where the generator set is running is combined into a perfect mobile on-board power station. Its low noise, convenient movement, fast speed, and reliable performance provide users with the possibility to realize long-distance emergency power supply, and meet customer requirements to the greatest extent!

 DFAC Kingrun Truck Mounted Smart Generator 200-500KW
