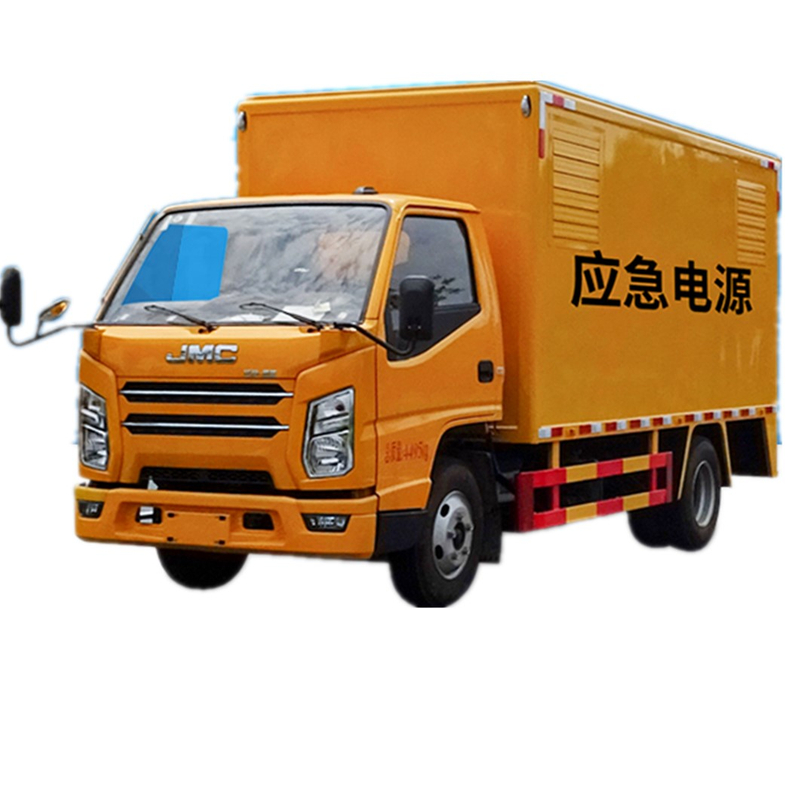

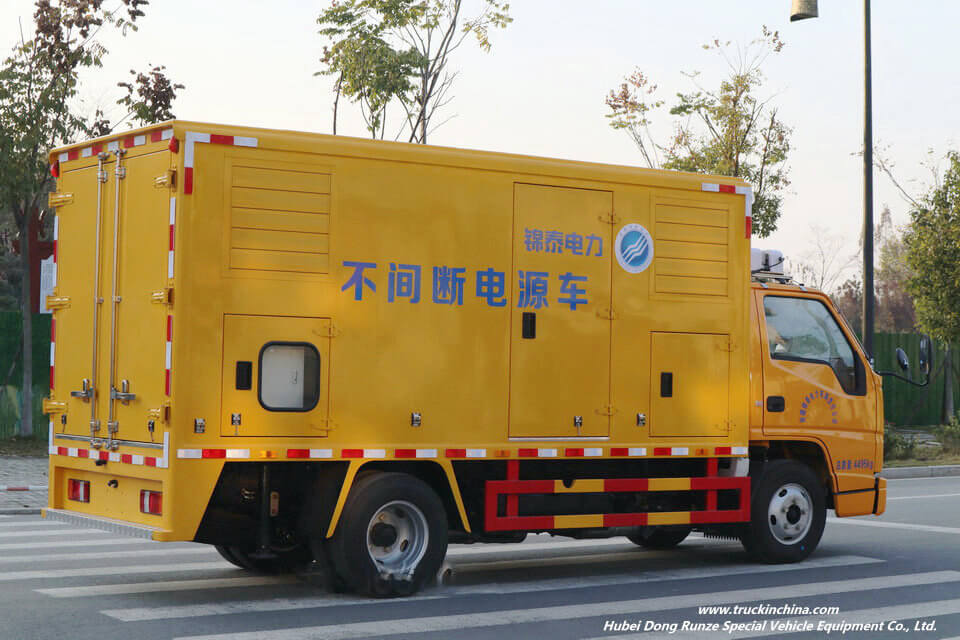

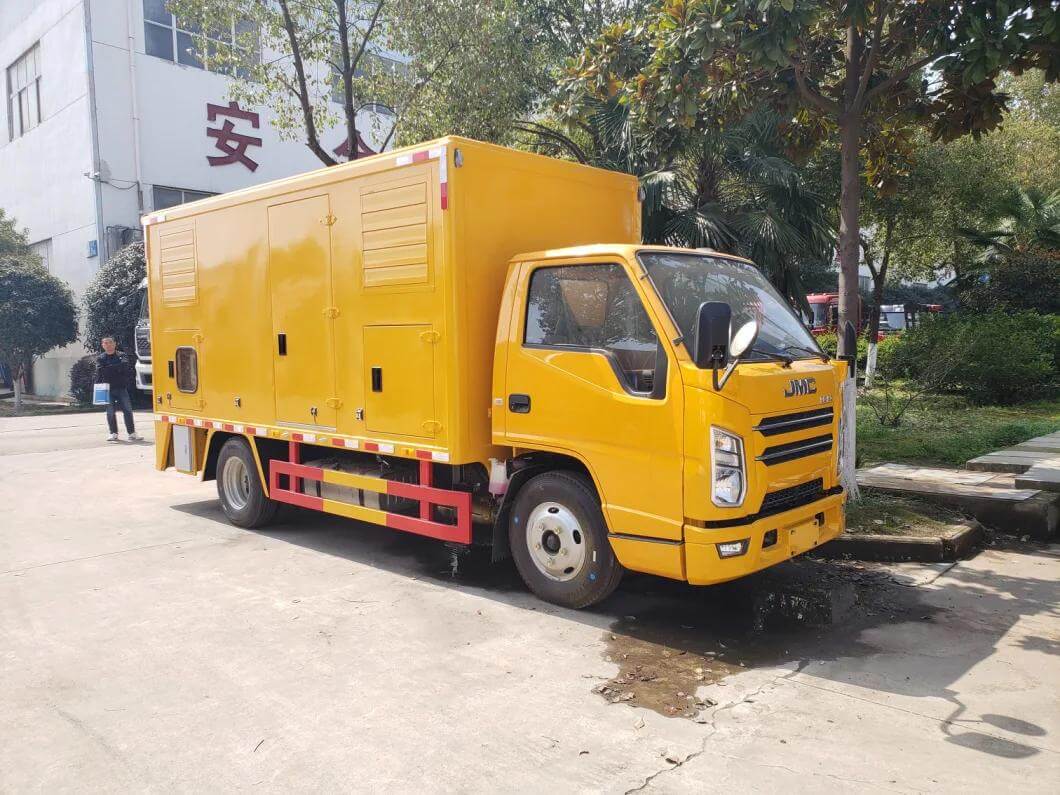

Using a JMC Truck-Mounted Generator 30-50KW
20KWa-1000KWa 4x2,4x4, 6x4,6x6,8x4 Mobile Generator Truck for your selection, LHD and RHD cabin are both available.
Product Features:
Generators are a flexible power source, which makes them a valuable addition to job sites and disaster response teams. More and more commercial fleets are adding truck-mounted generators to their vehicles. This allows even more flexibility and convenience when it comes to power generation. Whether your trucks are used in construction, emergency response, disaster relief or transportation, there are many reasons to consider an integrated portable generator system.
Mobile Generators
| Parameters | ||
Vehicle parameters | Chassis | JMC Power Supply Truck Truck Mounted Smart Generator | |
Overall dimension | L×W×H(mm) | 5995X2100X2900 | |
Total mass | (Kg) | 5880 | |
Rated load mass | (Kg) | ||
curb weight | (Kg) | 5750 | |
Chassis parameters | wheelbase | (mm) | 3360 |
Chassis brand and model | JMC、JX1061TG26 | ||
Engine brand and model | JMC、JX4D30B6H | ||
Power / horsepower
| (Kw)/（Hp） | 85/115 | |
Emission Standard | Euro 6 | ||
Fuel type | Diesel Oil | ||
Tire specifications | 7.00R16LT | ||

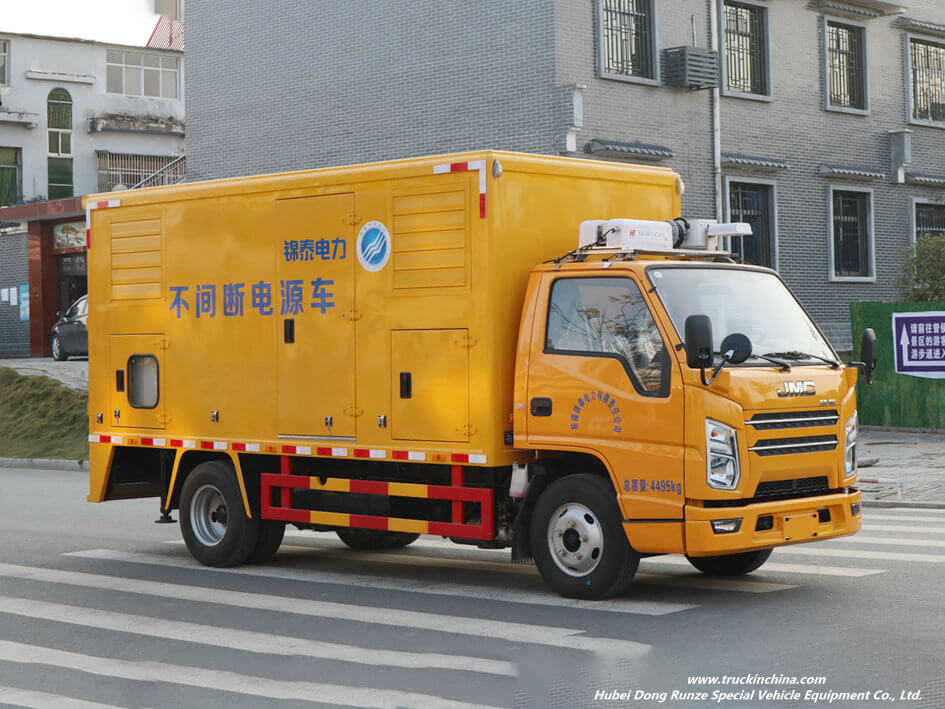

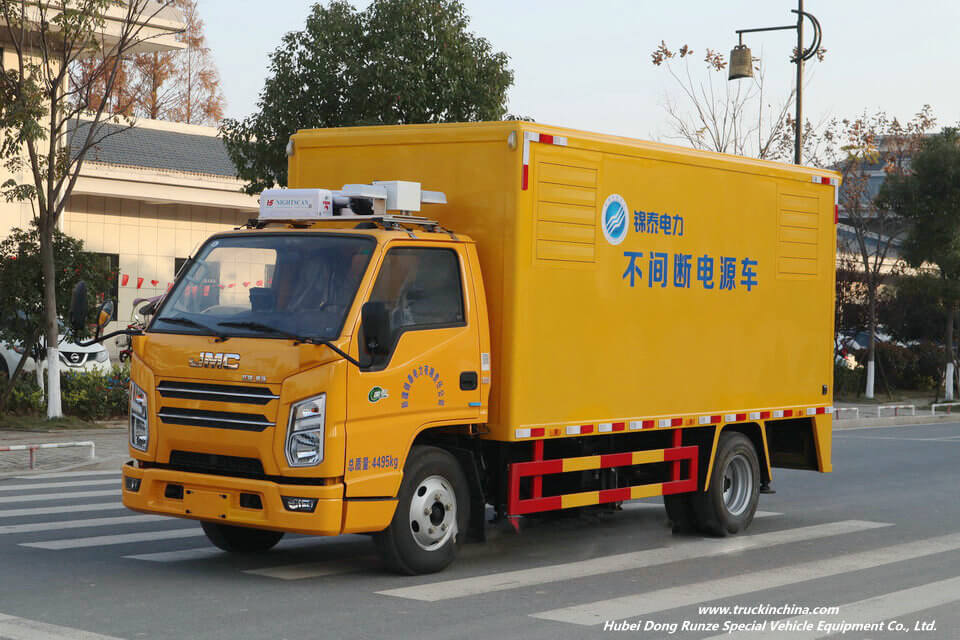

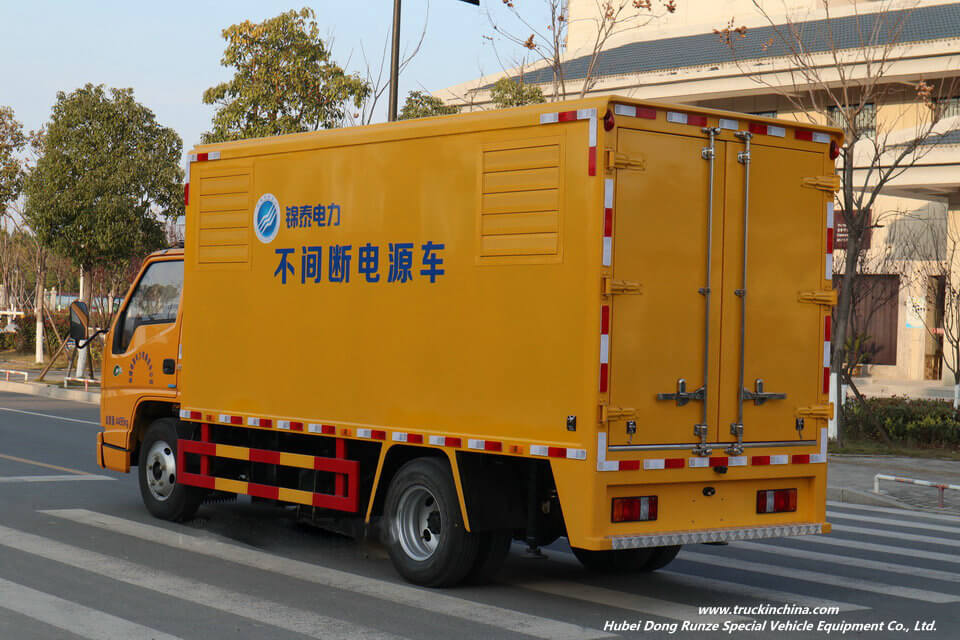

Truck-Mounted Generator
The ability to have clean, reliable power wherever your vehicle is allows you to power machinery, lighting and electronics at any job site. Transporting a generator already mounted to your truck gives you the ability to deliver power in emergencies, even to remote locations. Other reasons to invest in a truck generator system include operating food trucks and mobile clinics, as well as camping.
The benefits of a truck-mounted generator include the ability to move from location to location, and drive to refueling locations. When the generator is not in use, your truck is still useful. Maintenance can be easier than with a standalone generator as well, both because the generator is mobile and because it can be serviced by your truck’s mechanic in many cases.
Main technical performance parameters
| |||
Product Name:
| Jiangling small emergency generator
| Dimensions:
| 5995×1920×2750(mm)
|

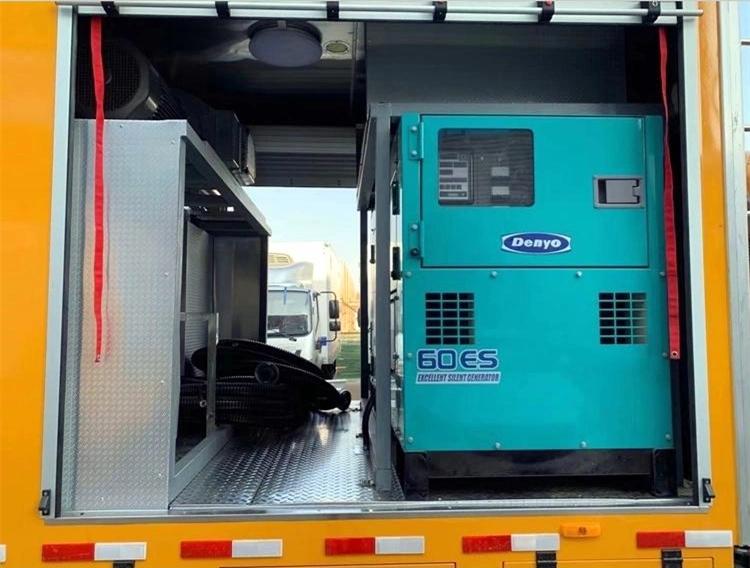

Generator power:
| 20-50 kW (Cummins, Weichai, Volvo, etc.) can be selected
| ||
Working noise:
| Less than 80 dB

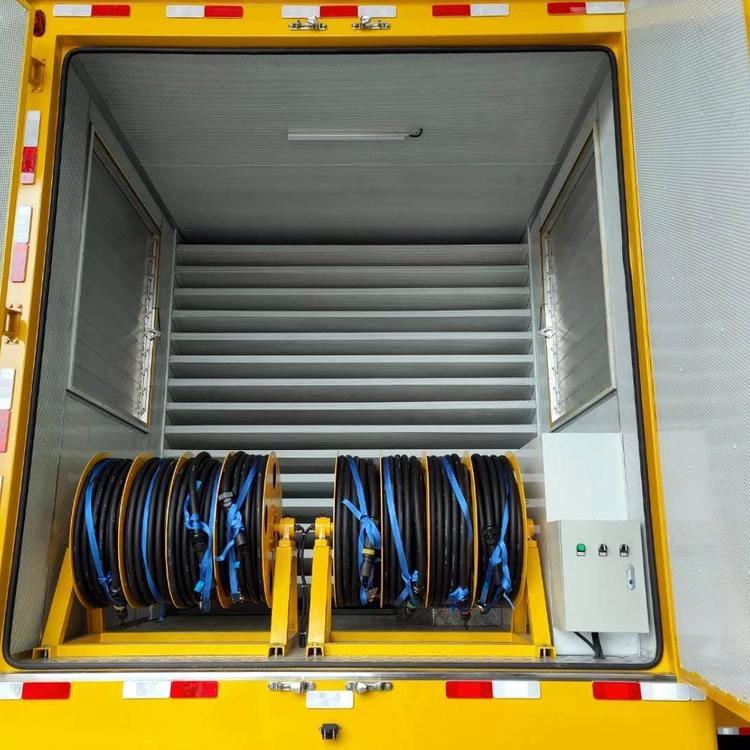

| Cable line:
| 200m (YCI * 95mm2)
|
capstan:
| 4 (hand and electric integration)
| emergency lamp:
| 2
|
Hydraulic support:
| 4 (electro hydraulic outriggers)
| Fluorescent lamp (AC / DC)
| 3 (AC 220 V, DC 24 V)
|

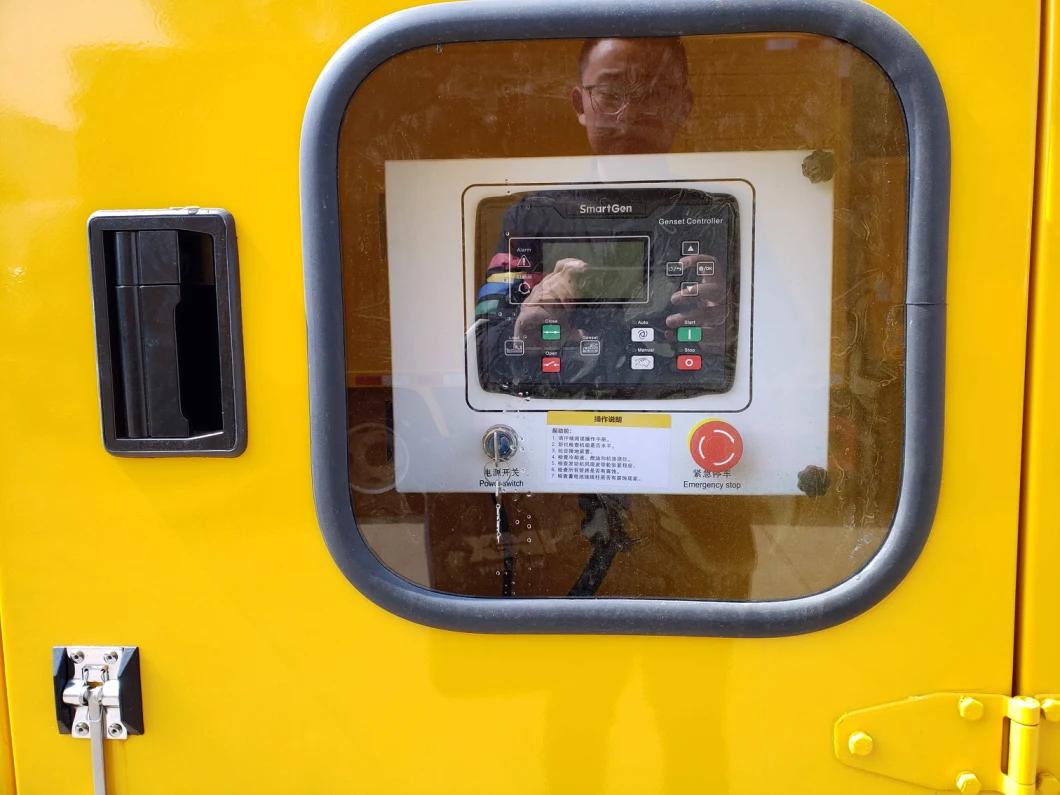

Self starting control panel:
| 1 set (with generator set)
| Grounding device
| 1 set
|
Quiet noise reduction box body:
| Access door, step ladder, ladder, anti-skid aluminum floor, compartment, stainless steel door trim, noise reduction board, residential muffler, bellows
| Fire Extinguisher:
| 2 (2kg)
|
