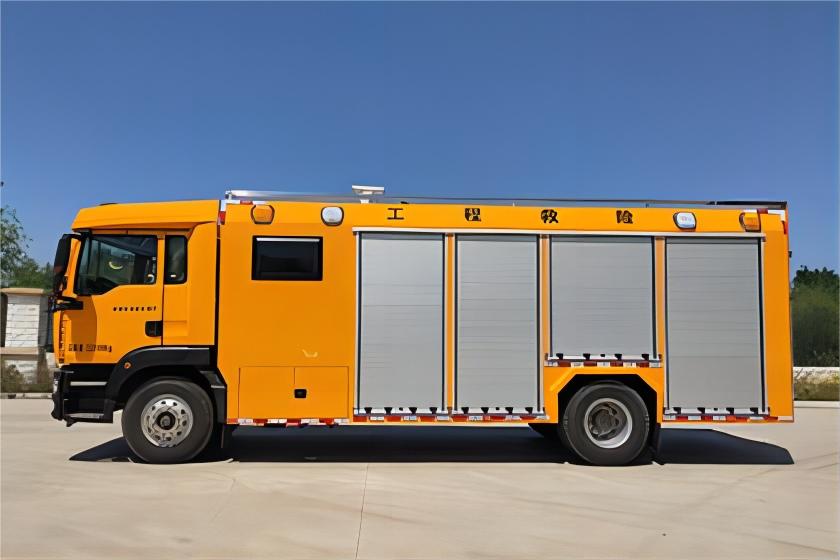

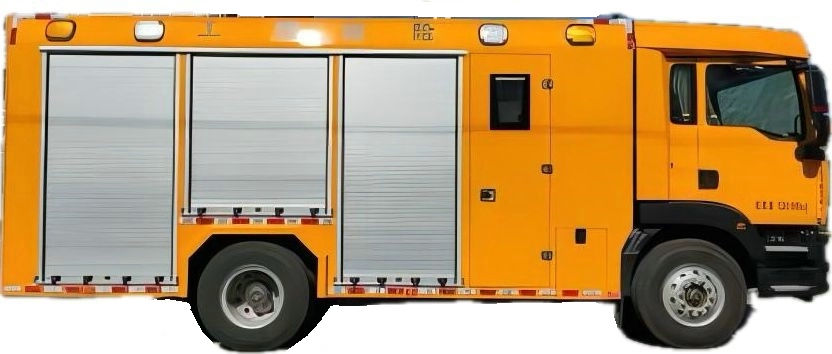

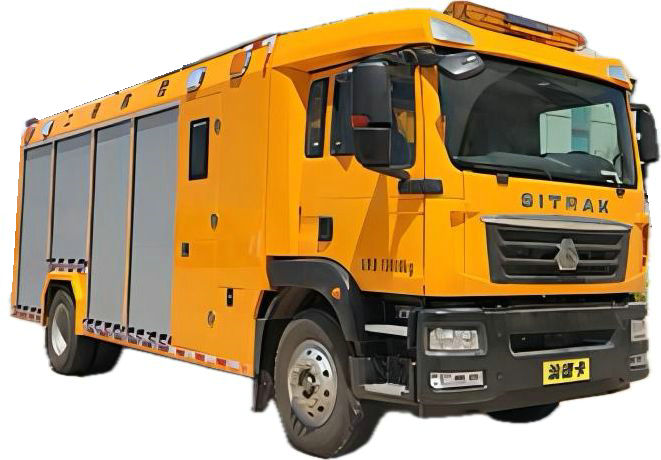

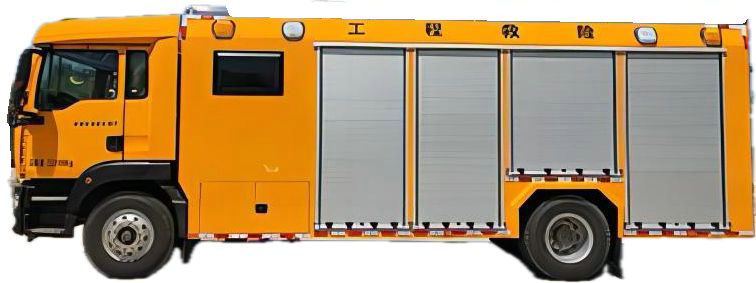

SITRAK Gas Supply Protected Emergency Rescue Vehicle

SITRAK Gas Supply Protected Emergency Rescue Vehicle

Equipped with engineering identification light, cable tray, generator set and other rescue equipment, equipped with mains interface, can be used for major accident emergency rescue.2. The car can optionally install lifting lighting system, camera, air conditioning; The side and back of the box can be installed with different appearance styles

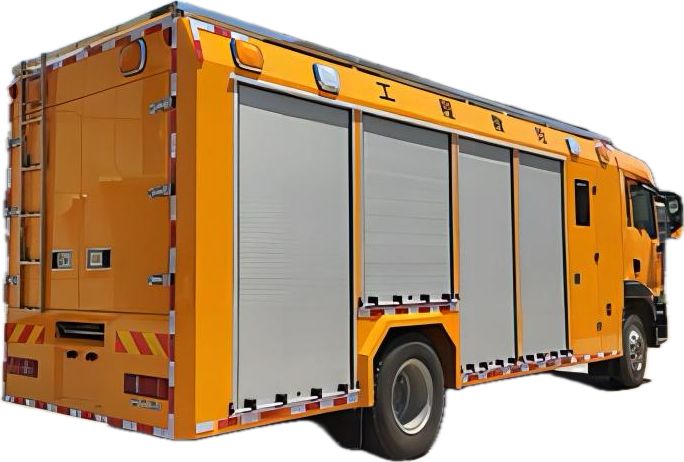

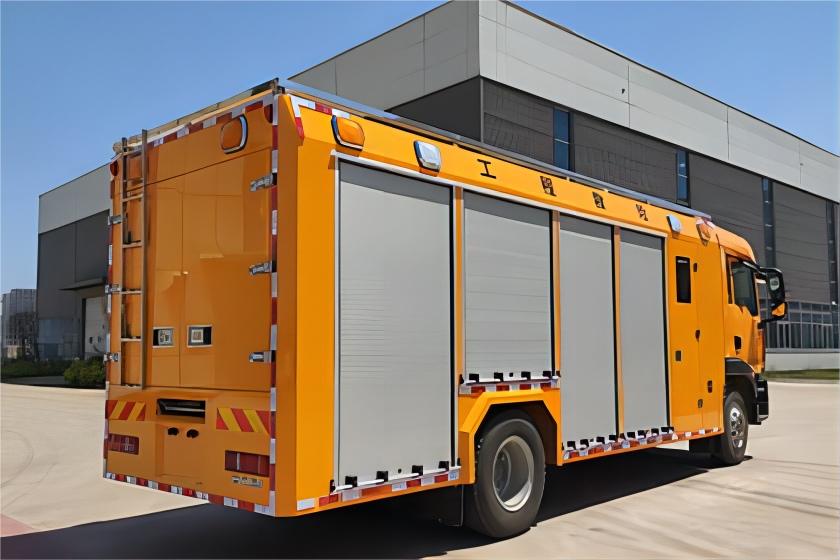

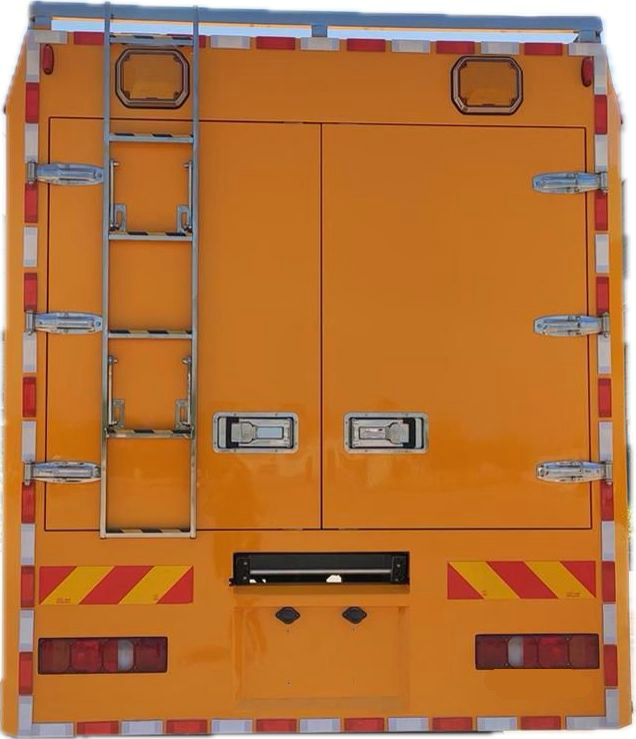

Body and equipment box: The body and equipment box should preferentially adopt aluminum alloy skeleton structure, covered with aluminum alloy anti-slip cover plate, easy maintenance, corrosion resistance, light weight, high strength, and strong torsion resistance. The equipment box should preferentially adopt lock rolling shutter doors,The rear equipment box can adopt an upturned door, which is convenient to take and take the equipment, and its inner and outer surfaces should be smooth, waterproof and dustproof, not easy to freeze, and has good sealing. The equipment box is equipped with automatic lighting lamps, and the cab is equipped with corresponding equipment box opening indicator lamps.

Set up of functional areas

5.1 Power supply system:

5.1. 1 Vehicle-mounted generator sets:

# 5.1. 1 Power generator sets: 150kW.

5.1. 2 Type of take-off: chassis full power take-off.

5.1. 3 Installation form: center or rear.

5.1. 4 Rated frequency: 50Hz.

5.1. 5 Rated voltage: 400V, 220V.

5.1. 6 Insulation class:≥H . Provide reliable grounding.

5.2 Power supply mode:

5.2. 1 With external power supply and parking self-generating system power supply.

5.2. 2 The external power supply is inputted into the compartment through the external power cable and the power supply adapter board; In the area where there is no external power supply, the self-generating system of the car can be directly started to supply power.

5.3 Refrigeration systems:

5.3. 1 Type: Heating and cooling air conditioner

# 5.3. 2 Refrigeration capacity ≥ 3700 W

# 5.3. 3 Heat capacity ≥ 3600 W

5.3. 4 Input voltage: 220V/50Hz

5.3. 5 Number of units ≥ 20

5.4 Power transmission and supply systems:

5.4. 1 The equipment box is equipped with a power transmission and supply control cabinet, the height above the ground is ≥ 1000mm, and the waterproof grade is not lower than IP65.

5.4. 2 The power supply control cabinet is equipped with 380V, 120kW interface ≥ 1, external cable reel ≥ 1, and the length of a single cable reel ≥ 30m.

5.4. 3 The power supply control cabinet is equipped with 380V, 30kW interfaces ≥ 3, external cable reels ≥ 3, and the length of a single cable reel ≥ 30m.

5.4. 4 The power supply control cabinet is equipped with 380V, 10kw interfaces ≥ 3, external cable reels ≥ 3, and a single cable reel length ≥ 30m.

5.4. 5 The power supply control cabinet is equipped with 220V, 16A sockets ≥ 15, external cable reels ≥ 15, single cable reel length ≥ 30m, single cable reel is equipped with 10A dual-purpose sockets ≥ 3, 16A sockets ≥ 2.

5.4. 6 The power supply control cabinet is equipped with 220V, 10A two sockets ≥ 3.

5.4. 7 Equipped with 220V, 16A sockets ≥ 10, a single socket length ≥ 5m, a single cable reel is equipped with 10A dual-purpose sockets ≥ 2, and 16A sockets ≥ 1.

5.5 Lighting system:

5.5. 1 Type: Electrically controlled pneumatic type, retractable, elevation and rotation can be controlled electrically, traced from the inside.

5.5. 2 Height above ground: ≥ 6 m.

# 5.5. 3 Lighting: 4 x 2000 W.

5.5. 4 Protection level: IP67.

5.5. 5 The lamp head can be tilted and rotated horizontally, and the left and right arms of the head can be rotated separately or simultaneously. Wireless remote control distance ≥ 150m, wired control distance ≥ 10m, rising time: ≤ 120 s, descending time: ≤ 120 s, horizontal rotation: 360., horizontal rotation time: ≤ 50 s, elevation angle:-90 °, dip angle: 90 °, tilt time: ≤ 50 s.

5.5. 6 Maximum allowable wind speed: Meet the wind resistance level 7 standard.

5.5. 7 Control mode: wireless remote control and control box button, one-key automatic reset.

5.5. 8 The lighting fixtures can reach the maximum illumination within 15 minutes after the generator (group) is successfully started.

5.5. 9 The illumination intensity of the lighting system at each test point at 50m is not less than 51x.

5.5. 10 Air source: Independent air pump. The sliding rate of the lifting lever of the lighting system is less than 6cm within 1 hour after reaching the maximum height.

6. Flip Steps

6.1 Material: Steel frame or aluminum alloy profile integrated, anti-skid panel design.

6.2 Structure: Preferential use of pneumatic telescopic rod control, reliable opening and closing. When closing, rolling shutter door can be used to press lock.

6.3 The safety pin is installed on the flap step according to the situation; After the flap step is lowered, the outer side should be turned towards the front and rear sides of the fire truck, and the yellow warning light should be flashed and the reflective strip should be pasted; The driver's cab has a warning device for rolling shutter doors and flip-board steps that are not closed, and has a sound control switch (the warning light cannot be turned off).

7. Quick Inflation Charging Device

7.1 It can intelligently charge the vehicle battery, intelligently inflate and replenish the brake gas tank when it is connected to the gas supply source of the fire station, and can be separated automatically or manually.
