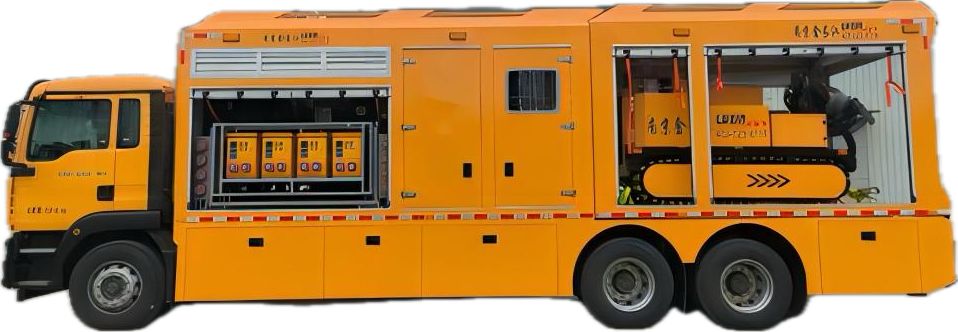

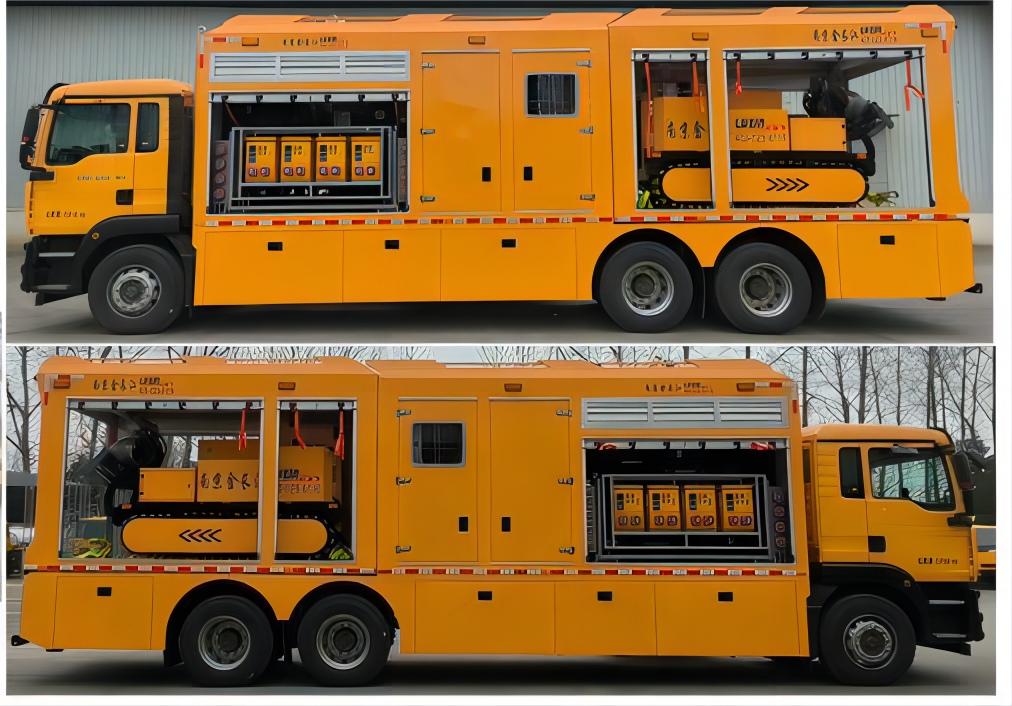

SITRAK Drainage Robot Rescue Truck with Large Flow 4200m3/h Remote Robot Pump
Special vehicle: generator set, drainage device, control system, etc., mainly used for emergency rescue needs, emergency power generation, emergency rescue;
large-flow drainage (Rmote Robot) rescue vehicle is mainly composed of Special vehicle chassis, generator set, drainage system, Hydraulic system, mobile robot pumping station, electrical system, lighting system, lounge (optional) and accessories, etc. Areas of application:
1. Removal of stagnant water on urban roads, highway tunnels, especially suitable for low environments such as underground garages and subways;
2. Drainage and clean up polluted water surface;
3. Fire emergency water supply;
4. Flood control and emergency rescue, drainage in submerged areas;
5. Drought rescure water supply and temporary water transfer.
Product technical features:
1. Submersible pumps and mobile robot pumping stations are selected according to customer needs, which can realize large-flow drainage operations;
2. The operation of submersible pump is convenient and flexible, saving manpower;
3. The mobile robot pumping station has the advantages of wide working range, small volume, fast running speed and strong climbing ability, and can drive into the ground and get off the car The luffing mechanism meets the drainage requirements of metro tracks for environmental drainage such as reservoirs and metro stations;
4. Near-ground/remote control, high degree of intelligence;
5. Mobile robot pumping station or large flow self-priming pump can be selected according to customer needs;
6. The vehicle is equipped with ABS, ESC, EBS systems to ensure the safety of the vehicle;
Overall dimensions: | 11000,10200,9800×2550×3950,3700(mm) | Fuel Type: | Diesel oil |
Gross Weight | 25000(Kg) | ||
Net weight | 24870,24805(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 16/10(°) | Front/rear overhang: | 1450/2400(mm) |
Axle Load: | 7000/18000(Rear 2 Axles) | Wheelbase: | 3875+1400,3900+1350,4275+1400, 4300+1350,4575+1400,4600+1350, 4975+1400,5000+1350,5375+1400, 5400+1350,5775+1400,5800+1350(mm) |
Axle Number | 3 | Maximum speed: | 89(km/h) |
Tire Number | 10(PCS) | Tire Specifications: | 12.00R20 16PR,11.00R20 18PR,12R22.5 18PR, 295/80R22.5 18PR,315/80R22.5 18PR/315/80R22.5 16PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/4,3/5,3/10,11/10,11/12,3/-/- |
Front wheel track: | 1998,2035(mm) | Rear wheel track: | 1850/1850(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
WP7.270E61;WP7.300E61;MC07H.35-60;MC07H.33-60;MC07H.29-60;MC07.33-60;MC09.35-60;MC07.31-60;MC07.27-60;MC07.34-60;WP8.350E61;WP6H270E61;MC09.38-60;MC07.25-60;WP8.320E61;WP7H270E62;WP7H300E62;WP7H320E62;MC07H.31-61;MC07H.35-61;WP8.350E62;MC07H.35P-61;WP8T36 | Weichai Power Co., LTD. China Heavy Duty Automobile Group | 7470;7470;7360;7360;7360;6870;8765;6870;6870;6870;7800;6220;8765;6870;7800;6800;6800;6800;7360;7360;7800;7360;8240;8240;6870 | 199;220;257;240;213;240;260;228;202;251;257;199;279;188;235;199;221;235;228;254;257;258;265;279;213 |
No. | Item | Technical Requirement |
1 | vehicle | 1. Fuel : diesel oil; 2. Emission standards: Euro 5、6 3. Number of bid passengers: 3 people 4. Maximum speed: 85 km/h; 5. Flat roof with sleeper cab, heating and cooling air conditioning, power steering; driver seat: standard air suspension seat. Left and right power windows, manual sunroof. Electric adjustable wide-angle main mirror, engineering vehicle mirror housing, The side looks at the ground mirror. 7. The total mass of the vehicle is 25,000 kg 8, diesel engine, chassis rated power of 257 kW 9, approach / departure angle: 19 / 12 ° 10, front suspension / rear suspension: 1430 / 2300 (mm) 11, wheelbase 5800 + 1350 (mm) 12.30% climbing, minimum turning radius of 25m, |
13, braking: air pressure, double circuit, drum brake; 14, vehicle length is 11m, vehicle width is 2.6m, vehicle height is 4m; 15, the vehicle must be a qualified product announced by the Ministry of Industry and Information Technology, the technical parameters and appearance of the vehicle and the Ministry of Industry and Information Technology "vehicle production enterprises and products" announcement of the announcement of the name for the large flow row Water rescue vehicles, rescue vehicles, remote water supply and drainage rescue vehicles | ||
2 | Box Body | 1. The car body shall have the functions of transportation, rain proof, anticorrosion, fire prevention, rust proof, dust proof and sound insulation, external material is high quality cold rolled steel plate, lining is high quality cold rolled steel plate bending skeleton, with advanced technology and strong strength; car surface shall be spray paint process, text, pattern; 2, crawler robot adopts the form of full carriage landing or hydraulic mechanism, car carriage or hydraulic upgrading mechanism is integrated in the second class car chassis. 3. The top of the carriage is flat, and the top should be equipped with outdoor remote control lighting equipment; 4. The tuyere of the box unit should be equipped with rain-proof, dust-proof opening and closed aluminum alloy blinds, and automobile operation When the power station is parked, the box should be closed to prevent rain and dust from entering the box; 5, with a special smoke exhaust system, smoke exhaust system should be external, the chimney is automatically open the chimney, working, smoke The chimney cover automatically open, after shutdown, the chimney cover automatically closed; 6. The compartment is equipped with a generator set access door, and the door should be set on both sides and rear of the rear pump bin. 7. Install the ladder on the top of the car between the carriage and the cab to facilitate the maintenance and the roof of the car There is a flying wing protective fence around the ministry. 8. Unit installation structure is arranged in a reasonable and orderly manner; with seismic function, the interior space is spacious and convenient Maintenance operation. 9, the car chassis frame structure reinforcement and shock treatment, wheel fender. 10, the generator set is installed in the power generation room, fixed by bolt structure, easy to remove, the generator set is desirable An overhaul; 11. The surface of the carriage floor should be decorated with non-skid steel plate, and the warehouse wall cloth of the unit should be paved with through-hole plate Set, the inner interlayer is filled with sound-absorbing rock wool; 12. All the electrical wiring in the carriage is reasonable and beautiful; The length of the child car carriage is 4 meters |
3 | Main Truck | 1. Total flow rate is 1,800 m3/h。Equipped with three portable submersible pumps with a single pump flow of 600m3/h, head of delivery 8m, head 10m, flow 500m3/ h, single pump weight 25kg; 2, configure one control and one control cabinet, control cabinet protection level IP 44, weight 19 KG, the pump has a separate control system, visual operation interface, with leakage, current overload, missing items, overvoltage, under voltage, Overfrequency, underfrequency, motor overheating and other protection. 3, each pump equipped with special diving cable, length of 20 meters, and the fast joint between the control cabinet, Joint waterproof level reaches IP67 and above. 4. Portable submersible pump drainage pipe is lined with polyurethane canvas hose, hose internal diameter: DN 200mm, single portable submersible pump is equipped with 50 m hose, 25 m / roll, working pressure 0.8 mpa, blasting pressure 2.4 mpa, the pipe incision should be equal. Portable pump quick joint is made of stainless steel with anti-loose insurance device to facilitate the quick connection of water pipe; 5. Equipped with generator set: rated output power 100KW, rated current 180A, rated frequency 50 HZ, frontal voltage 230 / 400V; speed regulation mode: electronic speed regulation. Equipped with floating charging, start battery, battery total gate; With an 8-hour base oil tank. 6. There are hydraulic turning toolbox on the left and right sides of the skirt, which can place portable submersible pumps or other flood control materials, and use hydraulic turning mechanism, which can be used as a car climbing ladder after turning. 7, the top of the car is equipped with lifting lights, 2 * 1000=2000W, lamp working voltage: AC220V, lifting height 1.8 meters, left and right horizontal rotation 360 °, up and down vertical rotation 330 ° rotation, wireless remote control operation, can adapt to all-weather work, convenient night construction. 8, the middle of the compartment configuration lounge, lounge area of 2 ㎡, the internal configuration of external heating and cooling air conditioning, The door is equipped with observation window, sleeper and water dispenser, the floor with wooden floor, the interior wall with wood pattern board, convenient for emergency personnel on duty to rest. |
4 | Remote Robot Pump | 1. The flow rate of crawler mobile water pump (subsystem) is 2400m3/ h (equipped with double pump head, Can also be drained at the same time), the head of 15m. 2. The fuel tank volume is 250L, and the oil volume fully meets the full load operation of the pump for more than 8 hours. 3. Integrate the water pump and other special drainage equipment into the crawler chassis, adopt anti-stripping steel crawler + rubber block, Will not cause damage to the ground, long service life, is a walking crawler mobile pump station. 4, the car with power, no chassis to provide power, the operation radius is not limited, power 160 kW; 5, pump power source: the engine to provide power, no need to connect hydraulic tubing, convenient and fast; 6. Small volume, length, width and height of 330019001800 (mm), generally low environment; and the car has the function of pump exploration and drop, increasing the drainage space and the front range From 1m away, the drop distance is 1m below the ground. 7. The weight of crawler mobile water pump (subsystem) is 4000kg; 8. Adopt water-cooled structure to achieve good cooling effect; 9. The pumping position of subsystem can be controlled according to actual water condition; without any manual handling Or other auxiliary equipment, can realize the remote operation of the mobile pump station away from the bus drainage operation; 10, system control: remote control + emergency manual control (used for remote control failure, can be emergency manual Operation transfer); 11. The maximum wading depth of the car is 500mm, and the body tightness is good 12. Protection performance level of subsystem electronic control system IP55 13. Control mode: control the full hydraulic mechanism, operate the electronic module button and realize wireless remote control system shall be able to control the start-stop, speed regulation, force collector clutch and fluid of the subsystem engine Pressure system pressure regulation and other functions, the operation of the remote control should be simple and fast; 14. The car is equipped with 100 meters lined polyurethane canvas hose, hose diameter DN200mm, drainage pipe fast joint is made of German standard joint, aluminum alloy material, a total of 8 sets, each section of water pipe is equipped with one set. Installed in Both ends of the drainage hose, convenient connection between the water pipe and the water pipe; |
5 | Other | 1. Two portable dry powder fire extinguishers are placed on the vehicle with complete accessories and tools complete. 2. Install the reversing image. |
6 | Material quality | 1. The portable submersible pump body is made of high strength aluminum alloy. The pump impeller and fluid conductor are made of high strength stainless steel, and the impeller surface is coated with Vickers hardness 1400, with CMA and CNAS recognition Certificate of the third party test report, portable submersible pump equipped with stainless steel filter screen, high strength floating ring. 2. The compartment body is made of SPCC high-quality cold-rolled steel plate with a thickness of 1.5mm. The skirt is made of SPCC high-quality cold-rolled steel plate with a thickness of 2mm. The skeleton adopts Q235 high strength rectangular tube and the inner chassis Q235 pattern steel plate, thickness of 3mm. |
