FLG-5220TGP16E,FLG-5220TGP32E
-
Dongfeng
-
8705909990

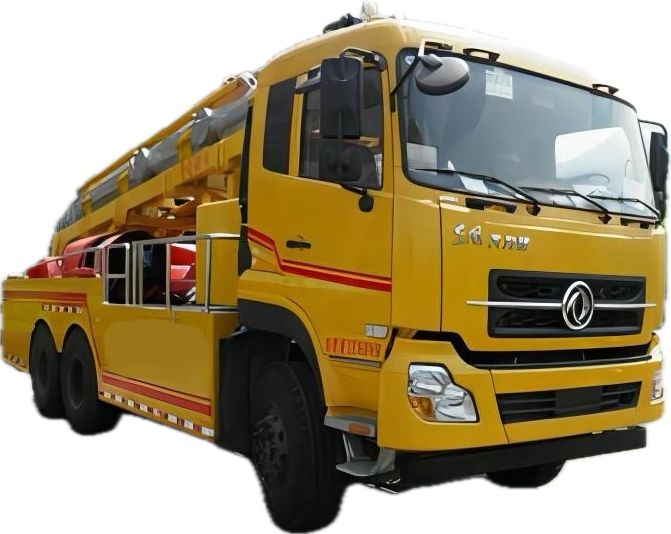

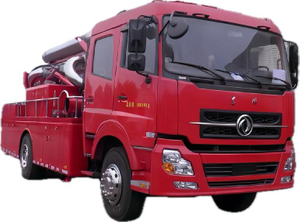

Custom Mobile Emergency Rescue Drainage Truck 3000m3/h
Special vehicle used for emergency Water supply or Flood drainage pumping
Hydraulic pump (1) hydraulic drive, no blockage, large flow;(2) Maximum flow of a single pump: ≥3000m³ / h;(3) Single pump maximum lift: ≥15m;(4) The minimum depth of the suction port of the pump from the water surface: ≤0.2m;(5) Pump speed ≤1200r/min(6) The pump port is installed with a pollution cover to effectively intercept floating objects and stones;(7) The power source comes from the automobile engine full power extractor output;(8) Pump and hydraulic motor directly connected structure.

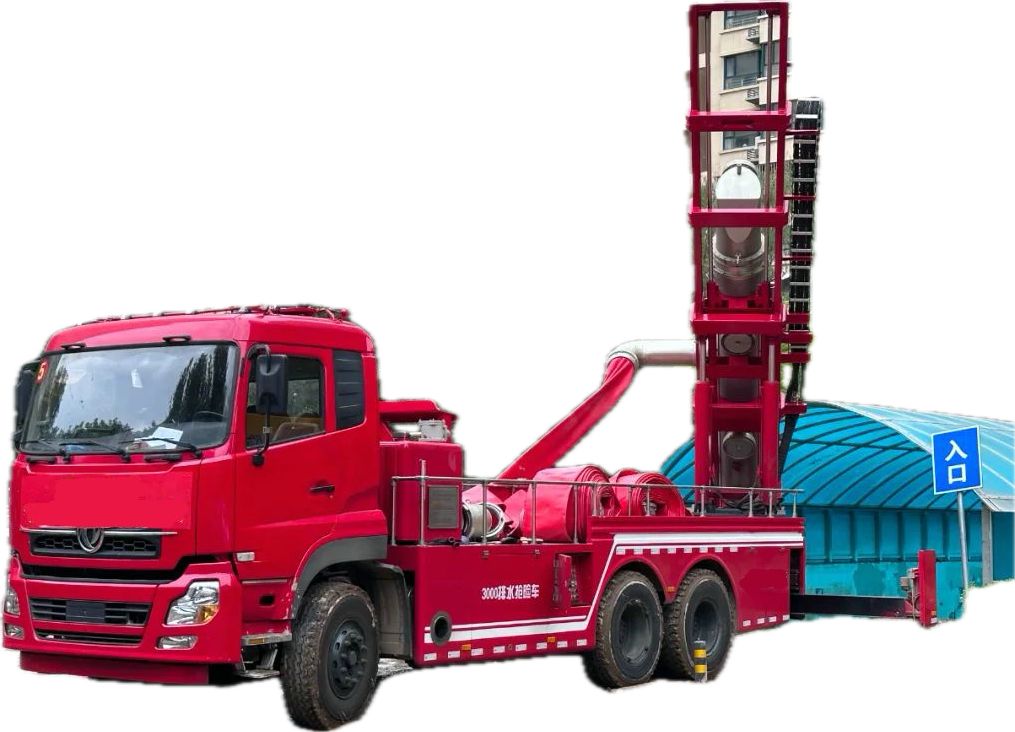

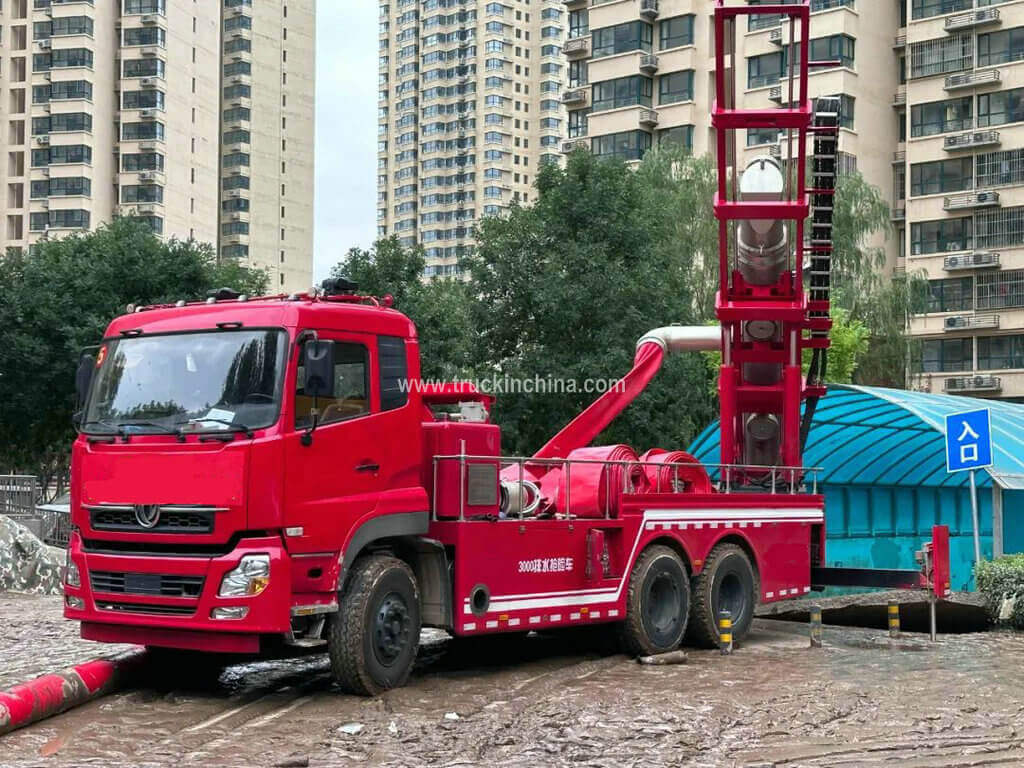

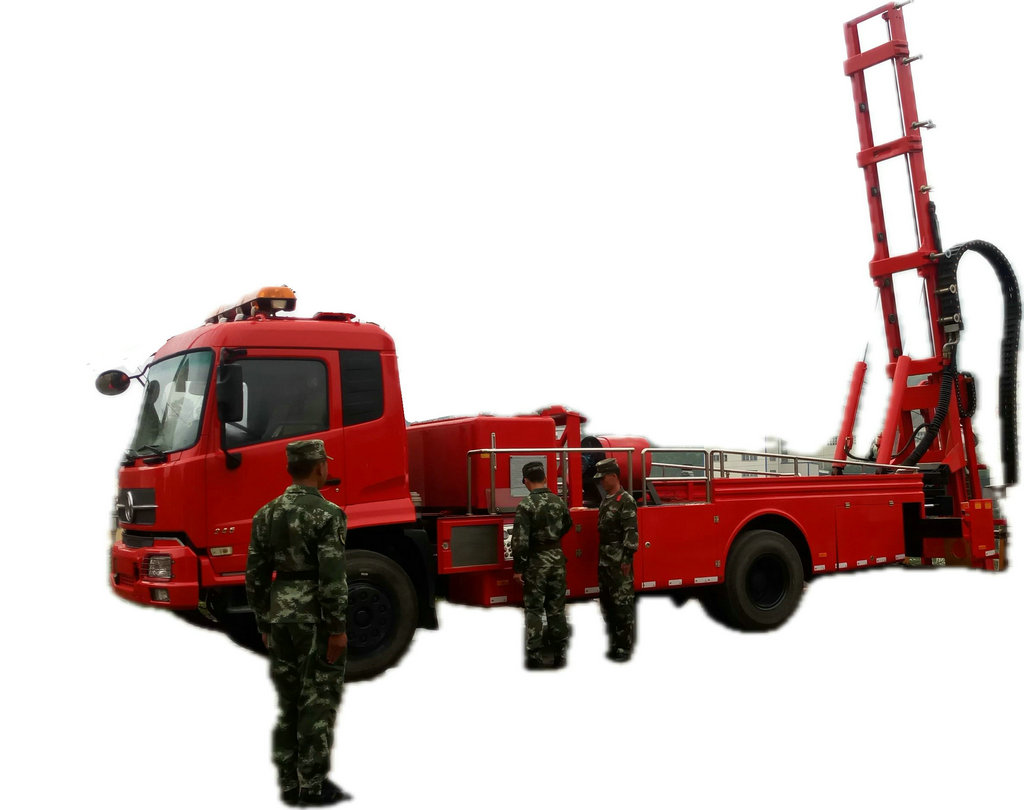

1) In vertical operation, the maximum effective depth of pumping water pump below the ground should be ≥8m;

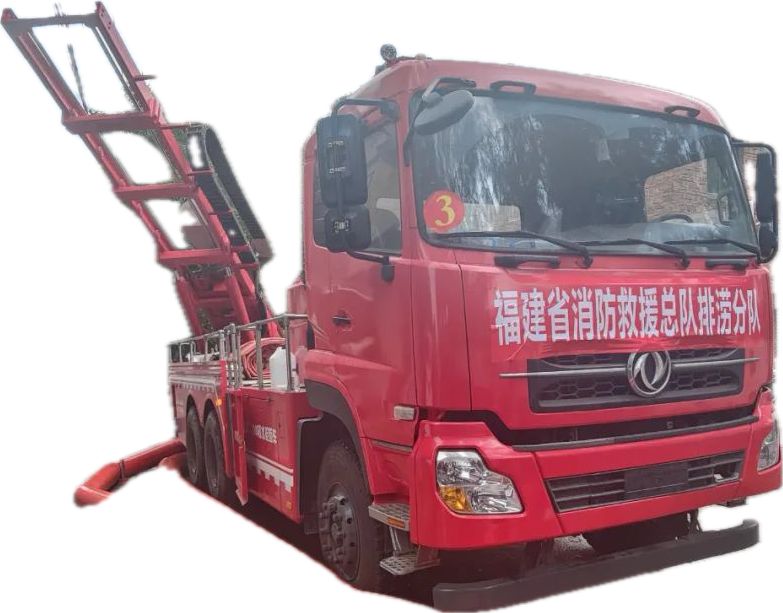

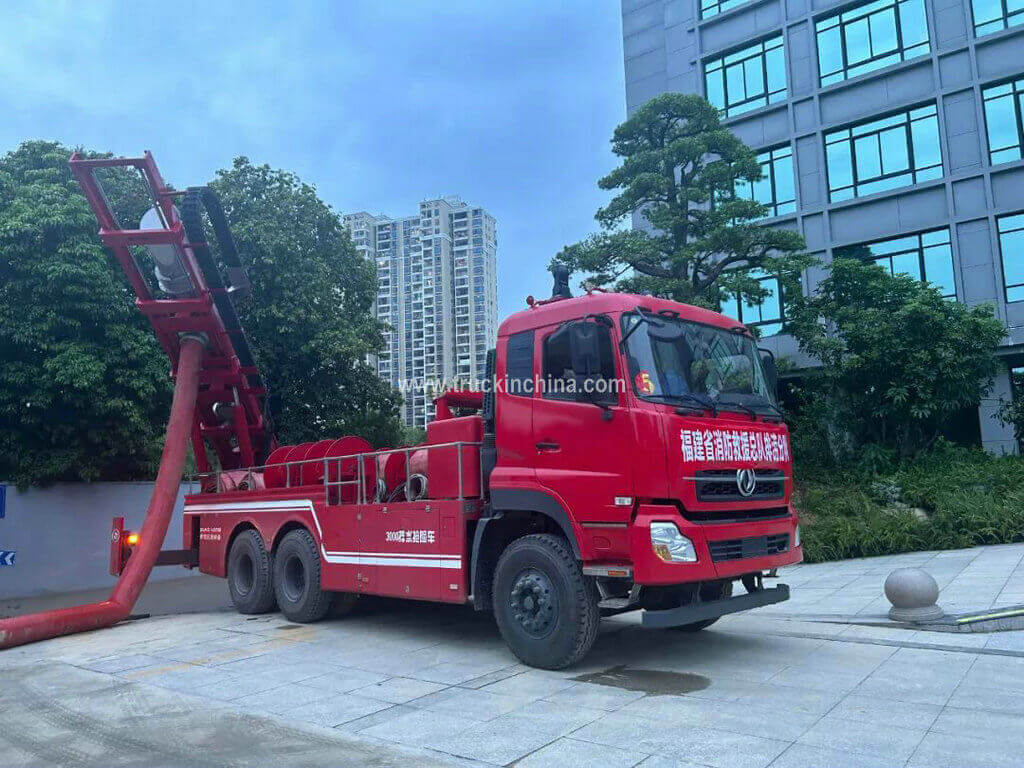

(2) the maximum lifting Angle of the pump and pump pipe should be ≥90°;
(3) During operation, the work platform can be translated and stretched, and its maximum length should be ≥1m;
(4) The pump tube can slip and stretch (that is, there is a pump tube in the pump tube and stretch), and the maximum slip and stretch amount should be ≥9.0m;
(5) The pump tube working platform can be rotated to the left or right in the horizontal plane along the car chassis, and the rotation Angle is -90° ~ 90° (that is, the maximum rotation Angle is the center line of the pump tube can be 90° with the longitudinal Angle of the car chassis).
item | Pump Options | ||||
Flow rate m3/h | 1000 | 1500 | 1500 | 3000 | 5000 |
Lift Head (m) | 22 | 17 | 35 | 15 | 10 |
Purpose:
Drainage pump, drought, water supply
Application field:
Municipal and highway emergency drainage; Surprise flood control and drainage, cofferdam pumping; Drought relief, agricultural irrigation; Aquaculture; Pumping and drainage in areas without fixed pumping stations and power supply. Especially suitable for well drainage operations, urban roads, overpasses, underpass Bridges, tunnel drainage, highway main line and access ramp and other places of water removal.
Full hydraulic, no electricity safety, easy to operate
Integrated large emergency flood drainage vehicle, no additional power source, directly using the engine on the chassis of the original car as a power source, driving the hydraulic pump can be pumped and drainage operations, characteristics requirements: large displacement, convenient operation, safe and reliable. The pump and pump tube working platform on the drainage car should have a number of functions such as "translation, rotation, lifting, sliding, telescopic", and the special requirement is that the pump tube working platform on the drainage car should be able to rotate left or right along the chassis in the horizontal plane, and the rotation range is -90° ~ 90°; The pump and pump tube can be vertically extended into the well (≥φ1300 round well or 1200×1200 square well) for pumping and drainage operations. And equipped with lighting system can adapt to all-weather work
Overall dimensions: | 9950×2500×3800(mm) | Fuel Type: | Diesel oil |
Gross Weight | 22425,22360(Kg) | ||
Net weight | 22230(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 25/10(°) | Front/rear overhang: | 1500/3100(mm) |
Axle Load: | 4765/17660 ,4700/17660 | Wheelbase: | 3800+1350,4000+1350,4250+1350,4600+1350,5700+1350,3650+1350,5350+1350(mm) |
Axle Number | 3 | Maximum speed: | 90(km/h) |
Tire Number | 10(PCS) | Tire Specifications: | 11.00R20 18PR,12.00R20 16PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 10/13,10/10,9/13 |
Front wheel track: | 2040,2010(mm) | Rear wheel track: | 1850/1850,1860/1860,1880/1880(mm) |
Overall dimensions: | 9900×2500×3660(mm) | Fuel Type: | Diesel oil |
Gross Weight | 22425,22360(Kg) | ||
Net weight | 22230(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 30/10(°) | Front/rear overhang: | 1500/3050(mm) |
Axle Load: | 4765/17660,4700/17660 | Wheelbase: | 3650+1350,3800+1350,4000+1350,3800+1450,4250+1350(mm) |
Axle Number | 3 | Maximum speed: | 90(km/h) |
Tire Number | 10(PCS) | Tire Specifications: | 11.00-20,11.00R20,12.00-20,12.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 8/12,9/13,10/12,10/13 |
Front wheel track: | 2050(mm) | Rear wheel track: | 1850/1850(mm) |
Engine | Engine manufacturer | Displacement (ml) | Power (kw)/ horsepower (ps) |
dCi350-40 ISL9.5-340E51A dCi350-51 YC6L310-50 | DFAC | 11120 9460 11120 8424 | 257 251 257 228 |
Application: Municipal and highway emergency drainage; Surprise flood control and drainage, cofferdam pumping; Drought relief, agricultural irrigation; Pumping and drainage in areas without fixed pumping stations and power supply. Main components: The integrated large emergency flood drainage vehicle is mainly composed of a second-class vehicle chassis equipped with Sandwich PTO, a hydraulic drive pump and a hydraulic system of the pump station, a pump working platform and a hydraulic control mechanism, a hydraulic pipeline, a control system, a lighting system and accessories.
Control system (1) adopts full hydraulic control, electronic module key operation, centralized control;
(2) The operation control system should be able to clearly reflect the engine speed, the pump speed, the control of each system has a clear mark, the operation is simple and convenient;
(3) Auxiliary actions are operated by radio remote control.
The cooling system of the pump requires the cooling system of the pump to adopt a built-in water cooling structure to improve the cooling effect.
Operation remote control searchlight (1) two or more lamp heads, can rotate around 360 degrees;
(2) Up and down direction: 0-180 degrees of rotation, can adapt to all-weather work.
The tank capacity is 320L, which can meet the oil volume of the pump running fully for 6 hours.
Drainage hose structure: the drainage pipe is a hose with high strength, wear resistance, pressure resistance, wrinkle resistance, tension and aging resistance, and the inner wall of the hose and the outer wall should be firmly bonded to form a uniform pipe wall;
Size: Hose inner diameter :300±3mm, tube wall thickness :2.3±0.3mm;
Weight: no more than 2.6kg per meter;
Length: Total length ≥120 meters, divided into 4 sections;
Pressure: working pressure 0.3MPa, bursting pressure is not less than 1MPa;
Anti-aging: stored in a cool and dark place, the service life is not less than 10 years;
Other requirements: Pipe mouth incision should be flush. The diameters of each water pipe must be consistent.
Quick joint aluminum alloy, 300 caliber, a total of 4 sets, each section of water pipe equipped with a set. It is installed at both ends of the drainage hose to facilitate the connection between water pipes and water pipes.
Drainage hose winch The car is equipped with drainage hose winch, and the hose is automatically collected on the winch.
Hydraulic support system The vehicle is equipped with two support legs to share the pressure in the parking state, ensure smooth operation of the pump, protect the wheel and spring plate, remote control operation, each support leg of the support system can be adjusted individually and is hydraulically driven.
Other (1) Service life ≥15 years;
(2) Vehicle accessories and tools are complete;
(3) Long rows of engineering warning lights are installed on the front, with a microphone;
(4) Equipped with 2 portable dry powder fire extinguishers, placed in the car easily accessible place;
